INTRODUCTION
Congratulations on purchasing the Reveal 16, the complete foldable and transportable
magnification system with the best image quality on the market. With its simple and intuitive
interface, you will be back to doing the things you love in no time.
Carefully read the operating and safety instructions described in this user guide prior to using
your Reveal. If you have any questions about your system, please contact HumanWare
Customer Service by consulting the contact information in the back of this user guide.
Copyright 2018 by Technologies HumanWare Inc., all rights reserved. No part of this
publication may be reproduced or distributed in any form or by any means, or stored in a
database or retrieval system, without the prior written permission of Technologies
HumanWare Inc.
GETTING TO KNOW YOUR REVEAL
This section provides basic information to help you familiarize yourself with your Reveal.
BOX CONTENT
Reveal CCTV
Printed User Guide
Getting Started Sheet
Power Adapter
North American Power Cable
European Power Cable
UK Power Cable
Australia Power Cable

2

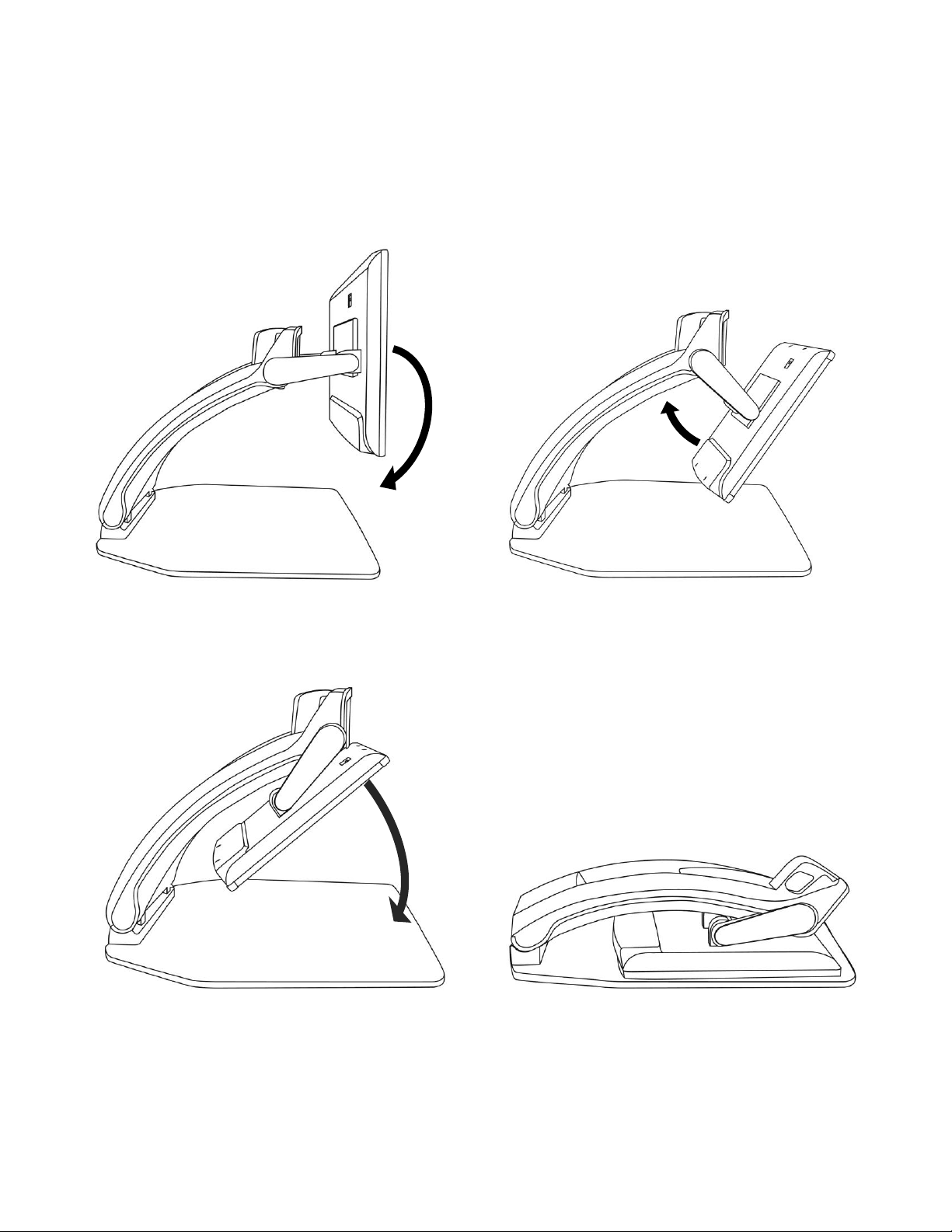

SETTING UP
The Reveal was designed with simplicity in mind. Follow the steps below to quickly get your
device up and running.
1. Carefully remove your Reveal from its box. It will be folded in its carrying position.
2. Place your Reveal on a flat and stable surface, such as a table, while making sure the
HumanWare Logo is upside down in front of you.
3. With one hand, hold the reading tray down onto the table, and with your other hand, lift
up the top of the bridge (where the camera is located). The bridge should lock into
place in its open position. This may require a bit of force.
4. Carefully hold the screen by the sides and pull the bottom of the screen towards you
until you reach a comfortable viewing position.

3

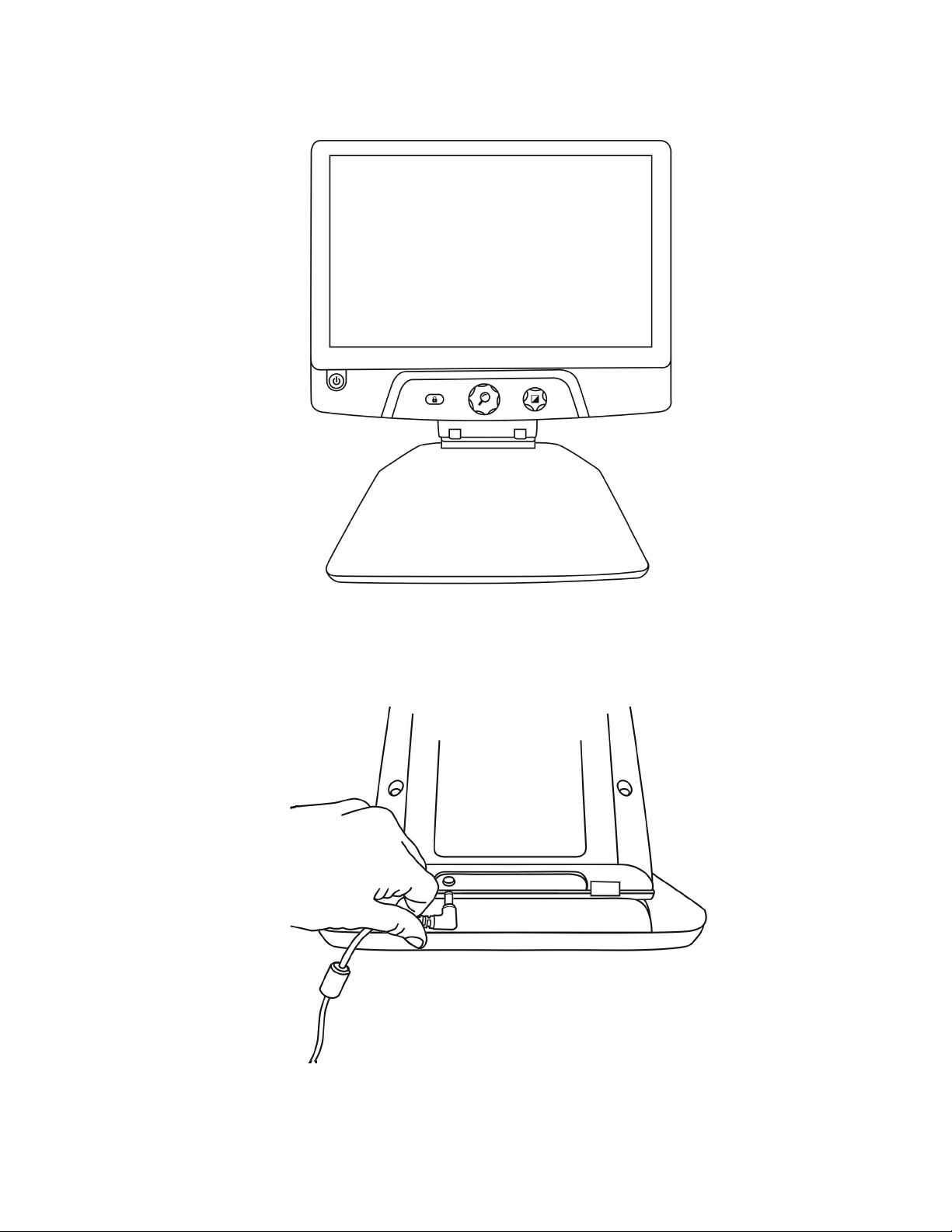

5. There will be multiple cables in your box
oA universal power adapter cable
oCountry-specific power cables
6. Plug the power cable into the back of your Reveal.

4
7. Plug the power cable into a power outlet.
Note: Your Reveal's Power button should now light up red meaning your device is
powered and ready to use. If you have an optional battery installed, the light will be orange
meaning your battery is recharging.
8. Press and hold the red Power button for 1 second and your Reveal will open
immediately.
Press the Power
button for
1 second

5
OVERVIEW OF YOUR REVEAL

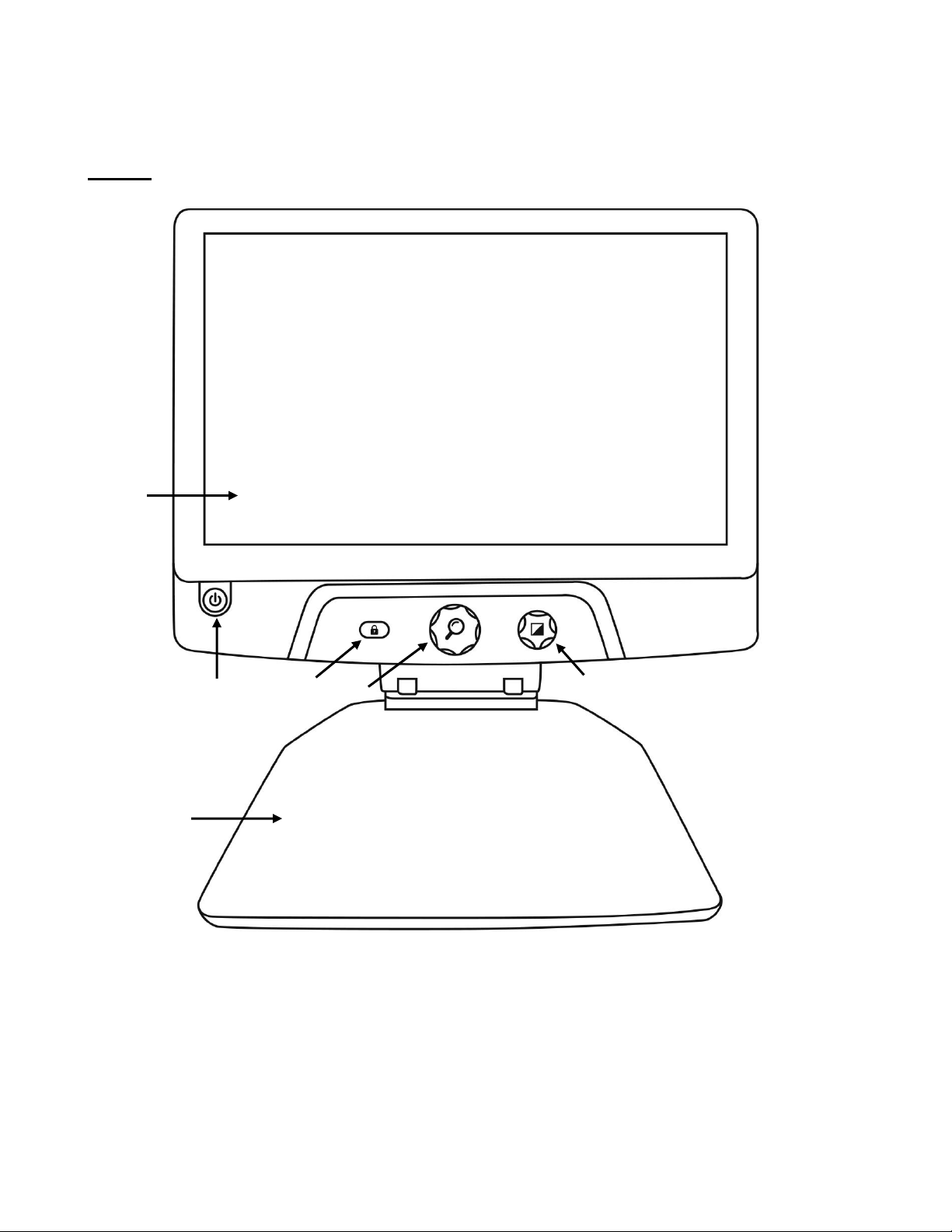

Front
1. Screen
2. Power button
3. Autofocus Lock button

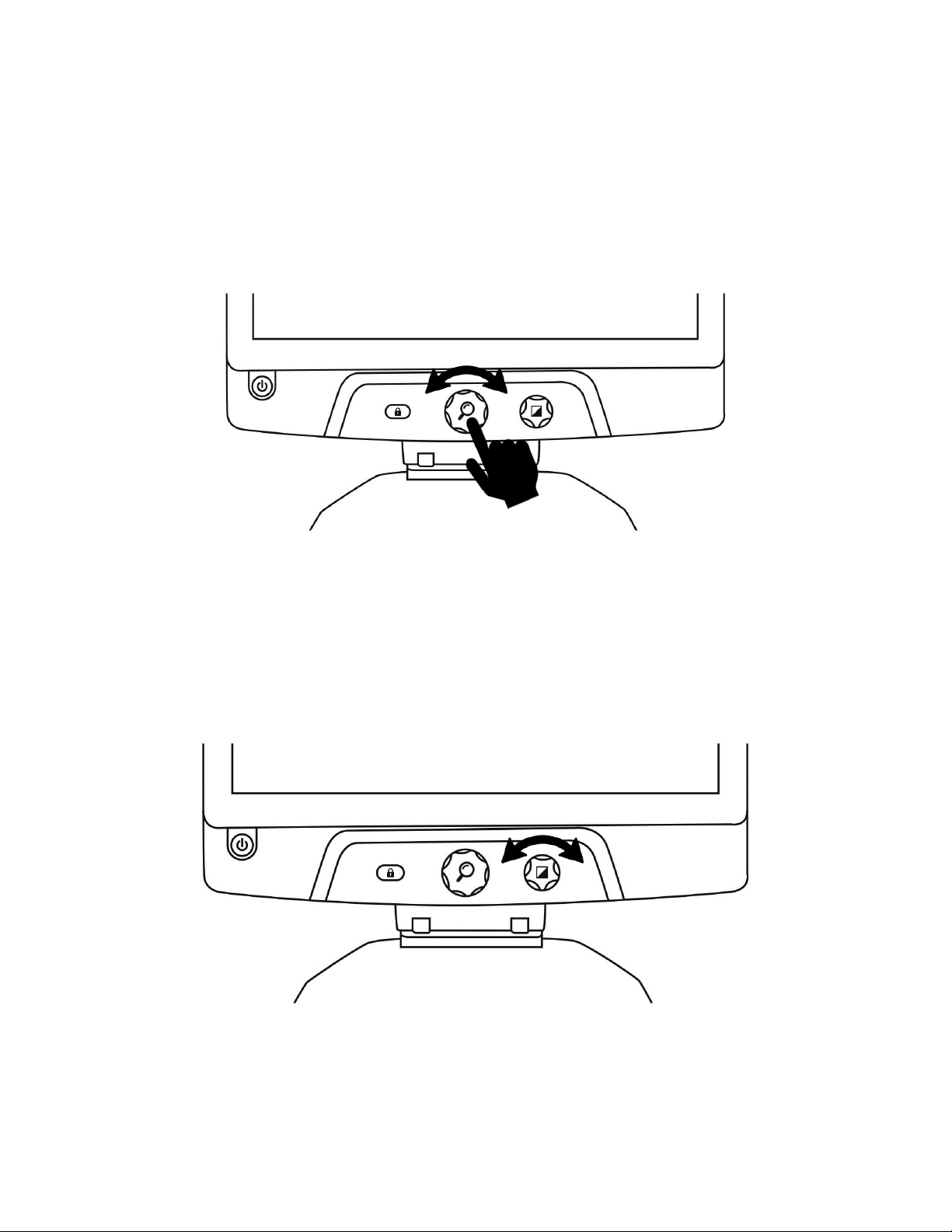

4. Zoom button
5. Contrast button
6. Reading tray
1
2
3
4
5
6

6
Side
1. Bridge
2. Rotatable camera
3. HDMI port
4. Screen
5. Reading tray
1
2
3
4
5

7

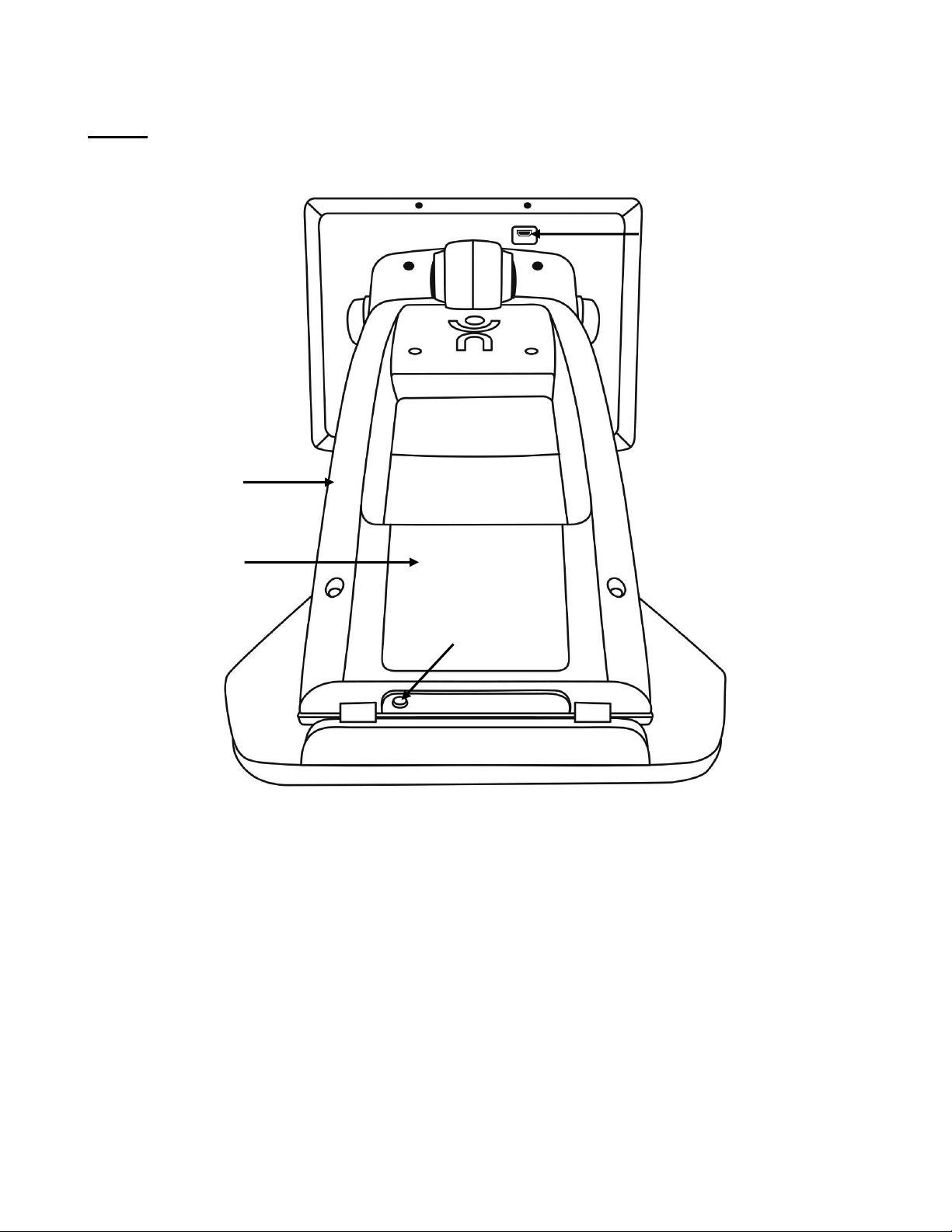

Back
1. HDMI port
2. Bridge
3. Battery (optional)
4. Power connector
1
4
2
3
