Humphree Lightning User manual

INSTALLATION MANUAL
INTERCEPTOR
LANGUAGE: ENGLISH DOC NO: 032210-02
En

[This page intentionally left blank.]

COPYRIGHT
© HUMPHREE 2023. All rights reserved. No part of this document may be
reproduced in any form without permission from the publisher.
DISCLAIMER
The contents of this document are subject to revision without notice due to
continuous product improvement. Humphree shall have no liability for any
inaccuracies or omissions contained in this document or any dierences
between the product and the document.
COPYRIGHT
© HUMPHREE 2023. All rights reserved. No part of this document may be
reproduced in any form without permission from the publisher.
DISCLAIMER
The contents of this document are subject to revision without notice due
to continuous product improvement. Humphree shall have no liability
for any inaccuracies or omissions contained in this document or any
differences between the product and the document. Deviations from the
installation manual will void your warranty.

4
1. SAFETY INFORMATION
2. ABOUT THIS MANUAL
1.1 WARNINGS AND IMPORTANT NOTICES
1.2 SAFETY PRECAUTIONS
2.1 INTENDED PRODUCT USE
2.2 INTENDED AUDIENCE
3. PRODUCT OVERVIEW
3.1 STANDARD INTERCEPTOR MODELS
3.3 SYSTEM OVERVIEW
3.4 COMPONENTS
3.5 REQUIRED TOOLS
4. INTERCEPTOR MOUNTING
GUIDELINES
4.1 STANDARD INTERCEPTOR MODELS
4.2 STERN OR OUTBOARDS
4.3 CHINE INTERCEPTORS
4.4 INTERCEPTOR PLACEMENT
4.4.1 VERTICAL TRANSOM
4.4.2 ANGLED TRANSOM
4.5 INTERCEPTOR BLADE ADJUSTMENT
06
07
08
12
CONTENTS
09
10
11
13
14
15
4.4.3 INTERCEPTOR PLACEMENT WHEN THE TRANSOM IS
KNOWN
16
4.4.4 INTERCEPTOR PLACEMENT WHEN THE TRANSOM
ANGLE IS NOT KNOWN
18
3.2 CHINEINTERCEPTOR MODELS

5
6. MOUNT THE INTERCEPTOR
6.1 MOUNT THE INTERCEPTOR BRACKET
6.2 MOUNT THE INTERCEPTOR BRACKET
(CHINE ONLY!)
7. MOUNT THE CONTROL UNIT
7.1 LCU PLACEMENT GUIDELINES
7.2 MOUNT THE LCU
8.1 CONTROL PANEL PLACEMENT
8.2 LCP INSTALLATION OPTIONS
8.3 TOP MOUNT THE LCP
8.4 FLUSH MOUNT THE LCP
7.1.1 DEFAULT ORIENTATION
7.1.2 ALTERNATIVE ORIENTATIONS
8. MOUNT THE CONTROL PANEL
9. WIRING DIAGRAM
27
47
50
64
6.3 MOUNT THE INTERCEPTOR BRACKET
6.4 ADJUST THE CABLE GLAND
6.5 MOUNT THE CABLE COVER
5. PREPARATIONS
20
29
32
40
42
48
51
52
58

66
1. SAFETY INFORMATION
1.1 Warnings and Important Notices
Three types of warning or notication signs are used in this manual. The signs are
listed as follows in order of severity:
1. SAFETY INFORMATION
Please read the manual carefully before installing or operating the Humphree
system. Pay extra attention to the safety notices listed under section 1.1 Warnings
and Important Notices.
WARNING!
Information shown with the WARNING! sign can lead to serious
personal injuries or death if it is disregarded.
IMPORTANT!
Information shown with the IMPORTANT! sign can lead to system or
property malfunctions or damage if it is disregarded.
NOTE!
Notes contain important information regarding the Humphree
system.

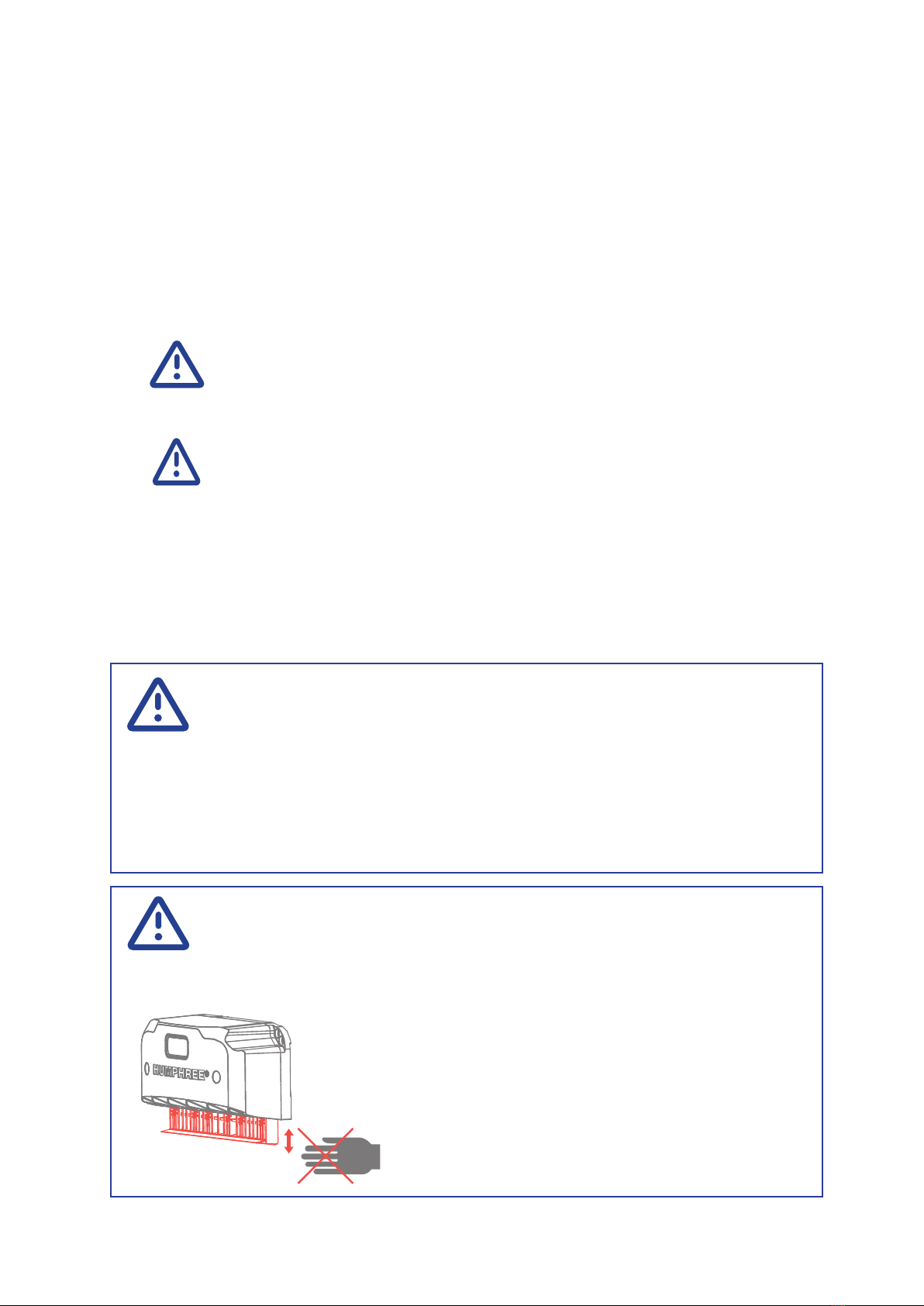

1.2 Interceptor Safety Precautions
When installing the interceptors, make sure that there is no electrical current
connected to them.
Isolate shore electrical current to the engine block, battery charger, or
accessories mounted on the engine.
Sharp edges, watch your ngers.
WARNING!
IMPORTANT!
NOTE!
WARNING!
WARNING!

7
2. ABOUT THIS MANUAL
2.1 Intended Product Usage
2. ABOUT THIS MANUAL
LIGHTNING by Humphree is a stabilization system designed for motorboats with
the following specications:
• Length of 20-45 feet
• Speed of 10-50 knots
The system must not be used for purposes other than the intended usage.
The purpose of this manual is to give instructions on how to correctly install the
hardware components of the LIGHTNING by Humphree system.
This installation manual is available digitally as a PDF le, and can be downloaded
in the following ways:
• Scan the QR code that is displayed on the product packaging and attached
documentation.
• Use the following Humphree URL address:
www.humphree.com/downloads/manuals
2.2 Intended Audience
This manual is aimed at the installer of the LIGHTNING by Humphree system,
including ship-builders, and other authorized workshops with qualied personnel.
The following installation instructions are intended for professionals only.

88
3. PRODUCT OVERVIEW
3. PRODUCT OVERVIEW
3.1 STANDARD INTERCEPTOR MODELS
L300
L450
3.2 CHINE INTERCEPTOR MODELS
L300C
L450C
NOTE!
The following instructions show the installation process using the Standard
model. With the exception of steps labeled “CHINE ONLY”, these instructions
apply to all interceptor models.

9
3. PRODUCT OVERVIEW
3.3 SYSTEM OVERVIEW
CABLE GLAND BELOW THE
WATERLINE
CABLE GLAND ABOVE THE
WATERLINE

1010
3. PRODUCT OVERVIEW
3.4 COMPONENTS
2x INTERCEPTOR
2x INTERCEPTOR BRACKET
2x CABLE COVER
CONTROL UNIT
CONTROL PANEL CABLE
CONTROL PANEL CABLE
NMEA DROP CABLE
CHINE ONLY:
2x INTERCEPTOR BRACKET ADD-ON
DRILL TEMPLATES
• Interceptor Drill Template
INCLUDED SCREWS
Component Amount Size Part Number Bits (not included)
Control Panel 4 2.9x13 mm 040284 PH1
Control Unit 4 4.2x25 mm 023740 T20
2x16 6.3x32 mm 023597 T30
Interceptor 2x2 M8x75 mm 011239 6 mm
Cable Cover 2x11 3.5x12 mm 023691 T15
NOTE!
• Control Unit & Control Panel
Drill Template

11
3. PRODUCT OVERVIEW
3.5 REQUIRED TOOLS (FOR GRP HULLS)
ALLEN KEY:
Ø 6 mm
COUNTERSINK
HOLE SAW:
Ø 28 mm
Ø 70 mm
TORX:
T25
T30
T35
T15
WRENCH:
22 mm
34 mm
POWER DRILL
SAW
TORQUE WRENCH
ANTI-CORROSIVE COMPOUND
MARINE SEALANT
OPTIONAL EQUIPMENT:
• M3 SCREW NUT
• M3 THREADED ROD
• OSCILLATING MULTI TOOL
OTHER:
• BIT HOLDER
• CABLE TIE

1212
4. INTERCEPTOR MOUNTING GUIDELINES
4. INTERCEPTOR MOUNTING GUIDELINES
4.1 STANDARD INTERCEPTOR MODELS (L300, L450)
RECOMMENDED
The interceptor will work correctly.
ACCEPTABLE
The interceptor will work with reduced lifting force.
NOT ACCEPTABLE
The interceptor is in the way, hindering a clear water ow for the propeller.

13
4. INTERCEPTOR MOUNTING GUIDELINES
4.2 FOR STERN DRIVES / OUTBOARDS
Mount the interceptor so that it does not disturb the water ow of the propeller.
4.3 CHINE MODELS - L300C & L450C (CHINE ONLY)
RECOMMENDED
Hull example 1:

1414
4. INTERCEPTOR MOUNTING GUIDELINES
4.3 CHINE MODELS - L300C & L450C (CHINE ONLY)
RECOMMENDED
Hull example 2:
Example 1: Do not use a chine interceptor model on a hull with no chine.
Example 2: Do not mount the interceptor in the way of the water ow of the
propeller.
NOT ACCEPTABLE

15
4. INTERCEPTOR MOUNTING GUIDELINES
For angled transoms, do not place the interceptor level with the hull bottom.
Incorrect interceptor placements does the following:
• Aects vessel movement even when the blade is retracted.
• Causes unnecessary wear on the interceptor.
IMPORTANT!
90°
WATER FLOW
4.4 INTERCEPTOR PLACEMENT
4.4.1 VERTICAL TRANSOM
For vertical transoms, place the interceptor level with the hull bottom.
4.4.2 ANGLED TRANSOM
WATER FLOW
WATER FLOW

1616
4. INTERCEPTOR MOUNTING GUIDELINES
a = 0° a = 10°
p = 4.5 mm
a
p
4.4.3 INTERCEPTOR PLACEMENT WHEN THE TRANSOM ANGLE IS KNOWN
If the transom angle is known, place the interceptor according to the following
table:

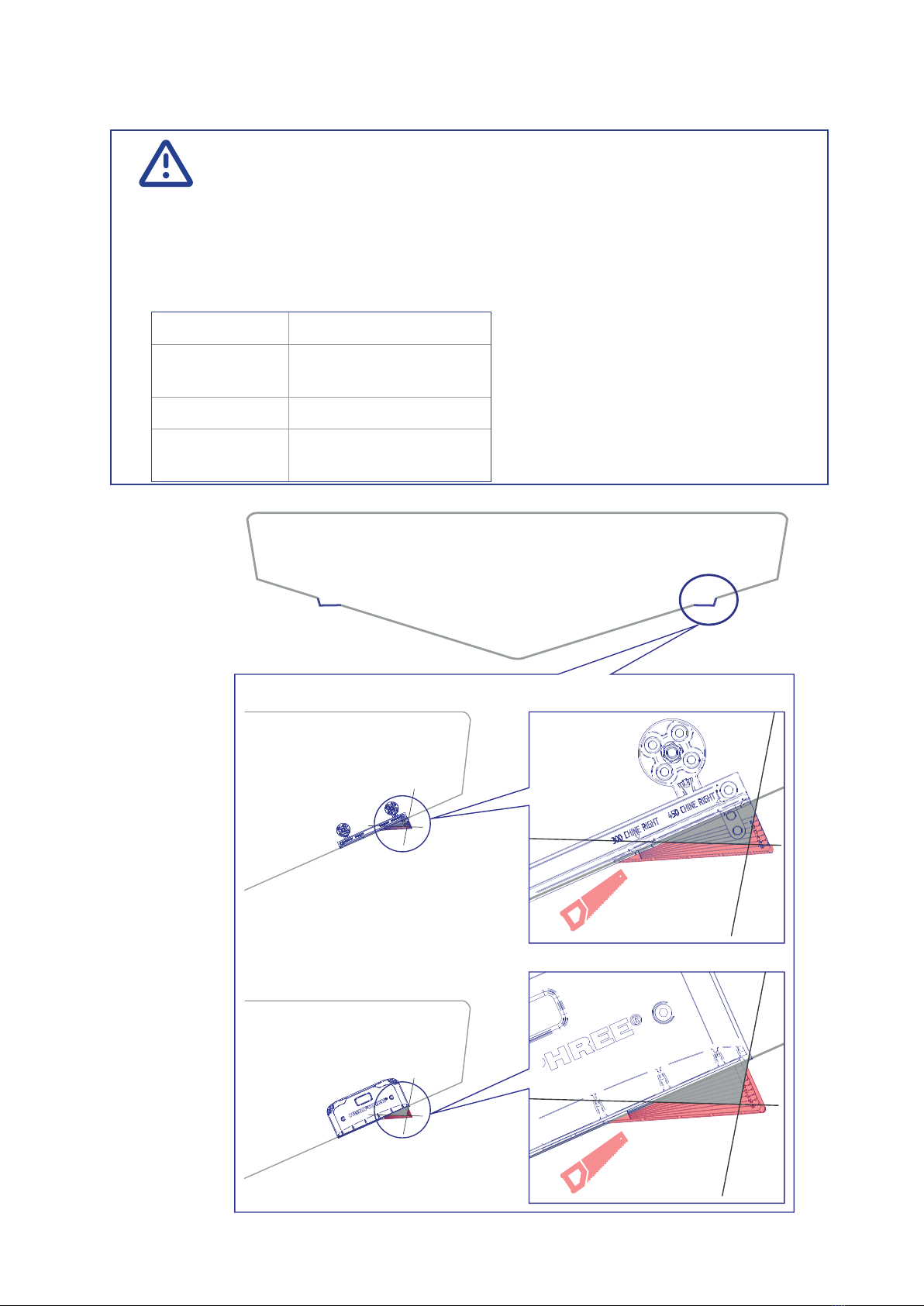

Transom Angle (a) Placement above the hull bottom (p)
0° 0 mm
5° 1.5 mm
8° 2.5 mm
13° 7.5 mm
10° 4.5 mm
15° 9.5 mm
13° 7.5 mm
IMPORTANT!
When the interceptors are mounted above the hull transom an
interceptor blade oset calibration is mandatory. Failure to calibrate
the interceptor blade oset might induce unwanted boat roll when
using automatic control functions!
Please see section INTERCEPTOR OFFSET CALIBRATION in the Setup
Manual!

17
4. INTERCEPTOR MOUNTING GUIDELINES
4.4.4 INTERCEPTOR PLACEMENT WHEN THE TRANSOM ANGLE IS NOT KNOWN
If the transom angle is not known, do the following:
1

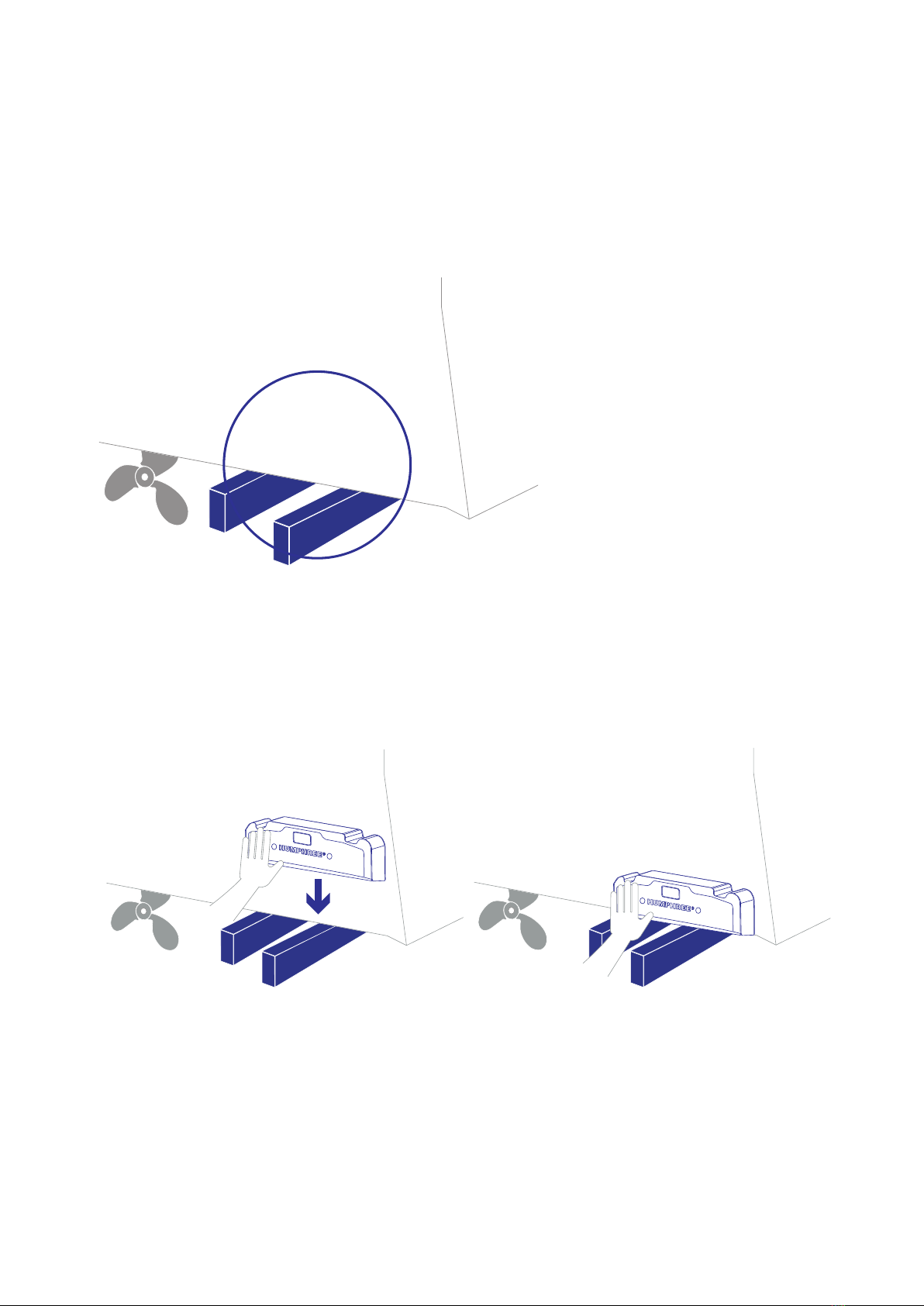

PLACE TWO WOODEN BOARDS under the hull, where the interceptor will be
mounted.
2PLACE THE INTERCEPTOR AGAINST THE TRANSOM and move it down until
the front touches the boards.

1818
4. INTERCEPTOR MOUNTING GUIDELINES

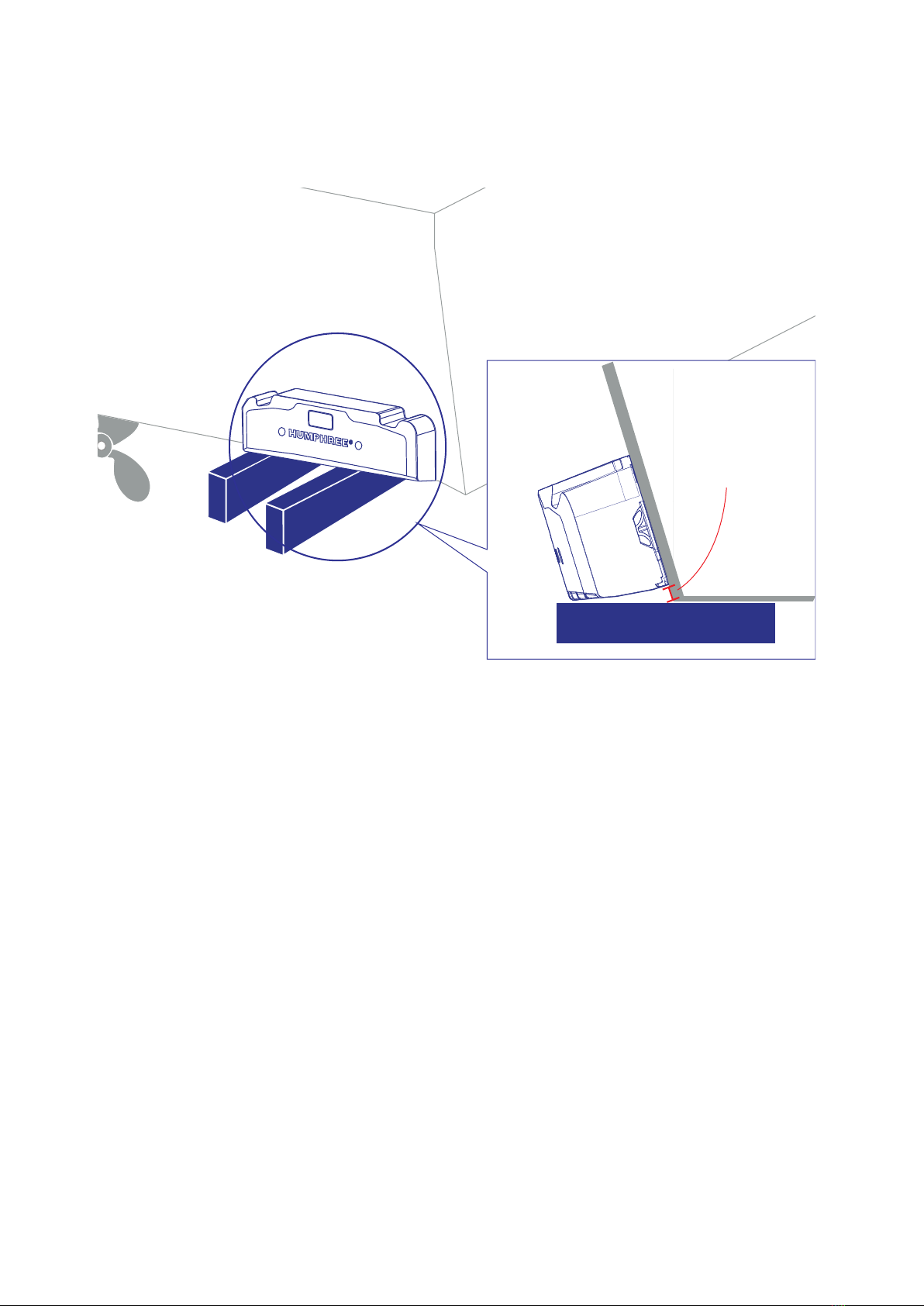

xmm
3
MARK THE POSITION of the interceptor.

19
4. INTERCEPTOR MOUNTING GUIDELINES
4.5 INTERCEPTOR BLADE ADJUSTMENT (CHINE ONLY)
Chine models require a chine add-on to the interceptor bracket.
• Attach the chine add-on to the interceptor bracket before mounting the
bracket on the transom.
• Mount the interceptor bracket add-on according to the following guidelines:
Chine Angle Drill Hole
under 8°no chine add-on
needed
8 - 16°use the top drill hole
over 16°use the botom drill
hole
CHINE TYPE 1
IMPORTANT!
1
2

2020
4. INTERCEPTOR MOUNTING GUIDELINES
CHINE TYPE 2
1
2
