Wireless Rain-Clik® Sensor
CLIK RECEIVER
OWNER'S MANUAL
For use with WR-CLIK Rain and WRF-CLIK Rain/Freeze Sensors

2
Table of Contents
3Wireless Rain-Clik Features
3Key Benets
4Wireless Rain-Clik Components
4Wireless Rain-Clik Sensor
5Wireless Receiver
6Mounting the Receiver
6Wiring the Receiver to Hunter Controllers
7Wiring the Receiver to Other Controllers: Normally
Closed Sensor Applications
7Wiring the Receiver to Other Controllers: Normally
Open Sensor Applications
8Surface Mounting
8Gutter Mounting
9Adjustments and Operation
9Tips for Mounting the Sensor
9Receiver Operation
10 Bypassing the Sensor
10 Setting the Transmitter Address at the Receiver
11 Battery Life
11 To Check the Status of the Battery in the Transmitter
11 System Will Not Turn On at All
11 System Will Not Shut O Even Aer Heavy Rainfall
11 Sensor Bypass LED Is Flashing Red
12 Replacement Parts and User-Installed Options
13 Notices
13 FCC Notice
14 Innovation, Science and Economic Development
Canada (ISED) Compliance Notice
14 CE
15 Notes
Need more helpful information on your product? Find tips
on installation, controller programming, and more.
https://hunter.info/rainclik

3
Wireless Rain-Clik Features
To prevent water waste, built-in Quick Response®
Technology instantly shuts down irrigation as soon
as it starts raining.
Key Benets
1. Quick Response: Innovative technology that turns
o the irrigation system immediately rather than
aer it has accumulated a xed amount of rain. No
calibration is required.
2. Maintenance-Free Design: Provides trouble-free
operation for at least 5 years. There are no batteries
to replace.
3. Wireless Operation Up to 800' (243 m): No wires
are required between the rain sensor and controller.
4. Wireless Rain-Clik Sensor (WR-CLIK): Acts as a switch
to deactivate automatic watering of your irrigation
controller when it rains. Once rain has stopped and the
sensor has dried out, automatic irrigation will resume.
5. Wireless Rain/Freeze-Clik Sensor (WRF-CLIK):
The Wireless Rain/Freeze-Clik includes a freeze
sensor that is designed to keep the irrigation
system from operating when temperatures drop to
37˚F (3˚C) or below. When temperatures rise above
this temperature, the sensor will enable automatic
watering.
6. Automatic Synchronization: The Wireless Rain-Clik
transmitter will send wireless signals every hour to
the receiver to ensure that the sensor and receiver are
continuously synchronized.
7. Lost Communication/Battery Status Indication: The
Sensor Bypass LED will ash RED if the receiver has not
received a signal from the transmitter. This can indicate
a low or dead battery.

4

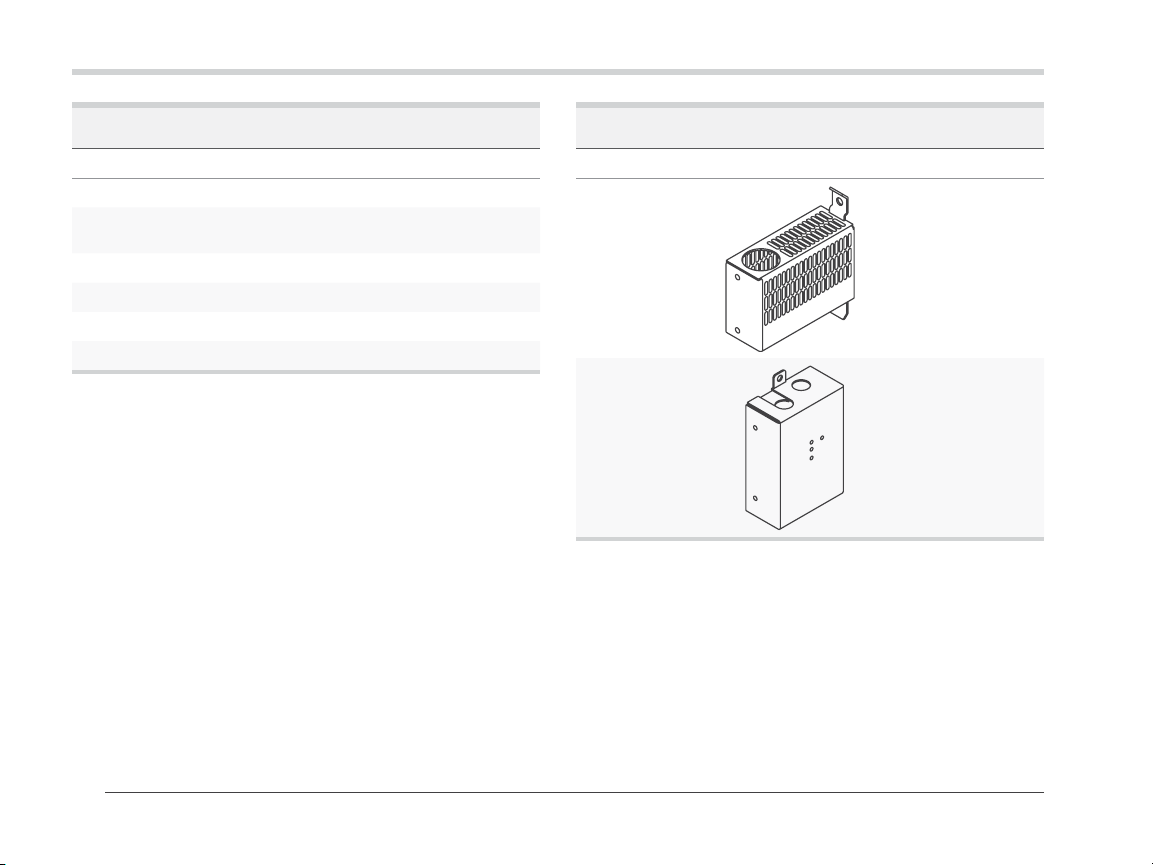

Wireless Rain-Clik Sensor
1. Manual Test Spindle: Press and hold the manual test
spindle to conrm proper operation of your transmitter.
2. Vent Ring: Used to adjust the reset rate or dry out time
for the sensors. Opening the vents will decrease the
reset rate, while closing the vents will increase the time
it takes for the discs to dry out.
3. Radio Antenna: Transmits a wireless signal to the
receiver up to 800'(243 m). The antenna should be
oriented vertically.
4. Mounting Arm: Metal extension arm for mounting
the sensor.

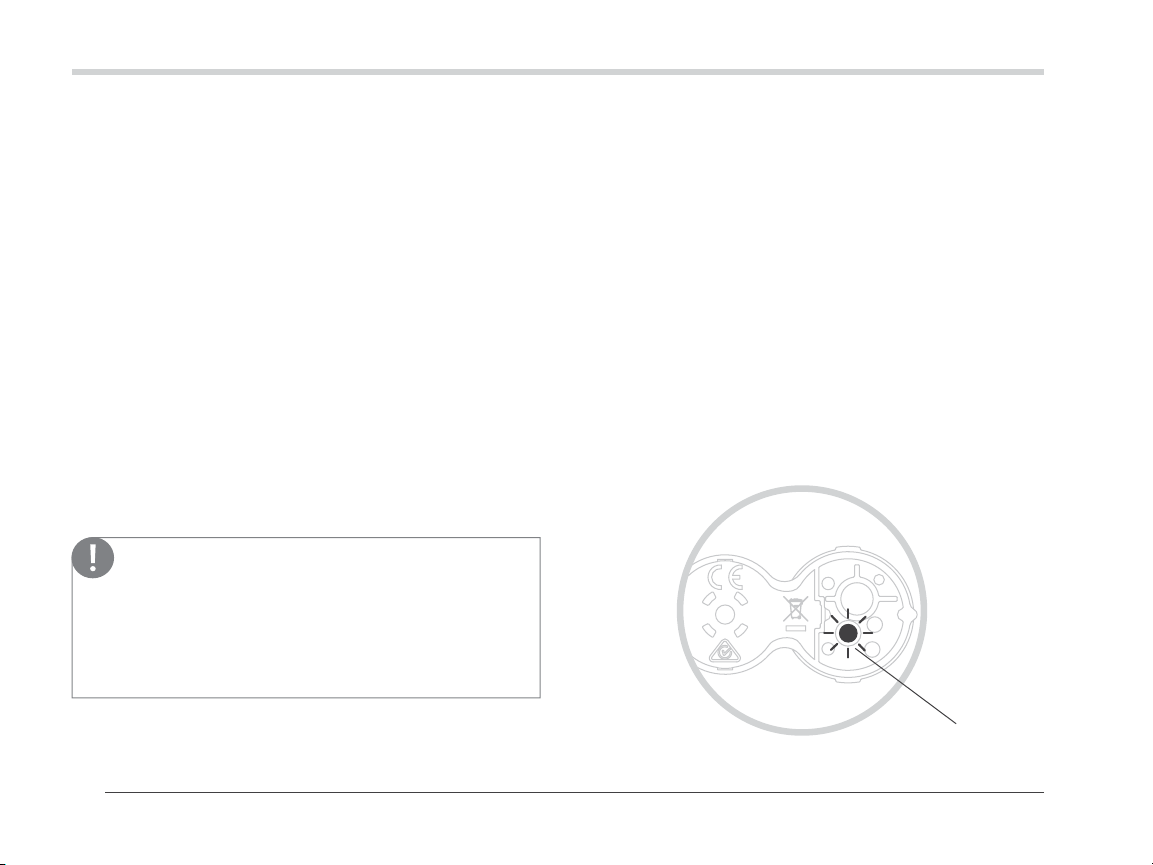

5. Battery Status LED: Used to determine the status of
the sealed battery. Pushing the manual test spindle will
flash the LED light indicating that the battery is good.
Wireless Rain-Clik Components

②
③
➍
⑤

5
Wireless Rain-Clik Components
Wireless Receiver
1. Bypass Button: Allows automatic or manual watering
when the sensor is active.
2. Receiver Status LED: Used to indicate the status of
the sensor.
3. Receiver Bypass LED: Indicates when sensor has
been bypassed.
4. Radio Antenna: Receives a wireless signal from the
transmitter up to 800' (243 m) line-of-sight. The
antenna should be oriented vertically.
5. AC Power Wires: The two yellow wires are attached to
a 24 VAC source from the controller.
6. Receiver Wires: The sensor wires are attached to either
the sensor terminals in the controller or in-line with the
valve common wire.
• Blue/White Wires: Used for normally closed sensor
applications (Hunter controllers).
• Blue/Orange Wires: Used for normally open sensor
applications.
7. Rubber Cover: Used to protect the receiver when
mounted in outdoor locations.



Yellow to 24 VAC power
Blue/orange wires to
normally open sensor
terminals
Blue/white wires
to normally closed
sensor terminals
Yellow
Blue
White
Orange





6

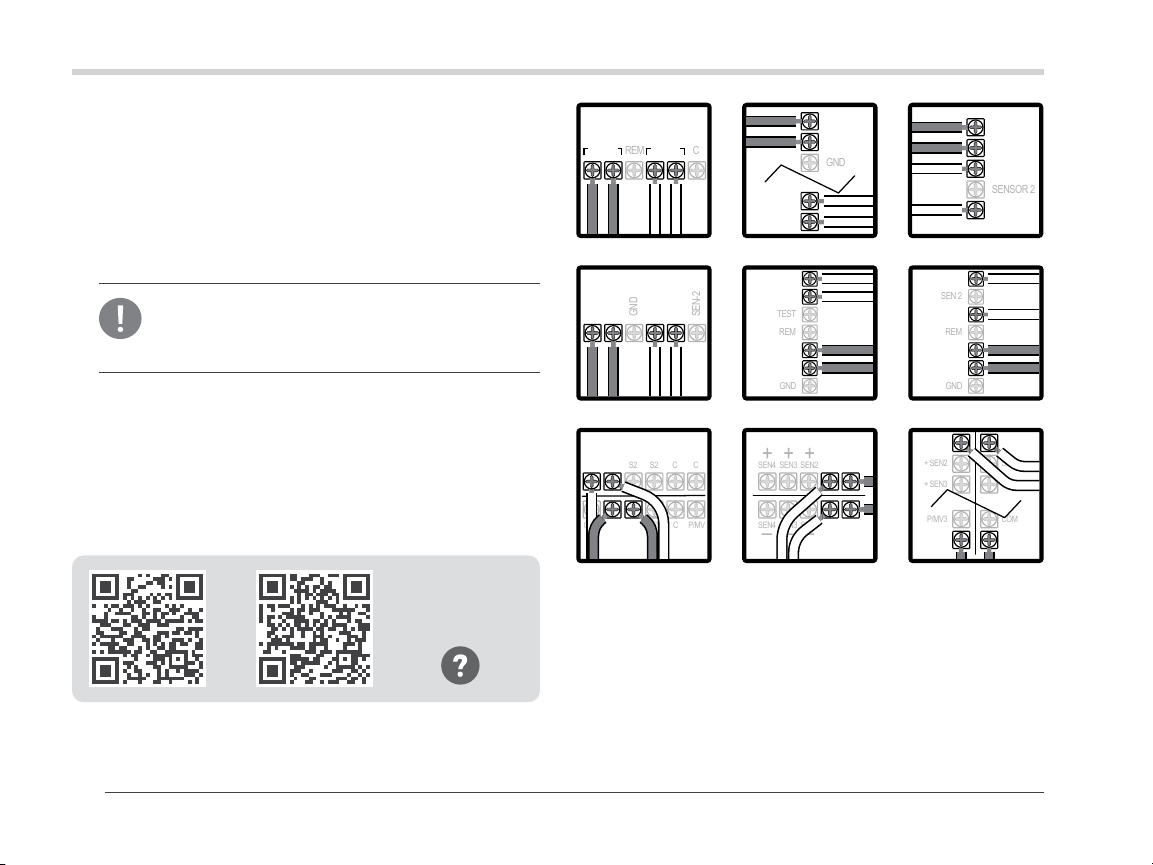

Wiring the Receiver to Hunter Controllers
1. Remove the sensor jumper across the two SEN
terminals in the controller.
2. Attach the two yellow wires to the 24 VAC terminals.
3. Attach the blue wire to one SEN terminal and the white
wire to the other SEN or SEN COM terminal.
• Hydrawise Controllers: Complete the installation by
conguring the sensor in your Hydrawise account.
• ACC Controllers: Use features at the “Set Sensor
Operation” dial position on ACC to complete setup.
• ACC2 Controllers: Use “Devices and Sensor Response”
options on ACC2 to complete setup.
Note:
Additional setup steps required for
Hydrawise®, ACC, and ACC2 controllers.
X2™ and X-Core
Pro-HC
I-Core
Pro-C or HPC
ICC2
ACC
HC
HCC
ACC2
24VAC SEN
REM
C
SEN
SEN
AC2
AC1
GND
24V
24V
SENSOR 1
SENSOR 2
COMMON
24 VAC 24 VAC
GND
SEN-1 SEN COM
SEN-2
TEST
SEN
SEN
REM
24VAC
24VAC
GND
SEN C
SEN 2
SEN 1
REM
24VAC
24VAC
GND
S1 S1
S2
S2
C
C
GND
AC1 AC2
REM
C
P/MV
+
–
+
–
+
–
+
–
24
SEN1
SEN1
SEN2
SEN2
SEN3
SEN3
SEN4
SEN4
VAC
COM
24VAC COM
P/MV3
COM
+ SEN1 SEN1 –
+ SEN2
SEN2 –
+ SEN3
SEN3 –
https://hunter.help/hydrawisesensor
https://hunter.help/acc2sensor
SCAN
for help
Mounting the Receiver

7
Mounting the Receiver

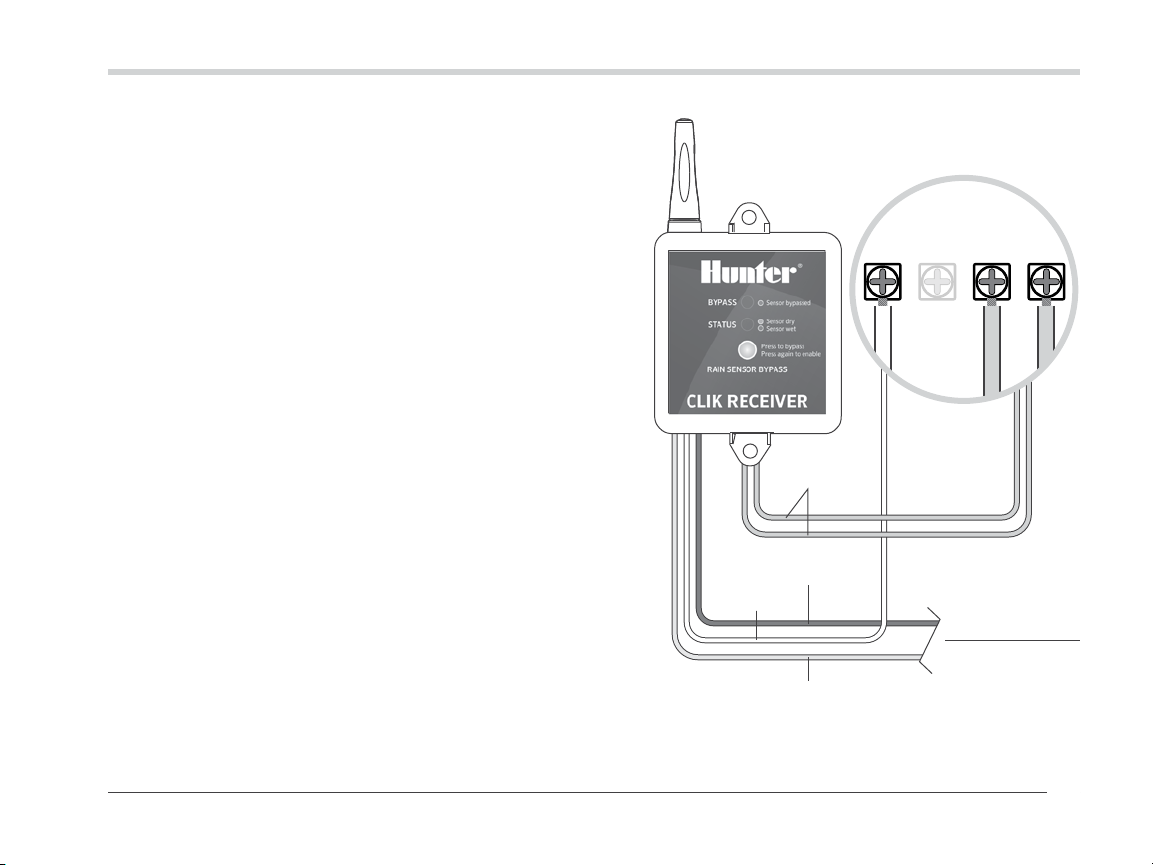

Wiring the Receiver to Other Controllers: Normally
Closed Sensor Applications
1. Attach the two yellow wires to the 24 VAC terminals.
2. Attach the blue and white wires to the sensor terminals
(if available) or in-line with the valve common wire.
Wiring the Receiver to Other Controllers: Normally
Open Sensor Applications
1. Attach the two yellow wires to the 24 VAC terminals.
2. Attach the blue and orange wires to the sensor input.
Common wire to
all valves
Used for
normally
open sensor
applications
CP/MV AC AC
Yellow
Blue
White
Orange

8
Mounting the Sensor
Surface Mounting
Using the screws provided with your sensor, mount the
transmitter on any surface where it will be exposed to
unobstructed rainfall, but not in the path of sprinkler
spray. The sensor should be oriented upright (as pictured),
but the swivel bracket can be moved for mounting on
any angled surface. Loosen the locknut and screw before
swiveling the bracket, and then re-tighten.
Gutter Mounting
The SGM allows the transmitter to be mounted
directly to the edge of a gutter. Install the SGM on
the transmitter by removing the metal extension arm
supplied with your sensor and reinstalling the SGM.
Position the gutter mount on the edge of the gutter and
twist the thumbscrew to secure it in place.
Surface Mount Gutter Mount
SGM

9
Adjustments and Operation
Tips for Mounting the Sensor
• Choose a location such as the side of a building or post.
The closer the transmitter is to the receiver, the better
the reception. Do not exceed 800'(243 m).
• To ensure maximum range in communication, mount
the receiver and transmitter away from sources
of electrical interference (e.g., control panels,
transformers, etc.) or metal objects. Best performance
is obtained when no physical obstruction is between
the transmitter and receiver.
• Correct placement of the Wireless Rain/Freeze-Clik
model is important for accurate temperature sensing.
The best location would be out of direct sunlight.
• The reset rate refers to the amount of time it takes
for the sensor to dry out suciently for the sprinkler
system to be allowed to come back on. The mounting
location will aect this rate. For example, mounting
the transmitter in a very sunny location may cause
the sensor to dry out sooner than desired. Similarly,
mounting the sensor in constant shade may keep the
sensor from drying out sooner.
Receiver Operation
The receiver has two LED lights that
indicate the state of the system.
1. SENSOR STATUS LED:
RED – Sensor is wet
(watering disabled).
GREEN – Sensor is dry
(watering enabled).
YELLOW – Sensor is in
addressing mode.
2. SENSOR BYPASS LED:
RED – Rain sensor is bypassed (even though the sensor
is bypassed, the STATUS LED will continue to alert you
of the state of the sensor — wet or dry).
OFF – Rain sensor is enabled.
FLASHING RED – Indicates that communication
between the transmitter and receiver was lost.
When you rst apply power to the receiver, the
SENSOR STATUS LED will be RED. Press the
manual test spindle on the transmitter for ve
seconds and release the spindle. The SENSOR
STATUS LED will turn GREEN indicating
proper operation.
Note
CLIK RECEIVER

10
Adjustments and Operation
Bypassing the Sensor
The sensor can be bypassed by using the built-in bypass
feature on the receiver. To bypass the sensor, press the
SENSOR BYPASS button on the receiver. The bypass
status light will turn red when the sensor is bypassed.
Pressing the SENSOR BYPASS button again will re-enable
the sensor and the sensor bypass light will go out.
Setting the Transmitter Address at the Receiver
Each transmitter is produced with a unique address.
A receiver must learn this address to work with that
transmitter. This step is only necessary if transmitters and
receivers are purchased separately.
1. Prior to applying power (yellow wires) to the receiver,
press and hold the bypass button on the receiver.
2. While the bypass button is depressed, apply power to
the receiver. The sensor status indicator light should
light up yellow indicating that the receiver is ready to
learn a new address.
3. Press and hold the quick response button on the
transmitter.
4. Within four seconds, the receiver’s sensor status
indicator light should turn red. The receiver has now
learned the address and it will be retained even in the
event of a power outage.
5. Release the button on the transmitter. The sensor
status indicator light should turn green.
Units purchased as a kit will already have their
communication address preset. No addressing is
necessary. However, if the receiver or transmitter
is replaced you need to reset the address.
Note
LED Light

11
Adjustments and Operation
Battery Life
The Wireless Rain-Clik Transmitter is designed to operate
for at least 5 years with its sealed, maintenance-free
battery. The transmitter is available as a replacement
part (WR-CLIK-TR). Should you need to change the
transmitter, the receiver will have to learn the new
transmitter address.
To Check the Status of the Battery in the
Transmitter
1. Press and hold the quick response spindle at the top
of the sensor on the short stack.
2. Within a few seconds the LED light on the bottom
of the sensor will briey ash.
3. Release the spindle and the LED light will ash again. If
the LED ashes, the battery in the transmitter is good.
If you are experiencing problems with your Wireless
Rain-Clik Sensor, follow these simple checks rst before
assuming the unit is defective and replacing it.
System Will Not Turn On at All
• Check to make sure that the sensor discs are dry and
the switch “clicks” on and o freely by pressing the top
of the spindle.
• Look for breaks in the wire leading to the receiver and
check all connections.
• Verify outside air temperature (for Rain/Freeze-Clik
installations).
System Will Not Shut O Even Aer Heavy Rainfall
• Remove the sensor jumper across the two SEN
terminals.
• Check to make sure that rainfall is hitting the sensor.
• Look for breaks in the wire leading to the receiver
and check all connections.
• Check the battery in the transmitter.
Sensor Bypass LED Is Flashing Red
• Make sure the battery in the transmitter is good.
• Check for obstructions around the transmitter or
receiver antenna.
https://hunter.help/wrclik
SCAN
for help

12
REPLACEMENT PARTS
Part Number Description
WR-CLIK-TR Wireless Rain-Clik Transmitter Assembly
WRF-CLIK-TR Wireless Rain/Freeze-Clik Transmitter
Assembly
505900SP Cap and Spindle Assembly
439700 Mounting Bracket
SGM Sensor Gutter Mount
WR-CLIK-R Receiver Assembly
USERINSTALLED OPTIONS
Part Number Description
WS-GUARD Vandal-resistant
Wireless Sensor
Guard for at
surfaces or pole
mounting (order
sensor separately)
WR-GUARD Vandal-resistant
Wireless Receiver
Guard for pedestal
mounting (order
receiver separately)
Replacement Parts and User-Installed Options

13
Notices
FCC Notice
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with
the limits for a Class B digital device pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment o and on, you are encouraged to try to
correct the interference by taking one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent
from that of which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
Changes or modications not expressly approved by Hunter
Industries could void the user’s authority to operate this device.
If necessary, consult a representative of Hunter Industries Inc.
or an experienced radio/television technician for additional
suggestions.

14
Notices
CE
Hereby, Hunter Industries declares that the radio
equipment type models WR-CLIK-TR are in compliance
with Directive 2014/53/EU.
The full text of the EU declaration of conformity is
available at the following internet address:
http://subsite.hunterindustries.com/compliance
Innovation, Science and Economic Development
Canada (ISED) Compliance Notice
This device contains licence-exempt transmitter(s)/
receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt RSS(s).
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including
interference that may cause undesired operation of
the device.
Le présent appareil est conforme aux CNR d’Industrie
Canada applicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux deux conditions
suivantes:
1. L’appareil ne doit pas produire de brouillage, et
2. L’utilisateur de l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
http://hunter.info/compliance
MAXIMUM OUTPUT POWER
Frequency Band
(MHz)
Maximum
Power (mW)
433.05 - 434.790 0.1

Notes

P/N 715182 23-594 I EN 5/21
© 2021 Hunter Industries™Hunter, the Hunter logo, and all other trademarks are
property of Hunter Industries, registered in the U.S. and other countries.
HUNTER INDUSTRIES | Built on Innovation®
1940 Diamond Street, San Marcos, CA 92078 USA
hunterindustries.com
Helping our customers succeed is what drives us. While our passion for innovation and engineering
is built into everything we do, it is our commitment to exceptional support that we hope will keep you
in the Hunter family of customers for years to come.
Gene Smith, President,
Landscape Irrigation and Outdoor Lighting
