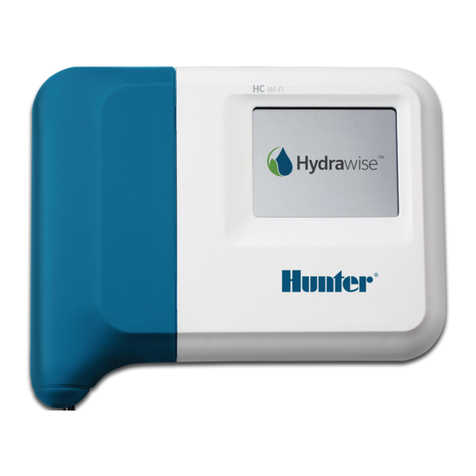

HC IRRIGATION CONTROLLER
Quick Start Guide
Hydrawise™Ready

TABLE OF CONTENTS
HC SUPPORT
Thank you for purchasing the Hunter HC Controller. In this Quick Start Guide you will
learn how to install and congure the HC Controller and connect to Wi-Fi.
For support for Hydrawise™ cloud soware or help with your Hydrawise account,
please visit hunter.direct/hchelp.
Your controller is shipped with:
• A Hunter Wi-Fi controller
• 24V AC transformer
• 2x screws and wall anchors for wall mounting
Installation 1
Connecting to a Wi-Fi Network 3
Connecting Solenoid Valves and Plug Packs 4
App Conguration 6

1
INSTALLATION
Installing the HC Controller
The HC is designed for indoor installations only. The chosen location must have Wi-Fi
coverage. Wi-Fi coverage can be easily tested using a smart phone. A signal strength of
2 or 3 bars is recommended. Wi-Fi connectivity can also be tested on the HC itself (signal
strength is shown when you select a wireless network).
Cable Entry
The controller has two cable entry
options – from the rear of the case
or via a conduit from the bottom of
the controller.
Entry from the rear of the controller
Using a sharp knife, remove the two
cutouts on the rear of the controller
as indicated on the diagram as .
Entry via ⁄ inch conduit
Using a sharp knife, cut around the
semi-circular line on the controller as
indicated on the diagrams as . Cut
around the matching line on the blue
controller wiring cover.
Note: The HC Controller is an
indoor model and is not water-
proof or weather resistant, and
must be installed indoors or in a
protected area.
Note: Do not plug the
transformer into power source
until controller is mounted and
all wiring has been connected.

2
Mounting the controller
1. Using a drill bit of ⁄ inch diameter,
drill a hole to a depth of 1 inch
(25 mm).
2. Insert plastic anchor so it is ush
with the surface of the wall.
3. Screw 1 inch screw into anchor
leaving the head protruding about
⁄ inch (4 mm).
4. Slide the controller case over the
screw head.
5. Mark second mounting point (see 
in diagram), remove controller, drill
hole, insert plastic anchor, slide
controller case over rst screw head
and screw into place.





 
 Rear cable entry point
(remove with knife)
Conduit cable entry point
(remove with knife)
Wall mounting screw
Power indicator
Expansion module
cable entry
Go to previous screen
Go to home screen

3
CONNECTING TO A WI-FI NETWORK
When your controller is rst powered on it will run a short wizard to connect your
controller to your wireless router.
If you’re not using the initial startup wizard then go to the Viewing Wireless Settings
section to change your wireless settings at hunter.direct/hchelp.
Using the Wizard
1. Select your wireless network from the list shown on the controller display
and press the Conrm button on screen.
2. Enter your wireless password and press the OK button on keyboard.
When connecting to your wireless network, the Wi-Fi Icon at the bottom right of the
controller screen will ash. Connecting takes about 30 seconds and when successfully
connected the Wi-Fi Icon will stop ashing and stay on.
Note: If your network is not listed then check that the
unit is within wireless range.
Note: Make sure you press the OK button aer you’ve
entered your password. Pressing the Home or Back
buttons will not save your changes.

4
CONNECTING TRANSFORMER & SOLENOID VALVES
Your controller has either 6 or 12 zones depending on the model you have purchased.
There are three COMMON wiring points for convenience – any or all of them can be used.
Refer to the diagram below when connecting your solenoid valves to the controller.
 Water main
Master valve (optional)
Solenoid valves
Water to zones
 Common wires
 24V AC plug pack

 



Connecting the Transformer
Step 1 Step 2
Use the transformer supplied and connect
the wires to the red AC terminal blocks
on the unit marked as 24V. Polarity of the
wiring is not important.
Turn the power on. The power indicator
will light up (see  previous page).

5
Step 4 Step 5 Step 6
Connect each of the
other solenoid wires to
one of the ZONE inputs.
If a master valve (sometimes
labeled as MV on other
controllers) is installed, it can
be connected to any spare
zone as any of the zones can
be assigned as a master valve
output. Conguration of the
master valve in the Hydrawise
app is required.
Click the blue wiring
cover into place to
seal the controller and
protect the wiring.
Solenoid Valve Wiring
Step 1 Step 2 Step 3
Take one wire from each
solenoid, twist together
and connect to the common
(usually white) wire of your
multicore irrigation cable.
Note: All wire connections
should be done using
waterproof connectors.
Connect each of the
other individual wires to
a dierent colored wire.
Record zones against wire
color for later reference.
Connect the common
wire from the multicore
cable (usually white) to
any of the three terminals
on the controller marked
COMMON.

6
HYDRAWISE APP CONFIGURATION
To connect the HC Controller to the Hydrawise app, follow these steps and then follow
the on-screen instructions.
Register for an Account Online
1. If you have not already done so, create an account at the Hydrawise website.
Go to Hydrawise.com and register for an account.
Log in to Your Account
2. Log into your account. If this is the rst time that you have logged in, you will be
guided through a setup wizard to help you with initial conguration of your controller.

7
Canadian FCC Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de
brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
US FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy, and if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
To satisfy FCC RF Exposure requirements for mobile and base station transmission devices, a separation
distance of 20 cm or more should be maintained between the antenna of this device and persons during
operation. To ensure compliance, operation at closer than this distance is not recommended. The antenna(s)
used for this transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.

8

9

hunter.direct/hchelp
TROUBLESHOOTING
Need more helpful information on your product?
Find tips on installation, controller programming and more.
RESIDENTIAL & COMMERCIAL IRRIGATION |Built on Innovation®
Learn more. Visit hunterindustries.com LIT-694-QG-HC US 7/16
