Husky H27LOCKER User manual

USE AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call
Husky Customer Service
8 a.m – 7 p.m., EST, Monday-Friday
9 a.m – 6 p.m., EST, Saturday
Item # 1005657709
Model # H27LOCKER
THANK YOU
We appreciate the trust and con dence you have placed in Husky through the purchase of this We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Husky!
1-888-HD-HUSKY
HUSKYTOOLS.COM
Husky 27 in. Side Locker
side locker.

Table of Contents
Table of Contents..................................................2
Safety Information ...............................................2
Warranty ................................................................4
Specifications ........................................................4
Package Contents..................................................4
Hardware Included........................................................... 4
Assembly ...............................................................6
11............................... ................................ecnanetniaM
Safety Information
1. To reduce the risk of injury, please read and follow
the safety instructions below before assembling and
using this product.
2. Two or more people are recommended for the
assembly of this product.
3. Use the brakes when this product is not being moved.
This prevents the product from rolling.
4. Do not tow the product with power equipment.
5. Do not alter this product in any manner. For
example, do not weld external lock bars or attach
electrical equipment.
Do not stand on this product. You
may fall which may cause personal injury or
CAUTION: Keep the product on level surfaces.
The product may become unstable and tip if
stored or moved on an unlevel surface, which
may cause personal injury or product damage.
CAUTION:
CAUTION:
CAUTION:
Lock the door before moving
this product. The door could come open and
make the product unstable, which may
cause personal or product damage.
Replacement Parts ................................................ 12
product damage.
Cordless Power Tool Battery Chargers ............... 11
2
Do not attach or mount this product
to a vehicle or mobile trailers. This may cause
personal injury or product damage. Mounting this
product to any vehicle or mobile trailers in any
warranty.
CAUTION:
manner will void
.............. 4Alternative Tools For Assembly (Not Included)
Be careful during assembly. The
product may become unstable and tip, which
may cause personal injury or product damage.

7. Extension cord
Follow all manufacturers' Warnings and Operating
Instructions for your extension cord.
Only use a three-wire extension cord with all three prongs
intact. Never remove the round grounding prong.
Check the insulation and plugs of extension cord before
using. Do NOT use cord if it is worn or damaged.
□
□
□
□
Do not insert extension cord through hole without grommet
in place.
□
Extension cord must be connected to a 125 Volt GFCI
protected outlet with proper ground. If GFCI outlet is not
available, use an extension cord with GFCI protection
built in.
□
□
□
Do NOT overload extension cord.
Remove extension cord from the hole
before moving or transporting this product.
Only use an extension cord that is rated for outdoor use.
□Do NOT connect extension cord to outlet that also sup-
plies critical safety equipment with power.
8. Electrical Shock Hazard
□ Do not plug cord into outlet with wet hands.
□ Do not use this product near a bathtub, a shower, or a
swimming pool.
□ Product plugs must match the outlet.
□ Never modify the plug in any way.
□ Do not use any adapter plugs with earth (grounded) product
power strips.
□
of electric shock.
□ Avoid body contact with earthed or grounded surfaces. There
is an increased risk of electric shock if your body is earthed or
grounded.
CAUTION: RISK OF ELECTRICAL SHOCK: This unit has
one power supply cord. Make sure the cord is
unplugged before any servicing or cleaning.
3 Please contact 1-888-HD-HUSKY
HUSKYTOOLS.COM
for further assistance.
NOTE : This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications.However, there
is no guarantee that interference will not occur in
a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
□Reorient or relocate the receiving antenna.
□Increase the separation between the equipment and
receiver.
□Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
□Consult the dealer or an experienced radio/TV
technician for help.
NOTE : This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
WARNING: Changes or modifications to this unit not
expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.

NOTE: Begin product assembly close to t nal
intended location of your locker. This product is
heavy and may be di cult to move after assembly.
Package Contents

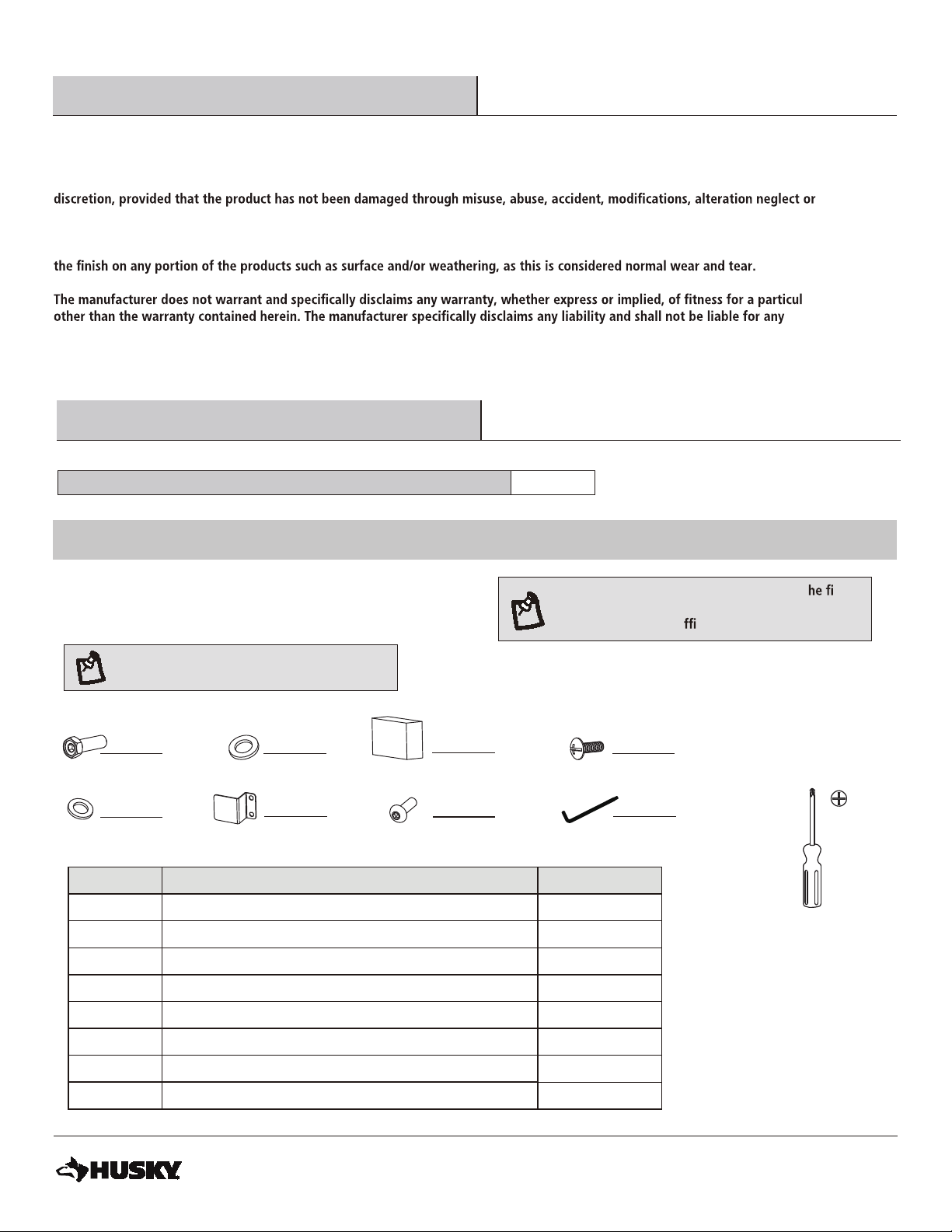

HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
Warranty
The manufacturer warrants the product to be free from defects in materials and workmanship for a period of ve (5) years from date of
purchase. This warranty applies only to the original consumer and only to products used in normal use and service. If this product is found to
be defective, the manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of the product at the manufacturer’s
mishandling.
This warranty shall not apply to any product that is found to have been improperly installed, setup, or used in any way not in accordance with
the instructions supplied with the product. This warranty shall not apply to a failure of the product as a result of an accident, misuse, abuse,
negligence, alteration, faulty installation, or any other failure not relating to faulty material or workmanship. This warranty shall not apply to
ar purpose,
consequential
or incidental loss or damage, including but not limited to any labor/expense costs involved in the replacement or repair of said product.
Contact the Customer Service Team at 1-888-HD-HUSKY or visit www.huskytools.com.
4
AA
EE
BB
FF
CC
GG
DD
HH
Part Description Quantity
Hexagon socket head cap bolt (M8)AA
BB
CC
DD
EE
FF
GG
HH
8
Washer (M19) 8
Foam block 1
Bolt (M6) 6
Washer (M18) 6
Storage hook
4
Hexagon socket button cap bolt
1
L hex key
2
Specifications
shelfrepthgiewmumixaM 150 lbs.
ALTERNATIVE TOOLS
FOR ASSEMBLY
(Not Included)
Phillips head screwdriver

Part Description Quantity
A
B
Locker 1
Swivel caster 2

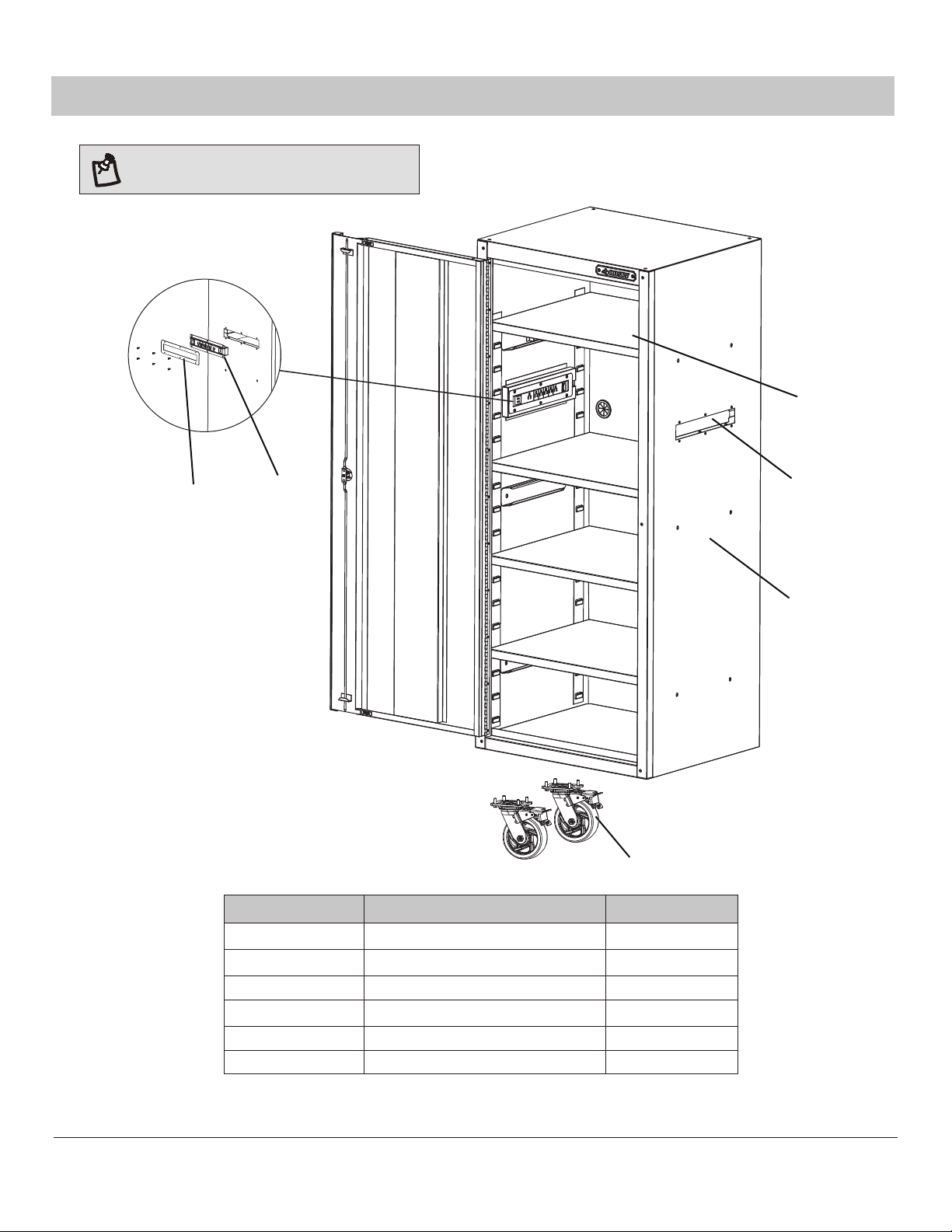

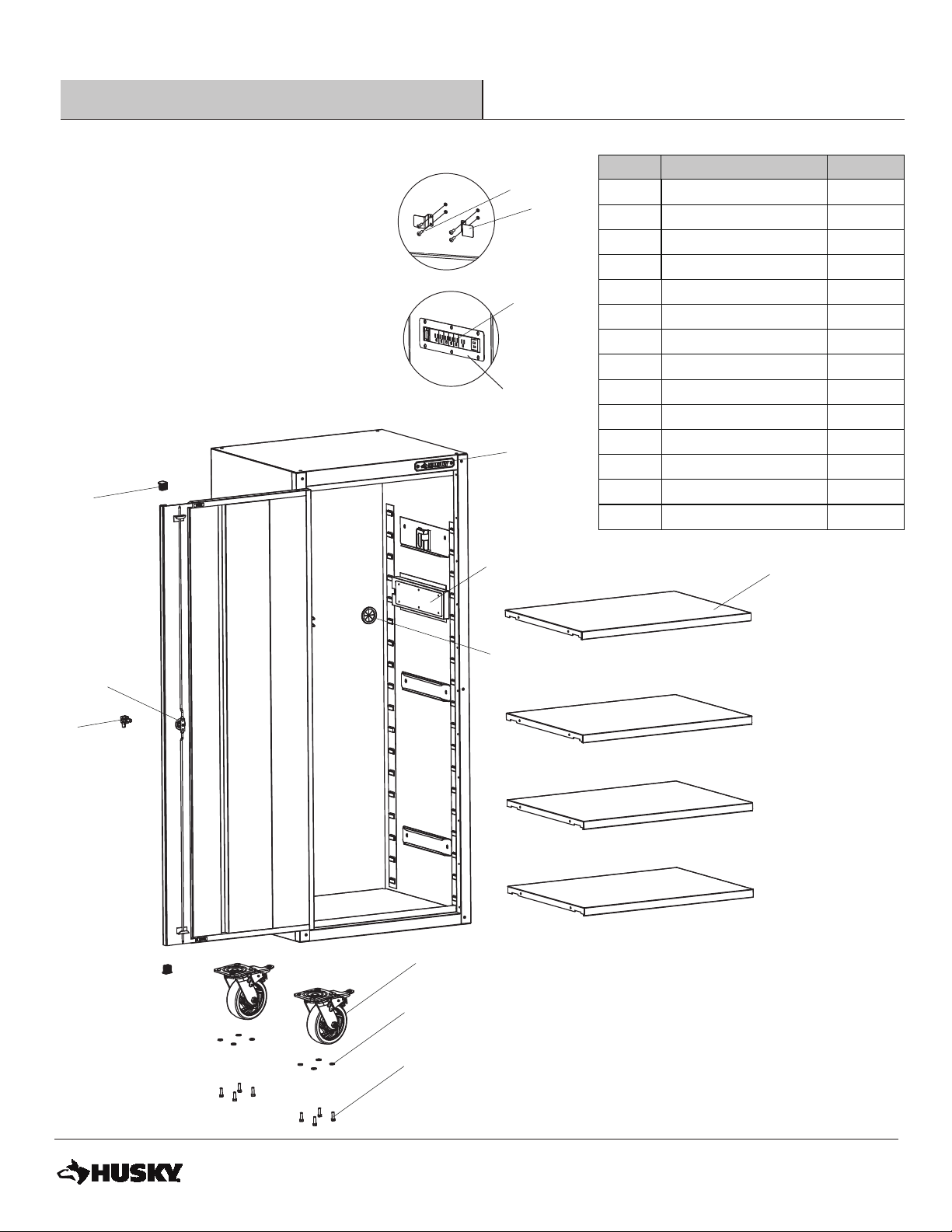

Package Contents (continued)
5HUSKYTOOLS.COM
Please contact 1-888-HD-HUSKY for further assistance.
A
F
NOTE:
Locker keys are attached to door.
C
D
Power outlet 1
Outlet panel cover 1
E
Blank plate 1
F Adjustable Shelf 4
E
C
D
B

CAUTION: Two people are recommended for assembly.
Assembly
6
Installing Locker to right side of Workbench
Remove the door of the Locker (A) by removing the 11 Phillips head bolts inside the hinge of the Locker (A). Then re-install the
door with the 11 Phillips head bolts along the hinge located on the right side of the Locker (A).
Ensure the door is level and centered in the opening before tightening the 11 bolts.
1

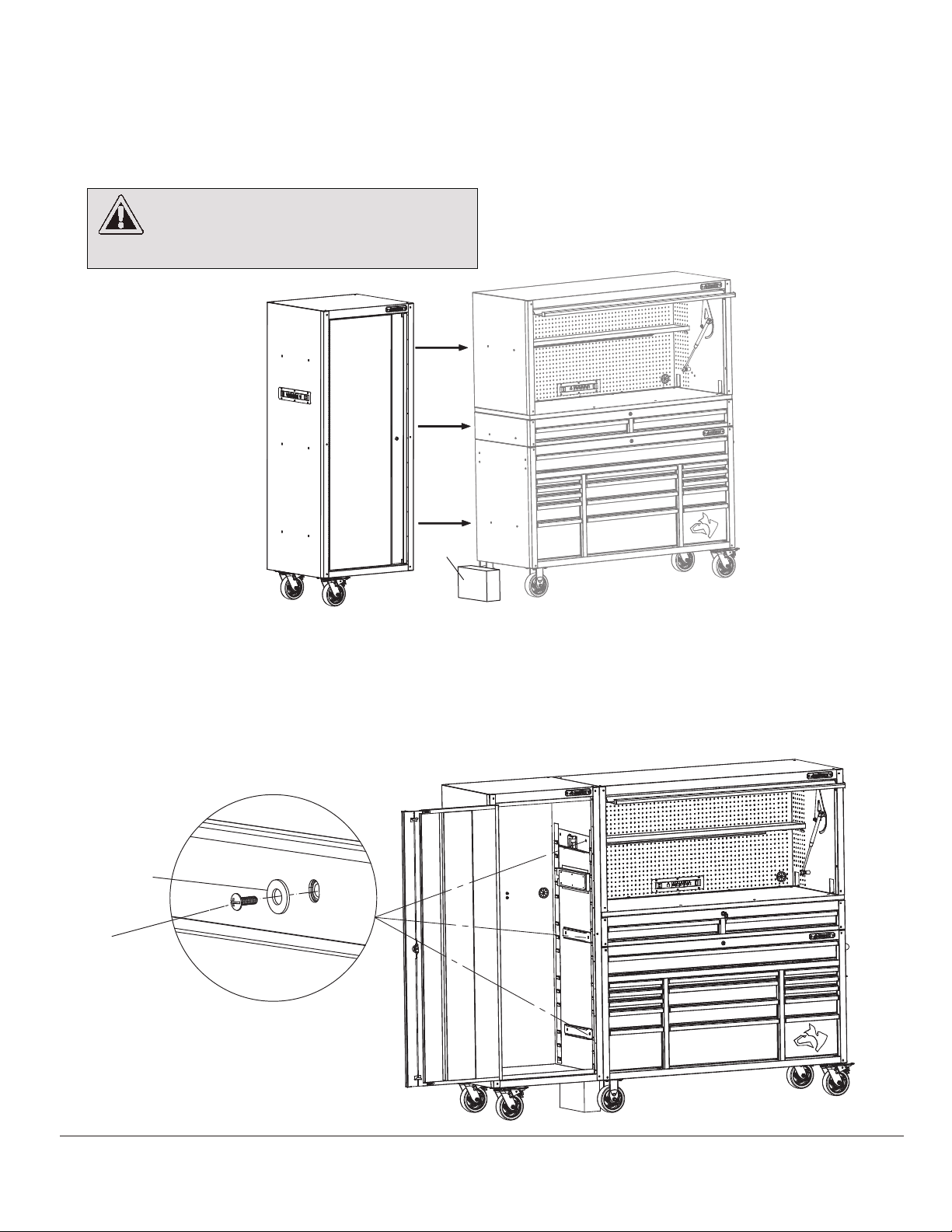

This Husky 27 in. Side Locker is only intended to be used with the Husky 61 in. 15-Dr. Heavy Duty Workbench (H61MWC15HP) AND
the Husky 61 in. Hutch and Riser (H61HUTCH). H61HUTCH must be installed onto H61MWC15HP prior to installation of H27LOCKER.
Model # H61MWC15HP SKU # 1005517358 Model # H61HUTCH SKU # 1005657708
Side Locker is designed to attach to either side of the Husky 61 in. 15-Drawer Heavy Duty Workbench.
- If mounting to the RIGHT side of the Workbench, then proceed to Step 1.
- If mounting to the LEFT side of the Workbench, then the door is in the correct position and skip to Step 2.
1.
Opening
direction
Opening
direction
Opening
direction
AA

Remove the Power outlet (C) from the left wall of the Locker (A) by removing the 6 Phillips head screws from the outlet panel
cover (D) and gently pulling the Power outlet (C) and holder from the cabinet.
2.
Remove from the H61MWC15HP Workbench, the side handle, bottle opener, rubber grommet, 2 power cord storage hooks,
power outlet and holder.
3.
Remove the Power outlet from the H61MWC15 Workbench by removing the 6 Phillips head screws from the outlet
panel cover and gently pulling the Power outlet and the holder out of the cabinet. Be careful when pulling the cord through
the grommet to avoid pinching and damaging the cord. Once the cord plug head is pulled through, then remove the exterior
rubber grommet on the right side.
4.
The right side of the workbench and hutch should be free of any obstructions to install the Locker (A).5.
7Please contact 1-888-HD-HUSKY
HUSKYTOOLS.COM
for further assistance.
Remove
If desired, the side handle can be relocated to the left side of the Workbench and the power outlet to the Locker (A).6.
Opening
direction
A
C
D

2
Power outlet orientation
Re-install the Power outlet (C) in the desired location of the Locker (A).
If needed, add the blank plate (E) to the outside of the Locker (A) using the 6 Phillips head screws to cover the power
outlet opening.
The power outlet (C) can be installed on the left or right hand side of the Locker (A), either facing to the inside or
outside orientation.
EE
Attaching the casters
1. Be sure the door is locked and lay the Locker (A) down.
Use packaging material to protect the nish.
3
If assembling Locker (A) to the right side of the Workbench,
then casters will mount to the right side.
1.
2.
3.
Attach the swivel casters (B) to the outer side of the Locker (A),
by inserting insert bolts (AA) and washer (BB) through the swivel
caster (B). Use the Hex Key (LL) to tighten the 8 bolts (AA) to the
bottom frame.
Note: If assembling Locker (A) to the left side of the Workbench,
then casters will mount to the left side.
2.
8
AA
CC
B
AA
BB A

CAUTION: Do not push the side locker at this time
Align Side Locker to the Workbench
1. Place the Foam Block (CC) next to the Workbench.
2. Move and align the Side Locker (A) to the Workbench and seat it on the Foam Block (CC) to maintain balance. Then lock
the caster wheels.
to prevent tipping. Lock the caster wheels on the
Workbench and Locker to prevent moving. Perform
this step on even oors to ensure alignment.
CC
4
Attach Side Locker
1. On the inside of the Side Locker (A) use 6 pcs M6 Bolts (DD) and Washers (EE) to attach to the Workbench, Riser and Hutch.
2. Do not fully tighten until all 6 bolts are installed.
3. Align the Side Locker (A) to be ush with the edge of the Hutch and Workbench and then tighten all Bolts (DD).
4. After the Bolts (DD) are secured, the foam block (CC) can be removed.
DD
EE
5
9Please contact 1-888-HD-HUSKY
HUSKYTOOLS.COM
for further assistance.

7

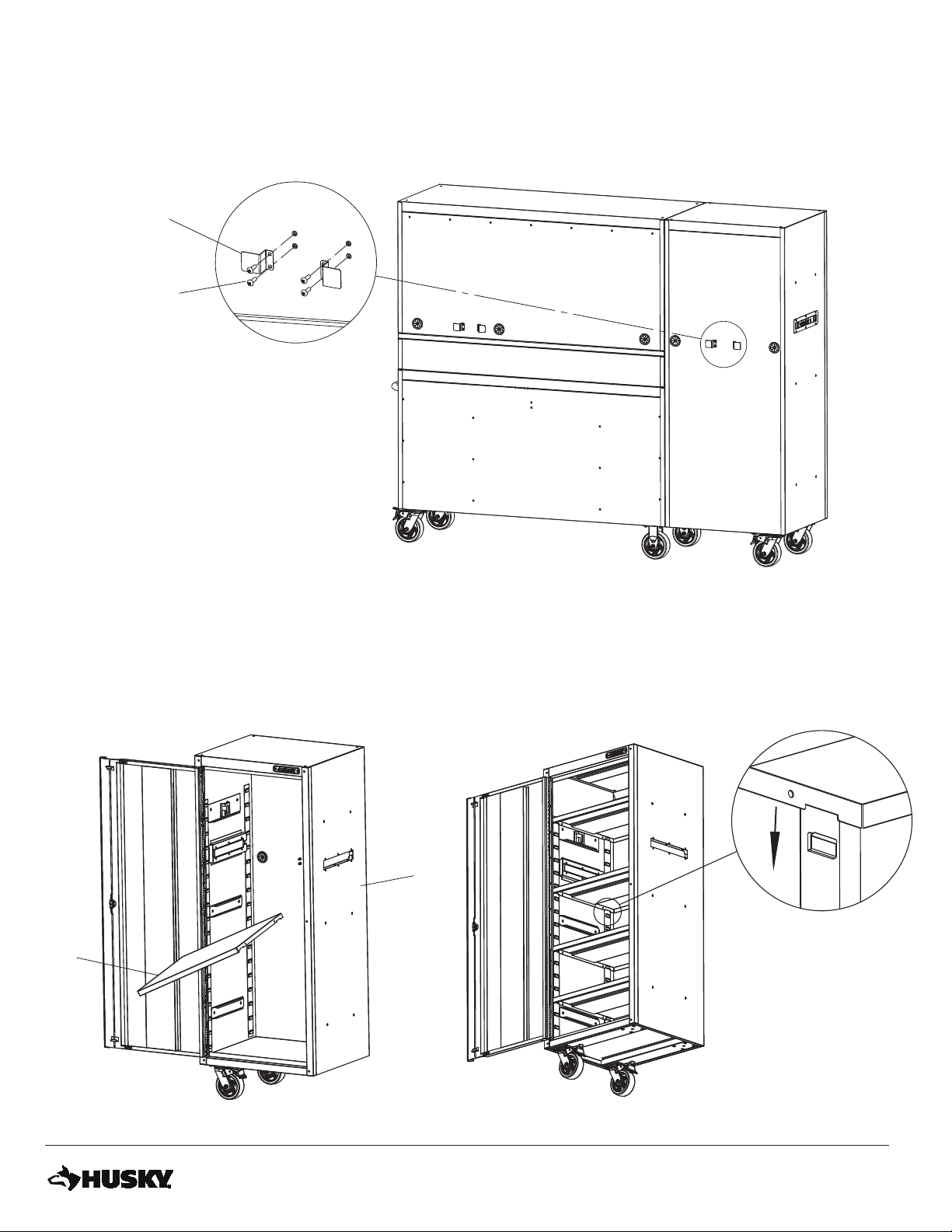

Inserting the shelves
Attach the storage hooks
1. Install the Storage Hooks (FF) on the back of the Side Locker with 4 pcs Hexagon socket button cap bolts (GG).
FF
GG
A
F
6
10
Determine the desired height of your Shelves (F) and secure by inserting shelf edges into the tabs anges on the right and
left panels.
1.

Closet Rod Inserts Closet Rod
(not included)
11 Please contact 1-888-HD-HUSKY
HUSKYTOOLS.COM
for further assistance.
Cordless Power Tool Battery Chargers
See Charger’s Owner’s Manual for proper use and care of charger and batteries.
Follow all Warnings and Instructions provided with your battery charger.
□
Chargers are for use in dry locations only. Do NOT expose to liquid, vapor, or rain. Should your charger become wet,
Do NOT attempt to use. Unplug extension cord from supply before handling wet charger or cords.
□
Only use chargers and batteries that are intact and operating properly.
□
Do NOT touch metal prongs when plugging charger into extension cord.
□
□
Do NOT place or attempt to charge lead acid, car type batteries in Side Locker.
□
Maintenance
1 Caster maintenance
□Grease the casters annually using high-quality bearing grease.
□
□
Periodically clean the cabinet, shelves, and other surfaces with a mild detergent and water.
The locker has pre-installed closet rod inserts on the right and left panels which is suitable for closet rods up to
1.25 in. diameter (not included).
2.

12
Replacement Parts
For assistance with replacement parts please call 1-888-HD-HUSKY.
2
A1
B 1
C 2
D
Lock
1
F
Badge
2
H
4
G
4
I
J
Key
1
1
E
Part Description Quantity
Outlet Panel Cover
Outlet
Rubber Grommet
Storage Hook
Storage Hook Bolt
Adjustable Shelf
H
I
K
Blank Plate
D
E
L
M
N
A
C
B
F
G
J
K
L
M
N
2
Swivel Caster
8Caster Washer
8Caster Bolt
Door Handle Cap 2

Questions, problems, missing parts? Before returning to the store call
Husky Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday
9 a.m. - 6 p.m., EST, Saturday
1-888-HD-HUSKY
HUSKYTOOLS.COM
Retain this manual for future use.
