Husky Professional Duty 27.5 in. Side Locker
side locker.
Store SKU # 1006636654
Internet SKU # 1006581373
Model # HPRO27SLOCKERBL

Table of Contents
Table of Contents..................................................2
Safety Information ...............................................2
Warranty ................................................................4
Specifications ........................................................4
Package Contents..................................................4
Hardware Included........................................................... 4
Assembly ...............................................................6
14............................... ................................ecnanetniaM
Safety Information
1. To reduce the risk of injury, please read and follow
the safety instructions below before assembling and
using this product.
2. Two or more people are required for the assembly of
this product.
3. Use the brakes when this product is not being moved.
This prevents the product from rolling.
4. Do not tow the product with power equipment.
5. D
6. Before locking the side locker, ensure there are no
obstructions in order for the door to completely
close and lock bars to work properly.
o not alter this product in any manner. For
example, do not weld external lock bars or attach
electrical equipment.
Do not stand on this product. You
may fall which may cause personal injury or
CAUTION: Keep the product on level surfaces.
The product may become unstable and tip if
stored or moved on an unlevel surface, which
may cause personal injury or product damage.
CAUTION:
CAUTION:
CAUTION:
Lock the door before moving
this product. The door could come open and
make the product unstable, which may
cause personal or product damage.
Replacement Parts ................................................ 15
product damage.
Cordless Power Tool Battery Chargers ............... 14
2
Do not attach or mount this product
to a vehicle or mobile trailers. This may cause
personal injury or product damage. Mounting this
product to any vehicle or mobile trailers in any
warranty.
CAUTION:
manner will void
.............. 4Tools For Assembly (Not Included)
Be careful during assembly. The
product may become unstable and tip, which
may cause personal injury or product damage.
!Save these instructions.
..................

7. Extension cord
Follow all manufacturers' Warnings and Operating
Instructions for your extension cord.
Only use a three-wire extension cord with all three prongs
intact. Never remove the round grounding prong.
Check the insulation and plugs of extension cord before
using. Do NOT use cord if it is worn or damaged.
□
□
□
□
Do not insert extension cord through hole without grommet
in place.
□
Extension cord must be connected to a 125 Volt GFCI
protected outlet with proper ground. If GFCI outlet is not
available, use an extension cord with GFCI protection
built in.
□
□
□
Do NOT overload extension cord.
Remove extension cord from the hole
before moving or transporting this product.
Only use an extension cord that is rated for outdoor use.
□Do NOT connect extension cord to outlet that also sup-
plies critical safety equipment with power.
8. Electrical Shock Hazard
□ Do not plug cord into outlet with wet hands.
□ Do not use this product near a bathtub, a shower, or a
swimming pool.
□ Product plugs must match the outlet.
□ Never modify the plug in any way.
□ Do not use any adapter plugs with earth (grounded) product
power strips.
□
of electric shock.
□ Avoid body contact with earthed or grounded surfaces. There
is an increased risk of electric shock if your body is earthed or
grounded.
CAUTION: RISK OF ELECTRICAL SHOCK: This unit has
one power supply cord. Make sure the cord is
unplugged before any servicing or cleaning.
3 Please contact 1-888-HD-HUSKY
HUSKYTOOLS.COM
for further assistance.
NOTE : This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications.However, there
is no guarantee that interference will not occur in
a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
□Reorient or relocate the receiving antenna.
□Increase the separation between the equipment and
receiver.
□Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
□Consult the dealer or an experienced radio/TV
technician for help.
NOTE : This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
WARNING: Changes or modifications to this unit not
expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.

NOTE: Begin product assembly close to t nal
intended location of your locker. This product is
heavy and may be di cult to move after assembly.
Package Contents
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
Warranty
4
AA
EE
BB
FF
CC
GG
DD

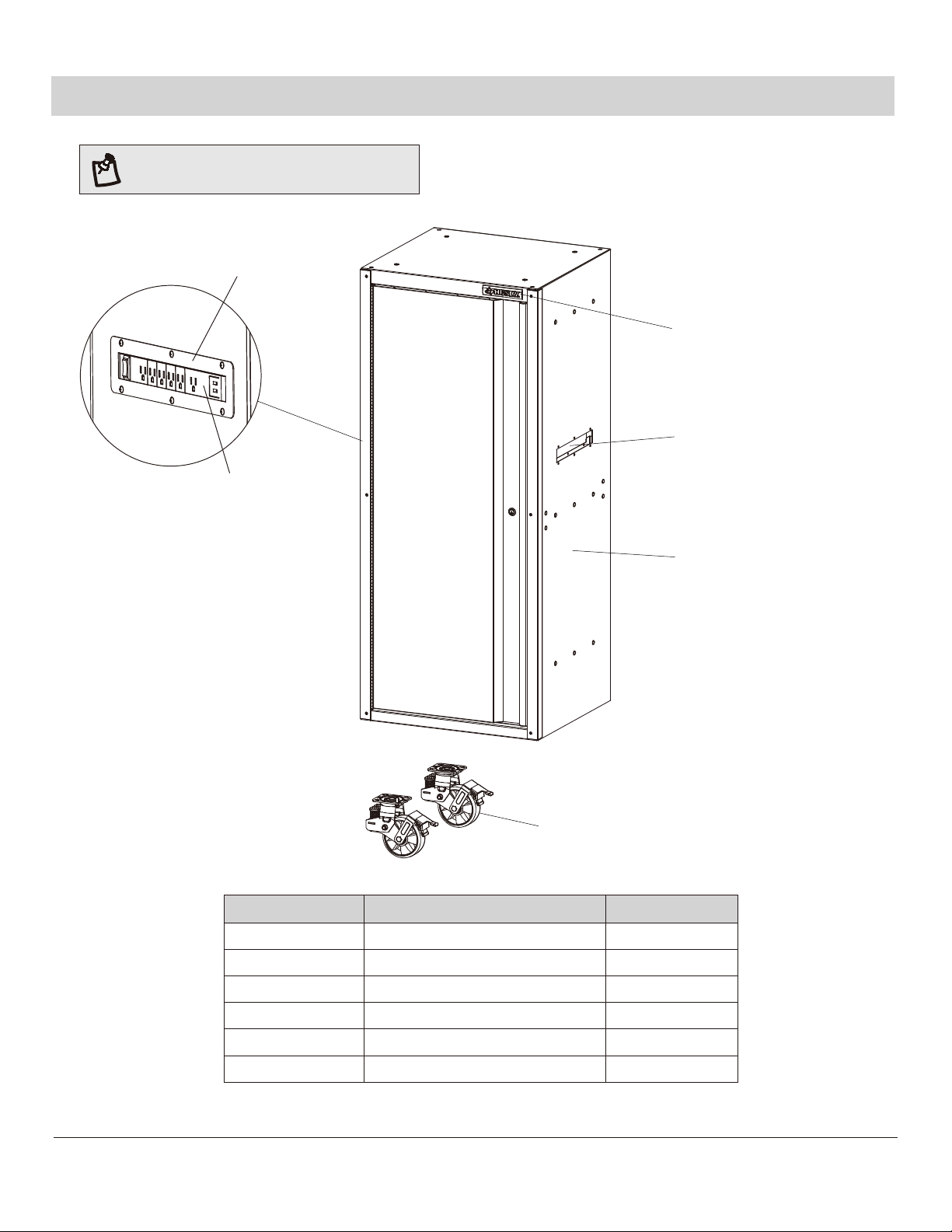

Part Description Quantity
Hexagon socket head cap bolt (M8)AA
BB
CC
DD
EE
FF
GG
22
Washer (M19) 22
Support base plate 1
4
2
1
EVA spacer
Hex key
3
Specifications
Maximum Locker Load Capacity 2,000 lbs.
Maximum Sliding Tray Load Capacity 120 lbs.
TOOLS FOR
ASSEMBLY
(Not Included)
Phillips head screwdriver
Hexagon socket button cap bolt
Storage hook
This Husky Professional Grade product includes a Limited Lifetime Warranty, whereas the manufacturer warrants the product to be free from
defects in materials and workmanship for the product’s useful life. If any part of this product is found to be defective, the manufacturer’s only
obligation, and purchaser’s exclusive remedy, is to provide replacement parts at the manufacturer’s discretion, provided that the product has not
been damaged through misuse, abuse, accident, modications, alterations, neglect or mishandling.
This warranty shall not apply to any product that is found to have been improperly installed, setup, or used in any way not in accordance with the
instructions supplied with the product. This warranty shall not apply to normal wear and tear or lack of maintenance, or a failure of the product
as a result of use in a highly corrosive environment, improper storage, misuse, abuse, negligence, alteration, faulty installation, or any other
failure not relating to faulty material or workmanship. This warranty shall not apply to the nish on any portion of the product such as surface
and/or weathering, as this is considered normal wear and tear.
The manufacturer does not warrant and specically disclaims any warranty, whether express or implied, of tness for a particular purpose, other
than the warranty contained herein. The manufacture specically disclaims any liability and shall not be liable for any consequential or incidental
loss or damage, including but not limited to any labor/expense costs involved in the replacement or repair of said product.
Contact the Customer Service Team at 1-888-HD-HUSKY or visit www.huskytools.com.
HH
II 18
Plastic plug (M6)
Plastic plug (ø15mm)
19
HH
II
JJ 16
Drawer liner adhesive tape
JJ

Part Description Quantity
A
B
Locker 1
Swivel caster 2
Package Contents (continued)
5HUSKYTOOLS.COM
Please contact 1-888-HD-HUSKY for further assistance.
A
NOTE:
Locker keys are attached to door.
C
D
Power outlet 1
Outlet panel cover 1
E
Blank plate 1
F
Magnetic Husky® logo badge 1
E
F
B
D
C

CAUTION: Two or more people are required for assembly.
Assembly
6
This Husky 27.5 in. Side Locker is only intended to be used with the Husky Professional Duty system, which includes the following
products:
72 in. 20-Dr. Professional Duty Workbench Model # HPRO72MWC20BLK SKU # 1006636633 / 1006581370
72 in. Professional Duty Hutch Model # HPRO72HUTCHBLK SKU # 1006636635 / 1006581289
63.5 in. Professional Duty Top Locker Model # HPRO63TLOCKERBL SKU # 1006636637 / 1006581369
72 in. Professional Duty Top Locker Model # HPRO72TLOCKERBL SKU # 1006636636 / 1006581287
Side Locker is designed to attach to either side of the Husky Professional Duty 72 in. 20-Drawer Workbench with or
without the Hutch.
- If mounting to the RIGHT side of the Workbench, then proceed to Step 1.
- If mounting to the LEFT side of the Workbench, then the door is in the correct position and skip to Step 2.
- If mounting to the BOTH side of the Workbench, then proceed to Step 1 & Step 2.
Opening
direction
Opening
direction
Husky® logo badge (F) is magnetic and can be moved to either side of the Locker
.
F
NOTE: The Husky Professional 72 in. Hutch is
shown for illustration purposes only, and not
required for the installation of the 27.5 in.
Side Locker.

Remove the Power outlet (C) from the left wall of the Locker (A) by removing the 6 Phillips head screws from the outlet panel
cover (D) and gently pulling the Power outlet (C) and holder from the cabinet.
□
7Please contact 1-888-HD-HUSKY
HUSKYTOOLS.COM
for further assistance.
Installing Locker to right side of Workbench
Remove the door of the Locker (A) by removing the 11 Phillips head bolts inside the hinge of the Locker (A). Flip the door and
re-orient to the other side. Then re-install the door with the 11 Phillips head bolts along the hinge located on the right side of
the Locker (A).
Ensure the door is level and centered in the opening before tightening the 11 bolts.
Remove the Kwikset Smartkey® lock cylinder from the door, ip and reinstall for proper key orientation.
1
□
□
□
Opening
direction
AA
A
C
D
Opening
direction

Remove from the HPRO72MWC20BLK Workbench, the side handle, rubber grommet, 2 power cord storage hooks,
power outlet and holder.
□
Remove the Power outlet from the Workbench by removing the 6 Phillips head screws from the outlet panel cover and gently
pulling the Power outlet and the holder out of the cabinet. Be careful when pulling the cord through the grommet to avoid
pinching and damaging the cord. Once the cord plug head is pulled through, then remove the exterior rubber grommet on
the right side.
□
The right side of the workbench should be free of any obstructions to install the Locker (A).
□
8
Remove
If desired, the side handle can be relocated from the Workbench to the exterior wall of the Side Locker A using the existing
bolts after Step 6.
□
2
Power outlet orientation
The power outlet (C) can be installed on the left or right hand side of the Locker (A), either facing to the inside or
outside orientation.
□
A
A
CC

9Please contact 1-888-HD-HUSKY
HUSKYTOOLS.COM
for further assistance.
If desired, add the blank plate (E) to the outside of the Locker (A) using the 6 Phillips head screws to cover the power
outlet opening.
E
FF
E
Attaching the Casters
Be sure the door is locked and lay the Locker (A) down.
Use packaging material to protect the nish.
Peel off the paper back from the 3 EVA Spacers (FF), and afx in the appropriate position toward the rear of the Locker A.
- If mounting to the LEFT side of the Workbench, then see Figure (3-1).
- If mounting to the RIGHT side of the Workbench, then see Figure (3-2).
Figure (3-1) Figure (3-2)
4
Attaching the EVA Spacers
3
If assembling Locker (A) to the right side of the Workbench,
then casters will mount to the right side.
□
Attach the swivel casters (B) to the outer side of the Locker (A),
by inserting 8 M8 Bolts (AA) and washers (BB) through the swivel
caster (B). Use the Hex Key (GG) to tighten the bolts to the
bottom frame.
Note: If assembling Locker (A) to the left side of the Workbench,
then casters will mount to the left side.
□
□
B
AA
BB
A

CAUTION: Do not push the side locker at this time

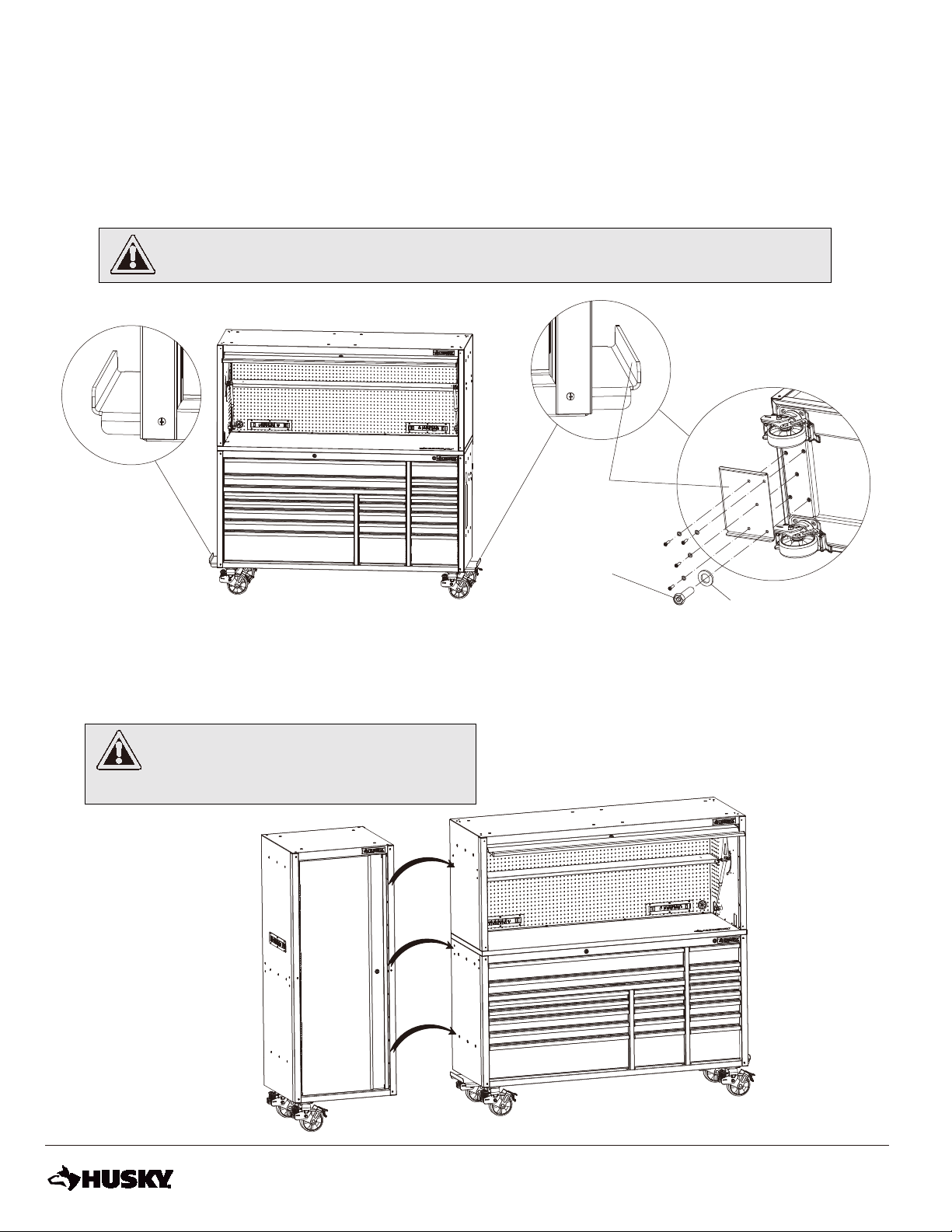

Attach Locker Support Base Plate
Attach the Support Base Plate (CC) to the bottom of the Workbench by inserting 5 M8 (AA) and washers (BB) through
the Base Plate (CC). Use the Hex Key (HH) to tighten the bolts to the bottom frame .
Note: If assembling Locker (A) to the left side of the Workbench,then Base Supported will mount to the left side.
If assembling Locker (A) to the right side of the Workbench,then Base Supported will mount to the right side.
Move and align the Workbench adjacent to the bottom of the Side Locker (A) and lock ALL wheels of the Workbench.
With 2 or more people, gently lift up the Side Locker (A) to fully seat on the Support Base Plate (CC) to maintain balance.
Then bring the units ush together ensuring proper alignment of the bolt attachment holes. Once aligned, lock the 2 Swivel
Casters (B) on the Side Locker to prevent from moving.
to prevent tipping. Lock the caster wheels on the
Workbench and Locker to prevent moving. Perform
this step on even oors to ensure alignment.
CAUTION: Do not turn over the 72 in. 20-Dr. Workbench for the installation of the Support Base Plate.
5
10
CC
AA
BB
□
□
□

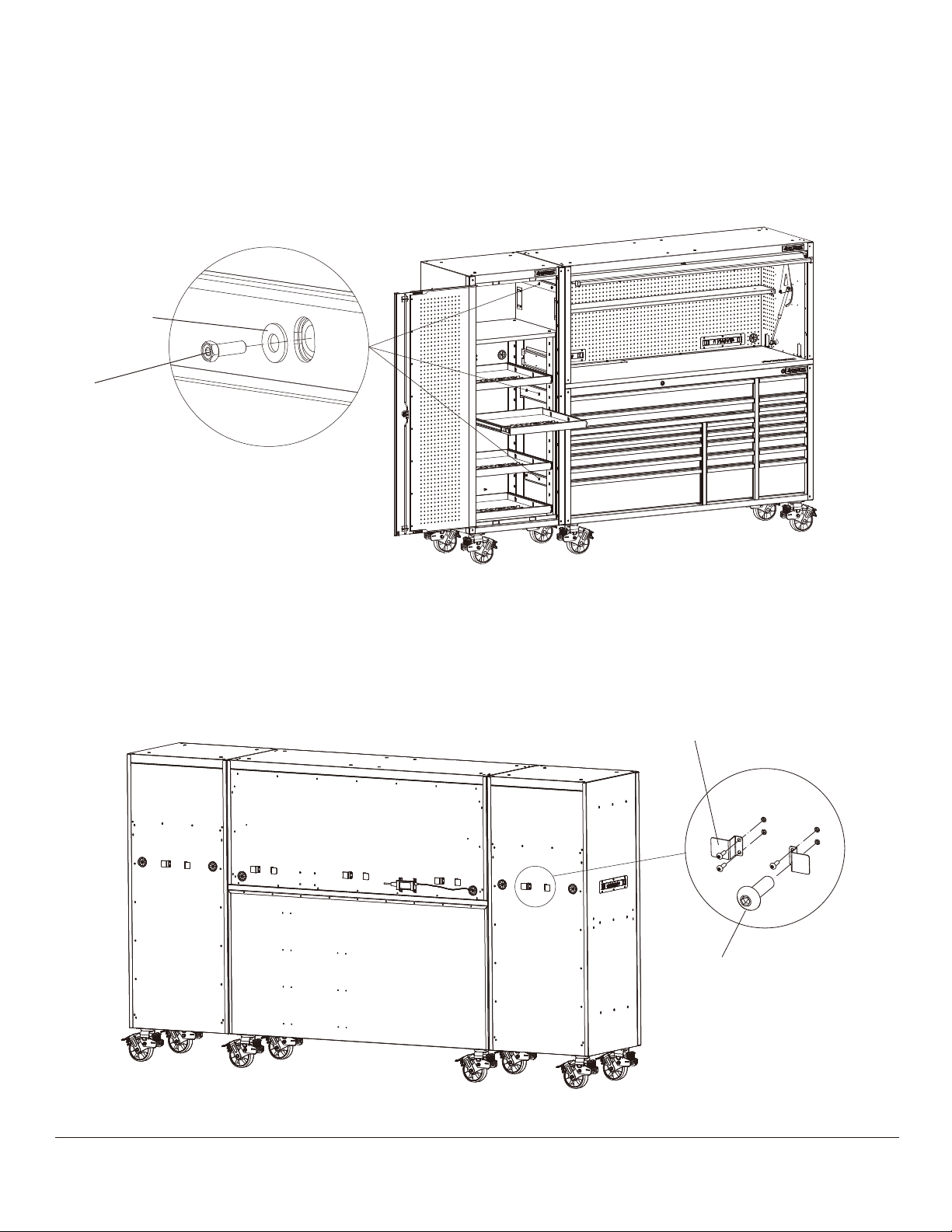

Attach Side Locker
On the inside of the Side Locker (A) use 9 pcs M8 Bolts (AA) and Washers (BB) to attach to the Workbench, and Hutch.
Only 6 M8 Bolts (AA) will be used if installing to the Workbench without the Hutch.
Do not fully tighten until all bolts are installed.
Ensure the front and top edges of the Side Locker (A) are ush with the Workbench and Hutch, then securely tighten all Bolts (AA).
BB
AA
6
Attach the Storage hooks
Install the Storage Hooks (EE) on the back of the Side Locker (A) with 4 pcs Hexagon socket button cap bolts (DD).
Wrap any loose or excess cord around the cord Storage Hooks.
EE
DD
7
11 Please contact 1-888-HD-HUSKY
HUSKYTOOLS.COM
for further assistance.
□
□
□
□
□
□

12
8

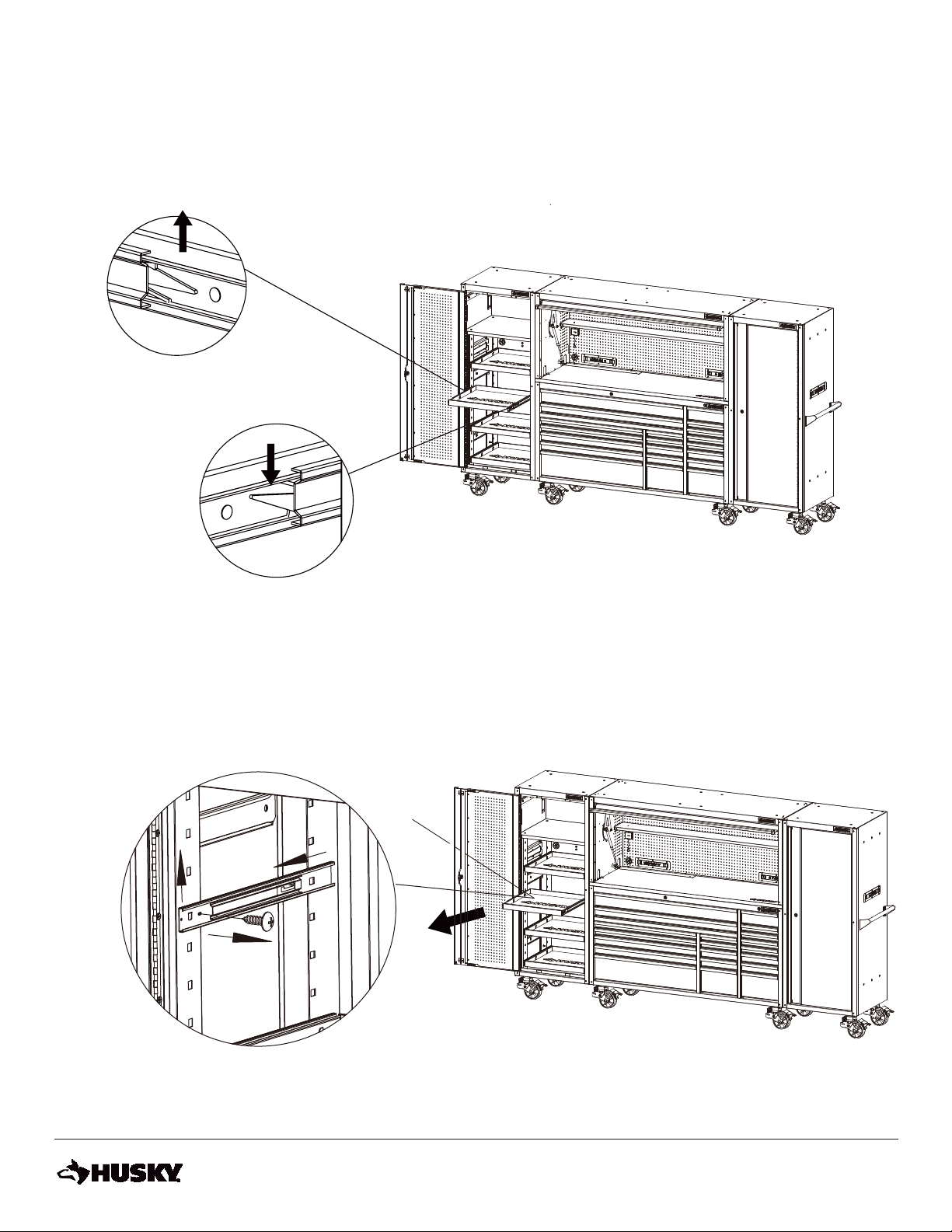

Adjustable Height Sliding Trays
Remove by fully extending the empty tray.
Push up on one slide release lever while pulling down on the other release lever.
Gently pull the tray outward until it releases from the outer slides.
□
□
□
To adjust the height of the sliding trays:
Drawer slide release lever
Tray
Step 1
Step 2 Step 3
Remove the Phillips head shipping screw at the front of the outer slide. This screw can be discarded as it’s not needed
for the tray operation.
Push up at the front of the slide and then pull straight out to remove the outer slide from the Locker side wall. Repeat
this process for the other side.
□
□

13 Please contact 1-888-HD-HUSKY
HUSKYTOOLS.COM
for further assistance.
At the desired height, re-install the outer slides by pushing the rear clip into the back channel support, then pushing
the front clip down into the front support. Repeat this process for the other side. Ensure the slides are properly seated
and level.
Fully extend the slides out and gently insert the inner slide brackets of the tray into the outer slides, being careful they
are properly aligned.
Once properly inserted, completely close the tray to set the slides in their proper position and lock into the soft close
mechanism.
Step 2 Step 1
□
□
□
Tray
9
Adding Drawer Liner Adhesive Tape
Use 4 pcs of Drawer Liner Adhesive Tape (JJ) to help secure the drawer liners in each drawer. The tape helps prevent
shifting of the drawer liner during normal use.
□
10
Plastic Plugs
Insert the Plastic Plugs (HH&II) into the remaining open holes on the side walls of the Side Locker (A) per the diagram
below.
□
II
HH
HH

Cordless Power Tool Battery Chargers
See Charger’s Owner’s Manual for proper use and care of charger and batteries.
Follow all Warnings and Instructions provided with your battery charger.
□
Place chargers and electrical connections in till.
□
Chargers are for use in dry locations only. Do NOT expose to liquid, vapor, or rain. Should your charger become wet,
Do NOT attempt to use. Unplug extension cord from supply before handling wet charger or cords.
□
Only use chargers and batteries that are intact and operating properly.
□
Do NOT touch metal prongs when plugging charger into extension cord.
□
□
Do NOT place or attempt to charge lead acid, car type batteries in Side Locker.
□
14
11
Kwikset Smartkey® Lock Operation
□Periodically clean the drawer fronts, drawer trim, and other surfaces with a mild detergent and water.
□
□
Maintenance
1 Caster maintenance 2 Drawer maintenance
□Grease the casters annually using high-quality
bearing grease.
□Lu
bearing grease.
bricate the slides semi-annually with high-quality
This product has been coated with an industrial UV-resistant power coating for a durable and long lasting finish.
To help protect the coating, do not allow harsh chemicals to remain on the surface for extended periods of time.
□
□
This product has been equipped with the Kwikset Smartkey® locks which allow you to easily program each lock
cylinder to a specific key code to match other Kwikset keyed products.
The lock cylinders have been factory keyed to the corresponding alphabetic lettering found on the Kwikset Smartkey®
label located on the back of the key chain, as well as afxed to the product itself.
Please see the Kwikset Smartkey® supplemental instructions for keying and re-keying the locks.
□
C
Retain This Label
For Key Identification
ONE KEY FOR ALL YOUR LOCKS
TM

Replacement Parts
For assistance with replacement parts please call 1-888-HD-HUSKY.
H
I
D
E
QT
S
U
2
A1
B 1
C 2
D
Kwikset Smartkey® Lock
1
F
Magnetic Badge
2
H
4
G
4
I
4
J
Key
1
1
E
Part Description Quantity
Outlet Panel Cover
Outlet
Rubber Grommet
Storage Hook
Storage Hook Bolt
Drawer Liner
Drawer Slide (pairs)
K
Blank Plate
2
Swivel Caster
L
8
Caster Washer
M
8
Caster Bolt
N
O
1
Support Base Plate
P
3
EVA Spacer
Q
Door Handle Cap
AY04016400
PA18022700
MB15003700
Part#
DB126478R5
AA99014600
RA99020100
ML990558R5
MF05018900
PA06104000
AJ02024800
DB127557R5
AD03043400
MJ06000100
MB05023100
DB127556R5
PA06103900
2
Aluminum Edge Guard
RTAM00F3100
RA05007000 2
15 Please contact 1-888-HD-HUSKY
HUSKYTOOLS.COM
for further assistance.
C
B
L
G
M
N
O
A
F
K
J
R
P
19
Plastic Plug (M6)
SRA05009200
18
Plastic Plug (ø15mm)
TRA05009300
16
Drawer Liner Adhesive
Tape
UPA21002700

Questions, problems, missing parts? Before returning to the store call
Husky Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday
9 a.m. - 6 p.m., EST, Saturday
1-888-HD-HUSKY
HUSKYTOOLS.COM
Retain this manual for future use.
