Husky HOLT5201B11 User manual

THANK YOU !
USE AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call
Husky Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-888-HD-HUSKY
HUSKYTOOLS.COM
Model # HOLT5201B11
HUSKY 52 IN. ADJUSTABLE HEIGHT WORK TABLE WITH 1 DRAWER
We appreciate the trust and confidence you have placed in Husky through the purchase of this work table. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Husky!
THD.com #1005 010 509/507

Table of Contents
Table of Contents ......................................................
Safety Information
........................................................
Warranty ........................................................................
Pre-Assembly .......................................................
Assembly ...............................................................
Operation ................................................................
Safety Information
Care and Cleaning
...................................................
Service Parts ....................................................................
Tools Required ..............................................................
Hardware Included
.......................................................
Specifications ................................................................
Package Contents ................................................
2
DANGER: Is used to indicate a hazardous situation which,
if not avoided, will result in serious injury or death.
CAUTION:
if not avoided, may result in minor injury, moderate injury,
Is used to indicate a hazardous situation which,
or property damage.
WARNING:
Indicates a hazardous situation which, if not
avoided, could result in serious injury or death.
CAUTION:Read and follow all Safety Rules and Operating
Instructions before first use of this product.
WARNING:
Due to the product’s weight, it is recommended
that 2 or more people help assemble and move this
workbench to help reduce the risk of injury.
CAUTION:Check screws and bolts periodically for tightness.
2
2
3
4
4
4
5
4
6
8
8
9
DANGER: Do not stand on this product. You
may fall or cause the product to tip.
DANGER: Do not move the product prior to
closing and locking all the drawers. The
drawers could come open and make the product
DANGER: Do not mount this product on a truck
bed or any other moving object.
CAUTION: Do not lift this product directly with
a forklift or tow with any mechanical devices.
CAUTION: Do not exceed the maximum
product weight, including contents. Do not
exceed the maximum weight for each drawer.
See Specifications on page 4.
CAUTION: Only transport this product when
empty. Properly secure when transporting.
WARNING:Keep the product on a level surface.
The product may become unstable and tip if
stored or moved on an uneven surface.
unstable and tip.
WARNING:
DANGER:
Do not open more than one drawer at a time.
CAUTION:
Do not let children approach the tool cart.
Keep the locking caster brakes set unless
you are moving the cart. This will help to prevent the
product from rolling.
CAUTION:Do not alter this product in any
manner as it will void the warranty.

Warranty
3
The manufacturer warrants the product to be free from defects in materials and workmanship for a period of three years from date of(3)
purchase. This warranty applies only to the original consumer and only to products used in normal use and service. If this product is
found to be defective, the manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of the product at the
manufacturer’s discretion, provided that the product has not been damaged through misuse, abuse, accident, modifications, alteration
neglect or mishandling. This warranty shall not apply to any product that is found to have been improperly installed, set up, or used in
any way not in accordance with the instructions supplied with the product. This warranty shall not apply to a failure of the product
as a result of an accident, misuse, abuse, negligence, alteration, faulty installation, or any other failure not relating to faulty material or
workmanship. This warranty shall not apply to the finish on any portion of the products such as surface and/or weathering, as this is
considered normal wear and tear.
The manufacturer does not warrant and specifically disclaims any warranty, whether express or implied, of fitness for a particular purpose,
other than the warranty contained herein. The manufacturer specifically disclaims any liability and shall not be liable for any consequential
or incidental loss or damage, including but not limited to any labor/expense costs involved in the replacement or repair of said product.
Contact the Customer Service Team at 1-888-HD-HUSKY or visit www.huskytools.com.
HUSKYTOOLS.COM
Please contact 1-888-HD-HUSKY for further assistance.

Pre-Assembly
TOOLS REQUIRED
Safety
goggles
HARDWARE INCLUDED
SPECIFICATIONS
4
NOTE:
NOTE:
Phillips
10 mm
Wrench
Hardware not shown to actual size.
Begin product assembly close to the final
intended location of your workbench. This product
is heavy and may be difficult to move after assembly.
13 mm
Wrench
screwdriver
Maximum capacity (drawer)
35 lbs
Maximum capacity
300 lbs
Service Part Description Quantity
AA
BB
Screw M6 x 15L 38
Bolt M8 x 15L 4
Washer M8 4
5/8in. Wrench 1

5
Pre-Assembly (continued)
PACKAGE CONTENTS
HUSKYTOOLS.COM
Please contact 1-888-HD-HUSKY for further assistance.
G
F
E
HD
I
C
A
B
KJ
L
M
Part
Description
Quantity
A
Wood top
1
B
Leg (Right)
1
C
Crank handle
1
D
Leveling feet
4
E
Leg (Left)
1
F
Top rail
1
G
Rotating rod
1
N
Part
Description
Quantity
H
Support rail
1
I
Caster
4
J
Drawer Slide (pair)
2
K
Drawer
2
L
Drawer side panel
2
M
Back panel
1
N
Front panel
1

Assembly
6
6

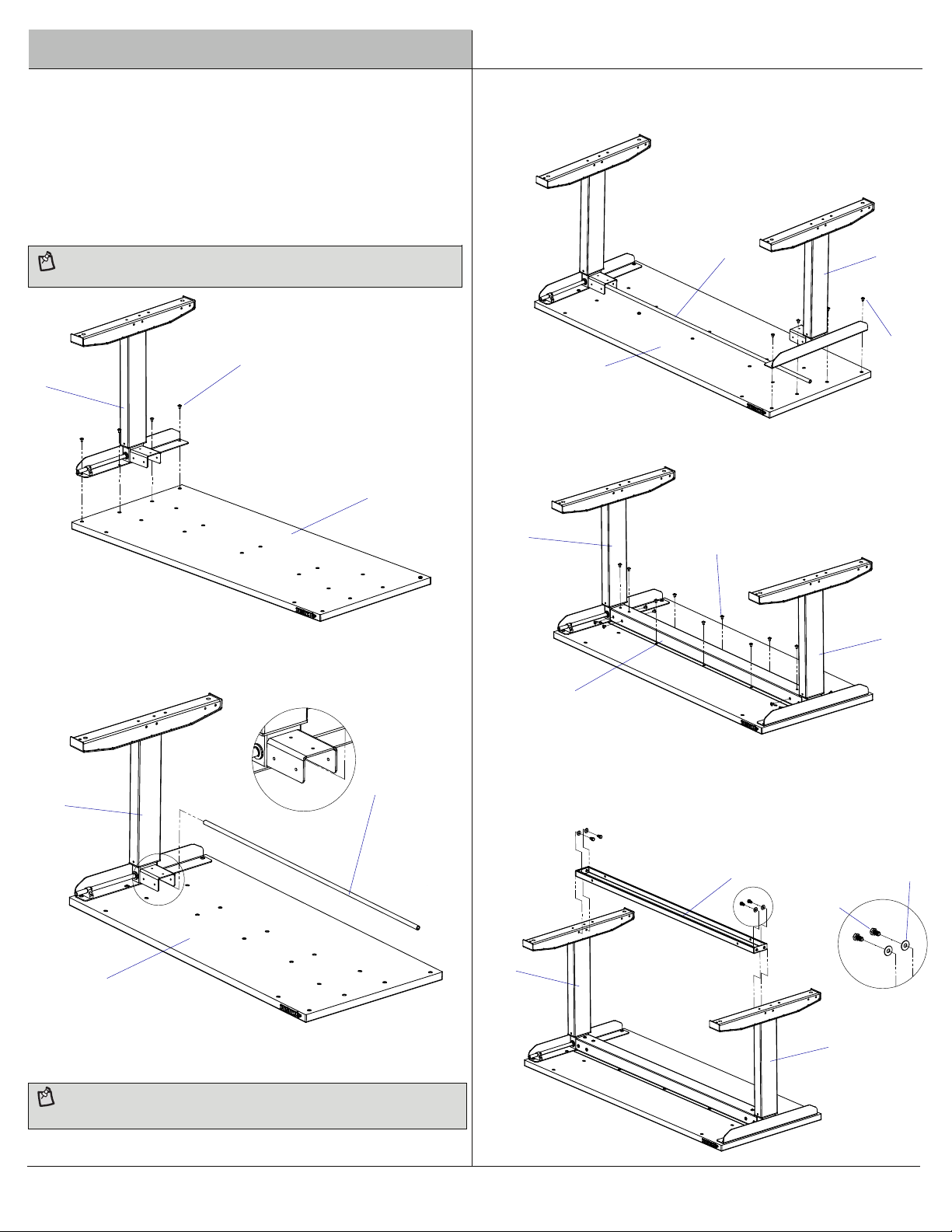

While unpacking the unit, you can leave the workbench wood top (A)
1.
inside the original packaging to prevent the top from being
scratched during assembly.
Determine the front and back of the top before starting. The front of
2.
the wood top (A) has the Husky badge on the edge.
Attach the right leg (B) to the wood top (A) as shown using four
3.
M6x15L screws (AA). Be sure that the rotating mechanism faces the
Attach the rotating rod (G) to the rotating mechanism in the leg (B).
4.
Option 1: Attach the support rail (H) to the bottom of the leg (B) and leg
7a.
Attach the top rail (F) to the wood top (A), leg (B), and leg (E) using
6.
eighteen M6x15L screws (AA). Do not overtighten the screws.
Note: Do not overtighten the screws into the wood top to avoid
damaging the wood top.
(E) using four M8x15L bolts (BB) and four M8 washers (CC). Finger
inside of work table.
Attach the left leg (E) to the wood top (A) using four M6x15L screws
5.
(AA). Finger tighten only. Be sure that the rotating rod (G) clicks into
the leg (E).
Note: Do not turn the rotating rod yet to ensure that the leg remains
at its lowest level.
tighten only. The support rail can attach in the middle or rear of the
legs. Attach it at your desired position. See step 7b for Option 2.
A
AA
B
Front
G
B
A
Front
Front
AA
E
G
A
AA
E
B
F
E
B
HCC
BB

Assembly (continued)
7
8.
9.
Square the workbench and then securely tighten all fasteners with a
Screw the four leveling feet (D) or casters (I) all the way into the leg
assemblies to the maximum depth. Some adjustment may be
necessary after the workbench is in the desired location to properly
level and use the product.
10 mm and 13 mm wrench.
Note: Use caution to not overtighten.
Or
Caster installation
Leveling feet installation
Option 2: Attach the support rail (H) to the bottom of the leg (B) and
7b.
leg (E) using four M8x15L bolts (BB) and four M8 washers (CC).
Finger tighten only.
Note: Use caution to not overtighten.
Note: Leveling feet have been pre-assembled on the leg.
BB CC
B
E
H
B
E
I
D
B
E
10. Attach the drawer side panel (L) to the wood top (A) for two sides as
shown by using three screws (AA) for each side.
A
L
AA
11. Attach the back panel (M) to the drawer side panels (L) by using two
screws (AA) for each side.
AA
L
M
HUSKYTOOLS.COM
Please contact 1-888-HD-HUSKY for further assistance.

Assembly (continued)
8
Using two or more people, stand the workbench in its upright
position.
16. Install the crank handle (C) into the shaft in the corner below the
wood top as shown.
13.
Install the drawers using the steps below
14.
□ Pull the slides and slide carrier out until fully extended.
□ Hold the slide on the cabinet while aligning it with
the slide on the drawer.
□
□ Slowly push the drawer until it is fully closed to
engage the slide.
□ Open the drawer and close it to verify proper
operation.
Slightly insert one side and repeat for the other side.
Remove the drawers using the steps below
15.
□ Fully extend and empty the drawer.
□ Depending on the slide, either lift or lower the
release lever on both sides so the slides can ride over
the stops. Pull out to remove.
AA
N
12. Attach the front panel (N) to the drawer side panels (L) by using one
screw (AA) for each side.

Operation
Height AdjustmentLeveling Foot Adjustment
IMPORTANT : Ensure there is no weight on top of the
workbench when leveling.
9

1
2
□ Adjust each leveling foot (D) to the desired elevation with
□ Turn the lock nut counterclockwise to elevate and clockwise
a 5/8 in. wrench as shown.
to lower the leveling foot.
□
□
□
The steel in this product has been coated with industrial powder
harsh chemicals such as oil or grease to remain on the powder
®
coating surface. Use a glass cleaner ( Windex or equivalent product)
□
The wood top is made of Parawood (also called Rubberwood), which
®
cleaned with most gentle household cleaners, such as Windex .
Insert the crank handle (C) into the shaft and align it in the hole
until it is engaged.
To raise the table, turn the crank handle counterclockwise to
the desired height.
To lower the table, turn the crank handle clockwise until it
reaches the desired height.
To avoid damage, do not keep turning the crank handle once
□
□
□
Do not allow chemicals, water, or other substances to remain on the
to the wood.
Note: Some minor squeaking is normal when operating the
crank. Lubrication is not needed.
Maintenance
it has rested at its highest or lowest position.
Care and Cleaning
Maintaining the casters
□ Grease the casters annually using high quality
bearing grease.

1coating for a durable finish. To help protect this finish, do not allow
to clean and maintain all powder coated surfaces.
has UV coating to help protect it from moisture. It can be
wood top for extended periods of time to reduce the risk of damage
HUSKYTOOLS.COM
Please contact 1-888-HD-HUSKY for further assistance.

10

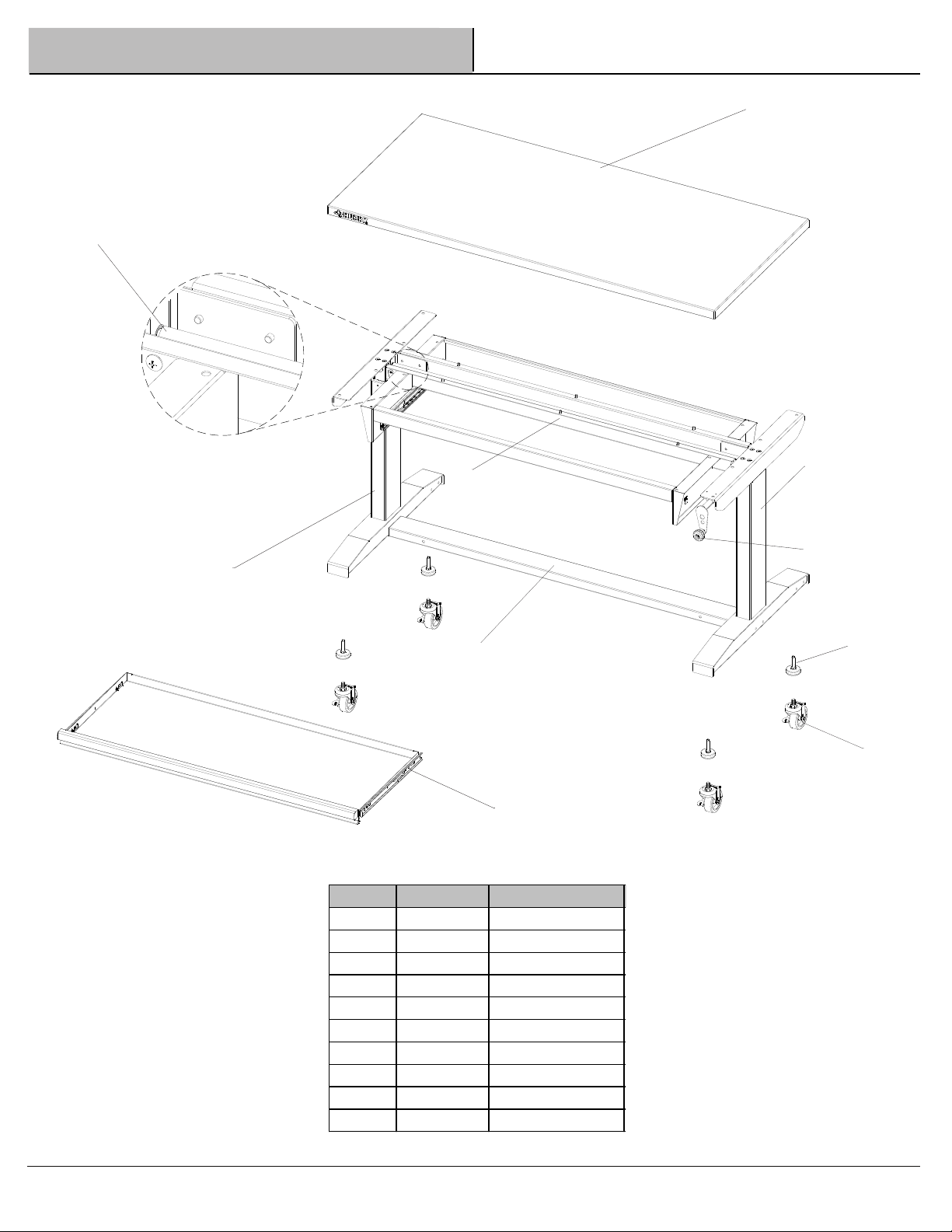

Service Parts
Part Part no. Description
A D61002 Wood top
B D460031 Leg (Right)
C DTC370011 Crank handle
D K3111002 Leveling feet
E D460041 Leg (Left)
F D590071 Top rail
G C5015011900 Rotating rod
H D590041 Support rail
I K0323006 Caster
J D35001 Drawer Slide (pair)
G
F
E
HD
I
C
A
B
J

Questions, problems, missing parts? Before returning to the store, call
Husky Customer Service
8 a.m.-7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-888-HD-HUSKY
HUSKYTOOLS.COM
Retain this manual for future use.
