Husky HPRO72HUTCHBRD User manual

USE AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call
Husky Customer Service
8 a.m – 7 p.m., EST, Monday-Friday
9 a.m – 6 p.m., EST, Saturday
THANK YOU
We appreciate the trust and con dence you have placed in Husky through the purchase of this We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Husky!
1-888-HD-HUSKY
HUSKYTOOLS.COM
Husky Professional Duty 72 in. Hutch
hutch .
Store SKU # 1006636635
Internet SKU # 1006581289
Model # HPRO72HUTCHBLK

Table of Contents
Table of Contents..................................................2
Safety Information ...............................................2
Warranty ................................................................4
Specifications ........................................................4
Package Contents..................................................4
Hardware Included........................................................... 4
Assembly ...............................................................6
11............................... ................................ecnanetniaM
Safety Information
1. To reduce the risk of injury, please read and follow
the safety instructions below before assembling and
using this product.
2. Two or more people are required for the
assembly of this product.
3. Secure this product properly before moving it with a
forklift.
4. Do not tow the product with power equipment.
5. Do not alter this product in any manner. For
example, do not weld external lock bars or attach
electrical equipment.
CAUTION: Keep the product on level surfaces.
The product may become unstable and tip if
stored or moved on an unlevel surface, which
may cause personal injury or product damage.
Replacement Parts ................................................12
6. Before locking the hutch, ensure there are no
obstructions in order for the door to completely
close and lock bars to work properly.
Cordless Power Tool Battery Chargers ...............11
2
Do not attach or mount this product
to a vehicle or mobile trailers. This may cause
personal injury or product damage. Mounting this
product to any vehicle or mobile trailers in any
warranty.
CAUTION:
manner will void
.............. 4Tools For Assembly (Not Included) ...................
Do not stand, sit or climb on this
product. You may fall which may cause perso
inju
nal
ry or
CAUTION:
product damage.
CAUTION:
Lock the door before moving
this product. The door could come open and
make the product unstable, which may
cause personal or product damage.
!Save these instructions.

7. Extension cord
Follow all manufacturers' Warnings and Operating
Instructions for your extension cord.
Only use a three-wire extension cord with all three prongs
intact. Never remove the round grounding prong.
Check the insulation and plugs of extension cord before
using. Do NOT use cord if it is worn or damaged.
□
□
□
□
Do not insert extension cord through hole without grommet
in place.
□
Extension cord must be connected to a 125 Volt GFCI
protected outlet with proper ground. If GFCI outlet is not
available, use an extension cord with GFCI protection
built in.
□
□
□
Do NOT overload extension cord.
Remove extension cord from the hole
before moving or transporting Hutch.
Only use an extension cord that is rated for outdoor use.
□Do NOT connect extension cord to outlet that also sup-
plies critical safety equipment with power.
8. Electrical Shock Hazard
□ Do not plug cord into outlet with wet hands.
□ Do not use this Hutch near a bathtub, a shower, or a
swimming pool.
□ Hutch plugs must match the outlet.
□ Never modify the plug in any way.
□ Do not use any adapter plugs with earth (grounded) Hutch
power strips.
□
of electric shock.
□ Avoid body contact with earthed or grounded surfaces. There
is an increased risk of electric shock if your body is earthed or
grounded.
CAUTION: RISK OF ELECTRICAL SHOCK: This unit has
one power supply cord. Make sure the cord is
unplugged before any servicing or cleaning.
3 Please contact 1-888-HD-HUSKY
HUSKYTOOLS.COM
for further assistance.
NOTE : This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications.However, there
is no guarantee that interference will not occur in
a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
□Reorient or relocate the receiving antenna.
□Increase the separation between the equipment and
receiver.
□Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
□Consult the dealer or an experienced radio/TV
technician for help.
NOTE : This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
WARNING: Changes or modifications to this unit not
expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.

NOTE: Begin product assembly close to t nal
intended location of your hutch. The product is
heavy and may be di cult to move after assembly.
Package Contents
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
Warranty
4
AA EE
BB
FF
CC
GG
DD
HH JJ
Part Description Quantity
Drill template
AA
BB
CC
DD
EE
FF
GG
HH
1
8
Hexagon head ange bolt (M6*48mm)
5
6
Shelf clip
16
Storage hook
2
Hex socket button cap bolt
1Hex key
Motion sensor
6
TOOLS FOR
ASSEMBLY
(Not Included)
II
II 1
Stop drill bit
JJ 1
Cable clip
Transformer holder
*8 mm wrench or socket
This Husky Professional Grade product includes a Limited Lifetime Warranty, whereas the manufacturer warrants the product to be free from
defects in materials and workmanship for the product’s useful life. If any part of this product is found to be defective, the manufacturer’s only
obligation, and purchaser’s exclusive remedy, is to provide replacement parts at the manufacturer’s discretion, provided that the product has not
been damaged through misuse, abuse, accident, modications, alterations, neglect or mishandling.
This warranty shall not apply to any product that is found to have been improperly installed, setup, or used in any way not in accordance with the
instructions supplied with the product. This warranty shall not apply to normal wear and tear or lack of maintenance, or a failure of the product
as a result of use in a highly corrosive environment, improper storage, misuse, abuse, negligence, alteration, faulty installation, or any other
failure not relating to faulty material or workmanship. This warranty shall not apply to the nish on any portion of the product such as surface
and/or weathering, as this is considered normal wear and tear.
The manufacturer does not warrant and specically disclaims any warranty, whether express or implied, of tness for a particular purpose, other
than the warranty contained herein. The manufacture specically disclaims any liability and shall not be liable for any consequential or incidental
loss or damage, including but not limited to any labor/expense costs involved in the replacement or repair of said product.
Contact the Customer Service Team at 1-888-HD-HUSKY or visit www.huskytools.com.
Safety goggles
Power Drill
Hammer Punch
Plastic plug (M6)KK 8
KK LL
Plastic plug (M8)LL 6
Specifications
shelf)(thgiewmumixaM 150 lbs.

Part Description Quantity

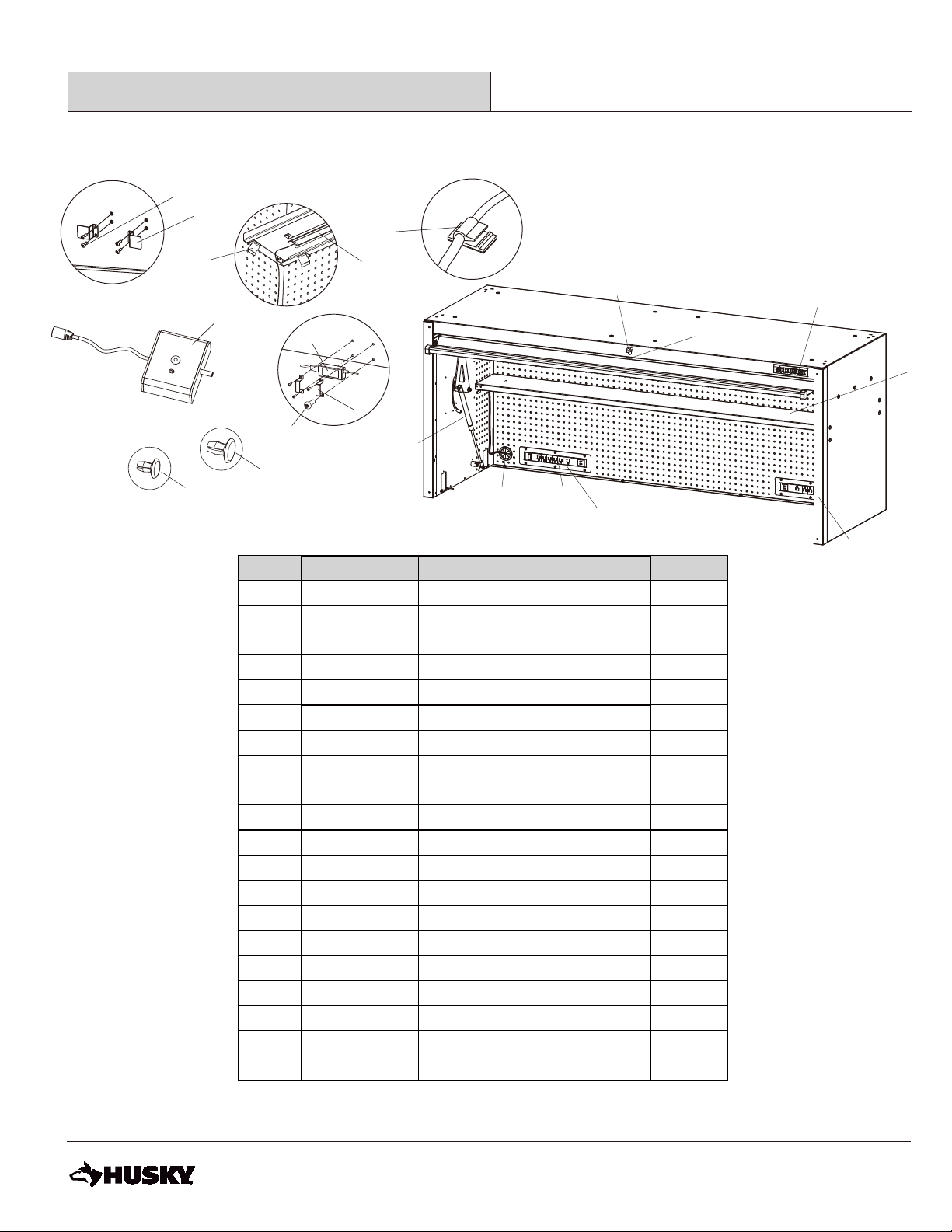

A Hutch 1
B
Shelf 1
C
LED Light (YLED 301-S) 1
D
Transformer 1
Package Contents (continued)
NOTE:
Hutch keys are attached to door.
5HUSKYTOOLS.COM
Please contact 1-888-HD-HUSKY for further assistance.
A
D
C
B

Assembly
6
Drill attachment holes
1
The 72 in. Hutch is designed to specically t only on the Husky Professional Duty 72 in. 20-Drawer Workbench ,
which includes the following products:
72 in. 20-Dr. Professional Duty Workbench Model # HPRO72MWC20BLK SKU # 1006636633 / 1006581370
27.5 in. Professional Duty Side Locker Model # HPRO27SLOCKERBL SKU # 1006636654 / 1006581373
63.5 in. Professional Duty Top Locker Model # HPRO63TLOCKERBL SKU # 1006636637 / 1006581369
72 in. Professional Duty Top Locker Model # HPRO72TLOCKERBL SKU # 1006636636 / 1006581287

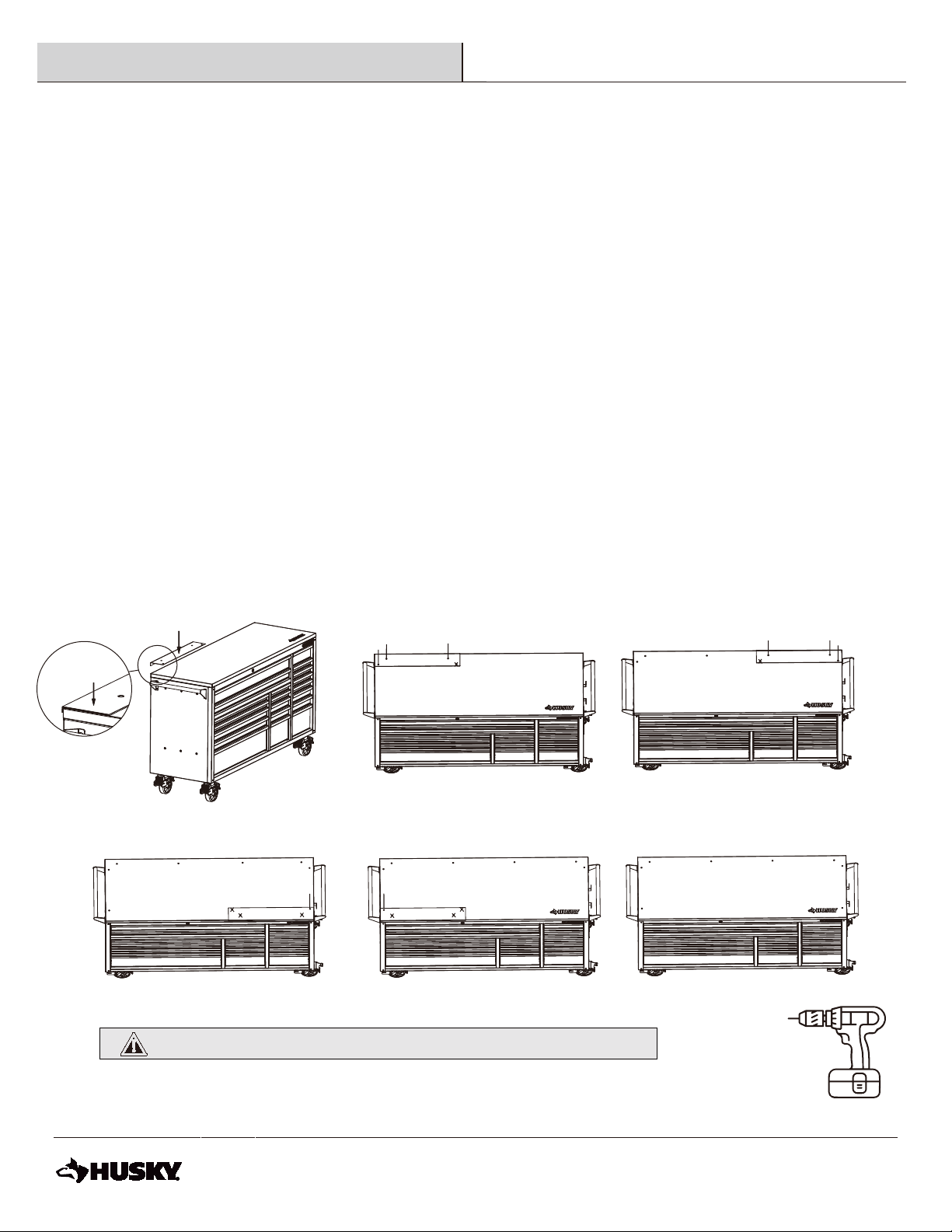

Align and x the Drill template (AA) on the back left corner of the stainless steel top of the Husky Professional
72in Workbench, ush with the left edge. Figure 1:1.
□
CAUTION:
Use caution when drilling the attachment holes through the steel top.
Figure 1:1
Figure 1:2
B
B
A
C
C
D
A
Figure 1:3
123456
7
8
Figure 1:4 Figure 1:5 Figure 1:6
Use a marker to mark hole locations A, B, C. Figure 1:2.
Align the Template (AA) on the back right corner, ush with the right edge and mark hole locations B, C, D. Figure 1:3.
Flip the Template (AA) over and align with the front right corner, ush with the right edge and mark hole location A.
Figure 1:4.
Align the Template (AA) on the front left corner, and mark only hole location D. Figure 1:5.
There should be a total of 8 marked hole locations on the steel work top. Ensure correct, per Figure 1:6.
Use a hammer and punch to create a small divot in the steel top at each of the marked locations for the
drill bit to align.
□
□
□
□
□
□
□
Using a power drill and the Stop drill bit (JJ), carefully drill the 8 connection holes. Ensure holes are drilled clean
and perpendicular to the surface to properly expose the press nuts beneath.
D
Power Drill

7Please c
Attach the Hutch to the Workbench
Remove the 2 side handles and 8 bolts (not included with Hutch) from the existing 72 in. 20-Dr. Workbench and
temporarily attach to the Hutch to help with lifting for assembly. The handles can be re-installed on the 72 in.
20-Dr. Workbench once the Hutch assembly is complete.
Carefully lift the Hutch (A) and gently place on the Workbench.
Open the Hutch door and check for proper alignment of the connection holes through the steel work surface.
Ensure the Hutch is ush with the front and sides of the Workbench.
2
ontact 1-888-HD-HUSKY
HUSKYTOOLS.COM
for further assistance.
□
□
□
□
□
Use 8 pcs M6*48mm ange bolts (BB) to secure the Hutch along the sides and back to the Workbench.
Tighten with a 8mm socket or wrench.
Be careful not to over tighten.
BB
BB
CAUTION:
Two people are required for assembly.

8
Attach the LED light

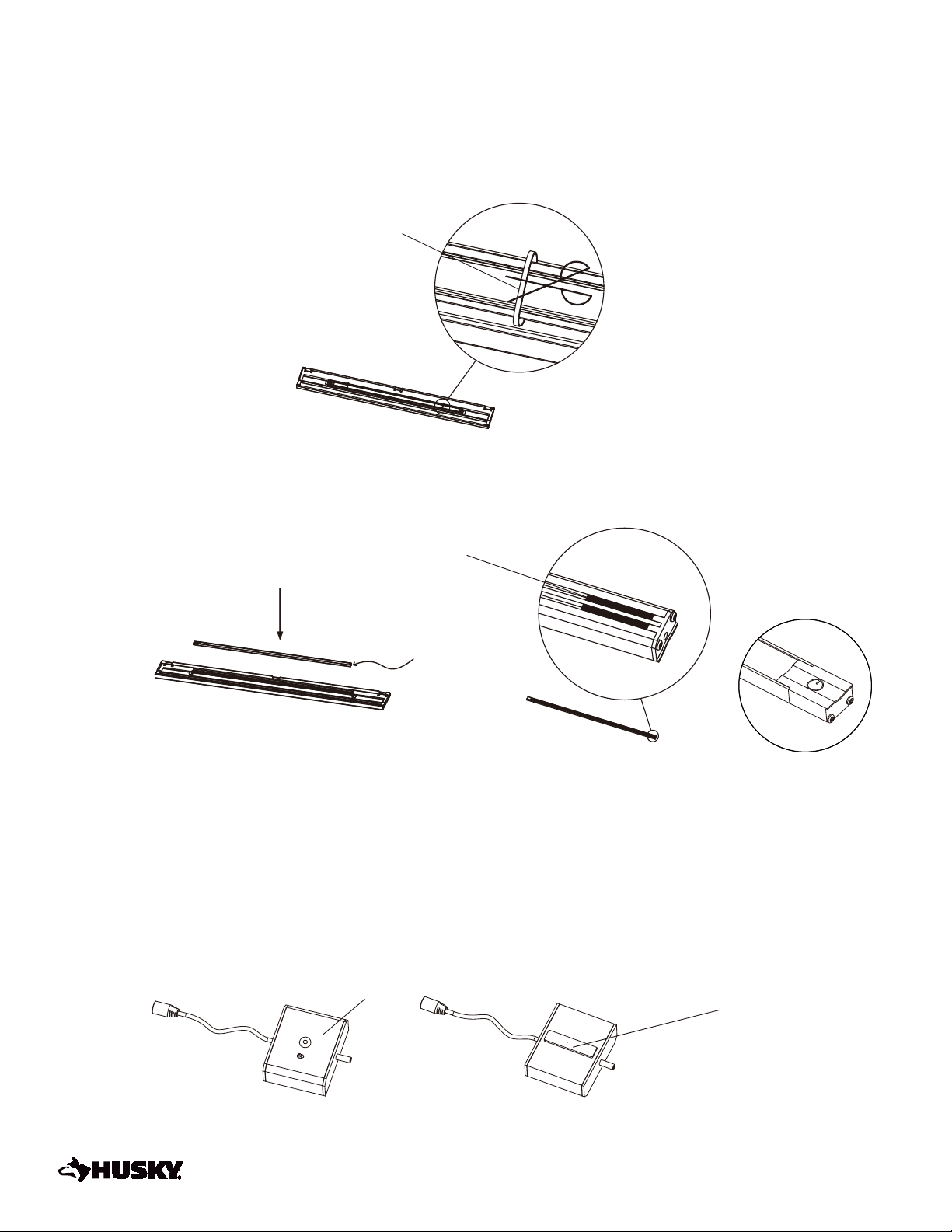

The LED light has been pre-installed on the shelf. Remove any packing materials and the nylon cable ties
bundled at both ends of the LED light.
3
Insert the power cable into the end of the LED xture, and reposition so it’s centered on the shelf.
Note: The back of the LED xture is magnetic and attaches directly to the articulating holder under the shelf.
Nylon cable
Magnet
□
□
Magnet
II
□
□
□
The LED is equipped with a dimmer function built into the power switch.
Touch the power switch button once for 20% output. Touch again for 50%, again for 100%, and again for OFF.
The Motion Sensor (II) is magnetic and can be installed where best suited according to your preference.
It is equipped with an On/Off switch indicated by the blue light in the sensor. The LED can work with or without the
Motion sensor. Once motion is detected, the LED stays on for approximately 150 seconds and will turn off if no motion
is further detected.
The dimmer setting (20%, 50% or 100%) is saved each time the Motion sensor turns the LED on and off.
Plug the transformer cable into the motion sensor and route the cable through the access grommet to a power
source.
□
□
□

9Please contact 1-888-HD-HUSKY
HUSKYTOOLS.COM
for further assistance.
Attach the Transformer Holders
Secure the LED Transformer (D) to the back of the Hutch using the 2 the Transformer Holders (GG) with 4 pcs
Hex socket button cap bolt (EE).
Tighten with Hex Key (HH).
5
Attach the Shelf in the Hutch

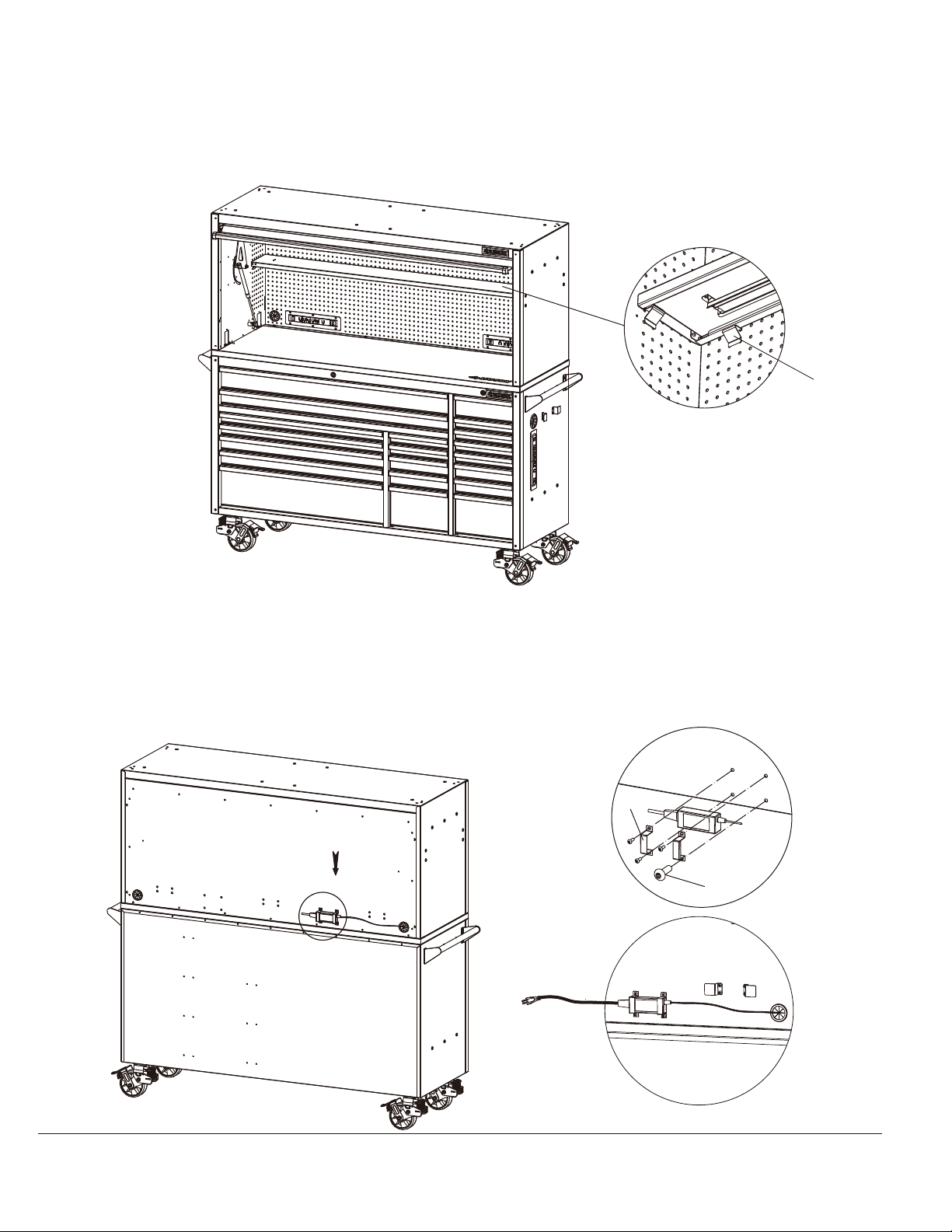

Put the Shelf (B) into the inner cavity of Hutch (A) at the desired height and install the 5 pcs Shelf Clips (CC) to the
pegboard to align with the notches in the Shelf.
4
□
CC
□
□
GG
EE

Use the Cable clips (FF) to attach the power cord from the LED light and route the wire along the backwall to
connect to the Motion Sensor(II).
Double-sided tape on back
FF
10
□
Attach the Storage Hooks
Attach the Storage Hooks (DD) for the power cord on the back of the Hutch with 12 pcs Hex button botton cap bolt (EE).
Tighten with Hex Key (HH).
6
□
□
DD
EE

Cordless Power Tool Battery Chargers
□
□
□
□
□
See Charger’s Owner’s Manual for proper use and care of charger and batteries.
Follow all Warnings and Instructions provided with your battery charger.
Chargers are for use in dry locations only. Do NOT expose to liquid, vapor, or rain. Should your charger become wet,
Do NOT attempt to use. Unplug extension cord from supply before handling wet charger or cords.
Only use chargers and batteries that are intact and operating properly.
Do NOT touch metal prongs when plugging charger into extension cord.
Do NOT place or attempt to charge lead acid, car type batteries in Hutch.
□
Maintenance
1111 Please contact 1-888-HD-HUSKY
HUSKYTOOLS.COM
for further assistance.
□
□
□
Periodically clean the front, trim, and other surfaces with a mild detergent and water.
This product has been coated with an industrial UV-resistant power coating for a durable and long lasting finish.
To help protect the coating, do not allow harsh chemicals to remain on the surface for extended periods of time.
8
Kwikset Smartkey® Lock Operation
7
Plastic Plugs
LL
KK
LL
KK
Insert the Plastic Plugs (KK&LL) into the remaining open holes on the side walls of the Hutch (A) per the diagram below.
□
□
□
This product has been equipped with the Kwikset Smartkey® locks which allow you to easily program each lock
cylinder to a specific key code to match other Kwikset keyed products.
The lock cylinders have been factory keyed to the corresponding alphabetic lettering found on the Kwikset Smartkey®
label located on the back of the key chain, as well as afxed to the product itself.
Please see the Kwikset Smartkey® supplemental instructions for keying and re-keying the locks.
□
B
Retain This Label
For Key Identification
ONE KEY FOR ALL YOUR LOCKS
TM
Place chargers and electrical connections in till.
□

12
Replacement Parts
For assistance with replacement parts please call 1-888-HD-HUSKY.
6
A1
B 1
C 2
D
Kwikset Smartkey® Lock
2
F
Badge
4
H
12
G
1
I
1
J
Key
2
E
Part Description Quantity
Outlet Panel Cover
Outlet
Rubber Grommet
Storage Hook
Storage Hook Bolt
Shelf
LED Light (YLED 301-S) and Cord
G
H
2
KGas Strut
5
LShelf Clip
6
MCable Clip
1
N
1
O
L
M
Motion Sensor
Transformer
AY04016400
PA18022600
MB15003600
Part#
DB12746700
AA99014600
RA99020100
ML990558R5
MF05018900
DB12745300
AA99017400
MY11022000
MY99080400
RA99023800
AA99017400
AA99017400
2
PTransformer Holder
4
Q
2
R
Transformer Holder Bolt
Aluminum Edge Guard
ML990810R5
MF05018900
TAM00F2800
A
B
D
E
R
F
I
J
K
N
O
P
Q
C
8
SPlastic Plug (M6)
RA05009200
6
TPlastic Plug (M8)RA05009100
T
S

Questions, problems, missing parts? Before returning to the store call
Husky Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday
9 a.m. - 6 p.m., EST, Saturday
1-888-HD-HUSKY
HUSKYTOOLS.COM
Retain this manual for future use.
