PRODUCT PASSPORT
DiKom VS-053 and VS-055 Tool Cupboard
Date of manufacture
Technical Control
Department Controller Packer
St. Petersburg
Huvema VS-053 and VS-055 Tool Cupboard
INSTALLATION MANUAL
Kennedylaan 14
5466 AA Veghel
the Netherlands
Tel.: [phone]
E-mail: [email protected]
Web: www.huvema.nl

2
1. General information
1.1. DiKom VS-053 and VS-055 heavy-duty Tool Cupboards are ready-to-assemble.
Cupboard is designed for industries, repair shops, garages, etc.
Used for storing tools and equipment.

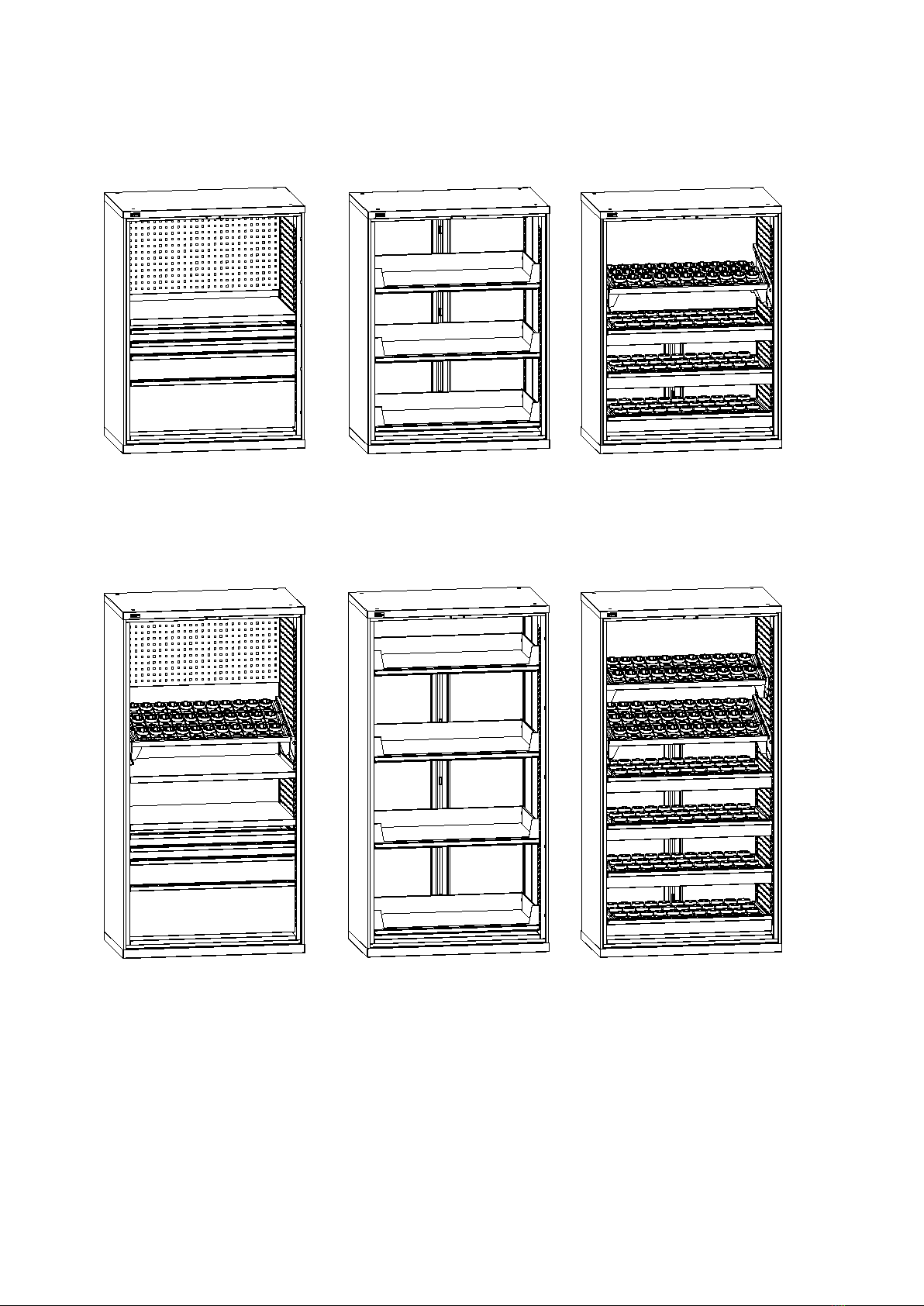

Internal configuration varies according to Customer request. The following modules are
available:
-S-053/055 Doors fitted with windows, or regular doors;
-VS-052-055 set of Side Perforated Panels, with optional rails and frames for tool holders.
-VS drawer w54d27h75/100/150/300;
-VS roll-out shelf w54d27h150;
-VS-05 Stand, VS-05 Base
-VS-05 Anti-tilt System h600 /1200/1600;
-VS-05-Shelf
-VS-053/055 set of side perforated panels
-VS-05 Tabletop
-VL Perforated Panel. Panel accessories can be purchased separately (shelves, plastic
containers, hooks, tool holders);
Manufactured according to TU 5620-002-31045953-2015.
1.2. Manufacturer: DiKom Service LLC
Address: Russia, 196655, St. Petersburg,
Kolpino, Saperny pereulok, 3.
Website: www.dikom.pro.
1.3. The manufacturer reserves the right to modify the product as long as it does not
adversely affect consumer properties. This allows changes to the specifications
and configuration of the products.
2. Configuration
2.1. VS-053/055 Doors
№Name Image
1) Left door 1
2) Right door 1
3) Hinge 6
4) 4 x 6 Rivet 36
2.2. VS-053/055 Doors fitted with windows
ATTENTION! Slight scratches are allowed on VS Doors with windows.
№Name Image
1) Left door with
window 1
2) Right door with
window 1
3) Hinge 6
4) 4 x 6 Rivet 36
VS- 053/
VS-055
VS- 053/
VS-055

№Name Qty. Image
1) Side perforated panel 2
2) Side panel coupler 2
3) Screw, 5,5x16 16
№Name Qty. Image
1) VS-05-Shelf 1
2) Hitch 4
Internal modules
Not included in the package. Available separately on customer request.
2.4. VS-053/055 set of side perforated panels
2.5. VS-05-Shelf
3

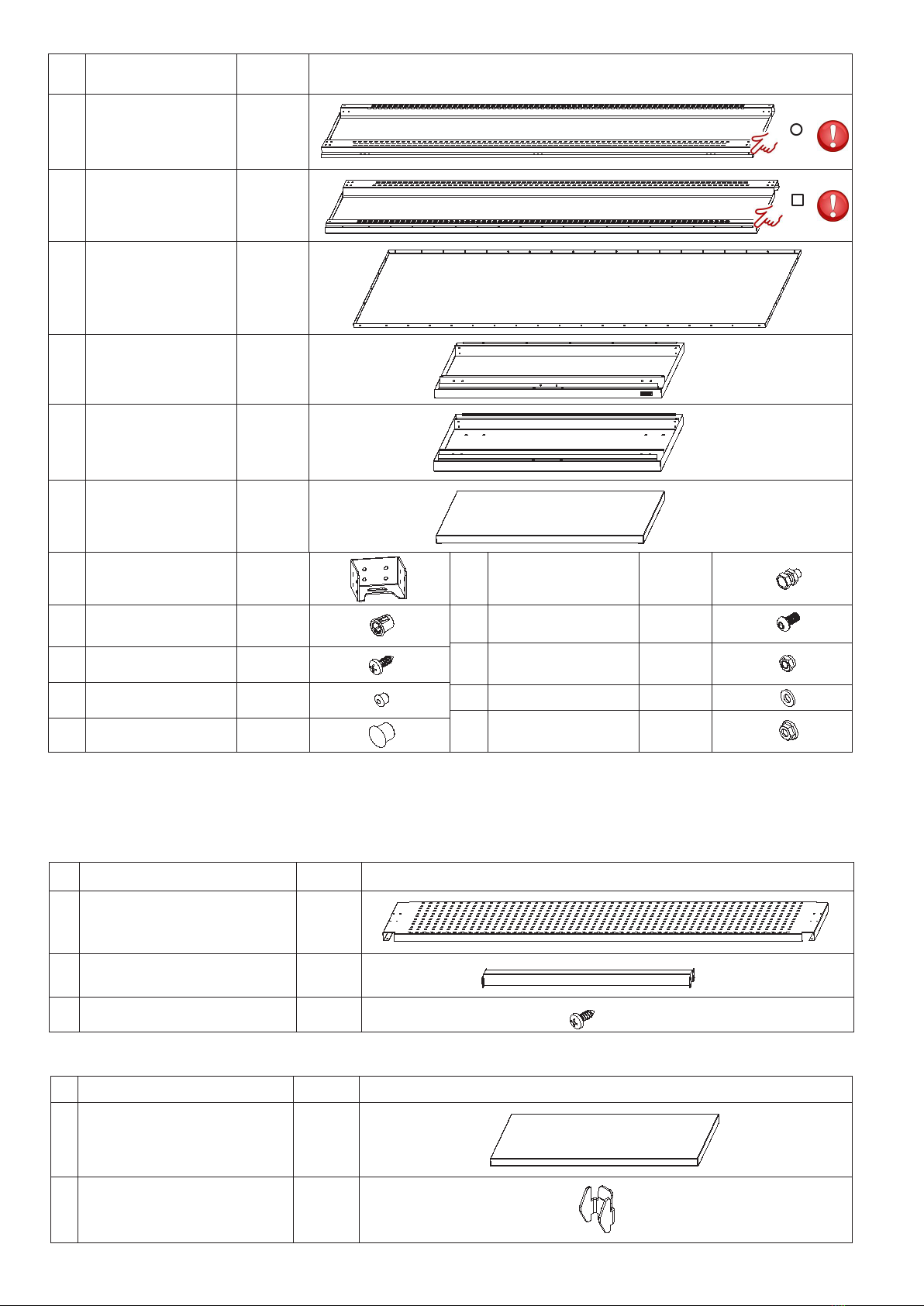

№Name Image
1) Right side wall 1
2) Left side wall 1
3) Rear wall 1
4) Cover 1
5) Bottom 1
6) Shelf 1
7) Front
connector 4
8) Retainer
Guide 4
9) Screw, 5,5x16 22
10) Blind plug 7 1
11) Blind plug 12 4
12) Mangetic Bolt
M6x12 with nut 1
13) M6X12 Screw 42
14) Nut
self-locking M6 32
15) Washer 6 32
16) Self-locking
nut M6 10
2.3. VS-053/VS-055 Cupboard (without doors) - (VS-055 three pack.places; VS-053 one pack. place)
VS- 053/
VS-055

4
№Name Image
1) Plastic partition 150x150
2) Plastic partition 75x150
3) Plastic partition 75x75
Plastic partition containers - one w54d27 drawer fits two Sets-01.

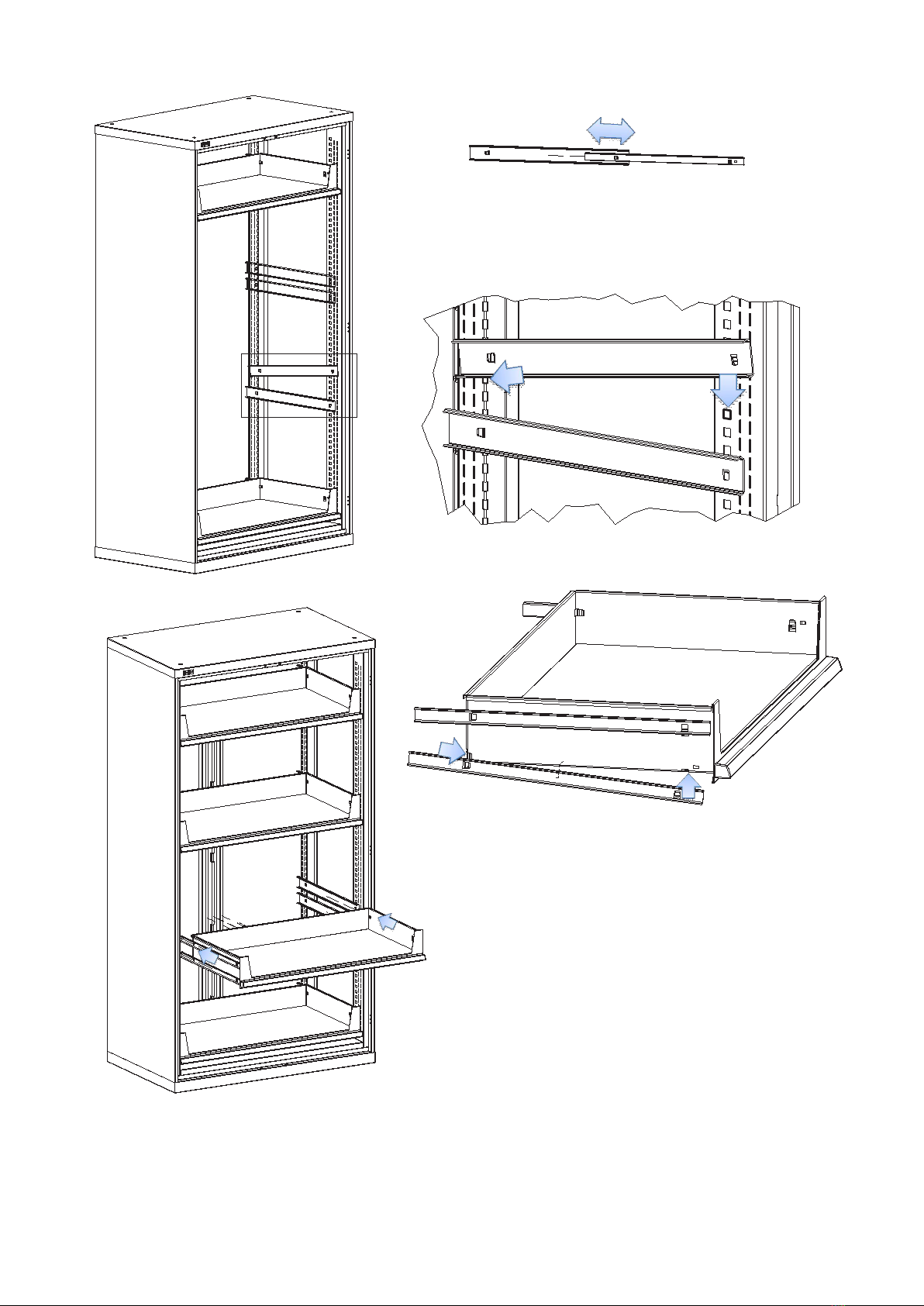

2.7. VS roll-out shelf w54d27h150
№Name Qty. Image
1) VS roll-out
shelf 1
2) VS set of rail guides-
01/03 2
№Name Qty. Image
1)
VS drawer
75/100/150/300
inner dimensions
918х459 mm
1
2) Rail guide set 1
№Name Qty. Image
1) Rail guide set 1
2.9. VS set of rail guides - 01/03
2.8. VS drawer w54d27h75/100/150/300
№Name h600 h1200 h1600 Image
1)
Anti-tilt system
h600/1200/1600 11 1
2) Screw, 5,5x16 10 22 30
2.6. VS-05 Anti-tilt System h600/1200/1600
When using roll-out platforms or installing more than 2 drawers, installation of the anti-
tilt system is mandatory.
The height of the anti-tilt system must correspond to the total drawer height .
№Name Image
4) Plastic partition d33
5) Plastic partition d45
6) Plastic partition d70 *

5
№Name Qty. Image
1) Rails for tool
holders-03 1
4) BRACKET 2
5) Bracket 15° left 1
6) Bracket 15° right 1
7) Retainer 2
8) Handle 2
№Name Qty. Image
1) Frame-03 1
2) Bracket for the
Cabinet-01/-03 2
3) Screw, 4,2x9,5 8
4) Screw M8x16 6
5)
Height
adjustment
bracket-01/-03
2
6) Nut
self-locking M8 6
7) Washer 8 6
870
870
2.11. Frame for tool holders-03
2.12. Rails for tool holders-03
№Name Qty. Image
1) Left bracket 1
2) Right bracket 1
3) Retainer 4
2.13. VS-05 15°Bracket Set for rails
№Tool type Width Image
1) ISO30/SK30/Morse3; HSK-A40/C40/E40/F40/B50;
HSK-A32/C32/E32/F32/B40; Capto C3; Capto C4 50
2)
VDI 30; VDI 40; ISO 35 / SK35 / Morse 4;
ISO40/SK40/BT40; ISO45/SK45/Morse5;
HSK-A50/C50/E50/F50/B63/F63;
HSK-A63/C63/E63/B80; Capto C5; Capto C6
75
3)
VDI 50; VDI 60; Capto C8; ISO50/SK50;
HSK-A80/C80/E80/F80/B100;
HSK-A100/C100/E100/F100/B125; Do-it-yourself
100
Tool holders are mounted on Rails and Frames. Find more details on
dikom.pro.

6

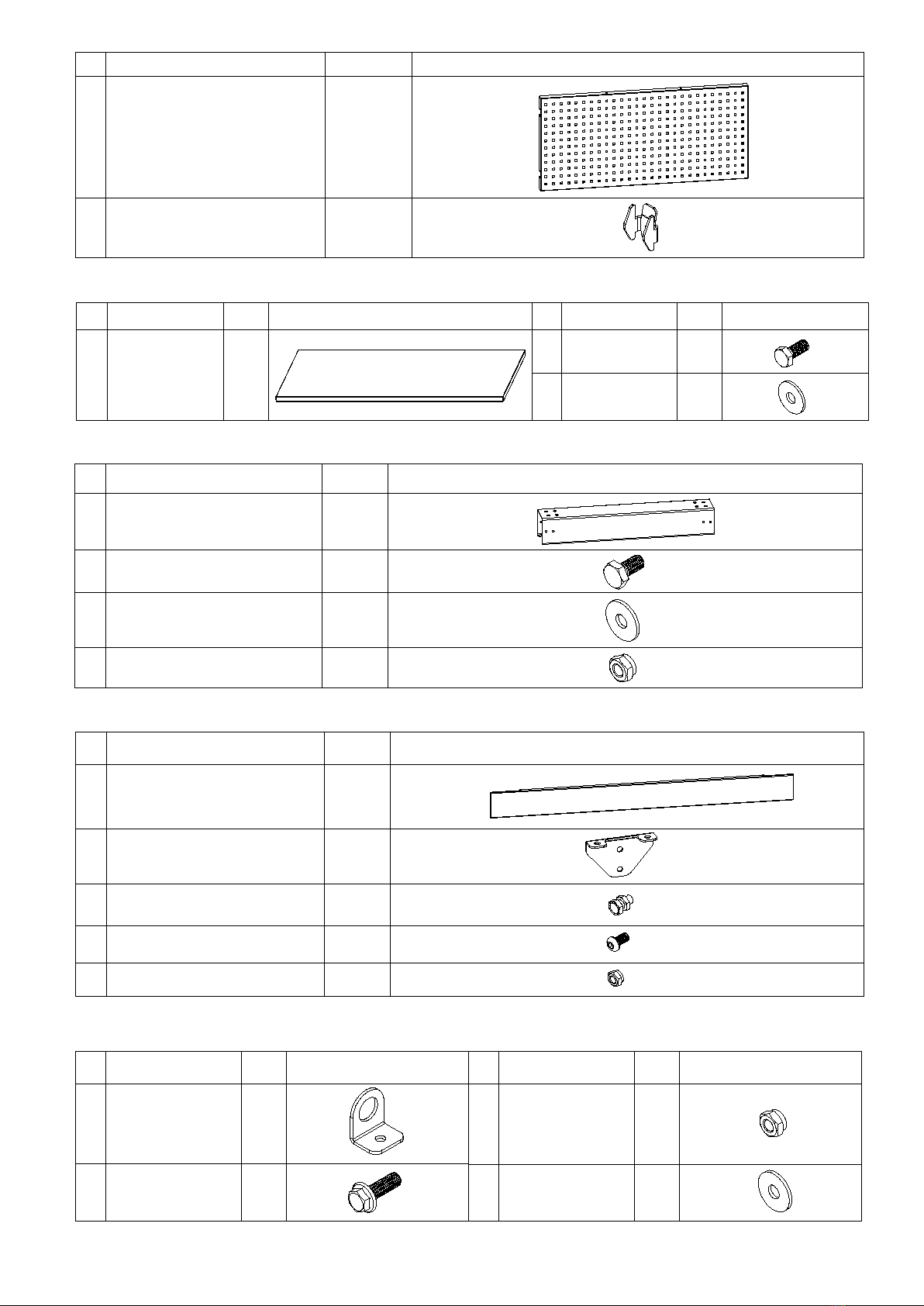

№Name Qty. Image
1) Ear Bracket 4
2) Bolt M10x30 4
№Name Qty. Image
3) Nut M10,
self-locking 4
4) Washer 10
wide 4
2.17. Crane Transportation Kit
№Name Qty. Image
1) Perforated panel 1
2) Hitch 4
№Name Qty. Image
1) Support 2
2) Bolt M10x20 4
3) Washer 10 wide 4
4) Nut M10, self-locking 4
№Name Qty. Image
1) Base 1
2) Base Bracket 2
3) Mangetic Bolt M6x12
with nut 4
4) M6X12 Screw 4
5) Nut M6, self-locking 4
№Name Qty.Image
1) VS-05
Tabletop 1
№Name .Qty.Image
2) Bolt M8x18 4
3) Washer 8
wide 4
2.14. VS-05 Tabletop (installed on the VS-053 model)
2.16. VS-05 Base (mounted on the VS-05 stand)
2.15. VS-05 Stand
2.13. VS-03 Perforated panel for the cabinet

7
3. ASSEMBLY INSTRUCTIONS
3.1 Lay out the parts.
ATTENTION! It is important to determine the left and right sides, cover
and bottom, top and bottom parts of the Cabinet.
Rear wall
(symmetrical)
Cover
Right
side
wall
If a VS-05 anti-tilt
system is available,
mount it to the rear wall
right away.
"DiKom" logo
Left
side
wall
left
top right
top 
Bottom
Front connectors
Shelf
The springs
must be located
at the top!

RE
8
16 pc
Washer 6
Front
connector
16 pc
Self-locking
Nut M6
16 pc
M6X12 Screw
3.3 Set and install the bottom.
3.2 Fasten the connectors on the sidewalls.
Left
side
wall Right
side
wall
2 pc
Rail guide
retainer
8 pc
M6X12
Screw
8 pc
Self-locking
Nut M6
8 pc
Washer 6
4 pc
Screw
5,5х16
Bottom

9
3.5 Install the Cover.
5 pc
Nut M6
self-locking
4 pc
Screw
5,5x16
1 pc
Mangetic
Bolt with nu
13 pc
M6X12
Screw
4 pc
Blind plug 12 2 pc
Rail guide
retainer
1 pc
Blind plug 7
8 pc
Washe 6
Cover
3.3 Attention! If a VS-05 anti-
tilt system is available, mount it
to the rear wall right away.
left right
top 
1) Connect the rear wall and bottom.
2) Fix the rear wall with four screws
around the perimeter.
3) Set the anti-tilt system
at the required height.
4) Fasten the rear wall,
evenly distributing the remaining
screws.
TOP
Rear wall
(symmetrical)
2
Screw
5,5х16
5 pc
M6X12
Screw
5 pc
Nut M6
self-locking
top 
2 pc
Self-locking
Nut M6

NM
10
3.5 Install the VS-05 Stand, Base and Crane Kit
Ear Bracket
VS-05 Stand
Base
Base
Bracket
Magnetic bolt
VS-05 Stand
Place the Cupboard in upright position.
3.6 Install the set of side perforate panels.
3.7 Place the shelf on the bottom.
The bracket can be fastened outside, as
well as on the inner side of the stand.
4 pc
Bolt М10х20
4 pc
Washer 10
4 pc
Nut М10
self-locking
4 pc
Mangetic Bolt
M6x12 with nut
4 pc
Nut M6,
self-locking
4 pc
M6X12
Screw
16 pc
Screw, 5,5x16
