Hybrid+ SIX BEAM User manual

User Manual
Please read the instructions carefully before use

1A
TABLE OF CONTENTS
1. Safety Instructions
2. Technical Specifications
3. Installation
4. Main Function
5. How To Control The Unit
6. DMX512 Configuration
7. DMX512 Connections
8. Troubleshooting
9. Fixture Cleaning

2A
1. Safety Introductions
WARNING
Please keep this User Manual for future consultation. If you sell the fixture to another
user, be sure that they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before using the fixture.
Before operating, ensure that the voltage and frequency of power supply match the
power requirements of the fixture.
It’s important to ground the yellow/green conductor to earth in order to avoid electric
shock.
Disconnect main power before servicing and maintenance.
Use safety chain when fixes this fixture. Don’t handle the fixture by taking its head only,
but always by taking its base.
Maximum ambient temperature is Ta : 40℃. Don’t operate it where the temperature is
higher than this.
In the event of serious operating problem, stop using the fixture immediately. Never try
to repair the fixture by yourself. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance
center. Always use the same type spare parts.
Do not connect the device to any dimmer pack.
Do not touch any wire during operation and there might be a hazard of electric shock.
To prevent or reduce the risk of electrical shock or fire, do not expose the fixture to rain
or moisture.
The housing must be replaced if they are visibly damaged.
Do not look directly at the LED light beam while the fixture is on.
Caution
There are no user serviceable parts inside the fixture. Do not open the housing or attempt
any repairs yourself. In the unlikely situation, your unit may require service, please contact
your nearest dealer.
Please read the instructions carefully which includes important
information about the installation, operation and maintenance.

3A
2. Technical Specifications
Input Voltage: 220-240 Vac / 50-60 Hz
Power consumption: 15W
Light Source: 9W (3 in 1) LED
Fuse: T 3A (AC 230/250V)
7 DMX Channels
Dimension: 285 x 240 x 280 mm
Net Weight: 2.6kg
Cross Weight: 3.15kg
3. Installation
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is
firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure
to which you are attaching the unit is secure and is able to support a weight of 10 times of
the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the
unit when installing the fixture.
The equipment must be fixed by professionals. And it must be fixed at a place where is out
of the touch of people and has no one pass by or under it.
4. Main Function

4A
1 Microphone：Receive music for the sound active.
2 Dial-up：
4 DMX output：For DMX512 link, use 3/5-pin XLR plug cable to link the next unit.
3 DMX input: For DMX512 link, use 3/5-pin XLR plug cable to input DMX signal.
5.FUSE.
6.ins input：Connect to supply mains power.
7.ains output：Connect to supply mains power for the next unit.
5. How To Control The Unit
Two ways to operations:
A. Master/Slave operation
B. Universal DMX controller
A. By Master/slave Built-in Preprogrammed Function
By linking the units in master/slave connection, the first unit（Master）must be turned Dip
switch 9 on,then will control the others to give a coordinate automatic light show and it’s
good for instant shows. In this mode, the other unit（Slave）must be turned Dip switch 10 on.
The first unit is easy to recognize by nothing in its DMX input jack. The others of chains
(Slave) will have DMX cables plugged into the DMX input jacks (daisy chain).

5A
B. By universal DMX controller
When using a universal DMX controller to control the chain of units, you have to set DMX
address by Dip switches from 1 to 8 to make sure all the units will receive its DMX signal.
Please refer to the following diagram to know how to address your DMX 512 system in the
binary code.

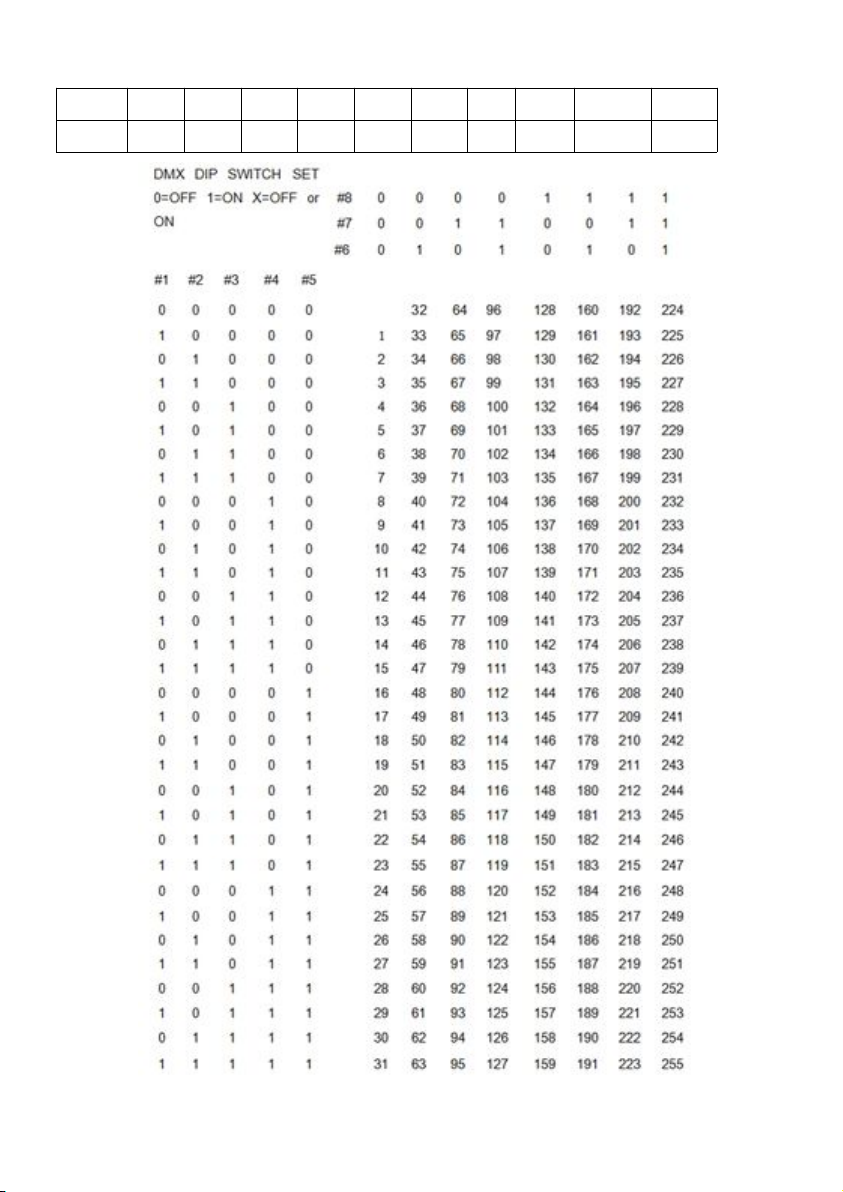

DMX 512 Address Chart
Red
X
Green
X
Blue
X
Red Fast Strobe
X
X
Green Fast Strobe
X
X
Blue Fast Strobe
X
X
Red+Green Fast Strobe
X
X
X
Green+Blue Fast Strobe
X
X
X
Blue+Red Fast Strobe
X
X
X
Red+Green+Blue Fast Strobe
X
X
X
X
Red Slow Strobe
X
X
Green Slow Strobe
X
X
Blue Slow Strobe
X
X
Red+Green Slow Strobe
X
X
X
Green+Blue Slow Strobe
X
X
X
Blue+Red Slow Strobe
X
X
X
Red+Green+Blue Slow Strobe
X
X
X
X
Full On
X
X
Sound Control
X
Auto Mode
X
Master(Master/Slave Mode)
X
DMX Mode(Address Switch 1-8)
X

6A
Dip
#1
#2
#3
#4
#5
#6
#7
#8
#9
#10
Value
1
2
4
8
16
32
64
128
Master
DMX

7A
6. DMX512 Configuration
Channel Value Function
1
0-3 Off
4-127 Clockwise fast to slow
128-255 Counter Clockwise slow to fast
2 0-255 Red dimmer
3 0-255 Green dimmer
4 0-255 Blue dimmer
5
0-27 Off
28-55 3 colors fade without rotation
56-111 7 colors fade without rotation
112-139 7 colors change with rotation
140-167 7 colors jump with rotation
168-195 3 colors fade with rotation
196-251 7 colors fade with rotation
252-255 Sound active
6 0-255 Color change speed from slow to
fast(when CH5 on 28-111)
7 0-255 Strobe from slow to fast

8A
7. DMX512 Connections
The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels.
1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin
adapter-cable.
2. Connect the fixture together in a “daisy chain” by XLR plug cable from the output
of the fixture to the input of the next fixture. The cable cannot be branched or
split to a “Y” cable. Inadequate or damaged cables, soldered joints or corroded
connectors can easily distort the signal and shut down the system
3. The DMX output and input connectors are pass-through to maintain the DMX
circuit when one of the units’ power is disconnected.
4. At last fixture, the DMX cable has to be terminated with a terminator to reduce
signal errors. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin
3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture.
5. Each lighting fixture needs to have an address set to receive the data sent by
the controller. The address number is between 0-511 (usually 0 & 1 are equal to
1).
6. 3 pin XLR connectors are more popular than 5 pin XLR.
3 pin XLR: Pin1: GND, Pin2: Negative signal (-), Pin3: Positive signal (+)
5 pin XLR: Pin1: GND, Pin2: Negative signal (-), Pin3: Positive signal (+)
Pin4/5: Not Used.

9A
8. Troubleshooting
Following are a few common problems that may occur during operation. Here are some
suggestions for easy troubleshooting:
A. The fixture does not work, no light
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.
2. If the DMX LED is on and no response to the channel, check the address settings and
DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB
of the fixture or the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high voltage cables that may
cause damage or interference to DMX interface circuit.
C. Some fixtures don’t respond to the easy controller
1. You may have a break in the DMX cabling. Check the LED for the response of the
master/ slave mode signal.
2. Wrong DMX address in the fixture. Set the proper address.
D. No response to the sound
1. Make sure the fixture does not receive DMX signal.
2. Check microphone to see if it is good by tapping the microphone.
E. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is broken.
2. The motor’s drive IC on the PCB might be out of condition.

10A
9. Fixture Cleaning
The cleaning of internal must be carried out periodically to optimize light output. Cleaning
frequency depends on the environment in which the fixture operates: damp, smoky or
particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 20 days. Clean the internal optics at least every
30/60 days.
