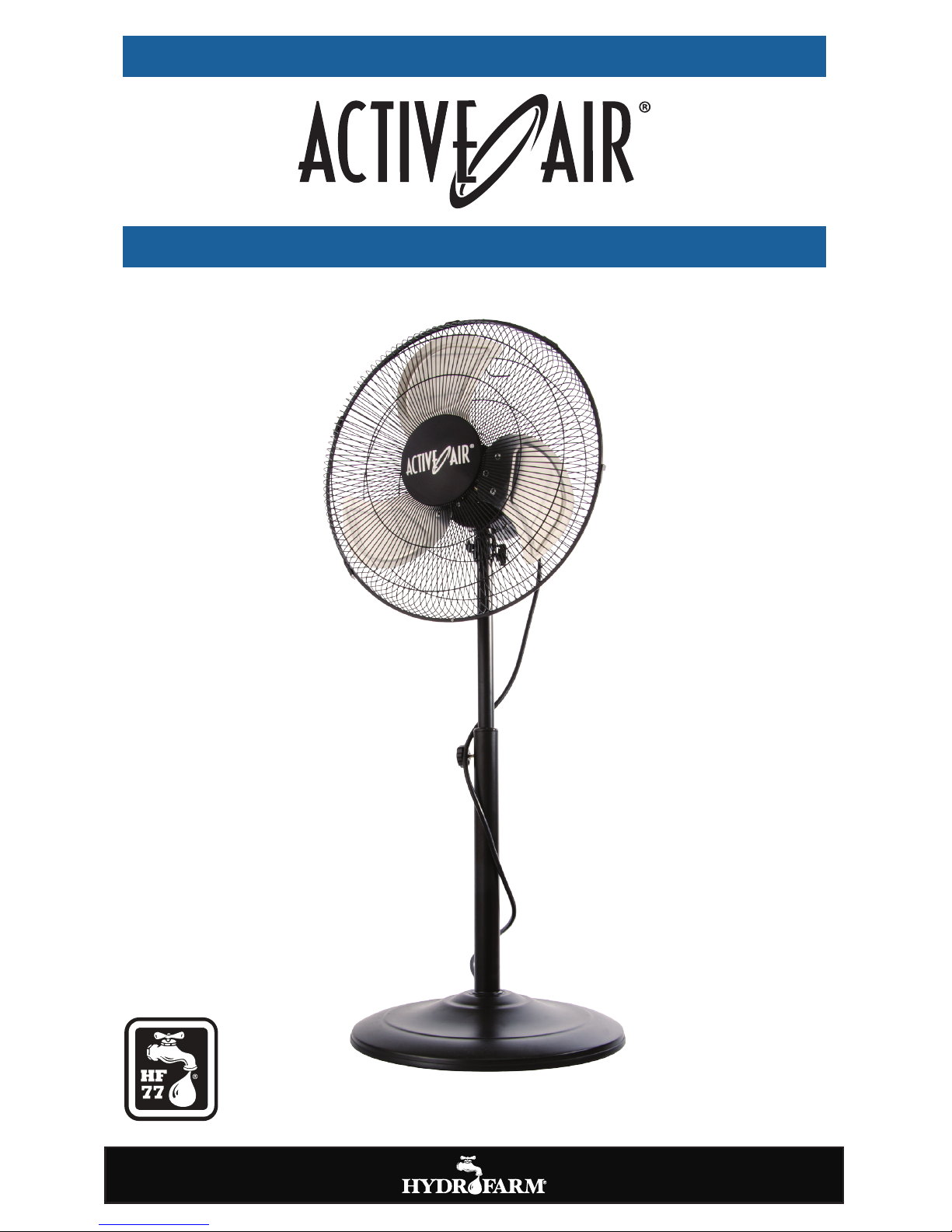

Hydrofarm Active Air ACFP1016 User manual

ACFP1016
USER MANUAL

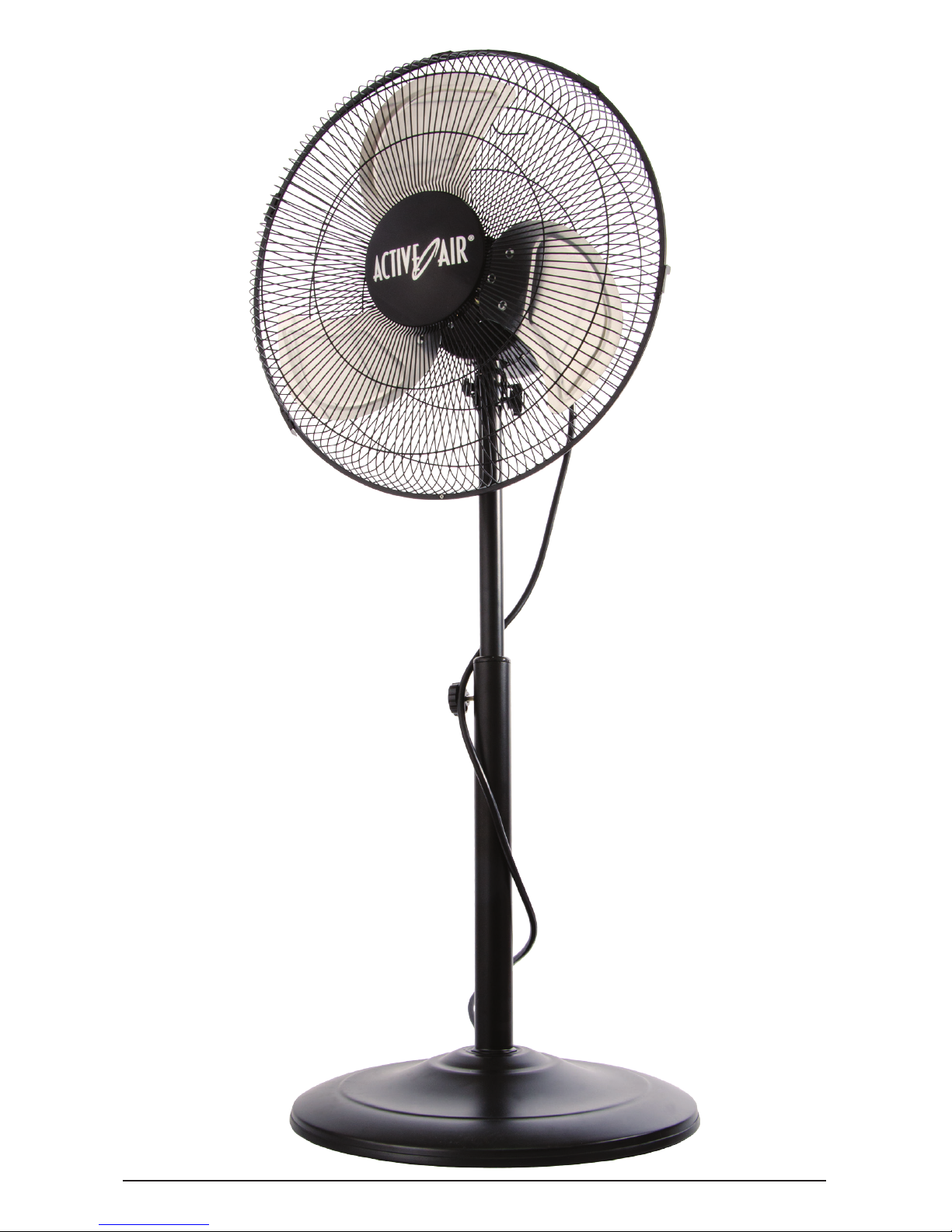

PEDESTAL FAN (16 Inch)
Hydrofarm.com

Thank you for purchasing our 16" Pedestal Fan - ACFP1016. Each unit has been manufactured to
ensure safety, reliability, and ease of use. Active Air Heavy Duty Pedestal Fans provide superior air
circulation with excellent durability. Available in both 16"and 18"sizes. Their motors are redesigned
for stronger performance and are built for years of continuous use. They come equipped with
industrial strength aluminum fan blades and operate at three speeds with a smooth side-to-side
oscillation. The heavy duty pedestal fans are adjustable in height and utilize a strong heavy base for
stability. They are tough and will easily handle even the harshest grow room environments.
Before use, please read these instructions carefully and save them for future reference. For
information on additional Active Air products please visit Hydrofarm.com.
TOOLS NEEDED (FOR OPTIONAL MOUNTING)
Phillips
Screwdriver
SPECIFICATIONS
Voltage AC 120V/60Hz
Wattage 65W
INDOOR USE ONLY
Hydrofarm.com
OVERVIEW
TABLE OF CONTENTS
OVERVIEW 2
PARTS LIST  WHAT’S IN THE BOX 3
IMPORTANT SAFEGUARDS 4
ASSEMBLY INSTRUCTIONS 5
ASSEMBLY 5
ELECTRIC SCHEMATIC DIAGRAM 5
OPERATING INSTRUCTIONS 6
CARE AND CLEANING 6
CLEANING 6
STORAGE 6
PROBLEM SOLVING 6
WARRANTY 8
2

PARTS LIST - (WHAT’S IN THE BOX)
PARTS LIST
1. Securing nut
2. Securing bolt
3. Decorative cover
4. Front guard
5. Fan blades
6. Blade locking screw
7. Back guard locking screws
8. Back guard
9. Motor shaft
10. Motor
11. Speed control
12. Oscillation knob
13. Power cord and plug
14. Hand nut
15. Inner pipe
16. Height adjustment screw
17. Outer pipe
18. Base
19. Weight
20. Washer
21. Locking lever
3

IMPORTANT SAFEGUARDS
When using your pedestal fan, basic precautions should always be followed, including the following:
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
• Children should be supervised to ensure that they do not play with the pedestal fan.
• Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or electric
burner.
• Never use this pedestal fan near bathtubs, showers, basins or other vessels containing water.
• Never immerse the pedestal fan, plug or cord in water, or allow any liquid to come in to contact
with any part of the pedestal fan.
• Ensure that the voltage used corresponds to the voltage indicated on the rating label.
• Never touch the blades with your hand or any other object!
• Do not pull the cord too hard. If it becomes damaged after prolonged use, get it repaired by a
technician.
• Never insert your fingers, pencils, or other objects through the pedestal fan guard during
operation.
• The pedestal fan should be used on a stable and level surface.
• Do not operate without the guard being properly in place.
• Do not expose the pedestal fan to excessive heat or humidity. This could cause damage to the
electrical components.
• Check the power cord and plug regularly for any damage. If the cord or the plug is damaged, it
must be replaced by manufacturer or a qualified person in order to avoid an electrical hazard.
• We do not recommend the use of an extension cord. It could overheat and cause a fire hazard.
• This pedestal fan is intended for household use only. Industrial or commercial use will void the
warranty, and the supplier can not be held responsible for injury or damage caused when using
the appliance for any other purpose than that intended.
• To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control
device.
• To disconnect, grip plug and pull from wall outlet. Never pull on the cord to unplug.
• The use of accessory attachments that are not recommended or supplied by the manufacturer
may result in injuries, fire or electric shock.
4

Before first use, please follow these instructions:
• Remove all packing and any labels.
• Making sure that your pedestal fan is in good condition. It must have no cracks on the unit and
no damage to the cord/plug.
ASSEMBLY
1. Unscrew the locking lever from the bottom of the outer pipe.
2. Turn the pipe upside down and slide the opening in the center of the pedestal fan base over the
pipe. Place the black weight onto the base followed by the washer.
3. Insert the threaded end of the locking lever into the hole of the washer and through the base
into the bottom of the stand. Turn the locking lever clockwise to secure and tighten the base to
the pipe.
4. Turn the base over and set it on the floor.
5. Remove the nut and screw on the top of inner pipe. Insert the connector under the motor into
the inner pipe. Tighten the screw on the connector.
6. Insert the locking screw of the inner pipe through the square hole of the connector and fix it
with the locking nut.
7. Fix the hand screw on the connector.
8. Remove the outer back guard locking screws (4 pieces) from the front cover of the motor.
9. Position the back guard over the motor shaft, fitting the holes in the back guard over the four
screw holes on the outside of the motor. Make sure the handle is at the top.
10. Secure the back guard by screwing in the four back guard locking screws.
11. Loosen the securing screw on the pedestal fan blade. Slide the pedestal fan blade onto the
mounting shaft with the shaft sleeve facing the motor. Align securing screw with flat groove in
the motor shaft and tighten with a Philips screwdriver.
12. Remove the small securing bolt from the bottom of the front guard. Position front guard so the
logo is horizontal, and make sure the guard clips are open. Secure the top tab to the back guard.
Fasten the guards together with the securing bolt. Hold the front guard against the back guard
and snap the guard clips closed to complete the assembly.
ASSEMBLY INSTRUCTIONS
ELECTRIC SCHEMATIC DIAGRAM
5

• Turn the speed control to select speeds: 0 (off) and speeds I (Low), II (Middle), III (High).
• The pedestal fan can operate in oscillation or stationary mode. Press the oscillation knob down
to activate the oscillating mode. To stop oscillation, pull the knob upward.
• To adjust the angle of the pedestal fan head, loosen the adjustable-tilt knob and move the
pedestal fan head to the desired angle. Firmly tighten the knob to secure into place.
OPERATING INSTRUCTIONS
Unplug the pedestal fan before cleaning or making repairs. NOTE: If for any reason this unit requires
service, return appliance to manufacturer or a similarly qualified service agent to ensure safety.
CLEANING
• Disconnect the power cord from the socket. Remove the front guard and the blades carefully.
Do not drop the blades! First use a soft cloth with light soap to clean off oil stains. Then wipe
dry and polish with a dry cloth. Never use polish or any corrosive liquid that will damage the
paint, metal or plastic! Put back the blades and lock the guard securely before use.
• Never use abrasive cleaning agents or solvents. This may cause damage or deterioration to the
surface of the unit.
• Do not allow water to drip on or into the pedestal fan motor housing.
• The pedestal fan blade and guard may be cleaned with a damp cloth and mild detergent.
• Reassemble the pedestal fan after the parts have dried completely. To do so, replace the
pedestal fan blade, tighten the securing screw, and secure the front guard. Do not plug the
pedestal fan into an electrical outlet until it is fully reassembled.
STORAGE
• When not in use, store the pedestal fan in a cool, dry location. To prevent dust and dirt build-
up, use the old packaging to repack the unit.
PROBLEM SOLVING
If the pedestal fan will not operate:
• Confirm that the pedestal fan switch is not in the off position.
• Make sure the electricity to the main fuse is working. For troubleshooting assistance, contact
our returns department.
CARE AND CLEANING
6

7

Hydrofarm.com
ACFP1016 Instructions revised - August 23, 2017 3:49 PM
LIMITED WARRANTY
Hydrofarm warrants the ACFP1016 to be free from defects in materials and workmanship. The warranty term is for
1 year beginning on the date of purchase. Misuse, abuse, or failure to follow instructions is not covered under this
warranty. Hydrofarm’s warranty liability extends only to the replacement cost of the product. Hydrofarm will not be
liable for any consequential, indirect, or incidental damages of any kind, including lost revenues, lost profits, or other
losses in connection with the product. Some states do not allow limitation on how long an implied warranty lasts or
the exclusion of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
Hydrofarm will, at our discretion, repair or replace the ACFP1016 covered under this warranty if it is returned to the
original place of purchase. To request warranty service, please return the ACFP1016, with original sales receipt and
original packaging, to your place of purchase. The purchase date is based on your original sales receipt.
WARRANTY
Like us on Facebook, follow us on Twitter,
and check out Hydrofarmtv on YouTube and Instagram!
Thank you for choosing Active Air by Hydrofarm. For further information
about Active Air products, videos, and technical information,
please visit Hydrofarm.com
