Hyena BS-A370 User manual

BS-A370
Product Manual
This guideline is applicable for the Hyena e-bike system only
Version 1.0
Copyright © 2020 HYENA INC. All Right Reserved.
This manual is intended primarily for the trained technician to install, disassemble, or maintain the e-bike.

Content
Product Features 1
Product Description 1
Parts Description 1
Product Dimension 2
Pin Definition 2
Technical Data 4
Mounting 5
Tool List 5
Accessory List 5
Mounting Instructions 5
Operation 8
Operation Instructions 8
Charging Instructions 9
Safety Instructions 10
Important Notice 10
Grounding Instructions 10
Moving and Storage Instructions 10
Maintenance 10
Product Warning Label 11
Disposal 11

HYENA E-BIKE SYSTEMS
1
Product Features
Product Description
BS-A370 Semi in-tube battery offers a solution for customers looking to integrate the battery within the frame.
Its semi in-tube design concealed the battery in the bike’s downtube, not only helps prevent damage during
drops or a crash, but it also makes battery swaps easier than the complete in-frame batteries, and keep the
bike outward appearance in elegance.

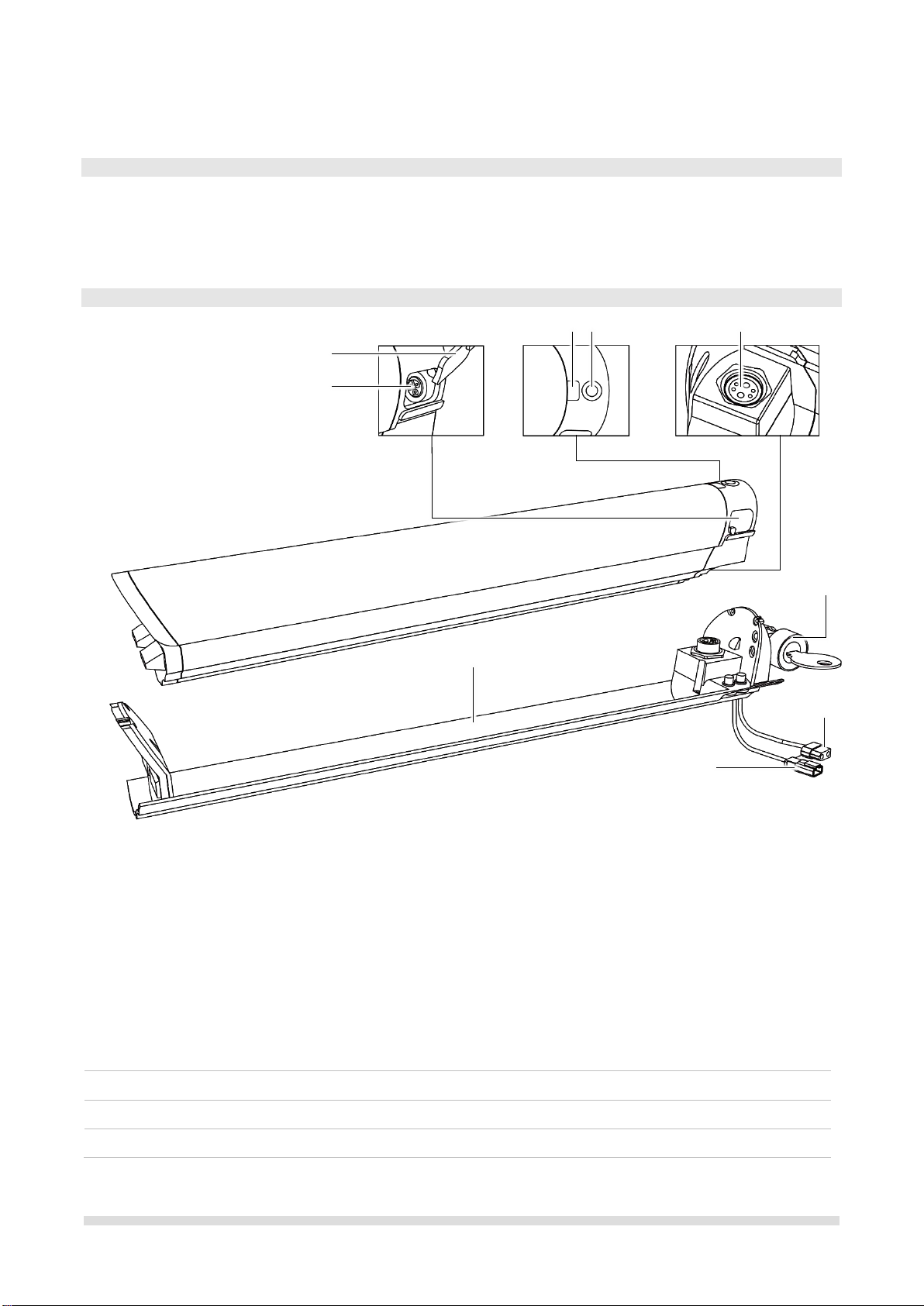

Parts Description
ADustproof cover for charging socket
BCharging socket
CBattery charge indicator
DBattery indicator button
EDischarge connector
FDischarge holder
GBattery lock and key
HDriver connector
IDriver communication connector
Battery charge indicator: LED Indicator shows ROSC when press indication button, and shall last for 3 seconds.
100%-50%
LED on in blue
37-42V
50%-10%
LED on in green
36-37V
10%-1%
LED on in red
34-36V
0%
LED flashes in red every 1 second
32-34V
B
C
D
A
E
F
G
H
I

HYENA E-BIKE SYSTEMS
2
Product Dimension
Pin Definition
Charge
(3 pins female, connect to battery charger)
Discharge
(2 pins female, connect to driver)
Pin
Name
Direction
Description
Remark
1
Ground
Input
Ground
2
NTC
Output
NTC
3
Power
Input
Charge
Pin
Name
Direction
Description
Remark
1
Power
Output
Discharge
2
Ground
Output
Ground
1
2
1
2
3

HYENA E-BIKE SYSTEMS
3
Driver Communication
(4 pins male, connect to driver)
Pin
Name
Direction
Description
Remark
1
Bike Present
Input
Reserved
2
DEN/HMI
Bidirectional
Active low, used to wakeup battery from sleep mode.
3
CAN H
Bidirectional
CAN High
4
CAN L
Bidirectional
CAN Low
1
2
3
4

HYENA E-BIKE SYSTEMS
4
Technical Data
Function
Rated voltage
36V
Typical rated capacity
10.2Ah
Typical energy content
367.2Wh
Cut off voltage
< 28.0V±0.3V
Charging mode
CC-CV (constant current - constant
voltage)
Charge full voltage
42.0V±0.3V
Charge Current
Typical: 2A±0.2A
Maximum: 4A±0.2A
Max Discharge Current
15A
Weight
2.58kg
Waterproof level
IPX4
Characteristic
Protocol
CAN2.0B
Cell Type
18650
Cell Model
Panasonic UR1865ZM2
Serial-parallel
10S4P
Operating temperature
-10℃~+60℃80%RH
1.5C discharge
Storage temperature
-20℃~+50℃80%RH (<1 month)
-20℃~+40℃80%RH (<3 month)
-20℃~+20℃80%RH (<12 month)
Percentage of recoverable capacity = 80%
Charging temperature
0℃~+45℃80%RH
Charging time approx.
2A charger - 5h
4A charger - 2h30min
Mounting Parameter
Mounting position
In frame tube
Dimension
L430, W68, H74 mm
Certification
EN15194:2017
Yes
UL2271
Yes
UN38.3
Yes
IEC62133
Yes

HYENA E-BIKE SYSTEMS
5
Mounting
Tool List
Phillips screwdriver
Accessory List
Battery discharge holder
1 set
Battery lock with key
1 set
Phillips screw (for bottom plate)
M3x0.5Px16mm
2 pcs
Phillips screw (for side plate)
M3x0.5Px10mm
6 pcs (2 pcs attached on the holder)
Mounting Instructions
• Use the proper bicycle tools during the installation or removal process.
• Carefully install this product is necessary, do not strike it with any tool such as a hammer or wrenches.
• CAUTION - Please strictly follow these steps for assembly; otherwise, an incorrect assembly may cause permanent
damage.
• NOTE - The bike image seen in the manual may be different from the actual bike, but will be enough to help you
understand related instructions. The battery and holder can be also installed upside down to suit different frame designs.

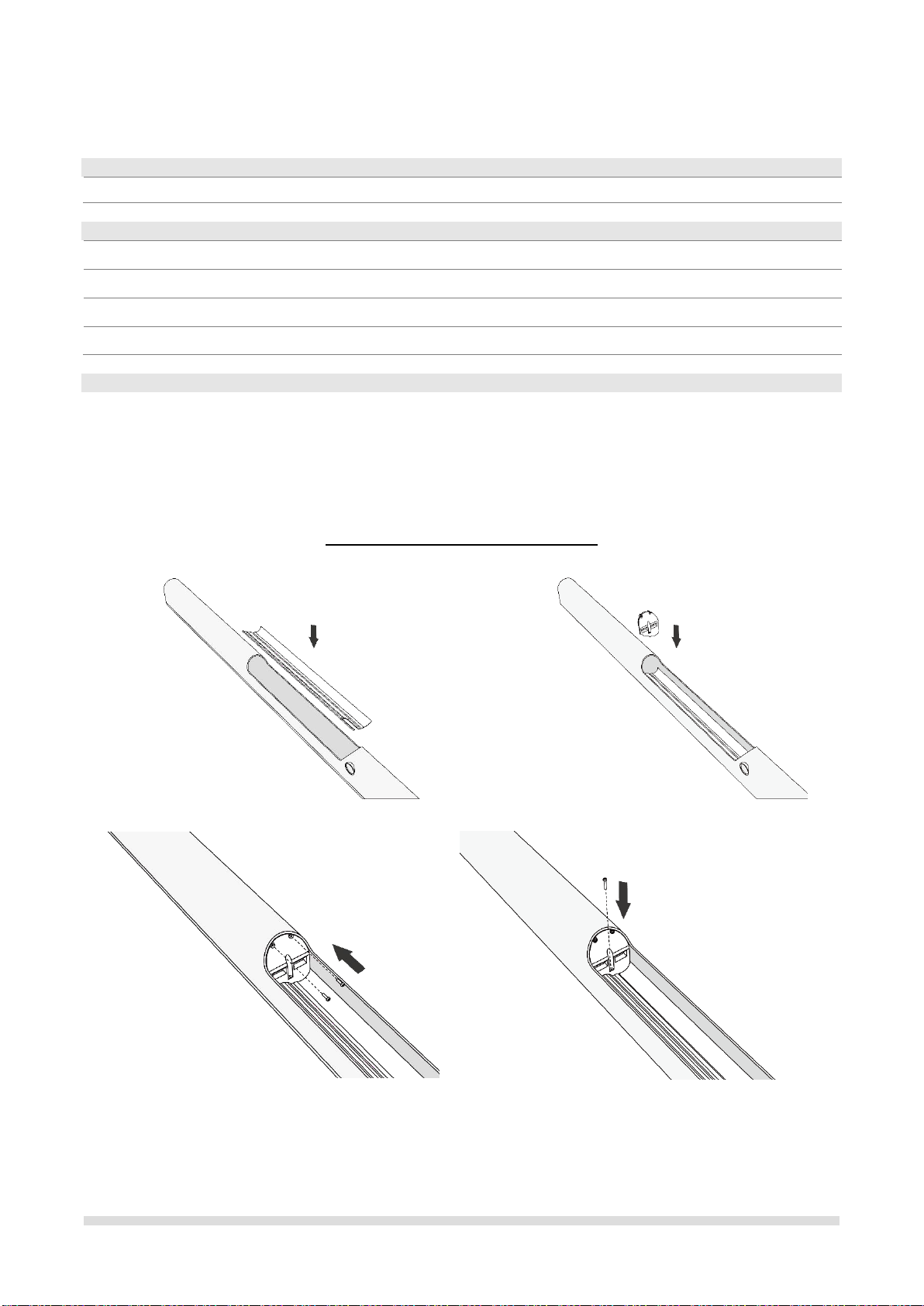

Battery Discharge Holder Installation
Step 1: Insert the bottom plate of the holder.
Step 2: Insert the side plate (non-discharge end).
Step 3: Screw the side plate to the frame.
Step 4: Screw the side plate to the bottom plate.

HYENA E-BIKE SYSTEMS
6

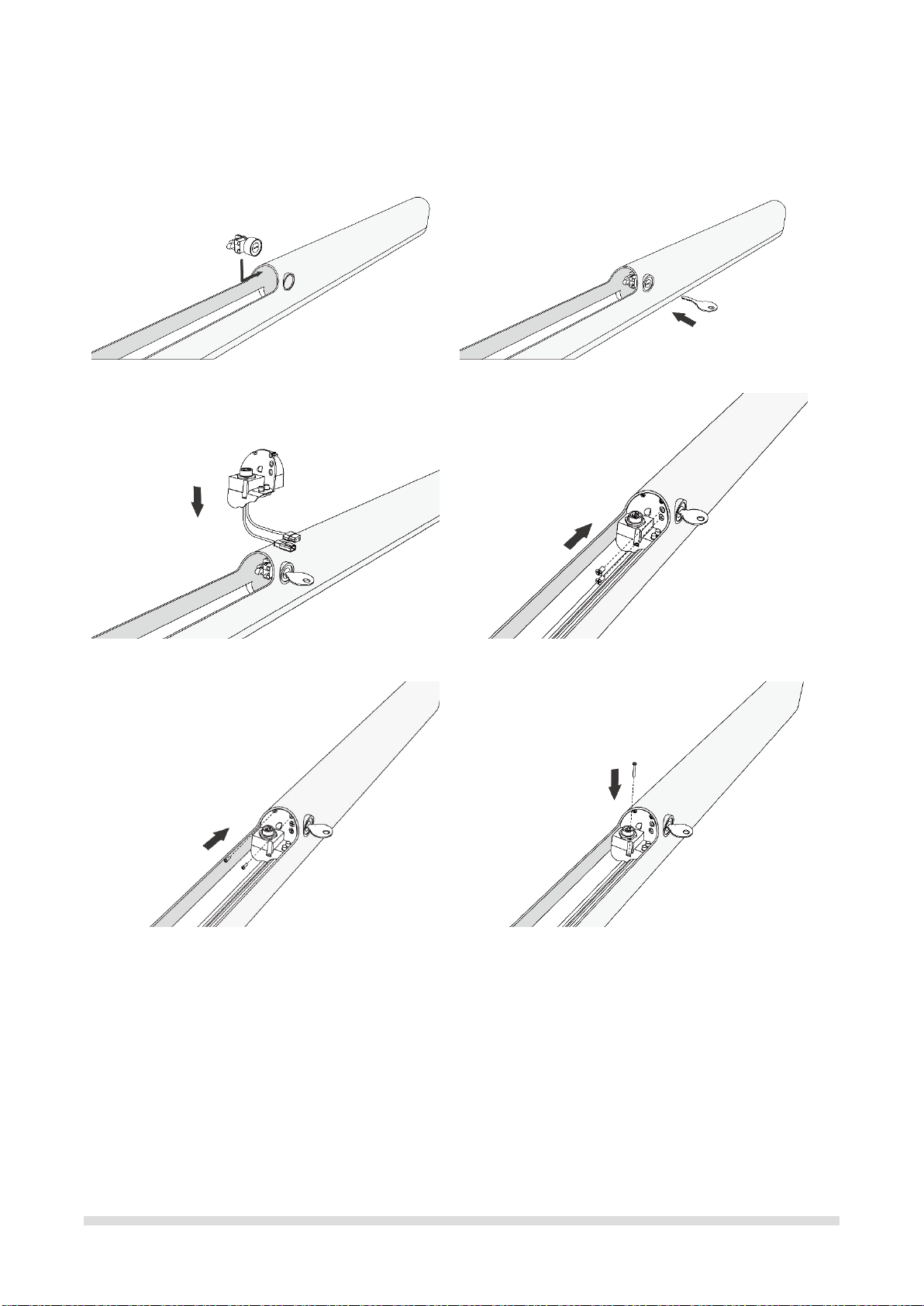

Step 5: Insert the battery lock.
Step 6: Insert the key through the keyhole on the frame.
Step 7: Connect the cable of the side plate (discharge
end) to the e-bike driver, then insert the side plate.
Step 8: Screw the side plate and lock together.
Step 9: Screw the side plate to the frame.
Step 10: Screw the side plate to the bottom plate.

HYENA E-BIKE SYSTEMS
7
Battery Installation
Remove the Battery
Step 1: Insert the key.
Step 2: Turn the key and lift the battery from the lock end.
Step 3: Take the battery out.
Step 1: Insert the battery from the non-discharge end
first, then put the other end in.
Step 2: Complete the installation by push the battery to
the end till you hear the click.

HYENA E-BIKE SYSTEMS
8
Operation
Operation Instructions
• WARNING - Only charge the battery by following all
safety descriptions. Please read and follow the
instructions for using the battery charger.
• CAUTION - The battery packs are partially charged and
set to sleep mode before they were shipped; in order to
wake up the battery and ensure that the battery has full
and sufficient power, please charge your battery pack fully
before using it for the first time.
• All Hyena Chargers only use genuine Hyena batteries
and battery packs, or battery packs approved for use with
your e-bike by the manufacturer, and purchase only from
reliable sources.
• Use of uncertified battery packs may result in death or
severe injuries.
• Charging is restricted to certified Hyena lithium battery
packs. The battery pack voltage must comply with the
charger output voltage; otherwise, it might result in risks of
explosions or fires.
• CAUTION - Charge the battery indoors to avoid
exposure to rain or wind. Do not use outdoors or in
environments with high humidity.
• WARNING - Be sure to hold the power plug steady
instead of hold the cord when connecting or disconnecting
from the electrical outlet. Failure to do so may cause a fire
or electric shock.
• If the following symptoms are observed, stop using the
device and contact the place of purchase. A fire or electric
shock may be caused:
- If heat or acrid-smelling smoke is coming out from the
power plug.
- There may be a bad connection inside the power plug.
• Do not place the battery charger on the floor or other
dusty places when using it.
• Place the battery charger on a stable surface such as a
table when using it.
• Do not place any objects on top of the battery charger or
its cable. Do not place a cover on it either.
• Do not apply excessive tension to the cables and
charging plugs.
• Do not touch the metallic parts of the device or the
power plug on the AC adapter or other parts when the
charger is wet, electric shocks may occur.
• Use only a 100-240 V AC electrical outlet, do not
overload the electrical outlet with appliances beyond its
rated capacity.
• If the electrical outlet is overloaded by connecting too
many appliances using adapters, overheating resulting in
fire may occur.
• Do not damage the power cord or power plug. (Do not
damage, process, forcibly bend, twist or pull them, bring
them near hot objects, place heavy objects on them or
bundle them tightly together.)
If they are used while damaged, fire, electric shocks, or
short-circuits may occur.
• Do not use the battery charger with commercially-
available electrical transformers designed for overseas
use (travel converters). They may damage the battery
charger.
• When charging the battery while it is mounted on the
bicycle, do not move the bicycle. The battery charger's
power plug may come loose and not be fully inserted into
the electrical outlet, resulting in a risk of fire.
• When charging the battery while it is mounted on the
bicycle, be careful not to trip over the charger cord. This
may lead to injury or cause the bicycle to fall over,
damaging the components.
• CAUTION - According to ECP, when the battery is in
over-charged/over-discharged conditions, the battery will
automatically disconnect the circuit for safety protection.

HYENA E-BIKE SYSTEMS
9
Charging Instructions
• Check your battery pack before using it for the first time.
First, you must turn on the battery pack; if the charging
LED did not light up, it means that this battery pack might
be damaged.
• Make sure to charge the battery pack fully before using it
for the first time.
• Do not try to use or charge damaged battery packs.
When charging, do not place any items 50 cm around the
battery, make sure the battery and the charger are on a
fireproof surface.
• Do not leave batteries in the charger for more than 24
hours, if the charging cannot complete in 24 hours,
contact your local bicycle dealer for assistance.
The battery pack can be charged under any power mode;
interrupting the charging process will not damage the
battery pack.
• CAUTION - The battery packs are partially charged
before they were shipped; in order to ensure that the
battery has full and sufficient power, please charge your
battery pack fully before using it for the first time.
Charging
• Plug the charger’s plug into an outlet (100-240V), using
the appropriate plug for the country’s standards.
• Uncover the charging socket on the battery, then
connect the charging plug with the charging socket on the
battery.
• When charging is complete, disconnect the charging
plug from the battery socket.
• Unplug the charger from the wall socket.
• Make sure to close the charging port cap after charging.
If foreign matter such as dirt or dust adheres to the
charging port, there is a risk that the charging plug will not
fit into the charging port.
• If the battery has become completely empty, charge it as
soon as possible. If the battery is left uncharged, it may
cause the battery to deteriorate and become unusable.
• CAUTION - When possible, you should charge the
battery in an area with a smoke detector or make sure
someone is taking care of the battery during the charging
process.
• CAUTION - Do not place the battery charger at locations
that are easily accessible to children.
Charge the Battery Pack Before and After Storage
• When you do not use the battery pack of the e-bike for
extended periods of time, charging the battery to 30-60%
will be the optimum storage condition.
• Confirm the charge status again after six months; if the
remaining power of the battery pack is less than 30%,
charge it again to between 30-60%.
• CAUTION - If the battery is stored under the condition of
lacking power, the battery pack may be damaged and the
power storage capacity of the battery pack itself will also
be affected significantly.

HYENA E-BIKE SYSTEMS
10
Safety Instructions
Instructions Pertaining To A Risk Of Fire,
Electric Shock, Or Injury To Persons
• WARNING - When using the BS-A370 e-bike battery,
basic precautions should always be followed, including
the following:
• Read all the instructions before using the product.
• To reduce the risk of injury, close supervision is
necessary when the product is used near children.
• Do not put fingers or hands into the product.
• Do not use this product if the flexible power cord or
output cable is frayed, has broken insulation, or any other
signs of damage.
• All the component leads shall use original Hyena
components.
• This equipment is not intended to be used at ambient
temperatures less than -10°C (14°F) or above ambient
temperatures of 60°C (140°F).
• Do not immerse the product or any e-system component
in water. The penetration of water into the charger could
cause electric shock.
• Do not place the product or any e-system component
near fire or heat.
• Always turn off the e-bike system and remove the battery
before install, disassemble or modify any components on
the e-bike.
Important Notice
• This product manual is intended primarily for the trained
technician to install, disassemble, or maintain the e-bike.
• Users who are not professionally trained for bicycle
assembly should not attempt to install, disassemble or
modify the components themselves.
• All Hyena e-system manuals and technical documents
are accessible online at "www.hyena-ebike.com".
• The term “battery” is used in these instructions to mean
all original Hyena e-Bike batteries.
• Read and observe the safety warnings and directions
contained in all the Hyena e-Bike system operating
instructions and in the operating instructions of your e-
Bike.
Grounding Instructions
• The whole charging behavior must be keep grounded. If
it should malfunction or breakdown, grounding provides a
path of least resistance for electric current to reduce the
risk of electric shock. This product is equipped with a cord
having an equipment-grounding conductor and a
grounding plug. The plug must be plugged into an outlet
that is properly installed and grounded in accordance with
all local codes ordinances.
• WARNING - Improper connection of the equipment
grounding conductor is able to result in a risk of electric
shock. Check with a qualified electrician if you are in
doubt as to whether the product is properly grounded.
Do not modify the plug provided with the product - if it will
not fit the outlet, have a proper outlet installed by a
qualified electrician.
Moving and Storage Instructions
• When possible keep the product and all e-system
components in their original package and keep tools or
other metal objects away from them while storage and
moving.
• If you did not keep the original packaging, they can be
packed in strong cartons with proper packing materials
such as bubble wrap or soft cloth, and label the cartons
Fragile.
• Do not bundle the charger cables.
• Do not hold the battery charger by the cables when
carrying it.
• In order to prevent the cable from being damaged, avoid
wrapping it around the main body during storage.
• Do not store the product at ambient temperatures less
than -20°C (-4°F) or above ambient temperatures of 50°C
(122°F). For long-term storage temperature, refer to page 3.
• Cover the product to prevent damage by sunlight if you
will be keeping it stored at any place for more than a
week.
• Store the product on a fireproof surface and without
contact water, heat, or sands.
• Do not place any heavy item on the product or any e-
system component.
• Do not place the product or any e-system component in
the car trunk for more than one day.
• Do not load or move the product in the rain whenever
possible, and make sure it has no moisture or mildew
before loading it.
• Do not drop the product from more than 30cm height.
• Periodically check the battery charger and adapter,
particularly the cord, plug, and case, for any damage. If
the battery charger or adapter is broken, do not use it until
it has been repaired by the place of purchase or a
distributor.
Maintenance
• When performing cleaning, disconnect the power plug
from the electrical outlet and the charging plug from the
battery. If this is not observed an electric shock may occur.
• Do not clean the product or any e-system component
with any detergent or organic solvent. Only clean the
product with a water-dampened soft cloth.
• Do not clean the product or any e-system component
with pressured water.

HYENA E-BIKE SYSTEMS
11
Product Warning Label
• On the product warning label at the bottom of the
charger, you can find simple descriptions of safety
warnings in different languages; the content will include
the following items:
• Please read the user manual before use.
• Store the battery in a cool, dry, and safe place with good
air circulation.
• Keep the battery out of reach of children.
• Keep the battery away from any metal objects and avoid
any mechanical impacts on the battery.
• Charge the battery with a certified authentic charger.
• Contact certified dealers in case of any malfunction of
the battery
• Do not open the battery by yourself or by the non-
certified dealer.
• The battery must be recharged at least every three
months to ensure the best performance and longest
lifetime while not in use.
• Dispose of the used battery according to local
ordinances and/or regulations.
Disposal
• In accordance with Directive 2012/19/EU and Directive
2006/66/EC respectively, electronic devices that are no
longer usable and defective/drained batteries must be
collected separately and recycled in an environmentally
friendly manner.
• The e-system drive unit including the motor, driver,
battery, speed sensor, HMI, accessories, and packaging
should be disposed of in an environmentally correct
manner.
• Do not dispose of e-bikes and their components with
household waste.
SAVE THESE INSTRUCTIONS
This symbol is only valid within the European
Union. Follow local regulations when disposing
of used batteries. If you are not sure, consult
the place of purchase or a bicycle dealer
