Hyena CE-03 User manual

Product Manual
LED Multi (CE-03)
Original Instruction
Version 221129
Copyright © 2022 HYENA INC. All Right Reserved.

Table of Contents
Introduction
Product Features
Product Description ..................................................................................1
Parts Description ......................................................................................1
Product Dimension ...................................................................................2
Cable Pin Definition ..................................................................................2
Technical Data
Function....................................................................................................3
Characteristic............................................................................................3
Mounting Parameter .................................................................................3
Connection................................................................................................3
LED Indicator Information .........................................................................4
Certification...............................................................................................4
Mounting
Tool List ....................................................................................................5
Accessory List...........................................................................................5
Mounting Instructions................................................................................5
E-System Operation
Operation Instructions...............................................................................6
Safety Instructions
Important Notice .......................................................................................8
Moving and Storage Instructions ..............................................................8
Maintenance .............................................................................................8
Product Label............................................................................................8
Disposal....................................................................................................8

HYENA E-BIKE SYSTEMS
1
Introduction
This manual is intended primarily for the trained technician to install, disassemble, or maintain the Hyena e-bike system only.
Please read all the safety warnings and instructions carefully. Failure to follow the warnings and instructions may result in
death or severe injuries. Save this manual for future reference.
Product Features
Product Description
The Hyena LED Multi (CE-03) e-bike handlebar HMI features a compact size, 3 multi-color LED indicators, and flexible
mounting position on handlebars (both left and right-hand sides). It also supports the rider’s app and service tool connection
via Bluetooth.
Parts Description
Item
Description
Item
Description
A
Up & Increase support level button
F
Battery status indicator
B
Support level indicator
G
Bluetooth / error indicator
C
Down & Decrease support level button
H
Cable
D
Fastening screw
I
Rubber ring
E
Power on/off button
A
B
C
D
E
F
G
H
I

HYENA E-BIKE SYSTEMS
2
Product Dimension
Cable Pin Definition
unit: mm

HYENA E-BIKE SYSTEMS
3
Technical Data
Function
Number of button
3
Power/Up/Down
Turn on/off system
Power button
Switch motor support level
UP/Down button
Turn on/off light
Long press UP button
Walk-assist
Long press DOWN button
Connection
Bluetooth/Hyena 6P
CM-WP408-06M
Battery wake up function
Yes
HMI/DEN
Characteristic
Protocol
CAN
Support Hyena CAN
Rated voltage
12Vdc
Operating voltage
10 to 14Vdc
Rated current
0.1A
Quiescent current
<1mA
Measure condition
a. System off
b. Battery, HMI, Display, Controller, Motor
and Sensor are connected well.
c. Remove all smart parts.
Operating temperature
-10℃to +40℃80%RH
Storage temperature
-20℃to +70℃80%RH
Waterproof level
IPX5
Mounting Parameter
Dimension (mm)
L48, W40, H51 mm
Mounting position
Left/Right handle bar
Clamp diameter
22.2 mm
Cable length
520 mm (40010C19B)
600 mm (40010C20B)
Standard connector
Hyena 6P male
CM-WP408-06M
Connection
Bluetooth connection
Bluetooth 4.2 BLE
Support to HRA (Hyena Rider Assistant ) &
HST (Hyena Service Tool)

HYENA E-BIKE SYSTEMS
4
LED Indicator Information
Riding support level
0to 3
Battery status
4 segments
Certification
EN 15194:2017
Yes
CE
Yes
BQB
Yes
Bluetooth
RoHS 2.0
Yes

HYENA E-BIKE SYSTEMS
5
Mounting
Tool List
Hexagon key M3
Disc hex bolts
Accessory List
Hex socket head cap screw
M3x0.5Px12mm
1 pc
Rubber ring
1 pc
Mounting Instructions
• Use the proper tools during the installation or removal process.
• Fasten the hex bolt with 1 Nm torque value.
• Carefully install is necessary, do not strike it with any tool such as a hammer or wrenches.
Insert the rubber ring.
Mount the HMI hook on the rubber ring
Fasten the hex bolt.
STEP
1
STEP
2
STEP
3

HYENA E-BIKE SYSTEMS
6
< 0.5 sec
ON
> 2 secs
OFF
> 2 secs
E-System Operation
CAUTION! The e-bike system can only be activated when
the following requirements are met:
- A sufficiently charged battery is attached.
- The e-system is connected properly.
Operation Instructions
Turn on/off the e-bike system
Long press the POWER button to turn on/off.
Turn on/off light
Long press UP button to turn on/off light.
When e-bike equipped with front/rear lights.
Support level adjusting
Short press UP/DOWN button to adjust the riding support
level while you pedaling.
- Default on Off mode.
- Press UP/DOWN button to adjust.
- None circulation.
- Automatic memory previous setting.
NOTE
Always switch off the e-bike system when you park the
e-bike or before removing the battery.
NOTE
-The system is activated as soon as you start pedaling.
-The e-bike drive output only supports a speed below
25/45 km/h, as soon as you have reached 25/45 km/h,
e-system switches off the assistance, then
automatically reactivated when your speed is below
25/45 km/h.
Off Mode
White Light
Mode 1
Green Light
Mode 3
Red Light
Mode 2
Yellow Light

HYENA E-BIKE SYSTEMS
7

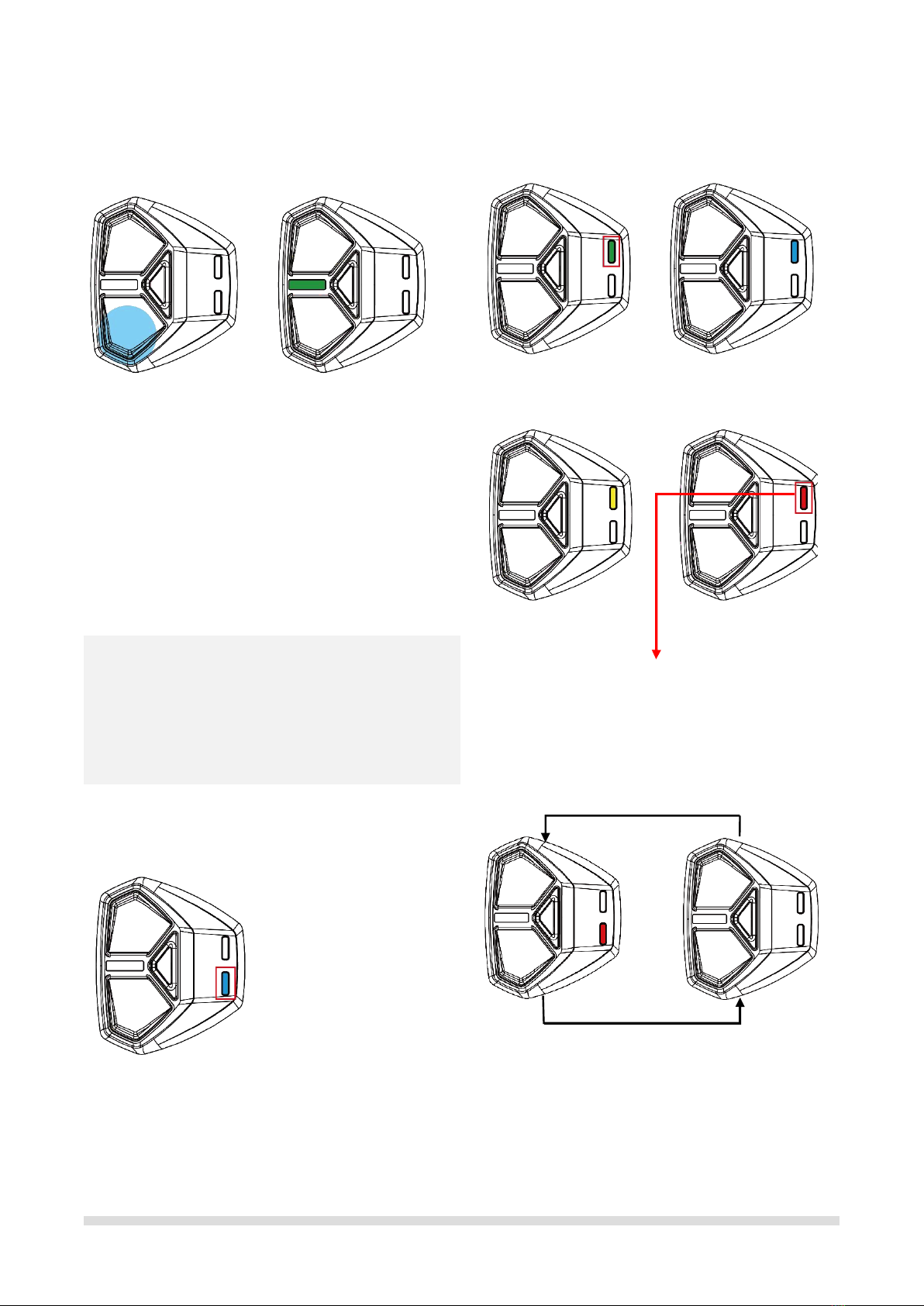

> 2 secs to active
Green light flashing
while walk assist
mode activated.
Walk assist mode
Long press on DOWN button for 2 seconds to active the
walk assist mode. When the walk assist mode activated,
the support level indicator will keep flashing in green.
- Long Press the UP Button start the walk assist. As long
as you are holding the UP button, your e-bike will be
propelled forward at a slow speed.
- Release the UP button to stop pushing your e-bike.
- At the walk assist mode, if the UP button isn’t
pressed > 5 secs or the DOWN button isn’t pressed <
0.5 sec, the walk assist mode will automatically turn
off for safety.
Bluetooth connection
Blue lights flash 3 times when Bluetooth connected or
disconnected.
Battery indicator
The indicator shows the battery status.
Error alert
Red lights flash when a system error is detected.
NOTE
The walk assistance function must only be used when
pushing the e-bike. Make sure you are ready and stand
steady before activating the walk assistance. Do NOT
activate the walk assistance when you ride on the e-bike
or if the wheels are not in contact with the ground.
76-100%
Green light
51-75%
Blue light
26-50%
Yellow light
1-25%
Red light
Red light keeps flashing
when capacity under 9%
10 seconds
Flash
3 seconds
Loop
Error
Alert
General
Mode

HYENA E-BIKE SYSTEMS
8
Safety Instructions
Instructions Pertaining To A Risk Of Fire,
Electric Shock, Or Injury To Persons
WARNING! When using the LED Multi (CE-03), basic
precautions should always be followed, including the
following:
• Read all the instructions before using the product.
• Close supervision is necessary to reduce the risk of
injury when using the product near children.
• Do NOT put fingers or hands into the product.
• Do NOT use this product if the flexible power cord or
output cable is frayed, has broken insulation, or any
other signs of damage.
• All the component leads shall use original Hyena
components.
• This product is not intended to be used at ambient
temperatures above 40°C(104°F) or less at ambient
temperatures of -10°C(14°F).
• Do NOT immerse the product or any e-system
component in water.
• Do NOT place the product or any e-system component
near fire or heat.
• Always turn off the e-bike system and remove the
battery before installing, disassembling, or modifying
any components on the e-bike.
Important Notice
• This product manual is intended primarily for the trained
technician to install, disassemble or maintain the e-bike.
• Users not professionally trained for bicycle assembly
should not attempt to install, disassemble or modify the
components themselves.
• All Hyena e-system manuals and technical documents
are accessible online at “www.hyena-ebike.com”.
• The term “battery” is used in these instructions to mean
all original Hyena e-bike batteries.
• Read and observe the safety warnings and directions
contained in all the Hyena e-bike system operating
instructions and in the operating instructions of your
e-bike.
Moving and Storage Instructions
• Please keep the product and all e-system components in
their original package and keep tools or other metal
objects away from them during storage and moving.
• If you did not keep the original packaging, they can be
packed in strong cartons with proper packing materials
such as bubble wrap or soft cloth, and label the cartons
“Fragile”.
• Do NOT store the product at ambient temperatures above
70°C (158°F) or less at ambient temperatures of -20°C (-
4°F).
• Cover the product to prevent sunlight damage if you keep
it stored at any place for more than a week.
• Store the product on a fireproof surface without contact
with water, heat, or sand.
• Do NOT place any heavy item on the product or any e-
system component.
• Do NOT place the product or any e-system component in
the car trunk for more than one day.
• Do NOT load or move the product in the rain whenever
possible, and make sure it has no moisture or mildew
before loading it.
• Do NOT drop the product from more than 30 cm (11.81
inches) in height.
Maintenance
• Do NOT clean the product or any e-system component
with detergent or organic solvent. Only clean the product
with a water-dampened soft cloth.
• Do NOT clean the product or any e-system component
with pressured water.
Product Label
• On the product label at the bottom of the HMI, you can
find the product number and QR code.
Disposal
• In accordance with Directive 2012/19/EU, electronic
devices that are no longer usable and defective/
drained batteries must be collected separately and
recycled in an environmentally friendly manner.
• The e-system drive unit, including the motor,
controller, battery, speed sensor, torque sensor, HMI,
accessories, and packaging, should be disposed of in
an environmentally correct manner.
• Do NOT dispose of e-bikes and their components with
household waste.
SAVE THESE INSTRUCTIONS
This symbol is only valid within the European
Union. Follow local regulations when disposing
of used batteries. If you are not sure, consult
the place of purchase or a bicycle dealer.

HYENA E-BIKE SYSTEMS
9
This page is intended to be blank.

HYENA E-BIKE SYSTEMS
10
Hyena Inc.
Tel: [phone]
Fax: [phone]
www.hyena-ebike.com
Address: No.25, Jingke N. Rd., Nantun Dist., Taichung City 408, Taiwan (R.O.C.)
