Hygiena DUP-1000 User manual

Model DUP-1000
User Guide

© Copyright 2022 Hygiena®or its affiliates. All rights reserved worldwide. No part of this publication may be reproduced or
transmitted in any form, or by any information storage and retrieval system, without the prior agreement and written
permission of Hygiena.
Information in this document is subject to change without notice. Hygiena assumes no responsibility for any errors that
may appear in this document. This document is believed to be complete and accurate at the time of publication. In no
event shall Hygiena be liable for incidental, special, multiple or consequential damages in connection with or arising from
the use of this document.
Part Number 2C-075.1-0314
TRADEMARKS
The Hygiena logo and BAX®are registered trademarks of Hygiena or its affiliates.
All other trademarks are the property of their holders.
FIELD OF USE
The Automated Thermal Block is manufactured by Torrey Pines Scientific for use with the BAX System. Please see BAX
System documentation for details on Field of Use. Please read the Limitation of Warranty and Liability before using the
product.
WARRANTY
This product is warranted by Torrey Pines Scientific to be free from defects in material and workmanship for a period of
one year from the date of purchase. If repair or adjustment is necessary and has not been the result of abuse or misuse
within the one-year period, correction of the defect will be made without charge.
For warranty and repair issues, contact Torrey Pines Scientific at [phone].
TECHNICAL SUPPORT
If you have any questions or comments on the Automated Thermal Block, please contact your distributor or Hygiena at
800-863-6842 or email [e-mail] for technical assistance.

TABLE OF CONTENTS
Instrument Overview........................................................................................................... 1
Supplied Components ........................................................................................................ 1
Specifications and Requirements....................................................................................... 2
Safety Symbols and Precautions........................................................................................ 2
Connecting the Thermal Block ........................................................................................... 3
Front Panel Display............................................................................................................. 4
Program Menu .................................................................................................................... 5
Turning the Thermal Block On and Off............................................................................... 5
Running the Gram Positive Program.................................................................................. 6
Running the Gram Negative Program................................................................................ 8
Running the 24E Program ................................................................................................ 10
Running the RT Listeria Program..................................................................................... 14
Cleaning and Decontaminating the Thermal Block.......................................................... 16
Calibrating the Thermal Block .......................................................................................... 16
Tips and Troubleshooting ................................................................................................. 22
Aborting a Program.................................................................................................. 22
Error Messages........................................................................................................ 23

User Guide 1
www.hygiena.com INS2051 Rev A
Instrument Overview
The Automated Thermal Block is a Peltier-driven heating and cooling device pre-programmed to
perform the lysis steps of the BAX System protocols. It has been designed as a solid-state device
with minimal moving parts to help ensure quality performance over time. The temperature of the
plate is sensed by a platinum resistance temperature device mounted under the plate. The
computer in the unit compares the plate temperature with the target temperature and instructs the
module to heat or chill the plate as required.
The block automatically provides the sequential heating and cooling conditions for lysis protocols,
eliminating the need to transfer samples between separate heating and cooling blocks. Once the
lysis program is complete, the block holds the samples at 4 °C until they are removed.
This model has been optimized for use with the cluster tubes and metal tube holder supplied with
the BAX System. Other tubes and holders are not recommended.
Supplied Components
The purchase of the thermal block includes the following components:
1. Thermal block unit
2. Metal tube holders (2)
3. Power supply and cord
4. User documentation

2 Automated Thermal Block
Specifications and Requirements
Item Specification
Dimensions (with lid) 6.5″W x 8.75″D x 8″H (16.5 x 22.25 x 20.3 cm)
Weight Approximately 8 lbs. (3.6 kg)
Power usage 12 volts, 8.4 amps
Power requirements 90 to 265 volts AC, 50/60Hz
Thermal range -10 °C to 110 °C (14 to 230 °F)
Thermal uniformity ±1 °C as measured at the block surface
Thermal accuracy ±1 °C as measured at the block surface
Sample throughput 1-96 samples per cycle
Room environment Temperature between 65 and 89 °F (18 and 32 °C)
Safety Symbols and Precautions
Safety Symbols
Symbol Description
Indicates that you should consult the manual for further information and proceed with
appropriate caution.
Indicates the presence of a hot surface or other high-temperature hazard and
proceed with appropriate caution.
Indicates the presence of an electrical shock hazard and proceed with appropriate
caution.
General Safety Information
Extreme Temperatures
The thermal block is capable of reaching 110 ºC (230 ºF), which can burn
the skin if touched.
To prevent injury, remember the following:
•Use extreme caution around the block at all times.
•Never leave the block accessible to others when it is hot.
•Do not touch the plate surface unless you are sure it has cooled.
•Always keep the lid in place when the block is not in use.
Power Requirements
Always use the supplied AC power cord when connecting the heating
block to a power source. Use the normal care and precaution that one would
use with any electrical appliance.

User Guide 3
www.hygiena.com INS2051 Rev A

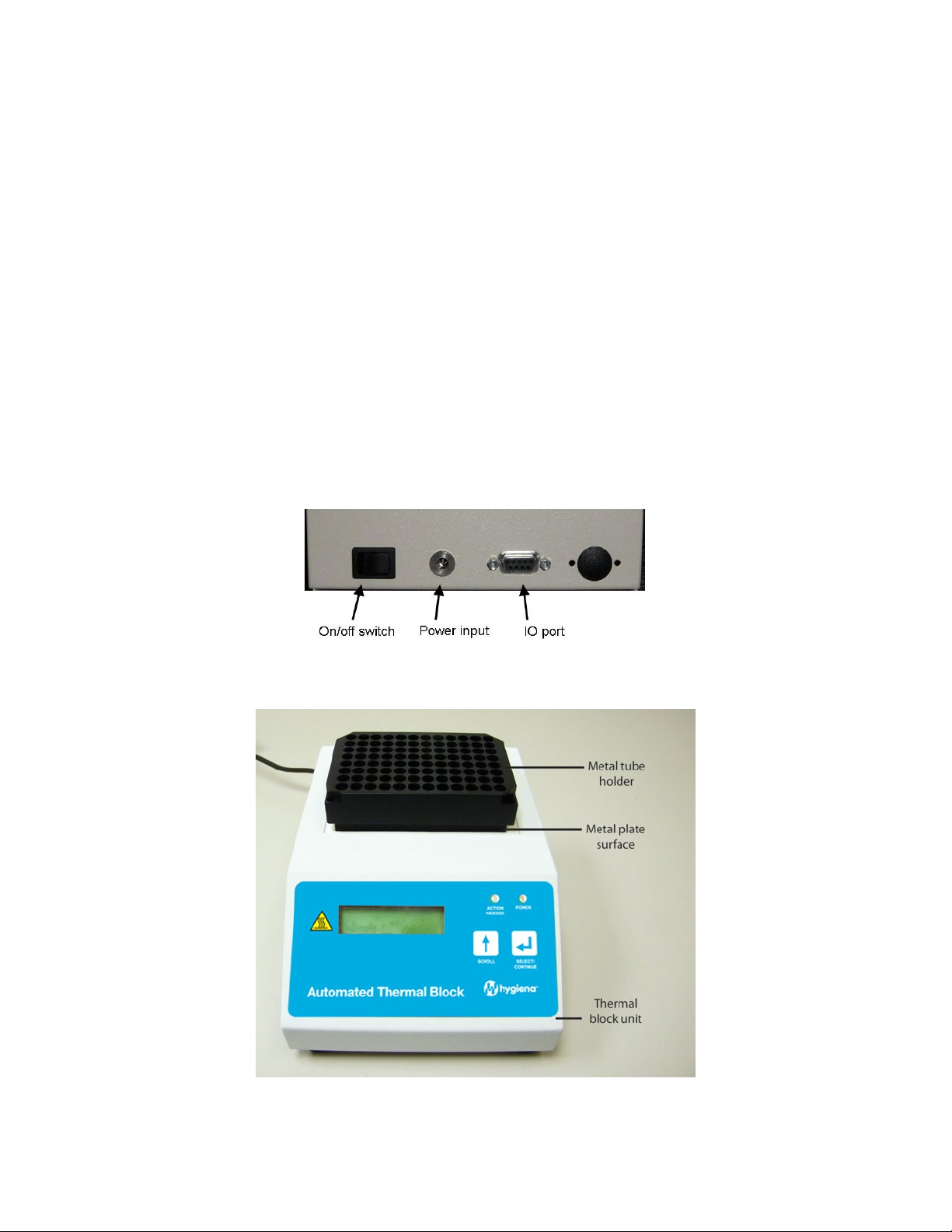

Connecting the Thermal Block
The Automated Thermal Block is pre-programmed to perform the sequential heating and cooling
steps needed for BAX System assays. No calibration or software installation is required when the
thermal block is used as specified.
Follow these steps to connect the thermal block:
1. Place the thermal block unit on a level, dry laboratory workbench. Allow at least 4 inches
(10 cm) on all sides of the unit for ventilation.
2. Insert one end of the provided power cord into the power supply and plug the other end
of the power cord into a 3-wire outlet.
Note: Ensure the outlet is properly grounded and runs the appropriate voltage (see specifications
on the previous page).
3. Insert the power supply jack into the power input port on the back panel of the thermal
block.
4. Seat the metal tube holder over the metal plate surface on the top of the thermal block
unit.

4 Automated Thermal Block

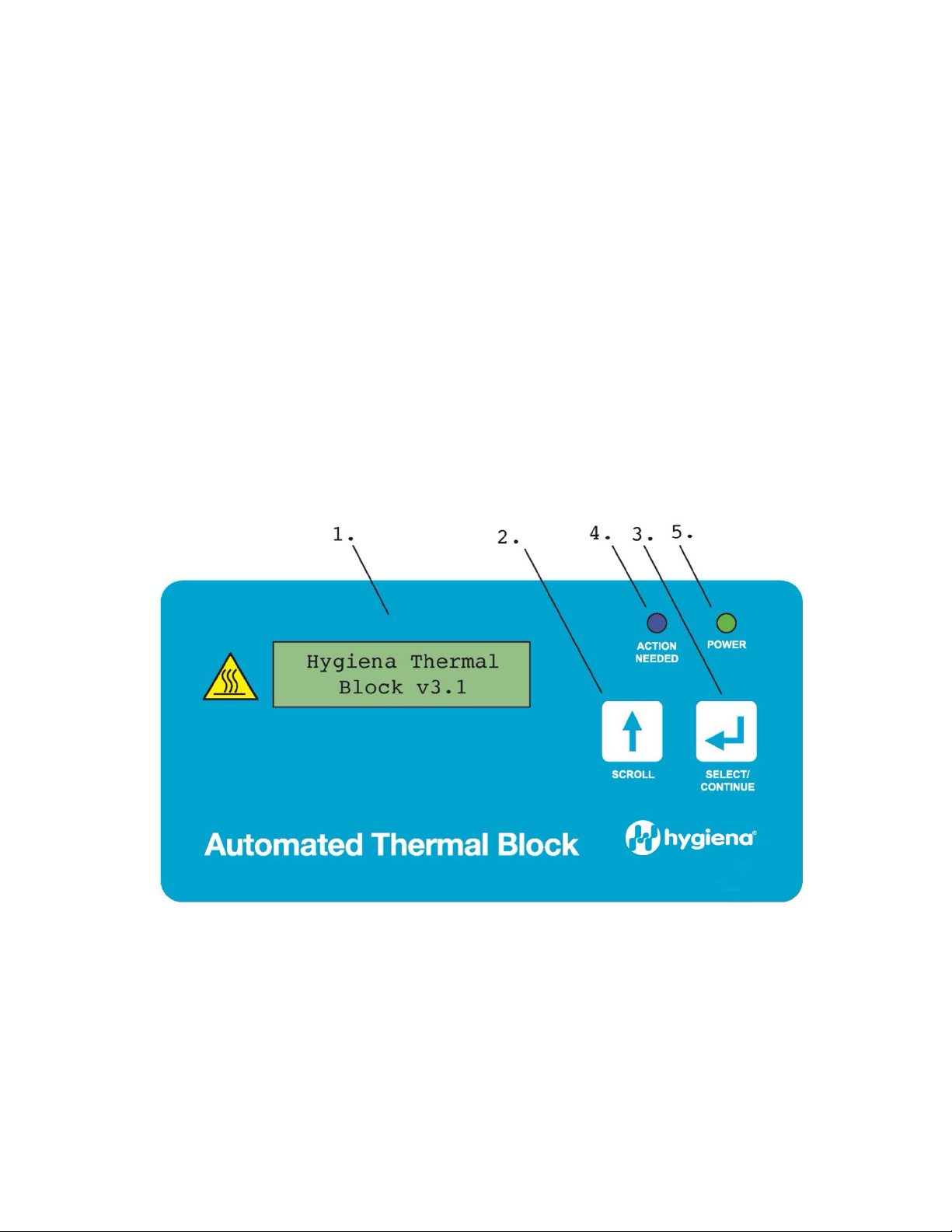

Front Panel Display
The front panel of the Automated Thermal Block contains the following items:
1. LCD display – shows the program menu, program selection, settings and instructions.
2. SCROLL button – changes the selected menu item in the LCD display. An audible beep
sounds when the button is pressed.
3. SELECT/CONTINUE button – sets the menu item in the LCD display as the selected
program and is also used to confirm required actions. An audible beep sounds when the
button is pressed.
4. Blue ACTION NEEDED LED – indicates that the user must perform an action before the
program can continue. This notification is accompanied by an audible alarm.
5. Green POWER LED – indicates that the thermal block is turned on.

User Guide 5
www.hygiena.com INS2051 Rev A
Program Menu
The Automated Thermal Block is pre-programmed with four lysis protocols:
Gram positive – use with Gram-positive bacteria, including Staphylococcus and Listeria*
*Note: For Listeria 24E assays, use the “24E” program. For real-time Listeria assays, use the “RT Listeria” program.
Gram negative – use with Gram-negative bacteria, including Salmonella, E. coli,
Campylobacter, Vibrio and Cronobacter
24E – use with BAX System 24E assays for Listeria and L. monocytogenes
RT Listeria – use with BAX System real-time assays for Listeria and L. monocytogenes
Turning the Thermal Block On and Off

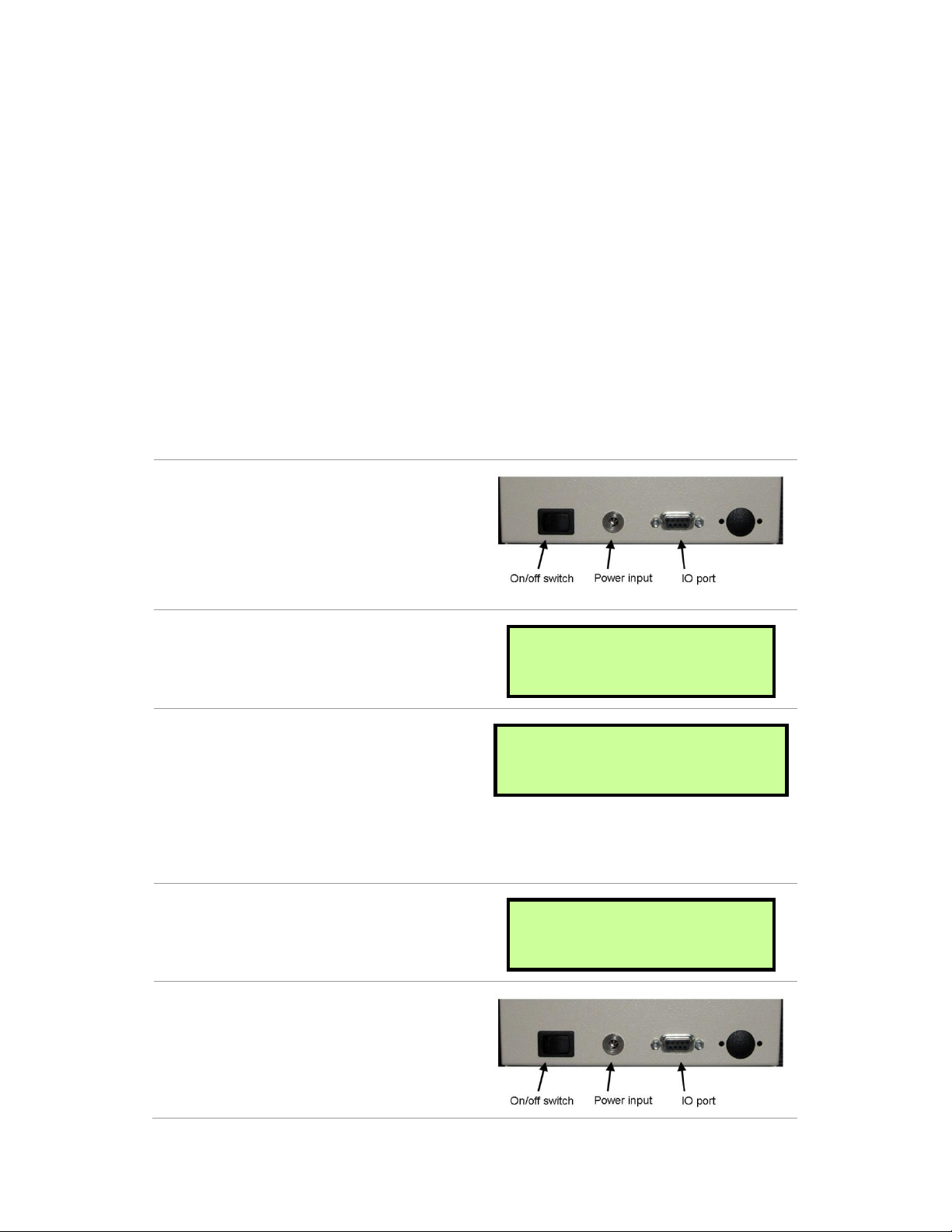

ON Turn on the thermal block by toggling
the on/off switch on the back panel of
the unit.
At start-up, the LCD automatically
displays the following series of
messages:
The first screen shows the version of
software currently installed on the
thermal block.
The second screen shows the seq file
version number and the checksum
number for validation purposes.
Note: A change in either of these values
indicates a modification to the thermal
block software. If this occurs, any
validation previously performed on the
instrument may no longer apply.
The start-up sequence is complete
when the LCD display shows the
program menu.
OFF After finishing a run, you can either
select another program or turn off the
power to the unit by toggling the on/off
switch on the back panel of the unit.
Hygiena Thermal
Block v3.2
seq file ver: 02
checksum: EE
Gram Positive
Gram Negative

6 Automated Thermal Block
Running the Gram-Positive Program
Samples are heated to 55 °C for 60 minutes, then 95 °C for 10 minutes, then held at 4 °C for at
least 5 minutes or until removed.

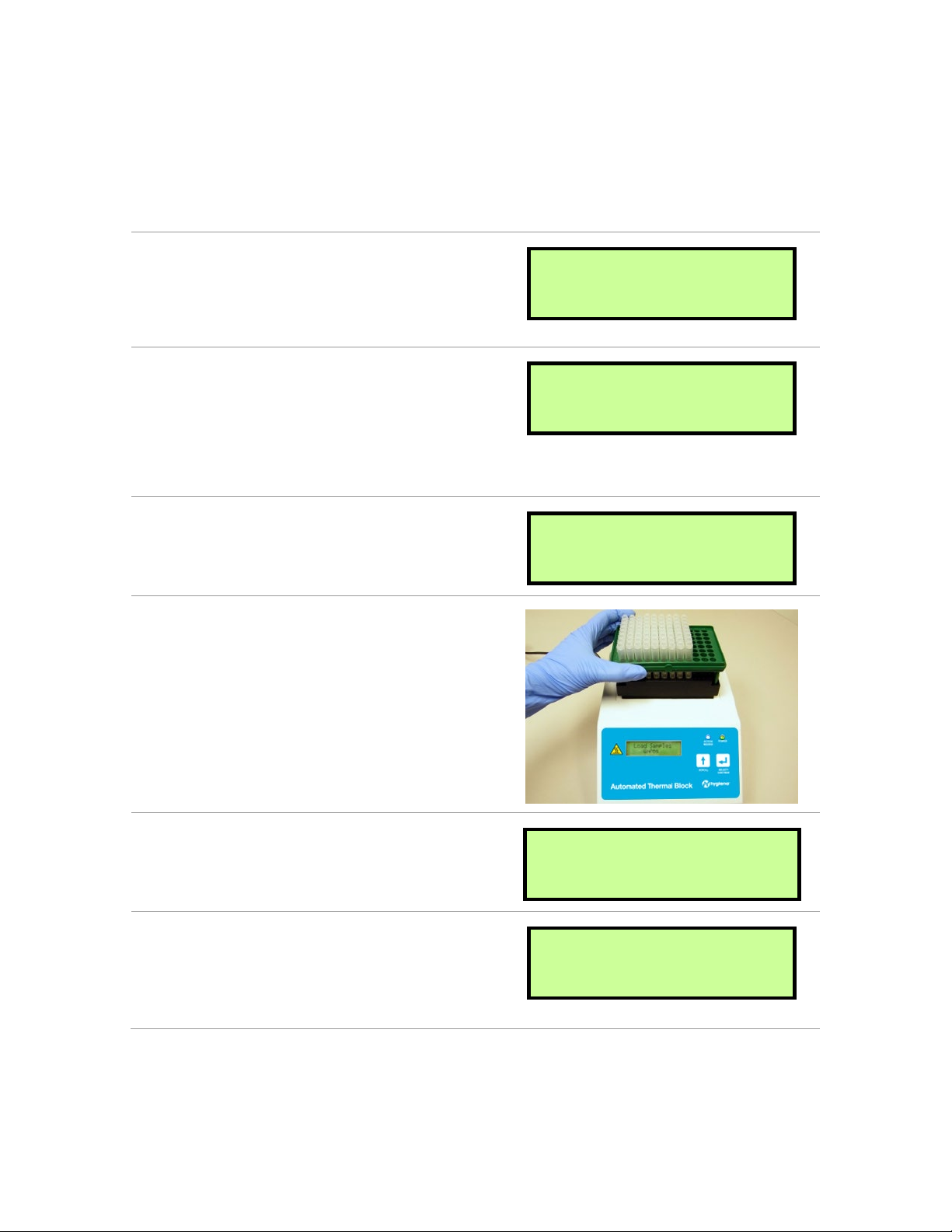

1 Turn on the thermal block, then press the
SCROLL button until the arrow

is next to the
Gram Positive option.
Press the SELECT/CONTINUE button.
2 The unit beeps once and the LCD display changes
as the thermal block begins equilibrating to 55 °C.
Note: Do not load samples into the thermal block
until the load prompt appears on the LCD display.
3 When the thermal block has reached 55 °C, the
unit sounds two audible beeps and the blue
ACTION NEEDED LED activates. The LCD
display changes to “Load Samples”.

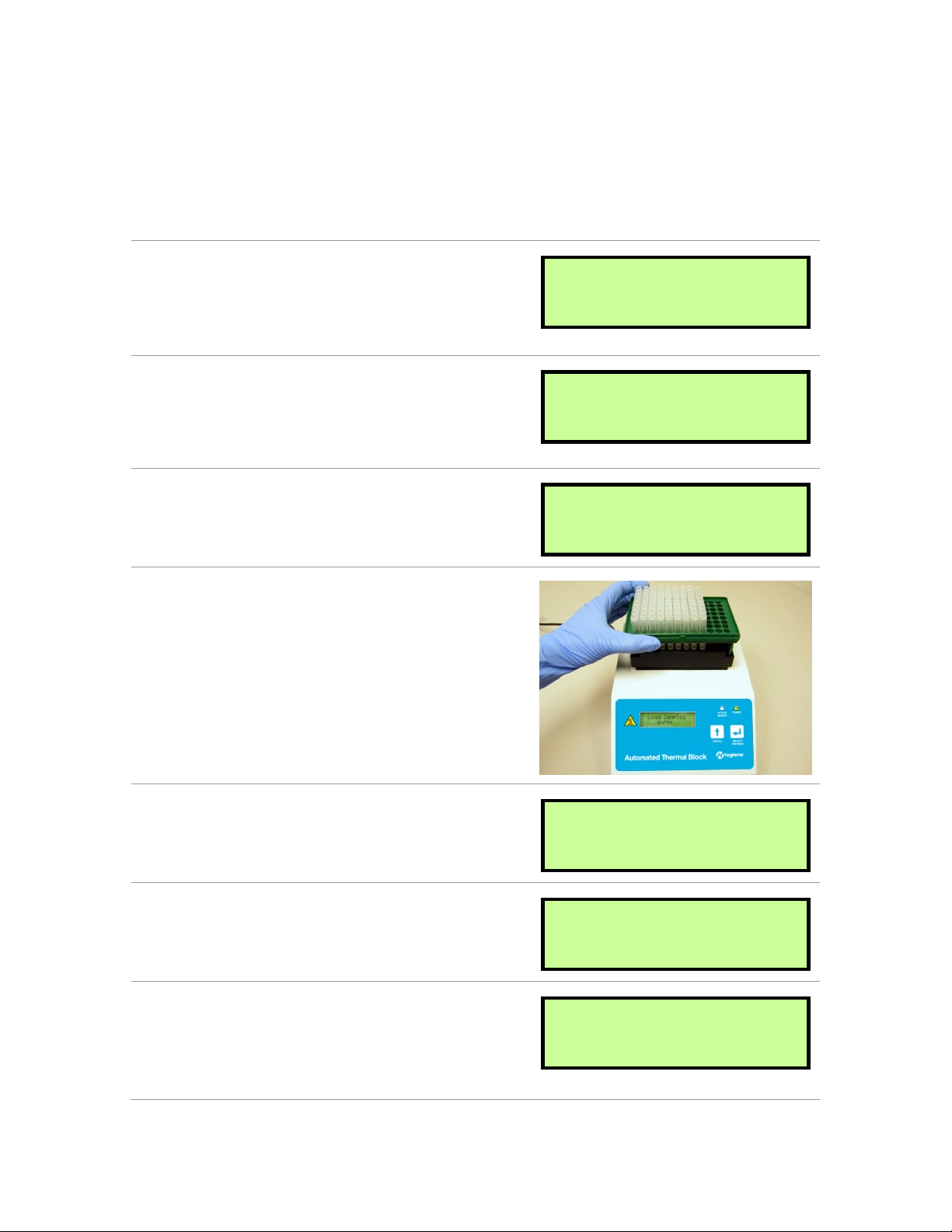

4 After the “Load Samples” prompt appears, place a
rack of prepared samples into the metal tube
holder.
Note: See the BAX System User Guide for information
on preparing samples.
Press the SELECT/CONTINUE button.
5 The LCD display changes to “GmPos Lysis 55C”.
A timer in the bottom right corner counts down
from 60:00 and shows the number of minutes
remaining in this step.
6 After lysis at 55 °C is complete, the LCD display
changes to “Heating to 95C”. A timer in the bottom
right corner counts up from 0:00 during the
temperature change. No user action is required.
7 After the thermal block reaches 95 °C, the LCD
display changes to “Denaturing @ 95C”. A timer in
the bottom right corner counts down from 10:00
and shows the number of minutes remaining in
this step. No user action is required.
Gram Positive
Gram Negative
Equilibr.@ 55C
GmPos
Load Samples
GmPos
GmPos Lysis 55C
GmPos 57:08
Heating to 95C
GmPos 4:39
Denaturing @95C
GmPos 7:22

User Guide 7
www.hygiena.com INS2051 Rev A

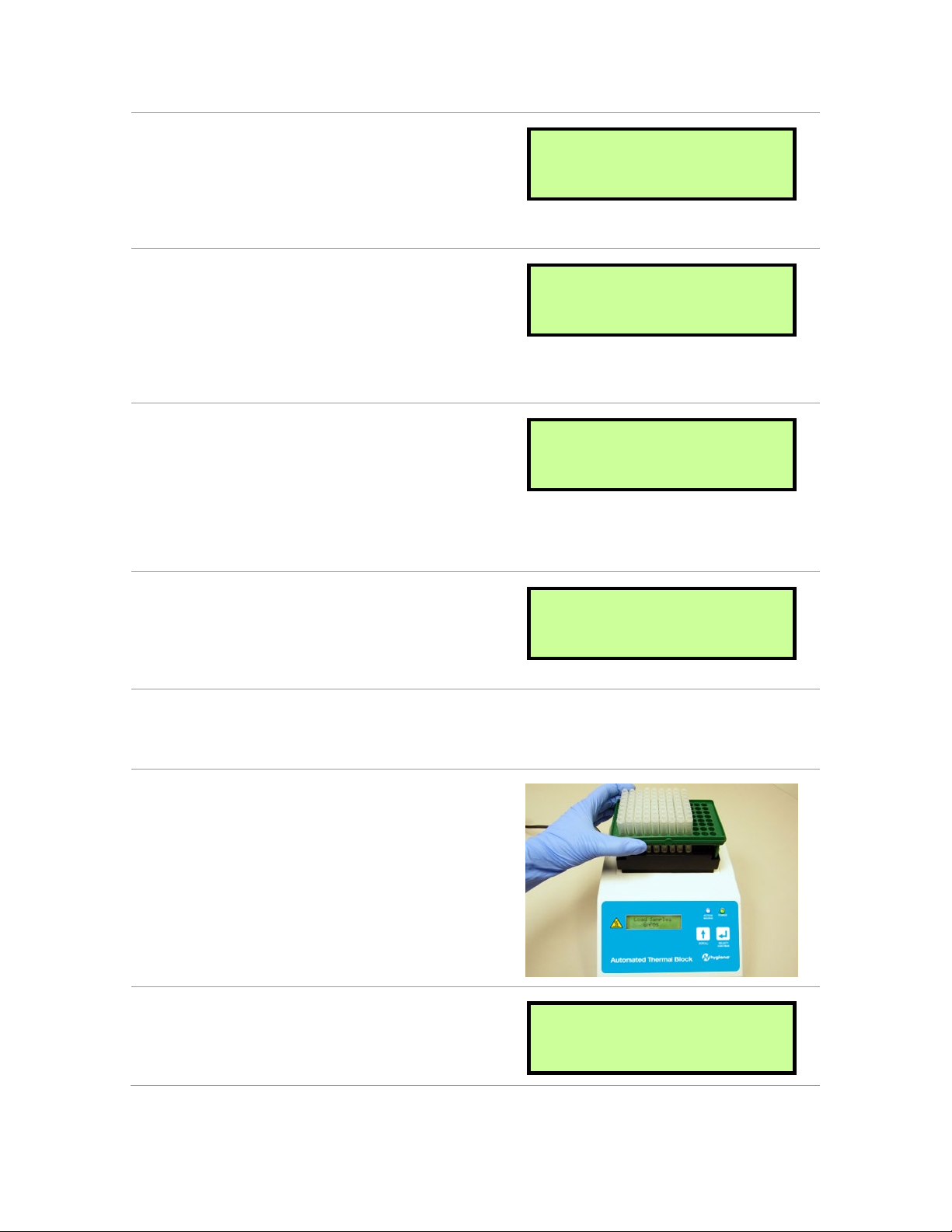

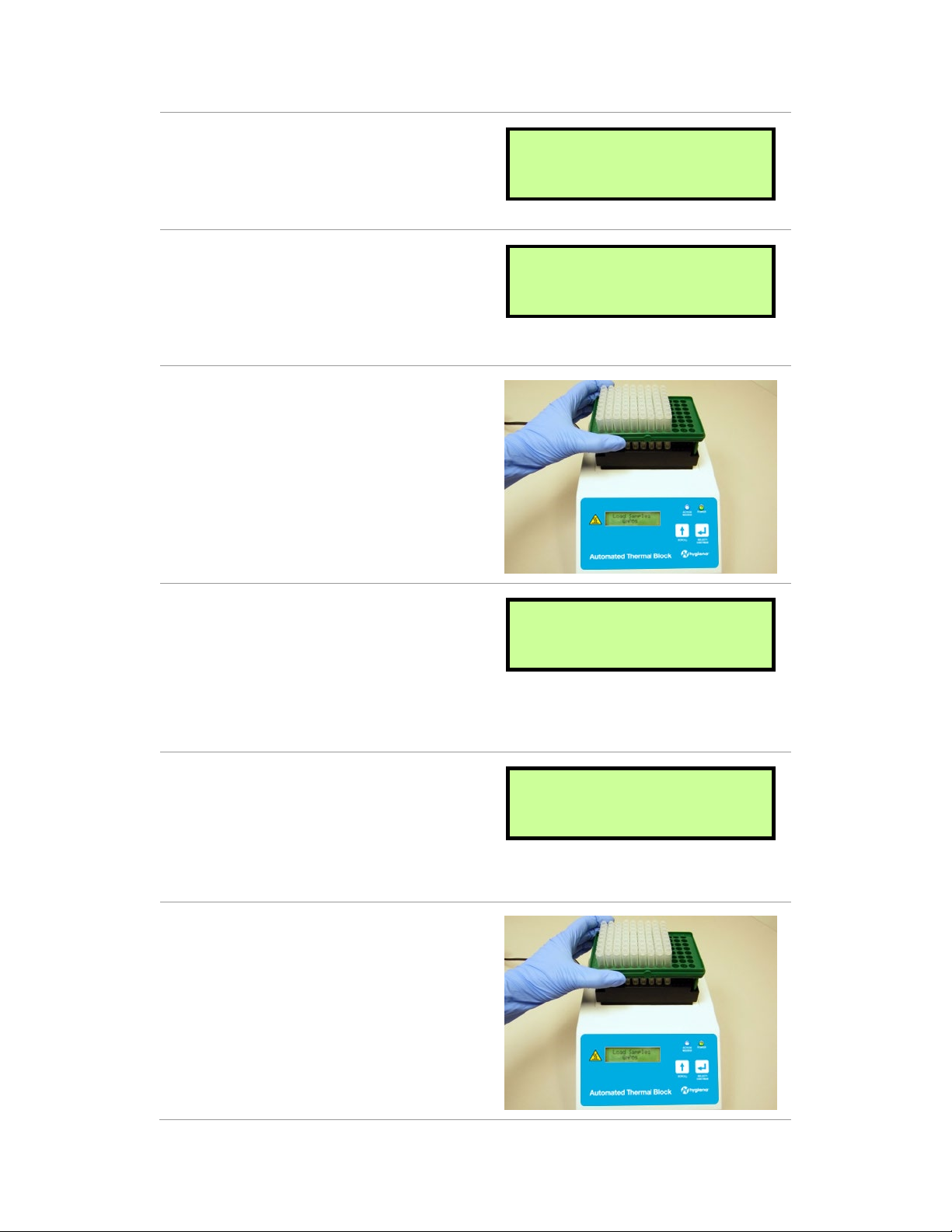

8 After denaturation at 95 °C is complete, the LCD
display changes to “Cooling to 4C”, and the
thermal block sounds two audible beeps to signal
the change. A timer in the bottom right corner
counts up from 0:00 during the temperature
change. No user action is required.
9 After the samples have cooled for 5 minutes, the
LCD display changes to “Sample PCR Ready”, the
blue ACTION NEEDED LED activates and the
thermal block sounds four audible beeps to signal
that samples can be removed.
Press the SELECT/CONTINUE button.
Note: A timer in the bottom right corner
counts up from 0:00 to show any
additional time that samples are held at
4 °C.
10 The LCD display changes to “Completed” and the
thermal block sounds an audible beep to signal
that the program has been completed. The timer
continues to show any additional time that
samples are held at 4 °C.
11 Follow the instructions in the BAX System User
Guide to hydrate the PCR tablets with these
lysates.
Note: Lysates must be maintained at 4 °C
during tablet hydration.
12 After the PCR tablets have been hydrated, remove
the rack of cluster tubes from the metal tube
holder.
Press the SELECT/CONTINUE button.
13 The LCD display changes to “Gram Positive
Finished” and the thermal block sounds an audible
beep to signal that the program has finished.
14 Press the SELECT/CONTINUE button to exit from
the program. The LCD changes to display the
program menu.
Cooling to 4C
GmPos 1:45
Sample PCR Ready
GmPos 1:06
Completed
GmPos 6:25
Gram Positive
**Finished**
Gram Positive
Gram Negative

8 Automated Thermal Block
Running the Gram-Negative Program
Samples are heated to 37 °C for 20 minutes, then 95 °C for 10 minutes, then held at 4 °C for at
least 5 minutes or until removed.
1 Turn on the thermal block, then press the
SCROLL button until the arrow

is next to
the Gram Negative option.
Press the SELECT/CONTINUE button.
2 The unit beeps once and the LCD display
changes as the thermal block begins
equilibrating to 37 °C.
Note: Do not load samples into the thermal
block until the load prompt appears on the
LCD display.
3 When the thermal block has reached 37 °C,
the unit sounds two audible beeps and the
blue ACTION NEEDED LED activates. The
LCD display changes to “Load Samples”.
4 After the “Load Samples” prompt appears,
place a rack of prepared samples into the
metal tube holder.
Note: See BAX System User Guide for information
on preparing samples.
Press the SELECT/CONTINUE button.
5 The LCD display changes to “GmNeg Lysis
37C”. A timer in the bottom right corner counts
down from 20:00 and shows the number of
minutes remaining in this step.
6 After lysis at 37 °C is complete, the LCD
display changes to “Heating to 95C”. A timer
in the bottom right corner counts up from 0:00
during the temperature change. No user
action is required.
Gram Negative
24E
Equilibr.@ 37C
GmNeg
Load Samples
GmNeg
GrmNeg Lysis 37C
GmNeg 19:41
Heating to 95C
GmNeg 4:39

User Guide 9
www.hygiena.com INS2051 Rev A
7 After the thermal block reaches 95 °C, the
LCD display changes to “Denaturing @ 95C”.
A timer in the bottom right corner counts down
from 10:00 and shows the number of minutes
remaining in this step. No user action is
required.
8 After denaturation at 95 °C is complete, the
LCD display changes to “Cooling to 4C” and
the thermal block sounds two audible beeps
to signal the change. A timer in the bottom
right corner counts up from 0:00 during the
temperature change. No user action is
required.
9 After samples have cooled for 5 minutes, the
LCD display changes to “Sample PCR
Ready”, the blue ACTION NEEDED LED
activates and the thermal block sounds four
audible beeps to signal that samples can be
removed.
Press the SELECT/CONTINUE button.
Note: A timer in the bottom right corner counts
up from 0:00 to show any additional time that
samples are held at 4 °C.
10 The LCD display changes to “Completed” and
the thermal block sounds an audible beep to
signal that the program has been completed.
The timer continues to show any additional
time that samples are held at 4 °C.
11 Follow the instructions in the BAX System
User Guide to hydrate the PCR tablets with
these lysates.
Note: Lysates must be maintained at 4 °C
during tablet hydration.
12 After the PCR tablets have been hydrated,
remove the rack of cluster tubes from the
metal tube holder.
Press the SELECT/CONTINUE button.
13 The LCD display changes to “Gram Negative
Finished” and the thermal block sounds an
audible beep to signal that the program has
finished.
Denaturing @95C
GmNeg 8:26
Cooling to 4C
GmNeg 2:15
Sample PCR Ready
GmNeg 1:01
Completed
GmNeg 4:54
Gram Negative
**Finished**

10 Automated Thermal Block
14 Press the SELECT/CONTINUE button to end
the program. The LCD changes to display the
program menu.
Running the 24E Program
Samples are heated at 37 °C for 30 minutes, then removed for the addition of lysis reagents.
Samples then are heated to 55 °C for 30 minutes, then 95 °C for 10 minutes, then held at 4 °C for
at least 5 minutes or until removed.
1 Turn on the thermal block, then press
the SCROLL button until the arrow

is
next to the 24E option.
Press the SELECT/CONTINUE button.
2 The unit beeps once and the LCD
display changes as the thermal block
begins equilibrating to 37 °C.
Note: Do not load samples into the thermal
block until the load prompt appears on the
LCD display.
3 When the thermal block has reached
37 °C, the unit sounds two audible
beeps and the blue ACTION NEEDED
LED activates. The LCD display
changes to “Load Samples”.
4 After the “Load Samples” prompt
appears, place a rack of prepared
samples into the metal tube holder.
Note: See BAX System User Guide for more
information on prepared samples.
Press the SELECT/CONTINUE button.
Gram Negative
24E
24E
RT Listeria
Equilibr.@ 37C
24E
Load Samples
24E

User Guide 11
www.hygiena.com INS2051 Rev A
5 The LCD display changes to “37C 24E
Lysis”. A timer in the bottom right corner
counts down from 30:00 and shows the
number of minutes remaining in this
step.
6 After lysis at 37 °C is complete, the blue
ACTION NEEDED LED activates and
the thermal block sounds two audible
beeps to signal that user action is
required. The LCD display changes to
“Remove & Press Continue”.
7 Remove the rack of cluster tubes from
the metal tube holder.
Press the SELECT/CONTINUE button.
8 The unit beeps once and the LCD
display changes as the thermal block
begins equilibrating to 55 °C.
While the block is heating, follow the
instructions in the BAX System User
Guide to add additional lysing reagents
to each sample.
Note: Do not re-load samples into the
thermal block until the re-load prompt
appears on the LCD display.
9 When the thermal block has reached
55 °C, the unit sounds two audible
beeps and the blue ACTION NEEDED
LED activates. The LCD display
changes to “Reload Samples”.
10 After the “Reload Samples” prompt
appears, place the rack of samples with
additional lysing reagents into the metal
tube holder.
Press the SELECT/CONTINUE button.
37C 24E Lysis
24E 29:27
Remove & Press
Cont.
Equilibr.@ 55C
24E
ReLoad Samples
24E

12 Automated Thermal Block
11 The LCD display changes to “55C 24E
Lysis”. A timer in the bottom right corner
counts down from 30:00 and shows the
number of minutes remaining in this
step.
12 After lysis at 55 °C is complete, the LCD
display changes to “Heating to 95C”. A
timer in the bottom right corner counts
up from 0:00 during the temperature
change. No user action is required.
13 After the thermal block reaches 95 °C,
the LCD display changes to “Denaturing
@ 95C”. A timer in the bottom right
corner counts down from 10:00 and
shows the number of minutes remaining
in this step. No user action is required.
14 After denaturation at 95 °C is complete,
the LCD display changes to “Cooling to
4C” and the thermal block sounds two
audible beeps to signal the change. A
timer in the bottom right corner counts
up from 0:00 during the temperature
change. No user action is required.
15 After samples have cooled for 5
minutes, the LCD display changes to
“Sample PCR Ready”, the blue ACTION
NEEDED LED activates and the
thermal block sounds four audible
beeps to signal that samples can be
removed.
Press the SELECT/CONTINUE button.
Note: A timer in the bottom right corner
counts up from 0:00 to show any additional
time that samples are held at 4 °C.
16 The LCD display changes to
“Completed” and the thermal block
sounds an audible beep to signal that
the program has been completed. The
timer continues to show any additional
time that samples are held at 4 °C.
55C 24E Lysis
24E 28:03
Heating to 95C
24E 2:49
Denaturing @95C
24E 7:24
Cooling to 4C
24E 3:44
Sample PCR Ready
24E 0:56
Completed
24E 1:01

User Guide 13
www.hygiena.com INS2051 Rev A
17 Follow the instructions in the BAX
System User Guide to hydrate the PCR
tablets with these lysates.
Note: Lysates must be maintained at 4 °C
during tablet hydration.
18 After the PCR tablets have been
hydrated, remove the rack of cluster
tubes from the metal tube holder.
Press the SELECT/CONTINUE button.
19 The LCD display changes to “24E
Finished” and the thermal block sounds
an audible beep to signal that the
program has finished.
20 Press the SELECT/CONTINUE button
to end the program. The LCD changes
to display the program menu.
24E
**Finished**
24E
RT Listeria

14 Automated Thermal Block
Running the RT Listeria Program
Samples are heated to 55 °C for 30 minutes, then 95 °C for 10 minutes, then held at 4 °C for at
least 5 minutes or until removed.
1 Turn on the thermal block, then press the
SCROLL button until the arrow

is next to the
RT Listeria option.
Press the SELECT/CONTINUE button.
2 The unit beeps once and the LCD display changes
as the thermal block begins equilibrating to 55 °C.
Note: Do not load samples into the thermal block
until the load prompt appears on the LCD display.
3 When the thermal block has reached 55 °C, the
unit sounds two audible beeps and the blue
ACTION NEEDED LED activates. The LCD
display changes to “Load Samples”.
4 After the “Load Samples” prompt appears, place a
rack of prepared samples into the metal tube
holder.
Note: See the BAX System User Guide for information
on preparing samples.
Press the SELECT/CONTINUE button.
5 The LCD display changes to “RTLis Lysis 55C”. A
timer in the bottom right corner counts down from
30:00 and shows the number of minutes remaining
in this step.
6 After lysis at 55 °C is complete, the LCD display
changes to “Heating to 95C”. A timer in the bottom
right corner counts up from 0:00 during the
temperature change. No user action is required.
7 After the thermal block reaches 95 °C, the LCD
display changes to “Denaturing @ 95C”. A timer in
the bottom right corner counts down from 10:00
and shows the number of minutes remaining in
this step. No user action is required.
RT Listeria
Gram Positive
Equilibr.@ 55C
RTLis
Load Samples
RTLis
RTLis Lysis 55C
RTLis 26:38
Heating to 95C
RTLis 2:41
Denaturing @95C
RTLis 8:02

User Guide 15
www.hygiena.com INS2051 Rev A
8 After denaturation at 95 °C is complete, the LCD
display changes to “Cooling to 4C” and the
thermal block sounds two audible beeps to signal
the change. A timer in the bottom right corner
counts up from 0:00 during the temperature
change. No user action is required.
9 After the samples have cooled for 5 minutes, the
LCD display changes to “Sample PCR Ready”, the
blue ACTION NEEDED LED activates and the
thermal block sounds four audible beeps to signal
that samples can be removed.
Press the SELECT/CONTINUE button.
Note: A timer in the bottom right corner
counts up from 0:00 to show any
additional time that samples are held at
4 °C.
10 The LCD display changes to “Completed” and the
thermal block sounds an audible beep to signal
that the program has been completed. The timer
continues to show any additional time that
samples are held at 4 °C.
11 Follow the instructions in the BAX System User
Guide to hydrate the PCR tablets with these
lysates.
Note: Lysates must be maintained at 4 °C
during tablet hydration.
12 After the PCR tablets have been hydrated, remove
the rack of cluster tubes from the metal tube
holder.
Press the SELECT/CONTINUE button.
13 The LCD display changes to “RT Listeria Finished”
and the thermal block sounds an audible beep to
signal that the program has finished.
14 Press the SELECT/CONTINUE button to exit from
the program. The LCD changes to display the
program menu.
Cooling to 4C
RTLis 1:25
Sample PCR Ready
RTLis 0:57
Completed
RTLis 3:19
RT Listeria
**Finished**
RT Listeria
Gram Positive

16 Automated Thermal Block
Cleaning and Decontaminating the Thermal Block
Cleaning the Thermal Block
•Do not attempt to clean the thermal block or metal tube holder when they are hot.
•Remove dust and debris by wiping the instrument surfaces with a lint-free cloth.
•Wipe all spills or condensation with a soft cloth or paper towel, if needed.
•If needed, the casing can be wiped off with a damp cloth using mild soap or detergent.
•Do not use solvents or cleansers containing iodine or acetone, as these solutions could
damage the paint or display window of the block.
Decontaminating the Thermal Block
If contamination should occur, the following steps can be performed under sterile conditions to
help remove the contaminants.
•Wipe the surface of the thermal block unit with a cloth dampened with 20% bleach
solution*, followed by a 70% ethanol rinse to prevent damage to the equipment.
•Soak metal tube holders in 20% bleach solution* for about 5 minutes, then rinse
thoroughly with water and allow to air dry.
* An alternate cleaner designed to remove free DNA may also be investigated. A 10% bleach solution may also be used
for decontamination in accordance with your laboratory SOP but may require repetition of the cleaning to ensure the
removal of all amplicons.
Calibrating the Thermal Block
The Automated Thermal Block should not require calibration when used as directed. If your
laboratory requires calibration as part of your standard operating procedures, you can use the
following procedure to calibrate the block to the nearest degree.
Materials
•Resistance Temperature Detector (RTD) thermometer with microprobe - VWR #61220-
601 or equivalent
•Cluster tubes used for lysis (at least 48)
Note: If an RTD thermometer is not available, a dry bath alcohol thermometer (VWR #89095-782 or
equivalent) may be used to perform the calibration. However, because results may be less accurate due to

User Guide 17
www.hygiena.com INS2051 Rev A
the lower resolution of the dry bath thermometer, calibration with an RTD thermometer is strongly
recommended.
The buttons on the front panel display will serve different purposes during calibration:
•SCROLL button – increases the value entered in the LCD display.
•SELECT/CONTINUE button – decreases the value entered in the LCD display.
•Pressing SCROLL and SELECT/CONTINUE buttons at the same time - sets the value in
the LCD display as the selected value.
1 Arrange 48 cluster tubes in a rack and
fill each tube with 200 µL of water.
2 Poke a small hole in the cap of one
cluster tube near the center of the
cluster tube rack.
3 With the power turned off, place the
rack of cluster tubes in the metal
holder.
