Hytera PD715 Rx User manual

PD715 Ex
Digital Portable Radio
OWNERS MANUAL

Preface
Thanks for your favor in our product. This manual is helpful for you to quickly know how to use the product.
For detailed features and operations, please refer to the Feature Description and Operation Manual along
with the product.
To avoid body injury or property loss caused by misoperation, please read the Safety Information Booklet
carefully before use.
This manual is applicable to the following product:
PD71X Ex Digital Portable Radio (X may represent 2, 5, 6 or 8)

Icon Conventions
�Indicates functions that are available on digital
channel only.
�Indicates functions that are available on analog
channel only.
Functions marked with no icon are available on both
analog and digital channels.
Disclaimer
Hytera Communications Corporation Limited (the
Company) endeavors to achieve the accuracy and
completeness of this manual, but no war ranty of
accuracy or reliability is given. All the specifications
and designs are subject to change without notice due
to continuous technology development. No par t of
this manual may be copied, modified, translated, or
distributed in any manner without the express written
permission of us.
We do not guarantee, for any par ticular purpose,
the a c c uracy, vali dity, tim eline s s, legi t imac y o r
co m p l e ten e s s o f t h e T h i r d Par t y pro duc t s a n d
contents involved in this manual.
If you have any suggestions or would like to learn
more details, please visit our website at: http://www.
hytera.com.
RF Radiation Information
This product must be restricted to operations in an
occupational/controlled RF exposure environment.
Users must be fully aware of the ha zards of the
exposure and able to exercise control over their RF
exposure to qualify for the higher exposure limits.
RF Radiation Prole
R a d i o F r e q u e n c y ( R F ) i s a f r e q u e n c y o f
electromagnetic radiation in the range at which radio
signals are transmitted. RF technology is widely used
in communication, medicine, food processing and
other fields. It may generate radiation during use.
RF Radiation Safety
In order to ensure user health, experts from relevant
industries including science, engineering, medicine
and health work with international organizations to
develop standards for safe exposure to RF radiation.
These standards consist of:
●United States Federal Communications
Commission, Code of Federal Regulations; 47CFR
part 2 sub-part J;
●American National Standards Institute (ANSI)/
Institute of Electrical and Electronic Engineers
(IEEE) C95. 1-1992;
●Institute of Electrical and Electronic Engineers
(IEEE) C95.1-1999;
●International Commission on Non-Ionizing Radiation
Protection (ICNIRP) 1998;
FCC Regulations
Federal Communication Commission (FCC) requires
that all radio communication products should meet the
requirements set forth in the above standards before
they can be marketed in the U.S, and the manufacturer
shall post a RF label on the product to inform users
of operational instructions, so as to enhance their
occupational health against exposure to RF energy.
Operational Instructions and Training
Guidelines
To ensure optimal performance and compliance with
the occupational/controlled environment RF energy
exposure limits in the above standards and guidelines,
users should transmit not more than 50% of the time
and always adhere to the following procedures:
●RF energy will be generated only when the radio is
transmitting.
●The radio must be at least 2.5 centimeters away
from human body when transmitting.
EU Regulatory Conformance
As certified by the qualified laboratory, the product
is in compliance with the essential requirements and
other relevant provisions of the Directive 1999/5/EC.
Please note that the above information is applicable to
EU countries only.
Intrinsically Safe Radio Information
Equipment Marking
FM/CAN
Class I, Zone 1 AEx/Ex ib IIC T4 Gb
Class II, III Div 1, Group E, F, G T120℃
ATEX
II 2G Ex ib IIC T4
II 2D Ex ib IIIC T120℃IP5X
I M2 Ex ib
IECEx
Ex ib IIC T4
Ex ib IIIC T120℃IP5X
Ex ib I
Certicate Number
FM13ATEX0023X
FMG 13.0010X
No Misoperations
Stop operating this product and leave the explosive
atmosphere immediately when the safety or integrity
of the product is endangered, and deliver it to your
local dealer for examination.
These items may endanger the product’s safety or
integrity:
●The radio is stored improperly;
●The radio is faulty;
●The radio works with overload;
●The radio’s operational error or threshold value is
out of allowed range.
●The radio is damaged during transportation;
●The radio’s housing is obviously damaged or
cracked;
●The radio logo or model is hard to be recognized;
Safety Instructions
Caution: To protect you against any property
loss, bodily injury or even death, be sure to
observe the following safety instructions:

3
●Use only the Ex-battery BL1807-Ex specified by the
Company. The use of other batteries may result in
Ex-protection (intrinsic safety) failure.
●Charge the battery in a non-hazardous area only
with the designated charger.
●Do not remove the battery from the radio in a
hazardous area.
●Do not carry any standby battery into a hazardous
area.
●Use the accessories specified by the Company
only. Do not replace the accessories in a hazardous
area.
●Do not use a damaged antenna. If a damaged
antenna comes into contact with your skin, a minor
burn may result.
●Do not expose the radio to direct sunlight for a long
time, nor place it close to a heating source.

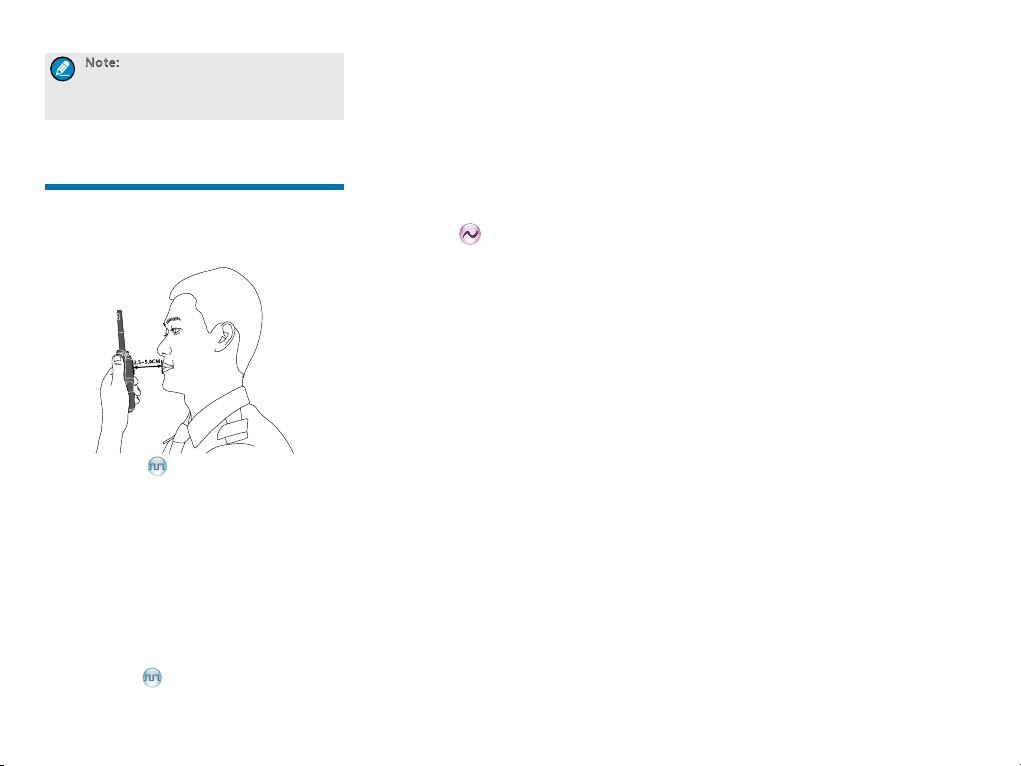

●Hold the radio upright and keep its microphone 2.5
to 5 centimeters away from your mouth during use.
●If you wear a radio on your body, ensure its antenna
is at least 2.5 centimeters away from your body
during transmission.
●Do n o t ca r r y t h e r a d i o i n t o Z o n e 0 a n d 20.
Please do not use the radio out of the operating
temperature range specification of this product.
●Do not attempt to repair and service the radio,
batteries and its accessories. Please contact your
dealer for repair and servicing.
●Do not dissemble or redo the radio. Unauthorized
modification of the radio may result in termination of
Ex-protection (intrinsic safety) of the radio.
●Improper usage of the product other than it is
intended to be used for will impair safety of the
product, yourself and surrounding environment.
Specications
Item Specications
Rated Operating Voltage DC 7.4V
Max. Operating Voltage DC 8.4V
Max. Operating Current 1.5A
Weight (with standard
antenna & battery) About 498g
Sensitivity 0.3μV
RF Power Output 1W
Rated Audio Power
Output 0.5W
Audio Distortion 3%
Ambient Temperature -20℃to +50℃
Storage Temperature -30℃to +60℃
Charging Temperature 0℃to +40℃
Battery Ex-battery BL1807-Ex
(1800mAh)
Battery Life About 14 hours (5-5-90
duty cycle)
Charging Time About 4 hours
Compliance Standards
Standard Issue Date
FM
FM Class 3600 2011
FM Class 3611 2004
FM Class 3810 2005
ANSI/IEC-60529(Ed. 4.0) 2004
ANSI/ISA-60079-0(12.00.01) 2009
ANSI/ISA-60079-11(12.02.01) 2012
ANSI/ISA-60079-31(12.10.03) 2009
ANSI/ISA-61010-1(82.02.01) 2004
CAN
CAN/CSA-C22.2 No.0-M91 2006
CAN/CSA-C22.2 No.142-M1987 2009
Standard Issue Date
CAN/CSA-C22.2 No.213-M1987 2008
CAN/CSA-C22.2 No.60079-0 (Ed.
5.0) 2011
CAN/CSA-C22.2 No.60079-11 (Ed.
5.0) 2011
CAN/CSA-C22.2 No.60079-31
(Ed.1.0) 2012
CAN/CSA-C22.2 No.60529 (Ed. 5.0) 2005
CAN/CSA-C22.2 No.61010-1 (Ed. 2.0) 2009
ATEX
EN 60079-0 (Ed. 5.0) 2009
EN 60079-11 (Ed. 6.0) 2012
EN 60079-31 (Ed. 1.0) 2009
EN 60529+A1 (Ed. 2.0) 1992
IECEx
IEC-60079-0 (Ed. 6.0) 2011
IEC-60079-11 (Ed. 6.0) 2011
IEC-60079-31 (Ed. 1.0) 2008

1
Items in the Package
Please unpack carefully and check if all items listed
below are received. If any item is missing or damaged,
please contact your dealer.
Battery
ChargerAntenna
Strap
Belt Clip
Power Adapter
Radio
Documentation Kit
Note: The frequency band is marked on
the label of antenna; if not, please refer to
the label on the radio for frequency band
information.
Product Overview
Product Controls
No. Part Name No. Part Name
1 SK1 (Side Key 1) 8 Power On-Off/Volume Control Knob
2 PTT (Push-to-Talk) Key 9 Microphone
3 SK2 (Side Key 2) 10 Accessory Connector
4 TK (Top Key) 11 Battery Latch
5 Channel Selector Knob 12 Antenna
6 Speaker 13 Belt Clip
7 LED Indicator 14 Battery

2
Programmable Keys
For enhanced convenience, you may request your
dealer to program the SK1, SK2, and TK ( ) as
shortcuts to certain functions. Please refer to the
Feature Description and Operation Manual along with
the product for more details.
Caution: The TK key is programmed with
emergency feature by default (short press:
Emergency On; long press: Emergency Off).
It is programmable by your dealer.
LED Indicator
LED Indication Radio Status
The LED indicator
flashes green. Powering on
The LED indicator
glows green. Receiving
The LED indicator
glows red. Transmitting
The LED indicator
flashes orange
slowly.
Scanning or Roaming
The LED indicator
flashes orange
rapidly.
Emergency
The LED indicator
glows orange.
Call hang time. No voice is
being transmitted or received
on the traffic channel during a
call. Within such period, you
can hold down the PTT key to
talk to the other party.
Before Use
Attaching the Battery
1. Align the battery slots with the guide rails on the
radio as ① shows, and push the battery as ②
shows.
2. Open the battery latch and hold it down until the
metal lock goes into the battery housing completely
as ③ shows.
3. Push the battery until it is fully tted into the slot,
and then release the battery latch as ④ shows.
Note: To remove the battery, please power
off the radio first. Then open the battery
latch, and slide the battery out while
holding down the battery latch.
Attaching the Antenna
Caution: Do not hold the radio by its
antenna, otherwise the performance and
lifespan of the antenna will be reduced.
Attaching the Belt Clip
1. Remove the screws.
2. Align the screw holes on the belt clip with those on
the radio’s back, and then tighten the screws.

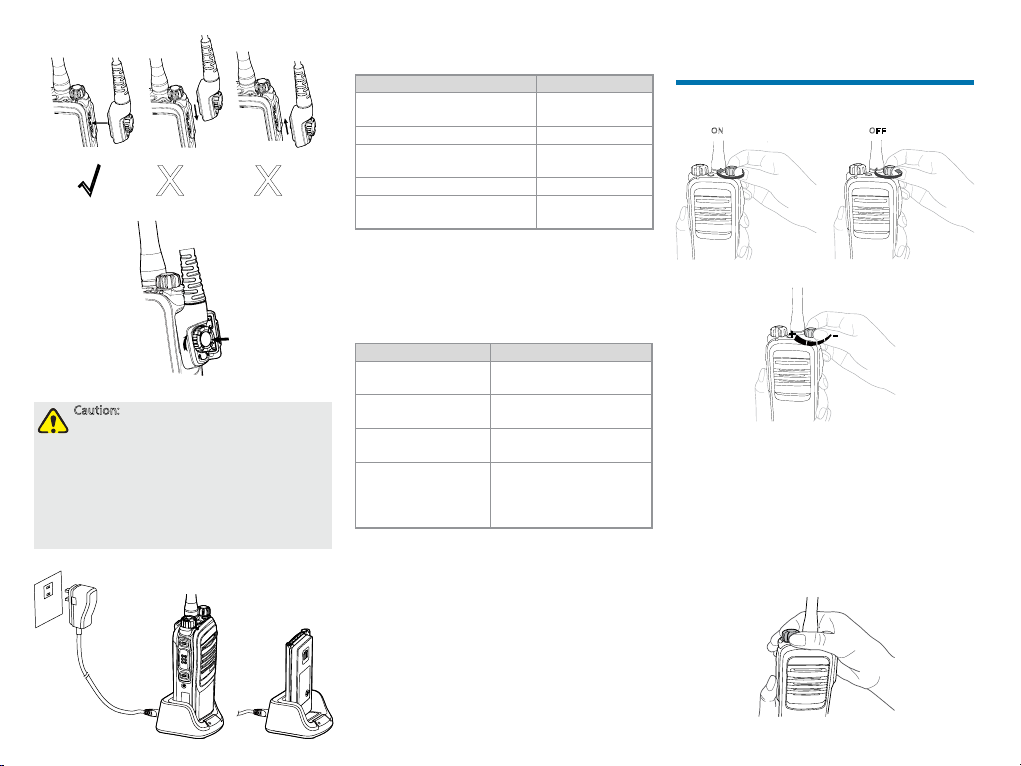

Attaching the Accessories
1. Open the accessory connector cover as shown
below.
2. Align the accessory (such as an audio accessory,
or a programming cable) plug with the accessory
connector.
Caution: Do not scrape the silicone rubber
surrounding the accessory connector screw
hole, in order to ensure the waterproof
performance of the radio.

3
√X X
3. Tighten the screw on the plug.
Charging the Battery
Caution:
●Use the charger specified by the
Company to charge the battery.
●Make sure the radio is powered off
before charging. Read the Safety
Information Booklet in advance to get
necessary safety information.
●Charge a new battery for at least 5 hours
before initial use for best performance.
Charging Status Indication (on charger):
LED Indication Charging Status
The LED Indicator flashes red
slowly.
Standby (no load)
The LED Indicator glows red. Charging
The LED indicator glows
orange.
90% charged
The LED indicator glows green. Fully charged
The LED Indicator flashes red
rapidly.
Charging failed
Checking the Battery Power
You can check the current battery power by holding
down the programmed Battery Power Indicator key
preset by your dealer. And release the key to exit.
Battery power indications and alert tone are listed
below:
LED Indication/Tone Battery Power
The LED Indicator
glows green.
High
The LED Indicator
glows orange.
Medium
The LED Indicator
glows red.
Low
The LED Indicator
glows red and an alert
tone sounds.
The battery runs low.
Please recharge or replace
the battery for proper radio
operation
Basic Operations
Turning the Radio On/Off
Adjusting the Volume
Selecting a Zone
A zone is a group of channels with the same property,
which can facilitate convenient management over
the channels. The radio supports 3 zones, each
of which consists of up to 16 channels. Your dealer
can program the zone for your specific needs. You
can switch to the appropriate zone by pressing the
programmed Zone Up or Zone Down key preset by
your dealer.
Selecting a Channel
ON
“咔嗒 ”
OFF
“咔嗒 ”
"Click" "Click"
Charge the Radio
(with battery attached)
Charge the Battery
- +

4
Note: If the Channel Notify feature is
enabled by your dealer, the radio will
announce the channel number upon
channel switching.
Call Services
After the radio is powered on, you can make and
receive c alls. To ensur e o p t imal volu m e o f t he
receiving radio, keep the microphone about 2.5 to 5
centimeters away from your mouth when transmitting.
2.5~5.0CM
Private Call
Initiating a Private Call
In the standby mode, hold down the PTT key to initiate
a private call to the private contact preset for the
current channel.
You may request your dealer to preset a regular
private call contact for each digital channel.
Receiving and Responding to a Private Call
When you receive a private call, you can listen to it
without any operation and hold down the PTT key to
call back within the preset time.
Group Call
Initiating a Group Call
In the standby mode, hold down the PTT key to initiate
a group call to the group contact preset for the current
channel.
Receiving and Responding to a Group Call
When you receive a group call, you can listen to it
without any operation and hold down the PTT key to
call back within the preset time.
Call on Analog Channel (No
Signaling)
To transmit on an analog channel, hold down the PTT
and speak into the microphone. To receive, release
the PTT key.
Please refer to the Feature Description and Operation
M a n u a l a l o n g w i t h t h e p r o d u c t f o r o p e r a t i o n
description on how to make and receive calls on the
analog channel with signaling.
Emergency Call
In case of emergency, you can use Emergency Call to
ask for help from your companion or the control center.
Emergency Call needs to be configured and enabled
by your dealer. Please refer to the Feature Description
and Operation Manual along with the product for
details.

5
Available Features
Available features of this radio are listed below. Please refer to the Feature Description and Operation Manual for detailed feature descriptions.
Feature Type Detailed Feature
Basic Setting
●Indication: LED, Tone, Vibration
●Audio: Mic AGC, Treble Boost, LQO, Audio Feedback Suppression
●Scanning: Scan On, Scan Off, Scan List
●Other Features: Power Level, VOX, One Touch Call, Renting, Programming, Covert Mode
Digital Features
●Voice Services: Group Call, Private Call, All Call,
●Control Services: Alert Call, Radio Check, Remote Monitor, Radio Enable, Radio Disable, Priority Interrupt, Time-out Timer (TOT)
●Personal Security Services: Emergency Alarm, Man Down, Lone Worker
●Encrypt
●Network: Talk Around, Roam
●Other Features: Pseudo Trunking
Analog Features
●Voice Services: Call without Signaling, Call with Signaling,
●Control Services: Compandor, Time-out Timer (TOT), Monitor, Squelch Off, Squelch Level Adjustment, CTCSS/CDCSS
●Personal Security Services: Emergency Alarm, Man Down, Lone Worker
●Scrambler
●Talk Around
Accessory-related Features ●BT
API Features
●GPS Report
●Radio Registration Service
●Telemetry

6
Troubleshooting
Phenomena Analysis Solution
The radio cannot be powered on.
The battery may be improperly installed. Remove the battery and then reattach it.
The battery power may run out. Recharge or replace the battery.
The battery may suffer from poor contact caused by dirtied
or damaged battery contacts. Clean the battery contacts.
Dur i ng recei ving, t he vo ic e is
weak, disc ont inuous o r totally
inactive.
The battery voltage may be low. Recharge or replace the battery.
The volume level may be low. Increase the volume by rotating the Volume Control Knob.
The antenna may get loose or may be improperly installed. Turn off the radio and reattach the antenna.
The speaker may be blocked or damaged. Clean the surface of the speaker.
You cannot communicate wit h
other members.
The frequency or signaling may be inconsistent with that of
other members.
Set your TX/RX frequency and signaling to the same as that of other
members.
The c h a n n e l t y p e (digit a l a n d analo g) m a y b e s e t
inconsistently. Make sure all members are on the same digital or analog channel.
You may be too far away from the group members. Move towards other members.
Irrelevant communication or noise
is heard on the channel.
Yo u m a y b e i n t e r ru pted by radio s u s i n g t he same
frequency. Change the frequency, or adjust the squelch level.
The radio may be set with no signaling. Set signaling for all member radios to avoid interference at the same
frequency.
The noise is too loud.
You may be too far away from other members. Move towards other members.
You may locate in an unfavorable position. For example,
your communication may be blocked by high buildings or
frustrated in the underground areas.
Move to an open and flat area, and restart the radio to try again.
You may suffer f r om ex te r nal disturba nce (such a s
electromagnetic interference). Stay away from equipment that may cause interference.
If the above solutions cannot fix your problems, or you may have some other queries, please contact us or your local dealer for more technical support.

7
Care and Cleaning
To guarantee optimal performance as well as a long
service life of the product, please follow the tips below.
Product Care
●Do not pierce or scrape the product.
●Keep the product far away from substances that
can corrode the circuit.
●Do not hold the product by its antenna or earpiece
cable directly.
●Attach the accessory connector cover when the
accessory is not in use.
Product Cleaning
Caution: Turn off the product and remove
the battery before cleaning.
●Clean up the dust and fine particles on the product
surface and charging piece with a clean and dry lint-
free cloth or a brush regularly.
●Use neutral cleanser and a non-woven fabric to
clean the keys, control knobs and front case after
long-time use. Do not use chemical preparations
such as stain removers, alcohol, sprays or oil
preparations, so as to avoid surface case damage.
●Make sure the product is completely dry before use.
Optional Accessories
The following items are the main optional accessories for the product, and please consult your local dealer for
more other accessories.
Caution: Use the accessories specified by the Company only. If not, the Company shall not be liable for
any loss or damage arising out of use of unauthorized accessories.
Type Model Name
Power Supply
CH10A06 Dual Pocket MCU Charger Kit (for Li-ion/Ni-MH Batteries)
MCA05 Battery Optimizing System
MCA08 MCU Multi-unit Rapid-rate Charger (for thick battery)
POA38 Li-ion/Ni-MH Battery Adapter
POA59 Multi-unit charger battery adapter
Audio Accessories
EBN10-Ex Intrinsically Safe Bone Conduction Headset (IP57)
EBN11-Ex Intrinsically Safe Bone Conduction Headset (IP57)
EBN12-Ex Intrinsically Safe Bone Conduction Headset (IP57)
ECN20-Ex Intrinsically Safe Noise-cancelling Headset (IP57)
ECN21-Ex Intrinsically Safe Noise-cancelling Headset (IP57)
ECN22-Ex Intrinsically Safe Noise-cancelling Headset (IP57)
ELN09-Ex
Intrinsically Safe Throat-vibrating Earpiece (IP57)
ELN10-Ex Intrinsically Safe Throat-vibrating Earpiece (IP57)
ELN11-Ex Intrinsically Safe Throat-vibrating Earpiece (IP57)
SM18N4-Ex Intrinsically Safe Remote Speaker Microphone (IP57)
SM24N1-Ex Ex Multi-functional Remote Speaker Microphone (IP57)
SM24N2-Ex Ex Multi-functional Remote Speaker Microphone (IP57)
POA63-Ex Ex Large PTT (IP57)
Cable PC38 Programming Cable (USB port)
Carrying Accessories LCY005 Carrying Case with Leather (swivel)


2015Hytera Corp., Ltd.
#
&'(): - -
.http://www hytera com.
9108: !"
$%:518057
400 830 7020
2015
811PD71000000
L07157 C10524
