Hytera HP7 Series User manual

1
Product Overview
Product Layout
No. Part Name No. Part Name
1 Side Key 1 (SK1) 13 Microphone
2 Push-to-Talk (PTT) Key 14 Back/Subgroup Key
3 Side Key 2 (SK2) 15 On-Off/P2/End Key
4 Top Key (TK) 16 Navigation Keys
5 Smart Knob 17 Battery Latch
6 LCD Display 18 Strap Hole 1
7 OK/Menu Key 19 Strap Hole 2
8 P1/Answer Key 20 Accessory Connector
9 Numeric Keypad 21 Belt Clip
10 Speaker 22 Battery
11 LED Indicator 23 Charging Piece
12 Antenna / /
Programmable Keys
For enhanced convenience, you can request your dealer to program the following
keys as shortcuts to radio features: TK, SK1, SK2, P1/Answer key, P2/End key, Up
key, and Down key. Consult your dealer for assignable radio features.

2
Basic Operations
Charging the Battery
Read the Safety Information Booklet before
charging.
Use the approved charger to charge the
battery.
The remaining lithium-ion battery power is
limited to 30% pursuant to the new lithium
battery shipment regulation approved by
International Air Transport Association
(IATA).
Before initial use, charge the battery. You can charge
either the standalone battery or the radio with battery
attached. It is recommended that the radio remain
powered off during charging.
The LED indicator on the charger shows the charging
status. For details, see the following table.
LED Indicator Charging Status
or above.
Glows green The battery is fully charged.
Flashes red slowly No battery is placed on the
charger.
Flashes red rapidly The battery fails to be charged.
Turning the Radio On orOff
To turn the radio on or off, press and hold .
Adjusting the Volume
To increase or decrease the volume, rotate the Smart
knob clockwise or counter-clockwise.
Selecting the Contact or
Channel
To select the contact or channel, press the Smart
knob, and then rotate the knob.
Locking or Unlocking the
Keypad
When the keypad is not in use, it is recommended that
you lock it to avoid unintended operations.
To allow the keypad to be locked automatically, do as
follows:
1. Go to Menu > Settings > Basic Settings>
Keypad Lock.
2. Enable AutoLock, and then go to Timed to set
the auto lock time.
If you do not operate the radio or if the radio receives
no call or message within the auto lock time, the
keypad is locked automatically.
To manually lock or unlock the keypad, do one of the
following:
Press the preprogrammed Keypad Lock key.
On the home screen, press the OK/Menu key,
and then press .
If you do not rotate the knob within 5s or if you
press it again within 5s, you can rotate it to adjust
the volume.
LED Indicator Charging Status
Glows red The battery is being charged.
Glows orange The battery is charged to 90%

3
Using the Keypad
You can use the keypad to enter contact aliases and
IDs, or edit messages.
To switch the input method between alphabetic
mode and numeric mode, press .
To enter special characters, press in
alphabetic mode.
To enter a space, press in alphabetic mode.
Switching the Operation Mode
The radio can operate in conventional mode, or
trunking mode if enabled by your dealer.
To switch the operation mode, do one of the following:
Press the preprogrammed Operation Mode
Switchkey.
Go to Menu > Mode, and then select themode.
To allow the radio to automatically switch to a mode
based on signal strength, do one of the following:
Press the preprogrammed Mode Auto Switch
key.
Go to Menu > Mode, and then enable Auto
Switch.
Conventional Mode
In conventional mode, a zone is a group of channels
within the same operational area. The radio receives
and transmits data and voice on the selected channel.
Selecting a Zone
To select a zone, do one of the following:
Go to Menu > Zone, select the zone, and then
select Set Default.
Press the preprogrammed Zone Up or Zone
Down key.
Selecting a Channel
Before selecting a channel, make sure that the
current zone contains the channel.
To select a channel, do one of the following:
Press and rotate the Smart knob.
Go to Menu > Zone, select the zone, and then
select the channel.
Press the preprogrammed Channel Up or
Channel Down key.
Press the preprogrammed Preset Channel key.
Trunking Mode
In trunking mode, the radio hunts for available base
stations (BS) automatically. After registration, the
radio can receive and transmit data and voice.
Selecting a Group or Private Contact
To select a group contact or a private contact, do one
of the following:
If the Voice Notify feature is enabled, the radio
automatically announces the current channel
upon power-on and channel change.
If the Zone/Subgroup Switch Mode feature is
enabled, you can switch the operation mode by
switching the contact through the menu or the
Smart knob.
If the Keypad Lock Backup feature is
enabled by your dealer, the radio
automatically saves the last settings of
keypad lock upon power-off.
You can go to Menu > Settings > Basic
Settings > Keypad Lock > Optional Key to
set whether the corresponding keysand
knobs still work when the keypad is locked.

4
Press and rotate the Smart knob.
On the home screen, press the Back/Subgroup
key or go to Menu > Subgroup, select the
subgroup, and then select the group or private
contact.
Press the preprogrammed Group/Private Up or
Group/Private Down key.
Selecting a Subgroup
A subgroup consists of multiple groups or private
contacts.
To select a subgroup, do one of the following:
On the home screen, press the Back/Subgroup
key or go to Menu > Subgroup, select the
subgroup, and then select Set Default.
Press the preprogrammed SubgroupUp or
Subgroup Down key.
Status Indications
LCD Icons
Icon Radio Status
There is/are missed call(s).
There is/are unread short message(s).
The Inbox is full.
For details on other LCD icons, refer to the User
Manual.
LED Indications
Icon Radio Status
The fuller the battery bar is, the stronger the
battery power remains.
Icon Radio Status
The battery power is low.
The battery power runs out. Recharge or
replace the battery.
The radio detects no signal.
The number of bars indicates the signal
strength.
The radio operates in Low Power mode.
The radio operates in High Power mode.
The keypad is locked.
An accessory is connected.
The Mode Auto Switch feature is enabled.
The radio is scanning or hunting.
The VOX feature is enabled.
The radio is mute.
The radio operates in Meeting mode.
The radio operates in Outdoor mode.
The radio is in Emergency mode.
LED Indicator Radio Status
Flashes green The radio is being turned on.
Flashes green slowly The radio is standby in
trunking mode.
Glows green The radio is receiving.
Glows red The radio is transmitting.
Flashes red
The radio is establishing a call
in trunking mode. (This
indication is applicable only to
the calling radio.)
Flashes orange
slowly
The radio is scanning, hunting,
or roaming.
Flashes orange Conventional mode: The

5
LED Indicator Radio Status
rapidly
radio is working in
emergency mode.
Trunking mode: The called
radio is establishing a Full
Off Air Call Set-Up
(FOACSU) call.
Glows orange
Call hang time: No voice is
being transmitted or received
on the channel during a call.
Within such a period, you can
press and hold the PTT key
and speak.
Flashes blue every 3
seconds
The BT feature is enabled, but
no BT device is connected.
Flashes blue every
1.5 seconds
A BT device is connected.
Flashes blue every
0.1 second
The BT feature is being
disabled.
Call Services
When you are speaking during a call, keep the
microphone about 2.5 cm to 5 cm away from your
mouth. This ensures optimal voice quality on the
receiving radio.
Call on Digital Channel
You can initiate or receive the following types of
calls on a digital channel:
Group call: a call from an individual user in a
group to all the other members in the group.
Private call: a call from an individual user to
another individual user.
Initiating a Group Call
Through Preset Contact
Press and rotate the Smart knob to select the channel
or group contact, and then press and hold the PTT key.
Through Contact List
Conventional mode: Go to Menu > Contact >
Favorite/Contact, select the group contact, and
then press and hold the PTT key.
Trunking mode: Go to Menu > Subgroup, select
the subgroup and group contact, and then press
or the PTT key.
Through Manual Dial
Conventional mode: With the dial authority for
group call enabled, on the home screen, use the
numeric keypad to enter the group ID, and then
press and hold the PTT key.
Trunking mode: On the home screen, use the
numeric keypad to enter the group ID, and then
press or the PTT key.
Receiving a Group Call
You can receive a group call without any
operation.
To input an ID that complies with the dialing
rules, consult your dealer for details.
In trunking mode, if the radio is not registered or
attached, or an empty group is selected, you
cannot initiate a call.

6
Ending a Group Call
Conventional Mode
A group call ends when the call hang time expires.
Trunking Mode
A group call ends in one of the following
scenarios:
The call hang time expires.
The calling party ends the call.
The call duration exceeds the preset time.
The BS signal is lost.
A preemptive or emergency call interrupts
the call.
The calling party changes the contact with
the Clear Down Via Group Switch feature
enabled.
Initiating a Private Call
Through Preset Contact
Press and rotate the Smart knob to select the
channel or private contact, and then press and
hold the PTT key.
Through Contact List
Go to Menu > Contact > Favorite /Contact ,
select the private contact, and then press and
hold the PTT key.
Through Manual Dial
Conventional mode: With the dial authority
for private call enabled, use the numeric
keypad to enter the private ID, and then
press and hold the PTT key.
Trunking mode: On the home screen, use the
numeric keypad to enter the private ID, and
then press or the PTTkey.
Receiving a Private Call
Conventional Mode
You can receive a private call without any
operation.
Trunking Mode
FOACSU
When receiving a FOACSU private call, the
radio vibrates and rings. Press or the
PTT key within the preset time to answer the
call.
OACSU
When receiving an Off Air Call Set- Up
(OACSU) private call, you can answer it
without any operation. The call is established
automatically.
Ending a Private Call
Conventional Mode
A private call ends when the call hang time
expires.
Trunking Mode
A private call ends in one of the following
scenarios:
The call hang time expires.
The calling or called party ends the call.
The call duration exceeds the preset time.
To input an ID that complies with the dialing
rules, consult your dealer for details.

7
The BS signal is lost.
A preemptive or emergency call interrupts
the call.
The calling or called party changes the
contact with the Clear Down Via Private
Switch feature enabled.
Call on AnalogChannel
(Conventional Only)
Call without Signaling
On an analog channel without signaling, you can
initiate a call to all the other users on the channel. Do
as follows:
1. Rotate the Smart knob to select the channel.
2. Press and hold the PTT key.
Call with Signaling
On an analog channel with signaling, you can initiate
a call to a specific contact on the channel. Do as
follows:
1. Press the preprogrammed Contact List key, or
go to Menu > Contact > Favorite/Contact.
2. Select the contact.
3. Press and hold the PTT key or the
preprogrammed One Touch Call key.
Emergency Call
In case of an emergency, you can initiate an
emergency call to seek help from your companion or
the control centre. With the highest priority, the
emergency call can be initiated even when the radio
is transmitting or receiving.
This feature is configured and enabled by your
dealer. For details, refer to the UserManual.
Message Services
The radio can send and receive short messages.
Text message: a message containing text or
number.
Quick text message: a frequently used text
message that can be created, edited, and deleted.
Status message (trunking only): a predefined code
that transfers the message content.
Sending a Message
To send a message, do as follows:
1. Go to Menu > Message > Msg New.
2. In the recipient field, enter the contact ID, and
then press to switch the contacttype.
Alternatively, press the OK/Menu key to enter
the contact list, and then select the contact.
3. In the message content field, enter the message
content.
Alternatively, select Insert, and then insert a
quick text message or status message.
4. Select Send.
Replying to a Message
To reply to a message, do as follows:
1. Go to Menu > Message > Msg, and then select
the message.
2. Select Reply, and then enter the text content or
insert a quick text message or status message.
3. Select Send.
Managing a Message
Go to Menu > Message > Msg, select a message,
press the Up key, and then manage the message as
follows:
To forward the message, select Forward, and
then add the contact.
To resend the message, select Resend.
To delete the message, select Delete.
To delete all messages, select Delete All.

Icon Conventions
: Indicates functions that are available on digital
channel only.
: Indicates functions that are available on analog
channel only.
Functions marked with no icon are available on both
analog and digital channels.
Disclaimer
Hytera Communications Corporation Limited (the
Company) endeavors to achieve the accuracy and
completeness of this manual, but no warranty of
accuracy or reliability is given. All the specifications
and designs are subject to change without notice due
to continuous technology development. No part of
this manual may be copied, modified, translated, or
distributed in any manner without the express written
permission of us.
We do not guarantee, for any particular purpose, the
accuracy, validity, timeliness, legitimacy or completeness
of the Third Party products and contents involved in this
manual.
If you have any suggestions or would like to learn more
details, please visit our website at: http://www.hytera.
com.
RF Radiation Information
This product must be restricted to operations in an
occupational/controlled RF exposure environment. Users
must be fully aware of the hazards of the exposure and
able to exercise control over their RF exposure to qualify
for the higher exposure limits.

Radio Frequency (RF) is a frequency of electromagnetic
radiation in the range at which radio signals are
transmitted. RF technology is widely used in
communication, medicine, food processing and other

RF Radiation Safety
In order to ensure user health, experts from relevant
industries including science, engineering, medicine and
health work with international organizations to develop
standards for safe exposure to RF radiation. These
standards consist of:
ƽ United States Federal Communications Commission,
Code of Federal Regulations; 47CFR part 2 sub-part
J;
ƽ American National Standards Institute (ANSI)/
Institute of Electrical and Electronic Engineers (IEEE)
C95. 1-1992;
ƽ Institute of Electrical and Electronic Engineers (IEEE)
C95.1-1999;
ƽ International Commission on Non-Ionizing Radiation
Protection (ICNIRP) 1998;
FCC Regulations
Federal Communication Commission (FCC) requires
that all radio communication products should meet the
requirements set forth in the above standards before
they can be marketed in the U.S, and the manufacturer
shall post a RF label on the product to inform users
of operational instructions, so as to enhance their
occupational health against exposure to RF energy.
FCC Statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates and can radiate radio
frequency energy. If not installed and used in accordance with
the instructions, it may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
Verification of harmful interference by this equipment to
radio or television reception can be determined by turning it
off and then on. The user is encouraged to try to correct the
interference by one or more of the following measures:
zReorient or relocate the receiving antenna. Increase the
separation between the equipment and receiver.
zConnect the equipment into an outlet on a different
circuit to that of the receiver's outlet.
zConsult the dealer or an experienced radio/TV technician
for help.
Operation is subject to the following two conditions:
zThis device may not cause harmful interference.
zThis device must accept any interference received,
including interference that may cause undesired
operation.
Note: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void
the user's authority to operate the equipment.

Après examen de ce matériel aux conformité aux limites DAS,
ISEDC Statement
The device has been tested and complies with SAR limits,
users can obtain Canadian information on RF exposure and
compliance
et/ou aux limites d’intensité de champ RF, les utilisateurs
peuvent sur l’exposition aux radiofréquences et la conformité
and compliance d’acquérir les informations correspondantes
RF Exposure Compliance and
Control Guidelines and Operating
Instructions
To control your exposure and ensure compliance with the
occupational/controlled environmental exposure limits,
always adhere to the following procedures.
Guidelines:
Do not remove the RF Exposure Label from the device.
User awareness instructions should accompany device
when transferred to other users.
Do not use this device if the operational requirements
described herein are not met.
Operating Instructions:
Transmit no more than the rated duty factor of 50%of the
time. To transmit (talk), push the Push-To-Talk (PTT)
key. To receive calls, release the PTT key. Transmitting
50% of the time, or less, is important because the radio
generates measurable RF energy only when transmitting
(in terms of measuring for standards compliance).
Keep the radio unit at least 2.5 cm away from the face.
Keeping the radio at the proper distance is important as
RF exposure decreases with distance from the antenna.
The antenna should be kept away fromthe face and eyes.
When worn on the body, always place the radio in a
Hytera-approved holder, holster, case, or body harness or
by use of the correct clip for this product. Use of
non-approved accessories may result in exposure levels
which exceed the FCC's occupational/controlled
environmental RF exposure limits.
Use of non-approved antennas, batteries, and accessories
causes the radio to exceed the FCC RF exposure
guidelines.
Contact your local dealer for the optional accessories of
the product.
L'exposition aux champs rf de
conformité et de contrôle
d'orientations et instructions
Pour contrôler l'exposition et s'assurer de la
conformité avec les limites d'exposition
professionnelle / environnement contrôlé, toujours
respecter les procédures suivantes.
Lignes directrices:
Ne pas enlever l'étiquette de l'appareil d'exposition
aux radiofréquences.
Sensibilisation des utilisateurs instructions devraient
accompagner dispositif lorsque transférés à d'autres
utilisateurs.
Ne pas utiliser cet appareil si les exigences
opérationnelles décrites ci - après ne sont pas
remplies.
Les instructions de fonctionnement:
Transmettre non plus que le facteur d'utilisation
nominal de 50% du temps.à transmettre (parler),
pousse le pousse à parler (ptt). Pour recevoir des
appels, les ptt.50% du temps de transmission, ou
moins, est important parce que la radio génère de
l'énergie rf seulement lors de la transmission des (en
termes de mesure de la conformité aux normes).
Ie groupe de la radio continue d'au moins 2,5 cm de la
surface.garde la radio à la bonne distance est
important, car l'exposition aux champs rf diminue
avec la distance de l'antenne.l'antenne doit se tenir
loin du visage et des yeux.
Quand portés sur le corps, toujours place de la
radio dans un étui, hytera approuvé titulaire, ou un
harnais ou par l'utilisation de la vidéo pour ce
produit.utilisation des accessoires non approuvés
peuvent entraîner des fac qui dépassent les niveaux
d'exposition professionnelle et environnementale
contrôlée des limites d'exposition aux rf.
Non approuvé des antennes, les piles et les
accessoires causes la radio à dépasser les lignes
directrices sur l'exposition aux radiofréquences de fac.
Communiquez avec votre distributeur local pour
les accessoires facultatifs du produit.
EU Regulatory Conformance
As certified by the qualified laboratory, the product is in
compliance with the essential requirements and other relevant
provisions of the following directives: 2014/53/EU,
2006/66/EC, 2011/65/EU, and 2012/19/EU.
Please note that the above information is applicable to EU
countries only.

QUICK REFERENCE GUIDE
2019
Hytera Communications Corporation Limited.
Hytera Communications Corporation Limited.
Address: Hytera Tower, Hi‐Tech Industrial Park North, 9108# Beihuan Road,
Nanshan District, Shenzhen, People's Republic of China,P.R.C,P 518057

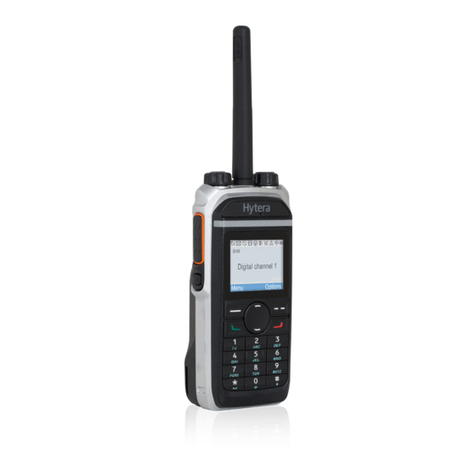

PD68X DIGITAL PORTABLE RADIO
快 速 操 作 手 册
数 字 手 持 终 端
PD680
Pour le fonctionnement du corps usé, ce a été testé et répond aux directives d’exposition RF
For body worn operation, this device has been tested and meets the
avec une distance minimale de mm.
mm a été utilisé pour l’essai, cet équipement doit être installé et actionné
SAR tests are conducted using standard operating positions accepted by the FCC/ISEDC with the device
transmitting at its highest certified power level in all tested frequency bands, although the SAR is determined at
the highest certified power level, the actual SAR level of the device while operating can be well below the
maximum value.
Before a new model device is a available for sale to the public, it must be tested and certified to the FCC/
ISEDC that it does not exceed the exposure limit established by the FCC/ISEDC, Tests for each device are
performed in positions and locations (worn on the body)as required by the FCC/ISEDC.
For face-up, mm was used for test, this equipment should be installed and operated with minimum distance
mm.
FCC/ISEDC RF exposure guidelines
when used with an accessory designated for this product or when used with an accessory that Contains no metal.
Non-compliance with the above restrictions may result in violation of RF exposure guidelines.
Les essais SAR sont effectués à l’aide de positions d’exploitation normalisées acceptées par la FCC/ISEDC
avec l’appareil transmettant à son niveau de puissance certifié le plus élevé dans toutes les bandes de fréquences
testées, bien que le SAR soit déterminé au niveau de puissance certifié le plus élevé, le niveau réel de R-S de
l’appareil pendant son fonctionnement peut être bien inférieur à la valeur maximale.
Avant qu’un nouveau dispositif de modèle ne soit disponible à la vente au public, il doit être testé et certifié à la
FCC/ISEDC qu’il ne dépasse pas la limite d’exposition établie par la FCC/ISEDC, les tests pour chaque
appareil sont effectués dans des positions et des emplacements (portés sur le corps) comme l’exige la FCC/
ISEDC. Pour le face-vers le haut,
FCC/ISEDC lorsqu’il est utilisé avec un accessoire désigné pour ce produit ou lorsqu’il est utilisé avec un
accessoire qui ne contient pas de métal.
Le non-respect des restrictions ci-dessus peut entraîner une violation des lignes directrices sur l’exposition aux
RF.
25
25
10
10
dispositif
subi,
er tout brouillage radioélectrique
Operation is subject to the
This device complies with Innovation, Science and Economic Development Canada licence-exempt RSS
following two conditions: (1) this device may not cause interference, and (2) this
must accept any interference,in cluding interference that may cause undesired operation of the device.
Le onjunc areil est conforme aux CNR d’ l’innovation, la science et le développement économique Canada
licables aux areils radio exempts de licence.L’exploitation est autorisée aux deux conditions suivantes:
(1) l’areil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accept
onj si le brouillage est susceptible d’en compromettre le fonctionnement.
standard (s).
device
