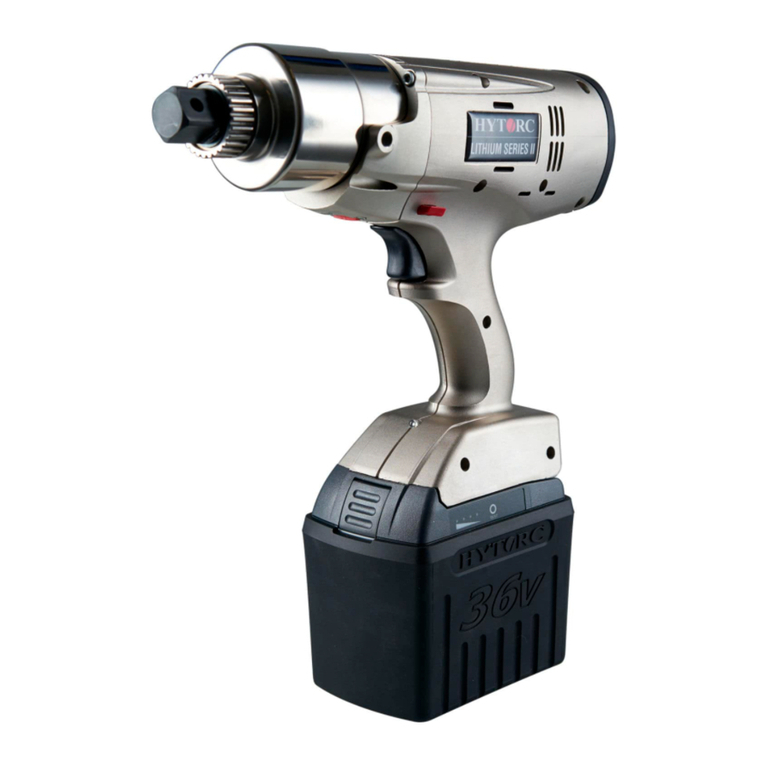

Hytorc LITHIUM II Series User manual

LITHIUM SERIES® II Electric Torque Tool
Icon Reference Guide
333 Route 17 N.
Mahwah, NJ 07430
USA
800-FOR-HYTORC
(800-367-4986)
201-512-9500
hytorc.com

LITHIUM SERIES® II ELECTRIC TORQUE TOOL ICON REFERENCE GUIDE
TABLE OF CONTENTS
LANGUAGE TRANSLATIONS
1. Chinese
2. Japanese
3. German
4. Italian
5. French
6. Spanish
DISCLAIMER: Featured imagery and content subject to change without notice.
. HOME SCREEN
. 主页
. ホーム画 面
. HAUPTBILDSCHIRM
. SCHERMO INIZIALE
. ÉCRAN D'ACCUEIL
. PANTALLA PDE INICIO

. MENU NAVIGATION
. 菜单导航
. ナビゲーションメニュー
. MENÜ NAVIGIERUNG
. MENU DI NAVIGAZIONE
. MENU DE NAVIGATION
. MENÚ DE NAVEGACIÓN

. MAIN MENU
.主菜单
. メインメニュー
. HAUPTMENÜ
. MENU PRINCIPALE
. MENU PRINCIPAL
. MENÚ PRINCIPAL

. ADVANCED BOLTING
. 先进的螺栓紧固技术
. 高度ボルト締 結
. ERWEITERTE VERFAHREN
. BULLONATURA AVANZATA
. BOULONNAGE SUPÉRIEUR
. EMPERNADO AVANZADO

. JOBS
. 工单
. 作業
. SCHRAUBPROGRAMME
. LAVORI
. EMPLOIS
. TRABAJOS

. SETTINGS
. 设置
. 設定
. EINSTELLUNGEN
. IMPOSTAZIONI
. RÉGLAGES
. AJUSTES

. ADMIN
. 管理员
. 管理者
. ADMINISTRATOR
. AMMINISTRATORE
. ADMINISTRATEUR
. ADMINISTRADOR

. ACCESS LEVELS
. 访问级别
. アクセスレベル
. ZUGANGSEBENEN
. LIVELLI DI ACCESSO
. NIVEAUX D'ACCÈS
. NIVELES DE ACCESO

NOTICE OF PROPRIETARY RIGHTS: HYTORC Division UNEX Corporation (“HYTORC”) is the owner of all content included in this document and all right, title and interest to such content shall
remain with HYTORC. COPYRIGHT NOTICE: © 2020 HYTORC. Any unauthorized use or distribution of any material from this document, without HYTORC’s written permission, is strictly prohibited.
TRADEMARK NOTICE: This document contains numerous registered trademarks and servicemarks of HYTORC in the U.S. and other countries. PATENT NOTICE: Products in this document are
covered by numerous registered and/or pending patents in the U.S. and other countries.

LITHIUM SERIES® II ELECTRIC TORQUE TOOL ICON REFERENCE GUIDE 1
Counter Clockwise Direction
1. 逆时间方向
2. 反時計回り
3. Lösen
4. Direzione Anti-Oraria
5. Sens Antihoraire
6. Rotación en sentido antihorario
Directional Indicator with arrows
showing the counter clockwise (CCW)
rotational direction set in the tool. The
direction may be reversed by depressing
the directional switch.
Fastener Type
1. 紧固件类型
2. 締結方法
3. Schraubenart
4. Tipo di Fissaggio
5. Élément de montage
6. Tipo de cierre
Indicates the selected Fastener Type,
which sets the proper motor direction for
tightening and loosening with the tool.
RH – Right Hand Fastener
LH – Left Hand Fastener
HWR – HYTORC Washer Right
HWL – HYTORC Washer Left
HN – HYTORC Nut
Increase/Up
1. 增加
2. トルク/増
3. Erhoehen
4. Aumento/Su
5. Augmentation / En Haut
6. Arriba
The Up-Arrow in the lower left box
indicates that by pushing the left button,
the value on the screen will increase.
Decrease/Down
1. 减小
2. トルク/ 減
3. Verringern
4. Diminuzione/Giù
5. Diminution / En Bas
6. Abajo
The Down-Arrow in the lower right box
indicates that by pushing the right button,
the value on the screen will decrease.
LHRH
HN
HWR
HWL
Clockwise Direction
1. 顺时针方向
2. 時計回り
3. Im Uhrzeigersinn
4. Senso Orario
5. Sens Horaire
6. Rotación hacia la derecha
Directional Indicator with arrows
showing the clockwise (CW) rotational
direction set in the tool. The direction
may be reversed by depressing the
directional switch.
ICON MEANING DESCRIPTION
. HOME SCREEN

2
User Access Level
1. 用户访问级别
2. ユーザーアクセスレベル
3. Benutzerzugriffsebene
4. Livello di accesso dell’utente
5. Niveau d’accès utilisateur
6. Nivel de acceso del usuario
The Access Level currently set on the
tool is displayed just to the right of the
hamburger icon.
L1 – Jobs User
L2 – Flex User
L3 – Full User
L4 – Admin
L5 - Service
Low Battery
1. 电量不足
2. バッテリ不足
3. Akku schwach
4. Batteria scaricata
5. Batterie faible
6. Cargo bajo
The Low Battery icon indicates that
the battery is almost fully discharged,
signaling to the user to recharge the
current battery and switch to another fully
charged battery.
Bluetooth® Wireless Technology
(Classic)
1. Bluetooth®
2. Bluetooth®
3. Bluetooth®
4. Bluetooth®
5. Bluetooth®
6. Bluetooth®
Bluetooth® Wireless Technology
(Low Energy)
1. Bluetooth®
2. Bluetooth®
3. Bluetooth®
4. Bluetooth®
5. Bluetooth®
6. Bluetooth®
The Bluetooth Classic indicator (in black)
is displayed when Bluetooth Classic mode
is enabled.
The Bluetooth Low Energy indicator
(in blue) is displayed when Bluetooth Low
Energy mode is enabled.
L1 L2
L5
L3
L4
Main Menu
1. 主菜单
2. メインメニュー
3. Hauptmenü
4. Menu principale
5. Menu Principal
6. Menú principal
Main Menu “Hamburger” icon is
displayed in the lower center box of the
Home Screen, which corresponds to the
center button. Pushing the center button
displays the Main Menu.
ICON MEANING DESCRIPTION
(CONT’D.)

LITHIUM SERIES® II ELECTRIC TORQUE TOOL ICON REFERENCE GUIDE 3
Select
1. 选择
2. 選択
3. Wählen
4. Selezionare
5. Sélectionner
6. Seleccionar
On menu screens, the Select icon
appears in the lower center box, guiding
the user to push the center button to
select the highlighted menu option.
Back
1. 返回
2. 戻る
3. Zurück
4. Indietro
5. Retour
6. Regresar
The Back icon is displayed near the
bottom of most sub-menus to allow the
user to move back one level in the menu
structure.
Home
1. 主页
2. ホーム
3. Home
4. Menu
5. Accueil
6. Inicio
The Home icon is displayed at the bottom
of most menus and sub-menus to allow
the user to return directly to the Home
Screen.
Scroll Down
1. 向下滚动
2. スクロールダウン
3. Nach unten scrollen
4. Scorrere In Basso
5. Défiler vers le bas
6. Abajo
On menu screens, the Down-Arrow
guides the user to push the right button
to scroll down the menu.
Scroll Up
1. 向上滚动
2. スクロール上
3. Nach oben scrollen
4. Scorrere
5. Défiler vers le haut
6. Desplazarse hacia arriba
On menu screens, the Up-Arrow guides
the user to push the left button to scroll
up the menu.
ICON MEANING DESCRIPTION
. MENU NAVIGATION. MENU NAVIGATION

4
Snug
1. 预拧扭矩
2. 着座
3. Fuegen
4. Stretto
5. Ajustement serré
6. Ajustado
Torque
1. 扭矩
2. トルク
3. Drehmoment
4. Coppia
5. Couple
6. Torque
Enables the Torque function, allowing
the user to adjust the torque value up and
down as required for bolting applications.
Enables the Snug function, allowing users
to set a torque value at the lower end of
the tool's capability in order to bring two
structural surfaces into contact.
Angle
1. 角度
2. 角度
3. Winkel
4. Angolo
5. Angle
6. Ángulo
Enables the Angle function, allowing
users to adjust the angle as part of
“Torque and Angle” sequence within the
same trigger event as the Torque.
Release
1. 发布
2. 開放
3. Freidrehwinkel
4. Rilascio
5. Déblocage
6. Liberación
Release adjusts the tool release angle to
take the tension off the motor following a
torque operation, allowing the tool to be
released from the application.
Fastener
1. 紧固件
2. ファスナー
3. Verbindungselement
4. Fissaggi di serraggio
5. Fixation
6. Sujetador
Fastener allows the selection of fastener
type: Right Hand Nut, Left Hand Nut,
HYTORC Washer Right Hand, HYTORC
Washer Left Hand and HYTORC Nut.
ICON MEANING DESCRIPTION
. MAIN MENU

LITHIUM SERIES® II ELECTRIC TORQUE TOOL ICON REFERENCE GUIDE 5
Advanced Bolting
1. 先进的螺栓紧固技术
2. 高度ボルト締結
3. Erweiterte Verfahren
4. Bullonatura Avanzata
5. Boulonnage Supérieur
6. Empernado avanzado
Advanced Bolting sub-menu
contains specialized bolting options
that include motor control and bolting
sequence operations.
Jobs
1. 工作
2. 作業
3. Schraubprogramm
4. Lavori
5. Emplois
6. Trabajos
Jobs sub-menu provides options for
documenting job data and preconfiguring
profiles in the tool.
Settings
1. 设置
2. 設定
3. Einstellungen
4. Impostazioni
5. Paramètres
6. Ajustes
Settings sub-menu provides options
typically used upon initial setup or at the
start of a new project.
Admin
1. 管理员
2. 管理者
3. Administrator
4. Amministratore
5. Administrateur
6. Administrador
Admin sub-menu allows users to manage
access levels, passwords, menu options,
and useful tool information.
Service
1. 服务
2. サービス
3. Service
4. Servizio
5. Un service
6. Servicio
Service sub-menu provides access to
the calibration menu and other options
typically only used by authorized HYTORC
service personnel.
ICON MEANING DESCRIPTION
(CONT’D.)

6
Turn Angle
1. 转动角度
2. 角度締め
3. Weiterdrehwinkel
4. Girare l’angolo
5. Angle de rotation
6. Ángulo de giro
Turn Angle allows the user to tighten a
fastener to a specific angle independent
of the torque previously applied. Often
applied in operations that have previously
been snug tightened, such as turn-of-nut.
Torque Check
1. 扭矩检查
2. トルクチェック
3. Torque Check
4. Controllo di coppia
5. Vérification du couple
6. Verificacion de torque
Torque Check allows user to detect if
a previously tightened nut still meets
specification. The user pulls the trigger
and monitors the nut to detect if any
movement occurs.
Rotations
1. 旋转圈数
2. 回転
3. Drehungen
4. Rotazioni
5. Rotations
6. Rotaciones
Rotations allows the user to turn a valve
under resistance through a specific
number of rotations; for example, to turn a
valve 20 revolutions clockwise.
ICON MEANING DESCRIPTION
. ADVANCED BOLTING

LITHIUM SERIES® II ELECTRIC TORQUE TOOL ICON REFERENCE GUIDE 7
Start Job
1. 开始工单
2. 作業開始
3. Schraubprogramm starten
4. Avvia lavoro
5. Commencer le travail
6. Iniciar trabajo
Start Job allows the user to select a Job
ID and begin recording data under that
Job ID. Appears only if no job is active.
End Job
1. 结束工单
2. 作業終了
3. Schraubprogramm beenden
4. Fine lavoro
5. Fin du travail
6. Finalizar trabajo
End Job ends data recording for the
currently active Job ID and allows the
user to start another job if desired.
Appears only if a job is currently active.
Create Job ID
1. 创建工单ID
2. 作業ID作成
3. Schraubprogramm benennen
4. Crea un ID lavoro
5. Créer un identifiant de travail
6. Crear numero de trabajo
Create Job ID allows the user to create a
1-to-8 character alphanumeric Job ID for a
particular job.
Import Job IDs
1. 导入作业I D
2. 作 業 I D インポート
3. Schraubprogramm laden
4. Importare ID lavoro
5. Importer le travail ID
6. Importar numero de trabajo
Import Job IDs allows the user to load
one or more Job IDs from a PC via
Bluetooth connection or USB cable.
Export Jobs
1. 导出工作
2. 作業データー出力
3. Aufträge Exportieren
4. Esportare I Processi
5. Exporter des tâches
6. Exportar trabajos
Export Jobs allows the user to select a
Job ID, generate a file containing records
for that Job ID, and export the file via USB
cable to a PC.
ICON MEANING DESCRIPTION
. JOBS

8
Create Profile
1. 创建配置文件
2. プロファイル作 成
3. Profil erstellen
4. Crea un profilo
5. Créer un profil
6. Crear perfil
Create Profile allows the user to create
and save a new Profile to the tool including
the Profile ID, Profile Type and the desired
tool parameters.
Import Profile
1. 导入配置 文件
2. プロファイルインポート
3. Profil laden
4. Importare profilo
5. Importer un profil
6. Importar perfil
Import Profile allows the user to load one
or more Profiles from a PC via USB cable.
Delete Jobs
1. 删 除工作
2. 作業データー削除
3. Aufträge Löschen
4. Eliminare I Processi
5. Supprimer des tâches
6. Borrar trabajos
Delete Jobs allows the user to delete a
job, or all jobs, from the tool. The data
records will no longer be accessible to
the user and Job IDs will be deleted from
all Job ID lists.
Select Profile
1. 选择配置文件
2. プロファイル選 択
3. Profil auswählen
4. Selezionare profilo
5. Choisissez un profil
6. Seleccionar un perfil
Select Profile allows the user to choose
from a list of re-usable, named bolting
templates which define a set of operating
parameters for the tool.
Profiles
1. 简述
2. プロファイル
3. Profile
4. Profili
5. Profils
6. Perfiles
Profiles opens the Profiles sub-menu,
allowing the user to select, create, import
and delete profiles.
ICON MEANING DESCRIPTION
(CONT’D.)

LITHIUM SERIES® II ELECTRIC TORQUE TOOL ICON REFERENCE GUIDE 9
Delete Profile
1. 删除简述
2. プロファイル削 除
3. Profil Löschen
4. Cancello Profilo
5. Supprimer le profil
6. Borrar perfil
Delete Profile allows the user to delete
profiles from the list of existing profiles.
ICON MEANING DESCRIPTION
(CONT’D.)

10
Units
1. 单位
2. 単位
3. Einheiten
4. Unità
5. Unités
6. Unidades
Units allows the user to set the tool to
display torque in foot-pounds (ft-lbs),
Newton-meters (N-m), kilogram force
meters (kgf-m) or as a percentage of the
maximum rated torque of the tool (%).
Clock
1. 时钟
2. 時計
3. Uhr
4. Orologio
5. L’horloge
6. Reloj
Clock allows the user to set the tool's
internal time and date for data recording
purposes.
Bluetooth®
1. Bluetooth®
2. Bluetooth®
3. Bluetooth®
4. Bluetooth®
5. Bluetooth®
6. Bluetooth®
Bluetooth allows the user to set the
tool to either Bluetooth Low Energy or
Bluetooth Classic mode to pair with a
nearby Bluetooth-enabled device.
Torque Limits
1. 扭矩限制
2. トルク制 限
3. Drehmomentgrenzen
4. Limiti di coppia
5. Limites de couple
6. Límites de torque
Torque Limits allows the user to limit the
available torque to a particular range
Angle Limits
1. 角度限制
2. 角度制限
3. Winkelgrenzen
4. Limiti di angolo
5. Limites d’angle
6. Límites de ángulo
Angle Limits allows the user to
restrict the tool to turning within a
particular range.
. SETTINGS
ICON MEANING DESCRIPTION

LITHIUM SERIES® II ELECTRIC TORQUE TOOL ICON REFERENCE GUIDE 11
Angle Delay
1. 角度延迟
2. 動作切替時間
3. Winkelverzögerung
4. Ritardo dell’angolo
5. Retard d’angle
6. Retraso de ángulo
Angle Delay inserts a time delay between
subsequent torque, angle, and release
operations that occur within the same
trigger pull.
Beeper
1. 蜂鸣器
2. ビープ音
3. Signalton
4. Cicalino
5. Bip
6. Localizador
Beeper option allows users to turn the
tool's beeper on or off.
Invert Screen
1. 反转屏幕
2. 画面反転
3. Bildschirm drehen
4. Inverti schermo
5. Inverser l’écran
6. Pantalla invertida
Invert Screen allows users to invert the
LCD screen (turn it upside down) for
calibration applications and to return the
screen to normal orientation.
Icons
1. 图标
2. アイコン
3. Symbole
4. Icone
5. Icônes
6. Icono
Icons allows the user to turn the menu
icons on or off.
Auto Shutdown
1. 自动关机
2. 自動 シャット ダ ウン
3. Automatische Abschaltung
4. Spegnimento Automatico
5. Arrêt automatique
6. Apagado automático
Auto Shutdown allows users to turn
the auto-off feature on or off. The tool
is automatically set to turn off after 5
minutes of inactivity.
ICON MEANING DESCRIPTION
(CONT’D.)

12
Button Delay
1. 按钮延迟
2. ボタン遅延
3. Tastenverzögerung
4. Pulsante Delay
5. Bouton Délai
6. Retraso del botón
Button Delay allows the user to adjust
the delay between button press and tool
response from 50 to 250 msec (default=75
msec). This will also control the speed of
scrolling through menus when a button is
held down.
Work Light
1. 工作灯
2. 照明
3. Arbeitslicht
4. Luce di lavoro
5. Lampe de travail
6. Luz de trabajo
App Mode
1. 应用程式模式
2. アプリモード
3. App Modus / Anwendungsmodus
4. Modalità app
5. Mode d'application
6. Modo de aplicación
Work Light allows the user to turn the
worklight feature on or off.
App Mode allows the tool to be synced
with HYTORC bolting software via
Bluetooth.
ICON MEANING DESCRIPTION
(CONT’D.)

LITHIUM SERIES® II ELECTRIC TORQUE TOOL ICON REFERENCE GUIDE 13
Access Level
1. 访问级别
2. アクセスレベル
3. Zugangsebene
4. Livello di Accesso
5. Niveau d'accès
6. Nivel de acceso
The tool can be set to operate at any of
five Access Levels:
L1 – Jobs User
L2 – Flex User
L3 – Full User
L4 – Admin
L5 - Service (HYTORC personnel only)
L2 Flex Setup
1. L2自定义功能用户设置
2. L2フレックス設 定
3. L2 Flex Aufbau
4. Configurazione L2 Flex
5. Configuration L2 Flex
6. Ajuste de L2 Flex
The L2 Flex Setup option allows an
Admin to choose a specific subset of
menu options to be made available at the
Flex User level (L2).
Shortcut Setup
1. 快捷方式设置
2. ショートカット設定
3. Verknüpfungsaufbau
4. Menu Scelta Rapida
5. Raccourci
6. Ajuste de atajo
Shortcut Setup allows an Admin user to
select frequently used menu options to
appear on the Shortcut Menu in place of
the Main Menu.
Tool Info
1. 工具信息
2. ツール情報
3. Werkzeuginformationen
4. Informazioni sugli strumenti
5. Informations sur l’outil
6. Información de la herramienta
Tool Info provides the user with useful
information including the tool’s model
and serial number, firmware version, last
calibration date and cycle count.
User ID
1. 用户身份
2. ユーザー I D
3. Benutzer ID
4. ID utente
5. Identifiant d’utilisateur
6. Numero de usuario
User ID allows the user to enter their
unique personal identifier into the tool.
ICON MEANING DESCRIPTION
. ADMIN

14
Change Password
1. 更改密码
2. パスワード変 更
3. Passwort ändern
4. Cambia password
5. Changer le mot de passe
6. Cambio de contraseña
The Change Password option allows an
Admin user to change the password for
their level and for each lower access level.
ICON MEANING DESCRIPTION
(CONT’D.)

LITHIUM SERIES® II ELECTRIC TORQUE TOOL ICON REFERENCE GUIDE 15
L1 Jobs User
1. L1工单用户
2. L1作 業 ユーザー
3. L1 Bediener
4. Utente lavori L1
5. L1 Jobs User
6. L1 Usuario de trabajos
Jobs User (L1) is the lowest access level.
It provides access to the fewest features;
primarily those that allow the user to
perform bolting and data collection with
preset jobs.
L2 Flex User
1. L2 Flex用户
2. L2フレックスユーザー
3. L2 Flex Benutzer
4. L2 Flex User
5. Utilisateur L2 Flex
6. L2 Usuario Flex
Flex User (L2) level provides, by default,
access to the same menu options as L1.
An Admin user (L4) can make additional
options available using the Flex User
Setup feature in the Admin menu.
L3 Full User
1. L3完整用户
2. L3フルユーザー
3. L3 Haupt Benutzer
4. L3 Utente completo
5. L3 utilisateur complet
6. L3 Usuario principal
Full User (L3) level provides access to
all menu system options except for the
Service menu and Admin menu options
reserved for an administrator.
L4 Admin
1. L4管理员
2. L4管理者
3. L4 Administrator
4. Amministratore L4
5. L4 Administrateur
6. L4 Administrativo
Admin (L4) level provides access to
all menu system options except for the
Service menu.
L5 Service
1. L5服务
2. L5サービス
3. L5 Service
4. Servizio L5
5. Service L5
6. L5 Servicio
Service (L5) level provides access to all
of the tool’s functionality. It is reserved for
HYTORC service personnel.
ICON MEANING DESCRIPTION
. ACCESS LEVELS
