Hytronik HMW28/PRO Quick guide

HMW28/PRO-20230220-A0
Wire Preparation
Pluggable screw terminal. It is recommended to make
connections to the terminal before fitting to the sensor.
3. Functions
It is easy to forget to switch off the light, in office, corridor, even at home. And in many other cases,
people do not want to have a sensor to switch on the light automatically, for example, when people
just quickly pass-by, there is no need to have the light on. The solution is to apply this “absence
detector”: motion sensor is employed, but only activated on the manual press of the push-switch,
the light keeps being ON in the presence, and switches off in the long absence.
Note: end-user can choose either function 3.3 or function 3.4 for application.
Default function is manual override.
Semi-auto Mode (Absence Detection)3.4
Manual Override
With the help of push-switch, this sensor can be over-ridden by the end-user to manually switch
on/off the light, which makes the product more user-friendly and offers more options to fit some
extra-ordinary demands:
3.3
* Short Push (<1s): on/off function;
On →Off: the light turns off immediately and cannot be triggered ON by motion until the expiration
of pre-set hold-time. After this period, the sensor goes back to normal sensor mode.
Off →On: the light turns on and goes to sensor mode, no matter if ambient Lux level exceeds the
daylight threshold or not.
Note: if end-user do not want this manual override function, just leave the “push” terminal
unconnected to any wire.
zero-cross point
Alternating current
Zero-cross Relay Operation
Designed in the software, sensor
switches on/off the load right at the
zero-cross point, to ensure that the
in-rush current is minimised, enabling
the maximum lifetime of the relay.
3.5
0.75 - 2.5mm
8mm
(min 6mm, max 11mm)
1. Technical Specifications
Installation and Instruction Manual
HMW28/PRO
FLUSH MOUNT PRESENCE MOTION SENSOR
On/off relay control
2. Installation
On/off Control3.1
This sensor is a motion switch, which turns on the light upon detection of motion or breathing,
and turns off after a pre-selected hold-time when there is no movement or breathing. A daylight
sensor is also built in to prevent the light from switching on when there is sufficient natural light.
Note:
1. We recommend the mounting distance between sensor to sensor should be more than 2m to
prevent sensors from false-triggering.
2. The face-to-face installation between sensors and sensors or other radio sources is not
recommended, or false trigger issue will potentially behave.Make sure the installed environment is
free of any obvious vibration, strong air blows, curtain swing, water flow in pipe ……The
recommended mounting distance between sensor to sensor is >3m to prevent sensors from
false-triggering and furtherly adjust per actual environment.
Lux Off Function3.2
The built-in photodiode will also automatically turn off the light when the ambient natural light
exceeds the programmed lux level for more than 5min, regardless of whether motion is detected
or not.
Stand-by power
Resistive 800W
220~240VAC 50/60Hz
Mains voltage
Load ratings:
<0.3W
800VA
Capacitive
20s
Presence Motion detection
Sensor principle
Warming-up
Operation temperature Ta: -20°C ~ +50°C
IP20
IP rating
360°
Detection angle
Detection range (Max.)* Installation Height : 3m
Detection Range (Ø) :10m
10% / 50% / 75% / 100% Sensitivity
Mechanical Structure & Dimensions
4
5
2
3
1
Ø66~68mm
6
1. Ceiling (drill hole φ66~68mm)
2. Carefully prise off the cable clamps.
3. Make connections to the pluggable
terminal blocks.
4. Insert plug connectors and secure using
the provided cable clamps, then clip
terminal covers to the base.
5. Clip fascia to body.
6. Bend back springs and insert into ceiling.
Ø 78
HMW28/PRO
N
L
Description of the Button Functions (remote control HRC-12)5.
Ambient daylight threshold [ button ]
7
RESET [ button ]
Press button , all settings go back to default values as below:
2
2
Auto Mode [ button ]
3
Semi-auto Mode [ button ]
4
4
Permanent ON/OFF [ ]
Press button , to select permanent ON or permanent OFF mode.
* Press button / to to quit this mode.
The mode will change to AUTO Mode after power failure.
button
1
1
2 3
Hold time [ zone ]
8
Detection range: 100%; Hold-time: 5min; Lux disabled
Detection range [ zone ]
5
Daylight threshold [ zone ]
6

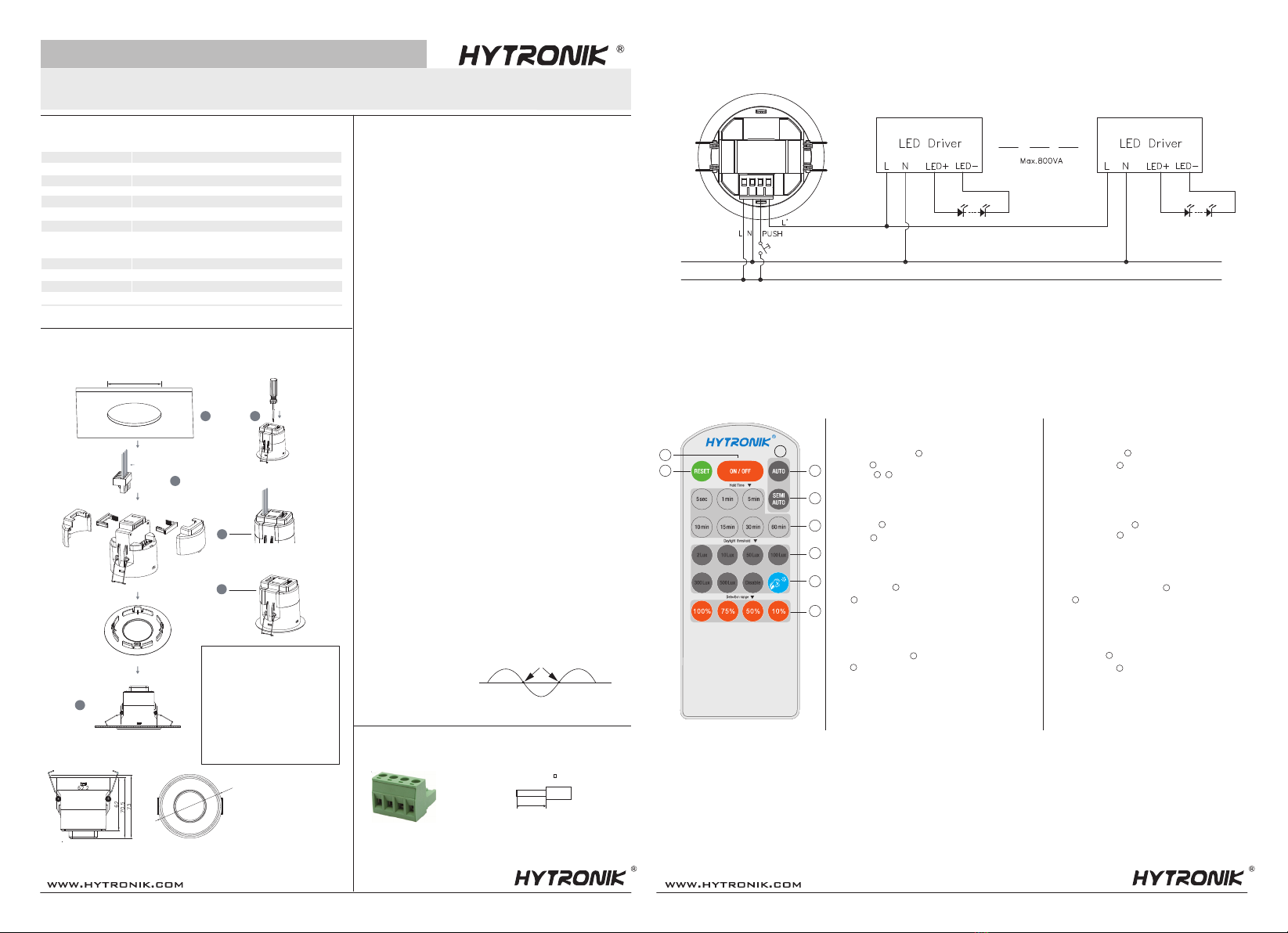

4. Wiring Diagram
6
8
2
4
1
3
7
5
HRC-12
Press button, the sensor starts to function and all settings remain the
same as the latest status before the light is switched on/off.
3
Press button, to enter semi-auto mode. The fixture is manually on
by push-switch and automatically off in this mode.
5
Press buttons in zone to set detection range at 100% / 75% /
50% / 10%.
6
Press buttons in zone to set daylight sensor at 2Lux/ 10Lux /
50Lux / 100Lux / 300Lux / 500Lux / Disable.
Press button, the surrounding lux level is sampled and set as the
new daylight threshold.
7
Press buttons in zone to set the hold-time at 5sec / 1min / 5min /
10min / 15min / 30min / 60min.
* Press button 30min / 60min, hold time is actually 25min.
8
HMW28/PRO-20230220-A0

6. Detection Pattern & Optional Accessories
7. Additional Information / Documents
1. Regarding precautions for PIR sensor installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->Microwave Sensors - Precautions for Product Installation and Operation
2. Regarding Hytronik standard guarantee policy, please refer to www.hytronik.com/download ->knowledge ->Hytronik Standard Guarantee Policy
Optional Accessory --- Ceiling/Surface Mount Box: HA03
75
Ø 94
Big silicon water-proof gasket dimension(size:mm)
4.2
48.2
61.8
15.2
Small silicon water-proof gasket dimension(size:mm)
Ø 76.5
Ø 62
1.5
4
Big and small silicon gasket used to make IP54 degree protection when HMW28/PRO device mounted into HA03 housing for ceiling mount
Optional Accessory --- HA08
*Note: Optional Accessory HA03 & HA08 can not be uesd together.
HMW28/PRO-20230220-A0
When it’s in breathing & true presence detection mode and in sitting situation, facing to sensor directly will have a better detection range than 90 degrees side facing to sensor.
insensitive sensitive
Single person continuous walking
Max: 5m
Max: 3m
Breathing detection
Max: 3m
Max: 5m
62.2
62
90.5
93
4.2
48.2
61.8
