Hyundai HYMT5200 User manual

1

2
CONTENTS
PAGE NO.S
1
SAFETY
3 - 8
2
PART LOCATIONS
9
3
ASSEMBLY
10 - 21
4
STARTING PROCEDURE
22 - 23
5
STOPPING PROCEDURE
23
6
USING THE MACHINE
24 - 29
7
MAINTENANCE
30 - 35
8
STORAGE
36
9
SPECIFICATION
23 - 28
10
TROUBLE SHOOTING
37
11
DECLARATION OF CONFORMITY
38
12
RECYCLING AND PRODUCT DISPOSAL
39
13
CONTACT DETAILS
40
14
WARRANTY
40
15
MANUAL UPDATES
40
INDEX

3
1.1 General Safety Notes.
1.2 The operator of the machine is responsible for, and has a duty of care in making sure
that the machine is operated safely and in accordance with the instructions in this user
manual. Keep the manual safe and pass it on if the machine is loaned or soldto another
user.
1.3 Please note the following safety points.
1.4 The machine should never be left it in a condition which would allow an untrained or
unauthorised person/s to operate this machine.
1.5 All due care and diligence should be taken by the operator for the safety of and with
regard to those around whilst using the machine.

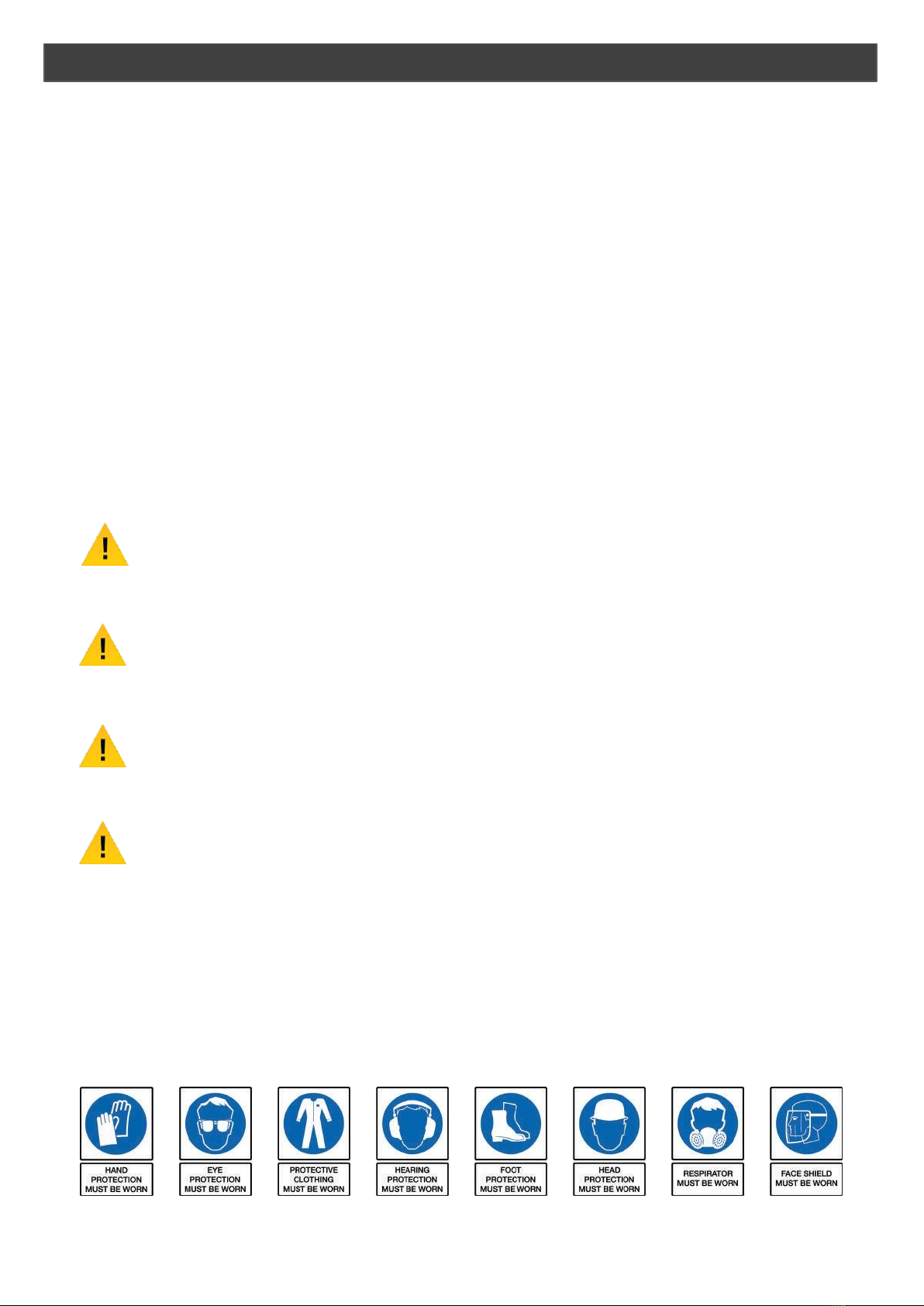

1.6 Some or all of the following - warning signs, symbols and/or PPE pictograms may ap-
pear throughout this manual. YouMUST adhere to their warnings. Failure to doso
may result in personal injury to yourself or those around you.
DANGER
Indicates a hazard, which, if not avoided, could result in serious injury or death.
WARNING
Indicates a hazard, which, if not avoided, could result in serious injury.
CAUTION
Indicates a hazard which, if not avoided, might result in minor or moderate injury.
NOTE
Indicates a situation that could easily result in equipment damage.
READ and keep the manual safe and pass it on if the machine is loaned or sold to another user.
You MUST fully understand all instructions to ensure you use and operate the machine safely.
Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or
repairing the machine.
1. SAFETY

4

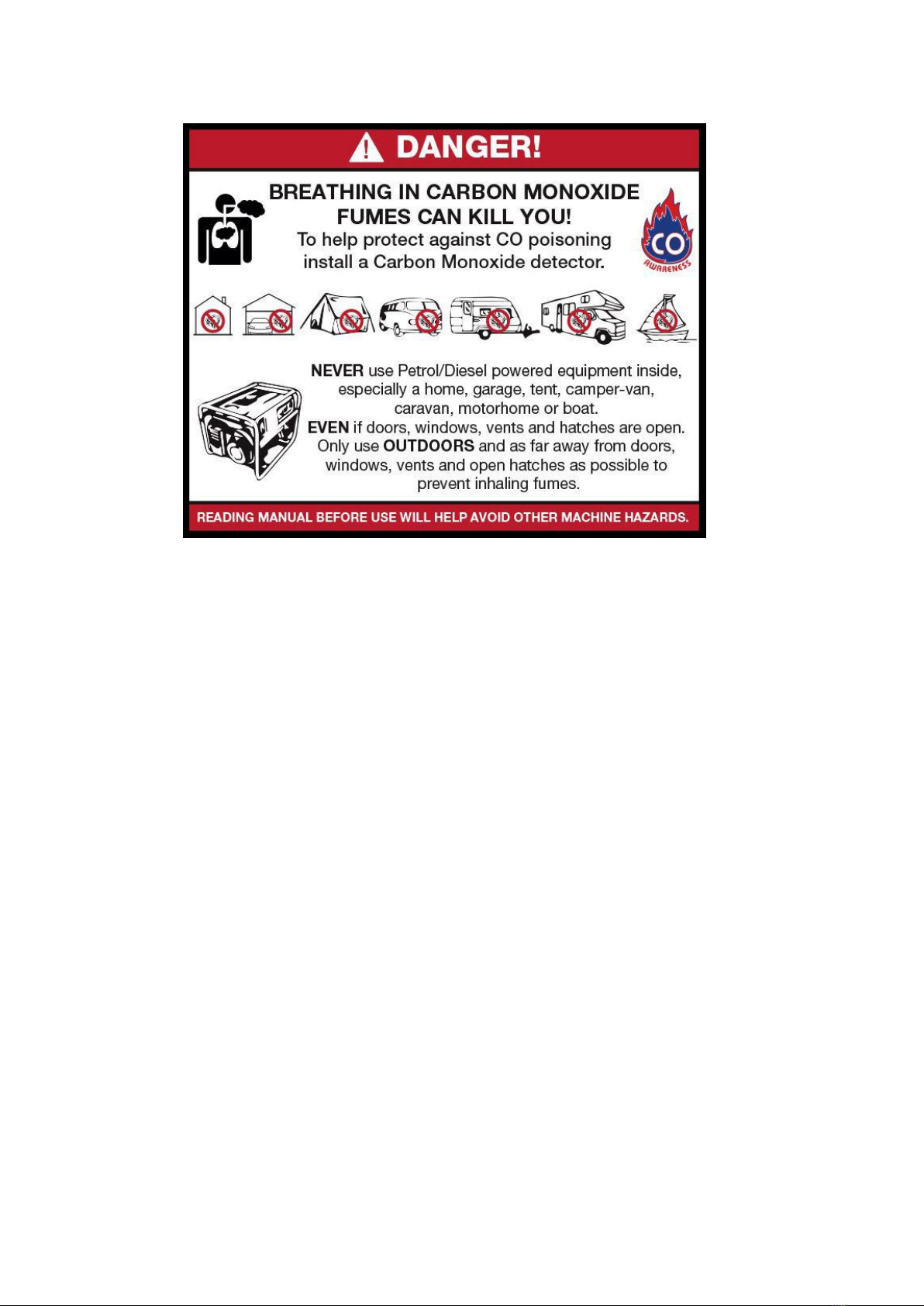

1.10 Carbon Monoxide (where applicable).
1.11 Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause
death as well as serious long term health problems such as brain damage.
1.12 The symptoms of carbon monoxide poisoning can include but are not limited to the
following;
Headaches, dizziness, nausea, breathlessness, collapsing or loss of consciousness.
1.13 Carbon monoxide poisoning symptoms are similar to flue, food poisoning, viral
infections and simply tiredness. It is quite common for people to mistake this very
dangerous poisoning for something else.
1.14 To avoid carbon monoxide poisoning DO NOT use Petrol/Diesel powered equipment
inside any of the following; Home, garage, tent, camper van, mobile home, caravan
or boat. This is not exhaustive and if you are in any doubt contact your dealer.
1.15 If you think you have or someone around you has been affected by carbon monoxide
poisoning;
1.16 Get them fresh air immediately, by leaving the affected area or by opening doors and
windows. If safe and practical to do so make sure that the machine is turned off.
DO NOT enter a room you suspect of having carbon monoxide present –instead call
the emergency services.
1.17 Contact a Doctor immediately or go to Hospital –let them know that you suspect
carbon monoxide poisoning.
1.18 DO NOT use in an enclosed area or moving vehicle.

5
1.20 General Fuel Safety (where applicable).
CAUTION
ALL FUELS ARE FLAMABLE
1.21 Fire Hazard –keep fuel away from all sources of ignition for example heaters.
Lamps, sparks from grinding or welding.
1.22 DO NOT carry out hot work on tanks that have contained fuel.
1.23 ALWAYS keep the work area tidy.
1.24 ALWAYS clean up spills promptly using absorbent granules and a lidded bin.
1.25 ALWAYS dispose of waste fuels correctly.
1.30 Fueling/De-fueling (where applicable).
CAUTION
ALL FUELS ARE FLAMABLE
1.31 ALWAYS fuel and defuel in a well ventilated area outside of buildings.
1.32 ALWAYS wear correct, suitable and fit for purpose Personal Protective Equipment
(PPE), suggested items are but not limited to safety gloves, overalls.
1.33 When fueling/de-fueling ALWAYS avoid inhaling fumes.
1.34 When de-fueling ALWAYS use a proper fuel retriever.
1.35 ALWAYS carry fuel in the correct and clearly marked container.
1.40 Electrical Safety (where applicable).
1.41 Electricity can kill –NEVER work on LIVE/ENERGISED equipment.
1.42 Prior to carrying out any maintenance work you MUST identify electrical isolation
methods and isolate all electrical supplies.
1.43 Prior to use and with all electrical supplies isolated, you MUST check all electrical
cables, plugs and connectors for the following;
1.44 Are intact and have no signs of damage, to include but not limited to bare wires,
chaffing, cuts and loose wiring.
1.45 If there are any signs of damage, the damaged item MUST be taken out of service
until the damage has been repaired by an electrically competent person.

6
1.46 All trailing cables should be routed so as not to cause any kind of trip hazard.
1.47 NEVER work on or near electricity with wet hands, wet clothing and wet gloves.
1.50 Batteries (where present).
1.51 Batteries present a risk if they become damaged by the possible leaking of
electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care
should be taken when working on or near them. NOTE the electrolyte may be in
a liquid or gel form.
1.52 Should you come in to contact with electrolyte you should;
1.53 Remove all clothing contaminated with electrolyte. If you cannot remove then
saturate them in water.
1.54 Get medical assistance as soon as possible. You must advise the medical staff of
the type of acid.
1.55 Lead/acid battery = dilute sulphuric acid.
1.56 Nickel/cadmium = potassium hydroxide alkali electrolyte.
1.57 Use fresh running water to wash off excess electrolyte, continue this until medical
assistance arrives. Make sure that you do not was the electrolyte to another part of
your body or face.
1.58 If electrolyte comes in to contact with Eyes the electrolyte needs to be immediately
washed away with large amounts of water. Make sure that you do not wash the
electrolyte to another part of your face or body.
1.59 Gasses from charging batteries are highly flammable and great care should be taken
to charge in well ventilated areas.
1.59.1 There is an explosion risk if the battery terminals are short circuited, when
connecting/disconnecting ALWAYS exercise great care so that the terminals or
battery leads are NOT allowed to touch and cause a spark. ALWAYS use suitable
insulated tools.
1.60 Vibrations (where applicable).
1.61 Prolonged use of hand held (operated) machines will cause the user to feel the
effects of/from vibrations. These vibrations can lead to white finger (Raynaud’s
phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the
hand to feel and regulate temperature, causing numbness and heat sensations and
may cause never damage and circulatory tissue death.
1.62 Not all factors that lead to white finger disease are known, but cold weather, smoking
and other diseases that affect blood vessels and blood circulation as well as large
and long-lasting impact of shocks are considered factors in the formation of white
finger. Note the following to reduce the risk of white finger and carpal tunnel
syndrome;
1.63 Wear gloves and keep your hands warm.
1.64 Take regular breaks.
1.65 All of the above precautions may help reduce the risk of white finger disease but not
rule out the carpal tunnel syndrome. Long-term and regular users are therefore

7
recommended to observe the condition of your hands and fingers. Seek medical
attention immediately if any of the above symptoms should occur.
1.70 Noise (where applicable).
1.71 The operating noise of the machine can damage your hearing. Wear hearing
protection such as earplugs or ear defenders to protect your hearing. Long-term
and regular users are advised to have hearing checked regularly. Be especially
vigilant and cautious when hearing ear protection because your ability to hear alarm
warnings will be reduced.
1.72 Noise emissions for this equipment is unavoidable. Carry out noisy work at approved
times and for certain periods. Limit the working time to a minimum. For your personal
protection and protection of people working nearby it is also advisable for them to
wear hearing protection.
1.73 See Certificate of Conformity section for Outdoor Noise declaration of
conformity.
1.80 General Machine Safety.
1.81 Read the owner’s manual carefully to understand how to operate this machine
properly.
1.82 You should NEVER use the machine when;
1.83 Wearing loose clothing, barefoot or sandals.
1.84 Under the influence of drink or drugs or as a result of having taken medication for
cold or flu, or any other times when a possibility exists that your judgement might be
impaired or that you might not be able to operate the machine properly and in a safe
manner.
1.85 Suffering from exhaustion or lack of sleep.
1.86 When the ground is slippery or when other conditions exist which might make it not
possible to maintain a steady posture.
1.87 At night, at times of heavy fog, or at any other times when your field of vision might
be limited and it would be difficult to gain a clear view of the area.
1.88 During rain storms, lighting storms, at times of strong or gale force winds, or at
any other times when the weather conditions might make it unsafe to use this
product.
1.89 NEVER run the engine indoors. The exhaust gasses contain harmful carbon
monoxide.
1.90 When using this machine for the first time and before actual work, you MUST learn
how to handle the machine from an experienced or skilled person.
1.91 Limit the amount of time using the machine continuously to somewhere around 10
minutes per session and take 10 to 20 minutes of rest between sessions. Also try to
keep the total amount of work in a single day limited to 2 hours or less.
MACHINE SPECIFIC SAFETY

8
1.92 NEVER allow children or anyone unable to fully understand the directions given in
this manual to operate this product.
1.93 Make sure you keep this manual handy so you may refer to it whenever questions
arise and ensure you pass this manual on if the machine is loaned or sold.
1.94 Correct Personal Protective Equipment (PPE) MUST be worn at all times when
operating or repairing this machine. This should include but is not limited to;

9
1
3 Tooth Brush Cutter Blade
8
Grass Trimmer Line
2
Face Mask
9
Tool Kit
3
Full Harness
10
Grass Trimmer Attachment
4
2 Stroke Mixing Bottle
11
Chainsaw Attachment
5
Ear Defenders
12
Extension Pole
6
8 Tooth Brush Cutter Blade
13
Hedge Trimmer Attachment
7
Gloves
14
Power Unit
2. PART LOCATIONS

10
CAUTION
This machine produces carbon monoxide, a poisonous & odourless gas that can
cause death or serious injury.
Always handle with extreme care in a well-ventilated area.
ALWAYS remove the spark plug HT lead cap when assembling or changing parts
on the machine.
Check that you have all of the included items before assembly.
If anything is missing or damaged please email aft[email protected]

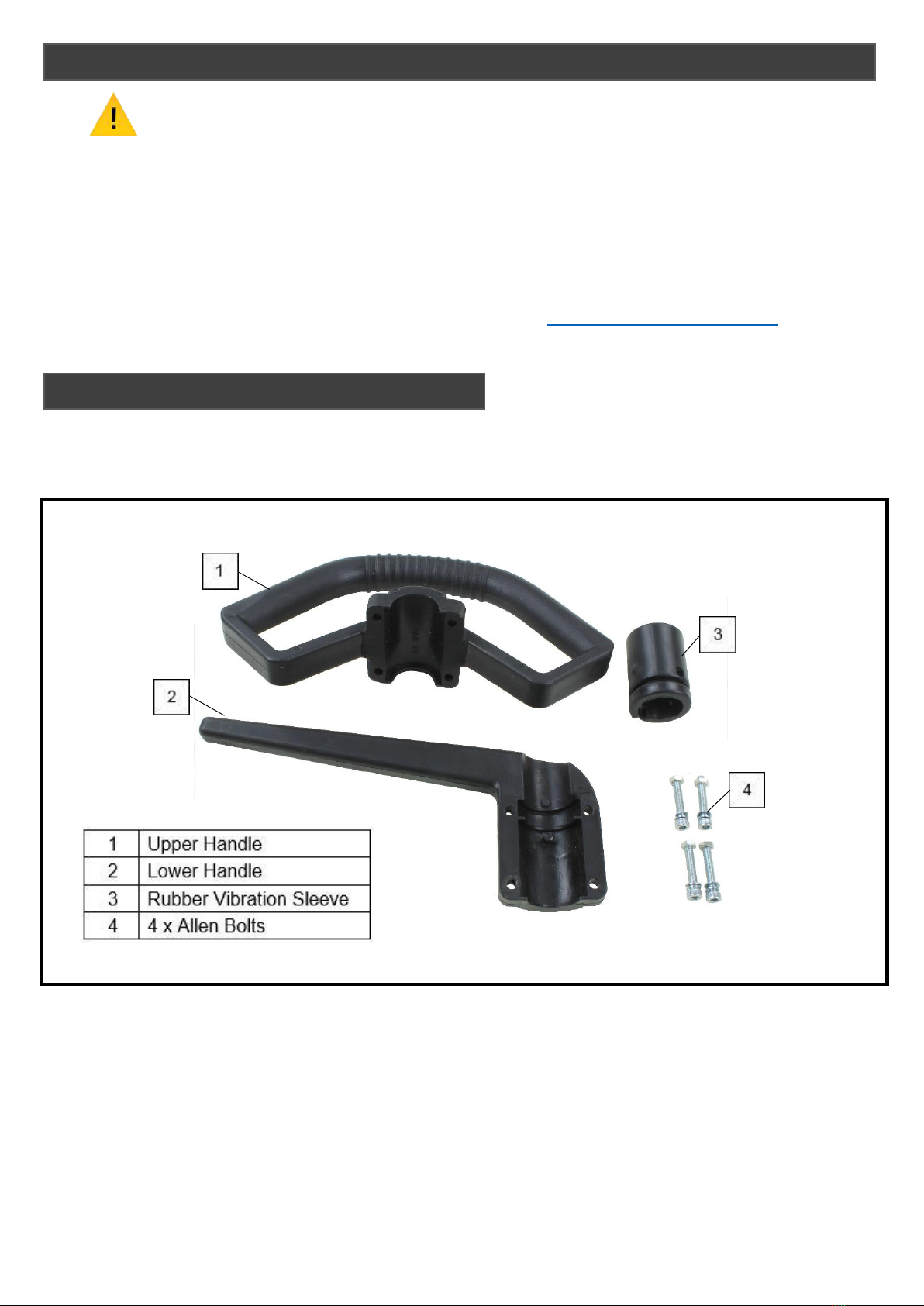

Parts Required

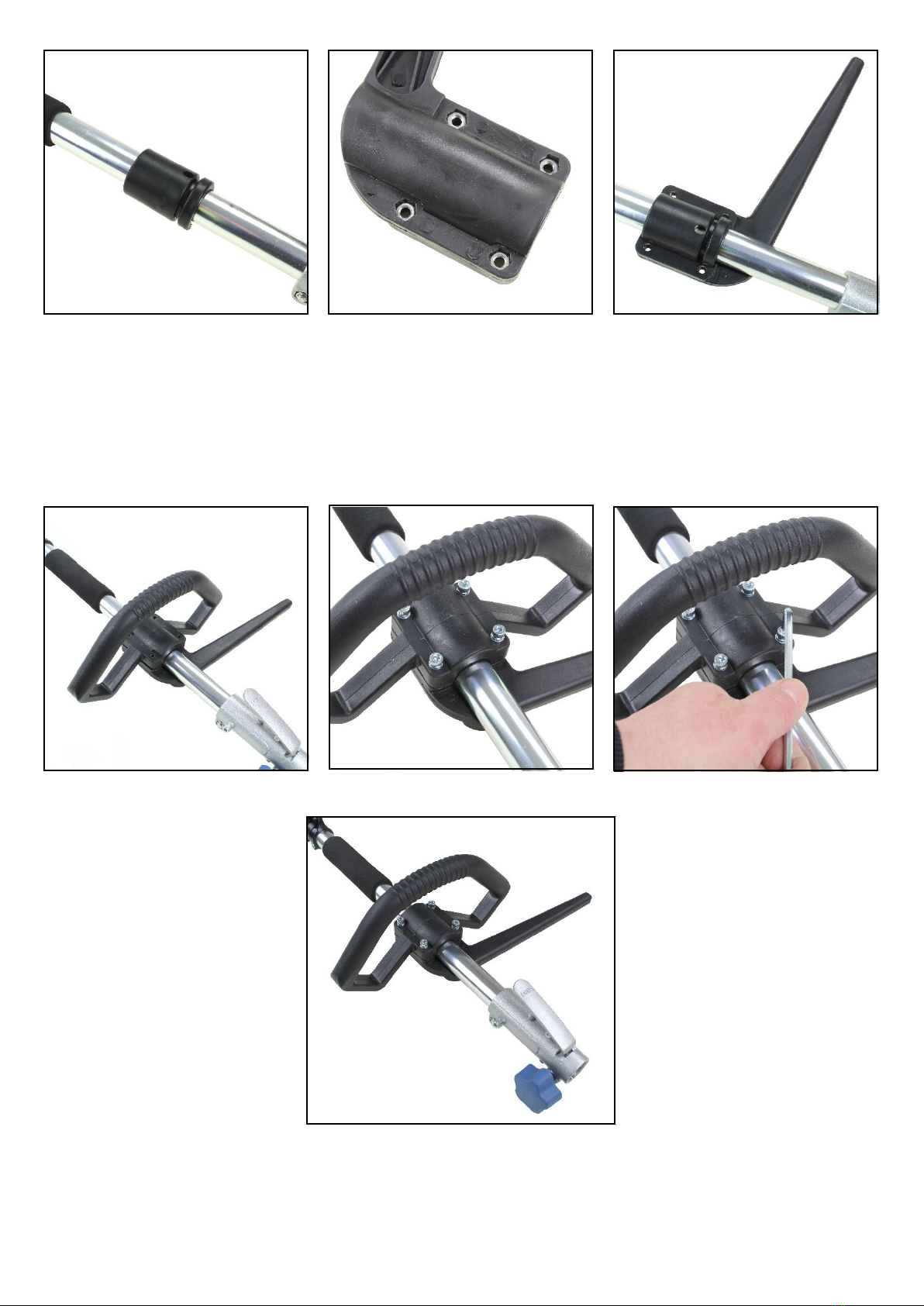

3.0 Place the main head unit on a firm and level work surface and place the rubber
sleeve on the shaft between the foam handle and the split shaft connector joint.
3.1 Insert the 4 nuts from the allen bolts into the underside of the lower handle.
3.2 Fit the lower handle to the underside of the shaft over the rubber sleeve ensuring
the tab on the lower handle lines up with the groove in the rubber sleeve.
HANDLE
3. ASSEMBLY

11
3.3 Place the upper handle on top of the lower handle ensuring the tab on the upper
handle lines up with the groove on the rubber sleeve.
3.4 Loosely insert the 4 allen bolts through the upper handle into the lower handle.
3.5 Move the handle assembly up and down the shaft until you find a comfortable working
position, then fully tighten all 4 bolts.

12
Parts Required
1
Central Nut
4
Drive Washer
2
Large Domed Washer
5
Threaded Drive Shaft
3
Small Domed Washer
GRASS TRIMMER / BRUSH CUTTER
Drive Head Assembly

13
NOTE
The threaded shaft on the trimmer/brush cutter head is a left handed thread.

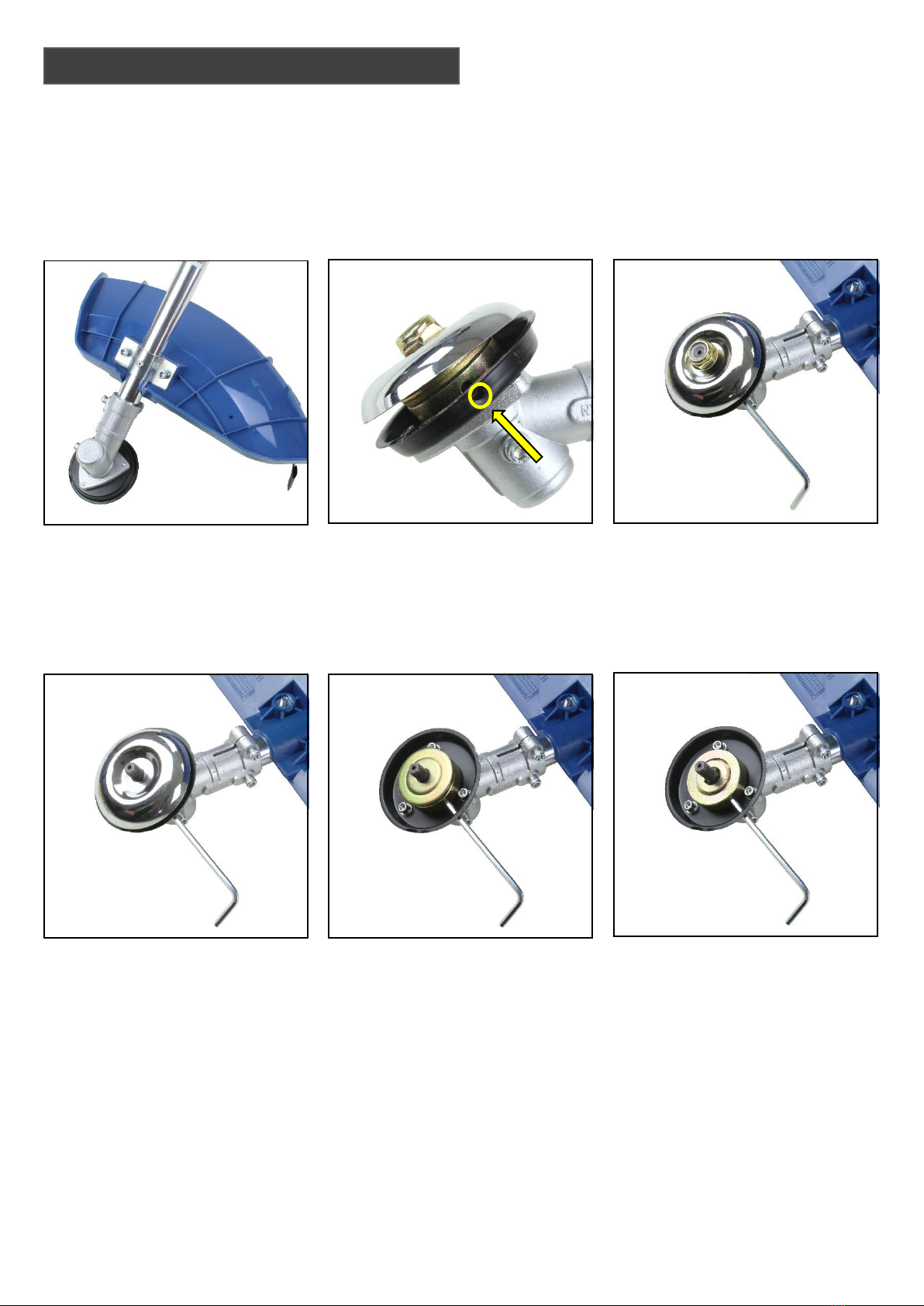

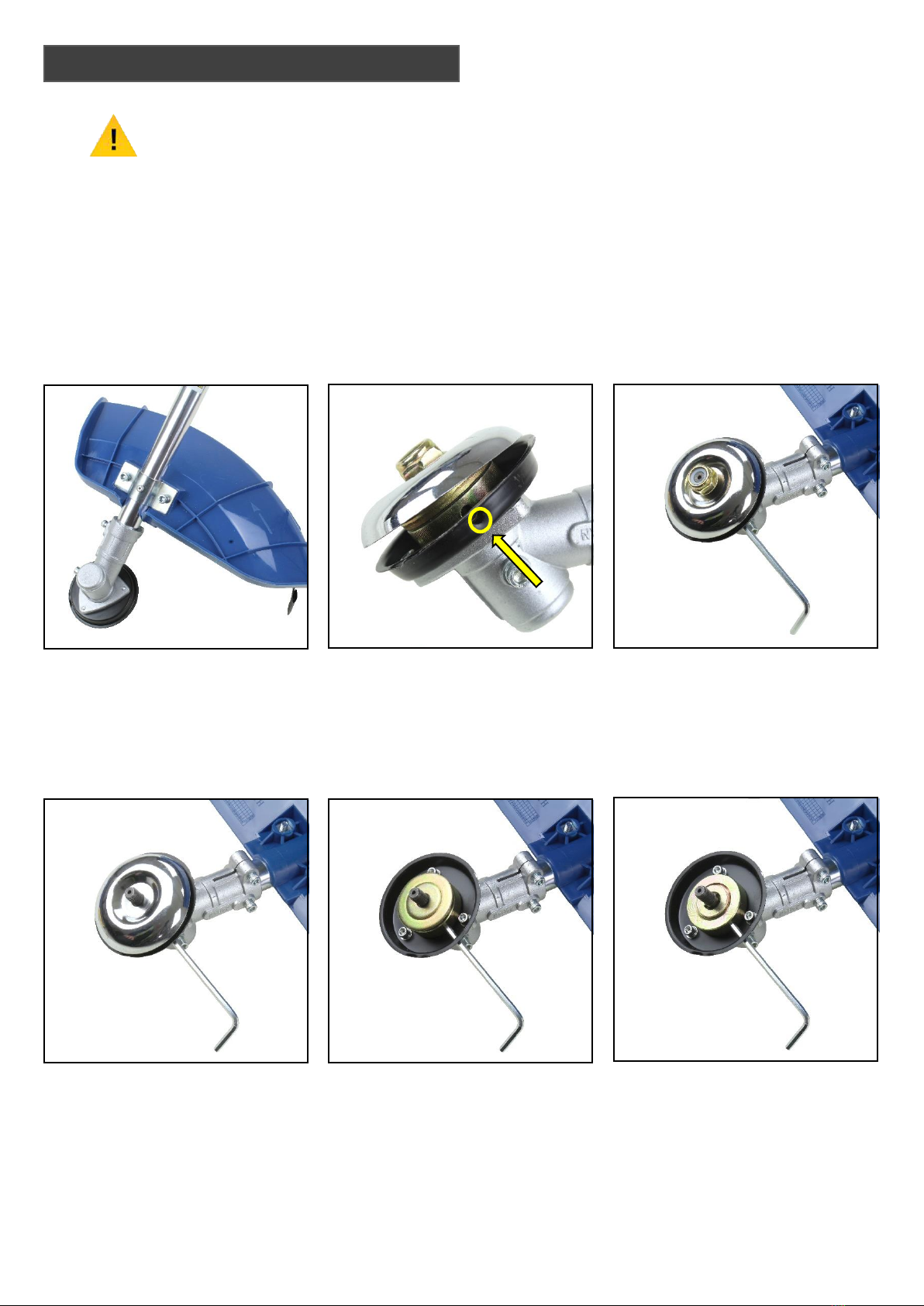

3.6 Attach the trimmer guard to the mounting point on the lower shaft using the 2 allen
screws provided.
3.7 Align the hole on the black outer collar with the hole on the main drive shaft
(highlighted) by turning the shaft until they line up.6
3.8 Insert the allen key through both holes, locking the drive shaft in place.
3.9 Undo the central nut and remove.
3.10 Remove the large domed washer (store in the tool kit bag).
3.11 Remove the small domed washer (store in the tool kit bag).
GRASS TRIMMER

14
3.12 While holding the allen key in place to lock the shaft, screw the grass trimmer head
on to the threaded shaft until tight.
Then remove the allen key.
3.13 Remove the protective cover from the trimmer guard blade.
3.14 To remove the grass trimmer head, follow the procedure in reverse.
3.15 To replace trimmer line, align the arrows on the trimmer head with the line on the
trimmer bump feed.
3.16 Insert the nylon trimmer cord straight through the trimmer head until it extends through
the opposite hole and pull through until each side has equal lengths of trimmer line.
3.17 Twist the centre knob clockwise to wind in the trimmer line to the desired length.
3.18 Ensure that the cord faces the right direction.
You must also ensure that the trimmer line is straight when feeding through the trimmer
head, otherwise it may get stuck when being pushed through.

15
3.19 Attach the trimmer guard to the mounting point on the lower shaft using the 2 allen
screws provided.
3.20 Align the hole on the black outer collar with the hole on the main drive shaft
(highlighted) by turning the shaft until they line up.6
3.21 Insert the allen key through both holes, locking the drive shaft in place.
3.22 Undo the central nut and remove.
3.23 Remove the large domed washer (store in the tool kit bag).
3.24 Remove the small domed washer (store in the tool kit bag).
3.25 Select one of the two brush cutter blades and insert over the drive washer ensuring
the locating ring on the washer sits inside the hole on the brush cutter blade.
3.26 Place the small domed washer over the threaded shaft with the small dome facing
upwards.
3.27 Place the large domed washer over the threaded shaft.
BRUSH CUTTER

16
3.28 Screw the central nut back on securely using the tool provided.
Ensure you remove the allen key.
3.29 To remove the blade, follow the same procedure in reverse.
NOTE
The hedge trimmer attachment requires no assembly.
3.30 To adjust the cutting angle, lift the lock lever with your finger and hold.
3.31 Push down on the angle adjustment lever.
3.32 This will allow you up to 180° of adjustment in the trimmer head.
Once the cutting angle has been selected, release both levers to lock in place.
HEDGE TRIMMER

17
CAUTION
Always take care when handling the chain as it will be sharp.
Wear the appropriate Personal Protective Equipment.
Parts Required
NOTE
The chain must be installed in the correct direction of travel.
This will be indicated by an arrow on the chain.
3.33 Using the spanner provided, undo the chain sprocket cover nut.
3.34 Remove the chain sprocket cover to reveal the chain sprocket.
3.35 Loop the chain around the chain bar so it sits in the groove on the chain bar.
NOTE: check the direction of chain travel.
CHAINSAW
CHAINSAW

18
3.36 Loop the rest of the chain around the chain sprocket.
Make sure the chain sits in the sprocket teeth and that the chain adjuster pin is in
line with the lower hole on the chain bar (highlighted).
3.37 Refit the chain sprocket cover.
NOTE: Only tighten finger tight until the chain has been fully adjusted.
3.38 Lift the tip of the chainsaw bar up to simulate the cutting position.
3.39 Turn the chain tension adjustment screw clockwise until the chain begins to pull tight on
the bottom of the chain bar.
3.40 To adjust to the correct chain tension, gently pull the chain away from the bottom of
the guide bar until the drive link just remains engaged in the groove of the chain bar and
you can still freely rotate the chain by hand.
3.41 Once the correct adjustment has been made, tighten the chain sprocket cover nut
securely.

19
3.42 Remove the chain oil filler cap and fill with chain oil to the max level mark on the tank.
DO NOT use any other type of oil. Chain oil has been specifically designed to work
with chainsaws.
3.43 Loosen the large hand wheel on the upper shaft.
3.44 Press down on the locking lever.
3.45 Align the locking cut out on the attachment shaft to the tab on the quick release lever.
3.46 Push the attachment into the upper shaft and release the locking lever until it clicks
in to place in the cut out on the attachment shaft.

20

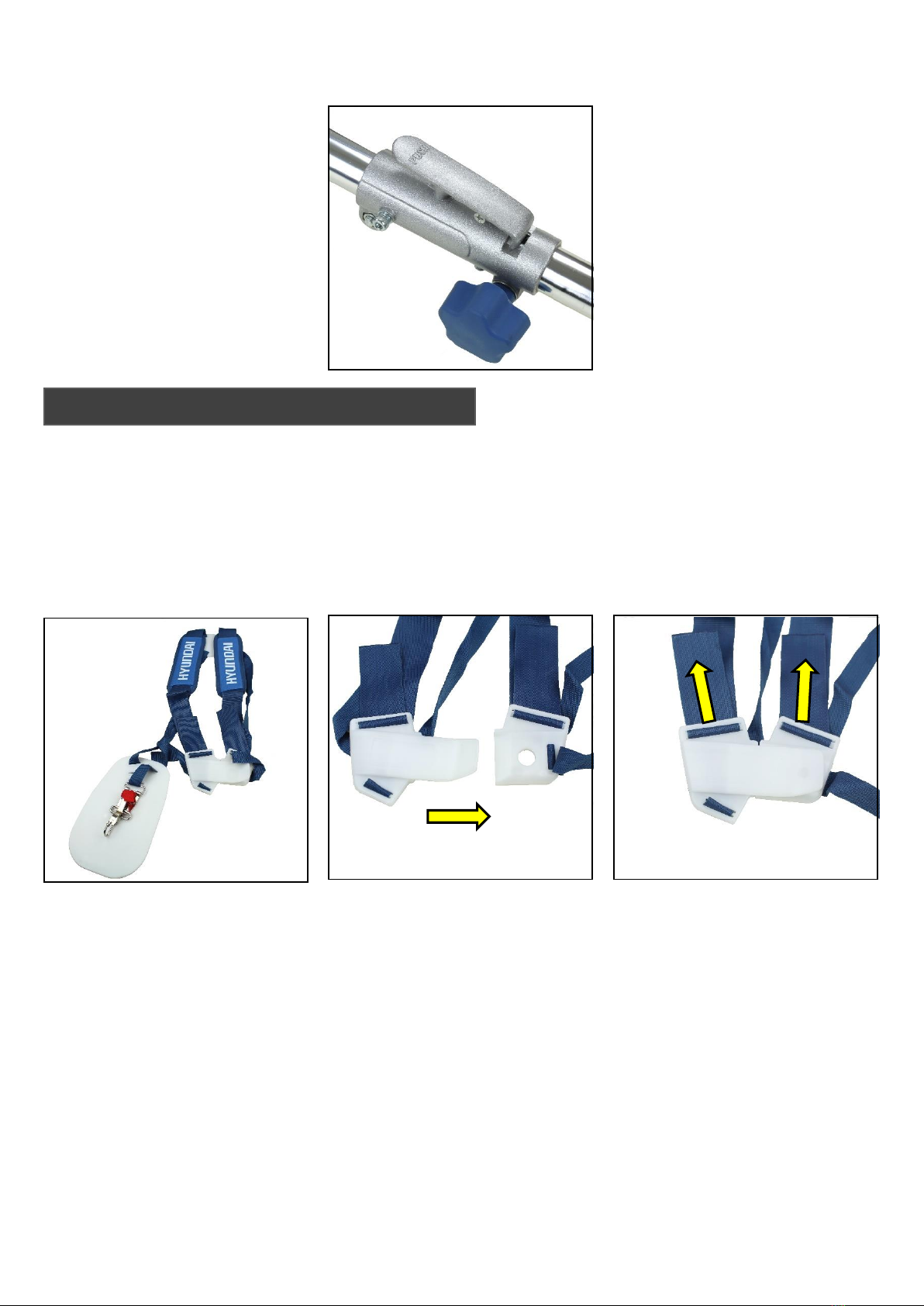

3.47 Tighten the hand wheel to lock the attachment in to place.
3.48 Place the harness over your head ensuring that the shoulder pads sit comfortably
on your shoulders.
3.49 Push the buckle together until you hear it click in to place.
3.50 The harness can be adjusted at multiple point, to adjust the harness pull on the tabs
until it fits you comfortably giving an even weight distribution.
3.51 Place the thigh protector on the right hand side of your body to provide protection
from the machine.
3.52 Clip the harness to the harness point on the main shaft.
3.53 Loosen the bolt on the harness point and move it up and down the shaft until you find a
comfortable working position, then secure tightly.
HARNESS
