1. Warnings and operation notes
Thank you for purchasing i³ Di721/Do721-series camera.
If the system needs to be modified or repaired, contact a certified i³ International
Dealer/Installer. When serviced by unauthorized technician, the system warranty
will be voided. Should you have any problems or questions regarding our products,
contact your local i³ International Dealer/Installer.
1.1 Precautions
Installation and serving should be performed only by qualified and
experienced technicians to conform to all local codes and to maintain
your warranty.
When installing your Di721/Do721 camera be sure to avoid:
• excessive heat, such as direct sunlight or heating appliances
• contaminants such as dust and smoke
• strong magnetic fields
• sources of powerful electromagnetic radiation such as radios or TV transmitters
• moisture and humidity
• areas with mechanical vibrations
• fluorescent lamps or objects that reflect light
• unstable light sources as this may cause flickering
• temperatures below 10° Celsius or 14° Fahrenheit and above 50° Celsius or
122° Fahrenheit.
Note: Do721-series models will operature in temperatures of up to -40° Celsius
(-40° Fahrenheit) as long as the initial installation had been carried out in the
temperatures of above -10° Celsius (14° Fahrenheit).
WARNING! The use of CSA certified/ UL Listed Class 2 power
adapter is required to ensure compliance.
WARNING! To reduce the risk of fire or electric shock, do not
expose the product to rain or moisture.

4
i3-TRNG-CAMS-Di721/Do721.indd Rev. 130130
1.2 Power Supply
Ensure the supplied voltage meets the power consumption requirements of this
camera before powering the camera on. Incorrect voltage may cause irreparable
damage to the video camera and will effectively void the camera warranty.
1.3 Cleaning
• For maximum optical clarity, the camera or lens must remain clean. Use a soft,
dry cloth to remove finger prints and dust from the dome cover.
• Use a blower to remove dust from the lens.
• Clean the body with a soft, dry cloth. If it is very dirty, use a cloth dampened
with a small quantity of neutral detergent, then wipe dry.
• Do not use volatile solvents such as alcohol, benzene, or thinners, as they may
damage the surface finish.
1.4 Servicing
To avoid electrical shock and to preserve the product warranty, DO NOT
disassembles the camera. Refer servicing to qualified personnel only.

5Rev. 130130i3-TRNG-CAMS-Di721/Do721.indd
2. Unpacking
Before You Begin Please read this guide carefully before you install the
dome camera. Keep this guide for future reference.
Check that the items received match those listed on the order form and packing slip.
The dome camera packing box includes, in addition to this manual:
1. Flat Head Screw (Tapping Type) x4
2. Plastic Anchor x4
3. Flat Head Screw (Machine Type 26L) x3
(Di-series only).
4. Security Tort wrench x1
5. O-rings x4 (Do-series only).
6. 2nd video monitor output cable x1
7. Rubber gasket x1 (Do-series only).
8. Guide Pattern sticker x1
9. Flush Mount template (the box lining) x1
10. Fully Assembled Camera x1
If any parts are missing or damaged, contact the dealer you purchased the camera
from.
1 2 3 4
5
Lens Direction
Note: Mounting surface material
determines screw type. Refer to manual.
GUIDE PATTERN
8
1 2 3 4 5
6
7
6
M
9

6
i3-TRNG-CAMS-Di721/Do721.indd Rev. 130130
3. Installation
The dome camera is ideal for indoor installation in commercial and residential
environment. With 3-axis mount support, it provides flexible installation on a ceiling
or wall even at an angle. The dome camera is a fully integrated enclosure with
camera and lens.
Note: The six holes on top of the Do-series models are not drilled all the way through
for moisture control and the rubber corks are replaced with metal caps with rubber
washers.
3.1 Dimensions
137mm
130mm
63mm
84mm
63mm
Figure 3.1 Camera Parts
8
a
b

7Rev. 130130i3-TRNG-CAMS-Di721/Do721.indd
Figure 3-1
1. Conduit holes used for surface run power/video connector
a. Side conduit hole (1/2”).
When using outdoors, sealant must be used to maintain the IP67 status.
b. Top conduit hole (3/4”) (can also be used for pendant mount).
When using outdoors, sealant must be used to maintain the IP67 status.
2. Bottom case
3. Camera Base
4. Dome cover
5. Focus lever
6. Zoom lever
7. Video output connector
8. 24 VAC / 12 VDC power input connector (red +, black -)
3.2 Routine Maintenance
• The dome cover is an optical part. Use a soft and dry cloth to remove any
fingerprints and dust.
• Clean the camera housing with a soft and dry cloth. For more stubborn marks,
use a cloth dampened with a small quantity of neutral detergent, then wipe dry.
3.3 Disassembling the Camera
Before you mount and adjust the camera, follow these steps to disassemble the
camera.
1. Use a Security Torq Screwdriver to remove the dome cover.
Figure 3.2 Disassembling the camera

8
i3-TRNG-CAMS-Di721/Do721.indd Rev. 130130

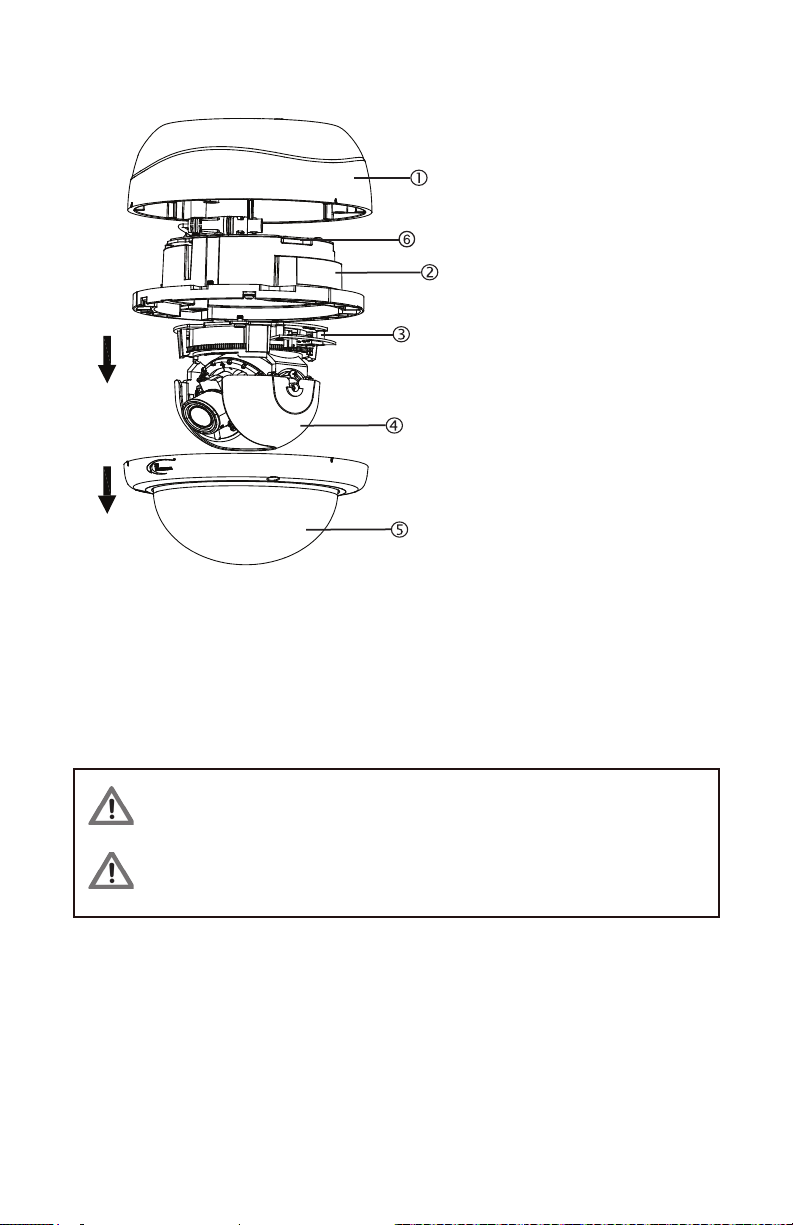

1. Bottom case
2. Camera base
3. Tilt adjustment bracket
4. Inner liner
(Not present on Di721R/
Do721R model series)
5. Dome cover
6. Anti drop hook
3.4 Connecting the wiring
Follow Figure 3.1 to connect the video output connector 7, connect the power input
connector 8 (24VAC/12VDC).
Figure 3.3 Disassembling the camera
2. Loosen the 3 screws on camera base (#2).
CAUTION! For DC power supply use, ensure electrical polarity is
correct to avoid malfunction and/or camera damage.
CAUTION! Do not use volatile solvents such as alcohol, benzene
or thinners, as they may damage the surface finish.
3.5 Mounting the Camera
The following section explains how to install either a (1) surface mount or (2) flush
mount. Select the mount appropriate to your application.

9Rev. 130130i3-TRNG-CAMS-Di721/Do721.indd
3.5.1 Surface mount
1. Attach the Guide Pattern Sticker to the wall or ceiling.
2. Drill two holes on the mounting surface and insert the plastic anchors (#1) into
the holes.
3. Do-series only: Complete drilling 2 holes on the base of the camera to match the
2 holes drilled on the mounting surface.
(Recommendation: Surface conduit should point down to create a drip-loop.)
4. Do-series only: Remove the protective film from the black rubber gasket and
adhere to the base of the outdoor model cameras.
5. Secure the bottom case to the wall or ceiling with the Flat Head Screws
(tapping type) (#2).
For your convenience, the holes on the outdoor housing are started but not
drilled all the way through for moisture control.
Note: Depending on the material of your mounting surface, you may require
different screws and anchors than those supplied.
1. Plastic Anchors
2. Flat Head Screws
(Tapping Type)
Note: outdoor
screws come with
O-rings included.
Note: The Do-series
cameras come with a
large rubber gasket to
provide the seal between
the mounting surface and
the camera base.
Figure 3.4 Camera Surface Mounting

10
i3-TRNG-CAMS-Di721/Do721.indd Rev. 130130
3.5.2 Flush mount (Indoor installations only)
1. Prepare the mounting surface.
Use the Mounting Template (#6 on unpacking list on page 5) to cut a hole into
the mounting surface.
2. Remove the bottom case of the camera. (Refer to Figure 3.2 on page 7)
3. Insert camera into the hole
4. Turn screws (1) clockwise to adjust the wing tabs. Tighten the tabs securely
against the surface.
1. Wing Tab Adjustment Screws
(2 silver screws)
2. Wing Tabs
Figure 3.5 Camera Flush Mounting

11 Rev. 130130i3-TRNG-CAMS-Di721/Do721.indd
3.5.3 Flush Mount Using Back Box
1. Prepare the mounting surface. Use the Mounting Template to cut a hole into
the mounting surface.
2. Remove the bottom case of the camera. (Refer to Figure 3.2) and attach to ¾”
NPT pipe (EMT or Rigid) ensuring the back box flushed with the T-bar tile.
3. Insert camera into the hole and attach anti drop hook cable if required. Secure
the bottom case to the wall or ceiling with the Flat Head Screws (tapping type)
(#2).
4. Remove shorter black screws, fasten camera to back box with supplied longer
screws (provided in the accessory box package),

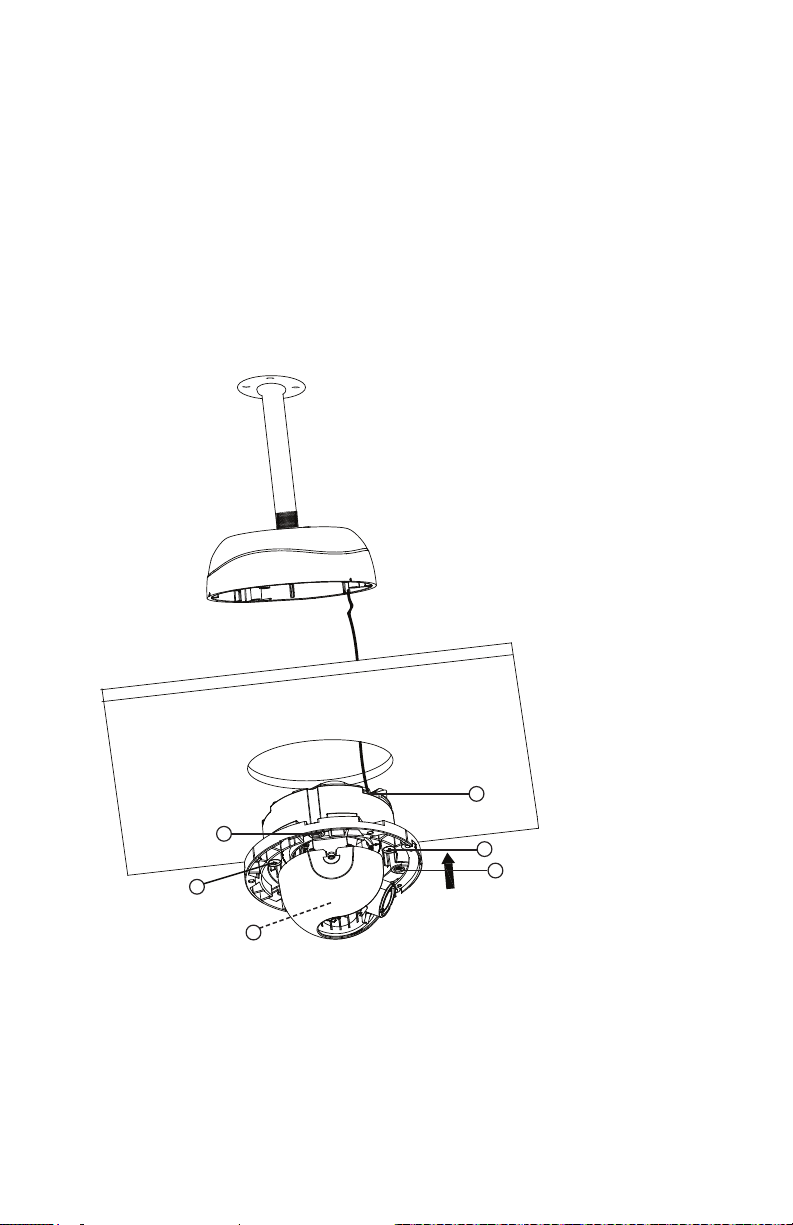

1. Wing tab adjustment screws
(silver screws)
2. Wing tabs
3. Three (3) longer back box
screws (black screws)
Figure 3.6 Camera Flush Mounting using Back Box
1
1
2
3
3
3

12
i3-TRNG-CAMS-Di721/Do721.indd Rev. 130130
1. OSD Joystick Control

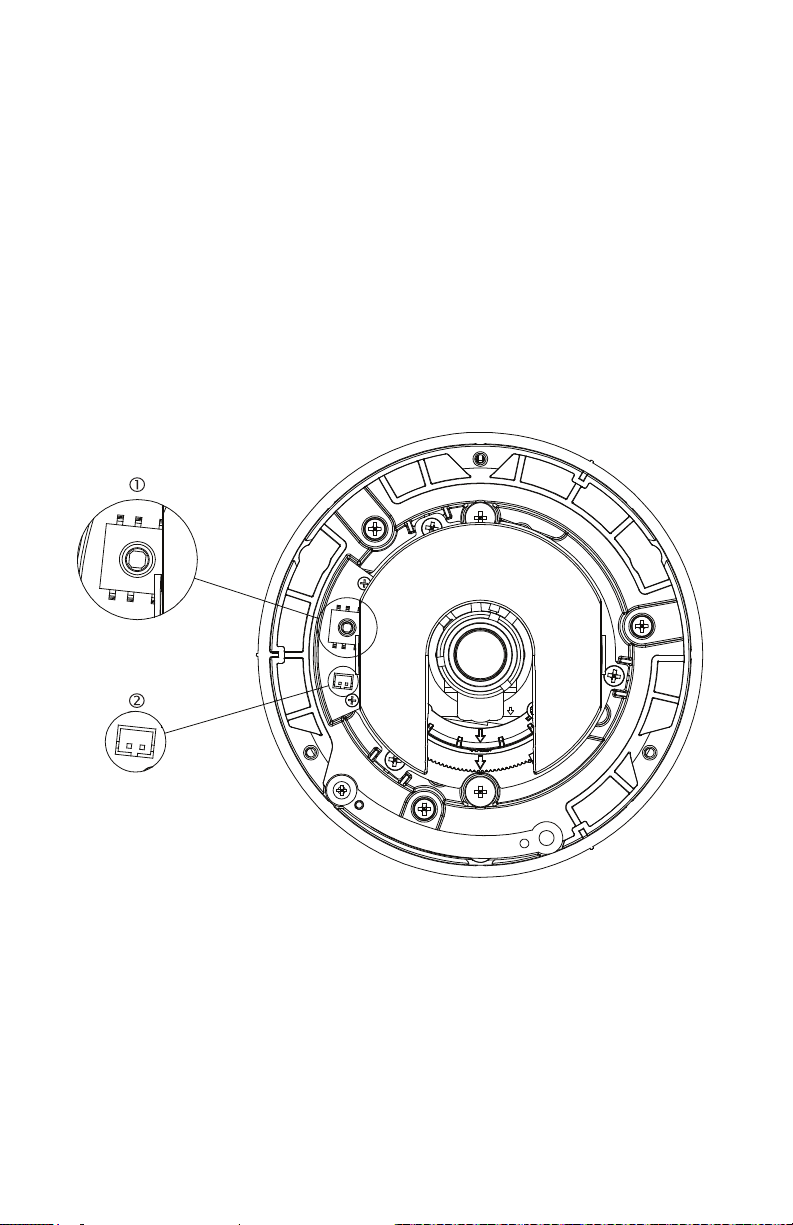

2. Monitor Output
Figure 3.7 Camera Adjustment Controls
4. Configuration
4.1 Optional Camera Settings
Refer to Figure 3.7 to locate the OSD joystick control on the camera board. Use the
joystick to access the OSD menu and configure the camera settings as required.
To use the OSD joystick control:
1. Press the OSD joystick control straight down to enter the Main menu or a
selected item.
2. Move the OSD joystick control UP, DOWN, LEFT and RIGHT to navigate through
menus and options.

13 Rev. 130130i3-TRNG-CAMS-Di721/Do721.indd
1
2
3
45
1. Rotate 3D assembly in base for horizontal adjustment
2. Loosen screw and adjust Tilt. Tighten screw when desired vertical angle is
achieved.
3. Turn axis ring for horizontal rotation.
4. Focus lever
5. Zoom lever
Figure 3.8 Camera Adjustment
4.2 Adjusting the Camera Position
The dome camera has three axis for positioning the camera. While live viewing on
the monitor, adjust the camera position as follows:
• Horizontal adjustment rotates 3D assembly in the base.
• Vertical adjustment: After loosening the screw on the bracket, position the
camera as desired, and tighten the screw back to the bracket.
• Horizontal rotation for wall mount and tilted ceilings: rotate the lens base
(maximum 354°) until you are satisfied with the field of view.

14
i3-TRNG-CAMS-Di721/Do721.indd Rev. 130130
4.3 Adjusting the Lens
1. Loosen the focus lever (#4 on Fig. 3.8) counter-clockwise a little and adjust for
optimum picture sharpness.
2. Loosen the zoom lever (#5 on Fig. 3.8) counter-clockwise a little and rotate to
determine the image view.
3. Re-tighten the zoom lever and focus lever after adjustment.
Please note: It is important that you lock the zoom and focus levers after
making adjustments. This will avoid the positions moving (for example, from
temperature changes or vibrations).
4. Once all adjustments are done, attach and secure the camera housing:
a. Use a soft and lint-free cloth to wipe the dome cover and remove
fingerprints.
b. Attach the inner liner (#3) to the tilt adjustment bracket (#2). Push down
until it clicks into place. (Not applicable to IR models)
c. Assemble the dome cover (#4) and the camera base (#1).
1
2
3
4
Figure 3.9 Adjusting the lens

15 Rev. 130130i3-TRNG-CAMS-Di721/Do721.indd
5. OSD Settings
Use the OSD menu to set up the camera for optimum performance.
LENS AUTO
SHUTTER/AGC AUTO
WHITE BAL ATW
BACKLIGHT OFF
PICT ADJUST
ATR OFF
MOTION DET OFF
NEXT
EXIT SAVE ALL
PRIVACY OFF
DAY/NIGHT AUTO
NR
CAMERA ID OFF
SYNC INT
LANGUAGE ENGLISH
CAMERA RESET
BACK
EXIT SAVE ALL
Figure 5.1 OSD Main Menu
5.1 LENS
The LENS settings allow you to configure Lens and brightness. Options are AUTO
(Auto Iris lens) and MANUAL. The default setting is AUTO. In the AUTO submenu,
you can set the MODE as OPEN, CLOSE or AUTO. Then select SPEED to adjust the
DC Iris Lens convergence speed.
TYPE DC
MODE OPEN
SPEED 046
5.2 SHUTTER/AGC
You can set the SHUTTER/AGC as AUTO or MANUAL. The default setting is AUTO.
When LENS is set to AUTO: it is recommended to set SHUTTER/AGC to AUTO
mode. In the AUTO submenu, adjust HIGH LUMINANCE MODE according to your
application:
• AUTO IRIS mode: use this for normal condition application environments. The
IRIS level will be controlled by camera brightness.
• SHUT+AUTO IRIS mode: use this for high light application environments. The
exposure will be controlled by AES or the DC Iris. The iris level will be controlled
by camera brightness.
HIGH LUMINANCE
MODE AUTO IRIS
BRIGHTNESS 024
LOW LUMINANCE
MODE AGC
BRIGHTNESS x0.25

16
i3-TRNG-CAMS-Di721/Do721.indd Rev. 130130
If SHUTTER/AGC is set to MANUAL, the submenu is shown as below. The shutter
speed is a variable from 1/50(1/60) sec to 1/10000sec and the AGC is selectable
depending on your environment condition.
MODE OFF
SHUTTER 1/50(1/60)
AGC 6.0
5.3 WHITE BAL
WHITE BALANCE controls color on the screen. Options include ATW (Auto
White Balance), PUSH, PUSH LOCK, USER1, USER2, ANTI CR (Anti Color Rolling
Suppression) and MANUAL. The default is ATW.
• ATW: Select ATW when the scene illumination varies between indoor scenes
and outdoor scene lighting.
SPEED 171
DELAY CNT 152
ATW FRAME X0.50
ENVIRONMENT INDOOR
• MANUAL: You can manually adjust the LEVEL from 15 to 69. USER1/USER2:
You can adjust blue setting (B-GAIN) and red setting (R-GAIN) value from 0 to
255.
• PUSH: When selected in the appropriate position, the whole area will perform
white balance.
• PUSH LOCK: When selected in the appropriate position, WHITE BALANCE will
perform once.
5.4 BACKLIGHT
Set backlight compensation function. It controls the light level to overcome
severe backlight conditions. Available options include OFF, BLC or HLC (Highlight
Compensation) mode. The default is OFF.
If HLC is selected, HLC is activated automatically when the camera detects high-
luminance.
5.5 PICT ADJUST
PICTURE ADJUST allows you to adjust picture settings for optimal image. In the
PICT ADJUST submenu, you can adjust BRIGHTNESS, CONTRAST, SHARPNESS,
HUE and GAIN value. In addition, you can set MIRROR to ON to reflect the image.
BURST OFF
DELAY CNT 100
DAY->NIGHT 100
NIGHT->DAY 100

17 Rev. 130130i3-TRNG-CAMS-Di721/Do721.indd
5.6 ATR*
Set ATR (Adaptive Tone-curve Reproduction) function. You can select ON or OFF.
The default is OFF. If selecting ON, you will enter the ATR submenu, where you can
set LUMINACE and CONTRAST to optimize by image.
LUMINANCE LOW
CONTRAST LOW
*Also known as a form of Digital Wide Dynamic Range. This function expands the
video dynamic range of the camera and improves visibility of images even in high
contrast environments.
5.7 MOTION DET
MOTION DET allows detecting moving objects on the screen. The default is OFF. If
selecting ON, you will enter the MOTION DET submenu. You can set up to 4 motion
areas to detect moving objectives and adjust the motion detection sensitivity from 0
to 127.
5.8 PRIVACY
PRIVACY function mask up to 8 privacy areas on the screen from video monitoring.
The default setting is OFF. If selecting ON, you will enter the PRIVACY submenu. You
can configure up to 8 privacy areas and set color and transparency of the privacy
zones. In addition, you can enable MOSAIC function for the privacy zone.
Note: If you enable MOTION DET function, then PRIVACY function will support 4
zones only.
REA SEL 1/8
TOP 000
BOTTOM 000
LEFT 000
RIGHT 000
COLOR 1
TRANSP 0.00
MOSAIC OFF

18
i3-TRNG-CAMS-Di721/Do721.indd Rev. 130130
5.9 DAY/NIGHT
DAY/NIGHT function allows you to set how the camera switches between color and
black and white (B/W) mode. Options include AUTO, COLOR and B/W. The default
setting is AUTO.
• AUTO: In the AUTO submenu, you can adjust BURST value and set:
> DAY->NIGHT: Set the light level at which the camera switches to NIGHT
mode. The higher the value, the darker the lighting must be there before
the camera switches.
> NIGHT->DAY: Set the light level at which the camera switches to DAY
mode. The lower the value, the brighter the lighting must be there before
the camera switches.
• COLOR: Force the camera to stay in DAY (COLOR) mode at all times.
• B/W: Force the camera to stay in B/W (NIGHT) mode at all times. The B/W
submenu allows you to set BURST to be ON or OFF.
5.91 NR
NR allows you to configure the 2D DNR (Digital Noise Reduction) settings to reduce
noise on the screen. In the NR submenu, you can enable the NR MODE to the Y
(BRIGHT) / C (COLOR), C LEVEL or Y LEVEL mode. According to your NR mode, you
can adjust Y LEVEL or C LEVEL as required.
NR MODE Y/C
Y LEVEL 000
C LEVEL 000
Note: When the Y/C Level is higher, the noise in dark areas becomes lessened. Also
resolution will become lower. When it is lower, there is more noise in dark areas.
5.92 CAMERA ID
CAMERA ID allows you to specify camera ID. Options are OFF (default) and ON. In
the ON submenu, you can add a camera title up to 26 characters with 2 lines and
also select where the title appears on the monitor screen.
BURST OFF
DELAY CNT 100
DAY->NIGHT 100
NIGHT->DAY 100

19 Rev. 130130i3-TRNG-CAMS-Di721/Do721.indd
5.93 SYNC
Sync mode is Internal by default.
5.94 LANGUAGE
OSD supports 8 multiple languages. Options include ENGLISH (default), JAPANESE,
GERMAN, FRENCH, RUSSIAN, PORTUGUESE, SPANISH and SIMPLIFIED CHINESE.
5.95 CAMERA RESET
To restore factory defaults, select CAMERA RESET and then press the joystick
control.
5.96 SAVE ALL
SAVE ALL items allows you to save all settings and exit the OSD menu.

20
i3-TRNG-CAMS-Di721/Do721.indd Rev. 130130
Features/Model Di721 Di721R Do721 Do721R ATR/D-WDR Digital Wide Dynamic Range On/Off (Selectable) Multi language support English, French, Spanish, Portuguese, German, Russian, Simplified Chinese, Japanese DNR Yes Signal system NTSC/PAL Scanning system NTSC 2:1 Interlace V: 59.94 Hz , H: 15.734 KHz / PAL: 2:1 Interlace V: 50 Hz , H: 15.625 KHz Image sensor 1/3” SONY Exview HAD CCD II Effective pixels NTSC: 976 (H) × 494 (V) / PAL: 976 (H) × 582 (V) Lens Built-in f=2.8mm~10.5mm,
F1.2 DC iris varifocal
Vari-focal,
f=2.8mm~10.5mm,
F1.2 DC iris
Vari-focal, f=3.7mm~12mm
Vari-focal,
f=2.8mm~10.5mm,
F1.2 DC iris
View angle (NTSC) Wide: 92° (H), 67° (V)
Tele: 27° (H), 20° (V)
Wide: 93° (H), 66° (V)
Tele: 26° (H), 20° (V)
Wide: 82° (H), 56° (V)
Tele: 22° (H), 16° (V)
Wide: 93° (H), 66° (V)
Tele: 26° (H), 20° (V)
View angle (PAL) Wide: 89° (H), 56° (V)
Tele: 26° (H), 17° (V)
Wide: 94° (H), 58° (V)
Tele: 26° (H), 16° (V)
Wide: 82° (H), 53° (V)
Tele: 24° (H), 15° (V)
Wide: 94° (H), 58° (V)
Tele: 26° (H), 16° (V)
Minimum illumination F1.2 @50IRE, 0.02lux,
@30IRE, 0.01lux B/W: 0 lux (IR on) F1.2 @50IRE, 0.02lux,
@30IRE, 0.01lux B/W: 0 lux (IR on)
Sync system Internal Horizontal resolution 700 TV lines Privacy zone Yes, 8 zones (max) Motion detection Yes, 4 areas (max) Day & Night mode Digital Day/Night Mechanical Day/Night Digital Day/Night Mechanical Day/Night White balance ATW/ Manual/ User/ Push/ Push lock AGC, BLC AGC: On / Off (selectable); BLC: Off/ BLC/ HLC (High light compensation) (selectable) Flickerless Auto adjusted Gamma correction 0.45
The specifications are subjects to be change without notice
6. Specifications
