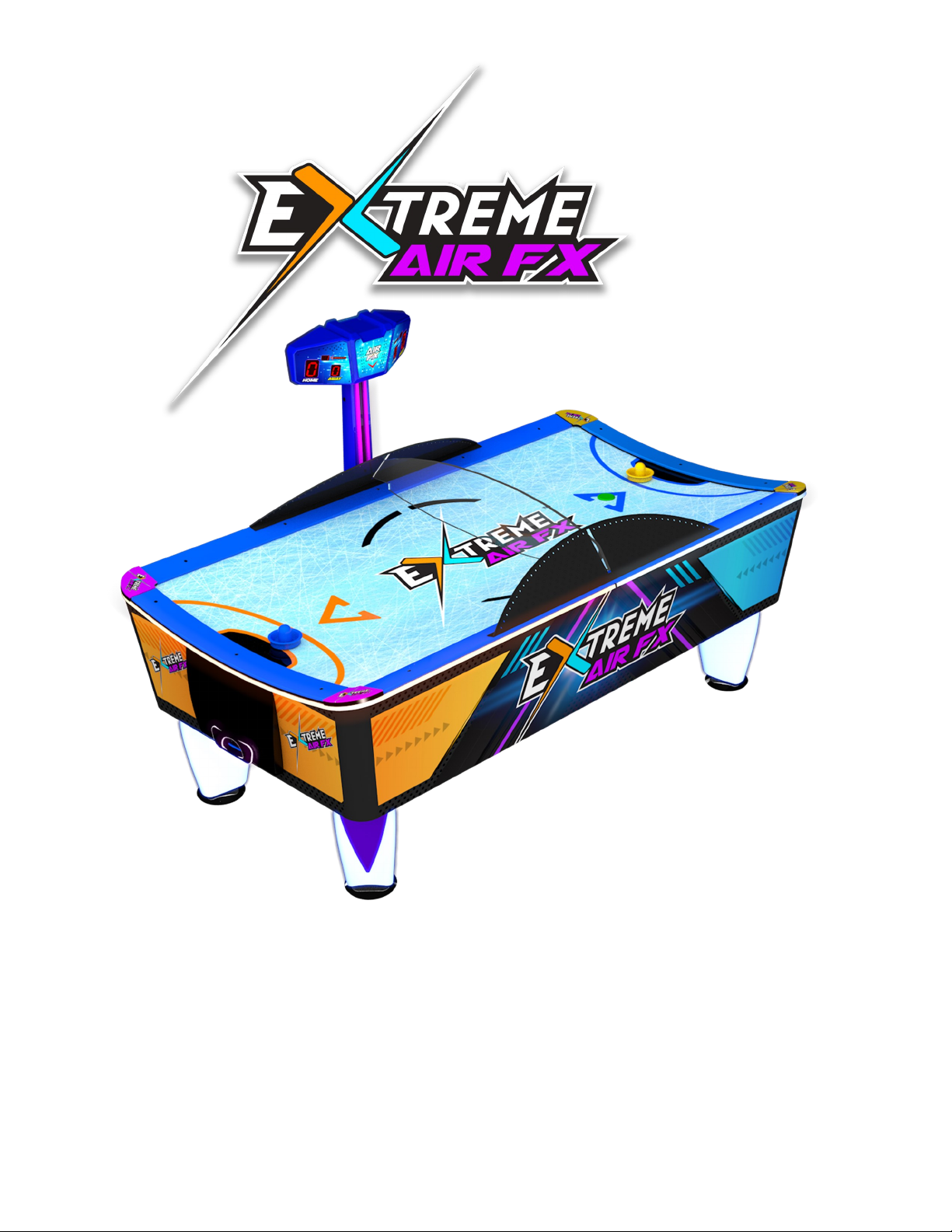

Ice EXTREME AIR FX User manual

1
Service Manual
Innovative Concepts In Entertainment
10123 Main street, Clarence, NY 14031
WWW.ICEGAME.COM
[phone] Monday through Friday 8:30am to 6:00pm Eastern Standard

2
Table of Contents
Safety and warnings 3
ULC wiring 4
Maintenance 5
Assembly 6 - 10
Programming 11 - 13
Accessing collection 14
Free Play mode
Test Mode
Error messages 15
Warranty 16
Rev B 2-16-2021

3
SAFETY AND WARNINGS BEFORE YOU BEGIN
WARNING: WHEN INSTALLING THIS GAME, A GROUNDED A.C. RECEPTACLE MUST BE USED.
FAILURE TO DO SO COULD RESULT IN INJURY TO YOURSELF OR OTHERS. FAILURE TO USE A
GROUNDED RECEPTACLE COULD ALSO CAUSE IMPROPER GAME OPERATION, OR DAMAGE TO
THE ELECTRONICS.
NOTE: THIS GAME IS INTENDED FOR INDOOR USE ONLY.
DO NOT DEFEAT OR REMOVE THE GROUNDING PRONG ON THE POWER CORD FOR THE SAME
REASON AS GIVEN ABOVE. USING AN IMPROPERLY GROUNDED GAME COULD VOID YOUR
WARRANTY.
HAVE A QUALIFIED ELECTRICIAN CHECK YOUR A.C. RECEPTACLE TO BE SURE THE GROUND
IS FUNCTIONING PROPERLY.
THIS GAME IS DESIGNED TO DISSIPATE STATIC ELECTRICITY THROUGH THE GROUNDING
PLANE OF THE GAME. IF THE A.C. GROUND DOES NOT WORK, THE GAME COULD DISCHARGE
STATIC ELECTRICITY THROUGH THE GAME CIRCUITRY, WHICH COULD CAUSE DAMAGE.
THE POWER SUPPLY IS NOT VOLTAGE ADJUSTABLE. TO OPERATE THE GAME AT VOLTAGES
OTHER THAN THOSE IT WAS DESIGNED FOR. PLEASE CONTACT OUR SERVICE DEPARTMENT
FOR VOLTAGE CONVERSION INFORMATION.
WARNING
DO NOT remove any of the components on the main board (e.g. compact flash and eproms)
while the game is powered on. This may cause permanent damage to the parts and the main
board. Removing any main board component part while powered on will void the warranty.
ALWAYS REMOVE POWER TO THE GAME, BEFORE ATTEMPTING ANY SERVICE,
UNLESS NEEDED FOR SPECIFIC TESTING. FAILURE TO OBSERVE THIS PRECAUTION
COULD RESULT IN SERIOUS INJURY TO YOURSELF OR OTHERS.
THIS GAME IS NOT SUITABLE FOR INSTALLATION IN AN AREA WHERE A WATER JET COULD BE
USED.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
When replacing the battery, use only authorized parts from ICE. Warranty will be void if non-complaint
battery is used.
AC Power Information
The games main fuse is accessed through the back of the game at the power mod. Above the
power cord is a small panel that contains the main fuse.
The value of the fuse for 120 volt users is 7 AMPS at 250Volt type slow blow.
The value of the fuse for 230 users is 4 AMPS at 250 Volt type slow blow.

4
Debit Card Housing use:
Molex 9-pin housing 03-09-2092
Universal Card link Connection
See Wiring Insert for wire colors and which connections are used.
Pin 1. +12v- Supply to Card System = Minimum of 2A available for the card systems and a Max of 3A.
Pin 2. Coin 1 - input to the game PCB.
Pin 3. Prize Meter/Ticket Notch 2- is connected to the Ticket Notch line between the game PCB and ticket dispenser.
Optional.
Pin 4. Coin Meter 1 - is connected to the coin meter 1 output from the game PCB and can be used by card systems for
monitoring purposes.
Pin 5. Ticket Run/Enable 2- is connected to the ticket run line between the game PCB and ticket dispenser. Optional.
Pin 6. Prize Meter/Ticket Notch 1- is connected to the Prize or Ticket Meter output from the game PCB and can be
used by card systems for monitoring purposes. Optional.
Pin 7. Coin Inhibit/Enable- is connected to the Coin or Note Inhibit/Enable output from the Game PCB and is used
where the game has this feature for disabling any payment. This is normally for states like New Jersey that limit the
amount of money that can be inserted at one time.
Pin 8. Ticket Run/Enable 1 - is connected to the ticket run line between the game PCB and ticket dispenser in standard
redemption games. This is commonly used for systems using paperless or E-ticket. Not Used if the game doesn’t have
this output.
Pin 9. Ground- is connected to the common Ground connection, the same ground as the Game PCB.

5
Maintenance Instructions
Only qualified personal should preform any maintenance or repairs on this equipment.
The playing surface should be cleaned once a day with the air motor running for optimum movement
of the puck.
Cleaning should be preformed by using any standard household cleaner that is non-abrasive and
contains no alcohol. Do not use a water jet for cleaning.
This equipment complies with European Regulations EN 60335-1 and EN 60335-2-82
Before Use:
Make sure battery of on the main PCB is enabled. Remove battery block if present before use.
Programming is done through the PCB. The PCB controls give access to data collections, free play,
and test modes.

6
Locate keys and Open
The keys are either located in the coin return of the coin door or screwed to the boom of the cabinet. There
should be two dierent types of keys. One set for the coin door and another to open the player’s puck doors.
Locate the legs and feet.
The leg, feet, and hardware is located inside the
right side door.

7

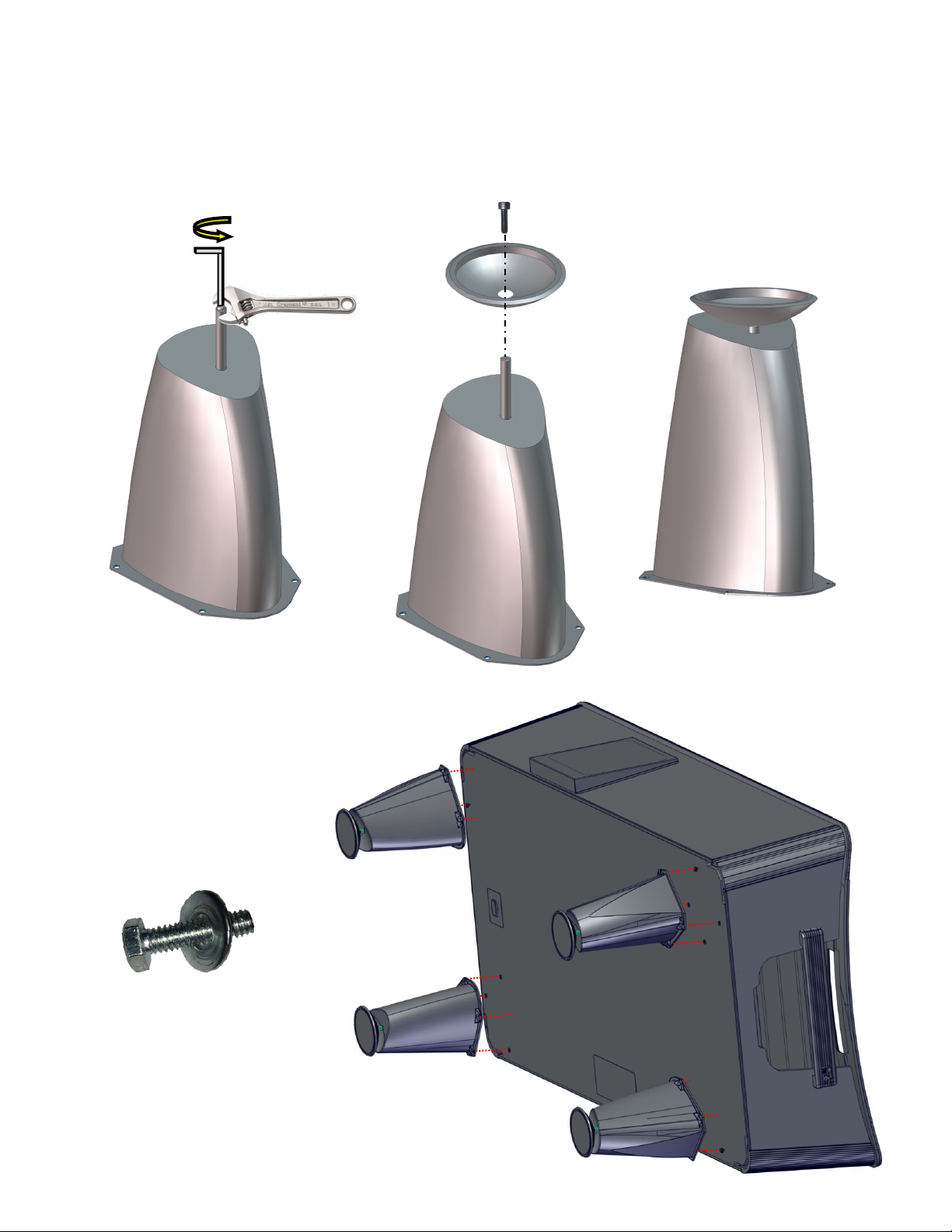

Leg Assembly:
Aer removing the legs from the cabinet, remove the bolt using a 6mm Allen wrench on each leg. You will
have to also use a wrench to hold the adjustment rod from spinning out. Then place one feet per leg and
reaach the 6mm bolt. The adjustment rods are installed from the factory and can be adjusted for uneven
heights once installed to the cabinet.
X’s 4 per leg, 16 total.
Aaching the assembled Legs:
Using four 7/16 bolts and washers aach each leg onto the boom of the cabinet. Tighten all bolts.

8
Posioning the Table:
Flip the table onto its legs using at least four people on either side.

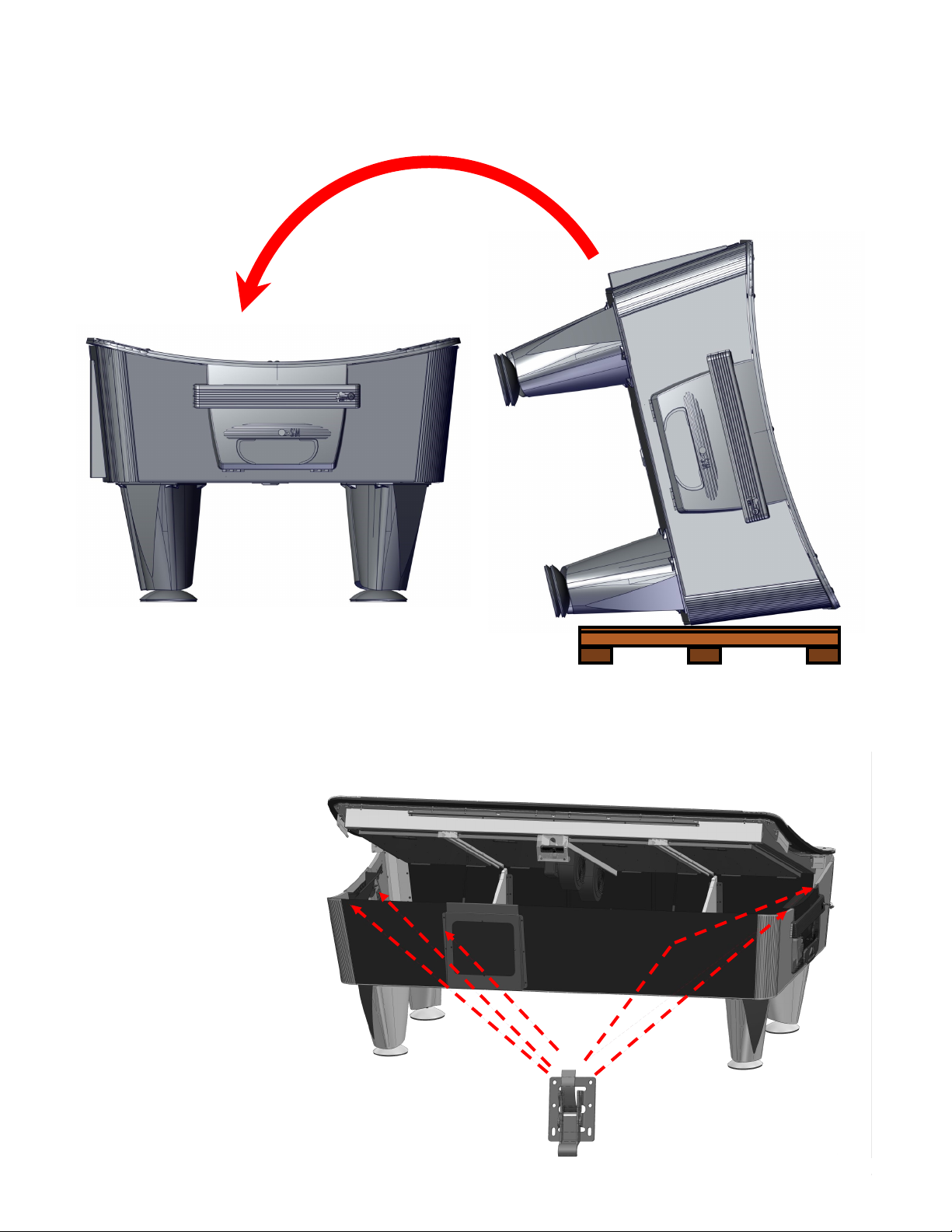

Opening The cabinet Top:
To unlatch the top, open both puck doors and coin door. Reach into the cabinet and locate the cabinet locks
and unlatch them. Then li up on the playeld.

9

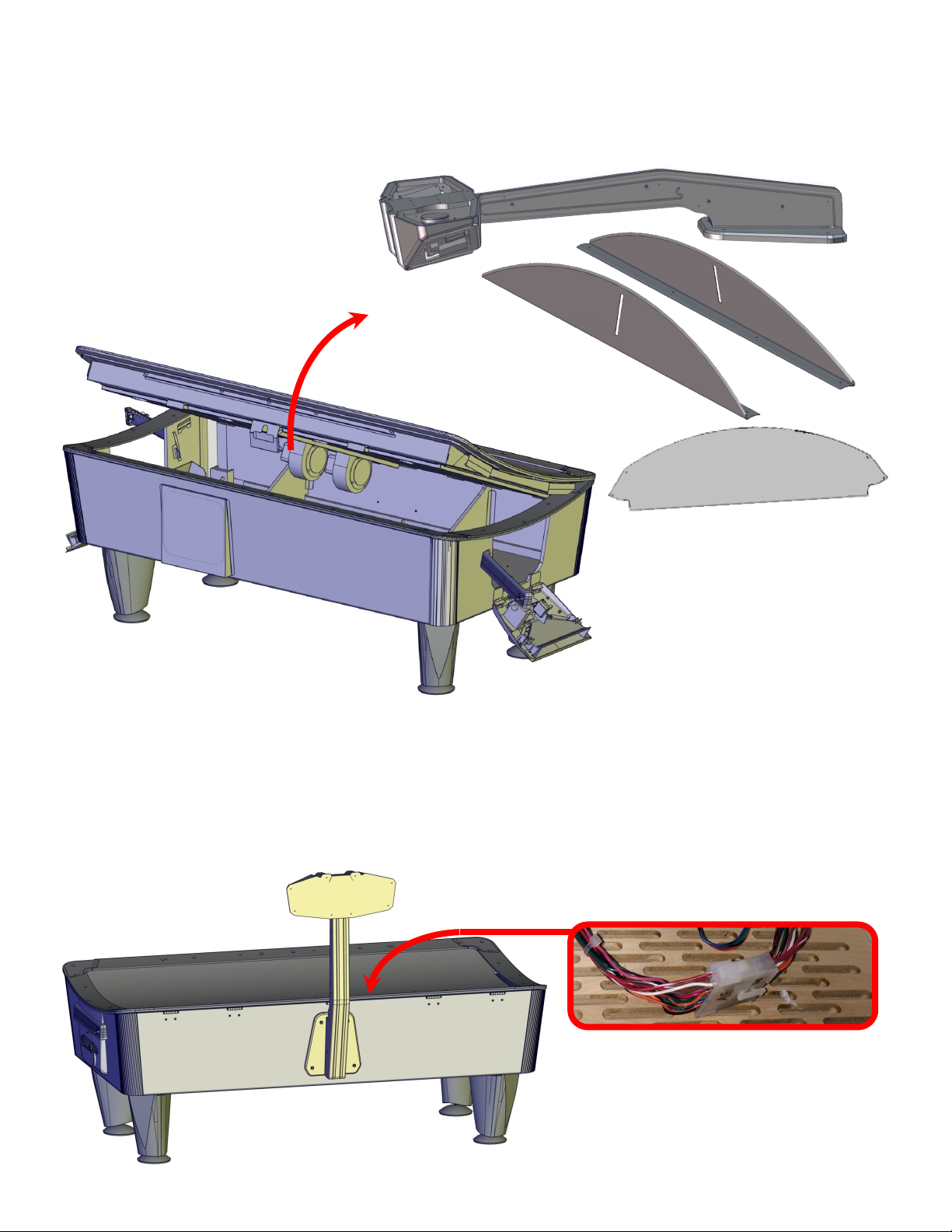

Locang the Score Head and sides:
The score head assembly is bolted to the boom of the cabinet. The side rails and divider are
aached with straps stapled to the boom of the cabinet.

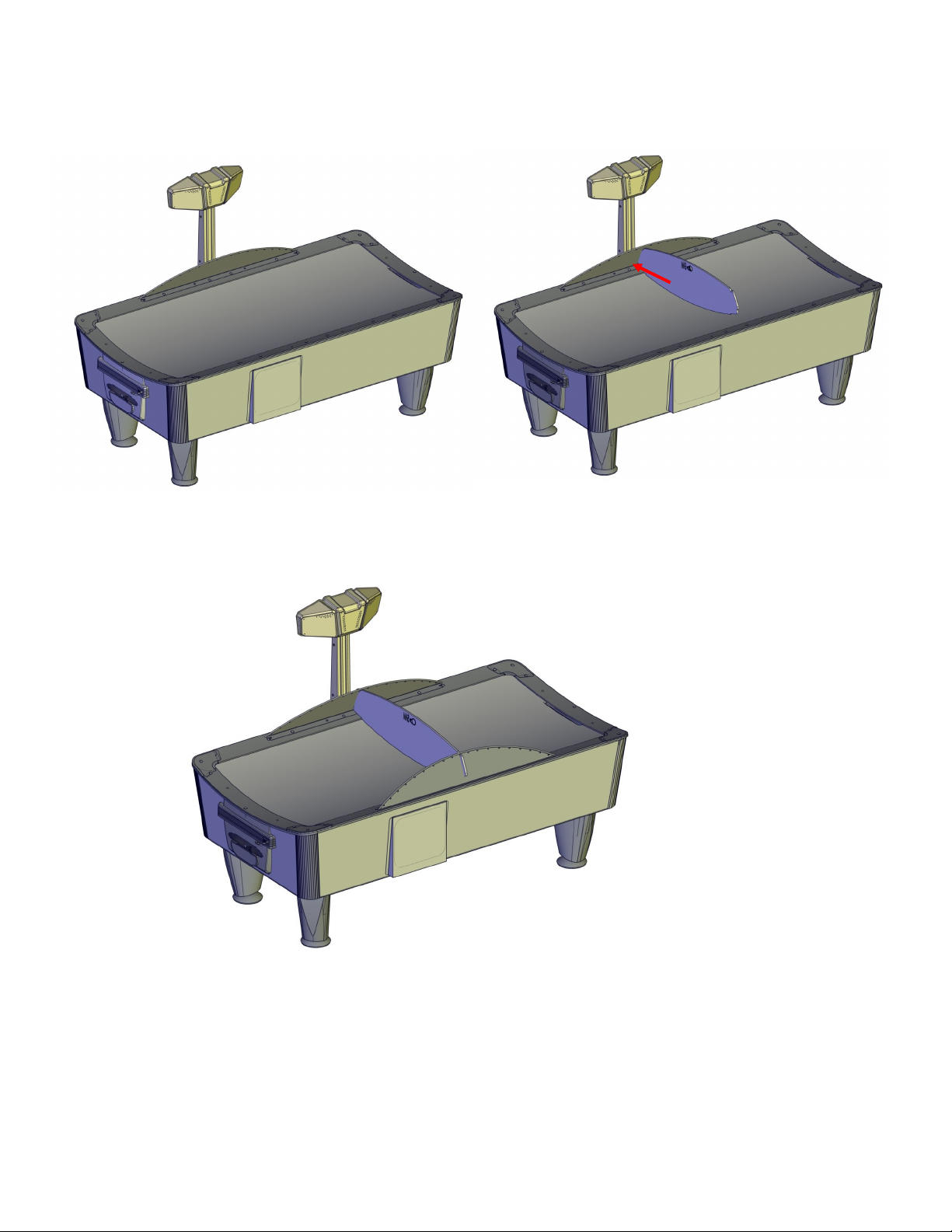

Installing Score Head:
The score head is mounted on the opposite side of the coin door. Insert the wire harness from
the score header marquee into the cabinet. Then aach the Score Header Marquee using
four AA6584 1/4 20 black bolts and washers. Open the playeld back up and connect the
harness.

10
Aaching Side Guards:
Using four AA6032 8x1/2 Hex w/tek screws aach the side guards. Slide the playeld divider into the side
guard slot.
Slide the other side guard into the other end of the playeld divider and aach using AA6032 8x1/2 Hex
w/tek screws

11
How to Enter programming, navigate, and change options.
When the game is not in game mode (Score displays shows 0’s), press PB3 and hold until the display is lit. To scroll
through the options press either the PB2 or PB3 buttons. To change the value of that option press either PB1 or PB4.
To exit programming, press the PB2 button until the display turns off.
PB1
PB4
PB2 PB3
Line Option =
Default
Explanation Minimum &
Max
1P1 = 7 Maximum number of goals per match 2 thru 9
2P2 =1 Victory mode 1 or 2
3P3 = 2 Free Game Mode Duration (in hours) 1 thru 9
4P4 = 5 Maximum time for a game (in minutes) 2 thru 9
5A1 = 1 Coin Acceptor 1 Number of pulses for 1 credit 1 thru 9
6A2 = 1 Number of games per credit for A1 1 thru 9
7A3 = 1 Coin Acceptor 2 - Number of pulses for 1 credit 1 thru 9
8A4 = 1 Number of games per credit for A3 1 thru 9
9A5 = 1 Electronic coin acceptor 1 Number of pulses for 1 credit 1 thru 9
10 A6 = 1 Number of games per credit for A5 1 thru 9
11 A7 = 1 Electronic coin acceptor 2 Number of pulses for 1 credit 1 thru 9
12 A8 = 1 Number of game per credit for A7 1 thru 9
13 Q1 = 1 Attract Mode; 0 = off ; 1 = on 0 or 1
14 Q2 = 15 Time between attract mode in minutes 1 thru 60

12
Line Option =
Default
Explanation Minimum &
Max
15 T1 = 0 Ticket dispenser enable 0 thru 2
16 T2 = 1 Number of tickets given per goal when tickets are enabled 0 thru 9
17 T3 = 0 Number tickets given per game won if tickets are enabled 0 thru 9
18 T4 = 1 When to pay tickets 0 or 1
19 S1 = 0 Fluorescent light control 0 or 1
20 H1 = 1 Disc detection at end of game 0 or 1
21 L11 = 1 Event 1 (Attract mode) LED color 0 thru 7
22 L12 = 1 Event 1 (Attract mode) LED mode 1 thru 3
23 L21 = 4 Event 2 (Standby) LED color 0 thru 7
24 L22 = 3 Event 2 (Standby) LED mode 1 thru 3
25 L31 = 2 Event 3 (Playing) LED color 0 thru 7
26 L32 = 1 Event 3 (Playing) LED mode 1 thru 3
27 L41 = 3 Event 4 (Local goal) LED Color 0 thru 7
28 L42 = 1 Event 4 (Local goal) LED mode 1 thru 3
29 L51=0 Event 5 (Visitor goal) LED Color 0 thru 7
30 L52 Event 5 (Visitor goal) LED mode
31 L61 Event 6 (End of game) LED Color
32 L62 Event 6 (End of game) LED mode
33 L71 Event 7 (New coin inserted) LED Color
34 L72 Event 7 (New coin inserted) LED mode
35 M1 Event 1 (Attract mode) tune: Juego2.mp3
36 M2 Event 2 (Stand by) tune: (None so play all available)
37 M3 Event 3 (Playing) tune: Juego2.mp3
38 M4 Event 4 (Local goal) tune: Gol.mp3
39 M5 Event 5 (Visitor goal): Gol.mp3
40 M6 Event 6 (End of game): Final Partido.mp3

13
Line Option =
Default
Explanation Minimum &
Max
41 M7 Event 7 (new coin) tune: Moneda.mp3
42 V0 = 2 General volume of the music 0 thru 20
43 V1 = 2 Volume of the music for event 1 (attract mode) 0 thru 20
44 V2 = 2 Volume of the music for event 2 (standby mode) 0 thru 20
45 V3 = 2 Volume of the music for event 3 (playing) 0 thru 20
46 V4 = 2 Volume of the music for event 4 (local goal) 0 thru 20
47 V5 = 2 Volume of the music for event 5 (visitor goal) 0 thru 20
48 V6 = 2 Volume of the music for event 6 (end of game) 0 thru 20
49 V7 = 2 Volume of the music for event 7 (New coin) 0 thru 20
50 D = 80 Brightness of the LEDS under the playfield in percentage. 0 thru 100
The LEDS can be configured both in their color and how they light. There are seven different events
that will trigger both color and behavior change for the LEDs. See charts below:
LED Color Option LED Behavior
0 = White 1 = Blink at 2Hz frequency.
1 = RED 2 = Continuous on.
2 = GREEN 3 = Intensity increases and decreases gradually.
3 = BLUE
4 = PURPLE
5 = YELLOW
6 = ORANGE
7 = LIGHT BLUE

14
TO ACCESS THE COLLECTION DATA
• Press PB2 when game is in attract mode.
• Pressing PB2 again will cycle through the audits
H XXX NUMBER OF BIG COINS COLLECTED
L XXX NUMBER OF SMALL COINS COLLECTED
E XXX NUMBER OF COINS AT THE ELECTRONIC COIN ACCEPTOR
T1 XX NUMBER OF TICKETS DISPENSED
T2 XX NUMBER OF TICKETS DISPENSED
TO ACTIVATE FREE PLAY MODE
The maximum amount of time you can set the game in free play mode is 9 hours.
Once you have set the amount of time you wish the game to be in free play mode,
to activate it, press the free play button. Once the time has run out the game will
revert to coin operation mode.
TO ACTIVATE TEST MODE
Press and hold down RESET button.
DO NOT RELEASE RESET button, press and hold down FREEPLAY.
DO NOT RELEASE FREEPLAY button, release reset button.
The pcb will light up and show the word “TEST” in the display.
Sequence of test:
Test colors of LED first. White, RED, Green, and Blue.
Test puck shutter both sides.
Test coins - Insert coins will produce sounds.
Test pucks - Insert puck and display will show dash.
Press RESET to exit.

15
ERROR MESSAGES:
ER01 = Configuration file not found.
ER03 = Score PCB’s not connected.
ER04 = Battery is low or weak connection.
ER05 = Battery is not connected.
ER06 = No communication with Dimmer LED boards.
How to factory reset the main board:
There is a backup memory of the settings from the factory. If you want to restore those values, enter
the configuration menu and press the PB3 and Free play buttons for 3 seconds. The display will
show a zero on the left that will increase, showing the percentage achieved of the restore process.
The process can take up to 4 minutes.
DO NOT PERFORM ANY ACTION WITH THE PCB DURING THIS PERIOD.
Once the process is finished, the PCB will reset.

16
WARRANTY POLICY
I.C.E. Inc warrants all components in new machines to be free of defects in materials and workmanship for the
period listed below:
■ 180 days on Main PCB’s, Computers & Motors
■ 1 year on all LCD monitor panels
■ 90 days on all other electronic and mechanical components
■ 30 days on all I.C.E. repairs and parts purchases
I.C.E. Inc shall not be obligated to furnish a warranty request under the following conditions:
■ Equipment or parts have failed through normal wear and tear
■ Equipment has been subjected to unwarranted stress, abuse or neglect
■ Equipment has been damaged as a result of arbitrary repair/modification
Products will only be covered under warranty by obtaining an I.C.E. authorized RMA #. To obtain an RMA #
please provide I.C.E. tech support with the game serial # or original I.C.E. invoice # and a detailed description
of the failure or fault symptoms.
I.C.E. Inc will assume no liability whatsoever for costs associated with labor or travel time to replace defective
parts. All defective warranty covered components will be replaced with new or factory refurbished compo-
nents equal to OEM specifications.
I.C.E. Inc will cover domestic UPS ground, or comparable shipping costs during the warranty period. Interna-
tional or expedited shipments are available for an additional charge. To obtain credit defective parts must be
returned to I.C.E. Inc, at the customer’s expense, within 30 days. After 30 days a 15% re-stocking fee will ap-
ply to all returns.
ICE distributors are independent, privately owned and operated. In their judgment, they may sell parts and/or
accessories other than those manufactured by I.C.E. Inc. We cannot be responsible for the quality, suitability
or safety of any non-I.C.E. part or modification (including labor) that is performed by such a distributor.
Innovative Concepts in Entertainment
10123 Main St.
Clarence, NY 14031
Phone #: (716) - 759 – 0360
Fax #: (716) – 759 – 0884
www.icegame.com
