10 POCKET BEEP AND TONE SQUELCH
Tone scan
By monitoring a signal that is being operated with the
pocket beep, tone or DTCS Squelch function turned
ON, you can determine the tone frequency or DTCS
code necessary to open the squelch.
qSet the channel to be checked for a tone frequency
or code.
wPush [TONE] several times to select the tone type
to be checked.
• One of the icons “ ,” “ ” or “ ” appear.
eHold down [T-SCAN] (TONE) for 1 second to start
the tone scan.
• Rotate [DIAL] to change the scanning direction.
rWhen the CTCSS tone frequency or DTCS code is
detected, the squelch opens and the detected tone
frequency is temporarily programmed into the mem-
ory or Call channel.
• The scan pauses when a CTCSS tone frequency or
DTCS code is detected.
• The detected CTCSS tone frequency or DTCS code
is used for the tone encoder or decoder, depending
on the tone condition or type selected in step w.
- No icon : Cannot be used for operation.
- “ ” : CTCSS tone encoder
- “ ”+“ ” : DTCS tone encoder
- “ ” : CTCSS tone encoder/decoder
- “ ” : DTCS tone encoder/decoder
tPush [V/MHz] to cancel the scan.
Using the HM-133V
zSet the channel to be checked for a tone frequency.
xSelect the tone type to be checked.
• Push [FUNC] then push; [TONE] for repeat-
er tone; [TSQL] for tone squelch; [DTCS] for
DTCS squelch.
cPush [FUNC] then [T-SCAN] to start the
tone scan.
vWhen the tone frequency is matched, the squelch
opens and the tone frequency is programmed into
the selected memory or Call channel.
bPush [CLR] to cancel the scan.
LOCK
S
E
T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK
S
E
T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
During CTCSS tone scan
Push [TONE] one or more times to select the tone type.
Hold down [T-SCAN] (TONE) for 1 second.
Appears
LOCK
S
E
T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK
S
E
T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
During CTCSS tone scan
Push then to select the tone type.
Push then .
Appears
[i.e.]: Checking for the tone frequency on the
145.680 MHz.
[i.e.]: Checking for the tone frequency on the
145.680 MHz.
scan
About this Instruction Manual (PDF format)
These Instruction Manual describe the details of the IC-2300H’s features. And, this PDF formatted manual provides
you with convenient functions, as follows.
Move to the previously read page.
Click [Previous view] at the left top on an each page, to
move back to the previously read page.
Shows a term description
When the mouse cursor is moved over a term which
is highlighted in yellow, the description of term is dis-
played.
Shows the location of keys
When the cursor is moved over a term with a red un-
derline, a red circle appears around the appropriate
key(s) on the figure of HM-133V.
Example: When the cursor is moved over [CLR] in
the description, a red circle appears around
the appropriate key(s).
The screen shots at the right column, correspond to
the operating instructions and procedures shows both
setting and operating example.
INTRODUCTION

Previous view
Functions and features of Adobe®Reader®
The following functions and features can be used with Adobe®Reader®.
• Keyword search
Click “Find (Ctrl+F)” or “Advanced
Search (Shift+Ctrl+F)” in the Edit
menu to open the search screen.
This is convenient when search-
ing for a particular word or phrase
in this manual.
*The menu screen may differ, depend-
ing on the Adobe®Reader®version.
• Find screen
• Advanced search screen
Click to open the find or search
screen or advanced search screen.
• Printing out the desired pages.
Click “Print (P)” in File menu, and then select the pa-
per size and number of copies you want to print.
*The printing setup may differ, depending on the
printer. Refer to your printer’s instruction manual for
details.
*Select "A4" size to print out the page in the equal-
ized size.
• Read Out Loud feature.
The Read Out Loud feature reads aloud the text in
this Instruction Manual.
Refer to the Adobe®Reader®Help for the details.
(This feature cannot be used, depending on your PC
environment including operating system.)
INTRODUCTION
*The screen may differ, depending on the Adobe®Reader®version.

FM TRANSCEIVER
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
INSTRUCTION MANUAL
12 SPECIFICATIONS
11 OTHER FUNCTIONS
13 MAINTENANCE
10 POCKET BEEP AND TONE SQUELCH
9 DTMF MEMORY ENCODER
8 PRIORITY WATCH
7 SCAN OPERATION
6 CALL CHANNEL OPERATION
5 MEMORY OPERATION
4 REPEATER SETTING
3 BASIC OPERATION
2 SETTING A FREQUENCY
1 PANEL DESCRIPTION
QUICK REFERENCE GUIDE

Previous view
i
FOREWORD
Thank you for purchasing this Icom radio. The IC-2300H FM
TRANSCEIVER is designed and built with Icom’s state of the
art technology and craftsmanship. With proper care this radio
should provide you with years of trouble-free operation.
DFEATURES
❍65 W* — high transmit output power
(*except Korea/Taiwan versions)
❍Tone squelch, DTCS squelch standard
❍Three color (amber, yellow & green) back-
lightLCD screen
❍Remote control microphone available
IMPORTANT
READ ALL INSTRUCTIONS carefully and completely
before using the transceiver.
SAVE THIS INSTRUCTION MANUAL— This
instruction manual contains important operating instructions
for the IC-2300H.
EXPLICIT DEFINITIONS
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom
Incorporated (Japan) in Japan, the United States, the United King-
dom, Germany, France, Spain, Russia and/or other countries.
SUPPLIED ACCESSORIES
qMicrophone (HM-133V)* . . . . . . . . . . . . . . . . . . 1
wFuse (20 A) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
eDC power cable (3 m) . . . . . . . . . . . . . . . . . . . . . 1
rMobile mounting bracket . . . . . . . . . . . . . . . . . . 1
tMounting screws, nuts and washers . . . . . . .1 set
yMicrophone hanger†. . . . . . . . . . . . . . . . . . . . . . 1
*The supplied microphone may differ, depending on the version.
†Not supplied, depending on the version.
q*we
rty
†
OPTIONS
HM-133V REMOTE-CONTROL MICROPHONE
HM-154 HAND MICROPHONE
SP-10 EXTERNAL SPEAKER
OPC-440A MIC EXTENSION CABLE
OPC-589 ADAPTER CABLE
OPC-1132A/OPC-347 DC POWER CABLES
CS-2300H CLONING SOFTWARE
OPC-478/OPC-478UC CLONING CABLES
OPC-474 CLONING CABLE
WORD DEFINITION
RWARNING! Personal injury, fire hazard or electric
shock may occur.
CAUTION Equipment damage may occur.
NOTE
Recommended, only inconvenience.
No risk of personal injury, fire or elec-
tric shock.
FCC INFORMATION
• FOR CLASS B UNINTENTIONAL RADIATORS:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not in-
stalled and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television recep-
tion, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a circuit dif-
ferent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.

Previous view
ii
RWARNING RF EXPOSURE! This device emits
RadioFrequency (RF) energy. Extreme caution should be ob-
served when operating this device. If you have any questions
regarding RF exposure and safety standards, please refer to the
Federal Communications Commission Office of Engineering and
Technology’s report on Evaluating Compliance with FCC Guide-
lines for Human Radio frequency Electromagnetic Fields (OET
Bulletin 65).
RWARNING! NEVER connect the transceiver to an AC
outlet. This may pose a fire hazard or result in an electric shock.
RWARNING! NEVER cut the DC power cable between
the DC plug and fuse holder. If an incorrect connection is made
after cutting, the transceiver may be damaged.
RWARNING! NEVER operate the transceiver while
driving a vehicle. Safe driving requires your full attention—any-
thing less may result in an accident.
RWARNING! NEVER connect the transceiver to a
power source of more than 16 V DC or use reverse polarity. This
could cause a fire or damage the transceiver.
RWARNING! NEVER operate or touch the transceiver
with wet hands. This may result in an electric shock or damage
the transceiver.
RWARNING! NEVER place the transceiver where nor-
mal operation of the vehicle may be hindered or where it could
cause bodily injury.
RWARNING! NEVER let metal, wire or other objects
touch any internal part of the transceiver. This may result in an
electric shock.
CAUTION: NEVER expose the transceiver to rain, snow
or any liquids. The transceiver may be damaged.
DO NOT push the PTT when not actually intending to trans-
mit.
KEEP the transceiver out of the reach of children.
During mobile operation, DO NOT operate the transceiver
without running the vehicle’s engine.When the transceiver’s pow-
er is ON and your vehicle’s engine is OFF, the vehicle’s battery
will soon become exhausted.
BE CAREFUL! The transceiver will become hot when op-
erating it continuously for long periods of time.
DO NOT set the transceiver in a place without adequate
ventilation. Heat dissipation may be affected, and the transceiver
may be damaged.
DO NOT use or place the transceiver in direct sunlight or in
areas with temperatures below –10°C (+14˚F) or above +60°C
(+140˚F).
DO NOT use harsh solvents such as benzine or alcohol when
cleaning, as they will damage the transceiver’s surfaces.
USE only Icom microphones (supplied or optional). Other man-
ufacturer’s microphones have different pin assignments and may
damage the transceiver if attached.
Approved Icom optional equipment is designed for optimal per-
formance when used with an Icom transceiver.
Icom is not responsible for the destruction or damage to an Icom
transceiver in the event the Icom transceiver is used with equip-
ment that is not manufactured or approved by Icom.
For only U.S.A.
CAUTION: Changes or modifications to this device, not express-
ly approved by Icom Inc., could void your authority to operate this
device under FCC regulations.
PRECAUTIONS

Previous view
iii
TABLE OF CONTENTS
FOREWORD ......................................................................................... i
IMPORTANT .......................................................................................... i
EXPLICIT DEFINITIONS ....................................................................... i
SUPPLIED ACCESSORIES .................................................................. i
OPTIONS .............................................................................................. i
FCC INFORMATION ............................................................................. i
PRECAUTION ...................................................................................... ii
TABLE OF CONTENTS ....................................................................... iii
QUICK REFERENCE GUIDE ...................................................... IV–VII
■Installation ................................................................................... iv
■Your first contact .......................................................................... vi
■Repeater operation ..................................................................... vi
■Programming memory channels ................................................ vii
1 PANEL DESCRIPTION ............................................................... 1–4
■Front panel ................................................................................... 1
■Function display ........................................................................... 2
■Rear panel ................................................................................... 3
■Microphone (HM-133V) ................................................................ 3
■Microphone keypad ...................................................................... 4
2 SETTING A FREQUENCY .......................................................... 5–7
■Preparation .................................................................................. 5
■Using the tuning dial .................................................................... 5
■Using the keypad ......................................................................... 5
■Using the [Y] or [Z] keys ............................................................. 5
■Tuning step selection .................................................................... 6
■Lock functions .............................................................................. 7
3 BASIC OPERATION .................................................................. 8–14
■Receiving ..................................................................................... 8
■Monitor function ........................................................................... 8
■Audio mute function ..................................................................... 9
■Squelch attenuator ....................................................................... 9
■S-meter squelch ........................................................................... 9
■Transmitting ................................................................................ 10
■Selecting output power ............................................................... 11
■One-touch PTT function ............................................................. 11
■Accessing a repeater ................................................................. 12
■Subaudible tones ....................................................................... 13
4 REPEATER SETTING ............................................................. 15–16
■Frequency offset ......................................................................... 15
■Repeater lockout ........................................................................ 15
■Reversed duplex function ........................................................... 16
■Auto repeater ............................................................................. 16
5 MEMORY OPERATION ........................................................... 17–26
■General description .................................................................... 17
■Programming a memory channel ............................................... 17
■Memory channel selection ......................................................... 18
■Copying memory contents ......................................................... 19
■Programming channel names ..................................................... 21
■Memory clearing ........................................................................ 22
■Memory bank setting .................................................................. 23
■Memory bank selection .............................................................. 24
■Transferring bank links ............................................................... 25
■Erasing bank links ...................................................................... 26
6 CALL CHANNEL OPERATION ............................................... 27–28
■Call channel selection ................................................................ 27
■Copying Call channel contents ................................................... 27
■Programming a Call channel ...................................................... 28
7 SCAN OPERATION ................................................................. 29–33
■Scan types ................................................................................. 29
■Scan start/stop ........................................................................... 30
■Scan edges programming .......................................................... 31
■Skip channel setting ................................................................... 32
■Scan Resume function ............................................................... 33
8 PRIORITY WATCH .................................................................. 34–35
■Priority watch types .................................................................... 34
■Priority watch operation ............................................................. 35
9 DTMF MEMORY ENCODER ................................................... 36–38
■Programming a DTMF code ....................................................... 36
■Transmitting a DTMF code ......................................................... 37
■DTMF TX speed ......................................................................... 38
10 POCKET BEEP AND TONE SQUELCH ................................. 39–42
■Pocket beep operation ............................................................... 39
■Tone/DTCS squelch operation ................................................... 41
■Tone scan ................................................................................... 42
11 OTHER FUNCTIONS .............................................................. 43–53
■Set mode .................................................................................... 43
■Initial Set mode .......................................................................... 47
■Weather channel operation ........................................................ 50
■Microphone keys ........................................................................ 51
■Partial reset ................................................................................ 52
■All reset ...................................................................................... 52
■Data cloning ............................................................................... 53
12 SPECIFICATIONS ......................................................................... 54
13 MAINTENANCE ............................................................................ 55
■Troubleshooting .......................................................................... 55
■Fuse replacement ...................................................................... 55

Previous view
iv
QUICK REFERENCE GUIDE
■Installation
D Location
Select a location which can support the weight of the
transceiver and does not interfere with driving in any
way. We recommend the locations shown in the dia-
gram below.
RWARNING! NEVER place the transceiver where
normal operation of the vehicle may be hindered or
where it could cause bodily injury.
RWARNING! NEVER place the transceiver where
air bag deployment may be obstructed.
DO NOT place the transceiver where hot or cold air
blows directly onto it.
DO NOT place the transceiver in direct sunlight.
D Using the mounting bracket
➀Drill 4 holes where the mounting bracket is to be in-
stalled.
• Approx. 5.5–6 mm (0.25 inch) when using nuts; ap-
proximately 2–3 mm (0.13 inch) when using self-
tapping screws.
➁Insert the supplied screws, nuts and washers through
the mounting bracket and tighten.
➂Adjust the angle for the clearest view of the function
display.
Nut
Spring washer
Flat washer
When using
self-tapping
screws
Spring
washer
Insulating
sheet
Mounting bolt
Mounting
bracket
IMPORTANT!
Detailed installation notes for Icom mobile transceiv-
ers are available. Contact your Icom dealer or dis-
tributor.
D Battery connection
RWARNING! NEVER connect the transceiver direct-
ly to a 24 V battery.
DO NOT use the cigarette lighter socket for a power
connection.
When passing the DC power cable through metal mate-
rial, use a rubber grommet to prevent short circuiting.
• CONNECTING TO A DC POWER SUPPLY
(See page 55 for fuse replacement.)
D DC power supply connection
Use a 13.8 V DC power supply with a capacity of at
least 20 Amps.
Make sure the ground terminal of the DC power supply
is connected to a secure earth.
• CONNECTING TO A DC POWER SOURCE
(See page 55 for fuse replacement.)
Fuses
20 A
Crimp Solder
black
red
+
Grommet
−
12 V
12 V
battery Supplied
DC power cable
NOTE:
Use terminals for the
cable connections.
+red
_black
IC-2300H
DC power
supply 13.8 V
to an
AC
outlet
Fuses
20 A
black
red+
+
−
−
IC-2300H

Previous view
v
QUICK REFERENCE GUIDE
D Antenna installation
•Antenna location
To obtain maximum performance from the transceiver,
select a high-quality antenna and mount it in a good
location. When you use a magnetic mount, use a non-
radial antenna.
Roof-mount antenna
(Drill a hole or use a magnetic mount.)
Gutter-mount antenna
Trunk-mount
antenna
to the antenna
• Installing the antenna connector
The antenna uses a PL-259 connector.
• PL-259 CONNECTOR
NOTE: There are many publications covering proper
antennas and their installation. Check with your local
dealer for more information and recommendations.
D Connecting the microphone
Connect the microphone to the eight-pin modular sock-
et on the front panel of the transceiver.
30 mm
10 mm (Tin)
10 mm (Tin)
1–2 mm
solder solder
Coupling ring
(10 mm=0.4 inch)
qSlide the coupling ring down.
Strip the cable jacket and
tin the ground shield.
wStrip the cable as shown at
left. Tin the center conduc-
tor.
eSlide the connector body
on and solder it.
rScrew the coupling ring
onto the connector body.

Previous view
vi
QUICK REFERENCE GUIDE
■Your first contact
Now that you have your IC-2300H installed in your car
or shack, you are probably excited to get on the air. We
would like to take you through a few basic operation
steps.
1. Turning ON the transceiver
Before turning ON your IC-2300H, make sure the au-
dio volume and squelch level controls are set to 9–10
o’clock.
Set both [VOL] and [SQL] to
the 9–10 o’clock position.
[VOL]
[SQL]
Although you have purchased a brand new transceiver,
some settings may have changed from the factory de-
faults because of the QC process. The Partial Rest is
recommended to start with factory default settings.
[ ]
[SCAN] (V/MHz)
➥While holding down [V/MHz], hold down [ ] for 1 sec-
ond to reset the CPU.
2. Tune the desired frequency
[DIAL] will allow you to set the frequency you want to op-
erate on. Page 6 explains how to set the tuning speed.
[DIAL]
Using the HM-133V
You can directly enter the frequency with the HM-133V keypad.
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
[i.e.]: Setting the frequency to 145.3625 MHz.
Push
Push
Push
Push
■Repeater operation
1. Setting duplex
Hold down [DUP] (LOW) for 1 second several times to
select minus duplex or plus duplex.
• The USA version has an Auto Repeater function, therefore, setting
duplex is not required.
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
2. Repeater tone
If accessing the repeater, requires a subaudible tone,
push [TONE] several times until “ ” appears.
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
Using the HM-133V
Plus or minus duplex selection and the repeater tone
setting can easily be made using the HM-133V.
Push [DUP–] for minus duplex; [DUP+] for plus
duplex selection, then push [FUNC] , and then
[DUP–] to turn ON the repeater tone.
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
Push
Push , then
Push

Previous view
vii
QUICK REFERENCE GUIDE
The IC-2300H has a total of 207 memory channels for
storing often used operating frequencies, repeater set-
tings, and so on. Memories include 6 scan edges and
1 Call channel.
1. Setting the frequency
In the VFO mode, set the desired operating frequency,
repeater, tone and tuning steps, and so on.
2. Selecting the memory channel
Push [S.MW], and then rotate [DIAL] to select the de-
sired memory channel.
• The “ ” icon and memory channel number blink.
3. Writing a memory channel
Hold down [MW] (S.MW) for 1 second to program.
• 3 beeps sound
• The memory channel number automatically increases
when continuing to hold down [MW] (S.MW) after pro-
gramming.
Using the HM-133V
zIn the VFO mode, set the desired operating frequen-
cy, offset and direction, tone settings, and so on.
xPush [FUNC] then [MW] .
• The “ ” icon and memory channel number blink.
cPush [Y]or [Z]to select the desired memory chan-
nel.
vPush [FUNC] then hold down [MW] for 1 sec-
ond to save the setting.
• 3 beeps sound
• The memory channel number automatically increas-
es when you continuing to hold down [MW] after
programming.
■Programming memory channels
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
[S.MW] (MW) [DIAL]
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
Push ,
then

Previous view
q POWER KEY [ ]
Hold down for 1 second to turn power ON or OFF.
w MEMORY WRITE KEY [S.MW MW] (p. 17)
➥Push to enter the memory write mode.
➥Hold down for 1 second to program a selected
memory channel.
• Continue to hold down the key to automatically
increment the memory channels.
eMICROPHONE CONNECTOR
Connect the supplied microphone here.
r VOLUME CONTROL [VOL] (p. 8)
Rotate to adjust the audio level.
t SQUELCH CONTROL [SQL] (p. 8)
Rotate to adjust the squelch level.
• The S-meter squelch or attenuator squelch is ac-
tivated, when you rotate [SQL] clockwise from the
center position. (p. 9)
Squelch is
open.
Squelch attenuator
or
S-meter squelch
Squelch
threshold
Shallow Deep
Noise squelch
ySET•LOCK KEY [SET LOCK]
➥Push to enter to the Set mode. (p. 43)
➥Hold down for 1 second to turn the Lock function
ON or OFF. (p. 7)
uMONITOR•CHANNEL NAME KEY [MONI ANM]
➥Push to turn the monitor function ON or OFF. (p. 8)
➥In the memory or Call channel mode, hold down
for 1 second to turn the channel names or num-
ber ON or OFF. (p. 21)
iOUTPUT POWER•DUPLEX KEY [LOW DUP]
➥Push to select the output power. (p. 11)
➥Hold down for 1 second to select the minus du-
plex, plus duplex or simplex mode. (p. 12)
oTONE•TONE SCAN KEY [TONE T-SCAN]
➥Push to select the tone function. (pp. 2, 39, 41)
➥Hold down for 1 second to start the Tone Scan.
(p. 42)
!0 MEMORY/CALL•PRIORITY KEY [M/CALL PRIO]
➥Push to select and toggle memory, Call and
weather channel* modes. (pp. 18, 27, 50)
*For only USA versions.
➥Hold down for 1 second to start the priority watch.
(p. 34)
!1 VFO/MHz TUNING•SCAN KEY [V/MHz SCAN]
➥Push to select the VFO mode. (p. 5)
• In the VFO mode, push to select the tuning step.
(p. 5)
➥Hold down for 1 second to start a scan. (p. 29)
• Push to cancel the scan while scanning.
!2 BANK•OPTION KEY [BANK OPT]
➥Push to select the memory bank while in the
memory mode. (p. 23)
➥Hold down for 1 second to enter the Option Set
mode. (p. 36)
!3 TUNING DIAL [DIAL]
➥Sets the operating frequency (p. 5), memory
channel. (p. 18)
➥Sets the item in the Set mode. (p. 43)
➥Changes the scanning direction. (p. 30)
D Microphone connector (front panel view)
qi
q +8 V DC output (Max. 35 mA)
wChannel up/down
e8 V control IN
rPTT
tGND (microphone ground)
yMIC (microphone input)
uGND
iData IN
S.MW
SQL
VOL
MW
BANK
OPT
Function display (p. 2)
!0oiuy
q
w
e
rt
!3
!1 !2
1
PANEL DESCRIPTION
1
Front panel■

Previous view
2
qFREQUENCY READOUT
Shows the operating frequency, channel name, Set
mode contents, and so on.
• The frequency decimal point blinks during a scan.
(p. 30)
• While the DTMF memory function is in use, “d” ap-
pears in the 100 MHz digit. (p. 36)
wTRANSMIT ICON
➥Appears while transmitting. (p. 10)
➥Blinks while transmitting with the One-Touch PTT
function. (p. 11)
eAUDIO MUTE ICON (p. 9)
Appears when the Audio Mute function is activated.
rNARROW MODE ICON (p. 43)
Appears when the narrow FM mode is selected.
tOUTPUT POWER ICONS (p. 11)
Displays the selected transmit output power level.
• The “Mid-Low” power is not selectable in the Taiwan
version.
yKEY ICONS
Displays the function(s) of the front panel keys di-
rectly below the function display.
uSKIP ICON (p. 32)
Appears when the selected memory channel is set
as a skip channel.
iMEMORY CHANNEL NUMBER READOUT
➥Displays the selected memory channel number.
(p. 18)
➥“C” appears when the Call channel is selected.
(p. 27)
oMEMORY ICON (p. 17)
Appears when the Memory mode is selected.
!0 S/RF INDICATOR
➥Shows the relative signal strength, while receiving
signals. (p. 8)
➥Shows the output power level, while transmitting.
(p. 10)
!1 BUSY ICON (p. 8)
➥Appears when receiving a signal, or the squelch is
open.
➥Blinks while the monitor function is turned ON.
!2 S-METER SQUELCH ICON (p. 9)
Appears while the S-meter Squelch function is turned
ON.
!3 SQUELCH ATTENUATOR ICON (p. 9)
Appears while the Squelch Attenuator function is
turned ON.
!4 PRIORITY WATCH ICON (p. 35)
Appears during Priority Watch.
!5 AUTO POWER OFF ICON (p. 47)
Appears when the Auto Power OFF function is turned
ON.
!6 TONE ICONS
Appear when the tone function is turned ON, and in-
dicate which tone function is in use.
• Push [TONE] to select the desired tone function.
!7 DUPLEX ICONS (p. 12)
The “+” icon appears in the plus duplex mode.
The “–” icon appears in the minus duplex mode.
!8 LOCK ICON (p. 7)
Appears while the Lock function is turned ON.
!7 !3!4
i
!5!6
!0
!2 !1!8
u
o
w
y
t
e
r
q

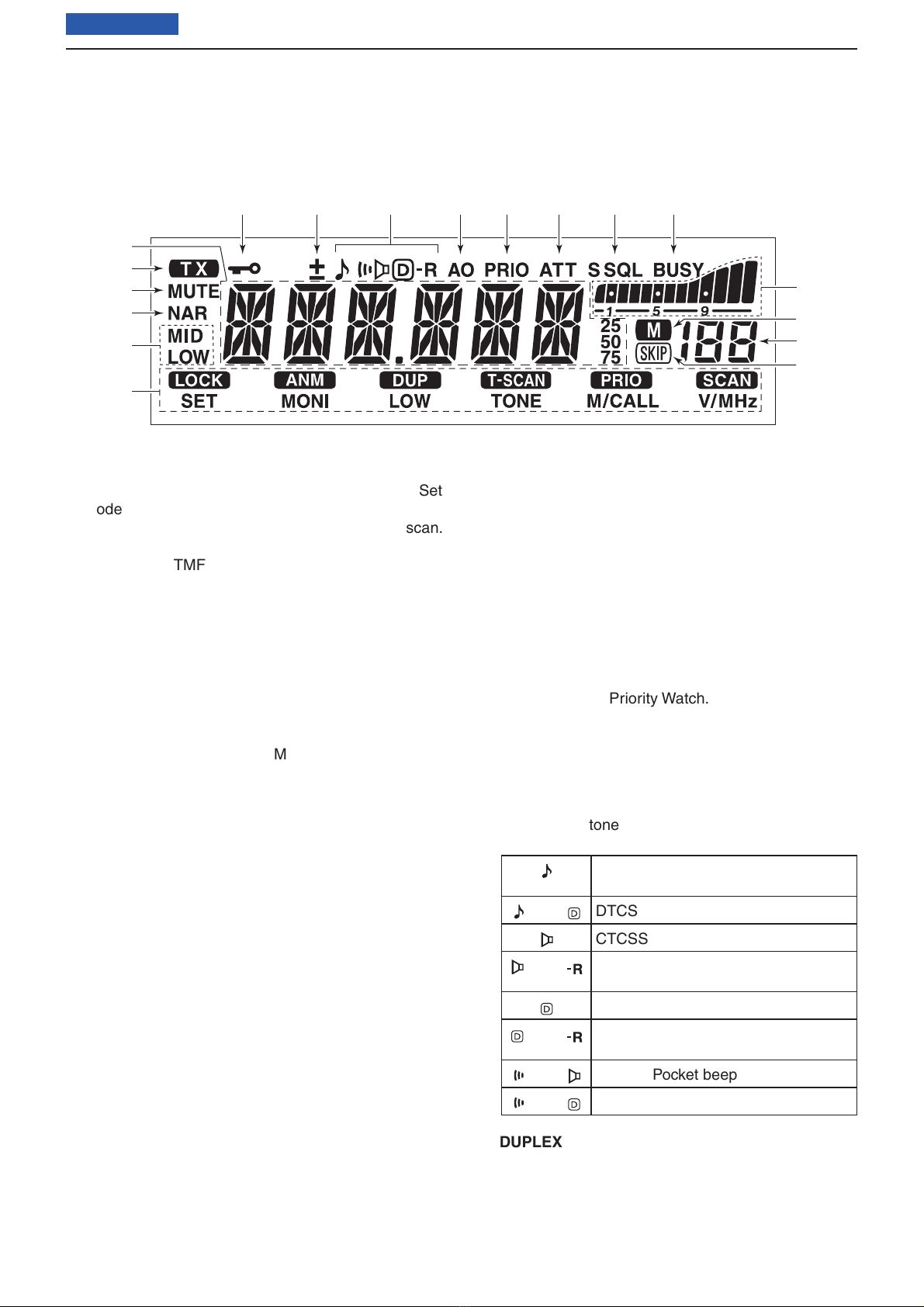

■Function display
“ ” Subaudible tone encoder (only TX)
(p. 13)
“ ” and “ ” DTCS encoder (only TX) (p. 13)
“ ” CTCSS Squelch function (p. 41)
“ ” and “ ” Reverse CTCSS Squelch function
(p. 41)
“ ” DTCS Squelch function (p. 41)
“ ” and “ ” Reverse DTCS Squelch function
(p. 41)
“ ” and “ ” CTCSS Pocket beep function (p. 39)
“ ” and “ ” DTCS Pocket beep function (p. 39)
1PANEL DESCRIPTION

Previous view
3
1PANEL DESCRIPTION

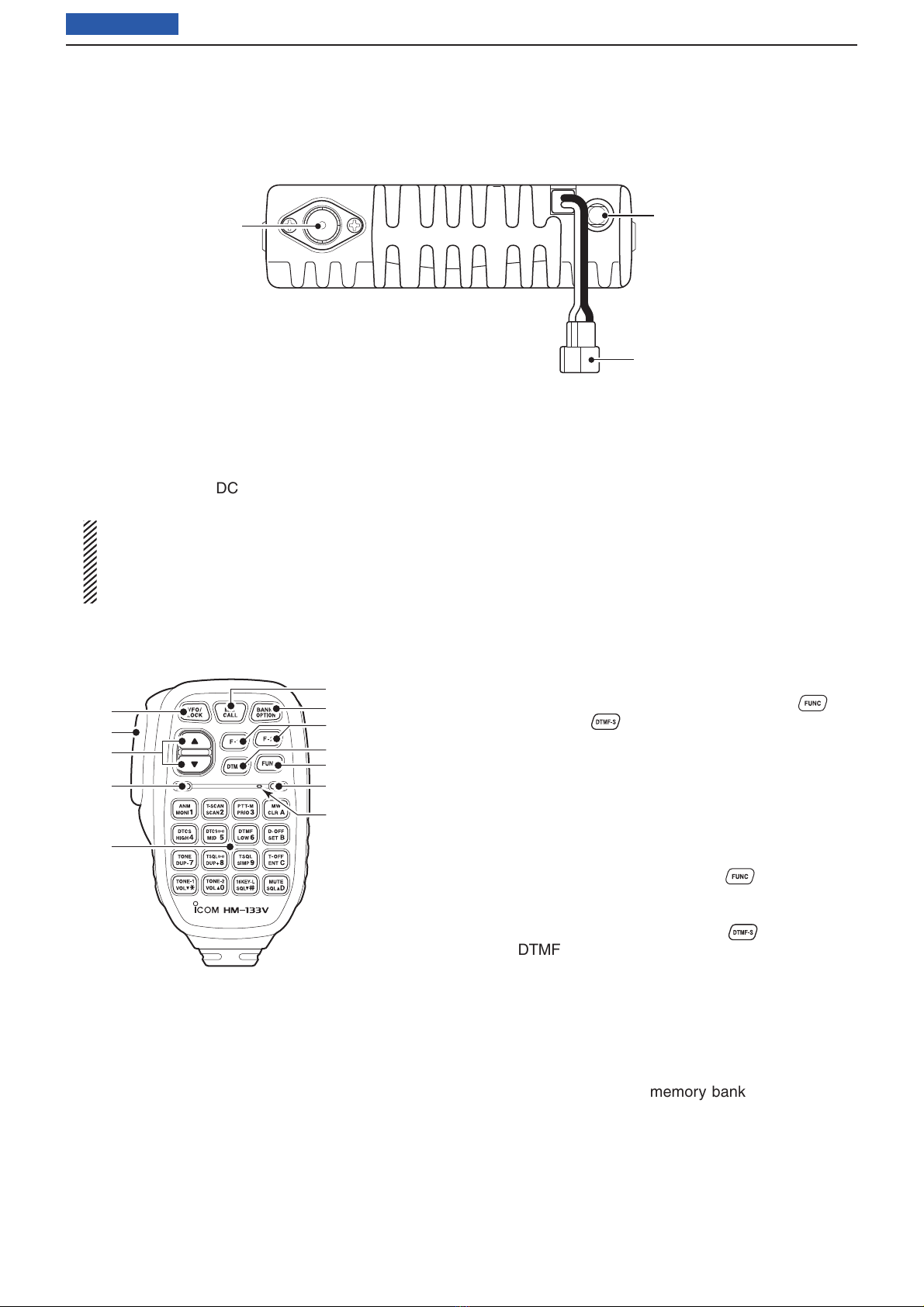

q ANTENNA CONNECTOR [ANT]
Connect a 50 Ωantenna with a PL-259 connector,
through a 50 Ωcoaxial cable.
w POWER RECEPTACLE [DC13.8V]
Connect a 13.8 V DC ±15% power source with the
supplied DC power cable.
NOTE: DO NOT use a cigarette lighter socket as a
power source, when operating in a vehicle. The
plug may cause voltage drops and ignition noise
may be superimposed onto the transmit or receive
audio.
e SPEAKER JACK [SP]
Connect a 4 Ωspeaker here.
• Audio output power is more than 3.5 W.
■Microphone (HM-133V)
qVFO/LOCK KEY [VFO/LOCK]
➥Push to select the VFO mode. (p. 5)
➥Hold down for 1 second to turn the Lock function
ON or OFF. (p. 7)
wPTT SWITCH
➥Hold down to transmit; release to receive.
➥Toggles between transmitting and receiving while
the One-Touch PTT function is in use. (p. 11)
eUP/DOWN KEYS [Y]or [Z]
➥Push either key to change the operating frequency,
memory channel, mode setting, and so on. (pp. 5,
18, 43)
➥Hold down either key for 1 second to start scanning.
(p. 30)
rACTIVITY INDICATOR
➥Lights red while any key, except [FUNC] and
[DTMF-S] , is pushed, or while transmitting.
➥Lights orange while the Microphone Keypad Lock
function is activated.
➥Lights green while the One-Touch PTT function is
in use.
tKEYPAD (p. 4)
➥Push to activate various functions.
yFUNCTION INDICATOR
➥Lights orange while [FUNC] is activated—
indicating the secondary function of keys can be
accessed.
➥Lights green when [DTMF-S] is activated—
DTMF signals can be transmitted using the key-
pad.
uFUNCTION KEY [FUNC] (p. 4)
iDTMF MEMORY SELECT KEY [DTMF-S] (p. 37)
oFUNCTION KEYS [F-1] or [F-2] (p. 51)
Program and re-call your desired transceiver setting.
!0 BANK/OPTION KEY [BANK/OPTION]
➥Push to select the memory bank option, when in
the memory mode. (p. 24)
➥Hold down for 1 second to enter the Option Set
mode.
!1 MEMORY/CALL KEY [MR/CALL]
➥Push to select the memory mode. (p. 18)
➥Hold down for 1 second to select the Call channel.
(p. 27)
e
w
q
■Rear panel
q
e
r
t
Mic element
y
u
i
o
!0
!1
w

Previous view
4
1PANEL DESCRIPTION
■Microphone keypad
KEY FUNCTION SECONDARY FUNCTION ( +key) OTHER FUNCTION
Opens and closes the squelch. (p. 8) Turns the channel names or number display ON
or OFF, in the memory mode. (p. 21)
After pushing [DTMF-S] , transmits
the appropriate DTMF code. (pp. 14, 37)
When the DTMF memory encoder is
activated, push [A] to [D], [M], [#], [0]
to [9], to transmit the appropriate DTMF
memory contents. (p. 37)
Starts and stops scanning. (p. 30) Starts and stops tone scanning. (p. 42)
Starts and stops priority watch. (p. 35) Turns the One-Touch PTT function ON or OFF.
(p. 11)
Selects high output power. (p. 11) Turns ON the DTCS squelch. (p. 41)
Selects mid output power. (p. 11) Turns ON the DTCS pocket beep function. (p. 39)
Selects low output power. (p. 11) Turns ON the DTMF memory encoder function.
(p. 37)
Selects the minus duplex mode. (p. 12) Turns ON the subaudible tone encoder. (p. 13)
Selects the plus duplex mode. (p. 12) Turns ON the CTCSS pocket beep function.
(p. 39)
Selects the simplex mode. (p. 12) Turns ON the Tone Squelch function. (p. 41)
Adjusts the audio level. (p. 8) Sends a 1750 Hz tone signal while held down.
(p. 14)
➥ Cancels frequency entry. (p. 5)
➥Cancels the scan or priority watch.
(pp. 30, 35)
➥ Exit the Set mode. (p. 43)
➥Selects a memory channel programming mode.
(p. 17)
➥Advances the memory channel number when
continuously held down after programming is
completed. (p. 17)
➥Enters the Set mode. (p. 43)
➥Selects the next item in the Set mode.
(p. 43)
Turns OFF the DTMF memory mode. (p. 37)
➥Sets the keypad for numeral input.
(p. 5)
➥Selects the previous item in the Set
mode. (p. 43)
Turns OFF the subaudible tone encoder, pocket
beep or CTCSS/DTCS tone squelch. (pp. 13, 39,
41)
Adjusts the squelch level. (p. 8) Mutes the audio. (p. 9)
• The Mute function is released when any opera-
tion is performed.
Adjusts the audio level. (p. 8) Sends a 1750 Hz tone signal for 1 second. (p. 14)
Adjusts the squelch level. (p. 8) Locks the digit keys on the keypad (including the
[A] to [D], [#] and [M]keys). (p. 7)
• Lights orange while the Microphone Keypad
Lock function is activated.

Previous view
5
SETTING A FREQUENCY
2
Preparation■
D Turning power ON/OFF
➥Hold down [ ] for 1 second to turn the power ON
or OFF.
D VFO mode selection
The IC-2300H has 2 basic operating modes;VFO mode
and memory mode.
➥Push [V/MHz] to select the VFO mode.
•Push [M/CALL] to select the memory mode.
Using the HM-133V
➥Push [VFO] to select the VFO mode.
Using the dial■
➥Rotate [DIAL] to set the frequency.
• If necessary, push [V/MHz] to select the VFO
mode.
• The frequency changes according to the selected
tuning step. (p. 6)
• Push [V/MHz] several times, to toggle the frequen-
cy step between 1 MHz and 10 MHz, if desired.
If the scan starts:
• Holding down [SCAN] (V/MHz) for 1 second will start
a scan. Push [V/MHz] again to cancel it.
zIf necessary, push [VFO] to select the VFO
mode.
xPush [ENT] to activate the keypad for numerical
input.
cPush 6 keys to input the frequency.
• When a digit is mistakenly input, push [ENT]
to clear the input, and then re-enter from the 1st
digit.
• Push [CLR] to clear the input digits and recall
the previous frequency.
➥Push [Y]or [Z]to select the desired frequency.
• Holding down [Y]or [Z]for 1 second activates a
scan. If a scan has started, push [Y]or [Z]again
or push [CLR] to cancel it.
Hold down [ ] for 1 second.
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
Push [V/MHz]
to select the VFO mode.
VFO mode
Push [M/CALL]
to select the memory mode.
Memory mode
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
Rotate [DIAL] to set the frequency.
In the VFO mode
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
The 1 MHz tuning step is selected
Push [V/MHz] to toggle the tuning step.
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
[EXAMPLE]: Setting the frequency to 145.3625 MHz.
Push
Push
Push
Push
Using the keypad on the HM-133V■
Using■[Y]or [Z] on the HM-133V

Previous view
6
■Tuning step selection
The tuning step is the smallest selectable frequency
increment you can set the operating frequency. The fol-
lowing tuning steps are selectable.
• 5 kHz• 6.25 kHz• 10 kHz• 12.5 kHz• 15 kHz
• 20 kHz• 25 kHz• 30 kHz• 50 kHz
NOTE: For convenience, select the tuning step that
matches the frequency intervals of the repeaters in
your area.
qIf necessary, push [V/MHz] to select the VFO mode.
wPush [SET] to enter the Set mode.
ePush [SET] or [MONI] several times, until “TS” ap-
pears, as shown to the right.
rRotate [DIAL] to select the desired tuning step.
tPush any key, other than [SET] or [MONI], to save
the entry and exit the Set mode.
Using the HM-133V
zIf necessary, push [VFO] to select the VFO
mode.
xPush [SET] to enter the Set mode.
cPush [SET] or [ENT] several times until “TS”
appears.
vPush [Y]or [Z]to select the desired tuning step.
bPush [CLR] to save the entry and exit the Set
mode.
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
15 kHz tuning step
2SETTING A FREQUENCY

Previous view
7
2SETTING A FREQUENCY
■Lock functions
Use the Lock function to prevent accidental channel
changes and unnecessary function access. The IC-
2300H has two different lock functions.
D Lock function
This function electronically locks [DIAL] and the key-
pad. This function can be used together with the Micro-
phone Lock function.
➥Hold down [LOCK] (SET) for 1 second to turn the
Lock function ON or OFF.
• [PTT], [MONI], [VOL] and [SQL] can be used,
even while the Frequency Lock function is ON.
TONE-1, TONE-2, DTMF tones or DTMF memory
contents can also be transmitted from the micro-
phone.
Using the HM-133V
➥Hold down [LOCK] for 1 second to turn the Lock
function ON or OFF.
D Microphone Keypad Lock
This function electronically locks the microphone key-
pad.
➥Push [FUNC] then [16KEY-L] to turn the Mi-
crophone Keypad Lock function ON or OFF.
• The activity indicator lights orange, while the Micro-
phone Keypad Lock function is activated.
• [PTT], [VFO/LOCK] , [MR/CALL] ,
[BANK/OPTION] , [Y], [Z], [F-1] , [F-2] ,
[DTMF-S] and [FUNC] on the microphone
can be used.
• All keys on the transceiver can be used.
• When the transceiver's power is turned OFF, the
Keypad Lock function is also turned ON.
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
Appears
Hold down [LOCK] (SET) for 1 second.
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
Appears
Hold down for 1 second.
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
Push , then .

Previous view
8
BASIC OPERATION
3
■Receiving
qHold down [ ] for 1 second to turn ON the power.
wRotate [VOL] to adjust the audio level.
➥Push [MONI] to open the squelch, and then rotate
[VOL] to adjust the audio level.
eSet the squelch level.
➥First, rotate [SQL] fully counterclockwise, and
then rotate [SQL] clockwise until the noise just
disappears.
rSet the operating frequency. (p. 5)
tWhen you receive a signal, the squelch opens and
audio can be heard.
• The “BUSY” icon appears, and the S/RF indicator
shows the relative strength of the received signal.
Using the HM-133V
The audio level can also be adjusted by pushing
[VOLY] or [VOLZ] .
The squelch level can also be adjusted by pushing
[SQLY] or [SQLZ] .
■Monitor function
This function is used to listen to weak signals without
disturbing the squelch setting, or to manually open the
squelch, even when the tone squelch is in use.
➥Push [MONI] to open the squelch.
• The “BUSY” icon blinks.
• Push [MONI] again to cancel the function.
Using the HM-133V
➥Push [MONI] to open the squelch.
• Push [MONI] again to cancel the function.
NOTE: When the squelch adjustment is set to too far
clockwise (12–17 o’clock position), the S-meter
squelch or squelch attenuator is activated. To moni-
tor weak signals, deactivate the S-meter squelch or
squelch attenuator function. See page 9 for details.
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
Push [MONI] to open the squelch.
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
Push to open the squelch.
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
Audio level
Push / to adjust the audio level.
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
Squelch level
Push / to adjust the squelch level.
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
Appears when receiving a signal.

Previous view
9
■Audio mute function
This function temporarily mutes the audio without dis-
turbing the volume setting.
➥ Push [FUNC] then [MUTE] to mute the au-
dio.
• The “MUTE” icon appears.
• Push [CLR] to cancel the function.
■Squelch attenuator
The transceiver has an RF attenuator related to the
squelch level setting. Approximately 20 dB of attenua-
tion is obtained at the maximum setting.
Turn ON the Squelch Attenuator function:
qPush [ ] to turn OFF the power.
wWhile holding down [LOCK] (SET), hold down [ ] for
1 second to turn ON the power and enter the Initial
Set mode.
ePush [SET] or [MONI] several times, to select the
“SQL” item.
rRotate [DIAL] to select “AT” (Attenuator).
tPush [ ] to exit the Initial Set mode.
yRotate [SQL] clockwise further than the 12 o’clock
position, to activate the squelch attenuator.
• The attenuation level can be adjusted up to 20 dB
(approximately), between the 12 o’clock and fully
clockwise positions.
• When setting the squelch from the microphone, the
level greater than ‘17’ activates the squelch attenuator.
NOTE: When using with the Monitor function.
The squelch attenuator functions even when the
Monitor function is in use. It is recommended to set
[SQL] between 10 and 12 o’clock (7 to 17 level when
it is set using the HM-133V).
■S-meter squelch
The transceiver has an S-meter squelch. The S-meter
squelch allows you to set minimum signal level needed
to open the squelch.
Turn ON the S-meter Squelch function:
qPush [ ] to turn OFF the power.
wWhile holding down [LOCK] (SET), hold down [ ] for
1 second to turn ON the power and enter the Initial
Set mode.
ePush [SET] or [MONI] several times, to select the
“SQL” item.
rRotate [DIAL] to select “SS” (S-meter squelch).
tPush [ ] to exit the Initial Set mode.
yRotate [SQL] clockwise further than the 12 o’clock
position, to activate the S-meter squelch.
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO
MUTE
NAR
MID
LOW
Squelch attenuator
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
ATT AO
NAR
MID
LOW
While the squelch attenuator is turned ON.
([DIAL] is set between the 12 o’clock and fully clockwise positions.)
Appears
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
S SQL
NAR
MID
LOW
While the S-meter squelch is turned ON.
([DIAL] is set between the 12 o’clock and fully clockwise positions.)
Appears
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
Appears
Mute
Push then .
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO
MUTE
NAR
MID
LOW
S-meter squelch
3BASIC OPERATION
Using the HM-133V

Previous view
10
3BASIC OPERATION
■Transmitting
CAUTION: Transmitting without an antenna will dam-
age the transceiver.
NOTE: To prevent interference, listen on the channel
before transmitting by opening the squelch. To open
the squelch, rotate [DIAL] counterclockwise or push
[SQLZ] on the microphone.
qSet the operating frequency. (p. 5)
• Adjust the output power if desired. See page 11 for
the details.
wHold down [PTT] to transmit.
• The “$” icon appears.
• The S/RF indicator shows the output power level.
• The One-Touch PTT function can be used. See
page 11 for details.
e Speak into the microphone at your normal voice level.
• DO NOT hold the microphone too close to your mouth,
or speak too loudly. This may distort the signal.
rRelease [PTT] to receive.
LOCK
S E T
ANM
MONI
DUP
LOW
T-SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL PRIO AO
MUTE
NAR
MID
LOW
Output power level
Selected output power
Appears
IMPORTANT! (for 65 W transmission):
The IC-2300H has a built-in current detector circuit
which protects the power amplifier from excessive cur-
rent flow. When excessive current flow is detected, the
circuit automatically reduces the transmit output power
to approximately 25 watts.
The IC-2300H has a thermal detector circuit too, which
protects the power amplifier from excessive heat. As
the temperature increases, the circuit automatically re-
duces the transmit output power to approximately 10 to
20 watts.
