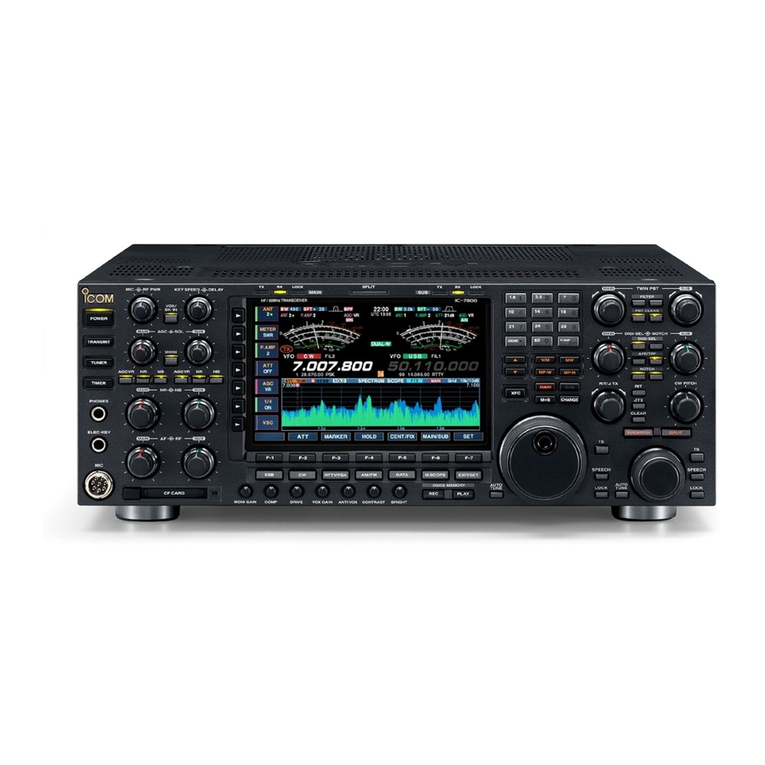

SERVICE MANUAL
ADDENDUM
CONTENTS
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
BOARD LAYOUTS . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
VOLTAGE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . 9
Nov. 2007

1
PARTS LIST
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
[MAIN UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
IC1 1110004080 S.IC uPC2709T-E3 T 191.6/111.2
IC101 1130013860 S.IC IS62C1024AL-35TL1u T 111.3/50.6
IC301 1110004080 S.IC uPC2709T-E3 T 133.1/22
IC501 1110005461 S.IC TA4107F (TE12L,F) T 45.3/90.3
IC901 1110005461 S.IC TA4107F (TE12L,F) T 33.3/78.2
IC1001 1130006221 S.IC TC4W53FU (TE12L,F) T 33.2/38.7
IC1002 1110005450 S.IC TS522IDT T 22.2/40.3
IC1051 1110005450 S.IC TS522IDT T 22/27
IC1101 1110005450 S.IC TS522IDT T 21/83.4
IC1201 1110005140 S.IC NJM3403AV-TE1u T 68.7/21.2
IC1301 1160000131 S.IC TD62783AFG (S,EL) T 81.8/21.6
IC1302 1160000131 S.IC TD62783AFG (S,EL) T 140.7/94.2
IC1501 1180000421 S.IC TA78L05F (TE12R,F) T 74.9/105.9
IC1502 1180002010 S.REG BA08FP-E2 T 52.4/108.6
IC1551 1110001401 S.IC uPC1555G2-E1-A T 9.6/96.4
IC1601 1110003091 IC LA4425A-E
IC1602 1130006221 S.IC TC4W53FU (TE12L,F) T 10.4/79.6
IC1651 1110005450 S.IC TS522IDT T 21.9/71.7
IC1702 1110005450 S.IC TS522IDT T 21.9/58.3
IC1703 1130006221 S.IC TC4W53FU (TE12L,F) T 32.4/65.6
IC2001 1130008230 S.IC BU4053BCFV-E2 T 33.9/16.7
IC3101 1180000421 S.IC TA78L05F (TE12R,F) T 130.4/4.8
IC3201 1130005721 S.IC TC7W04F (TE12L,F) T 104.2/26.6
IC3301 1130011141 S.IC CAT24WC256X-1.8-T13 T 81.4/70
IC3302 1110006271 S.IC S-80842CNMC-B83-T2G T 60.8/55.9
IC3303 1140011616 S.IC M30624FGAFP T 94.7/50.3
IC3304 1130006441 S.IC TC7S08F (TE85R,F) T 60.8/59.3
IC3601 1130007700 S.IC BU4094BCF-E2 T 103/19.3
IC3602 1130007700 S.IC BU4094BCF-E2 T 70.8/38.3
IC3603 1130007700 S.IC BU4094BCF-E2 T 54.1/33.7
IC3604 1130007700 S.IC BU4094BCF-E2 T 144/72.6
IC3606 1110003690 S.IC M62354GP 75EC T 60.8/47.3
IC3607 1130011831 S.IC TC7SZ32FU (TE85L,F) T 102.9/36
IC3608 1120002790 S.IC TC74AC574FT (EL) T 68.7/75
Q51 1530003091 S.TR 2SC4213-B (TE85R,F) T 160.5/105.6
Q101 1590001960 S.TR XP4311 (TX) T 150.5/45.8
Q102 1530003851 S.TR 2SC5551F-TD-E T 163/63.2
Q103 1530003851 S.TR 2SC5551F-TD-E T 160.1/49.4
Q104 1530002691 S.TR 2SC4116-GR (TE85R,F) T 147.8/49.9
Q105 1590000680 S.TR DTC114EUA T106 T 145.4/47.4
Q106 1590001330 S.TR DTA114EUA T106 T 147.6/45.8
Q201 1560001311 S.FET MMBFU310LT1G T 185.1/46.4
Q202 1560001311 S.FET MMBFU310LT1G T 178.7/46.4
Q203 1580000620 S.FET 3SK131-T2 MAS T 156.8/25.9
Q204 1560001311 S.FET MMBFU310LT1G T 175.5/46.4
Q205 1560001311 S.FET MMBFU310LT1G T 181.8/46.4
Q401 1580000620 S.FET 3SK131-T2 MAS T 129.1/81.6
Q501 1580000620 S.FET 3SK131-T2 MAS T 71/95.4
Q601 1530003851 S.TR 2SC5551F-TD-E T 208.9/48.1
Q701 1580000620 S.FET 3SK131-T2 MAS T 202.6/45.9
Q702 1580000620 S.FET 3SK131-T2 MAS T 208.6/18.1
Q703 1580000620 S.FET 3SK131-T2 MAS T 203.1/18.1
Q801 1580000620 S.FET 3SK131-T2 MAS T 109.5/78.7
Q1203 1510000771 S.TR 2SA1586-GR (TE85L,F) T 49.8/16.4
Q1204 1510000771 S.TR 2SA1586-GR (TE85L,F) T 61.6/24.4
Q1205 1530003091 S.TR 2SC4213-B (TE85R,F) T 61.6/20.5
Q1206 1530003091 S.TR 2SC4213-B (TE85R,F) T 72.1/9.9
Q1207 1510000771 S.TR 2SA1586-GR (TE85L,F) T 61.8/29.6
Q1501 1540000441 S.TR 2SD1619T-TD-E T 33.6/92.2
Q1502 1540000441 S.TR 2SD1619T-TD-E T 34.8/102.3
Q1503 1590000680 S.TR DTC114EUA T106 T 37.3/95.6
Q1504 1590000680 S.TR DTC114EUA T106 T 38.5/105.1
Q1505 1540000441 S.TR 2SD1619T-TD-E T 145.2/109.8
Q1506 1590000680 S.TR DTC114EUA T106 T 78.4/74.2
Q1507 1560001260 S.FET 2SK3018 T106 T 73.6/100.2
Q1801 1540000441 S.TR 2SD1619T-TD-E T 150.1/15.3
Q1802 1590000680 S.TR DTC114EUA T106 T 156.8/17.3
Q3031 1530002691 S.TR 2SC4116-GR (TE85R,F) T 116.8/32.7
Q3301 1530002691 S.TR 2SC4116-GR (TE85R,F) T 70.3/55.8
Q3302 1590000680 S.TR DTC114EUA T106 T 98.6/31.7
Q3601 1510000771 S.TR 2SA1586-GR (TE85L,F) T 100.4/104.4
Q3602 1590000680 S.TR DTC114EUA T106 T 103.7/109
Q3603 1590000680 S.TR DTC114EUA T106 T 96.2/107.8
Q3605 1590000680 S.TR DTC114EUA T106 T 111/107.6
Q3606 1590000680 S.TR DTC114EUA T106 T 100.9/107
Q3801 1510000771 S.TR 2SA1586-GR (TE85L,F) T 63.5/62.3
Q3802 1590000680 S.TR DTC114EUA T106 T 59.7/62.6
D51 1750001360 S.DIO L709CER (9401) T 160.3/110.5
D52 1750001360 S.DIO L709CER (9401) T 163/110.5
D53 1750000581 S.DIO 1SV307 (TPH3,F) T 184.4/107
D54 1750000581 S.DIO 1SV307 (TPH3,F) T 177.4/105.9
D101 1750000581 S.DIO 1SV307 (TPH3,F) T 155.2/102.8
D102 1750000581 S.DIO 1SV307 (TPH3,F) T 157.7/101.7
D103 1750000581 S.DIO 1SV307 (TPH3,F) T 168.9/98.5
D104 1750000581 S.DIO 1SV307 (TPH3,F) T 179.5/102.5
D105 1750000581 S.DIO 1SV307 (TPH3,F) T 185.9/102.5
D106 1750000581 S.DIO 1SV307 (TPH3,F) T 193.5/102.5
D107 1750000581 S.DIO 1SV307 (TPH3,F) T 200.9/102.5
D108 1750000581 S.DIO 1SV307 (TPH3,F) T 208.1/102.5
D109 1750000581 S.DIO 1SV307 (TPH3,F) T 216.2/102.5
D110 1750000581 S.DIO 1SV307 (TPH3,F) T 151.8/72.8
D111 1750000581 S.DIO 1SV307 (TPH3,F) T 159.8/72.8
D112 1750000581 S.DIO 1SV307 (TPH3,F) T 169.2/72.8
D113 1750000581 S.DIO 1SV307 (TPH3,F) T 172.1/72.8
S.=Surface mount
[MAIN UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
D114 1750000581 S.DIO 1SV307 (TPH3,F) T 181.2/71.6
D115 1750000581 S.DIO 1SV307 (TPH3,F) T 189.2/71.3
D116 1750000581 S.DIO 1SV307 (TPH3,F) T 201.5/72.8
D117 1750000581 S.DIO 1SV307 (TPH3,F) T 209.5/72.8
D118 1750000581 S.DIO 1SV307 (TPH3,F) T 218/72.8
D119 1750000581 S.DIO 1SV307 (TPH3,F) T 157.6/66.2
D120 1750000581 S.DIO 1SV307 (TPH3,F) T 154.3/66.2
D121 1730002300 S.ZEN MA8082-M (TX) T 169.9/47.6
D122 1750000581 S.DIO 1SV307 (TPH3,F) T 168.5/65.8
D123 1750000581 S.DIO 1SV307 (TPH3,F) T 171.2/66.3
D125 1790001250 S.DIO MA2S111-(TX) T 64.8/25.1
D127 1790001250 S.DIO MA2S111-(TX) T 43.6/27.4
D128 1790001250 S.DIO MA2S111-(TX) T 48.1/19.5
D129 1790001250 S.DIO MA2S111-(TX) T 74.1/16.8
D130 1790001250 S.DIO MA2S111-(TX) T 72.8/25
D131 1790001250 S.DIO MA2S111-(TX) T 65.6/12.7
D132 1750000581 S.DIO 1SV307 (TPH3,F) T 75.8/89.9
D133 1750000581 S.DIO 1SV307 (TPH3,F) T 87.6/88.5
D134 1790001250 S.DIO MA2S111-(TX) T 145.2/13.2
D135 1790001240 S.DIO MA2S728-(TX) T 23.4/80
D201 1750000581 S.DIO 1SV307 (TPH3,F) T 189.9/63.2
D202 1750000581 S.DIO 1SV307 (TPH3,F) T 191.8/63.2
D203 1750000581 S.DIO 1SV307 (TPH3,F) T 206.5/32.2
D204 1750000581 S.DIO 1SV307 (TPH3,F) T 187.1/31.4
D205 1750000581 S.DIO 1SV307 (TPH3,F) T 185.8/19
D206 1750000581 S.DIO 1SV307 (TPH3,F) T 164.5/33.4
D207 1750000581 S.DIO 1SV307 (TPH3,F) T 167/33.5
D301 1750000581 S.DIO 1SV307 (TPH3,F) T 143.3/35.6
D302 1750000581 S.DIO 1SV307 (TPH3,F) T 147.6/37.8
D303 1750000431 S.DIO HSB88WSTR-E T 133.6/42.8
D304 1750000581 S.DIO 1SV307 (TPH3,F) T 132.8/59.3
D305 1750000581 S.DIO 1SV307 (TPH3,F) T 131.3/56.8
D401 1750000581 S.DIO 1SV307 (TPH3,F) T 103.7/84.3
D403 1750000581 S.DIO 1SV307 (TPH3,F) T 100.6/77
D601 1750000581 S.DIO 1SV307 (TPH3,F) T 215.7/19.4
D901 1750000581 S.DIO 1SV307 (TPH3,F) T 37.2/79.4
D902 1750000581 S.DIO 1SV307 (TPH3,F) T 37.2/75.9
D1501 1790001670 S.DIO RB706F-40T106 T 31.9/97.7
D1502 1790001670 S.DIO RB706F-40T106 T 32.7/107.5
D1551 1730002320 S.ZEN MA8051-M (TX) T 17.5/103.4
D1552 1790001670 S.DIO RB706F-40T106 T 16.9/100.6
D1554 1730002280 S.ZEN MA8091-M (TX) T 4.3/101.1
D3001 1790001670 S.DIO RB706F-40T106 T 81.8/74.2
D3002 1790001670 S.DIO RB706F-40T106 T 95.2/29
D3003 1790001670 S.DIO RB706F-40T106 T 92.3/29.9
D3006 1790001670 S.DIO RB706F-40T106 T 93/90.3
D3007 1790001670 S.DIO RB706F-40T106 T 84.3/74.2
D3031 1790001250 S.DIO MA2S111-(TX) T 123.3/32.1
D3301 1790001250 S.DIO MA2S111-(TX) T 88.9/34.5
D3302 1790001250 S.DIO MA2S111-(TX) T 90.2/34.5
D3303 1790001250 S.DIO MA2S111-(TX) T 67/54.8
D3802 1790001250 S.DIO MA2S111-(TX) T 50.5/76.1
FI201 2010002580 S.FIL FL-348 (64.455 MHz) T 178.2/27.2
FI401 2020001960 CER CFWLB455KHFA-B0
FI402 2020001330 CER CFWLA455KHFA-B0
X3301 6050010501 S.XTL CR-636A (14.7456 MHz) T 79.7/44.4
X3302 6050011030 S.XTL DMX-26S 32.768KHZ T 77.1/55.4
L1 6200010670 S.COL C2520C-R18G-A (0.18U) T 200.1/108.7
L2 6200010740 S.COL C2520C-R27G-A T 196.5/107.2
L3 6200002861 S.COL NLV25T-4R7J T 194.5/111.2
L4 6200002041 S.COL NLV25T-101J T 184.4/111.8
L51 6180003550 COL SP0406-4R7K-6
L52 6200005011 S.COL NLV25T-100J T 166.3/103.1
L53 6180003540 COL SP0406-3R9K-6
L54 6200002041 S.COL NLV25T-101J T 149.2/107.4
L55 6200002041 S.COL NLV25T-101J T 181.5/111.4
L56 6200002041 S.COL NLV25T-101J T 189.5/107
L57 6200005491 S.COL NLV32T-331J T 172/111.7
L101 6180003540 COL SP0406-3R9K-6
L102 6180003490 COL SP0406-2R7K-6
L103 6200002041 S.COL NLV25T-101J T 155.8/99
L104 6180003400 COL SP0406-1R5K-6
L105 6200002041 S.COL NLV25T-101J T 166.4/97.2
L106 6180003390 COL SP0406-1R2K-6
L107 6200002041 S.COL NLV25T-101J T 180/99.2
L108 6180003480 COL SP0406-R82K-6
L109 6200002041 S.COL NLV25T-101J T 183.4/101.1
L110 6180003470 COL SP0406-R56K-6Z
L111 6200002041 S.COL NLV25T-101J T 189.9/101.1
L112 6180003370 COL SP0406-R68K-6Z
L113 6200002041 S.COL NLV25T-101J T 197.2/101.1
L114 6180003340 COL SP0406-R33K-6Z
L115 6200002041 S.COL NLV25T-101J T 204.5/101.1
L116 6180003330 COL SP0406-R27K-6Z
L117 6200002041 S.COL NLV25T-101J T 212.6/101.1
L118 6180003550 COL SP0406-4R7K-6
L119 6180003570 COL SP0406-3R3K-6
L120 6180003410 COL SP0406-2R2K-6
L121 6180003400 COL SP0406-1R5K-6
L122 6180003380 COL SP0406-1ROK-6
L123 6180003370 COL SP0406-R68K-6Z
L124 6180003360 COL SP0406-R47K-6Z
L125 6180003350 COL SP0406-R39K-6Z
L126 6180003330 COL SP0406-R27K-6Z
L127 6180003570 COL SP0406-3R3K-6
Nov. 2007

2
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
[MAIN UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
L128 6180003410 COL SP0406-2R2K-6
L129 6180003370 COL SP0406-R68K-6Z
L130 6180003360 COL SP0406-R47K-6Z
L131 6180003340 COL SP0406-R33K-6Z
L132 6180003330 COL SP0406-R27K-6Z
L133 6200002041 S.COL NLV25T-101J T 157.3/74.4
L134 6180003400 COL SP0406-1R5K-6
L135 6180003380 COL SP0406-1ROK-6
L136 6180003480 COL SP0406-R82K-6
L137 6180003470 COL SP0406-R56K-6Z
L138 6180003360 COL SP0406-R47K-6Z
L139 6180003340 COL SP0406-R33K-6Z
L140 6200002041 S.COL NLV25T-101J T 147.9/101.8
L141 6180003420 COL SP0406-1R8K-6
L142 6180003420 COL SP0406-1R8K-6
L143 6180003480 COL SP0406-R82K-6
L144 6200002041 S.COL NLV25T-101J T 180.4/68.2
L145 6200002041 S.COL NLV25T-101J T 150.1/69.3
L146 6200002041 S.COL NLV25T-101J T 151/66.5
L147 6200003221 S.COL NLV32T-151J T 152.8/59
L148 6140003800 COL LR-439
L149 6200009690 S.COL LQH43CN101K03L T 154/39.8
L150 6200002041 S.COL NLV25T-101J T 162.7/67.9
L151 6200009690 S.COL LQH43CN101K03L T 157/63.5
L152 6140004480 COL LR-508
L153 6140004480 COL LR-508
L154 6200002041 S.COL NLV25T-101J T 166.1/67.7
L155 6140003800 COL LR-439
L156 6200009690 S.COL LQH43CN101K03L T 167.9/42.7
L157 6200003221 S.COL NLV32T-151J T 168.8/60.1
L201 6200002041 S.COL NLV25T-101J T 199/62.4
L202 6200010740 S.COL C2520C-R27G-A T 190.3/57.3
L203 6200010740 S.COL C2520C-R27G-A T 186.4/59.1
L204 6140003620 COL LR-403
L206 6130002961 S.COL #617DB-1327=P3 T 190.5/44.3
L207 6150005130 COL LS-541
L208 6150004280 COL LS-484B (C-14927)
L209 6150004280 COL LS-484B (C-14927)
L210 6150004270 COL LS-483A (C-14924)
L211 6150004280 COL LS-484B (C-14927)
L212 6200010680 S.COL C2520C-R22G-A (0.22U) T 175.3/41.3
L213 6200010680 S.COL C2520C-R22G-A (0.22U) T 189/49.4
L214 6200002041 S.COL NLV25T-101J T 184.3/62.6
L215 6200010760 S.COL C2520C-27NG-A T 175.4/36.3
L216 6200003281 S.COL NLV25T-2R2J T 193.7/24.5
L217 6200003281 S.COL NLV25T-2R2J T 190.4/35.5
L301 6200010440 S.COL C2520C-1R2G-A (1.2U) T 142.5/49.6
L302 6200010440 S.COL C2520C-1R2G-A (1.2U) T 135.5/50.9
L303 6140002810 S.COL LR-317 T 133.8/34.8
L304 6140003530 COL LR-395
L305 6200005011 S.COL NLV25T-100J T 135.9/54.1
L306 6200009871 S.COL NLV25T-120J T 135/57
L307 6200003281 S.COL NLV25T-2R2J T 133.1/25
L308 6200002181 S.COL NLV25T-R12J T 135.6/29
L401 6150005140 COL LS-542
L403 6150002291 COL LS-450
L404 6150005140 COL LS-542
L405 6150005140 COL LS-542
L406 6200003520 S.COL ELJFB 102K-F T 104.6/79.4
L502 6200003520 S.COL ELJFB 102K-F T 67.6/91.7
L504 6200002041 S.COL NLV25T-101J T 47.2/94.9
L505 6200002041 S.COL NLV25T-101J T 44.4/93.2
L506 6200003520 S.COL ELJFB 102K-F T 40.8/93.9
L601 6200005011 S.COL NLV25T-100J T 215.2/55.8
L602 6200010730 S.COL C2520C-68NG-A T 214.6/28
L603 6200010730 S.COL C2520C-68NG-A T 215/33.2
L604 6200010720 S.COL C2520C-56NG-A T 209.7/36.3
L605 6200005011 S.COL NLV25T-100J T 215.3/48.8
L606 6140003820 COL LR-441
L701 6140002810 S.COL LR-317 T 202.5/52.6
L702 6200010780 S.COL C2520C-1R0G-A T 202.9/37.8
L703 6200010770 S.COL C2520C-R68G-A T 201.5/31.9
L704 6200002041 S.COL NLV25T-101J T 200/18
L705 6200002041 S.COL NLV25T-101J T 189.2/19.9
L706 6150004270 COL LS-483A (C-14924)
L707 6140002810 S.COL LR-317 T 208.9/13.7
L801 6150004440 COL LS-495
L901 6200002041 S.COL NLV25T-101J T 39/83.6
L902 6200002041 S.COL NLV25T-101J T 33.9/86.1
L903 6200002041 S.COL NLV25T-101J T 36.2/82.8
L904 6180003630 COL EL0607SKI-102J
L1302 6200005491 S.COL NLV32T-331J T 115.2/96.3
L1551 6180003630 COL EL0607SKI-102J
L1552 6180003630 COL EL0607SKI-102J
L1601 6170000140 COL LW-15
L1801 6200003950 S.COL HF50ACC 322513-T T 146.9/10.7
L1802 6200003950 S.COL HF50ACC 322513-T T 172.5/7.8
L1803 6200002041 S.COL NLV25T-101J T 146.9/5.4
L1804 6200002041 S.COL NLV25T-101J T 166.4/14.1
L1805 6200002041 S.COL NLV25T-101J T 163.9/17.2
L1901 6200002041 S.COL NLV25T-101J T 123.2/112
L1902 6200002041 S.COL NLV25T-101J T 127.5/107
L1903 6200002041 S.COL NLV25T-101J T 141.5/107.1
L1904 6200003950 S.COL HF50ACC 322513-T T 124.4/106.2
L1905 6200002041 S.COL NLV25T-101J T 95.9/92.8
L1906 6140002220 COL LR-270 (TR6X3X2 3A9)
L1907 6200003950 S.COL HF50ACC 322513-T T 18.5/5.7
L1908 6200003950 S.COL HF50ACC 322513-T T 120.5/102.3
L1909 6200005011 S.COL NLV25T-100J T 109.7/111.4
L1911 6200003261 S.COL NLV32T-101J T 135.7/106.2
L1912 6200003261 S.COL NLV32T-101J T 99.5/111.1
L1916 6200003261 S.COL NLV32T-101J T 116.7/111.1
L1917 6200003261 S.COL NLV32T-101J T 128/101.3
L2051 6200003950 S.COL HF50ACC 322513-T T 56.5/14.1
S.=Surface mount
[MAIN UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
L2052 6200002041 S.COL NLV25T-101J T 46/12.6
L2053 6200002041 S.COL NLV25T-101J T 44.6/9.5
L2054 6200003950 S.COL HF50ACC 322513-T T 51.6/12.6
L2055 6180003620 COL ELC09D 102F 1M
L3301 6200001831 S.COL NLV32T-100J T 120.8/12.5
L3601 6200003950 S.COL HF50ACC 322513-T T 101/9.2
L3602 6200003950 S.COL HF50ACC 322513-T T 101/3.7
R1 7030003230 S.RES ERJ3GEYJ 180 V (18) T 202.9/107.2
R2 7030003370 S.RES ERJ3GEYJ 271 V (270) T 202.9/111.5
R3 7030003370 S.RES ERJ3GEYJ 271 V (270) T 201.6/111.5
R4 7030003320 S.RES ERJ3GEYJ 101 V (100) T 193/106.5
R5 7030003230 S.RES ERJ3GEYJ 180 V (18) T 187.4/111.2
R6 7030003370 S.RES ERJ3GEYJ 271 V (270) T 189.2/111.8
R7 7030003370 S.RES ERJ3GEYJ 271 V (270) T 187.4/112.5
R51 7030003370 S.RES ERJ3GEYJ 271 V (270) T 182.3/109.2
R52 7030003370 S.RES ERJ3GEYJ 271 V (270) T 186.7/108.6
R53 7030003370 S.RES ERJ3GEYJ 271 V (270) T 187.4/106.8
R54 7030003430 S.RES ERJ3GEYJ 821 V (820) T 168.7/102
R56 7030003360 S.RES ERJ3GEYJ 221 V (220) T 180.4/107.1
R57 7030003370 S.RES ERJ3GEYJ 271 V (270) T 182.3/107.9
R58 7030003370 S.RES ERJ3GEYJ 271 V (270) T 185.9/106.8
R59 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 164/106.9
R60 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 160.6/107.6
R61 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 151.1/107.6
R101 7030003370 S.RES ERJ3GEYJ 271 V (270) T 154.3/75.3
R102 7030003370 S.RES ERJ3GEYJ 271 V (270) T 161.3/77.1
R103 7030003370 S.RES ERJ3GEYJ 271 V (270) T 168.4/79.3
R104 7030003370 S.RES ERJ3GEYJ 271 V (270) T 175.3/73.7
R105 7030003370 S.RES ERJ3GEYJ 271 V (270) T 185/78.4
R106 7030003370 S.RES ERJ3GEYJ 271 V (270) T 197.5/81.2
R107 7030003370 S.RES ERJ3GEYJ 271 V (270) T 206.7/72.7
R108 7030003370 S.RES ERJ3GEYJ 271 V (270) T 214.5/72.7
R109 7030003370 S.RES ERJ3GEYJ 271 V (270) T 152/80.4
R110 7030003370 S.RES ERJ3GEYJ 271 V (270) T 173.8/67.8
R111 7030003370 S.RES ERJ3GEYJ 271 V (270) T 155.1/70
R112 7030003370 S.RES ERJ3GEYJ 271 V (270) T 156.6/67.8
R113 7030003370 S.RES ERJ3GEYJ 271 V (270) T 152.5/46.4
R114 7030003280 S.RES ERJ3GEYJ 470 V (47) T 150.1/41.7
R115 7030003280 S.RES ERJ3GEYJ 470 V (47) T 155.5/60.5
R116 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 168.6/62.9
R117 7030003490 S.RES ERJ3GEYJ 272 V (2.7 k) T 167.2/62.9
R118 7030003490 S.RES ERJ3GEYJ 272 V (2.7 k) T 156.5/43.1
R119 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 156.1/46.6
R120 7030003390 S.RES ERJ3GEYJ 391 V (390) T 168.3/38.7
R121 7030003370 S.RES ERJ3GEYJ 271 V (270) T 167.1/47.3
R122 7030003370 S.RES ERJ3GEYJ 271 V (270) T 163.2/69.8
R123 7030003380 S.RES ERJ3GEYJ 331 V (330) T 147.9/52.7
R124 7030003370 S.RES ERJ3GEYJ 271 V (270) T 152.5/70
R125 7030003370 S.RES ERJ3GEYJ 271 V (270) T 154/67.8
R126 7030003370 S.RES ERJ3GEYJ 271 V (270) T 176.9/67.8
R127 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 160.6/69.8
R128 7030003380 S.RES ERJ3GEYJ 331 V (330) T 146/51.9
R129 7030003380 S.RES ERJ3GEYJ 331 V (330) T 145.9/49.9
R130 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 212.3/97.9
R131 7030003860 S.RES ERJ3GE JPW V T 148.5/43.5
R136 7030003280 S.RES ERJ3GEYJ 470 V (47) T 162.8/60
R137 7030003280 S.RES ERJ3GEYJ 470 V (47) T 161.1/46.2
R138 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 151.8/43.5
R201 7030003370 S.RES ERJ3GEYJ 271 V (270) T 195.6/63.5
R202 7030003370 S.RES ERJ3GEYJ 271 V (270) T 186.9/62.8
R203 7030004040 S.RES ERJ3GEYJ 4R7 V (4.7) T 189.7/37.4
R204 7030003410 S.RES ERJ3GEYJ 561 V (560) T 182.9/55.1
R205 7030003410 S.RES ERJ3GEYJ 561 V (560) T 181.5/55.1
R206 7030003410 S.RES ERJ3GEYJ 561 V (560) T 176.1/55
R207 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 205.4/29.7
R208 7030003280 S.RES ERJ3GEYJ 470 V (47) T 180.8/34.7
R209 7030003200 S.RES ERJ3GEYJ 100 V (10) T 159.3/27
R210 7030005691 S.RES ERA3YED 123V (12 k) T 161.2/23.4
R211 7030003470 S.RES ERJ3GEYJ 182 V (1.8 k) T 157.9/22.7
R212 7030003800 S.RES ERJ3GEYJ 105 V (1 M) T 154.3/28.7
R213 7030003300 S.RES ERJ3GEYJ 680 V (68) T 154.5/22.6
R214 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 153.8/25.6
R215 7030003200 S.RES ERJ3GEYJ 100 V (10) T 146.8/33.4
R216 7030003410 S.RES ERJ3GEYJ 561 V (560) T 178.7/55
R217 7310002720 S.TRI RV-148 (RH03A3AS3X0DA) 472 T 176.8/50.9
R218 7310002720 S.TRI RV-148 (RH03A3AS3X0DA) 472 T 183.5/50.9
R219 7030003320 S.RES ERJ3GEYJ 101 V (100) T 176.9/44
R220 7030003320 S.RES ERJ3GEYJ 101 V (100) T 188.4/51.8
R221 7030003370 S.RES ERJ3GEYJ 271 V (270) T 196.3/61.3
R222 7030003370 S.RES ERJ3GEYJ 271 V (270) T 190.4/31.4
R223 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 169.8/32.5
R224 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 153.6/33.7
R225 7030003370 S.RES ERJ3GEYJ 271 V (270) T 187.4/34.9
R226 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 186.9/16.7
R227 7030003370 S.RES ERJ3GEYJ 271 V (270) T 193.2/28.8
R228 7030003860 S.RES ERJ3GE JPW V T 182/58.6
R229 7030003860 S.RES ERJ3GE JPW V T 150.3/32.5
R231 7030000010 S.RES MCR10EZHJ JPW (000) T 186.8/37.2
R301 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 144.9/42.4
R302 7030003280 S.RES ERJ3GEYJ 470 V (47) T 142/47.2
R303 7030003320 S.RES ERJ3GEYJ 101 V (100) T 138/24.3
R307 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 136.9/59.3
R309 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 169.7/34.6
R310 7030003250 S.RES ERJ3GEYJ 270 V (27) T 139.5/17.8
R311 7030003370 S.RES ERJ3GEYJ 271 V (270) T 131.6/50.3
R312 7030003230 S.RES ERJ3GEYJ 180 V (18) T 132.4/48.1
R313 7030003370 S.RES ERJ3GEYJ 271 V (270) T 131.5/46.2
R314 7030003370 S.RES ERJ3GEYJ 271 V (270) T 137.8/17.1
R315 7030003230 S.RES ERJ3GEYJ 180 V (18) T 136.9/19.2
R316 7030003370 S.RES ERJ3GEYJ 271 V (270) T 136.4/17
R320 7030000010 S.RES MCR10EZHJ JPW (000) T 147.5/20.4
R323 7030000010 S.RES MCR10EZHJ JPW (000) T 138.9/32.1

3
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
[MAIN UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
R401 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 139.3/60.4
R404 7030005691 S.RES ERA3YED 123V (12 k) T 134.6/80.8
R405 7030003490 S.RES ERJ3GEYJ 272 V (2.7 k) T 132.7/80
R406 7030003760 S.RES ERJ3GEYJ 474 V (470 k) T 132.9/83.8
R407 7030003320 S.RES ERJ3GEYJ 101 V (100) T 126.2/81.3
R408 7030003360 S.RES ERJ3GEYJ 221 V (220) T 131/84.5
R409 7030003320 S.RES ERJ3GEYJ 101 V (100) T 132.3/85.8
R410 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 98/88.9
R413 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 81.5/89.2
R414 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 105.9/84.1
R415 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 64.1/98.5
R502 7030003690 S.RES ERJ3GEYJ 124 V (120 k) T 66.7/95.2
R503 7030003580 S.RES ERJ3GEYJ 153 V (15 k) T 68.6/96
R504 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 70.1/98.4
R505 7030003430 S.RES ERJ3GEYJ 821 V (820) T 73.9/93.3
R506 7030003400 S.RES ERJ3GEYJ 471 V (470) T 70.1/92.5
R507 7030003320 S.RES ERJ3GEYJ 101 V (100) T 61.5/97.5
R508 7510001461 S.TMR NTCG16 3NH 471JT T 73.9/94.6
R514 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 44.1/95.1
R515 7030005691 S.RES ERA3YED 123V (12 k) T 66.7/96.5
R601 7030007860 S.RES ERJ3GEYJ 8R2V (8.2) T 209.9/27.2
R602 7030003340 S.RES ERJ3GEYJ 151 V (150) T 209.9/28.6
R603 7030007860 S.RES ERJ3GEYJ 8R2V (8.2) T 211.8/29.4
R604 7030004040 S.RES ERJ3GEYJ 4R7 V (4.7) T 215/53.2
R605 7030003280 S.RES ERJ3GEYJ 470 V (47) T 207.9/41.7
R606 7030005280 S.RES ERJ3GEYJ 6R8V (6.8) T 207.9/44.9
R607 7030003420 S.RES ERJ3GEYJ 681 V (680) T 212.2/50.7
R608 7030003420 S.RES ERJ3GEYJ 681 V (680) T 209/51.5
R609 7030003390 S.RES ERJ3GEYJ 391 V (390) T 207.4/52.9
R610 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 206.8/29.2
R611 7030003230 S.RES ERJ3GEYJ 180 V (18) T 209.8/60.9
R612 7030003370 S.RES ERJ3GEYJ 271 V (270) T 207.9/60.1
R613 7030003370 S.RES ERJ3GEYJ 271 V (270) T 207.9/61.6
R701 7030003360 S.RES ERJ3GEYJ 221 V (220) T 203.3/48.3
R702 7030003410 S.RES ERJ3GEYJ 561 V (560) T 199.5/48.4
R703 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 205.3/42.9
R704 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 205.4/45.6
R705 7030003360 S.RES ERJ3GEYJ 221 V (220) T 199.4/42.7
R706 7030003320 S.RES ERJ3GEYJ 101 V (100) T 202.9/42
R707 7510001461 S.TMR NTCG16 3NH 471JT T 201.6/42
R708 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 211.1/18.4
R709 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 205.8/18.4
R710 7030003360 S.RES ERJ3GEYJ 221 V (220) T 200.1/20.5
R711 7030003400 S.RES ERJ3GEYJ 471 V (470) T 200.8/14.6
R712 7030003370 S.RES ERJ3GEYJ 271 V (270) T 189.6/12.6
R713 7030003300 S.RES ERJ3GEYJ 680 V (68) T 214.4/15.3
R714 7030003320 S.RES ERJ3GEYJ 101 V (100) T 213.4/12.9
R715 7030003230 S.RES ERJ3GEYJ 180 V (18) T 187/11.5
R716 7030003370 S.RES ERJ3GEYJ 271 V (270) T 186.4/12.8
R717 7030003320 S.RES ERJ3GEYJ 101 V (100) T 213.4/18.7
R718 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 215.7/15.3
R719 7030003280 S.RES ERJ3GEYJ 470 V (47) T 198.3/52
R720 7030003550 S.RES ERJ3GEYJ 822 V (8.2 k) T 200.8/12.7
R722 7510001461 S.TMR NTCG16 3NH 471JT T 199.5/45.5
R723 7030003860 S.RES ERJ3GE JPW V T 206.3/37.8
R801 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 111.9/78.5
R802 7030003240 S.RES ERJ3GEYJ 220 V (22) T 111.1/84.2
R803 7030003360 S.RES ERJ3GEYJ 221 V (220) T 110.5/81.1
R804 7030003400 S.RES ERJ3GEYJ 471 V (470) T 107.2/77
R813 7030003600 S.RES ERJ3GEYJ 223 V (22 k) T 107.9/81.5
R814 7030003700 S.RES ERJ3GEYJ 154 V (150 k) T 107.2/83.3
R901 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 35.7/79.5
R902 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 35.5/74.3
R903 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 38.8/79.7
R904 7030003280 S.RES ERJ3GEYJ 470 V (47) T 34.3/82.4
R910 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 33.5/84.2
R911 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 73.6/90.6
R1002 7030003400 S.RES ERJ3GEYJ 471 V (470) T 32.9/43.4
R1003 7030003400 S.RES ERJ3GEYJ 471 V (470) T 37.4/36.8
R1004 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 30.6/35.6
R1005 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 35.4/35.5
R1006 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 22.3/35.3
R1007 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 17.1/35.3
R1008 7030003320 S.RES ERJ3GEYJ 101 V (100) T 27.5/35.3
R1009 7030003320 S.RES ERJ3GEYJ 101 V (100) T 16.9/45.1
R1010 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 17.9/37.2
R1011 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 23.5/44.6
R1012 7030003860 S.RES ERJ3GE JPW V T 25.4/43.8
R1013 7030003860 S.RES ERJ3GE JPW V T 130.1/39.3
R1014 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 23.5/45.9
R1015 7030003650 S.RES ERJ3GEYJ 563 V (56 k) T 20.9/44.6
R1016 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 20.9/45.9
R1017 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 27.5/33.4
R1018 7030003320 S.RES ERJ3GEYJ 101 V (100) T 21.1/32
R1019 7030003860 S.RES ERJ3GE JPW V T 130.1/40.6
R1051 7030003320 S.RES ERJ3GEYJ 101 V (100) T 16.9/30.8
R1052 7030003320 S.RES ERJ3GEYJ 101 V (100) T 28.1/20.8
R1053 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 26.5/31.6
R1054 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 13.4/20.8
R1055 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 14.7/21.9
R1057 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 23.8/20.2
R1058 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 18.1/20.1
R1059 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 18.6/21.9
R1060 7030005871 S.RES ERA3YKD 104V (100 k) T 24.3/22
R1101 7030005871 S.RES ERA3YKD 104V (100 k) T 26.9/81.8
R1102 7030009591 S.RES ERA3YED 472V (4.7 k) T 26/80
R1105 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 20.8/80
R1107 7030003800 S.RES ERJ3GEYJ 105 V (1 M) T 25.6/81.8
R1109 7030003320 S.RES ERJ3GEYJ 101 V (100) T 23/86.8
R1110 7030003320 S.RES ERJ3GEYJ 101 V (100) T 16.4/80.7
R1111 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 26.9/84.4
R1113 7030003320 S.RES ERJ3GEYJ 101 V (100) T 25.6/84.4
R1201 7030003860 S.RES ERJ3GE JPW V T 62.9/13.7
R1202 7030003760 S.RES ERJ3GEYJ 474 V (470 k) T 69.7/6.4
S.=Surface mount
[MAIN UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
R1203 7030003760 S.RES ERJ3GEYJ 474 V (470 k) T 67.4/7.3
R1204 7030003860 S.RES ERJ3GE JPW V T 70.2/30.3
R1205 7030005871 S.RES ERA3YKD 104V (100 k) T 64.7/22.5
R1206 7030003760 S.RES ERJ3GEYJ 474 V (470 k) T 64.7/23.8
R1207 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 72.3/6.4
R1208 7030003610 S.RES ERJ3GEYJ 273 V (27 k) T 73.4/18.7
R1209 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 73.4/21.3
R1210 7030009591 S.RES ERA3YED 472V (4.7 k) T 71.5/30.3
R1211 7030005871 S.RES ERA3YKD 104V (100 k) T 69.2/12.4
R1212 7030003740 S.RES ERJ3GEYJ 334 V (330 k) T 46.2/27.5
R1213 7030005871 S.RES ERA3YKD 104V (100 k) T 70.9/28.4
R1214 7030003730 S.RES ERJ3GEYJ 274 V (270 k) T 67.6/29.1
R1215 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 71.6/15.5
R1216 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 71.6/14.2
R1217 7030003740 S.RES ERJ3GEYJ 334 V (330 k) T 69/14.2
R1218 7030003630 S.RES ERJ3GEYJ 393 V (39 k) T 68.9/29.1
R1219 7030003800 S.RES ERJ3GEYJ 105 V (1 M) T 66.4/16.6
R1220 7030003840 S.RES ERJ3GEYJ 225 V (2.2 M) T 71.6/16.8
R1221 7030003840 S.RES ERJ3GEYJ 225 V (2.2 M) T 70.9/25.8
R1222 7030003400 S.RES ERJ3GEYJ 471 V (470) T 65.9/15.3
R1223 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 48.1/18.2
R1224 7030003320 S.RES ERJ3GEYJ 101 V (100) T 72.1/19.5
R1225 7030003320 S.RES ERJ3GEYJ 101 V (100) T 67.7/25.8
R1226 7030003360 S.RES ERJ3GEYJ 221 V (220) T 46.5/16.3
R1228 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 61.5/22.4
R1230 7030003800 S.RES ERJ3GEYJ 105 V (1 M) T 65.6/10.9
R1232 7030003800 S.RES ERJ3GEYJ 105 V (1 M) T 45.5/18.2
R1233 7030003760 S.RES ERJ3GEYJ 474 V (470 k) T 64.7/21.2
R1234 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 61.8/26.4
R1235 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 63.3/27.7
R1236 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 59.6/28.5
R1237 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 63.8/29.7
R1238 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 65.6/29.3
R1240 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 69.7/7.7
R1301 7030008240 S.RES ERJ12Y0R00U T 145.5/83.7
R1303 7030003200 S.RES ERJ3GEYJ 100 V (10) T 87/14.4
R1304 7030003200 S.RES ERJ3GEYJ 100 V (10) T 85.7/14.4
R1305 7030003200 S.RES ERJ3GEYJ 100 V (10) T 84.4/14.4
R1306 7030003200 S.RES ERJ3GEYJ 100 V (10) T 83.1/14.4
R1307 7030003200 S.RES ERJ3GEYJ 100 V (10) T 81.8/14.4
R1308 7030003200 S.RES ERJ3GEYJ 100 V (10) T 80.5/14.4
R1309 7030004040 S.RES ERJ3GEYJ 4R7 V (4.7) T 74.6/27.1
R1310 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 147.9/98.8
R1311 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 155.5/97.1
R1312 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 163.9/96.5
R1313 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 181.5/96.7
R1314 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 182.4/98.6
R1315 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 190.1/97
R1316 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 196.9/97.5
R1317 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 204.2/97.5
R1318 7030004040 S.RES ERJ3GEYJ 4R7 V (4.7) T 147.5/78.4
R1319 7030008240 S.RES ERJ12Y0R00U T 132.1/95.9
R1501 7030008190 S.RES ERJ12YJ330U (33) T 79.9/110.2
R1502 7030004040 S.RES ERJ3GEYJ 4R7 V (4.7) T 37.3/93.7
R1503 7030004040 S.RES ERJ3GEYJ 4R7 V (4.7) T 38.5/102.2
R1504 7030003380 S.RES ERJ3GEYJ 331 V (330) T 33.8/96.1
R1505 7030003380 S.RES ERJ3GEYJ 331 V (330) T 34.8/106.2
R1506 7030003380 S.RES ERJ3GEYJ 331 V (330) T 145.8/105.9
R1507 7030003380 S.RES ERJ3GEYJ 331 V (330) T 34.5/98
R1508 7030004040 S.RES ERJ3GEYJ 4R7 V (4.7) T 147.2/105.9
R1509 7030003380 S.RES ERJ3GEYJ 331 V (330) T 35.1/96.1
R1510 7030003380 S.RES ERJ3GEYJ 331 V (330) T 35.6/108.1
R1511 7030003380 S.RES ERJ3GEYJ 331 V (330) T 36.3/106.2
R1512 7030003380 S.RES ERJ3GEYJ 331 V (330) T 144/106.6
R1513 7030003380 S.RES ERJ3GEYJ 331 V (330) T 144/105.3
R1514 7030010660 S.RES ERJ1TYJ 6R8U (6.8) T 64.1/111.4
R1515 7030003630 S.RES ERJ3GEYJ 393 V (39 k) T 96.7/95.1
R1516 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 95.4/97.3
R1551 7030006220 S.RES ERJ12YJ470U (47) T 20.3/102.2
R1553 7030006220 S.RES ERJ12YJ470U (47) T 3.8/98.3
R1555 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 7.3/101
R1556 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 9.1/101.8
R1601 7030003400 S.RES ERJ3GEYJ 471 V (470) T 17.2/8.6
R1602 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 6.2/79.7
R1603 7030009591 S.RES ERA3YED 472V (4.7 k) T 4.2/3.5
R1606 7030003400 S.RES ERJ3GEYJ 471 V (470) T 8.8/76.8
R1607 7030003400 S.RES ERJ3GEYJ 471 V (470) T 14.3/80.2
R1612 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 54.5/47.5
R1651 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 23.6/76.7
R1652 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 24.9/76.7
R1653 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 19.3/66.1
R1654 7030003860 S.RES ERJ3GE JPW V T 20.6/67.4
R1655 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 21.9/66.1
R1656 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 23.2/67.4
R1657 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 25/66.8
R1658 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 26.9/66.2
R1659 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 28.7/66.7
R1660 7030003320 S.RES ERJ3GEYJ 101 V (100) T 16.7/75.3
R1661 7030003320 S.RES ERJ3GEYJ 101 V (100) T 26.9/68.8
R1662 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 19.7/76.7
R1701 7030003860 S.RES ERJ3GE JPW V T 13.7/56.8
R1706 7030003580 S.RES ERJ3GEYJ 153 V (15 k) T 117.4/6.3
R1707 7030003380 S.RES ERJ3GEYJ 331 V (330) T 88.3/13.3
R1709 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 22.4/53.3
R1710 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 22.9/51.4
R1711 7030003320 S.RES ERJ3GEYJ 101 V (100) T 16.7/63.2
R1712 7030003320 S.RES ERJ3GEYJ 101 V (100) T 27/53.8
R1713 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 20.5/63.9
R1715 7030003550 S.RES ERJ3GEYJ 822 V (8.2 k) T 21.8/62.6
R1716 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 23.1/63.9
R1717 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 24.4/62.6
R1718 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 26.3/63.3
R1719 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 31.4/62.4
R1720 7030003400 S.RES ERJ3GEYJ 471 V (470) T 34.7/64.4

4
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
[MAIN UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
R1721 7030003400 S.RES ERJ3GEYJ 471 V (470) T 31.3/70.1
R1722 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 33.9/68.8
R1723 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 34.7/67
R1724 7030009591 S.RES ERA3YED 472V (4.7 k) T 118/4.5
R1801 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 153.6/14.5
R1802 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 155.2/14.6
R1803 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 156.7/14.5
R1804 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 160.6/15.1
R1805 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 142.1/20.4
R1902 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 137.9/107.5
R2001 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 31.9/11.3
R2002 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 33.2/11.3
R2003 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 44.8/21.2
R2004 7030003860 S.RES ERJ3GE JPW V T 45.7/14.5
R3001 7030003460 S.RES ERJ3GEYJ 152 V (1.5 k) T 96.6/73.6
R3002 7030003460 S.RES ERJ3GEYJ 152 V (1.5 k) T 90.1/74.1
R3003 7030003360 S.RES ERJ3GEYJ 221 V (220) T 53.1/66.8
R3004 7030003360 S.RES ERJ3GEYJ 221 V (220) T 55/67.5
R3006 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 101.8/31.6
R3007 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 88.4/70
R3008 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 90.5/70.1
R3009 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 91.8/70
R3010 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 94.9/90.1
R3011 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 96.2/70.1
R3012 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 54.5/50.1
R3013 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 56.3/67.5
R3014 7030003800 S.RES ERJ3GEYJ 105 V (1 M) T 52.6/49.8
R3015 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 57.6/67.5
R3016 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 60.4/32.3
R3017 7030003360 S.RES ERJ3GEYJ 221 V (220) T 67.4/60.3
R3019 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 120.4/71.9
R3020 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 118.7/73.6
R3021 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 63.9/60.3
R3023 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 90.3/25.3
R3024 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 89/25.3
R3025 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 94.8/31.9
R3026 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 92.1/32.5
R3031 7030003600 S.RES ERJ3GEYJ 223 V (22 k) T 116.7/30.8
R3032 7030009591 S.RES ERA3YED 472V (4.7 k) T 120.7/30.8
R3033 7030003580 S.RES ERJ3GEYJ 153 V (15 k) T 118.8/32.8
R3034 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 120.7/32.1
R3050 7030005691 S.RES ERA3YED 123V (12 k) T 83.9/77.6
R3051 7030009591 S.RES ERA3YED 472V (4.7 k) T 85.8/76.8
R3052 7030005871 S.RES ERA3YKD 104V (100 k) T 87.1/76.8
R3101 7030008190 S.RES ERJ12YJ330U (33) T 141.9/3.8
R3201 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 84.2/42.9
R3202 7030005871 S.RES ERA3YKD 104V (100 k) T 107.6/27.4
R3203 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 60.3/37.8
R3204 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 97.4/5.9
R3301 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 95.4/64.2
R3302 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 96.4/65.5
R3303 7030003650 S.RES ERJ3GEYJ 563 V (56 k) T 57.8/57.1
R3304 7030003650 S.RES ERJ3GEYJ 563 V (56 k) T 57.2/55.3
R3305 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 68.3/54.7
R3306 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 98.4/72
R3307 7030003360 S.RES ERJ3GEYJ 221 V (220) T 78.6/62
R3308 7030003360 S.RES ERJ3GEYJ 221 V (220) T 80.9/62.2
R3309 7030003360 S.RES ERJ3GEYJ 221 V (220) T 74.9/61.7
R3310 7030003360 S.RES ERJ3GEYJ 221 V (220) T 74.9/60.4
R3311 7030003360 S.RES ERJ3GEYJ 221 V (220) T 74.9/59.1
R3313 7030005871 S.RES ERA3YKD 104V (100 k) T 98.3/35.1
R3314 7030005871 S.RES ERA3YKD 104V (100 k) T 118.1/14
R3315 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 113.4/25.6
R3316 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 112.2/70.1
R3317 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 113.5/70.1
R3318 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 114.8/70.1
R3319 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 116.1/70.1
R3320 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 107/70.1
R3321 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 108.3/70.1
R3322 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 109.6/70.1
R3323 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 110.9/70.1
R3324 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 105.7/70.1
R3325 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 104.4/70.1
R3326 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 117.4/70.1
R3327 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 103.1/70.1
R3328 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 101.8/70.1
R3329 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 100.5/70.1
R3330 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 114.4/36.5
R3331 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 110.5/37.6
R3332 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 87.1/32.4
R3333 7030003360 S.RES ERJ3GEYJ 221 V (220) T 87.6/30.6
R3334 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 89/31.7
R3335 7030003360 S.RES ERJ3GEYJ 221 V (220) T 90.3/31.7
R3336 7030003360 S.RES ERJ3GEYJ 221 V (220) T 92.6/36.1
R3337 7030003360 S.RES ERJ3GEYJ 221 V (220) T 93.9/36.1
R3339 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 95.2/35.1
R3340 7030003360 S.RES ERJ3GEYJ 221 V (220) T 99.6/36
R3341 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 67.6/56.6
R3342 7030003760 S.RES ERJ3GEYJ 474 V (470 k) T 65.7/55.8
R3343 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 64.4/58.4
R3344 7030005871 S.RES ERA3YKD 104V (100 k) T 64.4/55.8
R3345 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 83/53.3
R3346 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 69.2/60.1
R3347 7030005871 S.RES ERA3YKD 104V (100 k) T 57.8/59.3
R3348 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 100.9/36
R3349 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 97/35.1
R3350 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 96.7/31.5
R3402 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 113.5/73.6
R3403 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 114.8/73.6
R3407 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 109.6/73.6
R3408 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 110.9/73.6
R3409 7030003560 S.RES ERJ3GEYJ 103 V (10 k)[OTH] only T 105.7/73.6
R3601 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 119.1/65.4
R3604 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 110.1/10.3
S.=Surface mount
[MAIN UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
R3605 7030003580 S.RES ERJ3GEYJ 153 V (15 k) T 104.6/14.8
R3606 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 107.1/11.5
R3608 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 89.5/29.8
R3609 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 48.2/34.4
R3610 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 46.7/33.1
R3611 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 48.2/31.8
R3613 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 119.1/41.5
R3614 7030003360 S.RES ERJ3GEYJ 221 V (220) T 119.1/58.4
R3615 7030003360 S.RES ERJ3GEYJ 221 V (220) T 119.1/55.8
R3616 7030003360 S.RES ERJ3GEYJ 221 V (220) T 119.1/62.8
R3617 7030003360 S.RES ERJ3GEYJ 221 V (220) T 119.1/57.1
R3618 7030003360 S.RES ERJ3GEYJ 221 V (220) T 119.1/37.6
R3619 7030003360 S.RES ERJ3GEYJ 221 V (220) T 119.1/48
R3620 7030003360 S.RES ERJ3GEYJ 221 V (220) T 119.1/51.9
R3621 7030003360 S.RES ERJ3GEYJ 221 V (220) T 119.1/50.6
R3622 7030003360 S.RES ERJ3GEYJ 221 V (220) T 119.1/49.3
R3623 7030003360 S.RES ERJ3GEYJ 221 V (220) T 119.1/44.1
R3625 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 119.1/59.7
R3626 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 119.1/53.2
R3627 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 119.1/54.5
R3628 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 119.1/46.7
R3629 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 119.1/45.4
R3640 7030003600 S.RES ERJ3GEYJ 223 V (22 k) T 98.2/107
R3643 7030005691 S.RES ERA3YED 123V (12 k) T 98.3/104.4
R3801 7030003400 S.RES ERJ3GEYJ 471 V (470) T 50.5/77.4
R3803 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 105.9/60.3
R3804 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 106.8/62.5
R3805 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 63.8/70.2
R3806 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 62.5/70.2
R3807 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 65.3/68
R3808 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 66.6/68
R3809 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 67.9/68
R3810 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 69.2/68
R3811 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 70.5/68
R3812 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 113.1/36.5
R3813 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 109.6/31.4
R3814 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 107/31.4
R3815 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 105.7/31.4
R3816 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 61.6/62.6
R3817 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 71.8/68
R3818 7030003400 S.RES ERJ3GEYJ 471 V (470) T 63.8/77
R3819 7030003400 S.RES ERJ3GEYJ 471 V (470) T 63.8/75.7
R3820 7030003400 S.RES ERJ3GEYJ 471 V (470) T 66.2/79.6
R3821 7030003400 S.RES ERJ3GEYJ 471 V (470) T 73.2/76.1
R3823 7030003860 S.RES ERJ3GE JPW V
[OTH], [EXP] only T 111.8/37.6
R3905 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 86.9/34.3
R3915 7030003360 S.RES ERJ3GEYJ 221 V (220) T 92/1.9
R3916 7030003360 S.RES ERJ3GEYJ 221 V (220) T 91.7/11.9
R3917 7030003360 S.RES ERJ3GEYJ 221 V (220) T 96.4/2.5
R3918 7030003360 S.RES ERJ3GEYJ 221 V (220) T 93/10.4
R3919 7030003360 S.RES ERJ3GEYJ 221 V (220) T 96.1/4.4
R3920 7030003360 S.RES ERJ3GEYJ 221 V (220) T 94.3/9.9
R3921 7030003360 S.RES ERJ3GEYJ 221 V (220) T 84.2/38.8
C1 4030007110 S.CER C1608 CH 1H 680J-T T 200.3/111.5
C2 4030007120 S.CER C1608 CH 1H 820J-T T 200.1/106.4
C3 4030007150 S.CER C1608 CH 1H 151J-T T 199/111.5
C4 4030007050 S.CER C1608 CH 1H 220J-T T 194.3/107.2
C5 4030007120 S.CER C1608 CH 1H 820J-T T 197.7/111.5
C6 4030011600 S.CER C1608 JB 1E 104K-T T 192/108.4
C7 4030011600 S.CER C1608 JB 1E 104K-T T 196.4/111.5
C8 4030011600 S.CER C1608 JB 1E 104K-T T 192/104.7
C9 4030011600 S.CER C1608 JB 1E 104K-T T 188.5/109.9
C10 4030011600 S.CER C1608 JB 1E 104K-T T 185.9/109.9
C11 4030011600 S.CER C1608 JB 1E 104K-T T 179.6/111.8
C12 4030011600 S.CER C1608 JB 1E 104K-T T 163.2/105
C54 4030011600 S.CER C1608 JB 1E 104K-T T 165.4/106.4
C56 4030018620 S.CER C1608 CH 1H 222J-T T 168.7/103.7
C57 4030018640 S.CER C2012 CH 1H 103J-T T 169.5/106.1
C59 4030018590 S.CER C1608 CH 1H 122J-T T 172.4/102.7
C61 4030018640 S.CER C2012 CH 1H 103J-T T 172.2/104.3
C62 4030018620 S.CER C1608 CH 1H 222J-T T 174.8/105.3
C63 4030018640 S.CER C2012 CH 1H 103J-T T 172.2/106
C64 4030011600 S.CER C1608 JB 1E 104K-T T 148.4/111.5
C65 4030011600 S.CER C1608 JB 1E 104K-T T 184.7/104.8
C66 4030011600 S.CER C1608 JB 1E 104K-T T 149.9/111.5
C67 4030011600 S.CER C1608 JB 1E 104K-T T 151.3/111.4
C68 4030011600 S.CER C1608 JB 1E 104K-T T 162.6/106.9
C69 4030018640 S.CER C2012 CH 1H 103J-T T 172.2/107.8
C101 4030011600 S.CER C1608 JB 1E 104K-T T 136.9/101.9
C102 4030011600 S.CER C1608 JB 1E 104K-T T 138.2/101.8
C103 4030011600 S.CER C1608 JB 1E 104K-T T 139.5/101.8
C104 4030011600 S.CER C1608 JB 1E 104K-T T 140.8/101.8
C105 4030011600 S.CER C1608 JB 1E 104K-T T 142.1/101.8
C106 4030011600 S.CER C1608 JB 1E 104K-T T 143.4/101.9
C107 4030011600 S.CER C1608 JB 1E 104K-T T 144.7/101.8
C108 4030011600 S.CER C1608 JB 1E 104K-T T 212.3/99.2
C109 4030018610 S.CER C1608 CH 1H 182J-T T 149.4/92.1
C110 4030018600 S.CER C1608 CH 1H 152J-T T 155.4/92.2
C111 4030017800 S.CER C1608 CH 1H 561J-T T 164/94.5
C112 4030017870 S.CER C1608 CH 1H 681J-T T 173.7/95.9
C113 4030011340 S.CER C1608 CH 1H 471J-T T 185.1/91.9
C114 4030007160 S.CER C1608 CH 1H 181J-T T 191.2/93.4
C115 4030007170 S.CER C1608 CH 1H 221J-T T 201/88.8
C116 4030007130 S.CER C1608 CH 1H 101J-T T 208.2/90.3
C117 4030007150 S.CER C1608 CH 1H 151J-T T 215.9/93.7
C118 4030011280 S.CER C1608 CH 1H 271J-T T 164/93.2
C119 4030007140 S.CER C1608 CH 1H 121J-T T 154.4/89.4
C120 4030007150 S.CER C1608 CH 1H 151J-T T 159.2/91.4
C121 4030007090 S.CER C1608 CH 1H 470J-T T 176.1/89.7
C122 4030007070 S.CER C1608 CH 1H 330J-T T 188.3/91.1
C123 4030007070 S.CER C1608 CH 1H 330J-T T 198.7/88.2
C124 4030007090 S.CER C1608 CH 1H 470J-T T 202.9/87.9

5
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
[MAIN UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
C125 4030007050 S.CER C1608 CH 1H 220J-T T 210.2/89.5
C126 4030007050 S.CER C1608 CH 1H 220J-T T 214.6/86.1
C127 4030008920 S.CER C1608 JB 1H 473K-T T 150.7/80.4
C128 4030017810 S.CER C1608 CH 1H 102J-T T 148.8/81.2
C129 4030017850 S.CER C2012 CH 1H 272J-T T 158.6/82.1
C130 4030018580 S.CER C1608 CH 1H 821J-T T 158.7/84.3
C131 4030018640 S.CER C2012 CH 1H 103J-T T 167/84.8
C132 4030007120 S.CER C1608 CH 1H 820J-T T 162.9/91.8
C133 4030017800 S.CER C1608 CH 1H 561J-T T 162.1/89.8
C134 4030011340 S.CER C1608 CH 1H 471J-T T 174/87.9
C135 4030011280 S.CER C1608 CH 1H 271J-T T 186.2/89.3
C136 4030011280 S.CER C1608 CH 1H 271J-T T 194.3/86.7
C137 4030007160 S.CER C1608 CH 1H 181J-T T 193.5/88.5
C138 4030011280 S.CER C1608 CH 1H 271J-T T 204.4/84.8
C139 4030007170 S.CER C1608 CH 1H 221J-T T 201/87.5
C140 4030007130 S.CER C1608 CH 1H 101J-T T 210.2/86.9
C141 4030007140 S.CER C1608 CH 1H 121J-T T 207.1/87.7
C142 4030007150 S.CER C1608 CH 1H 151J-T T 215.9/85
C143 4030007130 S.CER C1608 CH 1H 101J-T T 213.9/84.2
C144 4030007140 S.CER C1608 CH 1H 121J-T T 174.6/86
C145 4030017800 S.CER C1608 CH 1H 561J-T T 175.9/86
C146 4030011340 S.CER C1608 CH 1H 471J-T T 184.6/85.6
C147 4030018640 S.CER C2012 CH 1H 103J-T T 155.7/84.1
C148 4030018630 S.CER C2012 CH 1H 472J-T T 163/85.7
C149 4030018610 S.CER C1608 CH 1H 182J-T T 171.4/86.6
C150 4030018620 S.CER C1608 CH 1H 222J-T T 178.2/78.3
C151 4030018620 S.CER C1608 CH 1H 222J-T T 186.7/83.3
C152 4030018600 S.CER C1608 CH 1H 152J-T T 194.9/82.5
C153 4030018600 S.CER C1608 CH 1H 152J-T T 204.5/81
C154 4030017810 S.CER C1608 CH 1H 102J-T T 212/79.7
C155 4030018590 S.CER C1608 CH 1H 122J-T T 159/76.9
C156 4030011600 S.CER C1608 JB 1E 104K-T T 154.3/74
C157 4030018600 S.CER C1608 CH 1H 152J-T T 161.9/87.2
C158 4030018610 S.CER C1608 CH 1H 182J-T T 171.4/87.9
C159 4030018580 S.CER C1608 CH 1H 821J-T T 177.9/79.9
C160 4030007130 S.CER C1608 CH 1H 101J-T T 192.2/77.3
C161 4030011600 S.CER C1608 JB 1E 104K-T T 187.6/78.4
C162 4030007160 S.CER C1608 CH 1H 181J-T T 201.2/80.1
C163 4030011600 S.CER C1608 JB 1E 104K-T T 194.9/81.2
C164 4030007140 S.CER C1608 CH 1H 121J-T T 209.8/78.4
C165 4030011600 S.CER C1608 JB 1E 104K-T T 204.1/72.7
C166 4030007130 S.CER C1608 CH 1H 101J-T T 217.5/77.6
C167 4030011600 S.CER C1608 JB 1E 104K-T T 211.9/72.7
C168 4030011600 S.CER C1608 JB 1E 104K-T T 135.6/101.9
C169 4030018580 S.CER C1608 CH 1H 821J-T T 165.5/79.7
C170 4030011600 S.CER C1608 JB 1E 104K-T T 161.9/74
C171 4030011280 S.CER C1608 CH 1H 271J-T T 174.6/80.9
C172 4030011600 S.CER C1608 JB 1E 104K-T T 169.7/75.4
C173 4030007160 S.CER C1608 CH 1H 181J-T T 183.1/81.6
C174 4030011600 S.CER C1608 JB 1E 104K-T T 177.9/73.7
C175 4030007040 S.CER C1608 CH 1H 180J-T T 201/90.1
C176 4030011600 S.CER C1608 JB 1E 104K-T T 170.4/70
C177 4030011600 S.CER C1608 JB 1E 104K-T T 152.5/56.4
C178 4030011600 S.CER C1608 JB 1E 104K-T T 152.5/63.3
C179 4030011600 S.CER C1608 JB 1E 104K-T T 150.1/39.1
C180 4030011600 S.CER C1608 JB 1E 104K-T T 155.5/59.2
C181 4030011600 S.CER C1608 JB 1E 104K-T T 154.2/45.7
C182 4030011600 S.CER C1608 JB 1E 104K-T T 155.5/56.6
C183 4030011600 S.CER C1608 JB 1E 104K-T T 160.6/66
C184 4030011600 S.CER C1608 JB 1E 104K-T T 169.9/62.9
C185 4030011600 S.CER C1608 JB 1E 104K-T T 156.1/45.3
C186 4030011600 S.CER C1608 JB 1E 104K-T T 167/69.6
C187 4030011600 S.CER C1608 JB 1E 104K-T T 163.9/50.4
C188 4030011600 S.CER C1608 JB 1E 104K-T T 165.7/38.7
C189 4030011600 S.CER C1608 JB 1E 104K-T T 166/57.1
C190 4030011600 S.CER C1608 JB 1E 104K-T T 165.7/47.3
C191 4030011600 S.CER C1608 JB 1E 104K-T T 169/36.7
C192 4030011600 S.CER C1608 JB 1E 104K-T T 165.4/40.9
C193 4030011600 S.CER C1608 JB 1E 104K-T T 171.4/59
C194 4030011600 S.CER C1608 JB 1E 104K-T T 165.8/58.4
C195 4030011600 S.CER C1608 JB 1E 104K-T T 165.4/43.5
C197 4510008510 S.ELE EEE1CA471P T 145.9/59.8
C198 4030007020 S.CER C1608 CH 1H 120J-T T 165.4/60
C199 4030007020 S.CER C1608 CH 1H 120J-T T 163.6/47.7
C200 4030018630 S.CER C2012 CH 1H 472J-T T 155.7/82.4
C201 4030011600 S.CER C1608 JB 1E 104K-T T 186.8/68.2
C202 4030007120 S.CER C1608 CH 1H 820J-T T 191.2/60.8
C203 4030007050 S.CER C1608 CH 1H 220J-T T 189.7/59.5
C204 4030007150 S.CER C1608 CH 1H 151J-T T 189.7/55
C205 4030006990 S.CER C1608 CH 1H 080D-T T 183.4/60.1
C206 4030007130 S.CER C1608 CH 1H 101J-T T 188.3/62.9
C207 4030011600 S.CER C1608 JB 1E 104K-T T 181.9/61.7
C208 4030006880 S.CER C1608 JB 1H 472K-T T 190.5/39.3
C209 4030007020 S.CER C1608 CH 1H 120J-T T 177.4/57.2
C210 4030011600 S.CER C1608 JB 1E 104K-T T 184.3/55.1
C211 4030006880 S.CER C1608 JB 1H 472K-T T 186.8/40.7
C212 4030011600 S.CER C1608 JB 1E 104K-T T 188.8/39.3
C213 4030011600 S.CER C1608 JB 1E 104K-T T 180.1/55.1
C214 4030017810 S.CER C1608 CH 1H 102J-T T 205.3/34.3
C215 4030007020 S.CER C1608 CH 1H 120J-T T 183.3/29.4
C216 4030007000 S.CER C1608 CH 1H 090D-T T 180.3/31
C217 4030007130 S.CER C1608 CH 1H 101J-T T 159.3/24.2
C218 4030006880 S.CER C1608 JB 1H 472K-T T 146.1/35.3
C219 4030006880 S.CER C1608 JB 1H 472K-T T 153.5/30.8
C220 4030006880 S.CER C1608 JB 1H 472K-T T 152.9/28.7
C221 4030006880 S.CER C1608 JB 1H 472K-T T 155.8/22.6
C222 4030007030 S.CER C1608 CH 1H 150J-T T 173.1/27.2
C223 4030006880 S.CER C1608 JB 1H 472K-T T 147.9/35.3
C224 4030006880 S.CER C1608 JB 1H 472K-T T 151/34.7
C225 4030009920 S.CER C1608 CH 1H 050B-T T 161.4/27.7
C226 4030011600 S.CER C1608 JB 1E 104K-T T 174.7/55
C227 4030011600 S.CER C1608 JB 1E 104K-T T 177.4/55
C228 4030007030 S.CER C1608 CH 1H 150J-T T 183/44
C229 4030007030 S.CER C1608 CH 1H 150J-T T 180.2/44
S.=Surface mount
[MAIN UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
C230 4030007170 S.CER C1608 CH 1H 221J-T T 178.2/34.7
C231 4030006880 S.CER C1608 JB 1H 472K-T T 182.1/23.7
C232 4030006880 S.CER C1608 JB 1H 472K-T T 173.1/30
C233 4030006880 S.CER C1608 JB 1H 472K-T T 184.2/31.4
C234 4030006880 S.CER C1608 JB 1H 472K-T T 153.6/35.1
C235 4030009920 S.CER C1608 CH 1H 050B-T T 152.5/25.6
C236 4030009920 S.CER C1608 CH 1H 050B-T T 161.4/26.4
C237 4030007130 S.CER C1608 CH 1H 101J-T T 208.2/89
C238 4030007130 S.CER C1608 CH 1H 101J-T T 208.9/86.9
C239 4030007130 S.CER C1608 CH 1H 101J-T T 190.9/77.3
C240 4030007140 S.CER C1608 CH 1H 121J-T T 153.1/89.4
C241 4030007150 S.CER C1608 CH 1H 151J-T T 191.2/94.7
C242 4030007150 S.CER C1608 CH 1H 151J-T T 193.5/89.8
C243 4030007150 S.CER C1608 CH 1H 151J-T T 183.1/80.3
C244 4030007140 S.CER C1608 CH 1H 121J-T T 195.6/86.7
C245 4030007140 S.CER C1608 CH 1H 121J-T T 175.9/80.9
C246 4030006970 S.CER C1608 CH 1H 060D-T T 187/91.1
C247 4030007000 S.CER C1608 CH 1H 090D-T T 174.8/89.7
C248 4030018610 S.CER C1608 CH 1H 182J-T T 161.9/88.5
C301 4030006880 S.CER C1608 JB 1H 472K-T T 146.4/42.4
C302 4030007150 S.CER C1608 CH 1H 151J-T T 138.8/49.7
C303 4030007150 S.CER C1608 CH 1H 151J-T T 139.1/51.5
C304 4030011600 S.CER C1608 JB 1E 104K-T T 136.1/21.4
C305 4030011600 S.CER C1608 JB 1E 104K-T T 138/21.3
C306 4030011600 S.CER C1608 JB 1E 104K-T T 136.1/24.3
C307 4030011600 S.CER C1608 JB 1E 104K-T T 133.2/26.9
C308 4030017870 S.CER C1608 CH 1H 681J-T T 140.9/52.6
C309 4030011600 S.CER C1608 JB 1E 104K-T T 138.8/47.1
C310 4030018630 S.CER C2012 CH 1H 472J-T T 139.3/54.1
C311 4030017850 S.CER C2012 CH 1H 272J-T T 138.4/57
C312 4030011600 S.CER C1608 JB 1E 104K-T T 170.5/36.7
C315 4030018590 S.CER C1608 CH 1H 122J-T T 136.9/56.7
C316 4030007150 S.CER C1608 CH 1H 151J-T T 138.8/48.4
C317 4030007150 S.CER C1608 CH 1H 151J-T T 137.8/51.5
C318 4030007100 S.CER C1608 CH 1H 560J-T T 133.2/28.5
C319 4030007100 S.CER C1608 CH 1H 560J-T T 133.2/30
C401 4030011600 S.CER C1608 JB 1E 104K-T T 142/65.9
C402 4030006880 S.CER C1608 JB 1H 472K-T T 131.4/80
C403 4030011600 S.CER C1608 JB 1E 104K-T T 136.4/80
C404 4030011600 S.CER C1608 JB 1E 104K-T T 135.5/83.8
C405 4030006880 S.CER C1608 JB 1H 472K-T T 132.9/82.5
C406 4030011600 S.CER C1608 JB 1E 104K-T T 126.2/80
C407 4030006880 S.CER C1608 JB 1H 472K-T T 96/77.8
C408 4030011600 S.CER C1608 JB 1E 104K-T T 130.5/86.4
C409 4030011600 S.CER C1608 JB 1E 104K-T T 98/87.6
C410 4030011600 S.CER C1608 JB 1E 104K-T T 81.5/87.9
C411 4030011600 S.CER C1608 JB 1E 104K-T T 109/83.7
C412 4030006880 S.CER C1608 JB 1H 472K-T T 85.2/86.9
C413 4030007140 S.CER C1608 CH 1H 121J-T T 93/77.8
C414 4030007160 S.CER C1608 CH 1H 181J-T T 83.3/87.7
C501 4030011600 S.CER C1608 JB 1E 104K-T T 64.1/95.7
C502 4030006880 S.CER C1608 JB 1H 472K-T T 71.4/98.4
C503 4030011600 S.CER C1608 JB 1E 104K-T T 64.1/97
C504 4030006880 S.CER C1608 JB 1H 472K-T T 68.3/99.1
C505 4030006880 S.CER C1608 JB 1H 472K-T T 68.3/97.8
C506 4030011600 S.CER C1608 JB 1E 104K-T T 73.9/95.9
C507 4030011600 S.CER C1608 JB 1E 104K-T T 59.6/98.4
C508 4030011600 S.CER C1608 JB 1E 104K-T T 65.1/93
C509 4030011600 S.CER C1608 JB 1E 104K-T T 39.1/89.4
C510 4510008520 S.ELE EEE1CA470SP T 85.7/94
C511 4030011600 S.CER C1608 JB 1E 104K-T T 40.4/89.4
C512 4510008520 S.ELE EEE1CA470SP T 78.6/96.1
C516 4030011600 S.CER C1608 JB 1E 104K-T T 44.8/96.9
C517 4030011600 S.CER C1608 JB 1E 104K-T T 47.4/92.6
C518 4030011600 S.CER C1608 JB 1E 104K-T T 47.2/87.4
C519 4030011600 S.CER C1608 JB 1E 104K-T T 44/87.9
C520 4510008540 S.ELE EEE1CA100SR T 43.9/84.8
C521 4030011600 S.CER C1608 JB 1E 104K-T T 42.1/88.4
C600 4030011600 S.CER C1608 JB 1E 104K-T T 210.9/55
C601 4030011600 S.CER C1608 JB 1E 104K-T T 204.7/27.4
C602 4030007040 S.CER C1608 CH 1H 180J-T T 209.9/30.2
C603 4030006880 S.CER C1608 JB 1H 472K-T T 212.8/55.8
C604 4030006980 S.CER C1608 CH 1H 070D-T T 215.3/30.4
C605 4030007030 S.CER C1608 CH 1H 150J-T T 210.8/32.8
C606 4030007020 S.CER C1608 CH 1H 120J-T T 212.6/33.3
C607 4030007060 S.CER C1608 CH 1H 270J-T T 210.8/34.1
C608 4030011600 S.CER C1608 JB 1E 104K-T T 212.8/54.5
C609 4030017810 S.CER C1608 CH 1H 102J-T T 208.4/39.4
C610 4030018640 S.CER C2012 CH 1H 103J-T T 214.5/46.3
C611 4030018640 S.CER C2012 CH 1H 103J-T T 207.5/43.3
C612 4030018640 S.CER C2012 CH 1H 103J-T T 211.2/52.9
C613 4030018640 S.CER C2012 CH 1H 103J-T T 208/55.2
C614 4030017810 S.CER C1608 CH 1H 102J-T T 208.1/29.2
C615 4030007030 S.CER C1608 CH 1H 150J-T T 210.8/31.5
C701 4030011600 S.CER C1608 JB 1E 104K-T T 202.4/56.8
C702 4030011600 S.CER C1608 JB 1E 104K-T T 205.4/39.7
C703 4030011600 S.CER C1608 JB 1E 104K-T T 199.5/47
C705 4030011600 S.CER C1608 JB 1E 104K-T T 201.3/27.7
C706 4030007070 S.CER C1608 CH 1H 330J-T T 199.5/40.1
C707 4030006970 S.CER C1608 CH 1H 060D-T T 200.2/37.8
C709 4030007070 S.CER C1608 CH 1H 330J-T T 199.5/35.5
C710 4030007040 S.CER C1608 CH 1H 180J-T T 202.1/29.5
C711 4030007050 S.CER C1608 CH 1H 220J-T T 199.4/29.5
C712 4030011600 S.CER C1608 JB 1E 104K-T T 190.3/17.5
C714 4030011600 S.CER C1608 JB 1E 104K-T T 202.7/12
C715 4030009920 S.CER C1608 CH 1H 050B-T T 199.5/14.6
C716 4030017810 S.CER C1608 CH 1H 102J-T T 204.4/11.9
C717 4030017810 S.CER C1608 CH 1H 102J-T T 188.3/14.7
C718 4030017810 S.CER C1608 CH 1H 102J-T T 215/17.2
C720 4030007070 S.CER C1608 CH 1H 330J-T T 186.4/15.4
C721 4030006970 S.CER C1608 CH 1H 060D-T T 199.5/34.2
C722 4030006970 S.CER C1608 CH 1H 060D-T T 186.4/14.1
C801 4030011600 S.CER C1608 JB 1E 104K-T T 112.9/82.7
C802 4030011600 S.CER C1608 JB 1E 104K-T T 113/84.9

6
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
[MAIN UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
C803 4030011600 S.CER C1608 JB 1E 104K-T T 110.5/82.4
C805 4030006880 S.CER C1608 JB 1H 472K-T T 107.2/79.6
C806 4510008520 S.ELE EEE1CA470SP T 117.1/89.2
C901 4030011600 S.CER C1608 JB 1E 104K-T T 33.6/73.5
C902 4030011600 S.CER C1608 JB 1E 104K-T T 38.8/77.1
C903 4030006880 S.CER C1608 JB 1H 472K-T T 32.9/61.1
C904 4030011600 S.CER C1608 JB 1E 104K-T T 38.3/85.5
C905 4030011600 S.CER C1608 JB 1E 104K-T T 35.7/76.9
C906 4030011600 S.CER C1608 JB 1E 104K-T T 33.6/74.8
C907 4030011600 S.CER C1608 JB 1E 104K-T T 31/78.2
C908 4510008540 S.ELE EEE1CA100SR T 29.9/83.9
C909 4030011600 S.CER C1608 JB 1E 104K-T T 30.4/80.1
C910 4030011600 S.CER C1608 JB 1E 104K-T T 38.6/81.7
C1001 4030011600 S.CER C1608 JB 1E 104K-T T 32.9/42.1
C1002 4030011600 S.CER C1608 JB 1E 104K-T T 35.5/37.6
C1003 4030011600 S.CER C1608 JB 1E 104K-T T 26.2/35.3
C1004 4030018610 S.CER C1608 CH 1H 182J-T T 19.7/35.3
C1005 4030017800 S.CER C1608 CH 1H 561J-T T 21/35.3
C1006 4030006880 S.CER C1608 JB 1H 472K-T T 23.6/35.3
C1007 4030006880 S.CER C1608 JB 1H 472K-T T 24.9/35.3
C1008 4030006880 S.CER C1608 JB 1H 472K-T T 18.4/35.3
C1010 4510008540 S.ELE EEE1CA100SR T 27.3/39.6
C1011 4510008540 S.ELE EEE1CA100SR T 16.9/41.3
C1012 4030011600 S.CER C1608 JB 1E 104K-T T 19.1/45.3
C1051 4510008540 S.ELE EEE1CA100SR T 16.9/26.4
C1052 4510008540 S.ELE EEE1CA100SR T 27.4/24.5
C1054 4030018640 S.CER C2012 CH 1H 103J-T T 26.5/28.7
C1055 4030017810 S.CER C1608 CH 1H 102J-T T 26.9/30.3
C1056 4030008880 S.CER C1608 JB 1H 223K-T T 23/31.3
C1057 4030008880 S.CER C1608 JB 1H 223K-T T 23/32.6
C1058 4030008880 S.CER C1608 JB 1H 223K-T T 15.5/20.1
C1059 4030018640 S.CER C2012 CH 1H 103J-T T 20.2/21.6
C1061 4030017810 S.CER C1608 CH 1H 102J-T T 21.7/22
C1062 4030008880 S.CER C1608 JB 1H 223K-T T 17.3/21.9
C1063 4030008880 S.CER C1608 JB 1H 223K-T T 16/21.9
C1064 4030008880 S.CER C1608 JB 1H 223K-T T 23/22
C1101 4030011600 S.CER C1608 JB 1E 104K-T T 20.4/86.8
C1102 4030011600 S.CER C1608 JB 1E 104K-T T 18.2/80
C1201 4030006880 S.CER C1608 JB 1H 472K-T T 41.9/25
C1202 4030011600 S.CER C1608 JB 1E 104K-T T 72.1/22.1
C1203 4030011600 S.CER C1608 JB 1E 104K-T T 67.7/27.1
C1205 4510008540 S.ELE EEE1CA100SR T 42.8/31.4
C1206 4030017810 S.CER C1608 CH 1H 102J-T T 47.8/16.3
C1208 4550007300 S.TAN F931A335MAABMA T 62.5/16.8
C1209 4030011600 S.CER C1608 JB 1E 104K-T T 48.2/30.5
C1212 4550007400 S.TAN F931A225MAABMA T 60.4/16.8
C1214 4030011600 S.CER C1608 JB 1E 104K-T T 69/15.5
C1223 4030011600 S.CER C1608 JB 1E 104K-T T 69.7/10.3
C1224 4030011600 S.CER C1608 JB 1E 104K-T T 69.7/9
C1226 4030011600 S.CER C1608 JB 1E 104K-T T 92.7/75.7
C1227 4030011340 S.CER C1608 CH 1H 471J-T T 70.9/27.1
C1303 4030011600 S.CER C1608 JB 1E 104K-T T 83.7/2.1
C1304 4030011600 S.CER C1608 JB 1E 104K-T T 83.2/10.8
C1305 4030011600 S.CER C1608 JB 1E 104K-T T 82.4/2.1
C1306 4030011600 S.CER C1608 JB 1E 104K-T T 81.9/10.8
C1307 4030011600 S.CER C1608 JB 1E 104K-T T 81/2.1
C1308 4030011600 S.CER C1608 JB 1E 104K-T T 80.6/10.8
C1309 4030011600 S.CER C1608 JB 1E 104K-T T 74.6/24.5
C1310 4030011600 S.CER C1608 JB 1E 104K-T T 147.5/79.7
C1315 4030011600 S.CER C1608 JB 1E 104K-T T 185.1/64.5
C1451 4030011600 S.CER C1608 JB 1E 104K-T T 18.5/.9
C1501 4510008520 S.ELE EEE1CA470SP T 85.3/104.5
C1502 4030011600 S.CER C1608 JB 1E 104K-T T 79.9/102.4
C1503 4030011600 S.CER C1608 JB 1E 104K-T T 79.9/105.7
C1504 4510008540 S.ELE EEE1CA100SR T 74.6/110.8
C1505 4510008540 S.ELE EEE1CA100SR T 42.6/110.2
C1506 4030011600 S.CER C1608 JB 1E 104K-T T 49.4/112.6
C1507 4030011600 S.CER C1608 JB 1E 104K-T T 49.7/104.6
C1508 4510008520 S.ELE EEE1CA470SP T 45.5/101.1
C1509 4030008680 S.CER C2012 JF 1C 105Z-T T 37.5/97.7
C1510 4030008680 S.CER C2012 JF 1C 105Z-T T 37.3/109.6
C1551 4030008680 S.CER C2012 JF 1C 105Z-T T 15.7/103.5
C1552 4510008520 S.ELE EEE1CA470SP T 23.8/94.9
C1555 4510008520 S.ELE EEE1CA470SP T 16/94.9
C1557 4030011600 S.CER C1608 JB 1E 104K-T T 1.4/102.3
C1558 4510008540 S.ELE EEE1CA100SR T 4/94.1
C1559 4030011600 S.CER C1608 JB 1E 104K-T T 7.8/102.9
C1560 4030011600 S.CER C1608 JB 1E 104K-T T 12.5/101
C1561 4030007170 S.CER C1608 CH 1H 221J-T T 10.4/102.9
C1562 4030011600 S.CER C1608 JB 1E 104K-T T 9.3/91.9
C1563 4030007170 S.CER C1608 CH 1H 221J-T T 11.7/102.9
C1601 4510008510 S.ELE EEE1CA471P T 22.6/14.1
C1602 4030011600 S.CER C1608 JB 1E 104K-T T 4.3/19
C1603 4510008510 S.ELE EEE1CA471P T 7.3/36.1
C1604 4510008510 S.ELE EEE1CA471P T 7.3/70.7
C1605 4510008510 S.ELE EEE1CA471P T 7.3/46.9
C1606 4030006880 S.CER C1608 JB 1H 472K-T T 3.9/11.7
C1607 4510008540 S.ELE EEE1CA100SR T 3.3/6.5
C1608 4030011600 S.CER C1608 JB 1E 104K-T T 6.2/76.8
C1609 4030008680 S.CER C2012 JF 1C 105Z-T T 14.2/78
C1610 4030011600 S.CER C1608 JB 1E 104K-T T 10.4/81.9
C1618 4030008680 S.CER C2012 JF 1C 105Z-T T 52.3/46.9
C1651 4030008850 S.CER C1608 JB 1H 123K-T T 25.8/74.9
C1652 4030014300 S.CER C1608 JB 1E 563K-T T 22.3/76.7
C1653 4030014300 S.CER C1608 JB 1E 563K-T T 21/76.7
C1654 4030014300 S.CER C1608 JB 1E 563K-T T 26.2/76.7
C1655 4030011600 S.CER C1608 JB 1E 104K-T T 26.9/67.5
C1656 4510008540 S.ELE EEE1CA100SR T 16.7/70.7
C1657 4510008540 S.ELE EEE1CA100SR T 27.7/71.8
C1704 4030011600 S.CER C1608 JB 1E 104K-T T 118.7/6.3
C1705 4030008680 S.CER C2012 JF 1C 105Z-T T 86.7/11
C1706 4510008600 S.ELE EEE1CA4R7NR T 16.7/52.1
C1707 4030008850 S.CER C1608 JB 1H 123K-T T 24.2/54
C1709 4030014300 S.CER C1608 JB 1E 563K-T T 21.1/53.3
S.=Surface mount
[MAIN UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
C1710 4030014300 S.CER C1608 JB 1E 563K-T T 19.8/53.3
C1711 4030014300 S.CER C1608 JB 1E 563K-T T 24.2/52.7
C1713 4510008540 S.ELE EEE1CA100SR T 16.7/58.5
C1714 4510008540 S.ELE EEE1CA100SR T 27/58.2
C1715 4030011600 S.CER C1608 JB 1E 104K-T T 27.6/63.3
C1716 4030011600 S.CER C1608 JB 1E 104K-T T 34/62.4
C1717 4030011600 S.CER C1608 JB 1E 104K-T T 31.3/68.8
C1801 4030011600 S.CER C1608 JB 1E 104K-T T 145.3/14.7
C1802 4030006880 S.CER C1608 JB 1H 472K-T T 158.2/14.6
C1803 4030011600 S.CER C1608 JB 1E 104K-T T 160.7/13.2
C1804 4030011600 S.CER C1608 JB 1E 104K-T T 145.3/16.4
C1805 4030011600 S.CER C1608 JB 1E 104K-T T 163.6/13.7
C1806 4030011600 S.CER C1608 JB 1E 104K-T T 160.2/17.9
C1807 4030011600 S.CER C1608 JB 1E 104K-T T 143.2/9.1
C1901 4030011600 S.CER C1608 JB 1E 104K-T T 67.1/106
C1902 4030011600 S.CER C1608 JB 1E 104K-T T 141/104.9
C1903 4030011600 S.CER C1608 JB 1E 104K-T T 126.6/104
C1904 4030011600 S.CER C1608 JB 1E 104K-T T 125.2/101.3
C1905 4030011600 S.CER C1608 JB 1E 104K-T T 123.8/103.1
C1906 4030011600 S.CER C1608 JB 1E 104K-T T 123.5/110.1
C1907 4030006880 S.CER C1608 JB 1H 472K-T T 139.2/104.9
C1908 4030011600 S.CER C1608 JB 1E 104K-T T 96.7/90.9
C1909 4030006880 S.CER C1608 JB 1H 472K-T T 108.9/108.9
C1910 4030006880 S.CER C1608 JB 1H 472K-T T 116.6/108.3
C1911 4030011600 S.CER C1608 JB 1E 104K-T T 95.6/110.7
C1912 4030006880 S.CER C1608 JB 1H 472K-T T 137.9/104.9
C1913 4030006880 S.CER C1608 JB 1H 472K-T T 106.2/108.5
C1914 4030011600 S.CER C1608 JB 1E 104K-T T 132.4/100
C1915 4030011600 S.CER C1608 JB 1E 104K-T T 107.8/110.7
C1916 4030011600 S.CER C1608 JB 1E 104K-T T 128.4/104.8
C1917 4030011600 S.CER C1608 JB 1E 104K-T T 94.3/110.7
C1918 4030011600 S.CER C1608 JB 1E 104K-T T 132.4/101.3
C1919 4030011600 S.CER C1608 JB 1E 104K-T T 106.5/110.7
C1920 4030011600 S.CER C1608 JB 1E 104K-T T 128.4/103.5
C2001 4510008600 S.ELE EEE1CA4R7NR T 40.3/16.4
C2002 4510008600 S.ELE EEE1CA4R7NR T 40.3/11.6
C2003 4030011600 S.CER C1608 JB 1E 104K-T T 32.6/21.1
C2004 4510008600 S.ELE EEE1CA4R7NR T 40.3/21.2
C2005 4030006880 S.CER C1608 JB 1H 472K-T T 33.9/22.4
C2006 4030006880 S.CER C1608 JB 1H 472K-T T 34.8/23.7
C2007 4030011600 S.CER C1608 JB 1E 104K-T T 35.6/11.3
C2008 4030006880 S.CER C1608 JB 1H 472K-T T 36.7/23.1
C2009 4510004601 ELE 16 ME 1000 HC
C3001 4030006880 S.CER C1608 JB 1H 472K-T T 86.2/74.1
C3002 4030008920 S.CER C1608 JB 1H 473K-T T 88.8/74.1
C3003 4030008920 S.CER C1608 JB 1H 473K-T T 91.4/74.1
C3004 4030008920 S.CER C1608 JB 1H 473K-T T 94/74.1
C3005 4030008920 S.CER C1608 JB 1H 473K-T T 95.3/74.1
C3007 4030007130 S.CER C1608 CH 1H 101J-T T 119.4/25.6
C3008 4030018620 S.CER C1608 CH 1H 222J-T T 52.6/51.3
C3009 4030011600 S.CER C1608 JB 1E 104K-T T 52.6/48.5
C3101 4510008520 S.ELE EEE1CA470SP T 136.5/4.9
C3102 4030011600 S.CER C1608 JB 1E 104K-T T 131.3/1.6
C3103 4030011600 S.CER C1608 JB 1E 104K-T T 128.4/1.6
C3104 4510008520 S.ELE EEE1CA470SP T 124.3/4.6
C3201 4030018640 S.CER C2012 CH 1H 103J-T T 100.6/28.1
C3202 4030006880 S.CER C1608 JB 1H 472K-T T 62.9/37.8
C3302 4030011600 S.CER C1608 JB 1E 104K-T T 95.6/66.8
C3303 4030011600 S.CER C1608 JB 1E 104K-T T 58.5/55.3
C3304 4030007020 S.CER C1608 CH 1H 120J-T T 83/51.4
C3305 4030007020 S.CER C1608 CH 1H 120J-T T 83/48.8
C3307 4030006880 S.CER C1608 JB 1H 472K-T T 99.2/70.1
C3308 4030011600 S.CER C1608 JB 1E 104K-T T 89/64.9
C3309 4030006880 S.CER C1608 JB 1H 472K-T T 89/66.3
C3310 4030011600 S.CER C1608 JB 1E 104K-T T 84.7/50.6
C3311 4030011600 S.CER C1608 JB 1E 104K-T T 105.6/48.2
C3315 4030011600 S.CER C1608 JB 1E 104K-T T 65.7/58.4
C3316 4030011600 S.CER C1608 JB 1E 104K-T T 67/58.4
C3317 4030007070 S.CER C1608 CH 1H 330J-T T 82.2/55.1
C3318 4030007070 S.CER C1608 CH 1H 330J-T T 83.5/55.1
C3319 4030006880 S.CER C1608 JB 1H 472K-T T 55.9/59.1
C3601 4030011600 S.CER C1608 JB 1E 104K-T T 97.1/21.3
C3602 4030011600 S.CER C1608 JB 1E 104K-T T 64.9/40.2
C3603 4030011600 S.CER C1608 JB 1E 104K-T T 56/39.6
C3606 4030011600 S.CER C1608 JB 1E 104K-T T 58.9/43.8
C3607 4030011600 S.CER C1608 JB 1E 104K-T T 60.8/77.3
C3608 4030011600 S.CER C1608 JB 1E 104K-T T 103/37.9
C3610 4510008520 S.ELE EEE1CA470SP T 57.5/72.6
C3802 4030011600 S.CER C1608 JB 1E 104K-T T 112.5/39.4
C3803 4510005461 ELE FYD0H 474ZF
C3804 4030008680 S.CER C2012 JF 1C 105Z-T
[OTH], [EXP] only T 56.1/63
C3901 4030011600 S.CER C1608 JB 1E 104K-T T 118/42.8
C3902 4030007130 S.CER C1608 CH 1H 101J-T T 65.5/14
J1 6510007020 CNR TMP-J01X-V6
J51 6510007020 CNR TMP-J01X-V6
J301 6510007020 CNR TMP-J01X-V6
J601 6510007020 CNR TMP-J01X-V6
J1101 6510021651 CNR IMSA-9180B-30B-PT1
J1102 6510022811 CNR IMSA-9180B-22B-PT1
J1451 6450000103 CNR HSJ1857-016220
J1801 6510023841 CNR TCS5107-1820177
J1901 6510021721 S.CNR 30FLT-SM2-TB (LF) (SN) T 133.5/111
J2051 6510023051 CNR TCS7286-0124177
J3001 6510022621 S.CNR 10FMN-BMTTR-A-TBT (LF) (SN) T 116.9/19.3
J3601 6510023091 S.CNR 20FLT-SM2-TB (LF) (SN) T 108.5/6.4
J3602 6510021721 S.CNR 30FLT-SM2-TB (LF) (SN) T 85.2/6.5
EP1901 6910012350 S.BEA MMZ1608Y 102BT T 96.3/112.6
EP1902 6910012350 S.BEA MMZ1608Y 102BT T 132/103.2
EP1903 6910012350 S.BEA MMZ1608Y 102BT T 107.3/112.6
EP1904 6910012350 S.BEA MMZ1608Y 102BT T 131.9/107.7

7
BOARD LAYOUTS
Nov. 2007
• MAIN UNIT
(TOP VIEW)
13.8V
SEND
AAF
AGND
AMOD
CWK
FALC
SQLS
from PLL unit J7321 MRX
W7321
from PLL unit J5601
M1Lo W5601 from/to PA
unit J6702
YGR W4520
from PLL unit J5201 M2Lo
W5201
14
1
1
1
1
1 4
8 5
11
1
30
31 50
100 81
80 51 116
32 17
4
8 5
10
20 11
1
1
1
14
85
4
85
58 41
1
1
1
1
18
1
6
3
4
16 9
4
85
9
1810
1
1
18
16 9
8
16
9
8
16
9
7
14 8
1 5
8
16 9
4
85
4
85
4
85
4
85
4
8 54
8 5
85
19
1 8
16
9
18 10
3 1
4 6
GND 22
2
21
1
to DSP board J9901
J1102
GND
DSPO1
GND
AGC2
GND
8V
GND GND GND
DSPI1
DSPO2
GND GND GND
AGC1
GND
8V
GND
DSPI2
GND GND
302
29
to PLL unit J7331
1
J3602
FOR
REF
THRM
L2M
L6M
L22M
TRXS
NSEN
DSAFE
DSMDE
RXPC
NMRS
RSSW
NMEI
GND
GND
GND
GND
L1M
L4M
L12M
S13V
GND
DSAF
DSMD
H5V
DTRM
NMEO
NMEI2
GND
FAFG
5
to RC-26
DISPLAY
boad J8201
213
8746
J2051
FMODG
FMOD
GND
RXD
TXD
FAF
H13V
119
to PLL unit J5001
220
J3601
PS13
PS13
UNLK
PCK
PST2
PC02
REFV
PTMP
GND
GND
H13V
PS13
PS13
PDAT
PST1
PST3
DRES
REFS
GND
M3LO
ACC
CONTROLLER
EXT SP
to SP-25
302
291 to PA unit J6701
J1901
HV
FANC
S13V
S13V
S13V
STAT
TUM4
TUM1
TSCS
ICV
GND
GND
GND
GND
T8V
PON
HV
S13V
S13V
S13V
KEYS
TULK
TUM2
TURS
TUM3
GND
GND
GND
GND
THRM
CK_IN 1
29
to DSP board J9902
2
30
J1101
GND1
RQI
CK
GND1
RQO
OBSY
GND1
CWST
ALE2
VSQL
NC
GND1
DSKY
DRES
192K
GND1
IBSY
DI
GND1
DO
STBO
GND1
ALE1
TRFD
OUT6 OUT8
GND1
UNLK
GND1
C1
C2
C3
C4
C5
C6
C7
C8
C9C10
C11
C12
C54
C56
C57
C59
C61
C62
C63
C64
C65
C66
C67
C68
C69
C101
C102
C103
C104
C105
C106
C107
C108
C109 C110
C111
C112
C113
C114
C115
C116
C117
C118
C119
C120
C121
C122
C123
C124
C125
C126
C127
C128
C129
C130
C131
C132
C133
C134
C135
C136
C137
C138
C139
C140
C141
C142
C143
C144
C145
C146
C147
C148
C149
C150
C151
C152
C153
C154
C155
C156
C157 C158
C159
C160
C161
C162
C163
C164
C165
C166
C167
C168
C169
C170
C171
C172
C173
C174
C175
C176
C177
C178
C179
C180
C181
C182
C183
C184
C185
C186
C187
C188
C189
C190
C191
C192
C193
C194
C195
C197
C198
C199
C200
C201
C202
C203 C204
C205
C206
C207
C208
C209
C210
C211
C212
C213
C214
C215
C216
C217
C218
C219
C220
C221
C222
C223
C224
C225
C226
C227
C228C229
C230
C231
C232
C233
C234
C235
C236
C237
C238
C239
C240
C241
C242
C243
C244
C245
C246
C247
C248
C301
C302
C303
C304
C305
C306
C307
C308
C309
C310
C311
C312
C315
C316
C317
C318 C319
C401
C402
C403
C404
C405
C406
C407
C408
C409
C410
C411
C412
C413
C414
C501
C502
C503
C504 C505
C506
C507
C508
C509
C510
C511
C512
C516
C517
C518
C519
C520
C521
C600
C601
C602
C603
C604
C605
C606
C607
C608
C609
C610
C611
C612
C613
C614
C615
C701
C702
C703
C705
C706
C707
C709
C710C711
C712
C714
C715
C716
C717
C718
C720
C721
C722
C801
C802
C803
C805
C806
C901
C902
C903
C904
C905
C906
C907
C908
C909
C910
C1001
C1002
C1003
C1004
C1005
C1006
C1007
C1008
C1010
C1011
C1012
C1051
C1052
C1054
C1055
C1056
C1057
C1058
C1059
C1061
C1062
C1063
C1064
C1101
C1102
C1201
C1202
C1203
C1205
C1206
C1208
C1209
C1212
C1214
C1223
C1224
C1226
C1227
C1303 C1304
C1305 C1306
C1307 C1308
C1309
C1310
C1315
C1451
C1501
C1502 C1503
C1504
C1505
C1506
C1507
C1508
C1509
C1510
C1551
C1552
C1555
C1557
C1558
C1559
C1560
C1561
C1562
C1563
C1601
C1602
C1603
C1604 C1605
C1606
C1607
C1608
C1609
C1610
C1618
C1651
C1652
C1653
C1654
C1655
C1656
C1657
C1704
C1705
C1706
C1707
C1709
C1710
C1711
C1713
C1714 C1715
C1716
C1717
C1801
C1802
C1803
C1804
C1805
C1806
C1807
C1901
C1902
C1903
C1904
C1905
C1906
C1907
C1908
C1909 C1910
C1911
C1912
C1913
C1914
C1915
C1916
C1917
C1918
C1919
C1920
C2001 C2002
C2003 C2004
C2005
C2006
C2007
C2008
C2009
C3001
C3002
C3003
C3004
C3005
C3007
C3008 C3009
C3101
C3102C3103
C3104
C3201
C3202
C3302
C3303
C3304C3305
C3307
C3308
C3309
C3310
C3311
C3315
C3316
C3317
C3318
C3319
C3601
C3602
C3603
C3606
C3607
C3608
C3610
C3802
C3803
C3804
C3901
C3902
CP1101
CP1201
D51
D52
D53
D54
D101
D102
D103
D104
D105
D106
D107
D108
D109
D110
D111
D112
D113
D114 D115
D116
D117
D118
D119
D120
D121
D122
D123
D125
D127
D128
D129
D130
D131
D132
D133
D134
D135
D201
D202
D203
D204
D205
D206
D207
D301
D302
D303
D304
D305
D401
D403
D601
D901D902
D1501
D1502
D1551
D1552
D1554
D3001
D3002
D3003
D3006
D3007
D3031
D3301
D3302
D3303
D3802
EP1901
EP1902
EP1903
EP1904
FI201
FI401
FI402
IC1
IC101
IC301
IC501
IC901
IC1001
IC1002
IC1051
IC1101
IC1201 IC1301
IC1302
IC1501
IC1502
IC1551
IC1601
IC1602
IC1651
IC1702
IC1703
IC2001
IC3101
IC3201
IC3301
IC3302
IC3303
IC3304
IC3601
IC3602
IC3603
IC3604
IC3606
IC3607
IC3608
J1
J51
J301
J601
J1101
J1102
J1451
J1801
J1901
J2051
J3001
J3601
J3602
L1
L2
L3
L4
L51
L51
L52
L53
L54
L55
L56
L57
L101
L102
L102
L103
L104
L104
L105
L106
L106
L107
L108
L108
L109
L110
L110
L111
L112
L112
L113
L114
L114
L115
L116
L116
L117
L118
L118
L119
L119
L120
L120
L121
L121
L122
L122
L123
L123
L124
L124
L125
L125
L126
L126
L127
L127
L128
L128
L129
L129
L130
L130
L131
L131
L132
L132
L133
L134
L134
L135
L135
L136
L136
L137
L137
L138
L138
L139
L139
L140
L141
L141
L142
L142
L143
L143
L144
L145
L146
L147
L148
L149
L150
L151
L152
L153
L154
L155
L156
L157
L201
L202
L203
L204
L206
L207 L208
L209
L210
L211
L212
L213
L214
L215
L216
L217
L301
L302
L303
L304
L305
L306
L307
L308
L401
L403
L404
L405
L406
L502
L504
L505
L506
L601
L602
L603
L604
L605
L606
L701
L702
L703
L704
L705
L706
L707
L801
L901
L902
L903
L904
L904
L1302
L1551
L1552
L1601
L1801
L1802
L1803
L1804
L1805
L1901
L1902
L1903
L1904
L1905
L1906
L1907
L1908
L1909
L1911
L1912
L1916
L1917
L2051
L2052
L2053
L2054
L2055
L3301
L3601
L3602
MP201
MP203
MP601
MP1501
Q51
Q101
Q102
Q103
Q104
Q105
Q106
Q201
Q202
Q203
Q204
Q205
Q401
Q501
Q601
Q701
Q702
Q703
Q801
Q1203
Q1204
Q1205
Q1206
Q1207
Q1501
Q1502
Q1503
Q1504
Q1505
Q1506
Q1507
Q1801
Q1802
Q3031
Q3301
Q3302
Q3601
Q3602
Q3603
Q3605
Q3606
Q3801
Q3802
R1 R2
R3
R4
R5
R6
R7
R51 R52
R53
R54
R56
R57
R58
R59
R60
R61
R101
R102
R103
R104
R105
R106
8
0
1R
70
1R
R109
R110
R111
R112
R113
R114
R115
R116
R117
R118
R119
R120
R121
R122
R123
R124
R125 R126
R127
R128
R129
R130
R131
R132
R133
R136
R137
R138
R201
R202
R203
R204
R205
R206
R207
R208
R209
R210
R211
R212
R213 R214
R215
R216
R217 R218
R219
R220
R221
R222
R223
R224
R225
R226
R227
R228
R229
R231
R301
R302
R303
R307
R309
R310
R311
R312
R313
R314
R315
R316
R320
R323
R401
R404
R405
R406
R407
R408
R409
R410
R413
R414
R415
R502
R503
R504
R505
R506
R507
R508
R514
R515
R601
R602
R603
R604
R605 R606
R607
R608
R609
R610
R611
R612 R613
R701
R702
R703 R704
R705
R706
R707
R708
R709
R710
R711
R712
R713
R714
R715
R716
R717
R718
R719
R720
R722
R723
R801
R802
R803
R804
R813
R814
R901
R902
R903
R904
R910
R911
R1002
R1003
R1004
R1005
R1006
R1007
R1008
R1009
R1010
R1011
R1012
R1013
R1014
R1015
R1016
R1017
R1018
R1019
R1051
R1052
R1053
R1054
R1055
R1057
R1058
R1059
R1060
R1101
R1102
R1105
R1107
R1109
R1110
R1111
R1113
R1201
R1202
R1203
R1204
R1205
R1206
R1207
R1208 R1209
R1210
R1211
R1212
R1213
R1214
R1215
R1216
R1217
R1218
R1219 R1220
R1221
R1222
R1223
R1224
R1225
R1226
R1228
R1230
R1232
R1233
R1234
R1235
R1236
R1237
R1238
R1240
R1301
R1303
R1304
R1305
R1306
R1307
R1308
R1309
R1310
R1311
R1312
R1313
R1314
R1315
R1316
R1317
R1318
R1319
R1501
R1502
R1503
R1504
R1505
R1506
R1507
R1508
R1509
R1510
R1511
R1512 R1513
R1514
R1515
R1516
R1551
R1553
R1555
R1556
R1601
R1602
R1603
R1606
R1607
R1612
R1651
R1652
R1653
R1654
R1655
R1656
R1657
R1658
R1659
R1660
R1661
R1662
R1701
R1706
R1707
R1709
R1710
R1711
R1712
R1713
R1715
R1716
R1717
R1718
R1719
R1720
R1721
R1722
R1723
R1724
R1801
R1802
R1803
R1804
R1805
R1902
R2001
R2002
R2003
R2004
R3001
R3002
R3003
R3004
R3006
R3007
R3008
R3009
R3010
R3011
R3012
R3013
R3014
R3015
R3016
R3017
R3019
R3020
R3021
R3023
R3024
R3025
R3026
R3031 R3032
R3033
R3034
R3050
R3051
R3052
R3101
R3201
R3202
R3203
R3204
R3301
R3302
R3303
R3304
R3305
R3306
R3307
R3308
R3309
R3310 R3311
R3313
R3314
R3315
R3316
R3317
R3318
R3319
R3320
R3321
R3322
R3323
R3324
R3325
R3326
R3327
R3328
R3329
R3330
R3331
R3332
R3333
R3334
R3335
R3336
R3337
R3339
R3340
R3341
R3342
R3343
R3344
R3345
R3346
R3347
R3348
R3349
R3350
R3402
R3403
R3405
R3406
R3407
R3408
R3409
R3601
R3604
R3605
R3606
R3608
R3609
R3610
R3611
R3613
R3614
R3615 R3616 R3617
R3618
R3619
R3620
R3621
R3622
R3623 R3625 R3626
R3627
R3628
R3629
R3640
R3643
R3801
R3803
R3804
R3805
R3806
R3807
R3808
R3809
R3810
R3811
R3812
R3813
R3814
R3815
R3816
R3817
R3818
R3819
R3820
R3821
R3823
R3905
R3915
R3916
R3917
R3918
R3919
R3920
R3921
X3301
X3302
J1901
J3601
J3602
DIP
8
1
5
MP2051
CP1201
6
CP1101
TX
RX
M1LO
M2LO
BLACK
4
2
7
MP204
MP602
R217
R218
3
FOR
R3823
B-6075FB-6075F
H0H5H10H15
H20
H25
H30H35H40
H45H50
H55
H60
H65H70H75
H80H85
H90
H95
H100
H105
H110
H115
H120H125
H130
H135H140H145
H150
H155H160
H165
H170H175
H180H185
H190H195
H200
H205H210
H215
V0 V5 V10 V15 V20 V25 V30 V35 V40 V45 V50 V55 V60 V65 V70 V75 V80 V85 V90 V95 V100 V105 V110 V115

8
MP401
MP401
MP1502MP1502
H0 H5 H10 H15 H20 H25 H30 H35 H40 H45 H50 H55 H60 H65 H70 H75 H80 H85 H90 H95 H100 H105 H110 H115 H120 H125 H130 H135 H140 H145 H150 H155 H160 H165 H170 H175 H180 H185 H190 H195 H200 H205 H210 H215
V0V5V10V15V20V25V30V35V40V45V50V55V60V65V70V75V80V85V90V95V100V105V110V115
S-14012HH-P2-q
Printed in Japan
© 2003−2007 Icom Inc.
• MAIN UNIT
(BOTTOM VIEW)

*; Refer to “PARTS LIST.”
9
VOLTAGE DIAGRAM
Nov. 2007
MEASUREMENT CONDITIONS
frequency : 13.8MHz
mode: J3E (USB)
ANT(RX): no input
(TX): no modulation
Digital tester
unit: V
range: 20V
input impedance: 10MΩ
Oscilloscope: 20MHz
R1501
33
R216
560
R224
1K
R228
0
C6
0.1
C707
6P
C138
270P
L706
LS-483A
R226
1K
R602
150
15P C222
6P
C721
L156
100U
0.1
C179
100P
C140
R130610
0.0047
C1913
R201
270
TD62783AF
IC1301
1
I1 2
I2 3
I3 4
I4 5
I5 6
I6 7
I7 8
I8 9
VCC
10 GND
11 O8
12 O7
13 O6
14 O5
15 O4
16 O3
17 O2
18 O1
0.68U
L123
R1603
4.7K
1SV307
D117
0.1
C181
C202
82P
0.1
C180
R130 310
Q701
3SK131
TA78L05F
IC1501
IO
G
L1906 LR-270
100P
C237
0.1
C1920
L1302
330U
R6 1
10K
C1603
470 ECEV- A
0.47U
L130
Q205
MMBFU310
R105
270
L602
68N
R2001 10K
R1602
1K
1.5U
L104
9P
C247
220P
C230
10K
R127
C146
470P
C6 7
0.1
LS-541
L207
1K
R610
C54
0.1
R1205
100K
L5 1
4.7U
6P
C722
0.1
C177
12
34
5
6
7
8TCS7286-01-241
J 2051
0.1
C187
C601
0.1
C1903
0.1
L215
27N
X P4311
Q101
1
2
3
4
5
6
R1601 470
0.1
C192
L2052
100U
R110
270
270
R53
R1318
4.7
1SV307
D106
C1910
0.0047
L601
10U
2.2U
L120
0.1
C189
270P
C171
R608
680
R1307
10
30FLT-SM1-T B
J1901
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
0.1
C600
C1506
0.1
C1552
47 ECEV- S
2SC4116
Q104
DTA114EU
Q106
0.0022
C151
0.0018
C158
D TC114EU
Q105
0.0047
C232
D155 2
RB706F
C603
0.0047
LR-441
L606
C2006
0.0047
100P
C239
L1902
100U
R605
47
C129
0.0027
L151
100U
100U
L1911
C203
22P
2SK3018
Q1507
C1309
0.1
LW-15
L1601
C153
0.0015
0.1
C1917
C2007
0.1
270P
C136
C701
0.1
R1313
3.3K
NJM3403AV
IC1201
13
12
14
R5 8
270
C163
0.1
L204
LR-403
R720
8.2K
R109
270
C170
0.1
120P
C245
R1606
470
180P
C137
R222
270
R703
1K
1SV307
D108
33 P
C123
1U
L135
1SV307
D203
MMZ1608Y102BT
EP1902
R1551
47
R1502
4.7
R1315
3.3K
L1904
H F50ACC322513
L3
4.7U
100U
L150
C212
0.1
0.47U
L138
330
R1510
0 .33U
L131
820
R54
C1560
0.1
C2
82 P
1M
L2055
18P
C602
270
R52
R121
270
L201
100U
C154
0.001
0.1
C194
UPC2709T
IC 1
1
IN
2
GND
3
GND
4OUT
5GND
6VCC
R206
560
C133
560P
REF
C703
0.1
C1304
0.1
R207
1K
220P
C139
EP1901
J1
TMP-J01X-V6
6.8
R1514
R1312
3.3K
R209
10
HF50ACC322513
L2051
1SV307
D53
C118
270P
D150 2
RB706F
R219
100
15P
C615
C172
0.1
R118
2.7K
R710
220
R701
220
270
R122
1SV307
D119
R1314
3.3K
12P
C198
TD62783AF
IC1302
1
I1 2
I2 3
I3 4
I4 5
I5 6
I6 7
I7 8
I8 9
VCC
10 GND
11 O8
12 O7
13 O6
14 O5
15 O4
16 O3
17 O2
18 O1
R120
390
330
R123
0.1
C213
100P
C238
R607
680
C208
0.0047
R225
270
L1903
100U
LA4425A
IC 1 6 0 1 1
2
3
4
5
0.01
C613
C1555
47 ECEV-S
0.27U
L132
1SV307
D207
R718
1K
C127 0.047
RV-148
R217
1SV307
D110
L2
0.27U
C102
0.1
L109
100U
R227
270
HF50ACC322513
L2054
L1901
100U
C234
0.0047
R603
8.2
L6M
5P
C225
FL-348
FI201
1IN 2
OU T
3GND
4
GND
56
C715
5P
9P
C216
J51
TMP-J01X-V6
0.01
C611
100
R714
0.56U
L137
J601
TMP-J01X-V6
3.9U
L101
L103
100 U
1SV307
D118
R712
270
R1206
470K
L144
100U
68
R713
0.01
C69
Q1504
DTC114EU
330
R1512
330
R1506
L1552
1M
UM9957
D52
R115
47
L202
0.27U
120P
C240
270
R111
C1
68P
MMZ1608Y102BT
EP1904
R702
560
L705
100U
C1563
220P
0.1
C176
R715
18
150P
C243
10U
L1909
C705
0.1
4.7U
L118
C2002
4.7 ECEV-A N
D121
MA8082
C5
82P
C108
0.1
39K
R1515
C6 4
0.1
C1310
0.1
0.1
C182
7P
C604
1SV307
D601
33 P
C122
0.0015
C157
R101 270
C110
0.0015
MA2S111
D125
0.33U
L126
5P
C236
C101
0.1
LS-484B
L209
R119
1K
C8
0.1
180P
C114
C111
560P
1SV307
D105
Q1501
2SD1619
R711
470
C1315
0.1
12P
C199
C1559
0.1
270
R112
L214
100U
C1901
0.1
R705 220
0
R131
2.2U
L217
R1503
4.7
L605
10U
R1311
3.3K
C103
0.1
DTC114EU
Q1506
1.2U
L106
R1316
3.3K
C117
150P
R205
560
0.0047
C200
L1551
1M
Q703
3SK131
2.2U
L128
Q10 3
2SC5551
820P
C169
100U
L133
L105
100U
D120
1SV307
C145
560P
C1908
0.1
C1608
0.1
C1501
47 ECEV- S
0.0047
C1909
L115
100U
100
R717
FOR
L152
LR-440
R719
47
100P
C160
R1317
3.3K
C1507
0.1
0.1
C1919
C1307
0.1
R106 270
L149
100U
H SJ1857-01-1220
J1451
10U
L52
120P
C141
0.001
C128
R722 NTCG16
470 ECEV-A
C197
1000 HC
C2009
L701
LR-317
LS-484B
L211
C173 180P
C204
150P
R1553
47
1SV307
D112
C61
0.01
C720
33P
R211
1.8K
MMZ1608Y102BT
EP1903
330
R1507
C1562
0.1
C125
22P
0.68U
L112
R2004
0
R223
1K
0.0012
C155
R203
4.7
R708
1K
820P
C130
1.8U
L142
C716
0.001
H F50ACC32251 3
L1908
120P
C164
C65
0.1
C6 6
0.1
47K
R1516
1SV307
D202
L147
150U
C211
0.0047
724
MP203
1 2 3 4 5
6
0.1
C227
C7
0.1
0.001
C614
1SV307
D107
0.01
C612
R1555
R107
270
R2002
10K
330
R128
C718
0.001
3.3K
R130
L213
0.22U
C104
0.1
L4M
820P
C159
C156
0.1
R6
270
150P
C242
1SV307
D204
0.0047
C1606
C2003
0.1
C116
100P
L2053
100 U
R1556
L1M
L212
0.22 U
0
R723
0.1
C191
R1203 470K
LR-439
L155
12P
C215
C11
0.1
C1305
0.1
L140
100U
C6 8
0.1
0.0047
C1912
L5 5
100U
270P
C135
C1558
10 ECEV-S
UM9957
D5 1
0.0018 C109
0.1
C1915
0.1
C226
L22M
R601
8.2
D1501
RB706F
1SV307
D104
150U
L157
L2M
C174
0.1
100 U L145
1
C1510
R7
270
15P
C605
100U
L1912
0.1
C185
1
C1509
C205
8P
C207
0.1
D1551
MA8051
C1601
470 ECEV- A
R716
270
150P
C120
3.3U
L119
0.33U
L139
R113
270
1SV307
D109
270
R613
1U
L122
C105
0.1
L107
100U
47 P
C124
12P
C606
C175
18P
R1308 10
0.1
C195
0.01
C147
220P
0.0047
C231
C57
0.01
0.82U
L136
C218
0.0047
R117
2.7K
330
R1511
C1505
10 ECEV- S
82P
C132
TC4W53FU
IC 1 6 0 2
1
2
3
4
5
6
7
8
0.1
C1914
R1305
10
C1551
1
C134
470P
15P
C126
C214
0.001
0.0018
C248
THRM
L703
0.68U
2.2U
L216
R210
12K
R104
270
1SV307
D103
R709
1K
0.0022
C56
Q202
MMBFU310
C167
0.1
0.1
C1918
0
R231
C206
100P
0.1
C210
15P
C229
0.1
C608
1SV307
D114
L111
100U
R59
1K
C709
33P
6P
C246
R6 0
1K
L153
LR-440
1SV307
D113
Q201
MMBFU310
C1306
0.1
C711
22P
27P
C607
C1303
0.1
L203
0.27U
R103 270
C161
0.1
R190 2
1K
1.5U
L134
1SV307
D115
TRXS
To MAIN UNIT (2)
RV-148
R218
47
R136
R1505
330
R706
100
R102
270
C59
0.0012
0.1
C183
2355
MP201
1 2 3 4
R114
R138
47
47k
C166 100P
L1
0.18U
0.1
C178
C2008
0.0047
100U
L1916
C1907
0.0047
12P
C209
C1902
0.1
100 R132
1SV307
D116
C710
18 P
0.001
C609
47 P
C121
C1503
0.1
C2004 4.7 ECEV-AN
Q204
MMBFU310
C1605
470 ECEV- A
R202
270
C152
0.0015
R204 560
CP1201
HK3-S- T
C1607
10 ECEV- S
C113 470P
C3
150P
0.39U
L125
C142
150P
LR-439
L148
0.01
C610
C1451
0.1
C1602
0.1
C1504
10 ECEV-S
270
R51
18
R1
C148
0.0047
C115
220P
0
R1319
L702
1U
27 0
R3
1SV307
D102
724
MP601
1 2 3 4 5
6
R1202
470K
330
R129
1SV307
D122
0.1
C190
100U
L154
0.0047
C233
R2003
1K
C9
0.1
Q1502
2SD1619
C168
0.1
0.01
C131
C2005
0.0047
L56
100U
C144
120P
1SV307
D101
R604
4.7
L5 3
3.9U
330
R1509
C4
22 P
0.1
C1916
Q51
2SC4213
C149
0.0018
120P
C244
2241
MP1501
1 2 3 4
1SV307
D201
C1502
0.1
100P
C217
C1906
0.1
617DB
L206
270
R126
R609
390
0.1
C 186
470K
R1233
C165
0.1
3.3U
L127
R5 6
220
R57
270
1.5U
L121
0.0022
C150
330
R1513
D1554
MA8091
L604
56N
C106
0.1
Q60 1
2SC555 1
C143
100P
C1904
0.1
0.47U
L124
R704
47K
1SV307
D111
C717
0.001
0.0022
C62
R1310
3.3K
100U
L146 270
R124
0.1
C12
R208
47
0.33U
L114
C1604
470 ECEV- A
C706
33P
C162 180P
R1309
4.7
R108 270
IC2001
BU4053BCFV
1Y1
2Y0
3Z1
4Z
5Z0
6INH
7VEE
8VSS 9
C
10
B
11
A
12
X0
13
X1
14
X
15
Y
16
VDD
0.82U
L108
47
R137
330U
L5 7
L113
100 U
0.1
C188
15P
C228
C1905
0.1
100 R133
C201
0.1
0.1
C184
R130 410
Q10 2
2SC555 1
C10
0.1
2SD1619 Q1505
0
R1301
1SV307
D205
0
R229
R4
100
1SV307
D206
C1508
47 ECEV-S
100UL1917
0.1C1911
R116
1K
L707
LR-317
R707
NTCG1 6
D123
1SV307
27 0
R2
27 0
R125
150P
C241
C107
0.1
R5
18
L1905
100U
HF50ACC322513
L1907
120P
C119
270
R612
4.7
R1508
R606
6.8
0.56U
L110
C6 3
0 .01
680P
C112
C1557
0.1
LS-484B
L208
C712
0.1
270 R221
0.68U
L129
UPC1555G 2
I C1551
1GND
2TRG
3OU T
4RESET 5
VCONT
6
VTH
7
DISCHARGE
8
VCC
L603
68N
18
R611
0.82U
L143
C1308
0.1
L5 4
100U
1.8U
L141
1SV307
D54
Q702
3SK131
C2001
4.7 ECEV-AN
L117
100U
2.7U
L102
BA08FP
IC1502
I O
G
0.1
C193
L704
100U
Q1503
D TC114EU
C714
0.1
R220
100
C702
0.1
R1504
330
0.27U
L116
L4 100U
L12M L4S
L3S
L2S
L0S
B7S
B6S
B5S
B4S
B3S
B2S
B1S
B0S
TXS
TXS
HV13
PWRS
EM S
NMS
MMS
FANS
REF
FO R
STAT
FANC
HV
HV
PON
KEYS
DSMDE
FMOD
RXD
TXD
FMODG
B6
DSMD
B0
B1
B2
B3
B8B8
B4
AFMS
5V
5V
5V
FO R
S13
S13
S13
S13
S13
S13
T8V
T8
T8
TURC
THRM
TSCC
STAS
KEYC
L5S
L1S
TRXS
B8S
CSEN
RXS
RXS
PRES
GND
GND
GND
GND
GND
GND
GND
GND
ICA
ICV
TUL CTUL C
-5V
RFM L
R13V
R13V
R13V
R13V
AFO
R8
R8
B8
TX 8
TX8
TX8
B1
B2
B7
B0
B6
B5
B3
B4
B7
B5
TMC3
TMC1
TMC2
TMC4
S13V
S13V
S13V
S13V
S13V
S13V
-5V
8V
8V
POCV
POCV
TEMP
METER AMP
FOR ALC
SPO
SPE
MRX
YGR
1LoB
S13V
PON
GND
GND
ICV
HV
THRM
GND
GND
HV
GND
S13V
S13V
S13V
FANC
STAT
KEYS
S13V
T8V
GND
GND
GND
S13V
TULK
TUM4
TUM2
TUM1
TURS
TSCS
TUM3
A
C
D
E
F
G
H
I
J
K
L
N
O
P
Q
R
B

10
*; Refer to “PARTS LIST.”
MEASUREMENT CONDITIONS
frequency : 13.8MHz
mode: J3E (USB)
ANT(RX): no input
(TX): no modulation
Digital tester
unit: V
range: 20V
input impedance: 10MΩ
Oscilloscope: 20MHz
noitpircseDemanniPniPC
J1801
CA
1 CWK CW and FSK keying input.
(NC) (NC: AUS version)
2 AF GND Ground line for AF signal.
3.niptuptuo/tupnIDNES
Goes to ground when transmitting.
When grounded, transmits.
4.tupnirotaludoMDOM
Usable when pin 3 is grounded.
5 AF AF detector output.
Fixed, regardless of [VOL] position.
6tuptuohcleuqSSLQS
Goes to ground when squelch opens.
7 13.8 V 13.8 V output when power is ON.
8 ALC ALC voltage input.
*
*
DC GND Common ground.
1
2
3
4
5
6
7
8
R911
1K
470P
C1227
150P
C317
TS522ID
IC1002
2
3
1
C406
0.1
R1002
47 0
R901
1K
TS522I D
IC1702 V+
8
GND
4
R502
120K
C1010
10 ECEV-S
C1008
0.0047
MA2S111
D128
DSM D
R904
47
1.2U
L301
R1007
1K
100P
C3902
B1S
1K
R1658
EARTH SPRING(D)
MP40 1
R1210
4.7K
R 1717
1K
C301
0.0047
R105 3
1K
C1609
1
C402
0.0047
VSQ L
R1724
4.7K
0.1
C1224
Q1203
2SA1586
B6S
TA4107F
IC501
1LO1
2VCC
3RF 2
4RF 1 5
IF1
6
IF2
7
GND
8
LO2
39K
R1218
R1237
10K
R1720
470
R1651
1K
R1208
27K
R406 470K
C1655
0.1
NJM3403AV
IC1201
2
3
1
TS522ID
IC1101 V+
8
GND
4
C306
0.1
R1220
2.2M
C1714
10 ECEV-S
C 407
0.0047
R813
22K
C1706
4.7 ECEV-A N
CWS T
C1051
10 ECEV-S
TS522I D
IC1051
6
5
7
CFWS455HT
FI402
I O
R1008
100
CSEN
R1721
470
R1213
100K
C1805
0.1
TS522ID
IC1002
V+
8
GND
4
TSCC
R1607
470
TS522ID
IC1651
6
5
7
DTC114EU
Q1802
R506
470
B8S
NJM3403AV
IC1201
9
10
8
C501
0.1
C1717
0.1
R1054
1K
C405
0.0047
CWK
C1203
0.1
L801
LS-495
R212
1M
L505
100 U
R1612
1K
C506
0.1
R1240
1K
1SV307
D132
C1058
0.022
R1235
10K
STA S
R1212
330K
C1711
0.056
C906
0.1
L502
1000U
R1011
1K
R503
15K
R1707
330
S13V
L1803
100U
0
R323
R1701
0
C905
0.1
R804
47 0
UPC2709T
IC301
1IN
2GND
3GND 4
OUT 5
GND 6
VCC
C1657
10 ECEV-S
R 1228
1K
R1657
10K
ABWS
TULC
150P
C303
R307 1K
1M
R1230
TC4W53FU
IC1703
1
2
3
4
5
6
7
8
C1651
0.012
B4S
D902
1SV307
DO
R1052
100
R1712
100
R1211
100K
0.1
C511
C1610
0.1
R415 2.2K
Q203
3SK131
C P110 1
HK3-S-T
C403
0.1
C1011
10 ECEV-S
C401
0.1
1SV307
D304
MA2S111
D130
R214 2.2K
R1016
10K
C1003
0.1
ASEN
R1710
1K
C410
0.1
10K
R1805
R1719
10K
R910
1K
D 401
1SV307
TCS5107-182011
J1801
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
MM S
Q401
3SK131
1K
R1659
C1713
10 ECEV-S
1000U
L406
L403
LS-450
C907
0.1
C408
0.1
M A2S111
D129
R1013
0
R1217
330K
R1215
47K
R1225
10 0
C1062
0.022
Q80
1
3SK131
TMC2
R407
10 0
C220
0.0047
CFWM455H
FI401
I O
C1201
0.0047
R213
68
C1005
560P
C1057 0.022
C1007
0.0047
Q1204
2SA1586
R1015
56K
TURC
C520
10 ECEV-S
R507
10 0
HV13
M 3LO
C311 0.0027
R1802
3.3K
R1014
1K
J301
TMP-J01X-V6
POCV
R1204
0
C517
0.1
R1051
100
5V
0.1
C1223
TMC1
R1652
1K
C801
0.1
C1063
0.022
LS-54 2
L405
KEYC
0.1
C1226
C224
0.0047
R505
820
270
R314
R1223
2.2K
C1054
0.01
NMS
NJM3403AV
IC1201
V+
4
GND
11
C504
0.0047
C1209
0.1
L1804 100U
R1004
1K
R514
1K
AJLC
Q 180 1
2SD1619
R408
220
R1238
10K
LS-542
L401
RQO
C1006 0.0047
R1801
3.3K
1.2U
L302
C1802
0.0047
L304
LR-39 5
R1010
1K
C51 8
0.1
C 505
0.0047
C1061
0.001
C1618
1
L901
100U
C521
0.1
Q1207
2SA1586
D901
1SV307
L902
100U
C803
0.1
DI
C1804
0.1
C1715
0.1
L305
10U
C1807
0.1
ALE1
TS522I D
IC1002
6
5
7
R1005
1K
R1232
1M
C903
0.0047
C904
0.1
C1806
0.1
R1715
8.2K
C412
0.0047
R1660
10 0
AFMS
R1803
3.3K
J1102
IMSA-9180B-22B
12
34
56
78
910
1112
1314
1516
1718
1920
2122
R1661
100
56P
C 318
R1059
1K
27
R310
1SV307
D305
R1709
1K
R1711
10 0
C1101
0.1
Q501
3SK131
UNLK
RFM L
C908
10 ECEV-S
BEEP
R1060
100K
L1801
H F50ACC32251 3
R1055
1K
R1057
1K
R1221
2.2M
R1654
0
L303
LR-317
R401
1K
Q1206
2SC4213
HSB88WS
D303
R508
NTCG16
1SV307
D302
3.3 ECST-Y
C1208
R1110
100
RXD
47 ECEV-S
C512
270
R311
R1653
1K
TS522I D
IC1051 V+
8
GND
4
SQLC
R 1109
100
R 1113
10 0
R1102
4.7K
C1056
0.022
TS522ID
IC105 1
2
3
1
TMC4
R215
10
C508
0.1
C409
0.1
L1802
HF50ACC322513
R1207
10K
NJM3403AV
IC1201
6
5
7
C1205
10 ECEV-S
C516
0.1
TA4107F
IC901
1LO1
2VCC
3RF2
4RF1 5
IF1
6
IF2
7
GND
8
LO2
L0S
C901
0.1
M A2S111
D127
R404 12K
B2S
C902 0.1
R 1723
1K
C1801
0.1
1SV307
D133
PRES
C304
0.1
C1710
0.056
C802
0. 1
Q1205
2SC4213
C502
0.0047
C411
0.1
C223
0.0047
L4S
M A2S111
D134
TRFD
R409
100
C1652
0.056
TS522ID
IC1651
2
3
1
ALE2
56P
C 319
C1803
0.1
M A2S111
D131
TXS
270
R316
R410
1K
C235
5P
STBO
C909
0.1
C1709
0.056
R30 1
1K
R1019
0
L506
1000U
C1001
0.1
C1002
0.1
C1716
0.1
FANS
R814
150K
R414
1K
C519
0.1
150P
C302
R1006
1K
TXD
270
R313
TS522ID
IC1702
2
3
1
100U
L1805
C1202
0.1
C404
0.1
R413
1K
R1111
10K
R1101
100K
C1214
0.1
C305
0.1
LS-542
L404
TRXS
R303
100
R504 1K
C1707
0.012
2.2 ECST- Y
C1212
R1236
1K
C307
0.1
R1804
10K
L3S
C310
0.0047
C1704
0.1
180P
C414
L306
12U
R1722
1K
1SV307
D301
TS522ID
IC1702
6
5
7
DRES
M A2S728
D135
B0S
0.0012
C315
R302
47
B7S
R1234
10K
R1718
10K
18
R312
R1713
1K
C1656
10 ECEV-S
D403
1SV307
C1102
0.1
0
R320
150P
C316
R1216
47K
TS522ID
IC1101
2
3
1
C1004
0.0018
R1201
0
0 .12U
L308
R1224
10 0
680P
C308
120PC413
C1064
0.022
C507
0.1
R1107
1M
C 910
0.1
L307
2.2U
10K
R1662
L2S
R1209
47K
R1017
1K
R802
22
TEMP
C312
0.1
R405
2.7K
C1654
0.056
C806
47 ECEV- S
R309 1K
C805
0.0047
R1656
1K
TS522ID
IC1651 V+
8
GND
4
C509
0.1
R1214
560K
R1105
3.3K
R1003
47 0
R903
1K
C503
0.1
R105 8
1K
C1206
0.001
R1716
2.2K
L904
1M
L5S
EM S
PWRS
CK
C1653
0.056
R1655
2.2K
DSMDE
C1012
0.1
18
R315
L1S
R1226
220
L210
LS-483A
J1101
IMSA-9180B-30B
12
34
56
78
910
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
R1222
470
R1706
15K
L504
100U
C219
0.0047
C1055
0.001
R1009
100
R801 2.2K
GND
C1059
0.01
L903
100U
TS522I D
IC1101
6
5
7
RQI
C221
0.0047
R1012
0
TMC3
R803
220
DSKY
RXS
C1705
1
B3S
12K
R515
TC4W53F U
IC1001
1
2
3
45
6
7
8
47 ECEV-S
C510
R1018
100
DSAF E
B5S
R902
1K
C309
0.1
C1052
10 ECEV-S
DSAF
R1219
1M
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
DSAF
AGND
13.6V
GND 1
GND1
GND 1
GND 1
GND1
TRFD
ALE1
CWS T
ALE2
VSQL
STBO
DO
RQI
RQO
DI
CK
DI
CK
DO
STBO
RQ I
RQO
CWST
ALE1
ALE2
TRFD
VSQL
L1S
L2S
L3S
L4S
B2S
B3S
B4S
B5S
B6S
B7S
B8S
TEMP
ASEN
PWRS
BEE P
AFMS
SQLC
FANS
TXS
MM S
NMS
EM S
B0S
SEN D
AA F
EALC
ICA
HV13
RXD
TXD
UNLK
CWK
C SEN
ASEN
DSAF
DSAFE
DSM D
DSMDE
D RES
UNLK
DRES
DSPI 1
D SPO 1
ABW S
TRXS
REFREF
AGC1
AGC1
EALC
AMOD
CWK
5V
5V
5V
5V
5V
OUT 8
OUT 8
DSKY
FO RFO R
DSKY
AJLC
KEYC
STAS
T8
T8
T8
TMC1
TMC2
TMC3
TMC4
TSCC
TURC
L5S
CSEN D
RXS
RXS
PRES
L0S
B1S
TULC
BEEP
DSPI 2
D SPO 2
-5V
-5V
-5V
-5V
-5V
-5V
SQLC
MAGC
M3LOR
GND1
GND1
GND1
R8
DSAFE
TX8
TX8
ALC
ALC
ALC
S13V
8V
HV13
5V
T8
RXS
S13V
-5V
8V
8V
8V
8V
8V 8V
8V
POCV
RX FILTER
TX FILTER
RX FILTER
LOGIC
PART
AGC AMP
REF APC
IC APC
OUT6
OBSY
IBSY
192K
RX FILTER
M2Lo
L
L
N
N
O
P
Q
R
A
C
D
E
F
G
H
I
J
K
B

S-14012HZ-C1-q
Jul. 2007
HF TRANSCEIVER

This service manual describes the latest service information
for the IC-F7000 TRANSCEIVER at the time of publication.
NEVER connect the transceiver to an AC outlet or to a DC
power supply that uses more than specified. This will ruin
the transceiver.
DO NOT expose the transceiver to rain, snow or any liquids.
DO NOT reverse the polarities of the power supply when
connecting the transceiver.
DO NOT apply an RF signal of more than 20 dBm (100 mW) to
the antenna connector. This could damage the transceiver’s
front-end.
To upgrade quality, any electrical or mechanical parts and
internal circuits are subject to change without notice or
obligation.
MODEL VERSION
IC-F7000
AUS
OTH
EXP
Be sure to include the following four points when ordering
replacement parts:
1. 10-digit Icom parts numbers
2. Component name
3. Equipment model name and unit name
4. Quantity required
<ORDER EXAMPLE>
1110003491 S.IC TA31136FNG IC-F7000 MAIN UNIT 5 pieces
8820001210 Screw 2438 screw IC-F7000 Top cover 10 pieces
Addresses are provided on the inside back cover for your
convenience.
Icom, Icom Inc. and logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United
Kingdom, Germany, France, Spain, Russia and/or other countries.
ORDERING PARTS
1. Make sure the problem is internal before disassembling
the transceiver.
2. DO NOT open the transceiver until the transceiver is
disconnected from its power source.
3. DO NOT force any of the variable components. Turn
them slowly and smoothly.
4. DO NOT short any circuits or electronic parts. An
insulated tuning tool MUST be used for all adjustments.
5. DO NOT keep power ON for a long time when the
transceiver is defective.
6. DO NOT transmit power into a Standard Signal
Generator or a Sweep Generator.
7. ALWAYS connect a 50 dB to 60 dB attenuator between
the transceiver and a Deviation Meter or Spectrum
Analyzer when using such test equipment.
8. READ the instructions of test equipment throughly
before connecting a test equipment to the transceiver.
REPAIR NOTES
INTRODUCTION CAUTION

CONTENTS
SECTION 1 SPECIFICATIONS
SECTION 2 INSIDE VIEWS
SECTION 3 EXT. REFERENCE SIGNAL SOURCE
SECTION 4 CIRCUIT DESCRIPTION
SECTION 5 ADJUSTMENT PROCEDURES
SECTION 6 PARTS LIST
SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
7 - 1 IC-F7000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 1
7 - 2 RC-26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 2
SECTION 8 SEMICONDUCTOR INFORMATION
SECTION 9 BOARD LAYOUTS
MAIN and PLL UNITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 - 1
PA and DSP UNITS, VARISTOR1/2 and DRIVER BOARDS, RC-26 and HM-155. . . . . . . . . . . . . .9 - 3
SECTION 10 BLOCK DIAGRAM
SECTION 11 WIRING DIAGRAM
SECTION 12 VOLTAGE DIAGRAMS
RC-26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 - 1
MAIN UNIT (1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 2
MAIN UNIT (2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 3
PA UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 4
PLL UNIT (1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 5
PLL UNIT (2) and (3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 6
DSP BOARD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 7

1 - 1
SECTION 1 SPECIFICATIONS
• IC-F7000
MGeneral
• Frequency coverage : (Unit: MHz)
Receive 0.5–29.9999
Transmit 1.6–5.4999 5.73–5.9999
6.7–8.0999 10.0–11.1999
13.4–14.9999 18.0–18.9999
20.0–20.9999 23.0–27.9999
•Type of emission : J3E (USB/LSB), J2B (AFSK),
(depends on version) F1B (FSK), A1A (CW),
A3E (AM)
• No. of memory Ch. : 500 channels (max.)
• Usable temp. range : –10°C to +60°C
• Frequency stability : ±50 Hz
• Power supply : 13.8 V DC (negative ground)
(10.8–15.6 V DC)
• Current drain :
Transmit
(typical) at max. power 23 A [AUS]
28 A [OTH]
Receive at max. audio 3.0 A
• Dimensions (projections not incl.):
Main unit 240(W)×72(H)×239(D) mm
Controller (RC-26) 150(W)×50(H)×51(D) mm
Speaker (SP-25) 106(W)×62(H)×46(D) mm
Microphone (HM-155) 65(W)×105(H)×35(D) mm
• Weight (approx.) :
Main unit 4.6 kg
Controller (RC-26) 220 g without cable
Speaker (SP-25) 370 g
Microphone (HM-155) 234 g
• Accessary connector : 8-pin DIN connector
• Controller connector : 8-pin MINI DIN connector
• REMOTE connector : D-sub 9-pin
(RS-232C/NMEA)
Transceiver
• Output power :
1.6–27.9999 MHz 100/50/10 W p-p [AUS]
1.6–3.9999 MHz 125/50/10 W p-p [OTH]
4.0–27.9999 MHz 100/50/10 W p-p [OTH]
• Spurious emission : Less than –43 dB
below peak output power
(Less than –40 dB for 3.5–
3.9999 MHz range [OTH])
• Carrier suppression : More than 40 dB
below peak output power
•Unwanted sideband : More than 50dB
suppression below peak output power
• Mic. connector : 8-pin modular jack (2.4 kΩ)
Receiver
• Sensitivity:
J3E, A1A
(0.5–1.5999 MHz) 28 dBµV emf (20 dB SINAD)
14 dBµV (10 dB S/N)
(1.8–29.9999 MHz) 0 dBµV emf (20 dB SINAD)
–14 dBµV (10 dB S/N)
A3E
(0.5–1.5999 MHz) 46 dBµV emf (20 dB SINAD)
32 dBµV (10 dB S/N)
• Spurious response rejection ratio:
(1.6–29.9999 MHz) More than 70 dB
• AF output power: (at 13.8 V DC)
Main unit More than 4.0 W at 10%
distortion with a 4 Ωload
Controller (RC-26) More than 2.0 W at 10%
distortion with a 4 Ωload
•
CLARITY variable range : ±150 Hz
• SP connectors:
Main unit 2-conductor
3.5 (d) mm (1/8″)/4 Ω
Controller (RC-26) 2-conductor
3.5 (d) mm (1/8″)/4 Ω
All stated specifications are typical and subject to change without notice or obligation.
M
M

2 - 1
SECTION 2 INSIDE VIEWS
CONNECT BOARD
DISPLAY BOARD
+8V regulator
(IC8310: TA78L08F)
+10V regulator
(IC8301: AN8009M) +5V regulator
(IC8290: TA7805F)
Reset IC
(IC8202: S-80942CNMC-G9C)
CPU
(IC8201: HD64F2134AF20)
Dimmer controller
(IC8280: TS522ID)
CONNECT BOARD
DISPLAY BOARD
+8V regulator
(IC8310: TA78L08F)
+10V regulator
(IC8301: AN8009M) +5V regulator
(IC8290: TA7805F)
Reset IC
(IC8202: S-80942CNMC-G9C)
CPU
(IC8201: HD64F2134AF20)
Dimmer controller
(IC8280: TS522ID)
• RC-26

2 - 2
TX 1st mixer
(Q702,Q703: 3SK131)
YGR amplifier
(IC1: μPC2709T)
MAIN UNIT
DSP BOARD
RF 3rd mixer
(IC501: TA4107F)
TX 3rd mixer
(IC901: TA4107F)
AGC amplifier
(IC1101: TS522ID)
RF 1st mixer
1st IF amplifier
(Q203: 3SK131)
2nd mixer
(D303: HSB88WS)
CPU
(IC3303: M30624FGAFP)
ALC/APC circuit
(IC1201: NJM3403AV)
Reset IC
(IC3302: S-80842CNMC)
AF power amplifier
(IC1601: LA4425A)
TX 1st mixer
(Q702,Q703: 3SK131)
YGR amplifier
(IC1: μPC2709T)
MAIN UNIT
DSP BOARD
RF 3rd mixer
(IC501: TA4107F)
TX 3rd mixer
(IC901: TA4107F)
AGC amplifier
(IC1101: TS522ID)
RF 1st mixer
(Q201-Q204: MBU310×4)
1st IF amplifier
(Q203: 3SK131)
2nd mixer
(D303: HSB88WS)
CPU
(IC3303: M30624FGAFP)
ALC/APC circuit
(IC1201: NJM3403AV)
Reset IC
(IC3302: S-80842CNMC)
AF power amplifier
(IC1601: LA4425A)
PA UNIT
PLL IC
(IC5401: LMX2306TM)
VARISTOR-1 BOARD
VARISTOR-2 BOARD
+8V regulator
(IC6601: TA7808F)
DRIVER BOARD
Push-pull ampifier
Q6401, Q6402
: SD1405
* Located under side
of the point
PA UNIT
PLL UNIT
Filter circuit
DDS IC
(IC5701: SC-1287)
DDS GATE ARRAY*
(IC5101: SC-1246A)
TCXO*
(X5251: CR-770)
PLL IC*
(IC5401: LMX2306TM)
VARISTOR-1 BOARD
VARISTOR-2 BOARD
+8V regulator
(IC6601: TA7808F)
DRIVER BOARD
Push-pull ampifier
Q6401, Q6402
: SD1405
* Located under side
of the point
*
• IC-F7000

3 - 1
SECTION 3 EXT. REFERENCE SIGNAL SOURCE
‘‘IN CASE OF USING EXTERNAL REFERENCE SIGNAL
NEED TO MODIFY the PLL unit (bottom side) as below when using external reference.
qRemove R5251 from the PLL unit.
wSolder disconnect points (CP5041) on the PLL unit.
14
8
14
85
5
CP5041
R5251
wq

3 - 2
‘‘IN CASE OF USING INTERNAL REFERENCE SIGNAL
NEED TO MODIFY the PLL unit (bottom side) as below. Otherwise the transceiver does not work properly.
qUnsolder connect points (CP5041) on the PLL unit.
wSolder R5251 to the original position, or solder disconnect points (CP5251) on the PLL unit.
‘‘CONNECTION
Connect the external reference oscillator to the IC-F7000 as below.
qwCP5251
CP5041
External reference
IC-F7000 front panel
[REF IN]
Frequency : 32 MHz
Level : 2.0–8.0 Vp-p at 15 kΩ
impedance

4 - 1
SECTION 4 CIRCUIT DESCRIPTION
4-1 RECEIVER CIRCUITS
4-1-1 RF FILTER CIRCUIT (PLL AND MAIN UNITS)
Received signals from the antenna connector are applied
to the transmit/receive switching and protection relay (PLL
unit; RL7301) which is controlled by the CPU via the “TRXS”
line. The signals pass through the 30 MHz cut-off low-pass
filter (PLL unit; L7321, C7321–C7323, C7325), and then
applied to the MAIN unit via the J7321.
The signals pass through the 1.6 MHz cut off high-pass
filter (MAIN unit; L51–L54, L57, C54, C56, C57, C59, C61–
C64, C69) and transmit/receive switch (D54), and are then
applied to one of the bandpass filters (including one low-
pass filter for below 2.0 MHz). These filters are selected by
the filter control signals (B0–B8) as described in the table
below.
The filtered signals are applied to the pre-amplifier (MAIN
unit; Q102, Q103), and then passed through the 33 MHz
cut-off low-pass filter (L202, L203, C202–C206). The
filtered signals pass through the low-pass filter (MAIN unit;
L202, L203, C202–C206), and are then applied to the 1st
mixer circuit (Q201, Q202, Q204, Q205).
4-1-2 1ST MIXER AND IF CIRCUITS (MAIN UNIT)
The 1st mixer circuit converts the received signals into a
fixed frequency, 64.445 kHz 1st IF signal using PLL output
frequency. By changing the PLL frequency, only the desired
frequency is picked up at the 64.445 kHz bandpass filter
(FI201) at the next stage.
The IF amplifier (Q203) and resonator circuits are designed
between the filter pair. The PLL output signal (1LO) enters
the MAIN unit via the J601 and is amplified at the 1st LO
amplifier (Q601). The amplified signal is passed through the
100 MHz cut-off low-pass filter (L602–L604, C602, C604–
C607, C609) to suppress harmonic components, and then
applied to the 1st mixer circuit (Q201, Q202, Q204, Q205).
4-1-3 2ND MIXER AND IF CIRCUITS (MAIN UNIT)
The 1st IF signal from the bandpass filter (FI201) is
converted again into a 455 kHz 2nd IF signal at the 2nd
mixer circuit (D303, L303, L304). The 2nd LO signal (2LO)
from the PLL unit enters the MAIN unit via the J301 to be
applied to the 2nd mixer circuit.
4-1-4 3RD MIXER AND IF CIRCUITS (MAIN UNIT)
The 2nd IF signal passes through the low-pass
filter (L305, C308, C310, C311, C315), and is then
applied to the IF amplifier (Q401) via the ceramic
bandpass filter (FI401). The amplified signal passes
through the other ceramic bandpass filter (FI402),
and then applied to the 3rd mixer circuit via the IF
amplifier (Q501). The 2nd IF signal is converted into a
12 kHz 3rd IF signal at the 3rd mixer circuit (IC501). The
3rd LO signal (3LO) from the PLL unit enters the MAIN unit
via the J3601 to be applied to the 3rd mixer circuit.
• RECEIVER CONSTRUCTION
Frequency (MHz)
0.5–1.9999
2.0–2.4999
2.5–2.9999
3.0–3.4999
3.5–4.9999
5.0–5.4999
5.5–6.9999
7.0–8.9999
9.0–9.9999
10.0–13.9999
14.0–14.9999
15.0–17.9999
18.0–23.9999
24.0–29.9999
BPF ctrl signal
B0
B1
B2
B3
B4
B5
B6
B7
B8
LPF ctrl signal
L1M
L2M
L4M
L6M
L12M
L22M
LPF
Antenna
PLL unit
to transmit/receiver switch
LPF
FI201 FI401
FI402
Q401
Q5013rd mixer
IC501
IC1002
1st mixer
Q201
Q202
Q203
Q204
2nd mixer
D303
1st LO
64 94 MHz
BPF
2 30 MHz
0.5 1.9999 MHz
BPF
Crystal
BPF
Crystal IF
amp.
BPF
Crystal
LPF IF
amp.
IF
amp.
DSP
UNIT
2nd LO
64 MHz
3rd LO
443 kHz
