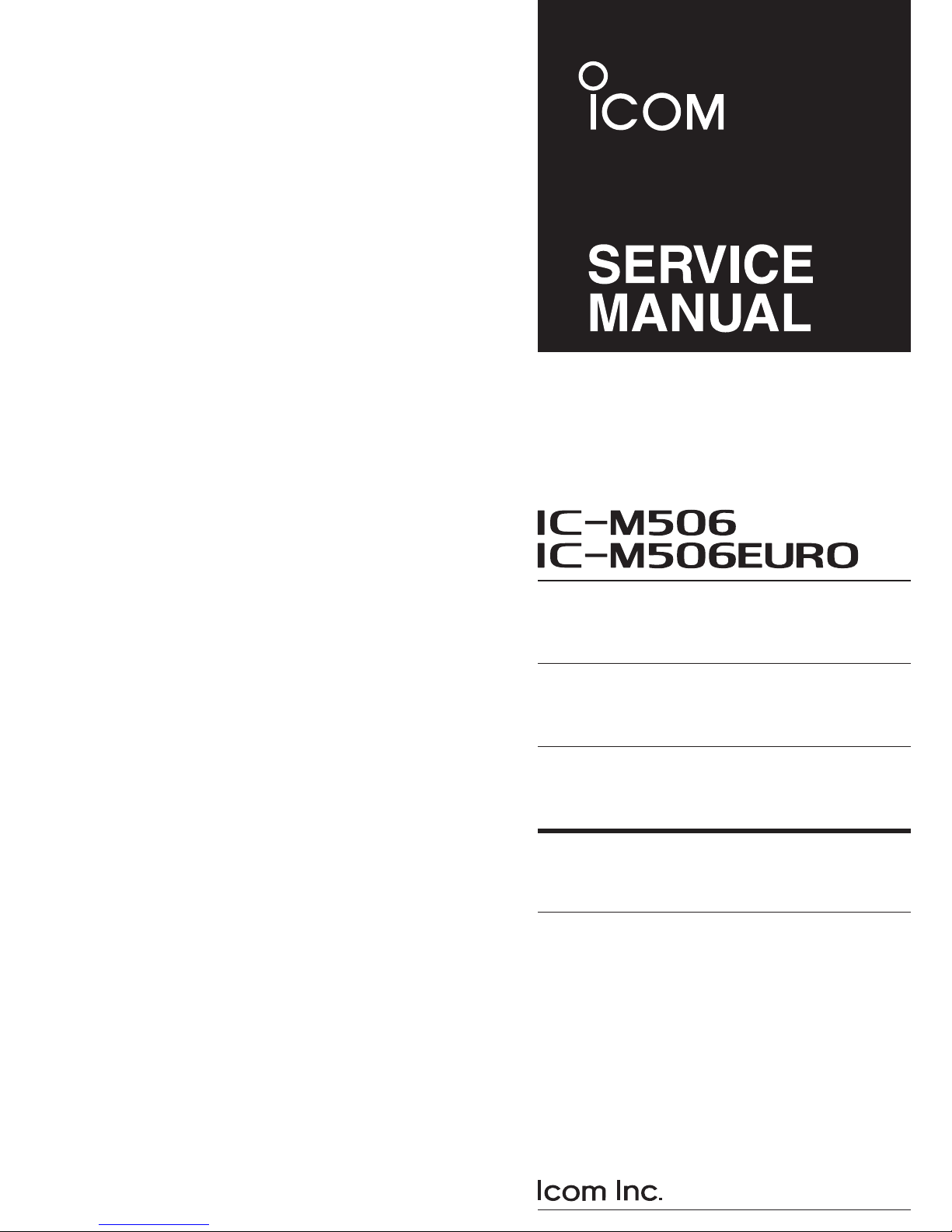

Icom Ic-m506 User manual

S-15102XZ-C1

September 2014

VHF MARINE TRANSCEIVER

This service manual describes the latest technical informa-

tion for the IC-M506/IC-M506EURO VHF MARINE TRANS-

CEIVER, at the time of publication.

NEVER connect the transceiver to an AC outlet or to a DC

power supply that uses more than the speciﬁed voltage. This

will ruin the transceiver.

DO NOT reverse the polarities of the power supply when con-

necting the transceiver.

DO NOT apply an RF signal of more than 20 dBm (100 mW) to

the antenna connector. This could damage the transceiver’s

front-end.

To upgrade quality, any electrical or mechanical parts

and internal circuits are subject to change without notice

or obligation.

MODEL VERSION

NUMBER VERSION HM-205RB

NMEA

2000

UNIT

AIS

UNIT

IC-M506

[#01] USA

[#05] EUR

[#06] HOL

[#07] FRG

[#09] CHN

[#10] AUS

[#11] USA-01



[#21] USA-02

[#31] USA-03 

[#41] USA-04 

IC-M506

EURO

[#04] UK

[#14] UK-01



[#15] EUR-01

[#16] HOL-01

[#17] FRG-01

[#19] CHN-01

[#20] AUS-01

[#24] UK-02



[#25] EUR-02

[#26] HOL-02

[#27] FRG-02

[#29] CHN-02

[#30] AUS-02

[#34] UK-03

[#35] EUR-03



[#36] HOL-03

[#37] FRG-03

[#39] CHN-03

[#40] AUS-03



[#44] UK-04

[#45] EUR-04

[#46] HOL-04

[#47] FRG-04

[#49] CHN-04

[#50] AUS-04

Be sure to include the following four points when ordering

replacement parts:

1. 10-digit Icom part number

2. Component name

3. Equipment model name and unit name

4. Quantity required

1110003491 S.IC TA31136FNG IC-M506 MAIN UNIT 5 pieces

8820001210 Screw 2438 screw IC-M506EURO Top cover 10 pieces

Addresses are provided on the inside back cover for your

convenience.

ORDERING PARTS

1. Make sure that the problem is internal before dis-assem-

bling the transceiver.

2. DO NOT open the transceiver until the transceiver is dis-

connected from its power source.

3. DO NOT force any of the variable components. Turn them

slowly and smoothly.

4. DO NOT short any circuits or electronic parts. An insulated

tuning tool MUST be used for all adjustments.

5. DO NOT keep power ON for a long time when the trans-

ceiver is defective.

6. DO NOT transmit power into a Standard Signal Generator

or a Sweep Generator, otherwise the RF power may dam-

age them.

7. ALWAYS connect a 50 dB to 60 dB attenuator between the

transceiver and a Deviation Meter or Spectrum Analyzer,

when using such test equipment.

8. READ the instructions of the test equipment thoroughly

before connecting it to the transceiver.

REPAIR NOTES

INTRODUCTION CAUTION

(IC-M506)

Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the

United Kingdom, Germany, France, Spain, Russia and/or other countries.

TABLE OF CONTENTS

SECTION 1 SPECIFICATIONS

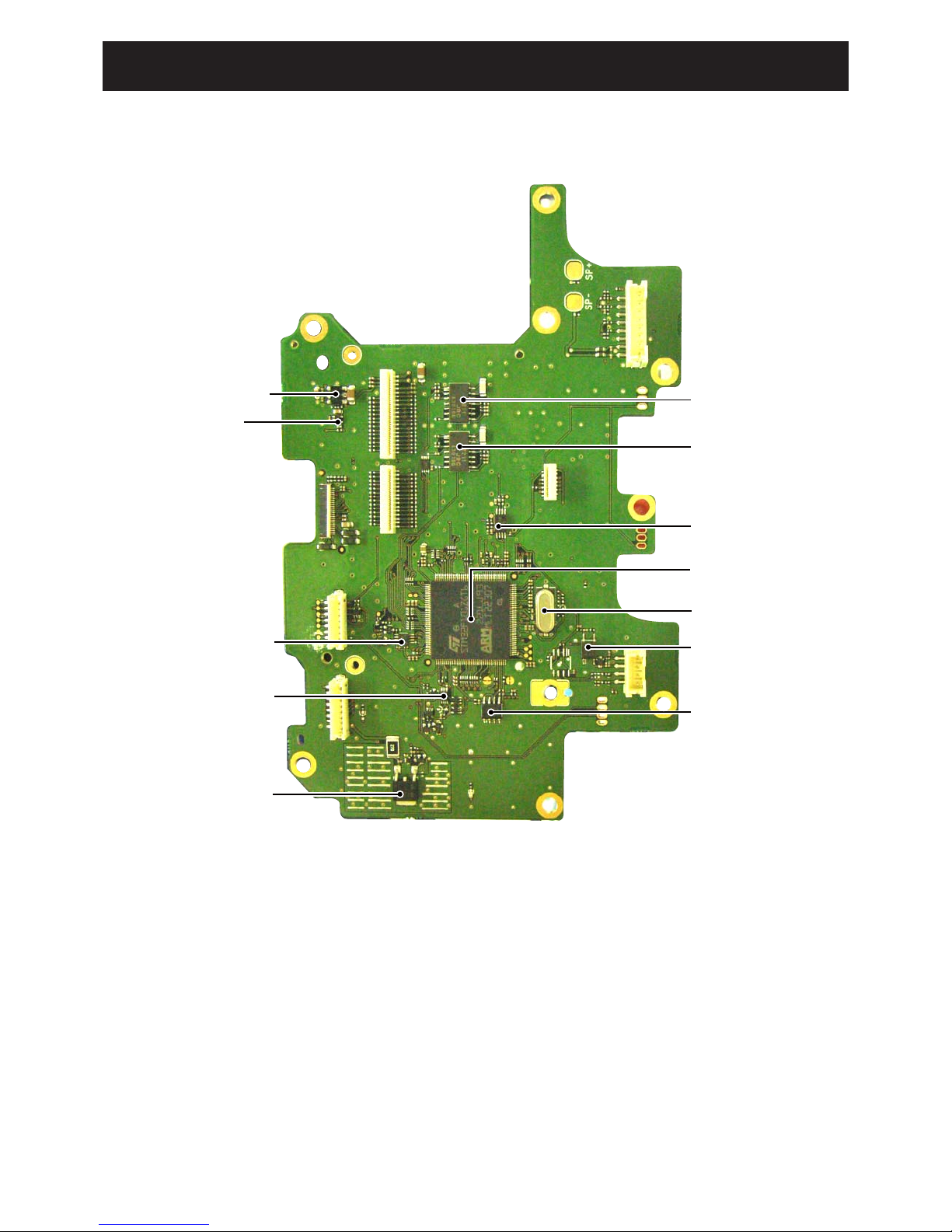

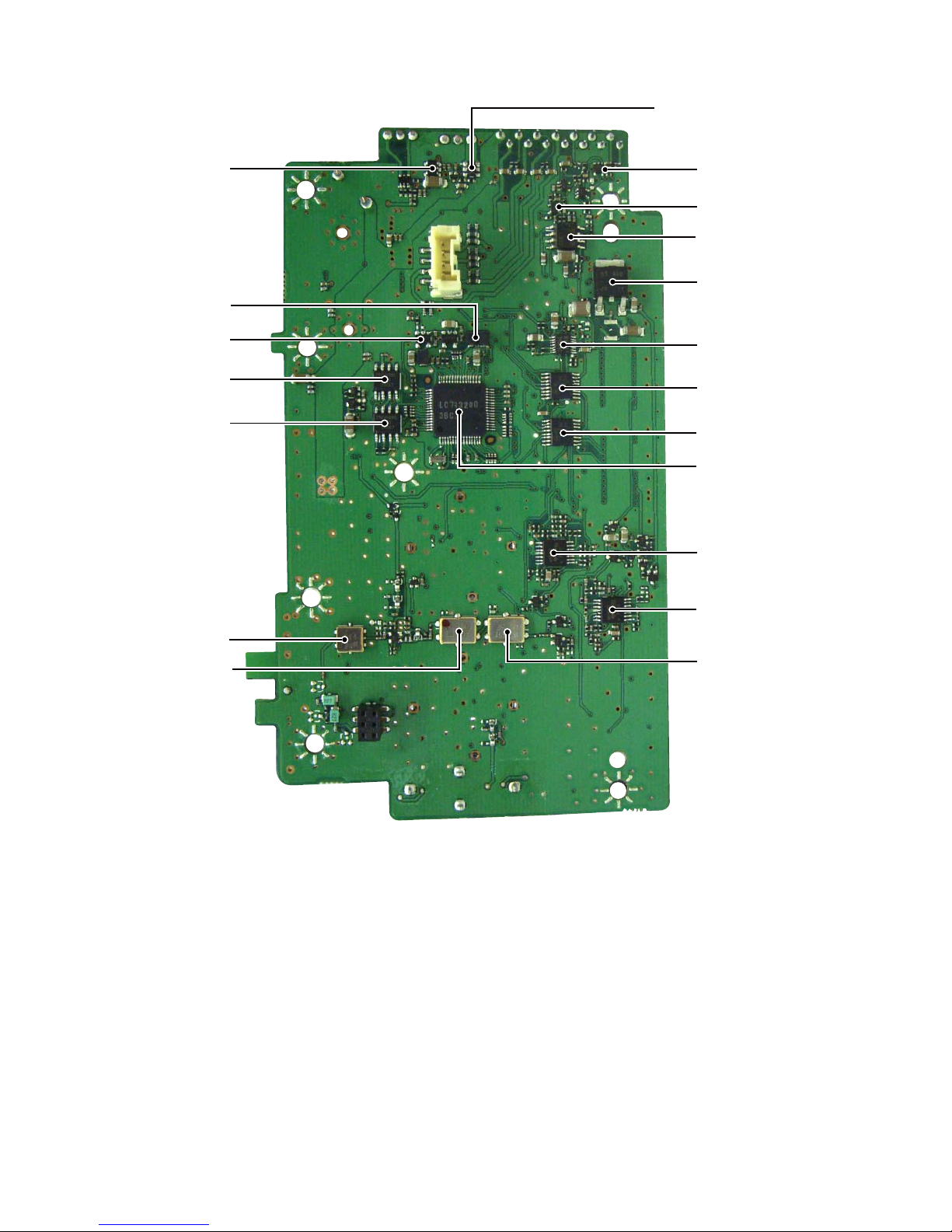

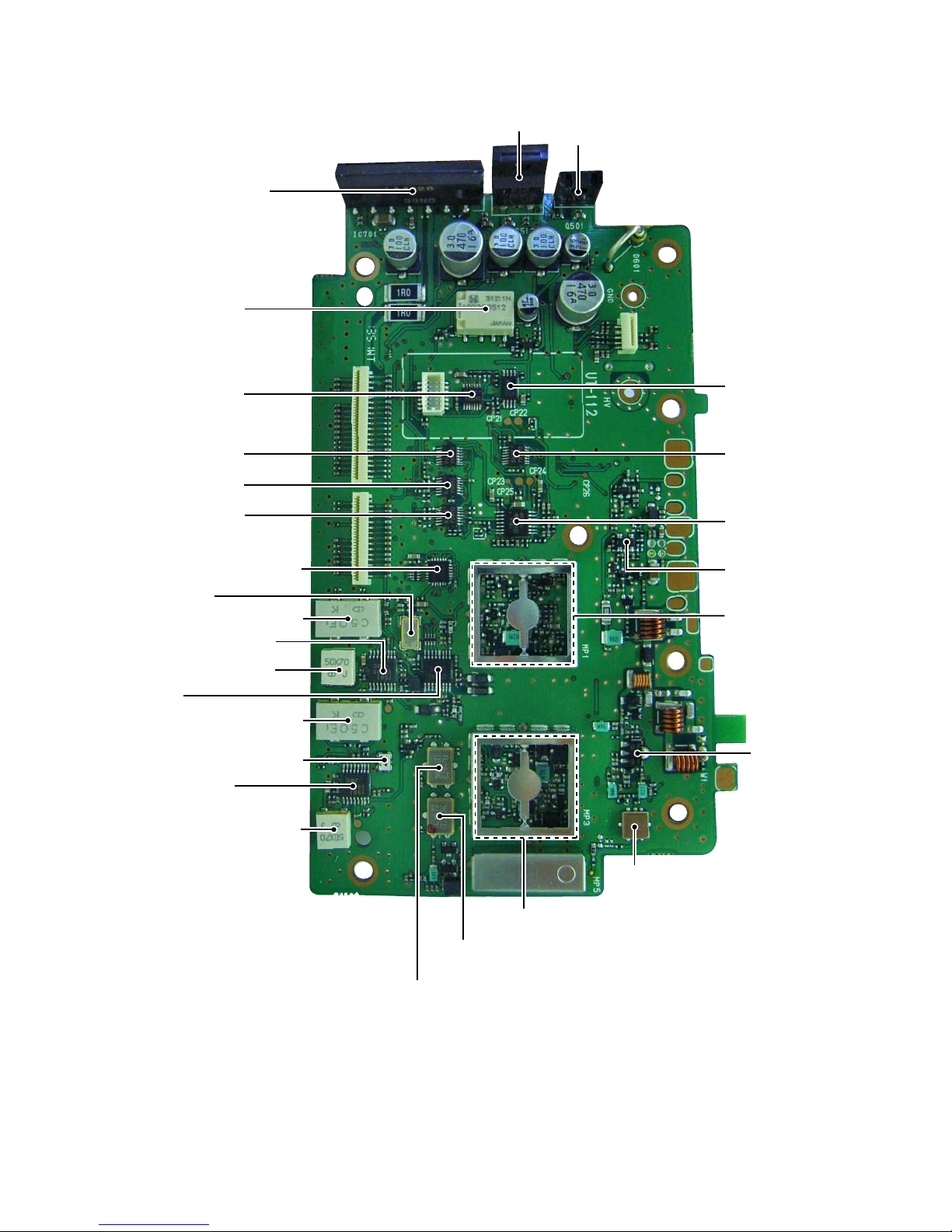

SECTION 2 INSIDE VIEWS

SECTION 3 DISASSEMBLY INSTRUCTION

SECTION 4 CIRCUIT DESCRIPTION

4-1 RECEIVER CIRCUITS...................................................................................... 4-1

4-2 TRANSMITTER CIRCUITS............................................................................... 4-2

4-3 FREQUENCY SYNTHESIZER CIRCUITS ....................................................... 4-4

4-4 AIS RECEIVE CIRCUITS (AIS UNIT: UX-231) ................................................. 4-4

4-5 NMEA2000 DATA ROUTING CIRCUITS (NMEA2000 UNIT: UC-232) ............. 4-4

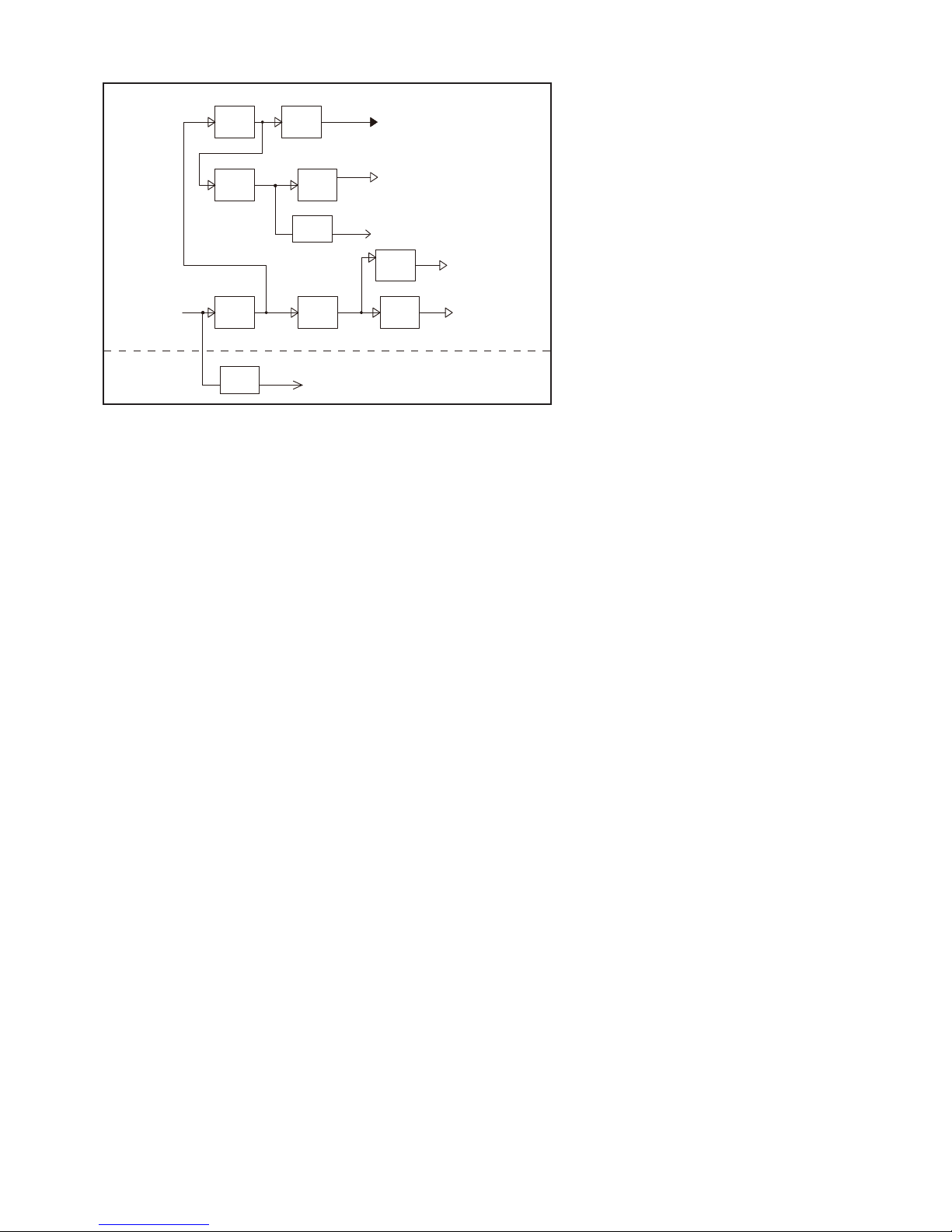

4-6 VOLTAGE BLOCK DIAGRAM ........................................................................... 4-5

SECTION 5 PARTS LIST

SECTION 6 MECHANICAL PARTS

SECTION 7 BOARD LAYOUTS

SECTION 8 BLOCK DIAGRAM

SECTION 9 VOLTAGE DIAGRAM

1-1

SECTION 1

SPECIFICATIONS

NOTE: Simplex channels, 3, 21, 23, 61, 64, 81, 82 and 83 CANNOT

be lawfully used by the general public in U.S.A. waters.

*1 Low power only. *2 Momentary high power. *3 DSC operation only.

Channel number Frequency (MHz)

03 156.150 160.75003

03A 156.150 156.150

156.200 160.80004

02 156.100 160.70002

04A 156.200 156.200

156.250 160.85005

05A 05A 156.250 156.250

06 06 156.300 156.30006

156.350 160.95007

07A 07A 156.350 156.350

08 08 156.400 156.40008

09 09 156.450 156.45009

10 10 156.500 156.50010

11 11 156.550 156.55011

12 12 156.600 156.60012

13*213*1

156.650 156.650

14 14

156.700 156.700

15*215*1

156.750 156.750

15*1

16 16

156.800 156.800

17*117*1

156.850 156.850

156.900 161.500

18A 18A

156.900 156.900

156.950 161.550

19A 19A 156.950 156.950

20 20*1157.000 161.60020

20A 157.000 157.000

01A 156.050 156.050

USA

156.050 160.65001

CAN

Transmit Receive

INT

Channel number Frequency (MHz)

157.100 161.70022

22A 22A 157.100 157.100

23 157.150 161.75023

21B Rx only 161.650

23A 157.150 157.150

24 24 157.200 161.80024

25 25 157.250 161.85025

25B Rx only 161.850

26 26 157.300 161.90026

27 27 157.350 161.95027

28 28 157.400 162.00028

28B Rx only 162.000

60 156.025 160.62560

156.075 160.67561

61A 61A 156.075 156.075

156.125 160.72562

62A 156.125 156.125

156.175 160.77563

63A 156.175 156.175

64 156.225 160.82564

64A 64A 156.225 156.225

156.275 160.87565

65A 65A 156.275 156.27565A

156.325 160.92566

66A 66A*1156.325 156.32566A

67*267 156.375 156.37567

21A 21A 157.050 157.050

USA

21 157.050 161.65021

CAN

Transmit Receive

INT

Channel number Frequency (MHz)

71 71 156.575 156.57571

72 72 156.625 156.62572

73 73 156.675 156.67573

70*370*3156.525 156.52570*3

74 74 156.725 156.72574

75*175*1156.775 156.77575*1

76*176*1156.825 156.82576*1

77*177*1156.875 156.87577

156.925 161.52578

78A 78A 156.925 156.925

156.975 161.57579

79A 79A 156.975 156.975

157.025 161.62580

80A 80A 157.025 157.025

157.075 161.67581

81A 81A 157.075 157.075

157.125 161.72582

82A 82A 157.125 157.125

83 157.175 161.77583

83A 83A 157.175 157.175

83B Rx only 161.775

84 84 157.225 161.82584

84A 157.225 157.225

85 85 157.275 161.87585

85A 157.275 157.275

86 86 157.325 161.92586

69 69 156.475 156.47569

USA

68 156.425 156.42568

CAN

Transmit Receive

INT

Channel number Frequency (MHz)

88 88 157.425 162.02588

88A 157.425 157.425

87A 157.375 157.375

87 87 157.375 161.97587

86A

USA

157.325 157.325

CAN

Transmit Receive

INT

Frequency (MHz)

RX only 162.425

RX only 162.450

RX only 162.500

RX only 162.475

RX only 162.525

RX only 161.650

RX only 161.775

RX only 163.275

RX only 162.400

RX only 162.550

Transmit Receive

WX channel

Channel list

M IC-M506

General

• Frequency coverage:

Tx 156.025–157.425 MHz

Rx 156.050–163.275 MHz

CH70 156.525 MHz

• Mode:

FM, DSC

• Channel spacing: 25 kHz

• Operating temp. range:

–20°C to +60°C (–4ºF to +140ºF)

• Current drain (at 13.8 V): TX high 5.5 A maximum

Max. audio 5.0 A maximum

(With EXT SP)

Max. audio 1.5 A maximum

(With INT SP)

• Power supply requirement: 13.8 V DC ±15%

(negative ground)

• Frequency tolerance: ±10 ppm (–20°C to +60°C:

–4ºF to +140ºF

)

• Antenna impedance: 50 nominal

• Dimensions: 178.9 (W) × 113.9 (H) ×

(Projections not included) 113.8 (D) mm

7 (W) × 4.5 (H) × 4.5 (D) inches

• Weight (approximately): 1.4 kg: 3.1 lb

Transmitter

• Output power: 25 W/1 W

• Modulation system: Frequency modulation

• Max. frequency deviation: ±5.0 kHz

• Spurious emissions: Less than –70 dBc (high)

Less than –56 dBc (low)

Receiver

• Receive system: Double conversion

superheterodyne

• Sensitivity (12 dB SINAD): –13 dBµ (typical)

–5 dBµ emf (typical)

(CH70/DSC) (1% BER)

• Squelch sensitivity: Less than –7 dBµ

• Intermodulation rejection ratio: More than 75 dB

More than 68 dBµ emf

(CH70/DSC) (1% BER)

•

Spurious response rejection ratio

: More than 75 dB

More than 73 dBµ emf

(CH70/DSC) (1% BER)

• Adjacent channel selectivity: More than 75 dB

More than 75 dBµ emf

(CH70/DSC) (1% BER)

• Audio output power: More than 15 W at 10%

distortion into a 4 external

speaker

1-2

All stated speciﬁcations are subject to change without notice or obligation.

M IC-M506EURO

General

• Frequency coverage:

Tx 156.000–162.000 MHz

Rx 156.000–163.425 MHz

CH70 156.525 MHz

• Mode: FM, DSC

• Channel spacing: 25 kHz

• Operating temperature range:

–20°C to +60°C

• Current drain (at 13.8 V):

TX high 5.5 A maximum

Maximum audio 5.0 A maximum (With EXT SP)

Maximum audio 1.5 A maximum (With INT SP)

• Power supply requirement:

(negative ground) 13.8 V DC (10.8 to 15.6 V DC)

• Frequency error: Less than ±0.5 kHz

• Antenna impedance: 50 nominal

• Dimensions: 178.9 (W) × 113.9 (H) × 113.8 (D) mm

(Projections not included)

• Weight (approximately): 1.4 kg

Transmitter

• Output power: 25 W/1 W

• Modulation system: Frequency modulation

• Maximum frequency deviation:

±5.0 kHz

• Spurious emissions: Less than 0.25 µW

Receiver

• Receive system: Double conversion

superheterodyne

• Sensitivity:

FM (20 dB SINAD) –5 dBµ emf (typical)

DSC (1% BER) –4 dBµ emf (typical)

• Squelch sensitivity: Less than –2 dBµ emf

• Intermodulation rejection ratio:

FM More than 75 dB

DSC (1% BER) More than 68 dBµ emf

• Spurious response rejection ratio:

FM More than 75 dB

DSC (1% BER) More than 73 dBµ emf

• Adjacent channel selectivity:

FM More than 75 dB

DSC (1% BER) More than 73 dBµ emf

• Audio output power: More than 15 W at 10% distortion into

a 4 external speaker

• International channels

CH Frequency (MHz) CH Frequency (MHz) CH Frequency (MHz) CH Frequency (MHz) CH Frequency (MHz) CH Frequency (MHz)

Transmit Receive Transmit Receive Transmit Receive Transmit Receive Transmit Receive Transmit Receive

01 156.050 160.650 11 156.550 156.550 21 157.050 161.650 61 156.075 160.675 71 156.575 156.575 81 157.075 161.675

02 156.100 160.700 12 156.600 156.600 22 157.100 161.700 62 156.125 160.725 72 156.625 156.625 82 157.125 161.725

03 156.150 160.750 13 156.650 156.650 23 157.150 161.750 63 156.175 160.775 73 156.675 156.675 83 157.175 161.775

04 156.200 160.800 14 156.700 156.700 24 157.200 161.800 64 156.225 160.825 74 156.725 156.725 84 157.225 161.825

05 156.250 160.850 15*2156.750 156.750 25 157.250 161.850 65 156.275 160.875 75*4156.775 156.775 85 157.275 161.875

06 156.300 156.300 16 156.800 156.800 26 157.300 161.900 66 156.325 160.925 76*4156.825 156.825 86 157.325 161.925

07 156.350 160.950 17*2156.850 156.850 27 157.350 161.950 67 156.375 156.375 77 156.875 156.875 87 157.375 157.375

P4*3161.425 161.425

88 157.425 157.425

08 156.400 156.400 18 156.900 161.500 28 157.400 162.000 68

156.425 156.425 78 156.925 161.525

09 156.450 156.450 19 156.950 161.550 37A*3157.850 157.850 156.475 156.475 79 156.975 161.575

10 156.500 156.500 20 157.000 161.600 60 156.025 160.625 70*1156.525 156.525 80 157.025 161.625

*1DSC operation only.

*3 UK Marina Channels: M1=37A (157.850 MHz), M2=P4 (161.425 MHz) for U.K. version only

*2Channels 15 and 17 may also be used for on-board communications provided the effective radiated power does not exceed 1

W, and subject to the national regulations of the administration concerned when these channels are used in its territorial waters.

*4 The output power of channels 75 and 76 are limited to low power (1 W) only. The use of these channels should be restricted

to navigation-related communications only and all precautions should be taken to avoid harmful interference to channel 16,

e.g. by means geographical separation.

• USA channels (for U.K. version only)

Frequency (MHz) Frequency (MHz) Frequency (MHz) Frequency (MHz) Frequency (MHz) Frequency (MHz)

Transmit Receive Transmit Receive Transmit Receive Transmit Receive Transmit Receive Transmit Receive

156.050 156.050 156.600 156.600 157.100 157.100 156.225 156.225 156.775 156.775

156.825 156.825

156.875 156.875 157.325 161.925

- - - - - - 156.650 156.650 157.150 157.150 156.275 156.275

156.925 156.925 157.325 157.325

156.150 156.150 156.700 156.700 157.200 161.800 156.325 156.325

156.975 156.975 157.375 161.975

- - - - - - 156.750 156.750 157.250 161.850 156.375 156.375

157.025 157.025 157.375 157.375

156.250 156.250 156.800 156.800 157.300 161.900 156.425 156.425

157.075 157.075 157.425 162.025

156.300 156.300 156.850 156.850 157.350 161.950 156.475 156.475

157.125 157.125 157.425 157.425

161.425 161.425

156.350 156.350 156.900 156.900 157.400 162.000 156.525 156.525

157.175 157.175

156.400 156.400 156.950 156.950 157.850 157.850 156.575 156.575

157.225 161.825

156.450 156.450 157.000 161.600 156.075 156.075 156.625 156.625

157.225 157.225

156.500 156.500 157.000 157.000 - - - - - - 156.675 156.675

156.550 156.550 157.050 157.050 156.175 156.175 156.725 156.725

157.275 161.875

157.275 157.275

13*2

20A

21A

19A

18A

17*1

15*2

22A

23A

- -

63A

61A

37A*4

64A

65A

70*3

67*2

66A

75*1

76*1

84A

83A

82A

81A

80A

79A

78A

77*1

85A

P4*4

88A

87A

86A

01A

- -

07A

05A

- -

03A

NOTE: Simplex channels, 3, 21, 23, 61, 64, 81, 82 and 83 CANNOT be lawfully used by the general public in U.S.A. waters.

*1 Low power only.

*2 Momentary high power.

*3 DSC operation only.

*4 UK Marina Channels: M1=37A (157.850 MHz), M2=P4 (161.425 MHz) for U.K. version only

Channel list

2-1

SECTION 2

INSIDE VIEWS

• LOGIC UNIT

CPU CLOCK

(X1)

DSC DECODER

(IC12)

ATIS DECODER

(IC13)

TONE/BEEP BUFFER

(IC2)

EEPROM

(IC14)

PHOTO COUPLER

(IC9)

CLONE DATA LINE BUFFER

(IC7)

CLONE DATA LINE BUFFER

(IC5)

BACKLIT DRIVER

(Q1)

3.3 V REGULATOR

(IC4)

RESET IC

(IC11)

CPU

(IC1)

2-2

RX VCO

• MAIN UNIT

(TOP VIEW)

AF AMP

(IC881)

RF AMP

(Q101)

AF LINE SW

(IC906)

BPF

(IC506)

BPF

(FI201)

AF LINE SW

(RL1)

AF POWER AMP

(IC701)

IF IC (MAIN CH)

(IC201)

DISCRIMINATOR (MAIN CH)

(X201)

AF LINE SW

(IC882)

AF LINE SW

(IC505)

AF LINE SW

(IC504)

AF LINE SW

(IC503)

ELECTRONIC VOLUME

(IC19)

DISCRIMINATOR (CH70)

(X301)

2ND IF FILTER

(FI304)

2ND IF FILTER

(FI204)

2ND LO OSCILLATOR (MAIN CH)

(X202)

APC AMP

(IC2)

TX VCO

REFERENCE

FREQUENCY

OSCILLATOR

(X101)

IF IC (CH70)

(IC301)

PLL IC

(IC101)

1ST IF FILTER (MAIN CH)

(FI202)

1ST IF FILTER (MAIN CH)

(FI203)

5 V REGULATOR

(IC512) 5 V REGULATOR

(Q501)

2-3

• MAIN UNIT

(BOTTOM VIEW)

EXPANDER

(IC801)

EXPANDER

(IC802)

AF MUTE

(IC502)

8 V REGULATOR

(IC102)

ELECTRONIC VOLUME

(IC702)

AF MUTE SW

(IC703)

AF AMP

(IC706)

AF LPF/SQL AMP

(IC514)

MIC AMP

(IC513)

EEPROM

(IC905)

1.5 V REGULATOR

(IC903)

EEPROM

(IC904)

156.525 MHz BPF

(FI301)

MAIN POWER SUPPLY LINE SW

(Q512)

DSP

(IC901)

1ST IF FILTER (CH70)

(FI303)

3 V REGULATOR

(IC902)

3 V REGULATOR

(IC511)

1ST IF FILTER (CH70)

(FI302)

3-1

SECTION 3

DISASSEMBLY INSTRUCTION

1. Removing the LOGIC UNIT

1) Unscrew 14 screws from the rear panel, and

remove the front panel.

2) Disconnect the ﬂat cables and speaker cable.

BE CAREFUL when you disassemble the front cover

from the tranceiver body. Otherwise the speaker cable

and the ﬂat cable may be cut.

FLAT

CABLE

INLINE

CABLE

FRONT PANEL

REAR PANEL

SCREWS

FRONT PANEL

LOGIC UNIT

UNSOLDER

Solder

remover

FRONT PANEL

SCREWS

LOGIC UNIT

3) Unscrew 10 screws from the LOGIC UNIT.

4) Unsolder 12 points.

5) Take off the LOGIC UNIT from the front panel.

2. Removing the MAIN UNIT

1) Remove IC CLIP.

2) Disconnect the ﬂat cable.

3) Unsolder 11 points.

UNSOLDER

Solder

remover

MAIN UNIT

CHASSIS

SCREWS

MAIN UNIT

FLAT

CABLE

IC CLIP

CHASSIS

MAIN UNIT

4) Unscrew 7 screws from the MAIN UNIT.

5) Take off the MAIN UNIT from the CHASSIS.

4-1

SECTION 4

CIRCUIT DESCRIPTION

• RF CIRCUITS

• 1ST IF CIRCUITS (For main channels)

• 1ST IF CIRCUITS (For CH70)

• 2ND IF CIRCUITS (For main channels)

• 2ND IF CIRCUITS (For CH70)

4-1 RECEIVE CIRCUITS

RF CIRCUITS (MAIN UNIT)

The RX signal from the antenna is passed through the LPF

(L22, L23 and C104–C106), ANT SW (D15), and then ap-

plied to the RF AMP (Q101).

The ampliﬁed signal is divided and applied to the 1st IF cir-

cuits for MAIN CH or CH70, through the attenuator (D201,

R201 and C201: for MAIN CH) and BPF (FI201: for MAIN CH:

FI301: for CH70).

1ST IF CIRCUITS FOR MAIN CHANNELS (MAIN UNIT)

The RX signal from the RF circuits is applied to the 1st mixer

(D202), and mixed with the 1st LO signal, resulting in the

30.15 MHz 1st IF signal.

The 1st IF signal is ampliﬁed by the 1st IF AMP (Q202, Q203),

ﬁltered by the 1st IF ﬁlter (FI202 and FI203), and then applied

to the another IF AMP (Q205). The ampliﬁed signal is applied

to the 2nd IF circuits.

2ND IF CIRCUITS FOR MAIN CHANNELS (MAIN UNIT)

The 1st IF signal from the 1st IF circuits is applied to the IF IC

(IC201, pin 16). The IF IC contains the 2nd IF mixer, 2nd IF

AMP, detector, and so on, in its package.

The 1st IF signal is mixed with the 29.7 MHz 2nd LO signal

from the 2nd LO oscillator (X202), resulting in the 450 kHz

2nd IF signal. The 2nd IF signal is passed through the 2nd IF

ﬁlter (FI204) to remove the sideband noise. The ﬁltered sig-

nal is ampliﬁed by the 2nd IF AMP, and demodulated by the

quadrature detector with discriminator (X201).

The demodulated AF signal is applied to the RX AF circuits,

through the AF SW (IC882, pins 4, 3).

ANT

LPF

BPF

ANT

BPF

ATT

AMP

D15

FI201 D201

Q101

1/3

MAIN UNIT

FI301

To the 1st IF circuits

Transmit circuits

From the RF circuits

(MAIN CH)

To the 2nd IF circuits

(MAIN CH)

AMP BPF

XTAL IF

AMP

30.15MHz

Q205

FI202

FI203

Q202,

Q203

D202

To the RX

AF circuits

From the

1st IF circuits

(MAIN CH)

BPF

CERAMIC

BPF NOISE

AMP

NOISE

DET X202

X201

2ND IF

AMP

DET

2ND LO

BUFF

IC201

FI204

29.700MHz

IC506B/C:

IC505D:

MUTE

De-

emphasys

IC882B:

MUTE

To the 2nd IF circuits

(CH70)

From the 1st IF circuits

(CH70)

AMP BPF

XTAL

FI302

FI303

Q302

21.7MHz

Q305

From the

1st IF circuits

(CH70)

BPF

CERAMIC

NOISE

AMP

NOISE

DET

MUTE

X301

DET

2ND LO

2ND IF

IC301

BUFF

AMP

FI304

To the RX

AF i it

BPF IC506B/C:

IC505C:

BPF

IC506B/C

De-

emphasys

1ST IF CIRCUITS FOR CH70 (MAIN UNIT)

The RX signal from the RF circuits is applied to the 1st IF

mixer (Q302), and mixed with the 134.825 MHz 1st LO signal,

which is generated by the VCO (Q3, Q4, D3, and D4), result-

ing in the 21.7 MHz 1st IF signal.

The 1st IF signal is ﬁltered by the 1st IF ﬁlters (FI302 and

FI303), and then applied to the 1st IF AMP (Q305). The am-

pliﬁed signal is applied to the 2nd IF circuits.

2ND IF CIRCUITS FOR CH70 (MAIN UNIT)

The 1st IF signal from the 1st IF circuits is applied to the IF IC

(IC301, pin 16). The IF IC contains the 2nd IF mixer, 2nd IF

AMP, detector, and so on, in its package.

The 1st IF signal is mixed with the 21.25 MHz 2nd LO sig-

nal, which is generated by the reference frequency oscillator

(X101), resulting in the 450 kHz 2nd IF signal. The 2nd IF

signal is passed through the 2nd IF ﬁlter (FI304) to remove

the sideband noise. The ﬁltered signal is ampliﬁed by the 2nd

IF AMP, and demodulated by the quadrature detector with

discriminator (X301).

DSC DECODING CIRCUITS (MAIN UNIT)

The demodulated AF (FSK: Frequency Shift Keying) signal

is applied to the DSC decoder (LOGIC UNIT: IC12, pin 2),

which converts the sub audible tone signal into the serial data,

through the LPF (IC514, pins 10, 8) and DSC SW (LOGIC

UNIT: IC3, pins 7, 1).

The serial data is applied to the CPU (LOGIC UNIT: IC1,

pin 103) to control the transceiver (emergency alarm, DSC

indication and so on.).

4-2

• RX AF CIRCUITS

RX AF CIRCUITS (MAIN UNIT)

The demodulated AF signal from the AF SW (IC882) is passed

through the AF MUTE SW (IC505, pins 1, 2), de-emphasis

circuit (R551 and C236), BPF (IC506, pins 9, 8 and pins 6, 7)

and AF MUTE SW (IC906, pins 9, 8), and then applied to the

noise canceller IC (IC901, pin 31).

The processed AF signal is output from pin 37, and passed

through the AF SW (IC906, pins 1, 2).

•

When the AF signal is output to the front panel speaker,

external speaker, HM-205B or HM-205RB

The RX AF signal from the AF SW (IC906, pin 2) is passed

through the AF MUTE SW (IC504, pins 8, 9) and applied to

the D/A converter (IC702, pin 8) to be adjusted in level. The

level-adjusted signal is output from pin 7, and ampliﬁed by

the AF AMP (IC707). The ampliﬁed signal is AF power AMP

(IC701, pin 1), through the AF MUTE SW (IC703, pins 3, 1).

The ampliﬁed signal is output to the internal speaker (CHAS-

SIS: SP1), external speaker, HM-205 or HM-205RB.

From the

demodulator circuits

AMP

MUTE

SP1

MUTE BUFF AF

MUTE

MUTE AF

AMP

X901

SP1

MUTE

SP1

MUTE

MUTEAF

MUTE

AMP

FRONT UNIT MAIN UNIT

INT SP

IC503A:

IC503B:

HM-205B

OPTIONAL

IC502C:

IC506A:

COMMANDMIC

IC504C:

PA SP

(BTL AMP)

IC701B

IC701A

EXT SP(BTL AMP)

IC704

EVOL

HM-205RB

AFMIC

IC702B

Relay

Q702

IC703

IC702A

(2CH)

Rec_Play

CANCELER

NOISE

RL1

D702

IC906A

IC906B

IC906C

EVOL

IC707

IC706

IC901

HM-195

• When the AF signal is output to the optional HM-195

The RX AF signal from the AF SW (IC906, pin 2) is passed

through the AF MUTE SW (IC503, pins 2, 1) and ampliﬁed by

the buffer (IC506, pins 4, 1), and then output to the HM-195,

through the AF mute SW (IC502, pins 9, 8).

4-3

• TX AMP CIRCUITS

• MIC AMP CIRCUITS

• TX AF CIRCUITS

• MODULATION CIRCUITS

MODULATION CIRCUITS (MAIN UNIT)

The MIC signal from the TX AF circuits is applied to the VCO

(Q3, Q4 and D2–D4). The modulation signal is applied to D2,

to obtain Frequency Modulation.

The modulated VCO output signal is passed through the buf-

fers (Q5 and Q7), and then applied to the TX AMP circuits as

a TX signal, through the LO SW (D7).

TX AMP CIRCUITS (MAIN UNIT)

The TX signal is ampliﬁed by the YGR (Q21) and power AMP

(IC1), and then passed through the TX output power detec-

tor (D12 and D13), ANT SW (D14), and LPF (L22, L23 and

C104–C106), before being sent to the antenna.

APC CIRCUITS (MAIN UNIT)

The voltage produced at the LPF (L21, C101 and C102) is

rectiﬁed by D12 and D13, and is used as the TX power sens-

ing voltage.

The voltage is applied to the APC AMP (IC2, pin 3), and the

output voltage controls the gate bias voltage of power AMP

(IC1) to keep the TX output power constant.

4-2 TRANSMIT CIRCUITS

TX AF CIRCUITS (MAIN UNIT)

The AF signal from the microphone (MIC signal) is passed

through the MIC mute SW (IC502, pins 1, 2), and then ap-

plied to the MIC AMP (IC513, pin ).

The MIC signal from the HM-195/HM-205RB is passed

through the ATT (R531 and R532), MIC mute SW (IC502B,

pins 4, 3), and then applied to the MIC AMP (IC513, pin ).

TX AF CIRCUITS (MAIN UNIT)

The ampliﬁed MIC signal is applied to the noise canceller IC

(IC901, pin 28).

The processed MIC signal is output from pin 36, passed

through the AF SW (IC505, pins 8, 9), and then applied to the

D/A converter (IC19, pin 22) to be adjusted in level.

The level-adjusted AF signal is output from pin 23, and

passed through the AF MUTE SW (IC882, pins 8, 9), and

then applied to the IDC AMP (IC513B, pin 6), which limits the

amplitude of MIC signal to prevent the over deviation. The

amplitude-limited signal is output from pin 7, and passed

through the LPF (IC513C, pins 10, 8), and then applied to the

modulation circuits.

HM-195/HM-205RB

HM-205B

HM-195

MUTE

MIC

AMP

MUTE

ATT

MIC-IN

MAIN UNIT

FRONT UNIT

IC513A

To the TX AF circuits

IC502

IC502B

OPTIONAL

COMMANDMIC

TX/RX

D7,D8:

BUFF

VCO

From the

TX AF circuits

To the

TX AMP circuits

Q5D3,D4

SHIFT

D1 Q7

ANT

LPF

ANT

YGR

AMP PWR

AMP LPF

Q21

D14,D15

IC1:

D16

From the modulation

circuits

RX circuits

Pre-

emphasys LPF

D/A

From the

MIC AMP circuits To the modulation

circuits

IC513C

NOISE

CANCELLER

IC901 IC505D

MUTE SW

IC882C

IC19 IC513B

IDC

4-4

• FREQUENCY SYNTHESIZER CIRCUITS

• AIS RECEIVE CIRCUITS

• NMEA2000 DATA ROUTUNG CIRCUITS

4-3

FREQUENCY SYNTHESIZER (MAIN UNIT)

• VCOs

TX VCO

The TX VCO (Q3, Q4 and D2–D4) generates both the TX

signal and 1st LO signal for CH70.

While receiving, the LO signal is applied to the 1st IF mixer

for CH70 (Q302), through the LO SW (D8) and LPF (L66, L65

and C393).

While transmitting, the LO signal is applied to the TX AMP

circuits, through the LO SW (D7).

RX VCO

The RX VCO (Q72 and D51–D53) generates the 1st LO sig-

nal for MAIN channels.

The LO signal is applied to the 1st IF mixer for MAIN chan-

nels (D202), through the LPF (L221, L222 and C262).

• PLL

TX VCO

A portion of VCO output signal is passed through two buffers

(Q5 and Q6), and then fed back to the PLL IC (IC101, pin 1),

through the ATT (R33–R35) and LPF (L8, C74 and C75).

RX VCO

A portion of VCO output signal is passed through two buf-

fers (Q74 and Q75), and then fed back to the PLL IC (IC101,

pin 16), through the ATT (R47–R49) and LPF (L6, C77 and

C78).

The PLL IC (IC101) phase-compares the outputs of the refer-

ence frequency oscillator (TCXO: X101) and VCO, and the

phase-difference is output as the charge pump current.

The current is passed though the loop ﬁlter (TX VCO: R1–R3,

C1–C3, and C10, RX VCO: R161, R171, C156–C158) to be

converted into the lock voltage that controls the oscillating

frequency of VCO.

When the oscillation frequency drifts, its phase changes from

that of the reference frequency, causing a lock voltage change

to compensate for the drift in the VCO oscillating frequency.

To the TX AMP

circuits

From the TX AF

circuits

BUFF

X101

21.25MHz

BUFF

FIL

LOOP

TX/RX

BUFF

BUFF BUFF

FIL

LOOP

PLL IC

TX VCO

IC101

Q3,Q4 Q5

D7,D8

D2-D4

SHIFT

MOD

Q302

RX VCO

Q74 Q76

Q75

D51-D53

Q72

D202

1st mixer(MAIN ch)

1st mixer(CH70)

134.825 MHz

CH70 1st Lo frequency:

[USA],[AUS]

Other than [USA],[AUS]

1st Lo frequency range:

125.850-133.275 MHz

125.900-133.125 MHz

IC301

IF IC

4-4

AIS RECEIVER (AIS UNIT: UX-231)

The RX signal from the RF AMP (Q101) is applied to the AIS

UNIT, through J5 on the MAIN UNIT of IC-M506.

The applied signal is passed through the SAW ﬁlter (FI1) and

applied to the 1st mixer (Q1), and mixed with the 123.175 MHz

1st LO signal, resulting in the 1st IF signal (38.85 MHz for

AIS 1, 38.8 MHz for AIS 2).

The 1st IF signal is applied to the IF ICs (IC1 for AIS 1, IC2 for

AIS 2), and mixed with the 2nd LO signal (38.4 MHz for AIS 1,

38.35 MHz for AIS 2), resulting in the 450 kHz 2nd IF signal.

The 2nd IF signal is passed through the 2nd IF ﬁlter (FI4 for

AIS 1, FI7 for AIS 2) to remove the sideband noise. The ﬁl-

tered signal is ampliﬁed by the 2nd IF AMP, and demodulated

by the quadrature detector with discriminator (X2 for AIS 1,

X4 for AIS 2).

The demodulated AF signal is applied to the AIS baseband

processor (IC8). The processed AIS data is applied to the IC-

M506, through J5 on the MAIN UNIT of IC-M506.

2NDIF

AMP

BPF

XTAL

BPF

CERAMIC

BPF

2ND LO

BUFF

DET

BPF

XTAL

BPF

CERAMIC

DET

2NDIF

AMP

2ND LO

BUFF

AMP

X2AMP

BRF

AMP

41.0583 MHz

123.175 MHz

SAW

450 kHz

RSSI

450 kHz

RSSI

38.850 MHz

38.800 MHz

MUX

GMSK

decode

NRZI

decode

HDLC

decode

Buffer

NMEA

Formter

UART

GMSK

decode

NRZI

decode

Buffer HDLC

decode

38.400 MHz

19.200 MHz

FI1

TCXO

IC6

FI2,3 FL-470

FI4

IC1

FI7

IC2

FI5,6 FL-473

IC8

38.350 MHz

From the IC-M506

To the IC-M506

LEVEL

CONV


COUPLE


COUPLE

CI-V

I/F

X1 CONNECT UNIT

MAIN UNIT

IC1

ENOLC

3FCI

BUFF

CAN TX

BUFF

CAN RX

BUFF

IC3

Q3 Q4

NM2K DATA

IC6

IC3

IC4

IC5

IC2

4-5

NMEA2000 DATA ROUTING CIRCUITS

(NMEA2000 UNIT: UX-232)

The AIS and GPS position data from the external devices is

sent to the IC-M506, through the NMEA2000 network.

4-5

4-6 VOLTAGE BLOCK DIAGRAM

Voltage from the power supply is routed throughout the transceiver, through regulators and switches.

MAIN UNIT

LOGIC UNIT

Receive circuits

Transmit circuits

Noise canceller

3.3 V

REG

IC4

L3V CPU

3.3 V

REG

IC902

PWR

CTRL

REG

POWER

SUPPLY

VCC

CTRL

Q13,Q15

Q14

IC102

REG

Q11

CTRL

Q12

R3V

IC512

Q512

Q511

REG

T5V

IC511

AIS8V

SW Option

AIS

Option

R8V

Q16

Q17

Eqv.= This component is equivalent to the REF No. component listed above, and

may be substituted on parts orders and repairs.

5-1

SECTION 5

PARTS LIST

IC1 1150002510 IC RA33H1516M1-325

IC2 1110006670 S.IC NJM2730F-TE1-#ZZZB T 67.3/59.2

IC19 1110007550 S.IC R2A20178NP T 72.6/24.6

IC101 1130016080 S.IC GP214D <SEI> T 90.8/24.3

IC102 1180004410 S.REG NJM2835DL1-08-TE1-#ZZZB B 32.0/10.8

IC201 1110007320 S.IC NJM2591V-TE1-#ZZZB T 111.8/9.1

IC301 1110007320 S.IC NJM2591V-TE1-#ZZZB T 90.8/14.1

IC502 1130015760 S.IC TC74VHC4066AFK(EK) B 42.2/20.2

IC503 1130015760 S.IC TC74VHC4066AFK(EK) T 62.2/26.5

IC504 1130015760 S.IC TC74VHC4066AFK(EK) T 56.6/26.5

IC505 1130015760 S.IC TC74VHC4066AFK(EK) T 51.0/26.5

IC506 1110006470 S.IC LMV324IPWR T 63.5/39.0

IC511 1180003480 S.REG NJU7772F33-TE1-#ZZZB B 8.3/44.5

IC512 1180002781 REG KIA7805API-U/PF

IC513 1110006470 S.IC LMV324IPWR B 81.7/22.3

IC514 1110006470 S.IC LMV324IPWR B 92.8/11.4

IC701 1110008650 IC LA4628-E

IC702 1110007200 S.IC M61545AFP#DF0R B 21.6/19.3

IC703 1130007021 S.IC TC7S66FU(TE85LF) B 8.0/12.6

IC704 1130007021 S.IC TC7S66FU(TE85LF) B 11.4/19.4

IC705 1110006490 S.IC LMV321IDCKR T 30.0/41.2

IC706 1110006490 S.IC LMV321IDCKR B 15.9/21.3

IC707 1110006490 S.IC LMV321IDCKR B 12.9/15.9

IC801 1130017400 S.IC MC74HC4094ADTR2G B 58.9/20.7

IC802 1130017400 S.IC MC74HC4094ADTR2G B 50.1/20.7

IC881 1110006740 S.IC LMV358IPWR T 38.2/37.9

IC882 1130015760 S.IC TC74VHC4066AFK(EK) T 39.7/30.8

IC901 1190004010 S.IC LC703200AW-8C04-H B 54.4/39.9

IC902 1180003980 S.REG XC6221A332MR-G B 41.0/41.6

IC903 1180004200 S.REG XC6221A152MR-G B 41.0/46.6

IC904 1130016740 S.IC LE25U40CMC-AH B 56.9/53.6

IC905 1130016740 S.IC LE25U40CMC-AH B 48.9/53.6

IC906 1130015760 S.IC TC74VHC4066AFK(EK) T 51.0/39.0

Q2 1590004070 S.TRA LDTC144EET1G <SLVJ> T 84.6/44.1

Q3 1530004390 S.TRA 2SC5065-Y(TE85LF) T 80.4/34.6

Q4 1530004390 S.TRA 2SC5065-Y(TE85LF) T 84.2/33.9

Q5 1530003950 S.TRA KTC4080 Y-RTK/P T 77.6/39.6

Q6 1530003950 S.TRA KTC4080 Y-RTK/P T 75.1/36.7

Q7 1530003950 S.TRA KTC4080 Y-RTK/P T 74.6/44.1

Q8 1590004050 S.TRA LDTA144EET1G <SLVJ> T 86.2/46.6

Q9 1590004070 S.TRA LDTC144EET1G <SLVJ> B 86.8/48.9

Q11 1510001090 S.TRA KTA2015Y-RTK/P B 53.1/59.9

Q12 1590004070 S.TRA LDTC144EET1G <SLVJ> B 50.7/59.6

Q13 1590004070 S.TRA LDTC144EET1G <SLVJ> B 76.9/10.9

Q14 1510001090 S.TRA KTA2015Y-RTK/P B 82.7/11.1

Q15 1590004070 S.TRA LDTC144EET1G <SLVJ> B 82.7/7.6

Q16 1510001090 S.TRA KTA2015Y-RTK/P B 79.7/5.6

Q17 1590004070 S.TRA LDTC144EET1G <SLVJ> B 82.0/5.3

Q21 1530002920 S.TRA 2SC4226-T1 R25 T 57.7/59.1

Q22 1590004060 S.TRA LDTC114EET1G <SLVJ> T 63.5/61.5

Q23 1590004060 S.TRA LDTC114EET1G <SLVJ> T 71.9/57.0

Q31 1560000541 S.FET 2SK880-Y(T5RICOMF) B 91.0/26.0

Q32 1560000541 S.FET 2SK880-Y(T5RICOMF) B 94.9/21.6

Q70 1590004060 S.TRA LDTC114EET1G <SLVJ> T 104.0/38.4

Q71 1530003900 S.TRA KTC4075 BL-RTK/P T 106.9/38.6

Q72 1560000990 S.FET PMBFJ310 <RYO> T 115.0/46.6

Q74 1530002920 S.TRA 2SC4226-T1 R25 T 115.6/41.2

Q75 1530003950 S.TRA KTC4080 Y-RTK/P T 111.7/35.0

Q76 1530002920 S.TRA 2SC4226-T1 R25 T 117.0/35.4

Q101 1530003340 S.TRA 2SC3357-T1 RF 0 T 106.0/60.5

Q202 1560000990 S.FET PMBFJ310 <RYO> T 127.0/26.2

Q203 1560000990 S.FET PMBFJ310 <RYO> T 123.7/26.2

Q205 1530003950 S.TRA KTC4080 Y-RTK/P T 104.8/19.4

Q302 1580000731 S.FET 3SK293(TE85LF) B 97.1/52.7

Q305 1530003950 S.TRA KTC4080 Y-RTK/P B 98.2/21.9

Q391 1510001090 S.TRA KTA2015Y-RTK/P B 86.8/3.5

Q392 1590004070 S.TRA LDTC144EET1G <SLVJ> B 84.3/5.3

Q501 1520000380 TRA 2SB1143 S

Q502 1590003800 S.TRA KTC811U-GR-RTK/P B 10.6/49.8

Q511 1590004070 S.TRA LDTC144EET1G <SLVJ> B 9.8/40.5

Q512 1590004710 S.FET TPC6111(TE85LF) B 8.3/37.1

Q702 1590004060 S.TRA LDTC114EET1G <SLVJ> T 27.7/24.5

D1 1750002780 S.DIO RN142GT2R T 82.7/43.3

D2 1750001790 S.DIO 1SS390 TE61 T 84.6/42.5

D3 1720000701 S.VAR 1SV305(TPL3F) T 81.8/38.4

D4 1720000760 S.VAR 1SV311(TPL3) T 81.8/39.6

D7 1750002780 S.DIO RN142GT2R B 72.3/52.7

D8 1750002780 S.DIO RN142GT2R B 74.1/52.0

D11 1750002170 S.DIO DB2S31400L T 73.1/58.6

D12 1750002910 S.DIO BAT68-04W H6327 <RYOYO> T 73.0/61.0

D13 1750002910 S.DIO BAT68-04W H6327 <RYOYO> T 78.2/59.4

D14 1750002190 S.DIO JDP2S12CR(TE85LQ) T 88.1/63.1

D15 1750002190 S.DIO JDP2S12CR(TE85LQ) T 96.5/60.0

D16 1750002910 S.DIO BAT68-04W H6327 <RYOYO> T 98.8/60.5

D21 1750001770 S.VAR 1SV323(TPH3F) T 77.7/17.8

D51 1720000701 S.VAR 1SV305(TPL3F) T 109.2/46.1

D52 1720000701 S.VAR 1SV305(TPL3F) T 109.2/47.5

D53 1750002780 S.DIO RN142GT2R T 104.7/41.7

REF PARTS DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

REF PARTS DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

D201 1750002780 S.DIO RN142GT2R [#01] T 114.8/58.2

1750002780 S.DIO RN142GT2R [#10]

1750002780 S.DIO RN142GT2R [#11]

1750002780 S.DIO RN142GT2R [#20]

1750002780 S.DIO RN142GT2R [#21]

1750002780 S.DIO RN142GT2R [#30]

1750002780 S.DIO RN142GT2R [#31]

1750002780 S.DIO RN142GT2R [#40]

1750002780 S.DIO RN142GT2R [#41]

1750002780 S.DIO RN142GT2R [#50]

D202 1750003030 S.DIO HSMS-2829-TR1G T 126.4/40.7

D501 1790001990 S.VAR EZJP0V080DA T 29.9/53.7

D502 1790001990 S.VAR EZJP0V080DA T 28.0/53.7

D503 1790001990 S.VAR EZJP0V080DA T 27.0/65.7

D504 1790001990 S.VAR EZJP0V080DA T 30.2/65.7

D601 1790000700 DIO DSA3A1

D702 1750001810 S.DIO L1SS400T1G <SLVJ> T 27.1/27.1

FI201 2040002060 S.SAW HDF160F SMD-3 <SEI> T 119.1/60.4

FI202 2030001110 S.MON TMK5288 (IMD)30.15 MHz

(FL-472) T 117.5/24.7

FI203 2030001120 S.MON TMK5295 30.15 MHz (FL-475) T 108.3/24.7

FI204 2020002480 S.CER LTWC450E1 <JJE> T 99.8/7.9

FI301 2040002060 S.SAW HDF160F SMD-3 <SEI> B 97.2/61.1

FI302 2030000930 S.MON 21L715A4(IMD) 21.7 MHz

(FL-450) B 96.0/40.5

FI303 2030000940 S.MON 21L715A3 21.7 MHz (FL-451) B 96.0/31.4

FI304 2020002480 S.CER LTWC450E1 <JJE> T 80.9/7.9

X101 6050011740 S.XTA CR-766 TSS-6035B 21.250 MHz T 83.9/19.3

X201 6070000310 S.DIS JTBM450CX70 <JJE> T 120.0/5.0

X202 6050013740 S.XTA CR-967 DSX321G 29.7 MHz T 107.6/14.4

X301 6070000310 S.DIS JTBM450CX70 <JJE> T 90.1/5.9

X901 6060000880 S.CER CSTCE8M19G55 B 63.7/44.2

L1 6200003711 S.COI NLV25T-2R7J T 87.7/36.2

L2 6200011410 S.COI C2520C-82NG-A T 84.7/38.3

L3 6200013750 S.COI MLK1005SR10JT T 75.6/40.8

L4 6200013750 S.COI MLK1005SR10JT T 73.7/35.3

L5 6200013750 S.COI MLK1005SR10JT T 73.2/45.6

L6 6200011600 S.COI MLG1608B 82NJ-T T 98.4/27.4

L8 6200010840 S.COI MLG1608B 56NJ-T T 82.7/26.8

L11 6200013750 S.COI MLK1005SR10JT T 57.3/60.9

L20 6200010770 S.COI C2520C-R68G-A T 84.7/56.5

L21 6200014320 S.COI 0.80-3.0-5TR 41.0N <COMO> T 82.5/63.2

L22 6200014330 S.COI 0.80-2.7-5TR 35.0N <COMO> T 99.5/66.8

L23 6200014330 S.COI 0.80-2.7-5TR 35.0N <COMO> T 106.9/69.0

L24 6200012700 S.COI 0.50-2.0-6TL 35.0N <COMO> T 92.5/61.4

L65 6200013740 S.COI MLG1608S R47J-T B 90.5/52.1

L66 6200009680 S.COI MLG1608B 47NJ-T B 87.3/52.1

L70 6200003101 S.COI NLV32T-3R9J T 105.7/46.7

L71 6200011800 S.COI C2520C-47NG-A T 109.5/43.4

L72 6200003101 S.COI NLV32T-3R9J T 118.2/45.1

L73 6200009560 S.COI MLG1608B R10J-T T 113.7/40.4

L74 6200009560 S.COI MLG1608B R10J-T T 109.8/35.0

L76 6200009560 S.COI MLG1608B R10J-T T 115.1/33.4

L101 6200010000 S.COI C2012C-56NG-A T 101.1/54.4

L102 6200006991 S.COI ELJRE 56NGFA T 109.2/59.2

L111 6200010350 S.COI C2012C-R27G-A T 112.8/61.7

L112 6200010350 S.COI C2012C-R27G-A B 108.6/65.3

L113 6200010350 S.COI C2012C-R27G-A B 111.6/64.3

L201 6200011210 S.COI C2012C-1R0J-A [#01] T 112.8/56.1

6200011210 S.COI C2012C-1R0J-A [#10]

6200011210 S.COI C2012C-1R0J-A [#11]

6200011210 S.COI C2012C-1R0J-A [#20]

6200011210 S.COI C2012C-1R0J-A [#21]

6200011210 S.COI C2012C-1R0J-A [#30]

6200011210 S.COI C2012C-1R0J-A [#31]

6200011210 S.COI C2012C-1R0J-A [#40]

6200011210 S.COI C2012C-1R0J-A [#41]

6200011210 S.COI C2012C-1R0J-A [#50]

L206 6130003000 S.COI #617DB-1714=P3 T 126.4/45.8

L207 6130003000 S.COI #617DB-1714=P3 T 126.4/34.8

L208 6200001831 S.COI NLV32T-100J T 130.2/26.8

L211 6200009970 S.COI C2012C-R39G-A T 128.1/23.4

L221 6200011600 S.COI MLG1608B 82NJ-T B 117.3/34.6

L222 6200009620 S.COI MLG1608B 68NJ-T B 114.5/34.6

L311 6200011200 S.COI C2012C-R82J-A B 96.7/48.2

L315 6200009141 S.COI NLV25T-6R8J T 93.2/20.2

L901 6200002861 S.COI NLV25T-4R7J B 41.0/35.1

L902 6200002861 S.COI NLV25T-4R7J B 41.0/37.6

L903 6200002861 S.COI NLV25T-4R7J B 44.5/46.6

R1 7030010040 S.RES ERJ2GEJ-JPW T 90.2/27.7

R2 7030008370 S.RES ERJ2GEJ 561 X (560) T 91.5/28.1

R3 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 93.3/28.1

R6 7030009320 S.RES ERJ2GEJ 4R7 X (4.7) T 76.5/43.5

R7 7030005120 S.RES ERJ2GEJ 102 X (1K) T 88.0/45.6

R8 7030005240 S.RES ERJ2GEJ 473 X (47K) T 87.7/44.2

R9 7030005120 S.RES ERJ2GEJ 102 X (1K) T 87.3/42.8

R11 7030005000 S.RES ERJ2GEJ 471 X (470) T 84.2/46.6

R12 7030005090 S.RES ERJ2GEJ 104 X (100K) T 79.5/45.3

R13 7030007340 S.RES ERJ2GEJ 153 X (15K) T 81.2/44.4

R14 7030005090 S.RES ERJ2GEJ 104 X (100K) T 79.5/44.4

Eqv.= This component is equivalent to the REF No. component listed above, and

may be substituted on parts orders and repairs.

5-2

REF PARTS DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

R15 7030005090 S.RES ERJ2GEJ 104 X (100K) T 80.8/43.0

R16 7030005050 S.RES ERJ2GEJ 103 X (10K) T 84.2/47.5

R21 7030005050 S.RES ERJ2GEJ 103 X (10K) T 78.6/34.4

R22 7030005050 S.RES ERJ2GEJ 103 X (10K) T 86.0/34.3

R23 7030009160 S.RES ERJ2GEJ 181 X (180) T 82.4/33.0

R25 7030008370 S.RES ERJ2GEJ 561 X (560) T 80.1/36.6

R26 7030005010 S.RES ERJ2GEJ 681 X (680) T 76.9/42.3

R27 7030005070 S.RES ERJ2GEJ 683 X (68K) T 78.2/37.8

R31 7030005000 S.RES ERJ2GEJ 471 X (470) T 73.3/34.0

R32 7030005070 S.RES ERJ2GEJ 683 X (68K) T 76.9/37.1

R33 7030007270 S.RES ERJ2GEJ 151 X (150) T 75.8/34.6

R34 7030009200 S.RES ERJ2GEJ 390 X (39) T 75.8/33.7

R35 7030007270 S.RES ERJ2GEJ 151 X (150) T 77.1/34.2

R36 7030005000 S.RES ERJ2GEJ 471 X (470) T 73.2/47.3

R37 7030007350 S.RES ERJ2GEJ 393 X (39K) T 74.7/42.3

R41 7030004980 S.RES ERJ2GEJ 101 X (100) T 83.6/25.3

R46 7030004980 S.RES ERJ2GEJ 101 X (100) T 96.2/28.2

R47 7030007270 S.RES ERJ2GEJ 151 X (150) T 106.4/32.8

R48 7030009200 S.RES ERJ2GEJ 390 X (39) T 107.6/32.4

R49 7030007270 S.RES ERJ2GEJ 151 X (150) T 108.9/32.8

R51 7030005050 S.RES ERJ2GEJ 103 X (10K) B 53.7/57.9

R52 7030005120 S.RES ERJ2GEJ 102 X (1K) B 51.2/61.2

R53 7030005000 S.RES ERJ2GEJ 471 X (470) B 77.2/12.5

R54 7030005050 S.RES ERJ2GEJ 103 X (10K) B 82.9/9.1

R55 7030005120 S.RES ERJ2GEJ 102 X (1K) B 84.4/8.1

R56 7030005220 S.RES ERJ2GEJ 223 X (22K) B 79.7/3.6

R57 7030007300 S.RES ERJ2GEJ 332 X (3.3K) B 81.4/3.6

R58 7030013860 S.RES ERJ14YJ6R8U B 39.3/10.9

R61 7030005120 S.RES ERJ2GEJ 102 X (1K) B 73.8/53.0

R62 7030007290 S.RES ERJ2GEJ 222 X (2.2K) T 62.3/57.1

R63 7030010040 S.RES ERJ2GEJ-JPW T 61.8/58.6

R64 7030005050 S.RES ERJ2GEJ 103 X (10K) T 58.2/57.3

R65 7030007340 S.RES ERJ2GEJ 153 X (15K) T 60.1/59.5

R66 7030005530 S.RES ERJ2GEJ 100 X (10) T 56.9/57.1

R67 7030004980 S.RES ERJ2GEJ 101 X (100) T 60.4/61.2

R69 7030010040 S.RES ERJ2GEJ-JPW T 55.7/61.2

R71 7030009140 S.RES ERJ2GEJ 272 X (2.7K) T 78.1/62.5

R72 7030009140 S.RES ERJ2GEJ 272 X (2.7K) T 76.4/62.5

R73 7030009140 S.RES ERJ2GEJ 272 X (2.7K) T 84.2/59.4

R74 7030009140 S.RES ERJ2GEJ 272 X (2.7K) T 82.5/59.4

R75 7030007530 S.RES ERJ8ENF 1800V (180) T 80.2/55.4

R76 7030005090 S.RES ERJ2GEJ 104 X (100K) T 75.2/58.3

R78 7030007280 S.RES ERJ2GEJ 331 X (330) T 70.5/58.2

R79 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 69.9/59.6

R80 7030005120 S.RES ERJ2GEJ 102 X (1K) T 69.9/61.4

R82 7030005240 S.RES ERJ2GEJ 473 X (47K) T 67.3/61.4

R83 7030005050 S.RES ERJ2GEJ 103 X (10K) T 68.3/57.0

R84 7030007250 S.RES ERJ2GEJ 220 X (22) T 66.6/57.0

R87 7030005000 S.RES ERJ2GEJ 471 X (470) T 65.6/62.3

R91 7030005080 S.RES ERJ2GEJ 823 X (82K) T 108.7/73.1

R101 7030005530 S.RES ERJ2GEJ 100 X (10) T 102.6/60.9

R102 7030007300 S.RES ERJ2GEJ 332 X (3.3K) T 103.0/59.6

R103 7030009270 S.RES ERJ2GEJ 821 X (820) T 103.1/56.9

R104 7030005530 S.RES ERJ2GEJ 100 X (10) T 106.2/56.9

R105 7030007280 S.RES ERJ2GEJ 331 X (330) T 112.1/59.0

R106 7030005580 S.RES ERJ2GEJ 560 X (56) T 109.0/61.4

R111 7030007270 S.RES ERJ2GEJ 151 X (150) T 113.1/64.2

R112 7030007270 S.RES ERJ2GEJ 151 X (150) B 110.8/65.9

R113 7030007270 S.RES ERJ2GEJ 151 X (150) B 112.6/65.9

R116 7410001150 S.ARR EXB28V471JX T 85.0/22.9

R117 7030005050 S.RES ERJ2GEJ 103 X (10K) T 90.0/19.9

R118 7030010040 S.RES ERJ2GEJ-JPW T 90.0/20.8

R119 7030005240 S.RES ERJ2GEJ 473 X (47K) T 78.8/19.2

R120 7030005050 S.RES ERJ2GEJ 103 X (10K) T 77.5/21.1

R161 7030010040 S.RES ERJ2GEJ-JPW T 96.8/26.2

R162 7030008370 S.RES ERJ2GEJ 561 X (560) T 98.1/25.8

R163 7030005160 S.RES ERJ2GEJ 105 X (1M) B 95.3/23.6

R164 7030005240 S.RES ERJ2GEJ 473 X (47K) B 95.1/19.6

R165 7030005210 S.RES ERJ2GEJ 822 X (8.2K) T 95.5/19.9

R171 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 102.8/42.0

R172 7030005120 S.RES ERJ2GEJ 102 X (1K) T 118.1/47.7

R173 7030004970 S.RES ERJ2GEJ 470 X (47) T 112.8/43.7

R174 7030007290 S.RES ERJ2GEJ 222 X (2.2K) T 108.4/40.0

R176 7030005000 S.RES ERJ2GEJ 471 X (470) T 103.7/33.2

R181 7030005070 S.RES ERJ2GEJ 683 X (68K) T 117.4/40.9

R182 7030005010 S.RES ERJ2GEJ 681 X (680) T 118.3/39.8

R183 7030005070 S.RES ERJ2GEJ 683 X (68K) T 110.9/37.8

R184 7030007280 S.RES ERJ2GEJ 331 X (330) T 108.7/35.3

R185 7030004980 S.RES ERJ2GEJ 101 X (100) T 117.4/38.8

R186 7030007300 S.RES ERJ2GEJ 332 X (3.3K) T 117.0/37.4

R187 7030007290 S.RES ERJ2GEJ 222 X (2.2K) T 116.1/38.3

R188 7030005000 S.RES ERJ2GEJ 471 X (470) T 114.3/35.8

R189 7030004980 S.RES ERJ2GEJ 101 X (100) T 113.3/32.9

R191 7030005050 S.RES ERJ2GEJ 103 X (10K) T 104.1/40.0

R192 7030005050 S.RES ERJ2GEJ 103 X (10K) T 103.7/42.0

R193 7030005050 S.RES ERJ2GEJ 103 X (10K) T 106.0/41.5

R201 7030009200 S.RES ERJ2GEJ 390 X (39) [#01] T 113.8/59.7

7030009200 S.RES ERJ2GEJ 390 X (39) [#10]

7030009200 S.RES ERJ2GEJ 390 X (39) [#11]

7030009200 S.RES ERJ2GEJ 390 X (39) [#20]

7030009200 S.RES ERJ2GEJ 390 X (39) [#21]

7030009200 S.RES ERJ2GEJ 390 X (39) [#30]

7030009200 S.RES ERJ2GEJ 390 X (39) [#31]

7030009200 S.RES ERJ2GEJ 390 X (39) [#40]

7030009200 S.RES ERJ2GEJ 390 X (39) [#41]

7030009200 S.RES ERJ2GEJ 390 X (39) [#50]

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

REF PARTS DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

R202 7030007290 S.RES ERJ2GEJ 222 X (2.2K) [#01] T 110.2/55.5

7030007290 S.RES ERJ2GEJ 222 X (2.2K) [#10]

7030007290 S.RES ERJ2GEJ 222 X (2.2K) [#11]

7030007290 S.RES ERJ2GEJ 222 X (2.2K) [#20]

7030007290 S.RES ERJ2GEJ 222 X (2.2K) [#21]

7030007290 S.RES ERJ2GEJ 222 X (2.2K) [#30]

7030007290 S.RES ERJ2GEJ 222 X (2.2K) [#31]

7030007290 S.RES ERJ2GEJ 222 X (2.2K) [#40]

7030007290 S.RES ERJ2GEJ 222 X (2.2K) [#41]

7030007290 S.RES ERJ2GEJ 222 X (2.2K) [#50]

R211 7030005710 S.RES ERJ2GEJ 121 X (120) T 126.0/52.8

R212 7030007250 S.RES ERJ2GEJ 220 X (22) T 127.8/28.5

R213 7030010040 S.RES ERJ2GEJ-JPW T 123.1/57.5

R214 7030003860 S.RES ERJ3GE JPW V T 123.7/52.8

R221 7030005530 S.RES ERJ2GEJ 100 X (10) T 129.0/19.1

R222 7030007300 S.RES ERJ2GEJ 332 X (3.3K) T 129.0/20.0

R223 7030005530 S.RES ERJ2GEJ 100 X (10) T 123.6/23.4

R224 7030005010 S.RES ERJ2GEJ 681 X (680) T 102.9/24.2

R225 7030005090 S.RES ERJ2GEJ 104 X (100K) T 104.3/21.2

R226 7030007300 S.RES ERJ2GEJ 332 X (3.3K) T 101.0/18.0

R227 7030004990 S.RES ERJ2GEJ 221 X (220) T 105.1/17.6

R229 7030007290 S.RES ERJ2GEJ 222 X (2.2K) B 85.2/51.0

R231 7030004970 S.RES ERJ2GEJ 470 X (47) T 113.0/14.6

R232 7030008410 S.RES ERJ2GEJ 392 X (3.9K) T 112.9/4.9

R233 7030005000 S.RES ERJ2GEJ 471 X (470) T 114.2/4.5

R234 7030005530 S.RES ERJ2GEJ 100 X (10) T 117.6/10.9

R241 7030005220 S.RES ERJ2GEJ 223 X (22K) T 106.2/10.9

R251 7030005170 S.RES ERJ2GEJ 474 X (470K) T 107.5/5.8

R252 7030009270 S.RES ERJ2GEJ 821 X (820) T 108.8/2.6

R253 7030005060 S.RES ERJ2GEJ 333 X (33K) T 107.4/3.1

R256 7030005050 S.RES ERJ2GEJ 103 X (10K) T 104.7/7.5

R257 7030005050 S.RES ERJ2GEJ 103 X (10K) T 104.7/9.2

R301 7030007270 S.RES ERJ2GEJ 151 X (150) B 96.3/55.8

R311 7030005170 S.RES ERJ2GEJ 474 X (470K) B 95.3/53.1

R312 7030005090 S.RES ERJ2GEJ 104 X (100K) B 94.9/54.5

R313 7030005100 S.RES ERJ2GEJ 154 X (150K) B 99.2/53.2

R314 7030007350 S.RES ERJ2GEJ 393 X (39K) B 100.1/53.2

R321 7030005530 S.RES ERJ2GEJ 100 X (10) B 93.5/50.3

R322 7030007300 S.RES ERJ2GEJ 332 X (3.3K) B 97.1/46.6

R323 7030007570 S.RES ERJ2GEJ 122 X (1.2K) B 95.4/45.7

R324 7030005030 S.RES ERJ2GEJ 152 X (1.5K) B 97.4/25.8

R325 7030005090 S.RES ERJ2GEJ 104 X (100K) B 100.0/21.3

R326 7030007300 S.RES ERJ2GEJ 332 X (3.3K) B 100.0/19.6

R327 7030007280 S.RES ERJ2GEJ 331 X (330) B 98.7/20.0

R331 7030008410 S.RES ERJ2GEJ 392 X (3.9K) T 92.1/9.9

R332 7030005000 S.RES ERJ2GEJ 471 X (470) B 89.0/11.1

R333 7030005030 S.RES ERJ2GEJ 152 X (1.5K) T 89.4/17.5

R334 7030004970 S.RES ERJ2GEJ 470 X (47) T 92.5/17.9

R361 7030010040 S.RES ERJ2GEJ-JPW B 85.2/52.0

R391 7030005220 S.RES ERJ2GEJ 223 X (22K) B 84.8/3.2

R392 7030007300 S.RES ERJ2GEJ 332 X (3.3K) B 86.3/5.3

R501 7030012300 S.RES ERJ2RKF 1502X (15K) B 14.6/47.8

R502 7030011660 S.RES ERJ2RKF 1002 (10K) B 12.9/47.8

R503 7030011660 S.RES ERJ2RKF 1002 (10K) B 12.9/48.7

R504 7030007280 S.RES ERJ2GEJ 331 X (330) B 12.9/49.6

R505 7030007280 S.RES ERJ2GEJ 331 X (330) B 12.9/50.5

R506 7030005120 S.RES ERJ2GEJ 102 X (1K) B 10.6/47.7

R511 7030011150 S.RES ERJ2GEJ 2R7 X (2.7) T 29.5/56.0

R512 7030011150 S.RES ERJ2GEJ 2R7 X (2.7) T 25.7/56.0

R513 7030011150 S.RES ERJ2GEJ 2R7 X (2.7) T 28.5/56.0

R514 7030011150 S.RES ERJ2GEJ 2R7 X (2.7) T 28.1/63.5

R515 7030011150 S.RES ERJ2GEJ 2R7 X (2.7) T 29.1/63.5

R516 7030005160 S.RES ERJ2GEJ 105 X (1M) B 92.3/28.1

R517 7030005240 S.RES ERJ2GEJ 473 X (47K) B 90.4/24.0

R520 7030005090 S.RES ERJ2GEJ 104 X (100K) B 43.2/24.0

R521 7030005160 S.RES ERJ2GEJ 105 X (1M) B 38.5/23.8

R522 7030005160 S.RES ERJ2GEJ 105 X (1M) B 38.5/24.7

R524 7030005160 S.RES ERJ2GEJ 105 X (1M) B 45.1/18.2

R525 7030005160 S.RES ERJ2GEJ 105 X (1M) B 39.1/19.9

R526 7030005160 S.RES ERJ2GEJ 105 X (1M) T 47.9/36.0

R527 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 42.5/25.8

R528 7030005530 S.RES ERJ2GEJ 100 X (10) B 42.5/26.7

R529 7030005060 S.RES ERJ2GEJ 333 X (33K) T 59.2/36.0

R530 7030005600 S.RES ERJ2GEJ 273 X (27K) T 60.1/36.0

R531 7030007300 S.RES ERJ2GEJ 332 X (3.3K) B 37.2/19.9

R532 7030007290 S.RES ERJ2GEJ 222 X (2.2K) B 39.1/18.1

R533 7030005530 S.RES ERJ2GEJ 100 X (10) T 58.0/39.3

R534 7030009140 S.RES ERJ2GEJ 272 X (2.7K) B 42.2/14.3

R535 7030004980 S.RES ERJ2GEJ 101 X (100) B 33.5/15.7

R537 7030005090 S.RES ERJ2GEJ 104 X (100K) B 40.6/15.8

R539 7030005160 S.RES ERJ2GEJ 105 X (1M) T 63.0/30.3

R540 7030005160 S.RES ERJ2GEJ 105 X (1M) T 60.8/22.4

R541 7030005090 S.RES ERJ2GEJ 104 X (100K) T 60.7/30.7

R544 7030005090 S.RES ERJ2GEJ 104 X (100K) T 63.5/21.1

R545 7030005110 S.RES ERJ2GEJ 224 X (220K) T 65.3/28.5

R547 7030005090 S.RES ERJ2GEJ 104 X (100K) B 46.0/18.2

R549 7030005090 S.RES ERJ2GEJ 104 X (100K) T 58.8/22.7

R551 7030007340 S.RES ERJ2GEJ 153 X (15K) T 62.1/44.9

R552 7030007340 S.RES ERJ2GEJ 153 X (15K) T 64.6/45.8

R553 7030007340 S.RES ERJ2GEJ 153 X (15K) T 63.4/46.2

R554 7030009150 S.RES ERJ2GEJ 824 X (820K) T 66.8/42.1

R555 7030005530 S.RES ERJ2GEJ 100 X (10) T 66.8/43.8

R556 7030005050 S.RES ERJ2GEJ 103 X (10K) T 67.7/40.5

R557 7030005110 S.RES ERJ2GEJ 224 X (220K) T 63.8/44.0

R559 7030005050 S.RES ERJ2GEJ 103 X (10K) T 64.8/34.0

R560 7030005050 S.RES ERJ2GEJ 103 X (10K) T 63.5/33.5

R561 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 67.2/34.7

R562 7030007570 S.RES ERJ2GEJ 122 X (1.2K) T 67.2/36.5

R563 7030005220 S.RES ERJ2GEJ 223 X (22K) T 67.2/38.3

R564 7030008290 S.RES ERJ2GEJ 183 X (18K) T 66.8/40.5

R565 7030005030 S.RES ERJ2GEJ 152 X (1.5K) T 58.9/43.2

R566 7030007300 S.RES ERJ2GEJ 332 X (3.3K) T 60.2/42.7

R567 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 57.8/42.3

R568 7030005170 S.RES ERJ2GEJ 474 X (470K) T 62.1/44.0

R569 7030005170 S.RES ERJ2GEJ 474 X (470K) T 53.8/39.8

5-3

Eqv.= This component is equivalent to the REF No. component listed above, and

may be substituted on parts orders and repairs.

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

REF PARTS DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

R901 7030005530 S.RES ERJ2GEJ 100 X (10) T 65.5/31.5

R902 7410001220 S.ARR EXB28V103JX B 63.7/40.5

R903 7410001220 S.ARR EXB28V103JX B 63.7/34.1

R905 7030011150 S.RES ERJ2GEJ 2R7 X (2.7) B 37.4/47.6

R906 7410001220 S.ARR EXB28V103JX B 58.6/30.9

R907 7410001220 S.ARR EXB28V103JX B 56.1/30.9

R908 7030005050 S.RES ERJ2GEJ 103 X (10K) B 54.3/30.9

R909 7030005160 S.RES ERJ2GEJ 105 X (1M) T 47.9/36.9

R911 7410001220 S.ARR EXB28V103JX B 43.9/40.3

R912 7030005050 S.RES ERJ2GEJ 103 X (10K) B 61.9/54.2

R913 7030005050 S.RES ERJ2GEJ 103 X (10K) B 61.9/55.5

R914 7030010040 S.RES ERJ2GEJ-JPW T 45.1/42.1

R915 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 45.1/42.1

R916 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 45.1/43.0

R921 7030005160 S.RES ERJ2GEJ 105 X (1M) B 48.8/48.5

R922 7030005050 S.RES ERJ2GEJ 103 X (10K) B 49.7/48.5

R923 7030008290 S.RES ERJ2GEJ 183 X (18K) B 50.6/48.5

R924 7030004980 S.RES ERJ2GEJ 101 X (100) B 51.5/48.5

R925 7410001220 S.ARR EXB28V103JX B 54.5/49.4

R927 7030005010 S.RES ERJ2GEJ 681 X (680) B 58.1/48.5

C1 4030016930 S.CER C1005 JB 1A 104K-T T 92.4/28.1

C2 4550007480 S.TAN F930J106MAABMA T 92.3/32.1

C3 4550008730 S.TAN F921V224KAA T 94.5/32.1

C4 4030017460 S.CER C1005 JB 1H 102K-T T 87.3/33.6

C5 4030017440 S.CER C1005 CH 1H 221J-T T 87.3/32.7

C6 4030016790 S.CER C1005 JB 1E 103K-T T 74.3/32.8

C8 4030017460 S.CER C1005 JB 1H 102K-T T 86.8/45.1

C9 4030017460 S.CER C1005 JB 1H 102K-T T 86.4/43.7

C10 4030016930 S.CER C1005 JB 1A 104K-T T 88.5/27.7

C11 4030017460 S.CER C1005 JB 1H 102K-T T 84.2/45.6

C12 4030017460 S.CER C1005 JB 1H 102K-T B 86.6/47.4

C13 4030018860 S.CER C1005 JB 0J 105K-T T 81.7/43.0

C14 4030017460 S.CER C1005 JB 1H 102K-T T 81.2/45.3

C15 4030017460 S.CER C1005 JB 1H 102K-T T 79.9/43.0

C16 4030011810 S.CER C1608 JB 1A 224K-T T 82.7/45.8

C17 4030017460 S.CER C1005 JB 1H 102K-T T 79.5/46.2

C21 4030018010 S.CER C1005 CH 1H 360J-T T 85.5/41.2

C22 4030017670 S.CER C1005 CH 1H 390J-T T 84.2/41.4

C24 4030017760 S.CER C1005 JB 1H 222K-T T 82.8/41.3

C25 4030017350 S.CER C1005 CH 1H 020B-T T 82.3/37.3

C31 4030017550 S.CER C1005 CH 1H 1R5B-T T 81.8/36.4

C32 4030017550 S.CER C1005 CH 1H 1R5B-T T 83.5/35.8

C33 4030017440 S.CER C1005 CH 1H 221J-T T 80.9/32.6

C34 4030017460 S.CER C1005 JB 1H 102K-T T 80.1/37.5

C35 4030017460 S.CER C1005 JB 1H 102K-T T 82.4/34.6

C36 4030017340 S.CER C1005 CH 1H 010B-T T 78.6/36.1

C37 4030017460 S.CER C1005 JB 1H 102K-T T 76.9/41.4

C41 4030017380 S.CER C1005 CH 1H 050B-T T 75.6/39.1

C42 4030017460 S.CER C1005 JB 1H 102K-T T 73.3/36.6

C43 4030017400 S.CER C1005 CH 1H 220J-T T 74.4/34.0

C46 4030017630 S.CER C1005 CH 1H 120J-T T 74.7/40.8

C47 4030017460 S.CER C1005 JB 1H 102K-T T 74.1/47.3

C48 4030017460 S.CER C1005 JB 1H 102K-T T 74.5/45.9

C49 4030017650 S.CER C1005 CH 1H 270J-T T 72.3/45.6

C51 4030017460 S.CER C1005 JB 1H 102K-T B 51.1/57.9

C52 4030017460 S.CER C1005 JB 1H 102K-T B 56.0/58.9

C53 4030020310 S.CER GRM31CB31C106KA88L B 57.0/60.5

C54 4030017460 S.CER C1005 JB 1H 102K-T B 80.4/12.0

C55 4030019560 S.CER GRM21BB31C106KE15L B 79.0/11.5

C56 4030017460 S.CER C1005 JB 1H 102K-T B 79.2/7.6

C57 4030019560 S.CER GRM21BB31C106KE15L B 78.6/9.0

C61 4030017460 S.CER C1005 JB 1H 102K-T T 61.4/57.1

C62 4030017570 S.CER C1005 CH 1H 040B-T T 60.1/58.6

C65 4030017460 S.CER C1005 JB 1H 102K-T T 57.7/62.2

C67 4030017420 S.CER C1005 CH 1H 470J-T T 59.5/61.2

C68 4030017460 S.CER C1005 JB 1H 102K-T T 58.6/61.2

C69 4030017620 S.CER C1005 CH 1H 100C-T T 55.7/59.5

C70 4030017620 S.CER C1005 CH 1H 100C-T T 54.4/59.9

C73 4030017460 S.CER C1005 JB 1H 102K-T T 85.1/26.6

C74 4030017650 S.CER C1005 CH 1H 270J-T T 82.7/25.3

C75 4030017650 S.CER C1005 CH 1H 270J-T T 81.8/25.3

C76 4030017460 S.CER C1005 JB 1H 102K-T T 96.2/27.3

C77 4030017610 S.CER C1005 CH 1H 090C-T T 97.9/28.5

C78 4030017610 S.CER C1005 CH 1H 090C-T T 99.5/28.5

C81 4030017440 S.CER C1005 CH 1H 221J-T T 61.7/66.0

C82 4030017460 S.CER C1005 JB 1H 102K-T T 62.6/66.0

C83 4550008160 S.TAN F931A226MAA T 62.2/64.2

C91 4030017420 S.CER C1005 CH 1H 470J-T T 65.7/64.6

C92 4030017730 S.CER C1005 JB 1H 471K-T T 65.7/63.7

C93 4030017460 S.CER C1005 JB 1H 102K-T T 71.2/65.9

C94 4030011600 S.CER C1608 JB 1E 104K-T ATEX T 65.2/65.9

C95 4030020240 S.CER GRM31CR11C475KA01L T 72.8/64.2

C98 4030017460 S.CER C1005 JB 1H 102K-T T 77.1/55.6

C99 4030017460 S.CER C1005 JB 1H 102K-T T 86.9/55.6

C101 4030020380 S.CER GRM21A5C2E180JW01D T 81.2/68.1

C102 4030020380 S.CER GRM21A5C2E180JW01D T 83.9/68.1

C103 4030020420 S.CER GRM21A7U2E102JW31D T 95.1/65.8

C104 4030020380 S.CER GRM21A5C2E180JW01D T 95.1/69.6

C105 4030004810 S.CER C2012 CH 1H 040C-T T 98.3/70.8

C106 4030020390 S.CER GRM21A5C2E270JW01D T 101.7/71.8

C111 4030020390 S.CER GRM21A5C2E270JW01D T 96.1/63.1

C113 4030017760 S.CER C1005 JB 1H 222K-T T 98.4/58.2

C114 4030017360 S.CER C1005 CH 1H 030B-T T 100.6/56.9

C116 4030017390 S.CER C1005 CH 1H 180J-T T 100.1/58.2

C117 4030017670 S.CER C1005 CH 1H 390J-T T 101.5/56.9

C118 4030017410 S.CER C1005 CH 1H 240J-T T 102.0/58.2

C119 4030017430 S.CER C1005 CH 1H 101J-T T 108.0/56.9

C120 4030017760 S.CER C1005 JB 1H 222K-T T 107.1/56.9

C121 4030017630 S.CER C1005 CH 1H 120J-T T 110.3/59.0

C122 4030017760 S.CER C1005 JB 1H 222K-T T 110.2/61.8

C123 4030017760 S.CER C1005 JB 1H 222K-T T 110.3/56.9

C124 4030016790 S.CER C1005 JB 1E 103K-T T 108.9/56.9

C125 4030017350 S.CER C1005 CH 1H 020B-T T 111.2/59.0

REF PARTS DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

R571 7030005090 S.RES ERJ2GEJ 104 X (100K) T 57.5/20.6

R581 7030005530 S.RES ERJ2GEJ 100 X (10) T 65.3/26.7

R582 7030005530 S.RES ERJ2GEJ 100 X (10) T 65.3/27.6

R583 7030005530 S.RES ERJ2GEJ 100 X (10) T 53.5/21.9

R584 7030005160 S.RES ERJ2GEJ 105 X (1M) T 61.7/22.4

R585 7030005110 S.RES ERJ2GEJ 224 X (220K) T 55.7/22.3

R586 7030005160 S.RES ERJ2GEJ 105 X (1M) T 56.6/22.3

R601 7030005090 S.RES ERJ2GEJ 104 X (100K) B 10.5/38.8

R602 7030005240 S.RES ERJ2GEJ 473 X (47K) B 10.5/37.1

R611 7030007340 S.RES ERJ2GEJ 153 X (15K) T 30.3/43.0

R612 7030007340 S.RES ERJ2GEJ 153 X (15K) T 27.6/43.2

R621 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 76.6/25.7

R622 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 77.5/25.7

R623 7030005080 S.RES ERJ2GEJ 823 X (82K) B 78.4/24.0

R624 7030005080 S.RES ERJ2GEJ 823 X (82K) B 77.5/24.0

R625 7030005070 S.RES ERJ2GEJ 683 X (68K) B 76.6/22.3

R626 7030005120 S.RES ERJ2GEJ 102 X (1K) B 78.1/19.3

R627 7030012750 S.RES ERJ2RHD 2202X (22.0K) B 76.6/20.6

R628 7030011120 S.RES ERJ2RHD 2702X (27.0K) B 77.5/20.6

R629 7030005050 S.RES ERJ2GEJ 103 X (10K) B 78.4/20.6

R630 7030005230 S.RES ERJ2GEJ 334 X (330K) B 78.1/18.4

R632 7030005530 S.RES ERJ2GEJ 100 X (10) B 85.4/21.6

R633 7030005170 S.RES ERJ2GEJ 474 X (470K) B 80.5/16.9

R635 7030008400 S.RES ERJ2GEJ 182 X (1.8K) B 75.7/22.3

R636 7030005090 S.RES ERJ2GEJ 104 X (100K) B 74.8/20.6

R637 7030005050 S.RES ERJ2GEJ 103 X (10K) B 86.3/24.7

R638 7030005060 S.RES ERJ2GEJ 333 X (33K) B 85.0/25.2

R640 7030005030 S.RES ERJ2GEJ 152 X (1.5K) B 85.0/26.9

R641 7030007300 S.RES ERJ2GEJ 332 X (3.3K) B 86.3/27.3

R646 7030005050 S.RES ERJ2GEJ 103 X (10K) B 84.1/16.0

R647 7030005080 S.RES ERJ2GEJ 823 X (82K) B 83.6/17.3

R648 7030005050 S.RES ERJ2GEJ 103 X (10K) B 83.2/16.0

R650 7030005170 S.RES ERJ2GEJ 474 X (470K) B 81.4/16.9

R661 7030005000 S.RES ERJ2GEJ 471 X (470) T 70.8/20.4

R664 7410001150 S.ARR EXB28V471JX T 73.2/20.1

R701 7030005090 S.RES ERJ2GEJ 104 X (100K) B 87.3/14.6

R702 7030005090 S.RES ERJ2GEJ 104 X (100K) B 87.7/13.3

R703 7030005720 S.RES ERJ2GEJ 563 X (56K) B 88.6/15.0

R704 7030005720 S.RES ERJ2GEJ 563 X (56K) B 89.2/16.4

R705 7030005720 S.RES ERJ2GEJ 563 X (56K) B 89.5/15.0

R706 7030005050 S.RES ERJ2GEJ 103 X (10K) B 92.7/16.4

R707 7030004980 S.RES ERJ2GEJ 101 X (100) B 90.9/17.3

R711 7030005090 S.RES ERJ2GEJ 104 X (100K) B 100.3/14.3

R712 7030005090 S.RES ERJ2GEJ 104 X (100K) B 98.5/14.3

R713 7030005720 S.RES ERJ2GEJ 563 X (56K) B 98.8/15.6

R714 7030005720 S.RES ERJ2GEJ 563 X (56K) B 97.6/16.0

R715 7030005720 S.RES ERJ2GEJ 563 X (56K) B 96.3/16.4

R716 7030005050 S.RES ERJ2GEJ 103 X (10K) B 96.3/14.6

R717 7030004980 S.RES ERJ2GEJ 101 X (100) B 96.3/13.7

R721 7030005090 S.RES ERJ2GEJ 104 X (100K) B 53.4/21.8

R722 7030011210 S.RES ERJ2GEJ 1R0 X (1) T 39.7/15.0

R723 7510001661 S.THR NTCG16 4LH 473JT T 79.4/14.8

R724 7030005090 S.RES ERJ2GEJ 104 X (100K) T 77.5/15.0

R732 7030005100 S.RES ERJ2GEJ 154 X (150K) B 16.7/18.1

R734 7030005060 S.RES ERJ2GEJ 333 X (33K) B 18.0/19.4

R735 7030007340 S.RES ERJ2GEJ 153 X (15K) B 18.0/20.3

R737 7030005160 S.RES ERJ2GEJ 105 X (1M) B 9.8/17.3

R738 7030005090 S.RES ERJ2GEJ 104 X (100K) B 8.2/19.3

R739 7030005090 S.RES ERJ2GEJ 104 X (100K) B 7.3/15.4

R740 7030005160 S.RES ERJ2GEJ 105 X (1M) B 8.6/15.2

R741 7030005220 S.RES ERJ2GEJ 223 X (22K) B 14.6/19.4

R742 7030005060 S.RES ERJ2GEJ 333 X (33K) B 13.2/20.7

R743 7030005090 S.RES ERJ2GEJ 104 X (100K) B 17.7/22.5

R744 7030005050 S.RES ERJ2GEJ 103 X (10K) B 13.7/22.0

R745 7030005220 S.RES ERJ2GEJ 223 X (22K) B 16.5/15.0

R746 7030005090 S.RES ERJ2GEJ 104 X (100K) B 9.8/16.4

R747 7030005600 S.RES ERJ2GEJ 273 X (27K) B 14.7/15.0

R748 7030005050 S.RES ERJ2GEJ 103 X (10K) B 10.4/15.2

R753 7030005050 S.RES ERJ2GEJ 103 X (10K) B 25.6/16.2

R754 7030005050 S.RES ERJ2GEJ 103 X (10K) B 28.0/17.0

R755 7030005530 S.RES ERJ2GEJ 100 X (10) B 27.1/17.0

R756 7030005050 S.RES ERJ2GEJ 103 X (10K) B 19.2/14.6

R757 7030010040 S.RES ERJ2GEJ-JPW B 20.5/14.2

R758 7030005050 S.RES ERJ2GEJ 103 X (10K) B 9.1/10.6

R761 7030011150 S.RES ERJ2GEJ 2R7 X (2.7) B 7.3/28.5

R762 7030011150 S.RES ERJ2GEJ 2R7 X (2.7) B 7.3/29.4

R763 7030011150 S.RES ERJ2GEJ 2R7 X (2.7) B 7.3/22.6

R764 7030011150 S.RES ERJ2GEJ 2R7 X (2.7) B 7.3/23.5

R765 7030011130 S.RES ERJ1TYJ 1R0U (1) T 19.5/18.1

R766 7030011130 S.RES ERJ1TYJ 1R0U (1) T 23.4/18.1

R771 7030005530 S.RES ERJ2GEJ 100 X (10) B 98.3/10.7

R774 7030005090 S.RES ERJ2GEJ 104 X (100K) B 90.9/6.4

R775 7030005170 S.RES ERJ2GEJ 474 X (470K) B 88.4/8.0

R782 7030005050 S.RES ERJ2GEJ 103 X (10K) B 96.8/6.8

R783 7030004980 S.RES ERJ2GEJ 101 X (100) B 95.8/6.8

R784 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 94.6/6.4

R785 7030005050 S.RES ERJ2GEJ 103 X (10K) B 93.0/6.4

R791 7030005170 S.RES ERJ2GEJ 474 X (470K) T 28.5/43.2

R792 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 28.9/39.4

R793 7030005110 S.RES ERJ2GEJ 224 X (220K) T 30.6/39.4

R794 7030004980 S.RES ERJ2GEJ 101 X (100) T 31.9/39.7

R850 7030010040 S.RES ERJ2GEJ-JPW T 63.7/5.4

R881 7030005530 S.RES ERJ2GEJ 100 X (10) T 40.0/41.5

R882 7030005600 S.RES ERJ2GEJ 273 X (27K) T 35.7/40.3

R883 7030005220 S.RES ERJ2GEJ 223 X (22K) T 37.1/35.5

R884 7030005090 S.RES ERJ2GEJ 104 X (100K) T 35.4/35.5

R885 7030005090 S.RES ERJ2GEJ 104 X (100K) T 42.3/35.6

R886 7030005160 S.RES ERJ2GEJ 105 X (1M) T 40.1/35.1

R887 7030005240 S.RES ERJ2GEJ 473 X (47K) T 41.0/35.1

R888 7030005210 S.RES ERJ2GEJ 822 X (8.2K) T 41.4/33.7

R890 7030005160 S.RES ERJ2GEJ 105 X (1M) T 35.4/30.5

R891 7030005160 S.RES ERJ2GEJ 105 X (1M) T 35.4/31.4

R892 7030005160 S.RES ERJ2GEJ 105 X (1M) T 35.4/34.1

R893 7030005160 S.RES ERJ2GEJ 105 X (1M) T 35.4/33.2

R894 7030005050 S.RES ERJ2GEJ 103 X (10K) T 44.1/21.9

5-4

Eqv.= This component is equivalent to the REF No. component listed above, and

may be substituted on parts orders and repairs.

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

REF PARTS DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

C286 4030016930 S.CER C1005 JB 1A 104K-T T 106.7/9.5

C287 4030017460 S.CER C1005 JB 1H 102K-T T 113.4/13.3

C288 4030016930 S.CER C1005 JB 1A 104K-T T 113.4/12.4

C291 4030020040 S.CER C1005 CH 1H 200J-T T 107.1/10.9

C292 4030018010 S.CER C1005 CH 1H 360J-T T 105.3/10.9

C311 4030017460 S.CER C1005 JB 1H 102K-T B 103.9/66.4

C318 4030017460 S.CER C1005 JB 1H 102K-T B 97.2/55.8

C321 4030017460 S.CER C1005 JB 1H 102K-T B 96.8/54.6

C331 4030017460 S.CER C1005 JB 1H 102K-T B 94.4/53.1

C332 4030021660 S.CER GRM1552C1H560GA01D B 97.5/50.7

C333 4030017570 S.CER C1005 CH 1H 040B-T B 97.5/49.8

C334 4030017400 S.CER C1005 CH 1H 220J-T B 96.2/50.3

C335 4030017460 S.CER C1005 JB 1H 102K-T B 95.3/50.3

C336 4030016930 S.CER C1005 JB 1A 104K-T B 94.4/50.3

C337 4030017460 S.CER C1005 JB 1H 102K-T B 97.1/45.7

C342 4030017570 S.CER C1005 CH 1H 040B-T B 92.6/33.9

C345 4030017460 S.CER C1005 JB 1H 102K-T B 97.4/24.2

C353 4030016790 S.CER C1005 JB 1E 103K-T B 100.9/21.3

C354 4030016790 S.CER C1005 JB 1E 103K-T B 98.7/19.1

C365 4030016930 S.CER C1005 JB 1A 104K-T T 95.5/15.3

C371 4030017670 S.CER C1005 CH 1H 390J-T T 92.1/10.8

C372 4030018910 S.CER C1608 JB 0J 475K-T T 88.9/10.6

C373 4030016790 S.CER C1005 JB 1E 103K-T T 90.8/10.3

C374 4030016930 S.CER C1005 JB 1A 104K-T T 96.4/15.3

C375 4030017460 S.CER C1005 JB 1H 102K-T T 94.4/10.3

C376 4030017460 S.CER C1005 JB 1H 102K-T B 89.0/12.0

C381 4030017430 S.CER C1005 CH 1H 101J-T T 112.8/53.5

C384 4030016930 S.CER C1005 JB 1A 104K-T T 85.6/13.0

C385 4030016930 S.CER C1005 JB 1A 104K-T T 85.3/14.3

C386 4030016930 S.CER C1005 JB 1A 104K-T T 85.3/15.2

C388 4030016930 S.CER C1005 JB 1A 104K-T T 91.6/17.9

C391 4030017460 S.CER C1005 JB 1H 102K-T B 92.7/52.5

C393 4030017640 S.CER C1005 CH 1H 150J-T B 89.4/54.0

C396 4030017350 S.CER C1005 CH 1H 020B-T T 94.0/17.5

C398 4030017350 S.CER C1005 CH 1H 020B-T T 95.4/17.9

C501 4510010250 S.ELE 16 CE 22 LD T 11.7/50.6

C502 4030017460 S.CER C1005 JB 1H 102K-T T 3.6/51.4

C503 4030011600 S.CER C1608 JB 1E 104K-T ATEX T 4.7/51.7

C504 4030017460 S.CER C1005 JB 1H 102K-T T 31.7/55.5

C505 4030011600 S.CER C1608 JB 1E 104K-T ATEX T 32.2/54.4

C506 4030017730 S.CER C1005 JB 1H 471K-T T 31.7/56.4

C507 4030016790 S.CER C1005 JB 1E 103K-T B 30.3/65.1

C508 4030017430 S.CER C1005 CH 1H 101J-T B 31.2/65.1

C509 4030017730 S.CER C1005 JB 1H 471K-T T 13.7/54.0

C510 4030016790 S.CER C1005 JB 1E 103K-T B 14.6/48.7

C511 4030016790 S.CER C1005 JB 1E 103K-T T 29.9/54.6

C512 4030016790 S.CER C1005 JB 1E 103K-T T 27.1/56.4

C514 4030017460 S.CER C1005 JB 1H 102K-T T 27.1/55.5

C516 4030017460 S.CER C1005 JB 1H 102K-T T 27.0/64.8

C517 4030017460 S.CER C1005 JB 1H 102K-T T 30.2/64.8

C520 4030020250 S.CER GRM21BB11A225KA01L B 37.5/21.7

C521 4030020250 S.CER GRM21BB11A225KA01L B 40.8/25.4

C523 4030018890 S.CER C1005 JB 0J 224K-T B 39.1/19.0

C524 4030018910 S.CER C1608 JB 0J 475K-T T 60.1/39.3

C525 4030017460 S.CER C1005 JB 1H 102K-T T 58.9/39.3

C526 4030017460 S.CER C1005 JB 1H 102K-T B 43.8/25.4

C527 4030017490 S.CER C1608 JB 1A 105K-T B 43.1/16.0

C528 4030017490 S.CER C1608 JB 1A 105K-T T 58.4/34.5

C529 4030018970 S.CER C3225 JB 1C 226MT-N B 35.5/16.8

C531 4030018900 S.CER C1005 JB 0J 474K-T T 67.2/35.6

C532 4030016930 S.CER C1005 JB 1A 104K-T T 63.5/31.8

C533 4030017760 S.CER C1005 JB 1H 222K-T T 67.2/39.2

C534 4030018080 S.CER C1005 JB 1H 182K-T T 67.2/37.4

C535 4030018890 S.CER C1005 JB 0J 224K-T T 60.4/44.9

C536 4030017920 S.CER C1005 JB 1A 683K-T T 62.5/46.2

C537 4030016970 S.CER C1005 JB 1E 223K-T T 63.8/44.9

C538 4030017780 S.CER C1005 JB 1H 472K-T T 65.5/44.0

C539 4030017780 S.CER C1005 JB 1H 472K-T T 65.5/44.9

C541 4030018900 S.CER C1005 JB 0J 474K-T T 60.4/44.0

C543 4030017490 S.CER C1608 JB 1A 105K-T T 56.7/43.4

C560 4030018900 S.CER C1005 JB 0J 474K-T T 59.4/26.9

C571 4030016790 S.CER C1005 JB 1E 103K-T T 55.6/30.7

C576 4030016930 S.CER C1005 JB 1A 104K-T T 57.5/22.3

C577 4030018900 S.CER C1005 JB 0J 474K-T T 54.8/22.3

C578 4030017460 S.CER C1005 JB 1H 102K-T T 52.2/22.3

C602 4030016790 S.CER C1005 JB 1E 103K-T B 7.8/41.3

C603 4030016930 S.CER C1005 JB 1A 104K-T B 7.8/42.2

C604 4030016930 S.CER C1005 JB 1A 104K-T B 12.9/46.9

C605 4030016790 S.CER C1005 JB 1E 103K-T B 12.9/46.0

C606 4030020310 S.CER GRM31CB31C106KA88L B 11.1/44.1

C611 4510009920 S.ELE 16 CE 100 LH T 12.4/44.1

C612 4030016790 S.CER C1005 JB 1E 103K-T T 6.0/41.3

C613 4030016930 S.CER C1005 JB 1A 104K-T T 5.1/41.3

C614 4030011600 S.CER C1608 JB 1E 104K-T ATEX T 6.2/38.1

C615 4030016790 S.CER C1005 JB 1E 103K-T T 5.1/37.8

C616 4510009920 S.ELE 16 CE 100 LH T 12.4/37.0

C620 4030017460 S.CER C1005 JB 1H 102K-T B 7.8/40.0

C621 4510010300 S.ELE 16 CE 470 AX T 22.3/50.6

C622 4030011600 S.CER C1608 JB 1E 104K-T ATEX B 22.0/52.7

C623 4030017730 S.CER C1005 JB 1H 471K-T B 21.5/51.6

C624 4030017460 S.CER C1005 JB 1H 102K-T B 21.5/50.7

C625 4030017430 S.CER C1005 CH 1H 101J-T B 36.3/63.8

C626 4030017420 S.CER C1005 CH 1H 470J-T B 35.4/63.8

C627 4030017730 S.CER C1005 JB 1H 471K-T B 44.6/57.2

C628 4030017400 S.CER C1005 CH 1H 220J-T B 43.7/57.2

C629 4030017400 S.CER C1005 CH 1H 220J-T B 50.7/67.7

C630 4030017430 S.CER C1005 CH 1H 101J-T B 49.8/67.7

C631 4030020240 S.CER GRM31CR11C475KA01L B 48.2/69.3

C632 4030017730 S.CER C1005 JB 1H 471K-T B 10.9/32.9

C636 4030016790 S.CER C1005 JB 1E 103K-T B 37.0/48.9

C637 4510010800 S.ELE EEEHBJ470UAR T 23.5/41.4

C640 4030017460 S.CER C1005 JB 1H 102K-T B 77.1/26.9

C641 4030017510 S.CER C1005 CH 1H 680J-T B 78.4/22.3

C642 4030018920 S.CER C1005 JB 1H 392K-T B 78.4/25.7

C643 4030017460 S.CER C1005 JB 1H 102K-T B 77.5/22.3

REF PARTS DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

C126 4030017630 S.CER C1005 CH 1H 120J-T T 111.8/63.7

C127 4030017570 S.CER C1005 CH 1H 040B-T T 113.1/63.3

C128 4030017570 S.CER C1005 CH 1H 040B-T B 109.1/67.5

C129 4030017570 S.CER C1005 CH 1H 040B-T B 114.2/64.3

C131 4030017460 S.CER C1005 JB 1H 102K-T T 74.7/62.5

C132 4030017460 S.CER C1005 JB 1H 102K-T T 80.8/59.4

C133 4030017460 S.CER C1005 JB 1H 102K-T T 76.1/56.6

C134 4030017460 S.CER C1005 JB 1H 102K-T T 76.1/58.3

C135 4030017460 S.CER C1005 JB 1H 102K-T T 74.8/60.6

C136 4030017730 S.CER C1005 JB 1H 471K-T T 73.4/56.7

C137 4030017460 S.CER C1005 JB 1H 102K-T T 69.6/58.2

C138 4030017460 S.CER C1005 JB 1H 102K-T T 69.9/60.5

C141 4030016790 S.CER C1005 JB 1E 103K-T T 64.6/57.1

C142 4030017460 S.CER C1005 JB 1H 102K-T T 63.7/57.1

C144 4030016790 S.CER C1005 JB 1E 103K-T T 68.3/56.1

C151 4030017460 S.CER C1005 JB 1H 102K-T B 36.1/10.8

C152 4030020310 S.CER GRM31CB31C106KA88L B 39.6/6.8

C153 4030019560 S.CER GRM21BB31C106KE15L B 34.5/6.4

C154 4030017460 S.CER C1005 JB 1H 102K-T B 35.1/5.0

C156 4030016930 S.CER C1005 JB 1A 104K-T T 96.4/24.9

C157 4550007480 S.TAN F930J106MAABMA T 97.9/22.3

C158 4030016930 S.CER C1005 JB 1A 104K-T T 99.0/25.8

C160 4030016790 S.CER C1005 JB 1E 103K-T T 85.6/25.3

C161 4030017460 S.CER C1005 JB 1H 102K-T T 84.7/25.3

C162 4030016930 S.CER C1005 JB 1A 104K-T T 95.5/25.5

C163 4030017670 S.CER C1005 CH 1H 390J-T T 88.7/19.5

C164 4030021710 S.CER GRM1552C1H300GA01D T 88.3/20.8

C165 4030017560 S.CER C1005 CH 1H 2R5B-T T 78.8/17.5

C166 4030017640 S.CER C1005 CH 1H 150J-T T 79.7/17.5

C167 4030017690 S.CER C1005 CH 1H 121J-T T 79.7/19.2

C168 4030016790 S.CER C1005 JB 1E 103K-T T 79.7/21.0

C169 4030018910 S.CER C1608 JB 0J 475K-T T 78.6/21.4

C170 4030017460 S.CER C1005 JB 1H 102K-T T 95.5/21.6

C171 4030017460 S.CER C1005 JB 1H 102K-T T 103.1/45.8

C172 4550008210 S.TAN 267M3502 104MR T 104.8/44.0

C174 4030017360 S.CER C1005 CH 1H 030B-T T 111.9/47.1

C175 4030017550 S.CER C1005 CH 1H 1R5B-T T 111.9/45.4

C176 4030021710 S.CER GRM1552C1H300GA01D T 112.8/47.1

C177 4030021710 S.CER GRM1552C1H300GA01D T 112.8/45.4

C178 4030016930 S.CER C1005 JB 1A 104K-T T 113.8/44.2

C179 4030017460 S.CER C1005 JB 1H 102K-T T 114.7/44.2

C181 4030017530 S.CER C1005 CH 1H 0R5B-T T 117.8/42.2

C182 4030017460 S.CER C1005 JB 1H 102K-T T 113.8/42.6

C183 4030017380 S.CER C1005 CH 1H 050B-T T 112.2/38.3

C184 4030017460 S.CER C1005 JB 1H 102K-T T 110.3/36.9

C185 4030017400 S.CER C1005 CH 1H 220J-T T 109.8/32.8

C186 4030017630 S.CER C1005 CH 1H 120J-T T 116.1/39.2

C187 4030017460 S.CER C1005 JB 1H 102K-T T 114.7/34.5

C188 4030017620 S.CER C1005 CH 1H 100C-T T 116.9/33.1

C189 4030017460 S.CER C1005 JB 1H 102K-T T 115.2/35.8

C192 4030017760 S.CER C1005 JB 1H 222K-T T 106.0/40.6

C193 4030017560 S.CER C1005 CH 1H 2R5B-T T 106.0/42.4

C195 4030017490 S.CER C1608 JB 1A 105K-T T 108.8/38.0

C196 4550008710 S.TAN F921A106MAA T 105.3/35.0

C201 4030017460 S.CER C1005 JB 1H 102K-T [#01] T 113.8/58.0

4030017460 S.CER C1005 JB 1H 102K-T [#10]

4030017460 S.CER C1005 JB 1H 102K-T [#11]

4030017460 S.CER C1005 JB 1H 102K-T [#20]

4030017460 S.CER C1005 JB 1H 102K-T [#21]

4030017460 S.CER C1005 JB 1H 102K-T [#30]

4030017460 S.CER C1005 JB 1H 102K-T [#31]

4030017460 S.CER C1005 JB 1H 102K-T [#40]

4030017460 S.CER C1005 JB 1H 102K-T [#41]

4030017460 S.CER C1005 JB 1H 102K-T [#50]

C202 4030017460 S.CER C1005 JB 1H 102K-T [#01] T 112.3/57.7

4030017460 S.CER C1005 JB 1H 102K-T [#10]

4030017460 S.CER C1005 JB 1H 102K-T [#11]

4030017460 S.CER C1005 JB 1H 102K-T [#20]

4030017460 S.CER C1005 JB 1H 102K-T [#21]

4030017460 S.CER C1005 JB 1H 102K-T [#30]

4030017460 S.CER C1005 JB 1H 102K-T [#31]

4030017460 S.CER C1005 JB 1H 102K-T [#40]

4030017460 S.CER C1005 JB 1H 102K-T [#41]

4030017460 S.CER C1005 JB 1H 102K-T [#50]

C211 4030017460 S.CER C1005 JB 1H 102K-T T 115.0/60.8

C213 4030016790 S.CER C1005 JB 1E 103K-T T 102.1/59.6

C228 4030017350 S.CER C1005 CH 1H 020B-T T 126.4/38.6

C229 4030016790 S.CER C1005 JB 1E 103K-T T 126.1/28.5

C231 4030016790 S.CER C1005 JB 1E 103K-T T 129.0/18.2

C232 4030021660 S.CER GRM1552C1H560GA01D T 129.0/21.8

C233 4030017600 S.CER C1005 CH 1H 080C-T T 129.0/20.9

C234 4030017400 S.CER C1005 CH 1H 220J-T T 130.8/23.9

C235 4030017460 S.CER C1005 JB 1H 102K-T T 130.8/23.0

C236 4030016930 S.CER C1005 JB 1A 104K-T T 130.8/22.1

C237 4030017460 S.CER C1005 JB 1H 102K-T T 125.4/23.4

C242 4030017590 S.CER C1005 CH 1H 070C-T T 111.8/21.3

C245 4030017460 S.CER C1005 JB 1H 102K-T T 102.9/22.5

C251 4030017640 S.CER C1005 CH 1H 150J-T T 101.0/19.6

C252 4030016790 S.CER C1005 JB 1E 103K-T T 101.9/18.0

C253 4030017460 S.CER C1005 JB 1H 102K-T T 102.8/18.0

C254 4030016790 S.CER C1005 JB 1E 103K-T T 106.7/18.9

C262 4030017410 S.CER C1005 CH 1H 240J-T B 115.2/36.1

C264 4030017460 S.CER C1005 JB 1H 102K-T B 116.2/33.2

C271 4030017670 S.CER C1005 CH 1H 390J-T T 112.9/5.8

C272 4030018910 S.CER C1608 JB 0J 475K-T T 112.4/3.8

C273 4030016790 S.CER C1005 JB 1E 103K-T T 111.6/5.4

C274 4030018890 S.CER C1005 JB 0J 224K-T T 117.6/9.2

C275 4030017460 S.CER C1005 JB 1H 102K-T T 114.6/5.8

C276 4030017460 S.CER C1005 JB 1H 102K-T T 115.1/4.5

C277 4030016930 S.CER C1005 JB 1A 104K-T T 116.7/10.9

C281 4030017440 S.CER C1005 CH 1H 221J-T T 107.9/4.4

C282 4030017440 S.CER C1005 CH 1H 221J-T T 107.0/4.4

C283 4030017400 S.CER C1005 CH 1H 220J-T T 107.4/2.2

C284 4030016930 S.CER C1005 JB 1A 104K-T T 110.3/5.4

C285 4030016930 S.CER C1005 JB 1A 104K-T T 106.7/8.6

5-5

Eqv.= This component is equivalent to the REF No. component listed above, and

may be substituted on parts orders and repairs.

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

REF PARTS DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

C714 4030017440 S.CER C1005 CH 1H 221J-T [#01] B 94.4/16.4

4030017440 S.CER C1005 CH 1H 221J-T [#04]

4030017440 S.CER C1005 CH 1H 221J-T [#05]

4030017430 S.CER C1005 CH 1H 101J-T [#06]

4030017430 S.CER C1005 CH 1H 101J-T [#07]

4030017440 S.CER C1005 CH 1H 221J-T [#09]

4030017440 S.CER C1005 CH 1H 221J-T [#10]

4030017440 S.CER C1005 CH 1H 221J-T [#11]

4030017440 S.CER C1005 CH 1H 221J-T [#14]

4030017440 S.CER C1005 CH 1H 221J-T [#15]

4030017430 S.CER C1005 CH 1H 101J-T [#16]

4030017430 S.CER C1005 CH 1H 101J-T [#17]

4030017440 S.CER C1005 CH 1H 221J-T [#19]

4030017440 S.CER C1005 CH 1H 221J-T [#20]

4030017440 S.CER C1005 CH 1H 221J-T [#21]

4030017440 S.CER C1005 CH 1H 221J-T [#24]

4030017440 S.CER C1005 CH 1H 221J-T [#25]

4030017430 S.CER C1005 CH 1H 101J-T [#26]

4030017430 S.CER C1005 CH 1H 101J-T [#27]

4030017440 S.CER C1005 CH 1H 221J-T [#29]

4030017440 S.CER C1005 CH 1H 221J-T [#30]

4030017440 S.CER C1005 CH 1H 221J-T [#31]

4030017440 S.CER C1005 CH 1H 221J-T [#34]

4030017440 S.CER C1005 CH 1H 221J-T [#35]

4030017430 S.CER C1005 CH 1H 101J-T [#36]

4030017430 S.CER C1005 CH 1H 101J-T [#37]

4030017440 S.CER C1005 CH 1H 221J-T [#39]

4030017440 S.CER C1005 CH 1H 221J-T [#40]

4030017440 S.CER C1005 CH 1H 221J-T [#41]

4030017440 S.CER C1005 CH 1H 221J-T [#44]

4030017440 S.CER C1005 CH 1H 221J-T [#45]

4030017430 S.CER C1005 CH 1H 101J-T [#46]

4030017430 S.CER C1005 CH 1H 101J-T [#47]

4030017440 S.CER C1005 CH 1H 221J-T [#49]

4030017440 S.CER C1005 CH 1H 221J-T [#50]

C718 4030018910 S.CER C1608 JB 0J 475K-T B 97.2/11.0

C719 4030017460 S.CER C1005 JB 1H 102K-T B 96.1/10.7

C724 4030017730 S.CER C1005 JB 1H 471K-T T 17.5/34.8

C725 4030017680 S.CER C1005 CH 1H 820J-T T 17.5/33.9

C726 4030017460 S.CER C1005 JB 1H 102K-T T 31.3/15.3

C727 4030017460 S.CER C1005 JB 1H 102K-T T 37.7/15.0

C728 4030016790 S.CER C1005 JB 1E 103K-T T 38.7/15.0

C731 4030017440 S.CER C1005 CH 1H 221J-T T 36.7/15.0

C732 4030017460 S.CER C1005 JB 1H 102K-T T 37.2/5.4

C733 4030017460 S.CER C1005 JB 1H 102K-T T 35.7/15.0

C734 4030017440 S.CER C1005 CH 1H 221J-T T 36.2/5.4

C741 4030016930 S.CER C1005 JB 1A 104K-T B 18.0/17.6

C742 4030011600 S.CER C1608 JB 1E 104K-T ATEX B 25.6/23.6

C743 4030017440 S.CER C1005 CH 1H 221J-T B 18.0/18.5

C744 4030018890 S.CER C1005 JB 0J 224K-T B 11.9/21.4

C747 4030018890 S.CER C1005 JB 0J 224K-T B 16.3/19.4

C748 4030018100 S.CER C1005 JB 1H 681K-T B 14.1/20.7

C749 4030011810 S.CER C1608 JB 1A 224K-T B 7.1/19.0

C750 4030016930 S.CER C1005 JB 1A 104K-T B 18.0/21.2

C752 4030011600 S.CER C1608 JB 1E 104K-T ATEX B 28.0/19.3

C753 4030018890 S.CER C1005 JB 0J 224K-T B 7.8/10.6

C755 4030020310 S.CER GRM31CB31C106KA88L B 25.5/19.3

C756 4030018890 S.CER C1005 JB 0J 224K-T B 17.4/14.6

C757 4030016930 S.CER C1005 JB 1A 104K-T B 11.1/16.7

C758 4030017740 S.CER C1005 JB 1H 821K-T B 15.6/15.0

C759 4030018890 S.CER C1005 JB 0J 224K-T B 9.5/15.2

C761 4030017460 S.CER C1005 JB 1H 102K-T B 6.9/10.6

C762 4510009920 S.ELE 16 CE 100 LH T 12.5/17.6

C763 4030020310 S.CER GRM31CB31C106KA88L T 5.2/13.9

C764 4030017480 S.CER C1608 JB 1A 474K-T T 5.6/19.4

C765 4510010300 S.ELE 16 CE 470 AX T 13.2/29.0

C766 4030011600 S.CER C1608 JB 1E 104K-T ATEX T 6.1/33.9

C767 4030017460 S.CER C1005 JB 1H 102K-T T 5.0/33.4

C768 4030016790 S.CER C1005 JB 1E 103K-T T 4.1/33.4

C769 4030017460 S.CER C1005 JB 1H 102K-T B 12.7/39.4

C770 4030011600 S.CER C1608 JB 1E 104K-T ATEX B 11.6/38.9

C772 4030011600 S.CER C1608 JB 1E 104K-T ATEX B 8.8/27.8

C773 4030011600 S.CER C1608 JB 1E 104K-T ATEX B 8.8/30.6

C775 4030017440 S.CER C1005 CH 1H 221J-T B 24.1/37.7

C776 4030017440 S.CER C1005 CH 1H 221J-T B 24.1/36.3

C777 4030017440 S.CER C1005 CH 1H 221J-T B 19.5/37.7

C778 4030017440 S.CER C1005 CH 1H 221J-T B 19.5/36.3

C782 4030011600 S.CER C1608 JB 1E 104K-T ATEX B 8.8/21.8

C783 4030011600 S.CER C1608 JB 1E 104K-T ATEX B 8.8/24.6

C785 4030017440 S.CER C1005 CH 1H 221J-T B 35.7/45.0

C786 4030017440 S.CER C1005 CH 1H 221J-T B 35.7/46.4

C787 4030017440 S.CER C1005 CH 1H 221J-T B 28.5/36.3

C788 4030017440 S.CER C1005 CH 1H 221J-T B 28.5/37.7

C791 4030017460 S.CER C1005 JB 1H 102K-T T 4.6/9.4

C792 4030016930 S.CER C1005 JB 1A 104K-T T 5.6/9.4

C795 4030017780 S.CER C1005 JB 1H 472K-T T 27.5/26.0

C796 4030017460 S.CER C1005 JB 1H 102K-T T 29.9/36.6

C797 4030016930 S.CER C1005 JB 1A 104K-T T 27.3/39.4

C798 4030017440 S.CER C1005 CH 1H 221J-T T 30.6/38.5

C806 4030017460 S.CER C1005 JB 1H 102K-T T 38.2/5.4

C811 4030017400 S.CER C1005 CH 1H 220J-T T 40.7/15.0

C812 4030017460 S.CER C1005 JB 1H 102K-T T 41.2/5.4

C813 4030017460 S.CER C1005 JB 1H 102K-T T 41.7/15.0

C814 4030017460 S.CER C1005 JB 1H 102K-T T 42.2/5.4

C815 4030017460 S.CER C1005 JB 1H 102K-T T 42.7/15.0

C816 4030017460 S.CER C1005 JB 1H 102K-T T 43.2/5.4

C818 4030017460 S.CER C1005 JB 1H 102K-T T 44.2/5.4

C820 4030017400 S.CER C1005 CH 1H 220J-T T 45.2/5.4

C822 4030017400 S.CER C1005 CH 1H 220J-T T 46.2/5.4

C824 4030017400 S.CER C1005 CH 1H 220J-T T 47.2/5.4

C825 4030017460 S.CER C1005 JB 1H 102K-T T 47.7/15.0

C829 4030017400 S.CER C1005 CH 1H 220J-T T 49.7/15.0

C831 4030017400 S.CER C1005 CH 1H 220J-T T 50.7/15.0

C834 4030017460 S.CER C1005 JB 1H 102K-T T 52.2/5.4

C838 4030017460 S.CER C1005 JB 1H 102K-T T 54.2/5.4

REF PARTS DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

C644 4030016790 S.CER C1005 JB 1E 103K-T B 86.7/22.2

C649 4030017460 S.CER C1005 JB 1H 102K-T B 85.4/22.5

C650 4030018910 S.CER C1608 JB 0J 475K-T B 85.9/23.6

C651 4030016790 S.CER C1005 JB 1E 103K-T B 75.7/20.6

C657 4030016970 S.CER C1005 JB 1E 223K-T B 74.8/22.3

C658 4030016930 S.CER C1005 JB 1A 104K-T B 87.7/24.2

C663 4030016930 S.CER C1005 JB 1A 104K-T B 81.9/15.6

C664 4030017460 S.CER C1005 JB 1H 102K-T B 80.6/14.6

C681 4030016790 S.CER C1005 JB 1E 103K-T T 70.8/18.7

C682 4030018910 S.CER C1608 JB 0J 475K-T T 69.7/19.9

C683 4030016790 S.CER C1005 JB 1E 103K-T T 74.8/27.7

C701 4030016790 S.CER C1005 JB 1E 103K-T B 88.6/13.3

C702 4030017760 S.CER C1005 JB 1H 222K-T B 87.5/16.4

C703 4030016790 S.CER C1005 JB 1E 103K-T B 90.9/16.4

C704 4030017430 S.CER C1005 CH 1H 101J-T B 89.5/13.3

C711 4030016790 S.CER C1005 JB 1E 103K-T B 99.4/14.3

C712 4030017780 S.CER C1005 JB 1H 472K-T [#01] B 97.6/14.3

4030017780 S.CER C1005 JB 1H 472K-T [#04]

4030017780 S.CER C1005 JB 1H 472K-T [#05]

4030017760 S.CER C1005 JB 1H 222K-T [#06]

4030017760 S.CER C1005 JB 1H 222K-T [#07]

4030017780 S.CER C1005 JB 1H 472K-T [#09]

4030017780 S.CER C1005 JB 1H 472K-T [#10]

4030017780 S.CER C1005 JB 1H 472K-T [#11]

4030017780 S.CER C1005 JB 1H 472K-T [#14]

4030017780 S.CER C1005 JB 1H 472K-T [#15]

4030017760 S.CER C1005 JB 1H 222K-T [#16]

4030017760 S.CER C1005 JB 1H 222K-T [#17]

4030017780 S.CER C1005 JB 1H 472K-T [#19]

4030017780 S.CER C1005 JB 1H 472K-T [#20]

4030017780 S.CER C1005 JB 1H 472K-T [#21]

4030017780 S.CER C1005 JB 1H 472K-T [#24]

4030017780 S.CER C1005 JB 1H 472K-T [#25]

4030017760 S.CER C1005 JB 1H 222K-T [#26]

4030017760 S.CER C1005 JB 1H 222K-T [#27]

4030017780 S.CER C1005 JB 1H 472K-T [#29]

4030017780 S.CER C1005 JB 1H 472K-T [#30]

4030017780 S.CER C1005 JB 1H 472K-T [#31]

4030017780 S.CER C1005 JB 1H 472K-T [#34]

4030017780 S.CER C1005 JB 1H 472K-T [#35]

4030017760 S.CER C1005 JB 1H 222K-T [#36]

4030017760 S.CER C1005 JB 1H 222K-T [#37]

4030017780 S.CER C1005 JB 1H 472K-T [#39]

4030017780 S.CER C1005 JB 1H 472K-T [#40]

4030017780 S.CER C1005 JB 1H 472K-T [#41]

4030017780 S.CER C1005 JB 1H 472K-T [#44]

4030017780 S.CER C1005 JB 1H 472K-T [#45]

4030017760 S.CER C1005 JB 1H 222K-T [#46]

4030017760 S.CER C1005 JB 1H 222K-T [#47]

4030017780 S.CER C1005 JB 1H 472K-T [#49]

4030017780 S.CER C1005 JB 1H 472K-T [#50]

C713 4030016970 S.CER C1005 JB 1E 223K-T [#01] B 96.3/15.5

4030016970 S.CER C1005 JB 1E 223K-T [#04]

4030016970 S.CER C1005 JB 1E 223K-T [#05]

4030016790 S.CER C1005 JB 1E 103K-T [#06]

4030016790 S.CER C1005 JB 1E 103K-T [#07]

4030016970 S.CER C1005 JB 1E 223K-T [#09]

4030016970 S.CER C1005 JB 1E 223K-T [#10]

4030016970 S.CER C1005 JB 1E 223K-T [#11]

4030016970 S.CER C1005 JB 1E 223K-T [#14]

4030016970 S.CER C1005 JB 1E 223K-T [#15]

4030016790 S.CER C1005 JB 1E 103K-T [#16]

4030016790 S.CER C1005 JB 1E 103K-T [#17]

4030016970 S.CER C1005 JB 1E 223K-T [#19]

4030016970 S.CER C1005 JB 1E 223K-T [#20]

4030016970 S.CER C1005 JB 1E 223K-T [#21]

4030016970 S.CER C1005 JB 1E 223K-T [#24]

4030016970 S.CER C1005 JB 1E 223K-T [#25]

4030016790 S.CER C1005 JB 1E 103K-T [#26]

4030016790 S.CER C1005 JB 1E 103K-T [#27]

4030016970 S.CER C1005 JB 1E 223K-T [#29]

4030016970 S.CER C1005 JB 1E 223K-T [#30]

4030016970 S.CER C1005 JB 1E 223K-T [#31]

4030016970 S.CER C1005 JB 1E 223K-T [#34]

4030016970 S.CER C1005 JB 1E 223K-T [#35]

4030016790 S.CER C1005 JB 1E 103K-T [#36]

4030016790 S.CER C1005 JB 1E 103K-T [#37]

4030016970 S.CER C1005 JB 1E 223K-T [#39]

4030016970 S.CER C1005 JB 1E 223K-T [#40]

4030016970 S.CER C1005 JB 1E 223K-T [#41]

4030016970 S.CER C1005 JB 1E 223K-T [#44]

4030016970 S.CER C1005 JB 1E 223K-T [#45]

4030016790 S.CER C1005 JB 1E 103K-T [#46]

4030016790 S.CER C1005 JB 1E 103K-T [#47]

4030016970 S.CER C1005 JB 1E 223K-T [#49]

4030016970 S.CER C1005 JB 1E 223K-T [#50]

5-6

Eqv.= This component is equivalent to the REF No. component listed above, and

may be substituted on parts orders and repairs.

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

REF PARTS DESCRIPTION M. H/V

NO. NO.

LOCATION

[LOGIC UNIT]

IC1 1140017111 S.IC STM32F101ZGT6(FX3570A1)

<TOMEN> B 109.0/53.0

IC2 1110006740 S.IC LMV358IPWR B 84.7/45.3

IC3 1130009981 S.IC TC7W53FK(TE85LF) B 69.9/64.3

IC4 1180003570 S.REG NJM2830U1-33-TE1-#ZZZB B 52.5/86.6

IC5 1130007061 S.IC TC7W02FU(TE12LF) B 113.9/70.0

IC6 1130017240 S.IC SN74AHCT1G04DCKR B 133.0/63.6

IC7 1130016110 S.IC TC7WH14FK(TE85LF) B 128.5/59.9

IC8 1130006551 S.IC TC7S08FU(TE85RF) B 129.7/56.8

IC9 1170000352 S.IC PC357N6J000F B 116.3/23.1

IC10 1120003130 S.IC ISL81487IBZ-T <MAC> B 119.9/30.1

IC11 1110007620 S.IC NJU7704F3-42A-TE1-#ZZZB B 58.6/86.4

IC12 1110003650 S.IC NJM2211M-TE1-#ZZZB B 66.8/55.6

IC13 1110003650 S.IC NJM2211M-TE1-#ZZZB [#06] B 54.8/55.6

1110003650 S.IC NJM2211M-TE1-#ZZZB [#07]

1110003650 S.IC NJM2211M-TE1-#ZZZB [#16]

1110003650 S.IC NJM2211M-TE1-#ZZZB [#17]

1110003650 S.IC NJM2211M-TE1-#ZZZB [#26]

1110003650 S.IC NJM2211M-TE1-#ZZZB [#27]

1110003650 S.IC NJM2211M-TE1-#ZZZB [#36]

1110003650 S.IC NJM2211M-TE1-#ZZZB [#37]

1110003650 S.IC NJM2211M-TE1-#ZZZB [#46]

1110003650 S.IC NJM2211M-TE1-#ZZZB [#47]

IC14 1130016310 S.IC BR24T256FJ-WE2 B 132.2/47.7

IC15 1130017330 S.IC SN74AHC1G125DCKR B 107.3/82.0

IC17 1130017290 S.IC SN74AHCT1G32DCKR B 132.2/56.8

Q1 1520000651 S.TRA 2SB1201S-TL-E B 151.6/70.0

Q2 1530004140 S.TRA L2SC4081RT1G <SLVJ> B 145.4/65.8

Q3 1590001330 S.TRA DTA114EUA T106 B 111.7/73.8

Q4 1530004140 S.TRA L2SC4081RT1G <SLVJ> B 114.6/75.8

Q5 1530004140 S.TRA L2SC4081RT1G <SLVJ> B 136.8/61.6

Q6 1510001151 S.TRA L2SA1576AST1G <SLVJ> B 137.4/64.5

Q7 1560000541 S.FET 2SK880-Y(T5RICOMF) B 128.0/62.4

D1 1750002040 S.ZEN DZ2J091M0L B 145.7/68.8

D3 1750001810 S.DIO L1SS400T1G <SLVJ> B 109.9/76.2

D5 1750001320 S.DIO KDS4148U RTK/P B 114.6/20.1

X1 6050012460 S.XTA CR-834(SMD-49/7.9872 MHz)

<JJE> B 106.5/34.0

R2 7410001230 S.ARR EXB28V101JX B 110.5/68.4

R3 7030005120 S.RES ERJ2GEJ 102 X (1K) B 108.7/68.2

R4 7410001230 S.ARR EXB28V101JX B 106.9/68.4

R5 7410001130 S.ARR EXB28V102JX B 99.4/68.5

R6 7030010040 S.RES ERJ2GEJ-JPW B 94.8/66.1

R7 7030005090 S.RES ERJ2GEJ 104 X (100K) B 95.2/63.1

R10 7030005090 S.RES ERJ2GEJ 104 X (100K) B 123.8/59.8

R11 7030005090 S.RES ERJ2GEJ 104 X (100K) B 124.7/60.8

R12 7030005090 S.RES ERJ2GEJ 104 X (100K) B 124.2/50.5

R13 7410001130 S.ARR EXB28V102JX B 124.4/54.8

R14 7410001130 S.ARR EXB28V102JX B 124.4/52.3

R15 7410001330 S.ARR EXB24V101JX B 124.7/46.7

R17 7410001330 S.ARR EXB24V101JX B 94.7/38.3

R18 7410001230 S.ARR EXB28V101JX B 94.7/40.6

R19 7030005090 S.RES ERJ2GEJ 104 X (100K) B 102.2/30.8

R20 7030005090 S.RES ERJ2GEJ 104 X (100K) B 75.7/36.8

R21 7030005120 S.RES ERJ2GEJ 102 X (1K) B 94.1/59.8

R22 7410001140 S.ARR EXB28V104JX B 92.4/61.8

R23 7410001130 S.ARR EXB28V102JX B 91.4/57.7

R24 7410001330 S.ARR EXB24V101JX B 94.3/54.1

R25 7030005120 S.RES ERJ2GEJ 102 X (1K) B 94.3/52.8

R26 7030005240 S.RES ERJ2GEJ 473 X (47K) B 94.7/43.9

R27 7030005600 S.RES ERJ2GEJ 273 X (27K) B 94.3/45.1

R28 7030007290 S.RES ERJ2GEJ 222 X (2.2K) [#01] B 94.3/46.0

7030009290 S.RES ERJ2GEJ 562 X (5.6K) [#04]

7030008010 S.RES ERJ2GEJ 123 X (12K) [#05]

7030009710 S.RES ERJ2GEJ 203 X (20K) [#06]

7030005060 S.RES ERJ2GEJ 333 X (33K) [#07]

7030005720 S.RES ERJ2GEJ 563 X (56K) [#09]

7030005090 S.RES ERJ2GEJ 104 X (100K) [#10]

7030007290 S.RES ERJ2GEJ 222 X (2.2K) [#11]

7030009290 S.RES ERJ2GEJ 562 X (5.6K) [#14]

7030008010 S.RES ERJ2GEJ 123 X (12K) [#15]

7030009710 S.RES ERJ2GEJ 203 X (20K) [#16]

7030005060 S.RES ERJ2GEJ 333 X (33K) [#17]

7030005720 S.RES ERJ2GEJ 563 X (56K) [#19]

7030005090 S.RES ERJ2GEJ 104 X (100K) [#20]

7030007290 S.RES ERJ2GEJ 222 X (2.2K) [#21]

7030009290 S.RES ERJ2GEJ 562 X (5.6K) [#24]

7030008010 S.RES ERJ2GEJ 123 X (12K) [#25]

7030009710 S.RES ERJ2GEJ 203 X (20K) [#26]

7030005060 S.RES ERJ2GEJ 333 X (33K) [#27]

7030005720 S.RES ERJ2GEJ 563 X (56K) [#29]

7030005090 S.RES ERJ2GEJ 104 X (100K) [#30]

7030007290 S.RES ERJ2GEJ 222 X (2.2K) [#31]

7030009290 S.RES ERJ2GEJ 562 X (5.6K) [#34]

7030008010 S.RES ERJ2GEJ 123 X (12K) [#35]

7030009710 S.RES ERJ2GEJ 203 X (20K) [#36]

7030005060 S.RES ERJ2GEJ 333 X (33K) [#37]

7030005720 S.RES ERJ2GEJ 563 X (56K) [#39]

7030005090 S.RES ERJ2GEJ 104 X (100K) [#40]

7030007290 S.RES ERJ2GEJ 222 X (2.2K) [#41]

7030009290 S.RES ERJ2GEJ 562 X (5.6K) [#44]

7030008010 S.RES ERJ2GEJ 123 X (12K) [#45]

7030009710 S.RES ERJ2GEJ 203 X (20K) [#46]

7030005060 S.RES ERJ2GEJ 333 X (33K) [#47]

7030005720 S.RES ERJ2GEJ 563 X (56K) [#49]

7030005090 S.RES ERJ2GEJ 104 X (100K) [#50]

R29 7030011670 S.RES ERJ2RKF 3902 (39K) B 94.3/48.8

REF PARTS DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

C843 4030017460 S.CER C1005 JB 1H 102K-T T 60.2/15.0

C845 4030017460 S.CER C1005 JB 1H 102K-T T 61.2/15.0

C847 4030017400 S.CER C1005 CH 1H 220J-T T 62.2/15.0

C849 4030017400 S.CER C1005 CH 1H 220J-T T 63.2/15.0

C851 4030017460 S.CER C1005 JB 1H 102K-T T 64.2/15.0

C853 4030017460 S.CER C1005 JB 1H 102K-T T 65.2/15.0

C855 4030017460 S.CER C1005 JB 1H 102K-T T 66.2/15.0

C856 4030017400 S.CER C1005 CH 1H 220J-T T 66.7/5.4

C857 4030017460 S.CER C1005 JB 1H 102K-T T 67.2/15.0

C859 4030017460 S.CER C1005 JB 1H 102K-T T 68.2/15.0

C861 4030017400 S.CER C1005 CH 1H 220J-T T 69.2/15.0

C862 4030017460 S.CER C1005 JB 1H 102K-T T 69.7/5.4

C863 4030017400 S.CER C1005 CH 1H 220J-T T 70.2/15.0

C864 4030017460 S.CER C1005 JB 1H 102K-T T 70.7/5.4

C865 4030017460 S.CER C1005 JB 1H 102K-T T 71.2/15.0

C866 4030017460 S.CER C1005 JB 1H 102K-T T 71.7/5.4

C867 4030017460 S.CER C1005 JB 1H 102K-T T 72.2/15.0

C868 4030017460 S.CER C1005 JB 1H 102K-T T 72.7/5.4

C869 4030017460 S.CER C1005 JB 1H 102K-T T 73.2/15.0

C881 4030017490 S.CER C1608 JB 1A 105K-T B 55.2/24.1

C882 4030017460 S.CER C1005 JB 1H 102K-T T 81.3/15.1

C883 4030016930 S.CER C1005 JB 1A 104K-T T 82.2/15.1

C891 4030018910 S.CER C1608 JB 0J 475K-T T 40.4/40.4

C892 4030016930 S.CER C1005 JB 1A 104K-T T 42.3/34.7

C893 4030017490 S.CER C1608 JB 1A 105K-T T 35.6/28.7

C894 4030018920 S.CER C1005 JB 1H 392K-T T 39.9/28.0

C895 4030016930 S.CER C1005 JB 1A 104K-T T 41.5/28.0

C896 4030017460 S.CER C1005 JB 1H 102K-T T 45.0/21.9

C901 4030018860 S.CER C1005 JB 0J 105K-T B 40.8/39.4

C902 4030018860 S.CER C1005 JB 0J 105K-T B 39.1/39.4

C903 4030018860 S.CER C1005 JB 0J 105K-T B 41.8/44.3

C904 4030018860 S.CER C1005 JB 0J 105K-T B 40.0/44.3

C905 4030019560 S.CER GRM21BB31C106KE15L B 38.2/41.6

C910 4030018860 S.CER C1005 JB 0J 105K-T B 50.1/30.9

C911 4030018900 S.CER C1005 JB 0J 474K-T B 51.9/30.9

C912 4030018900 S.CER C1005 JB 0J 474K-T B 51.0/30.9

C913 4030016930 S.CER C1005 JB 1A 104K-T B 53.0/30.9

C914 4030018860 S.CER C1005 JB 0J 105K-T T 53.8/38.1

C915 4030016930 S.CER C1005 JB 1A 104K-T B 43.8/35.2

C916 4030016930 S.CER C1005 JB 1A 104K-T B 45.1/38.3

C917 4030019560 S.CER GRM21BB31C106KE15L B 44.6/36.6

C918 4030018860 S.CER C1005 JB 0J 105K-T T 47.9/37.8

C921 4030016930 S.CER C1005 JB 1A 104K-T B 45.1/43.9

C922 4030016930 S.CER C1005 JB 1A 104K-T B 45.1/44.8

C923 4030016930 S.CER C1005 JB 1A 104K-T B 61.6/52.6

C924 4030016930 S.CER C1005 JB 1A 104K-T B 43.9/53.9

C925 4030016930 S.CER C1005 JB 1A 104K-T B 47.9/48.5

C931 4030017040 S.CER C1005 JB 1A 333K-T B 58.6/49.8

C932 4030017770 S.CER C1005 JB 1H 332K-T B 59.0/48.5

C933 4030016930 S.CER C1005 JB 1A 104K-T B 56.3/48.5

C934 4030016930 S.CER C1005 JB 1A 104K-T B 57.2/48.5

C935 4030016930 S.CER C1005 JB 1A 104K-T B 63.4/38.4

C936 4030019560 S.CER GRM21BB31C106KE15L B 44.5/48.8

C937 4030016930 S.CER C1005 JB 1A 104K-T B 43.2/43.0

C938 4030016930 S.CER C1005 JB 1A 104K-T B 65.3/43.5

C939 4030016930 S.CER C1005 JB 1A 104K-T B 63.4/36.9

RL1 6310000110 S.REL AGQ200S12 T 24.6/33.3

J1 6510022472 S.CON 40FLT-SM2-TB(LF)(SN)(M) T 45.5/10.2

J2 6510021722 S.CON 30FLT-SM2-TB(LF)(SN)(M) T 66.5/10.2

J3 6510030260 S.CON BM04B-PASS-TF(LF)(SN) B 27.0/42.3

J4 6510025142 S.CON 10FLT-SM2-TB(LF)(SN)(M) T 28.3/60.0

J5 6510030280 S.CON IMSA-9706S-06Y913 B 112.7/57.6

J7 6510016431 S.CON 53307-1471 T 39.5/23.6

F1 5210001160 S.FUS ERBRE3R00V T 4.7/47.4

EP701 6910016330 S.BEA MMZ1005S 601CT-S B 7.3/17.2

EP702 6910016330 S.BEA MMZ1005S 601CT-S B 7.3/9.3

EP703 6910019100 S.BEA MPZ1608S101AT B 26.8/37.0

EP704 6910019100 S.BEA MPZ1608S101AT B 25.5/37.0

EP705 6910019100 S.BEA MPZ1608S101AT B 22.4/37.0

EP706 6910019100 S.BEA MPZ1608S101AT B 21.0/37.0

EP707 6910019100 S.BEA MPZ1608S101AT B 34.2/45.7

EP708 6910019100 S.BEA MPZ1608S101AT B 30.0/37.0

Other manuals for IC-M506

This manual suits for next models

Table of contents

Popular Transceiver manuals by other brands

Adeunis RF

Adeunis RF DRY CONTACTS WMBUS user guide

Teng YuanZhi Shenzhen Electronics

Teng YuanZhi Shenzhen Electronics ST-700 instruction manual

Hy-Gain

Hy-Gain 23 Plus Installation & operation instructions

Altronix

Altronix eBridge200WPM installation guide

WG SECURITY PRODUCT

WG SECURITY PRODUCT Mono-Guard installation manual

Kenwood

Kenwood TK-3170 E Service manual

Nitek

Nitek VB31M installation guide

ADTRAN

ADTRAN 1442530G1 quick start guide

signal one

signal one CX7 Installation Adjustment & Operating Notes

Ten-Tec

Ten-Tec OMNI-VII user manual

Alinco

Alinco DJ-C5 instruction manual

Team

Team LCmobile PMR manual

Nat

Nat NPX136D Series manual

Gomax

Gomax EX-57EG user manual

GME Electrophone

GME Electrophone GX294 instruction manual

Vertex Standard

Vertex Standard VX-230 Series Service manual

Yaesu

Yaesu VXA-210 specification

Sommerkamp

Sommerkamp TS 600 G instruction manual

Icom IC-M506 User manual

Popular Transceiver manuals by other brands
