INTRODUCTION
This service manual describes the latest technical
information for the IC-M85 and IC-M85E VHF marine
transceivers at the time of publication.
MODEL VERSION
VERSION
NUMBER
Usable Channel Group
USA INT CAN WX ATIS
IC-M85 USA #11 ✔ ✔ ✔ ✔ –
EXP #12 ✔ ✔ ✔ ✔ –
IC-M85E
EUR #15 –✔– – –
UK #16 –✔– – –
FRG #17 –✔– – ✔
AUS #19 ✔ ✔ –✔–
To upgrade quality, any electrical or mechanical parts and
internal circuits are subject to change without notice or
obligation.
SERVICE CAUTION
NEVER connect the transceiver to a DC power supply
that uses more than the specified voltage. This will
ruin the transceiver.
DO NOT reverse the polarities of the power supply
when directly applying power to the transceiver/circuit.
DO NOT apply an RF signal of more than 20 dBm
(100 mW) to the antenna connector. This could
damage the transceiver’s front-end.
ORDERING PARTS
Be sure to include the following four points when
ordering replacement parts:
1. 10-digit Icom part number
2. Component name
3. Equipment model name and unit name
4. Quantity required
<ORDER EXAMPLE>
1130017460 AK1542A-L IC-M85 MAIN UNIT 5 pieces
8610016360 N-452 IC-M85 CHASSIS 1 piece
REPAIR NOTES
1. Make sure that the problem is internal before
disassembling the transceiver.
2. DO NOT open the transceiver until the transceiver
is disconnected from its power source.
3. DO NOT short any circuits or electronic parts.
4. DO NOT keep power ON for a long time when the
transceiver is defective.
5. NEVER directly transmit power into any test
equipment such as Standard Signal Generator or
a Sweep Generator, otherwise the RF power may
damage them.
6. ALWAYS connect a 30 dB to 40 dB attenuator
between the transceiver and such test equipment.
7. READ the instruction manual of the test equipment
thoroughly before connecting it to the transceiver.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the
United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand, and/or other countries.
IC-M85 (USA, EXP versions)

TABLE OF CONTENTS
SECTION 1 SPECIFICATIONS
SECTION 2 INSIDE VIEWS
SECTION 3 DISASSEMBLY INSTRUCTION
SECTION 4 ADJUSTMENT PROCEDURE
4-1 PREPARATION ………………………………………………………………………………………… 4-1
4-2 FREQUENCY ADJUSTMENT………………………………………………………………………… 4-4
4-3 RECEIVE ADJUSTMENT …………………………………………………………………………… 4-5
4-4 TRANSMIT ADJUSTMENTS ………………………………………………………………………… 4-6
SECTION 5 PARTS LIST
SECTION 6 MECHANICAL PARTS
SECTION 7 BOARD LAYOUT
SECTION 8 BLOCK DIAGRAM
SECTION 9 VOLTAGE DIAGRAM
DISTRIBUTOR ADDRESS

SECTION 1 SPECIFICATIONS
1-1
IC-M85 IC-M85E
USA EXP EUR UK FRG AUS
GENERAL
Frequency coverage
(Unit: MHz)
Marine Tx 156.025~157.425 156.000~161.450 156.025
~157.425
Rx 156.050~163.275 156.000~163.425 156.300
~162.025
Land Tx / R x 136.000~174.000
Number of programmable channels 100
Type of emission Marine 16K0G3E
Land Wide 16K0F3E 14K0F3E 16K0F3E
Narrow 11K0F3E 8K50F3E
Antenna connector SMA (50 Ω)
Operable temperature
range
Marine –20°C to +60°C
(–4°F to +140°F) –15°C to +55°C –10°C to +55°C
Land –30°C to +60°C
(–22°F to +140°F) –25°C to +55°C –10°C to +50°C
Frequency error Marine ±5.0 ppm ±1.5 kHz ±5.0 ppm
Land ±1.5 kHz
Power supply voltage 7.2 V DC nominal (negative ground)
Current drain
(approximately)
Rx maximum audio 0.45 A
Tx at 5 W 1.5 A
at 3 W 1.2 A
at 2 W 0.9 A –
at 1 W 0.6 A
Dimensions (projections not included) 56(W)×92(H)×29(D) mm: 2.2(W)×3.6(H)×1.1(D) inches
Weight 246 g: 8.7 oz (with BP-290, antenna, and belt clip)
TRANSMITTER
Transmit output power Marine 5 W/3 W/1 W
Land 2 W/1 W 5 W/3 W/1 W
Maximum frequency
deviation
Marine ±5.0 kHz
Land Wide ±5.0 kHz ±4.0 kHz ±5.0 kHz
Narrow ±2.5 kHz
Spurious emissions –70 dBc typical 0.25 μW ≤2 GHz
1.00 μW >2 GHz
–70 dBc
typical
Adjacent channel
power
Marine 70 dB
Land Wide 70 dB
Narrow 60 dB
Audio harmonic distortion 10% (at 60% Deviation)
FM Hum and Noise Marine 40 dB –
Land Wide 40 dB –
Narrow 34 dB –
Residual modulation Marine
–
40 dB
Land Wide 40 dB
Narrow 34 dB
Audio frequency response –+1 dB~–3 dB of 6 dB octave
from 300 Hz to 3000 Hz (Marine)
Limiting character of modulation 60%~ 100% of maximum deviation
Microphone impedance 2 kΩ
RECEIVER
Receiver system Double conversion superheterodyne
Intermediate frequencies 1st 46.35 MHz
2nd 450 kHz
Sensitivity (typical) Marine 0.25 μV
at 12 dB SINAD
–4 dBμ EMF at 20 dB SINAD
Land Wide –4 dBμ EMF at 20 dB SINAD
Narrow –2 dBμ EMF at 20 dB SINAD
Adjacent channel
selectivity (typical)
Marine 70 dB 65 dB
Land Wide 70 dB
Narrow 55 dB 60 dB
Spurious response Marine 70 dB typical 70 dB 65 dB
Land 70 dB
Intermodulation
rejection ratio
Marine 70 dB typical 68 dB 65 dB
Land 65 dB
Hum and noise Marine 40 dB
Land Wide 40 dB
Narrow 34 dB
Audio frequency response –+1 dB~–3 dB of –6 dB octave
from 300 Hz to 3000 Hz (Marine)
Squelch sensitivity (at threshold: typical) 0.35 μV –6 dBμ EMF
Audio output power Internal speaker (12 Ω) 0.7 W typical
(at 10% distortion) External speaker (8 Ω) 0.7 W 0.7 W typical
All stated specifications are subject to change without notice or obligation.

SECTION 2 INSIDE VIEWS
2-1
•FRONT UNIT (BOTTOM VIEW)
LCD Driver
(IC9)
AF Power Amplifier
for External Speaker
(IC5)
AF Power Amplifier
for Internal Speaker
(IC5)
AF Switch
(IC8)
Audio Mute Switch
(IC8)
MIC/VOX Amplifier
(IC4)
J3
I/O Expander
(IC2)
J5
J1
J4

2-2
•FRONT UNIT (TOP VIEW)
LCD (DS6)
Internal Microphone
(MC1)

2-3
•MAIN UNIT (TOP VIEW)
J404
J1
EEPROM (IC409)
Audio Switch (IC11)
APC Controller
(IC1)
1st IF Filter
(FI1)
IF IC (IC2)
Level Switch
(IC3) D/A Converter
(IC6)

2-4
•MAIN UNIT (BOTTOM VIEW)
[DIAL] (S401)
PLL IC (IC4)
RF Amplifier
(Q5)
1st Mixer (Q6)
TX/RX VCOs
Voice Scrambler IC
(IC600)
Pre-Drive Amplifier
(Q2)
TX Power Amplifier
(Q1)
†Under the thermal sheet
Motion Sensor
(IC20)
Switch IC (IC13)
D/A Converter
(IC22)
CPU (IC401)
Reference Oscillator
(X2)
CPU Clock (X401)
Clock
for Voice Scramber IC
(X600)

SECTION 3 DISASSEMBLY INSTRUCTION
3-1
1. REMOVING THE FRONT PANEL
Remove 2 knobs and antenna nut from the front1)
panel.
Antenna nut
Dial knob
Knob
Remove with;
“ICOM Driver (K)”
(8960000112)
Remove 2 screws from the bottom of chassis.2)
Screws
Separate the chassis from the front panel.3)
Front panel
Chassis
BE CAREFUL about the flat cable when separating the
chassis from the front panel.
Suction lifter
For easy separation of the CHASSIS
Use a suction lifter to lift the bottom of the CHASSIS up.
Suction lifter
• Part name: EA950R-2
• Manufacture: ESCO CO.LTD
Disconnect the flat cable from the LOGIC UNIT,4)
then separate the chassis from the front panel.
Front panel
Flat cable
Chassis
J1
FLAT CABLE
Lift up
flat cable

3-2

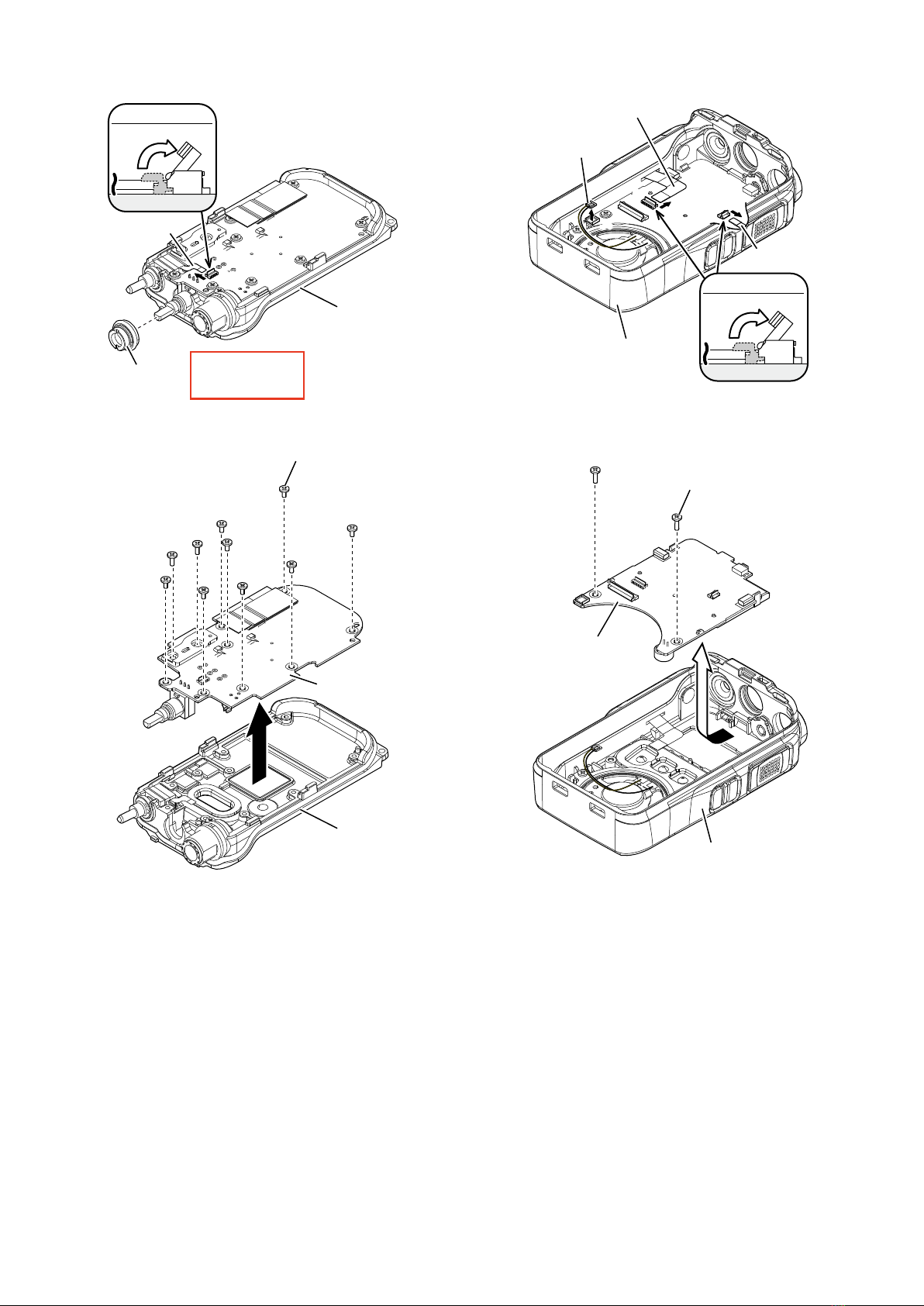

2. REMOVING THE MAIN UNIT
Disconnect the flat cable and remove dial nut from1)
the MAIN UNIT.
J404J404
Dial nut
FLAT CABLE
Lift up
flat cable
Flat cable
Chassis
Remove with;
“ICOM Driver (AG)”
(8960000560)
Separate the MAIN UNIT from the chassis.2)
MAIN UNIT
Chassis
Screws ×10
3. REMOVING THE FRONT UNIT
Disconnect 2 flat and speaker cables from the1)
FRONT UNIT.
J3
J4
J4
J5
J5
Front panel
FLAT CABLE
Lift up
flat cable
Speaker cable
Flat cable
Flat cable
Remove 2 screws, then separate the FRONT UNIT2)
from the front panel.
FRONT UNIT
Screws ×2
Front panel

4-1
SECTION 4 ADJUSTMENT PROCEDURE
4-1 PREPARATION
REqUIRED EqUIPMENT■
EqUIPMENT SPECIFICATIONS EqUIPMENT SPECIFICATIONS
Programming software CS-M85 PROGRAMMING
SOFTWARE (Revision 1.0 or later) Oscilloscope Frequency range: DC~20 MHz Measuring range: 0.01~20 V
RF power meter
(50 Ω terminated)
Measuring range: 0.1~10 W
Frequency range: 100~300 MHz
SWR: Less than 1.2 : 1
Standard signal
generator (SSG)
Frequency range: 0.1~300 MHz
Output level: −20 dBμ to 90 dBμ
(−127 to −17 dBm)
Frequency counter
Range: 0.1~300 MHz
Accuracy: ±1 ppm or better
Input level: Less than 1 mW
Audio generator (AG) Frequency range: 300~3000 Hz
Output level: 1~500 mV
JIG cable Modified OPC-2338 (see the
illustration on page 4-2)
Modulation Analyzer Frequency range: 30~300 MHz
Measuring range: 0~±10 kHz Attenuator Attenuation: 30 dB or 40 dB Capacity: More than 10 W
AC millivoltmeter Measuring range: 10 mV to 10 V
CONNECTIONS■
OPC-2338
PC
Modulation
analyzer Oscilloscope
To the antenna connector Standard signal generator
–127 dBm to –17 dBm
(0.1 V to 32 mV)
Attenuator
30 dB or 40 dB
RF power meter
0.1~10 W/50 Ω
Frequency
counter
Loose
coupling
CAUTION!
DO NOT transmit while an
SSG is connected to the
antenna connector directly.
CAUTION!
Firmly attach to the
multi-connector, but
do not overtighten.
The tests described in this section should be measured and adjusted with the above test equipment.
However, a radio tester can also be used for these adjustment procedures.

4-2

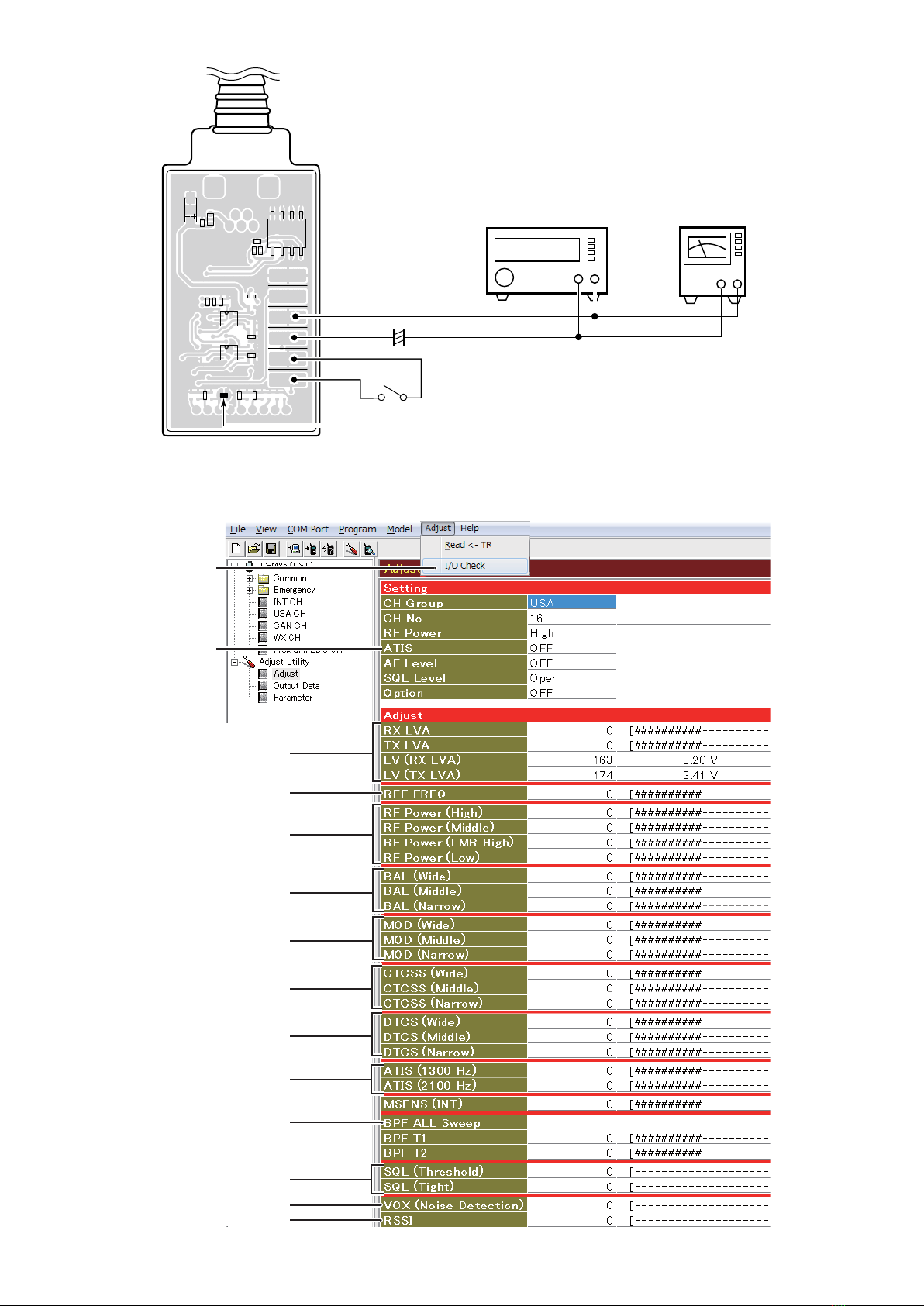

JIG cable■
C3
C5
C8
C12
C14 C15
CP9
EP1
IC2
IC3IC4
R5
R6 R7
R12
R15 R16 R17
R18
MIC SPPTT GNDGNDGND
1 9
B-8114B
OPC-2338
GND
+
MIC
PTT
Add a 10 kΩ resistor to CP9 for VOX unit detection.
GND
PTT Switch
+−
AC Millivoltmeter
(10 mV to 10 V)
Audio Generator
(300~3000 Hz/1~500 mV)
+−
4.7 µF/16 V
<Settings>
Frequency: 1 kHz
Level: 150 mV rms
aDJUSTMeNT UTIlITy■
Reference Frequency
RX Sensitivity
VOX
RSSI
TX Output Power
I/O Check
Squelch
ATIS Code
CTCSS Deviation
DTCS Deviation
ATIS Deviation
Deviation
Modulation Balance
PLL Lock Voltage

4-3

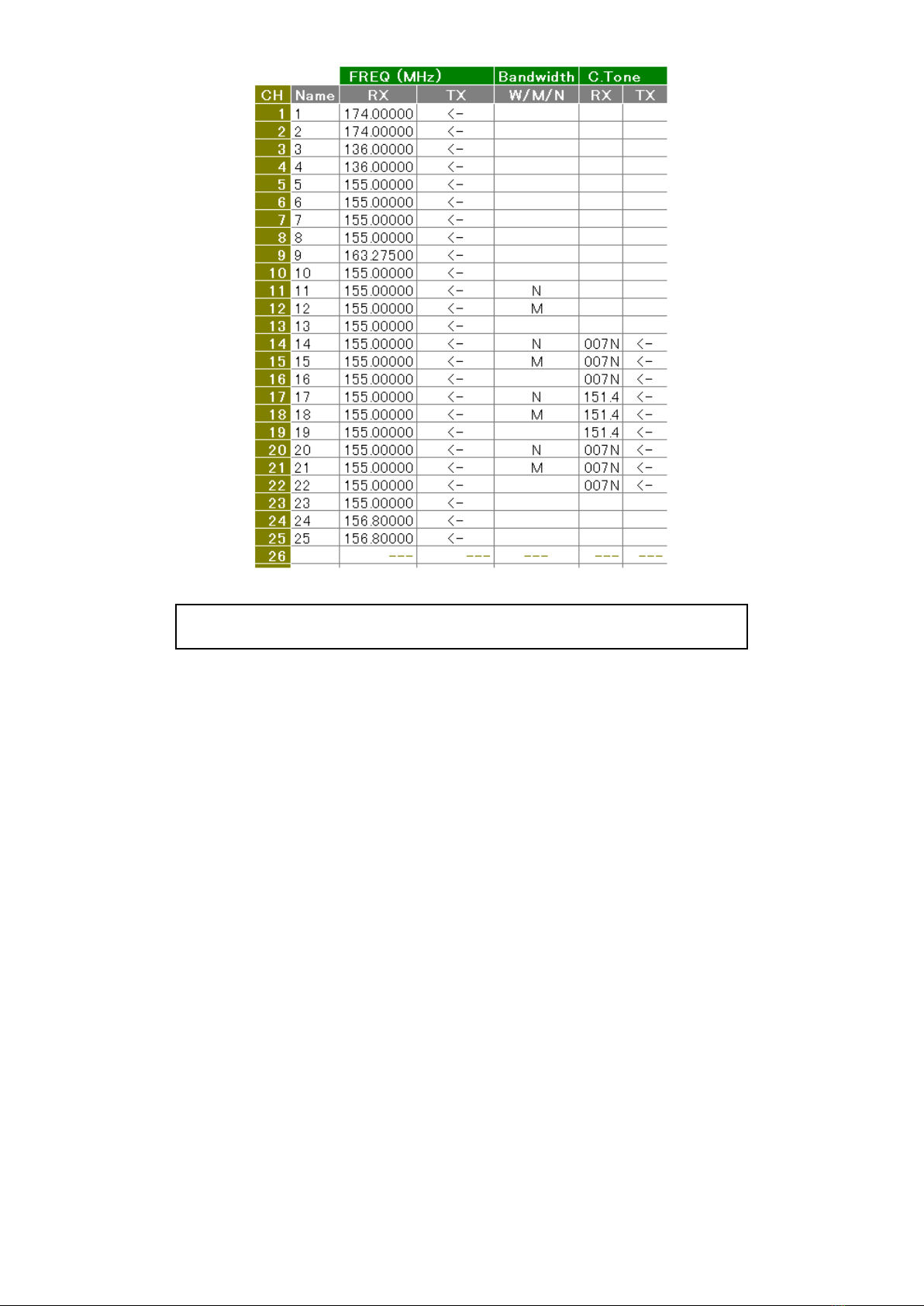

ADJUSTMENT CHANNELS■
CONVENIENT: The same cloning file is available.
Right-click the clip icon to the right, and select "Save Embedded File to Disk."

4-4
4-2 FREqUENCY ADJUSTMENT
Select an adjustment item by pushing [↑]/[↓]/[←]/[→] on the PC's keyboard.1.
Set or modify the adjustment value as specified using [Space]/[BackSpace] on the PC's keyboard.2.
ADJUSTMENT TRANSCEIVER'S
CONDITION OPERATION ADJUSTMENT ITEM VALUE
PLL LOCK
VOLTAGE
1 Channel:1•
Receiving•
Click the "I/O check button" on the
ADJ-M85's screen (see page 4-2) to
open the I/O check window as below.
[RX LVA] 3.2 V: 163
2 Channel:2•
Transmitting•
[TX LVA] 3.4 V: 174
3 Channel:3•
Receiving•
[LVIN]
(On the I/O
Check window)
0.8 V ±0.3 V
(Verify)
4 Channel:4•
Transmitting•
0.9 V ±0.3 V
(Verify)
REFERENCE
FREqUENCY
1 Channel:5•
Transmitting•
Loosely couple the frequency
counter to the antenna connector, as
shown on page 4-1.
[REF] 155.0000 MHz
(±300 Hz)

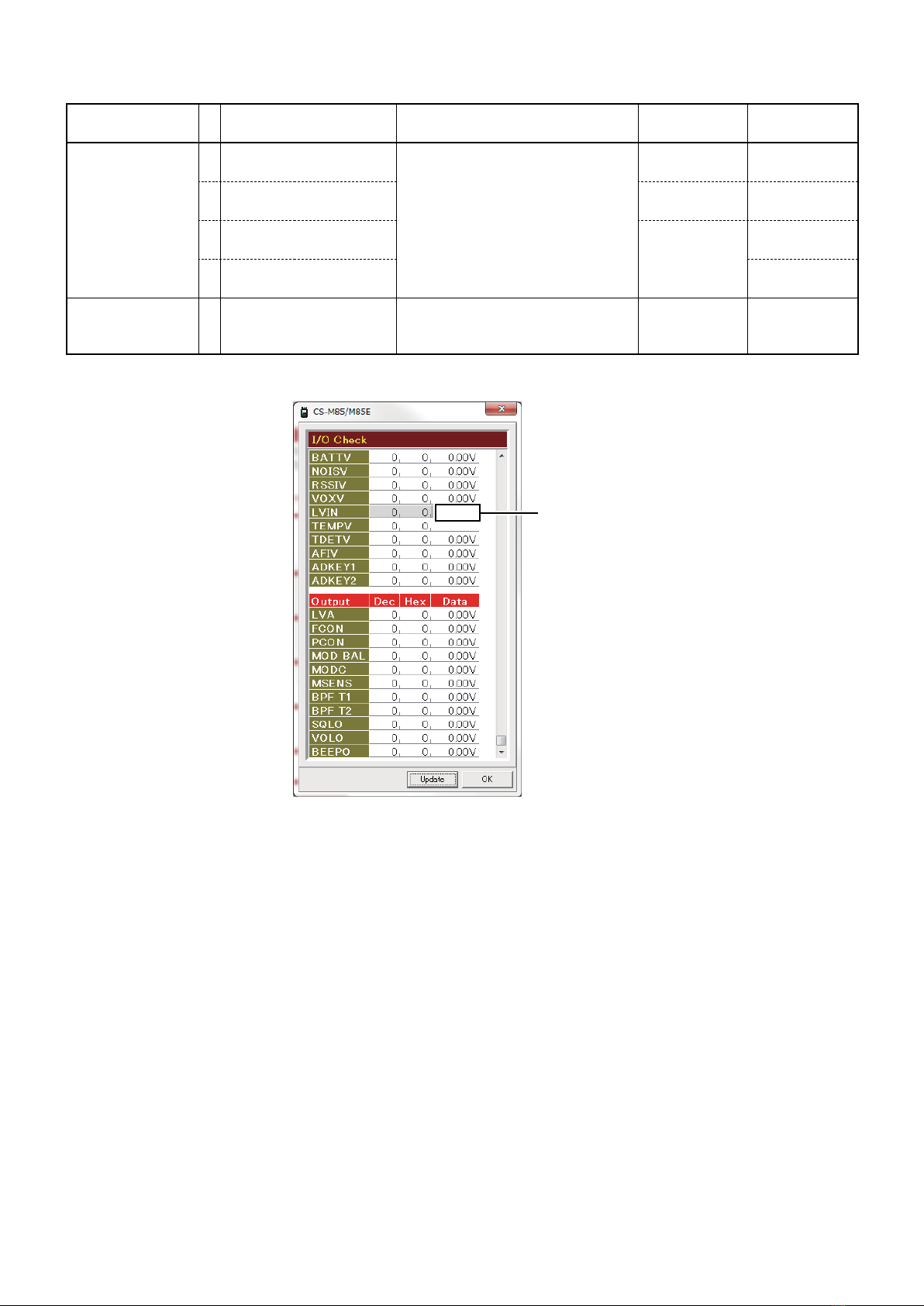

• I/O Check window
(The values shown above are example
only. Each transceiver has own values.)
Lock voltage is
displayed here.
* * * *

4-5
4-3 RECEIVE ADJUSTMENT
Select an adjustment item by pushing [↑]/[↓]/[←]/[→] on the PC's keyboard.1.
Set or modify the adjustment value as specified using [Space]/[BackSpace] on the PC's keyboard.2.
ADJUSTMENT TRANSCEIVER'S
CONDITION OPERATION ADJUSTMENT ITEM VALUE
RX SENSITIVITY NOTE: When the "RX SENSITIVITY" is re-adjusted, the "RSSI" must be re-adjusted too.
1 Channel:6•
Receiving•
Connect the test equipment to the
antenna connector and set it to:
Frequency: 155 MHz
Level†: 10 dBμ (–97 dBm)
Modulation: 1 kHz
Deviation: ±3.0 kHz
[BPF ALL] (Automatic
adjustment)
SqUELCH
(threshold)
1 Channel:7•
Receiving•
Set the test equipment to:
Level†: –13 dBμ (–120 dBm)
[SqL
(threshold)]
(Automatic
adjustment)
(tight) 2 Set the test equipment to:
Level†: –4 dBμ (–111 dBm)
[SqL (tight)]
RSSI NOTE: The "RX SENSITIVITY" must be adjusted before adjusting the "RSSI."
If the "RX SENSITIVITY" is re-adjusted, "RSSI" must be re-adjusted too.
1 Channel:8•
Receiving•
Set the test equipment to:
Level†: 0 dBμ (–107 dBm)
[RSSI] (Automatic
adjustment)
WX ALERT
DECODER*
1 Channel:9•
Receiving•
Set the weather alert function ON in•
the Menu.
Set the test equipment to:•
Frequency: 163.275 MHz
Level†: 30 dBμ (–77 dBm)
Modulation: 1.05 kHz
Deviation: ±3.0 kHz
– Verify that the
transceiver
emits weather
alert beeps,
and "ALT" icon
blinks on the
LCD.
†The output level of the standard signal generator (SSG) is indicated as the SSG’s open circuit.
*For only [USA], [EXP], and [AUS] versions.

4-6
4-4 TRANSMIT ADJUSTMENTS
Select an adjustment item by pushing [↑]/[↓]/[←]/[→] on the PC's keyboard.1.
Set or modify the adjustment value as specified using [Space]/[BackSpace] on the PC's keyboard.2.
ADJUSTMENT TRANSCEIVER'S
CONDITION OPERATION ADJUSTMENT ITEM VALUE
TX OUTPUT
POWER
(High power)
1 Channel:10•
Transmitting•
Connect the test equipment to the•
antenna connector as shown in
page 4-1.
Adjust the power supply voltage to•
7.2 V while transmitting.
[RF Power
(High)]
5 W
(Middle power) 2[RF Power
(Middle)]
3 W
(Land High
power)*1
3[RF Power
(LMR High)]
1.75 W
(Low power) 4[RF Power
(Low)]
0.75 W
DEVIATION 1 – Set the test equipment to:
HPF: OFF
LPF: 20 kHz
De-emphasis: OFF
Detector: (P–P)/2
(Narrow
bandwidth)
2 Channel:11•
Transmitting•
Set the test equipment to:
Frequency: 1 kHz
Waveform: Sine wave
Level: 150 mV rms
[MOD
(Narrow)]
±2.10 kHz
±0.05 kHz
(Middle
bandwidth)*2
3 Channel:12•
Transmitting•
[MOD (Middle)] ±3.20 kHz
±0.05 kHz
(Wide bandwidth) 4 Channel:13•
Transmitting•
[MOD (Wide)] ±4.10 kHz
±0.05 kHz
MODULATION
BALANCE
(Narrow)
1 Channel:14•
Transmitting•
No audio signals applied to the JIG
cable.
[BAL (Narrow)] Set to square
wave form
(Middle)*22 Channel:15•
Transmitting•
[BAL (Middle)]
(Wide) 3 Channel:16•
Transmitting•
[BAL (Wide)]
CTCSS
DEVIATION
(Narrow)
1 Channel:17•
Transmitting•
No audio signals applied to the JIG
cable.
[CTCSS
(Narrow)]
±0.34 kHz
±0.02 kHz
(Middle)*22 Channel:18•
Transmitting•
[CTCSS
(Middle)]
±0.55 kHz
±0.02 kHz
(Wide) 3 Channel:19•
Transmitting•
[CTCSS
(Wide)]
±0.68 kHz
±0.02 kHz
DTCS DEVIATION
(Narrow)
Channel:20•
Transmitting•
No audio signals applied to the JIG
cable.
[DTCS
(Narrow)]
±0.34 kHz
±0.02 kHz
(Middle)*2Channel:21•
Transmitting•
[DTCS
(Middle)]
±0.55 kHz
±0.02 kHz
(Wide) Channel:22•
Transmitting•
[DTCS (Wide)] ±0.68 kHz
±0.02 kHz
VOX 1 Channel:23• Set the VOX function ON.•
Set the test equipment to:•
Frequency: 1 kHz
Level: 40 mV rms
– Verify that the
transceiver is
transmitting,
and the status
indicator lights
red.
ATIS DEVIATION*21 – Set the test equipment to:
HPF: OFF
LPF: 20 kHz
De-emphasis: OFF
Detector: (P–P)/2
– –
ATIS (1300 Hz) Channel:24•
Transmitting•
Select "ATIS" item to 1300 Hz. – ±1.3 kHz ±10%
(Verify)
ATIS (2100 Hz) Channel:25•
Transmitting•
Select "ATIS" item to 2100 Hz. ±2.1 kHz ±10%
(Verify)
*1For only [USA] version. *2For only [FRG] version.

SECTION 5 PARTS LIST
5-1
REF PART DESCRIPTION M. H/V
NO. NO. LOCATION
REF PART DESCRIPTION M. H/V
NO. NO. LOCATION
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.= Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION= See the BOARD LAYOUTS for details
[FRONT UNIT] [FRONT UNIT]
IC2 1130017400 S.IC MC74HC4094ADTR2G B 9.3/39.5
IC4 1110008940 S.IC NJU7057RB1-TE2-#ZMZH B 43.2/6.0
IC5 1110007610 S.IC TPA0211DGNR B 39.1/20.2
IC6 1110007610 S.IC TPA0211DGNR B 43.6/20.7
IC7 1130009981 S.IC TC7W53FK (TE85LF) B 49.8/7.5
IC8 1130009981 S.IC TC7W53FK (TE85LF) B 43.8/14.0
IC9 1130017430 S.IC NJU6434KS4-TE4-#ZZZB B 13.4/24.5
Q1 1590005410 S.TRA DTC014YEBTL B 8.7/34.9
Q2 1590004500 S.TRA DMC561040R B 3.6/40.4
Q3 1590005410 S.TRA DTC014YEBTL B 8.7/32.9
Q5 1590003800 S.TRA KTC811U-GR-RTK/P B 35.9/14.8
Q6 1550000090 S.FET RSQ035P03TR B 39.1/14.8
Q9 1590005410 S.TRA DTC014YEBTL B 25.7/33.8
Q10 1590005410 S.TRA DTC014YEBTL B 31.0/32.9
Q11 1590005410 S.TRA DTC014YEBTL B 28.3/34.5
Q12 1590005410 S.TRA DTC014YEBTL B 18.8/28.4
D1 1750003390 S.ZEN RCLAMP1521P.TCT B 42.6/30.6
D7 1750001810 S.DIO L1SS400T1G B 35.7/11.5
D8 1750002020 S.DIO DA2S10100L B 39.9/8.1
R1 7030016290 S.RES RMC1/16S-222JTH (2.2 k) B 5.9/34.5
R2 7030016350 S.RES RMC1/16S-122JTH (1.2 k) B 4.0/38.1
R3 7030016350 S.RES RMC1/16S-122JTH (1.2 k) B 3.1/38.1
R7 7030016490 S.RES RMC1/16S-391JTH (390) T 41.1/32.0
R9 7030016490 S.RES RMC1/16S-391JTH (390) T 40.9/12.0
R11 7030016160 S.RES RMC1/16S-820JTH (82) B 6.9/32.9
R14 7030016370 S.RES RMC1/16S-271JTH (270) B 5.9/35.4
R18 7030016370 S.RES RMC1/16S-271JTH (270) B 9.6/16.2
R20 7030015980 S.RES RMC1/16S-333JTH (33 k) B 34.1/10.3
R21 7030016020 S.RES RMC1/16S-104JTH (100 k) B 33.6/11.5
R22 7030016100 S.RES RMC1/16S-334JTH (330 k) B 34.8/12.8
R23 7030016280 S.RES RMC1/16S-331JTH (330) B 35.7/12.8
R24 7030016200 S.RES RMC1/16S-274JTH (270 k) B 38.4/12.6
R25 7030016050 S.RES RMC1/16S-102JTH (1 k) B 36.9/12.8
R28 7030016280 S.RES RMC1/16S-331JTH (330) B 33.6/14.8
R29 7030016560 S.RES RMC1/16SJPTH B 36.1/16.5
R30 7030015970 S.RES RMC1/16S-103JTH (10 k) B 34.5/16.5
R35 7030016030 S.RES RMC1/16S-154JTH (150 k) B 46.2/6.8
R36 7030016030 S.RES RMC1/16S-154JTH (150 k) B 46.1/8.0
R37 7030014340 S.RES MCR006YZPJ 473 (47 k) B 27.1/32.9
R39 7030014450 S.RES MCR006YZPJ 470 (47) B 32.1/34.0
R40 7030014340 S.RES MCR006YZPJ 473 (47 k) B 33.7/34.2
R41 7030014340 S.RES MCR006YZPJ 473 (47 k) B 33.0/33.8
R42 7030014860 S.RES RGC1/16SC104DTH (100 k) B 43.8/3.8
R43 7030014860 S.RES RGC1/16SC104DTH (100 k) B 47.1/5.2
R44 7030019640 S.RES RMC1/16S-125JTH (1.2 M) B 45.3/3.8
R45 7030015910 S.RES RMC1/16S-101JTH (100) B 40.9/9.4
R50 7030015970 S.RES RMC1/16S-103JTH (10 k) B 50.5/10.1
R51 7030015970 S.RES RMC1/16S-103JTH (10 k) B 48.9/10.6
R53 7030014380 S.RES MCR006YZPJ 103 (10 k) B 29.8/39.1
R54 7030016290 S.RES RMC1/16S-222JTH (2.2 k) B 47.8/8.4
R55 7030014340 S.RES MCR006YZPJ 473 (47 k) B 31.6/39.4
R56 7030014360 S.RES MCR006YZPJ 471 (470) B 39.9/45.3
R57 7030014390 S.RES MCR006YZPJ 102 (1 k) B 32.5/39.1
R58 7030015980 S.RES RMC1/16S-333JTH (33 k) B 55.0/4.7
R59 7030015970 S.RES RMC1/16S-103JTH (10 k) B 53.0/6.5
R60 7520000270 S.POS PRG21BC4R7MM1RA B 38.3/31.3
R62 7030016560 S.RES RMC1/16SJPTH B 39.3/36.3
R63 7540000460 S.ABS EZAEG1N50AC B 38.6/38.2
R69 7540000460 S.ABS EZAEG1N50AC B 32.5/37.9
R70 7540000460 S.ABS EZAEG1N50AC B 34.4/34.2
R71 7540000460 S.ABS EZAEG1N50AC B 32.5/37.2
R72 7540000460 S.ABS EZAEG1N50AC B 36.5/34.5
R73 7540000460 S.ABS EZAEG1N50AC B 32.5/36.0
R77 7540000460 S.ABS EZAEG1N50AC B 23.8/16.1
R78 7540000460 S.ABS EZAEG1N50AC B 23.1/18.7
R79 7540000460 S.ABS EZAEG1N50AC B 21.3/17.2
R110 7030016450 S.RES RMC1/16S-824JTH (820 k) B 19.4/18.3
R111 7030016390 S.RES RMC1/16S-184JTH (180 k) B 22.1/18.3
R112 7030016020 S.RES RMC1/16S-104JTH (100 k) B 20.3/18.3
R113 7030016220 S.RES RMC1/16S-563JTH (56 k) B 21.2/18.3
R114 7030016020 S.RES RMC1/16S-104JTH (100 k) B 40.6/10.6
R115 7030016450 S.RES RMC1/16S-824JTH (820 k) B 36.4/6.1
R116 7030016390 S.RES RMC1/16S-184JTH (180 k) B 32.6/19.4
R117 7030016220 S.RES RMC1/16S-563JTH (56 k) B 33.3/28.6
R118 7030016090 S.RES RMC1/16S-223JTH (22 k) B 40.0/39.6
R121 7030016560 S.RES RMC1/16SJPTH B 46.1/9.2
R123 7030016330 S.RES RMC1/16S-153JTH (15 k) B 38.9/3.3
R124 7030016100 S.RES RMC1/16S-334JTH (330 k) B 38.9/5.1
R125 7030016440 S.RES RMC1/16S-272JTH (2.7 k) B 38.9/6.0
R126 7030015970 S.RES RMC1/16S-103JTH (10 k) B 40.1/6.1
R127 7030016060 S.RES RMC1/16S-105JTH (1 M) B 38.5/8.9
R128 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 45.9/13.1
R129 7030016090 S.RES RMC1/16S-223JTH (22 k) B 41.3/8.2
R130 7030015970 S.RES RMC1/16S-103JTH (10 k) B 21.2/25.6
R131 7030016090 S.RES RMC1/16S-223JTH (22 k) B 22.1/27.3
R132 7030016240 S.RES RMC1/16S-684JTH (680 k) B 19.1/22.2
R133 7410001140 S.ARR EXB28V104JX B 21.3/23.6
R134 7030016020 S.RES RMC1/16S-104JTH (100 k) B 20.3/26.8
R136 7030016090 S.RES RMC1/16S-223JTH (22 k) B 18.5/26.4
C1 4030022860 S.CER 0402N470J500CT B 23.3/16.9
C2 4030022120 S.CER GRM0332C1H470JA01D B 38.9/44.5
C5 4030022120 S.CER GRM0332C1H470JA01D B 39.2/43.7
C6 4030022860 S.CER 0402N470J500CT B 23.3/17.8
C8 4030022140 S.CER GRM033B31H102KA12D B 40.9/32.0
C10 4030023090 S.CER 0402B102K500CT T 2.8/34.3
C14 4030022860 S.CER 0402N470J500CT B 21.2/16.3
C20 4030023090 S.CER 0402B102K500CT B 6.8/42.8
C25 4030023010 S.CER 0402B104K160CT B 9.6/17.1
C28 4030020000 S.CER C1005 JB 1A 105K-T B 33.6/12.4
C30 4030023010 S.CER 0402B104K160CT B 33.4/17.4
C31 4030023090 S.CER 0402B102K500CT B 33.4/18.3
C34 4030019560 S.CER GRM21BB31C106KE15L B 35.1/19.1
C41 4030023090 S.CER 0402B102K500CT B 48.0/5.2
C42 4030023010 S.CER 0402B104K160CT B 46.2/5.2
C43 4030022860 S.CER 0402N470J500CT B 44.5/8.2
C46 4030022160 S.CER GRM033B31A104KE84D B 34.0/33.3
C48 4030020300 S.CER GRM21BB31C475KA87L B 43.1/9.6
C49 4030023030 S.CER 0402B103K250CT B 42.9/8.2
C50 4030023000 S.CER 0402B683K100CT B 41.3/18.4
C53 4030023000 S.CER 0402B683K100CT B 36.8/19.0
C54 4030023090 S.CER 0402B102K500CT B 51.5/7.4
C55 4030023090 S.CER 0402B102K500CT B 45.6/14.7
C61 4550008910 S.TAN T55B227M6R3C0200-HF-ICM B 39.4/26.8
C62 4550008910 S.TAN T55B227M6R3C0200-HF-ICM B 35.0/24.7
C64 4030023010 S.CER 0402B104K160CT B 52.7/7.7
C65 4030023010 S.CER 0402B104K160CT B 48.0/10.6
C68 4030023090 S.CER 0402B102K500CT B 54.1/5.2
C69 4030023090 S.CER 0402B102K500CT B 48.9/4.1
C72 4030022120 S.CER GRM0332C1H470JA01D B 36.5/33.9
C76 4030022120 S.CER GRM0332C1H470JA01D B 32.5/35.4
C77 4030022120 S.CER GRM0332C1H470JA01D B 32.5/36.6
C79 4030022120 S.CER GRM0332C1H470JA01D B 35.1/34.2
C80 4030022120 S.CER GRM0332C1H470JA01D B 32.5/38.5
C81 4030022120 S.CER GRM0332C1H470JA01D B 36.3/30.6
C95 4030023060 S.CER 0402B183K250CT B 40.5/3.3
C96 4030023060 S.CER 0402B183K250CT B 40.1/4.5
C97 4030022870 S.CER 0402N471J500CT B 38.9/4.2
C98 4030022870 S.CER 0402N471J500CT B 38.5/8.0
C100 4030022860 S.CER 0402N470J500CT B 37.3/6.1
C101 4030022860 S.CER 0402N470J500CT B 32.6/20.3
C102 4030022860 S.CER 0402N470J500CT B 34.2/28.6
C103 4030022860 S.CER 0402N470J500CT B 39.1/39.6
C104 4030022860 S.CER 0402N470J500CT T 39.4/32.0
C105 4030022860 S.CER 0402N470J500CT B 18.5/17.4
C106 4030022860 S.CER 0402N470J500CT B 23.2/19.5
C107 4030022860 S.CER 0402N470J500CT B 20.8/19.5
C108 4030022860 S.CER 0402N470J500CT B 19.9/16.7
C109 4030023010 S.CER 0402B104K160CT B 19.6/21.1
C110 4030020450 S.CER C1005 JB 0J 475M-T B 21.2/27.3
J1 6510030920 S.CON IMSA-9681S-24Y901 B 44.8/38.5
J2 6510031380 S.CON 31FXVL-RSM1-GAN-TF-1 (HF) T 7.8/24.0
J3 6510032530 S.CON 04-6299-004-020-846+ B 22.0/13.6
J4 6510031400 S.CON BM02B-ACHSS-GAN
-ETF (LF) (SN) B 57.7/45.4
J5 6510031390 S.CON 15FXVL-RSM1-GAN-TF-1 (HF) B 36.2/38.2
DS1 5040003990 S.LED CL-505S-X-SD-T T 3.6/35.5
DS2 5040003890 S.LED B1931TX--05P-000412 T 41.2/33.9
DS3 5040003890 S.LED B1931TX--05P-000412 T 41.2/14.1
DS4 5040003550 S.LED NSSW208T T 7.9/33.4
DS5 5040003550 S.LED NSSW208T T 7.9/14.6
DS6 5030004400 LCD BTD-0701V-HBWD-N-A-A0
MC1 7700003060 MIC F6027AP-SBC-462
S1 2230001060 S.SWI EVQ-PUL 02K B 4.4/17.8
S2 2260003620 S.SWI LS17C2-T T 42.1/9.0
S3 2260003620 S.SWI LS17C2-T T 40.8/19.0
S4 2260003620 S.SWI LS17C2-T T 40.8/29.0
S5 2260003620 S.SWI LS17C2-T T 42.1/39.0
EP5 6910018460 S.BEA MMZ1005Y102C-T B 37.4/34.2
EP6 6910018460 S.BEA MMZ1005Y102C-T B 35.8/31.6

5-2
REF PART DESCRIPTION M. H/V
NO. NO. LOCATION
REF PART DESCRIPTION M. H/V
NO. NO. LOCATION
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.= Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION= See the BOARD LAYOUTS for details
[MAIN UNIT] [MAIN UNIT]
IC1 1110008890 S.IC NJU7056F3-TE2-#ZZZH T 16.9/14.1
IC2 1110008392 S.IC SC-1451A (AK2365AM-L) T 54.7/14.5
IC3 1130009581 S.IC TC7W66FU(TE12LF) T 49.9/22.2
IC4 1130017460 S.IC AK1542A-L B 51.5/21.2
IC5 1110008830 S.IC NJU7058V-TE2-#ZMZH T 43.9/36.5
IC6 1110007550 S.IC R2A20178NP T 51.1/31.3
IC7 1180003690 S.REG NJU7772F03-TE1-#ZZZB B 53.8/29.9
IC8 1110008890 S.IC NJU7056F3-TE2-#ZZZH B 53.3/10.4
IC9 1180004430 S.REG XC6209F502MR-G T 24.4/24.0
IC10 1110008830 S.IC NJU7058V-TE2-#ZMZH B 42.3/34.8
IC11 1130015760 S.IC TC74VHC4066AFK(EK) T 51.7/42.8
IC13 1130015760 S.IC TC74VHC4066AFK(EK) B 52.9/35.2
IC15 1110008890 S.IC NJU7056F3-TE2-#ZZZH T 55.8/31.0
IC20 1190003700 S.IC KXCJ9-1008 B 68.5/41.0
IC21 1130011930 S.IC SN74LVC1G04DCKR B 58.9/37.6
IC22 1110007760 S.IC AK2331P-L B 46.2/42.3
IC23 1130019030 S.IC TC7WPB9307FKLF B 62.6/43.5
IC401 1140018220 S.IC MB9AFAA2NPMC-G-UNE2 B 70.5/29.8
IC409 1130016621 S.IC GT24C128B-2ZLI-TR T 74.8/37.5
IC410 1110007620 S.IC NJU7704F3-42A-TE1-#ZZZB T 72.1/33.1
IC600 1190004850 S.IC LC703200AW-8C21-H B 67.2/13.8
IC601 1180004750 S.REG S-1313D15-M5T1U3 T 76.6/17.1
IC602 1180004740 S.REG S-1313D33-M5T1U3 T 73.0/10.5
Q1 1560002460 S.FET RD08MUS2-T512 B 19.7/39.4
Q2 1560002420 S.FET RD01MUS2B-T513 B 31.0/39.4
Q3 1560000841 S.FET 2SK1829 (TE85RF) B 27.5/12.1
Q4 1530004560 S.TRA 2SC3356G-B-AE2-R B 30.0/34.2
Q5 1580000731 S.FET 3SK293 (TE85LF) B 30.5/6.4
Q6 1580000731 S.FET 3SK293 (TE85LF) B 47.3/8.6
Q7 1530002601 S.TRA 2SC4215-O (TE85RF) T 61.3/8.0
Q8 1590004050 S.TRA LDTA144EET1G T 25.4/8.3
Q10 1530003322 S.TRA 2SC5108-YLF B 33.9/20.4
Q11 1530003322 S.TRA 2SC5108-YLF T 32.0/24.6
Q12 1530003322 S.TRA 2SC5108-YLF B 33.9/23.7
Q13 1530004011 S.TRA KTC3770U-C-RTK/P B 37.4/17.0
Q14 1530004011 S.TRA KTC3770U-C-RTK/P B 38.5/24.7
Q15 1590004070 S.TRA LDTC144EET1G T 32.7/17.5
Q16 1590004070 S.TRA LDTC144EET1G T 36.4/23.8
Q17 1530003900 S.TRA KTC4075 BL-RTK/P T 37.9/17.2
Q21 1590005220 S.TRA LDTA114YET1G T 28.5/23.3
Q22 1590005220 S.TRA LDTA114YET1G T 28.5/19.7
Q23 1520001010 S.TRA 2SB1132G-R-AB3-R T 24.8/17.9
Q24 1590003800 S.TRA KTC811U-GR-RTK/P T 27.4/15.0
Q25 1590004050 S.TRA LDTA144EET1G T 27.6/12.4
Q26 1550000090 S.FET RSQ035P03TR T 24.4/27.4
Q27 1590004070 S.TRA LDTC144EET1G T 57.7/20.3
Q28 1590004070 S.TRA LDTC144EET1G [#15] B 25.7/16.3
1590004070 S.TRA LDTC144EET1G [#16]
1590004070 S.TRA LDTC144EET1G [#17]
1590004070 S.TRA LDTC144EET1G [#19]
Q32 1590004070 S.TRA LDTC144EET1G T 25.4/10.4
Q33 1590004070 S.TRA LDTC144EET1G T 44.6/30.5
Q34 1560001360 S.FET 2SK3019 TL B 58.7/40.4
Q35 1590004070 S.TRA LDTC144EET1G T 42.6/18.6
Q36 1550000410 S.FET SSM3J35FS (TE85LF) B 58.9/35.0
Q37 1590004070 S.TRA LDTC144EET1G B 59.0/30.2
Q38 1590004070 S.TRA LDTC144EET1G B 49.1/34.9
Q362 1590004390 S.TRA DMG504010R B 50.9/40.1
Q408 1590004070 S.TRA LDTC144EET1G T 46.7/30.6
Q600 1560001360 S.FET 2SK3019 TL T 68.8/11.7
Q601 1560001360 S.FET 2SK3019 TL T 68.3/14.7
Q602 1590004070 S.TRA LDTC144EET1G T 65.8/14.7
D1 1790001860 S.VAR EZJZ0V80010 T 15.7/9.3
D2 1750002210 S.DIO DA2S00100L T 20.9/15.6
D3 1790001670 S.DIO RB706F-40T106 T 14.4/11.6
D4 1790001670 S.DIO RB706F-40T106 T 11.9/15.7
D6 1750002990 S.DIO BAR88-02V H6327 B 11.3/24.5
D7 1790001670 S.DIO RB706F-40T106 T 11.0/18.3
D8 1750002990 S.DIO BAR88-02V H6327 T 14.5/18.0
D9 1750002990 S.DIO BAR88-02V H6327 T 14.5/19.2
D10 1720000701 S.VAR 1SV305 (TPH3F) B 25.4/8.4
D12 1750001810 S.DIO L1SS400T1G B 24.7/13.2
D13 1720000701 S.VAR 1SV305 (TPH3F) B 27.5/5.0
D15 1720000701 S.VAR 1SV305 (TPH3F) B 36.1/6.4
D16 1750002990 S.DIO BAR88-02V H6327 B 29.1/25.1
D17 1750002210 S.DIO DA2S00100L B 29.0/21.8
D18 1720000701 S.VAR 1SV305 (TPH3F) B 37.2/8.0
D19 1750001771 S.VAR 1SV323H3F B 41.0/22.9
D20 1750001771 S.VAR 1SV323H3F B 43.0/24.6
D21 1750002860 S.VAR BBY57-02V H6327 B 45.8/18.8
D22 1750002860 S.VAR BBY57-02V H6327 B 45.8/23.6
D23 1750001771 S.VAR 1SV323H3F B 41.8/15.2
D24 1750001771 S.VAR 1SV323H3F B 39.9/16.1
D25 1750001771 S.VAR 1SV323H3F B 44.6/17.7
D26 1750002280 S.DIO DB3J314F0L T 62.4/5.2
D27 1750001810 S.DIO L1SS400T1G B 53.4/7.1
D30 1750002230 S.DIO LRB751S-40T1G B 60.7/41.0
D404 1750001790 S.DIO 1SS390 TE61 T 77.6/21.5
D413 1730002900 S.ZEN KDZTR9.1B T 19.0/33.4
D414 1750003390 S.ZEN RCLAMP1521P.TCT T 21.8/33.4
D415 1790002170 S.VAR LXES15AAA1-133 T 20.7/26.1
FI1 2030001260 S.MON FL-335A (46.35 MHz) T 53.8/6.5
X2 6050014160 S.XTA CR-978-1 (15.3 MHz) B 53.5/25.7
X401 6050014240 S.XTA CR-1022 (7.9872 MHz) B 78.8/18.0
X600 6050014380 S.XTA CR-1037 (8.192 MHz) B 77.8/14.6
L1 6200014990 S.COI E3026300S5 (30N) B 14.8/11.6
L2 6200015010 S.COI E3026405S5 (40.5N) B 11.6/13.5
L3 6200015010 S.COI E3026405S5 (40.5N) B 11.4/19.5
L4 6200002851 S.COI NLV25T-R82J-PF B 8.8/22.9
L5 6200014900 S.COI E3026068S5 (6.8N) B 11.8/30.7
L6 6200016380 S.COI LQW2BAN56NJ00L T 15.2/22.3
L7 6200014920 S.COI E3026100S5 (10N) B 14.6/35.6
L8 6200014950 S.COI E3026200S5 (20.0N) B 24.3/34.8
L9 6200013760 S.COI MLK1005S82NJT B 20.0/12.6
L10 6200016460 S.COI LQW2BAN47NJ00L B 23.7/8.8
L11 6200013750 S.COI MLK1005SR10JT B 29.4/43.3
L12 6200016460 S.COI LQW2BAN47NJ00L B 27.5/7.6
L13 6200013760 S.COI MLK1005S82NJT B 31.1/30.8
L14 6200009290 S.COI LQW18AN47NG00D B 32.4/6.4
L15 6200009290 S.COI LQW18AN47NG00D B 39.3/8.9
L16 6200016770 S.COI MLG1005S 56NJ-T B 29.0/17.3
L17 6200016450 S.COI MLG1005S 82NJ-T B 45.9/6.8
L18 6200016270 S.COI LQW18ANR39G00D B 49.9/9.2
L19 6200016270 S.COI LQW18ANR39G00D B 50.2/11.1
L21 6200013750 S.COI MLK1005SR10JT B 33.2/18.6
L22 6200013750 S.COI MLK1005SR10JT B 33.6/25.2
L25 6200015010 S.COI E3026405S5 (40.5N) B 10.7/26.3
L26 6200007170 S.COI MLF1608A 3R3K-T T 40.1/20.2
L27 6200007720 S.COI LQW2BHN33NJ03L B 43.2/22.3
L28 6200003640 S.COI MLF1608E 100K-T B 41.2/25.2
L29 6200008090 S.COI LQW2BHN68NJ03L B 44.5/26.6
L30 6200006710 S.COI MLF1608E 5R6K 5.6U T 40.1/17.6
L31 6200008090 S.COI LQW2BHN68NJ03L B 44.7/15.6
L32 6200003640 S.COI MLF1608E 100K-T B 40.4/18.7
L33 6200007760 S.COI LQW2BHN82NJ03L B 43.0/19.3
L34 6200013810 S.COI MLK1005S33NJT T 33.4/27.7
L35 6200004590 S.COI MLF1608D R18K-T T 55.2/23.2
L36 6200004590 S.COI MLF1608D R18K-T T 56.5/26.0
L41 6200013750 S.COI MLK1005SR10JT T 32.0/23.1
L42 6200007170 S.COI MLF1608A 3R3K-T T 47.5/25.2
L43 6200006710 S.COI MLF1608E 5R6K 5.6U T 44.9/22.5
L600 6200002861 S.COI NLV25T-4R7J-PF T 75.8/13.6
L601 6200002861 S.COI NLV25T-4R7J-PF T 69.4/9.0
L602 6200002861 S.COI NLV25T-4R7J-PF T 69.4/6.5
R1 7030016020 S.RES RMC1/16S-104JTH (100 k) T 15.7/5.7
R2 7030016060 S.RES RMC1/16S-105JTH (1 M) T 15.4/16.1
R3 7030016080 S.RES RMC1/16S-822JTH (8.2 k) T 14.1/13.6
R4 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 17.7/12.6
R5 7030016200 S.RES RMC1/16S-274JTH (270 k) T 14.0/14.9
R6 7030015970 S.RES RMC1/16S-103JTH (10 k) T 19.3/16.5
R7 7030015980 S.RES RMC1/16S-333JTH (33 k) T 19.3/15.6
R8 7030016440 S.RES RMC1/16S-272JTH (2.7 k) T 13.6/16.1
R9 7030015970 S.RES RMC1/16S-103JTH (10 k) T 15.0/13.6
R10 7030015950 S.RES RMC1/16S-152JTH (1.5 k) T 12.9/13.8
R11 7030016250 S.RES RMC1/16S-220JTH (22) B 34.1/16.2
R12 7030016440 S.RES RMC1/16S-272JTH (2.7 k) B 11.9/16.2
R13 7030016070 S.RES RMC1/16S-474JTH (470 k) T 16.7/11.4
R14 7030016130 S.RES RMC1/16S-150JTH (15) T 19.9/14.4
R15 7030015910 S.RES RMC1/16S-101JTH (100) T 19.1/13.2
R16 7030016250 S.RES RMC1/16S-220JTH (22) T 34.6/20.8
R17 7030016300 S.RES RMC1/16S-332JTH (3.3 k) B 11.7/21.8
R18 7030016370 S.RES RMC1/16S-271JTH (270) B 6.1/19.5
R19 7030015950 S.RES RMC1/16S-152JTH (1.5 k) T 20.7/13.2
R20 7030016370 S.RES RMC1/16S-271JTH (270) B 6.1/20.4
R21 7030016080 S.RES RMC1/16S-822JTH (8.2 k) T 12.8/17.4
R22 7030016250 S.RES RMC1/16S-220JTH (22) B 32.1/8.5
R24 7030005840 S.RES RR0510P-473-D (47 k) T 59.5/16.7
R25 7030016030 S.RES RMC1/16S-154JTH (150 k) T 55.7/17.7
R26 7030016120 S.RES RMC1/16S-682JTH (6.8 k) T 24.9/34.3
R27 7030015910 S.RES RMC1/16S-101JTH (100) B 23.7/43.2
R28 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 24.9/33.4
R29 7030016030 S.RES RMC1/16S-154JTH (150 k) B 26.7/14.3
R30 7030015970 S.RES RMC1/16S-103JTH (10 k) B 24.0/5.8
R31 7030016140 S.RES RMC1/16S-124JTH (120 k) B 25.8/12.7
R32 7030016050 S.RES RMC1/16S-102JTH (1 k) B 23.1/4.8
R33 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 33.4/36.6
R34 7030016290 S.RES RMC1/16S-222JTH (2.2 k) B 28.0/14.3
R35 7030015910 S.RES RMC1/16S-101JTH (100) B 31.6/36.4
R36 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 32.2/33.4
R37 7030015980 S.RES RMC1/16S-333JTH (33 k) B 31.6/11.5
R38 7030015970 S.RES RMC1/16S-103JTH (10 k) B 26.0/4.0
R39 7030016380 S.RES RMC1/16S-183JTH (18 k) B 30.3/11.3
R40 7030016490 S.RES RMC1/16S-391JTH (390) B 29.3/30.8
R41 7030016020 S.RES RMC1/16S-104JTH (100 k) B 29.1/9.2
R42 7030016090 S.RES RMC1/16S-223JTH (22 k) B 29.4/32.0
R43 7030015900 S.RES RMC1/16S-470JTH (47) T 59.5/15.8
R44 7030016140 S.RES RMC1/16S-124JTH (120 k) B 30.3/9.7
R45 7030016250 S.RES RMC1/16S-220JTH (22) B 31.2/8.5
R46 7030015900 S.RES RMC1/16S-470JTH (47) B 33.7/4.2
R47 7030016270 S.RES RMC1/16S-151JTH (150) B 29.2/4.2
R48 7030016050 S.RES RMC1/16S-102JTH (1 k) B 34.7/7.5
R49 7030015970 S.RES RMC1/16S-103JTH (10 k) B 28.1/29.8
R50 7030015910 S.RES RMC1/16S-101JTH (100) B 28.7/26.7
R51 7030015970 S.RES RMC1/16S-103JTH (10 k) B 37.2/5.8
R52 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 27.9/23.4
R53 7030016050 S.RES RMC1/16S-102JTH (1 k) B 39.1/5.8
R54 7030015970 S.RES RMC1/16S-103JTH (10 k) B 28.6/20.1
R55 7030015910 S.RES RMC1/16S-101JTH (100) B 28.1/18.9
R56 7030015970 S.RES RMC1/16S-103JTH (10 k) B 38.1/5.8
R57 7030016020 S.RES RMC1/16S-104JTH (100 k) B 44.6/9.0
R58 7030016140 S.RES RMC1/16S-124JTH (120 k) B 43.7/9.9
R59 7030016300 S.RES RMC1/16S-332JTH (3.3 k) B 48.3/10.6
R60 7030015900 S.RES RMC1/16S-470JTH (47) B 47.7/6.9
R61 7030016020 S.RES RMC1/16S-104JTH (100 k) B 44.6/5.6
R62 7030016140 S.RES RMC1/16S-124JTH (120 k) B 44.6/7.2
R63 7030016080 S.RES RMC1/16S-822JTH (8.2 k) T 54.2/20.7
R64 7030015900 S.RES RMC1/16S-470JTH (47) B 48.8/11.8
R65 7030016050 S.RES RMC1/16S-102JTH (1 k) T 56.3/20.5

5-3
REF PART DESCRIPTION M. H/V
NO. NO. LOCATION
REF PART DESCRIPTION M. H/V
NO. NO. LOCATION
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.= Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION= See the BOARD LAYOUTS for details
[MAIN UNIT] [MAIN UNIT]
R66 7030015930 S.RES RMC1/16S-471JTH (470) T 54.5/17.9
R67 7030016060 S.RES RMC1/16S-105JTH (1 M) T 53.3/17.6
R68 7030016040 S.RES RMC1/16S-224JTH (220 k) T 53.3/19.4
R69 7030016110 S.RES RMC1/16S-473JTH (47 k) T 51.6/17.3
R70 7030016250 S.RES RMC1/16S-220JTH (22) B 33.2/17.0
R71 7030016110 S.RES RMC1/16S-473JTH (47 k) B 34.1/18.6
R72 7030015930 S.RES RMC1/16S-471JTH (470) B 33.6/26.1
R73 7030016130 S.RES RMC1/16S-150JTH (15) B 37.6/20.6
R74 7030016130 S.RES RMC1/16S-150JTH (15) B 37.3/19.7
R75 7030016110 S.RES RMC1/16S-473JTH (47 k) T 34.6/21.7
R76 7030016250 S.RES RMC1/16S-220JTH (22) T 34.3/19.9
R77 7030015910 S.RES RMC1/16S-101JTH (100) B 33.6/27.0
R78 7030016140 S.RES RMC1/16S-124JTH (120 k) B 34.8/25.6
R79 7030008340 S.RES RR0510P-182-D (1.8 k) B 39.5/26.8
R80 7030015910 S.RES RMC1/16S-101JTH (100) T 48.7/7.1
R81 7030016560 S.RES RMC1/16SJPTH B 38.2/26.8
R82 7030016130 S.RES RMC1/16S-150JTH (15) B 37.3/18.8
R83 7030008340 S.RES RR0510P-182-D (1.8 k) B 38.5/19.0
R84 7030009190 S.RES RR0510P-332-D (3.3 k) B 39.4/19.3
R85 7030011000 S.RES RR0510P-392-D (3.9 k) B 36.1/27.3
R86 7030016020 S.RES RMC1/16S-104JTH (100 k) T 44.3/18.4
R87 7030016280 S.RES RMC1/16S-331JTH (330) T 35.7/25.4
R88 7030016480 S.RES RMC1/16S-821JTH (820) T 34.6/18.0
R89 7030015970 S.RES RMC1/16S-103JTH (10 k) T 49.6/18.7
R90 7030016020 S.RES RMC1/16S-104JTH (100 k) T 43.2/21.4
R91 7030016270 S.RES RMC1/16S-151JTH (150) T 59.1/5.0
R92 7030016020 S.RES RMC1/16S-104JTH (100 k) T 59.5/7.8
R93 7410001130 S.ARR EXB28V102JX B 49.2/25.0
R94 7030016030 S.RES RMC1/16S-154JTH (150 k) B 50.4/29.4
R95 7030016050 S.RES RMC1/16S-102JTH (1 k) T 43.4/15.9
R96 7030016350 S.RES RMC1/16S-122JTH (1.2 k) T 47.6/17.9
R97 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 51.1/18.2
R98 7030016290 S.RES RMC1/16S-222JTH (2.2 k) T 38.2/19.2
R99 7030015910 S.RES RMC1/16S-101JTH (100) T 59.2/9.9
R100 7030015940 S.RES RMC1/16S-681JTH (680) T 60.8/10.0
R101 7030016020 S.RES RMC1/16S-104JTH (100 k) T 55.0/32.7
R102 7030016020 S.RES RMC1/16S-104JTH (100 k) T 55.0/28.3
R103 7030016020 S.RES RMC1/16S-104JTH (100 k) T 59.0/30.0
R104 7030016220 S.RES RMC1/16S-563JTH (56 k) T 58.1/30.5
R105 7030016000 S.RES RMC1/16S-823JTH (82 k) T 55.4/29.2
R106 7030016390 S.RES RMC1/16S-184JTH (180 k) T 56.6/28.8
R107 7030016050 S.RES RMC1/16S-102JTH (1 k) B 51.0/26.6
R108 7030015970 S.RES RMC1/16S-103JTH (10 k) B 51.6/28.9
R109 7030015910 S.RES RMC1/16S-101JTH (100) T 34.6/27.3
R110 7030016340 S.RES RMC1/16S-393JTH (39 k) T 42.3/23.1
R111 7030016020 S.RES RMC1/16S-104JTH (100 k) T 50.4/25.2
R113 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 50.0/26.1
R115 7030016350 S.RES RMC1/16S-122JTH (1.2 k) T 55.0/27.0
R116 7030016240 S.RES RMC1/16S-684JTH (680 k) T 55.4/25.5
R117 7030016190 S.RES RMC1/16S-273JTH (27 k) B 52.7/18.2
R118 7030016560 S.RES RMC1/16SJPTH B 54.2/18.1
R119 7030016560 S.RES RMC1/16SJPTH T 54.2/25.2
R120 7030015930 S.RES RMC1/16S-471JTH (470) T 53.4/28.6
R121 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 39.7/39.9
R122 7030015970 S.RES RMC1/16S-103JTH (10 k) B 37.3/36.6
R124 7030016080 S.RES RMC1/16S-822JTH (8.2 k) B 39.2/38.1
R125 7030016080 S.RES RMC1/16S-822JTH (8.2 k) B 37.3/38.5
R126 7030016080 S.RES RMC1/16S-822JTH (8.2 k) B 37.3/37.6
R127 7030016110 S.RES RMC1/16S-473JTH (47 k) B 37.5/39.7
R128 7030015970 S.RES RMC1/16S-103JTH (10 k) B 40.8/38.1
R130 7030016180 S.RES RMC1/16S-680JTH (68) B 27.7/34.5
R131 7030016470 S.RES RMC1/16S-390JTH (39) B 29.4/42.4
R132 7030016030 S.RES RMC1/16S-154JTH (150 k) B 44.5/39.0
R133 7030016070 S.RES RMC1/16S-474JTH (470 k) B 37.3/34.7
R134 7030016020 S.RES RMC1/16S-104JTH (100 k) T 39.3/37.2
R135 7030016220 S.RES RMC1/16S-563JTH (56 k) B 42.4/38.1
R136 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 15.6/9.5
R139 7030016330 S.RES RMC1/16S-153JTH (15 k) B 44.0/38.1
R140 7030016020 S.RES RMC1/16S-104JTH (100 k) B 47.0/35.0
R141 7030016050 S.RES RMC1/16S-102JTH (1 k) B 46.0/38.0
R142 7030016050 S.RES RMC1/16S-102JTH (1 k) B 47.0/36.8
R143 7030016380 S.RES RMC1/16S-183JTH (18 k) B 48.2/36.6
R145 7030016230 S.RES RMC1/16S-394JTH (390 k) B 39.5/31.5
R146 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 37.6/30.3
R148 7030016290 S.RES RMC1/16S-222JTH (2.2 k) T 38.9/38.1
R149 7030016020 S.RES RMC1/16S-104JTH (100 k) B 37.3/35.6
R150 7030016020 S.RES RMC1/16S-104JTH (100 k) [#11] T 39.0/39.0
7030016020 S.RES RMC1/16S-104JTH (100 k) [#12]
7030016390 S.RES RMC1/16S-184JTH (180 k) [#15]
7030016390 S.RES RMC1/16S-184JTH (180 k) [#16]
7030016390 S.RES RMC1/16S-184JTH (180 k) [#17]
7030016390 S.RES RMC1/16S-184JTH (180 k) [#19]
R151 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 38.1/39.9
R152 7030016040 S.RES RMC1/16S-224JTH (220 k) T 39.3/40.2
R153 7030016020 S.RES RMC1/16S-104JTH (100 k) T 39.3/35.3
R154 7030015980 S.RES RMC1/16S-333JTH (33 k) T 40.3/32.3
R155 7030016140 S.RES RMC1/16S-124JTH (120 k) T 39.4/32.3
R156 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 47.4/39.8
R157 7030015970 S.RES RMC1/16S-103JTH (10 k) T 38.5/33.1
R158 7030016290 S.RES RMC1/16S-222JTH (2.2 k) T 49.6/39.4
R159 7030016300 S.RES RMC1/16S-332JTH (3.3 k) T 48.3/39.1
R160 7030016020 S.RES RMC1/16S-104JTH (100 k) T 49.6/38.5
R161 7030015980 S.RES RMC1/16S-333JTH (33 k) B 42.5/31.3
R162 7030015970 S.RES RMC1/16S-103JTH (10 k) B 37.6/31.5
R163 7030016110 S.RES RMC1/16S-473JTH (47 k) B 48.2/33.2
R165 7030015970 S.RES RMC1/16S-103JTH (10 k) T 24.7/21.7
R166 7030016290 S.RES RMC1/16S-222JTH (2.2 k) T 25.6/13.9
R167 7030016200 S.RES RMC1/16S-274JTH (270 k) T 23.5/29.6
R168 7030015970 S.RES RMC1/16S-103JTH (10 k) T 25.1/29.6
R171 7030015970 S.RES RMC1/16S-103JTH (10 k) T 74.1/18.8
R172 7030016020 S.RES RMC1/16S-104JTH (100 k) B 80.6/31.2
R173 7030016020 S.RES RMC1/16S-104JTH (100 k) B 80.8/33.0
R174 7030016020 S.RES RMC1/16S-104JTH (100 k) B 80.6/29.4
R175 7030016020 S.RES RMC1/16S-104JTH (100 k) B 55.0/38.2
R176 7030016020 S.RES RMC1/16S-104JTH (100 k) B 54.1/38.2
R177 7030016020 S.RES RMC1/16S-104JTH (100 k) B 80.6/30.3
R178 7030015990 S.RES RMC1/16S-683JTH (68 k) B 50.3/42.2
R179 7030016350 S.RES RMC1/16S-122JTH (1.2 k) B 49.9/38.1
R180 7030015970 S.RES RMC1/16S-103JTH (10 k) B 53.4/39.8
R181 7030016090 S.RES RMC1/16S-223JTH (22 k) B 54.8/42.2
R182 7030016090 S.RES RMC1/16S-223JTH (22 k) B 53.9/42.2
R183 7030016090 S.RES RMC1/16S-223JTH (22 k) B 53.0/42.2
R184 7030016330 S.RES RMC1/16S-153JTH (15 k) B 52.7/38.4
R185 7030016300 S.RES RMC1/16S-332JTH (3.3 k) B 51.1/38.4
R186 7030016020 S.RES RMC1/16S-104JTH (100 k) B 51.2/42.2
R187 7030016190 S.RES RMC1/16S-273JTH (27 k) T 41.1/21.9
R188 7030015940 S.RES RMC1/16S-681JTH (680) T 39.3/34.4
R189 7030016030 S.RES RMC1/16S-154JTH (150 k) T 45.0/41.6
R190 7510001730 S.THE ERTJ0EP 473J B 53.5/14.9
R191 7030016800 S.RES RMC1/16SK104FTH (100 k) B 52.3/14.5
R192 7030016290 S.RES RMC1/16S-222JTH (2.2 k) T 29.6/16.5
R193 7030016020 S.RES RMC1/16S-104JTH (100 k) B 65.8/39.6
R194 7030016020 S.RES RMC1/16S-104JTH (100 k) B 65.8/40.5
R195 7030016020 S.RES RMC1/16S-104JTH (100 k) B 65.8/41.4
R196 7030016020 S.RES RMC1/16S-104JTH (100 k) B 65.8/42.3
R197 7030016020 S.RES RMC1/16S-104JTH (100 k) B 76.0/39.6
R198 7030016020 S.RES RMC1/16S-104JTH (100 k) B 77.2/40.0
R201 7030015970 S.RES RMC1/16S-103JTH (10 k) B 54.5/12.3
R202 7030016090 S.RES RMC1/16S-223JTH (22 k) B 55.0/10.4
R203 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 54.5/8.2
R214 7030016190 S.RES RMC1/16S-273JTH (27 k) T 46.8/41.6
R215 7030016380 S.RES RMC1/16S-183JTH (18 k) T 47.3/42.8
R217 7030015970 S.RES RMC1/16S-103JTH (10 k) B 59.0/43.7
R218 7030015970 S.RES RMC1/16S-103JTH (10 k) B 59.9/43.7
R219 7030015970 S.RES RMC1/16S-103JTH (10 k) T 23.4/8.3
R220 7030016040 S.RES RMC1/16S-224JTH (220 k) T 23.4/10.4
R221 7030016360 S.RES RMC1/16S-123JTH (12 k) B 70.8/41.9
R222 7030016090 S.RES RMC1/16S-223JTH (22 k) B 69.3/43.3
R224 7030015970 S.RES RMC1/16S-103JTH (10 k) B 65.4/43.8
R225 7030015970 S.RES RMC1/16S-103JTH (10 k) B 67.6/43.3
R230 7030016320 S.RES RMC1/16S-225JTH (2.2 M) B 60.7/35.6
R231 7030015970 S.RES RMC1/16S-103JTH (10 k) B 60.7/37.5
R232 7030016020 S.RES RMC1/16S-104JTH (100 k) B 58.2/32.2
R233 7030016110 S.RES RMC1/16S-473JTH (47 k) B 59.4/31.7
R235 7030016540 S.RES RMC1/16SK334FTH (330 k) T 27.0/27.4
R236 7030016550 S.RES RMC1/16SK154FTH (150 k) T 28.6/27.7
R304 7030016050 S.RES RMC1/16S-102JTH (1 k) B 44.1/30.4
R308 7030016110 S.RES RMC1/16S-473JTH (47 k) B 62.3/41.7
R309 7030015930 S.RES RMC1/16S-471JTH (470) B 48.8/39.9
R310 7030016230 S.RES RMC1/16S-394JTH (390 k) B 48.8/41.6
R311 7030015970 S.RES RMC1/16S-103JTH (10 k) B 50.0/43.4
R426 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 46.5/30.4
R427 7030016340 S.RES RMC1/16S-393JTH (39 k) B 46.2/31.6
R428 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 48.3/30.6
R429 7030016020 S.RES RMC1/16S-104JTH (100 k) B 47.0/33.9
R432 7030016020 S.RES RMC1/16S-104JTH (100 k) B 47.0/32.8
R461 7030016220 S.RES RMC1/16S-563JTH (56 k) T 52.5/36.1
R464 7030016330 S.RES RMC1/16S-153JTH (15 k) T 52.5/37.0
R465 7030016120 S.RES RMC1/16S-682JTH (6.8 k) T 51.3/37.3
R466 7030016110 S.RES RMC1/16S-473JTH (47 k) T 50.7/36.0
R467 7030016110 S.RES RMC1/16S-473JTH (47 k) T 49.5/35.1
R468 7030016110 S.RES RMC1/16S-473JTH (47 k) T 48.7/36.1
R469 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 47.4/33.5
R470 7030016110 S.RES RMC1/16S-473JTH (47 k) T 46.5/32.6
R471 7030015980 S.RES RMC1/16S-333JTH (33 k) T 41.8/31.3
R492 7030016560 S.RES RMC1/16SJPTH T 78.2/39.9
R493 7030016360 S.RES RMC1/16S-123JTH (12 k) T 79.6/22.3
R494 7030016360 S.RES RMC1/16S-123JTH (12 k) T 77.5/22.8
R495 7030016090 S.RES RMC1/16S-223JTH (22 k) T 78.4/22.8
R496 7030015970 S.RES RMC1/16S-103JTH (10 k) T 79.4/37.0
R497 7030015970 S.RES RMC1/16S-103JTH (10 k) T 79.4/39.1
R498 7030015970 S.RES RMC1/16S-103JTH (10 k) T 72.1/35.1
R499 7030016560 S.RES RMC1/16SJPTHOnly #11 T 57.9/26.8
R506 7030016820 S.RES RGC1/16SC333DTH (33.0 k) B 50.5/31.5
R507 7030016140 S.RES RMC1/16S-124JTH (120 k) B 50.5/32.4
R508 7030016620 S.RES RGC1/16SC273DTH (27.0 k) B 52.1/32.1
R541 7540000460 S.ABS EZAEG1N50AC T 54.7/45.5
R542 7540000460 S.ABS EZAEG1N50AC T 54.7/44.9
R543 7540000460 S.ABS EZAEG1N50AC T 54.7/44.3
R544 7540000460 S.ABS EZAEG1N50AC T 54.7/43.7
R545 7540000460 S.ABS EZAEG1N50AC T 56.2/34.5
R546 7540000460 S.ABS EZAEG1N50AC T 54.7/43.1
R547 7540000460 S.ABS EZAEG1N50AC T 54.7/42.5
R548 7540000460 S.ABS EZAEG1N50AC T 54.7/41.9
R549 7540000460 S.ABS EZAEG1N50AC T 54.7/41.3
R550 7540000460 S.ABS EZAEG1N50AC T 54.7/40.7
R551 7540000460 S.ABS EZAEG1N50AC T 54.7/40.1
R552 7540000460 S.ABS EZAEG1N50AC T 54.7/39.5
R553 7540000460 S.ABS EZAEG1N50AC T 54.7/38.9
R554 7540000460 S.ABS EZAEG1N50AC T 54.7/38.3
R555 7540000460 S.ABS EZAEG1N50AC T 54.7/37.7
R556 7540000460 S.ABS EZAEG1N50AC T 54.7/37.1
R557 7540000460 S.ABS EZAEG1N50AC T 56.0/36.4
R558 7030016560 S.RES RMC1/16SJPTH B 60.7/30.4
R600 7030016520 S.RES RMC1/16S-270JTH (27) T 80.0/19.6
R605 7030015940 S.RES RMC1/16S-681JTH (680) B 75.0/20.0
R607 7410001220 S.ARR EXB28V103JX B 58.8/15.1
R608 7030016050 S.RES RMC1/16S-102JTH (1 k) T 67.3/11.6
R609 7030016050 S.RES RMC1/16S-102JTH (1 k) T 68.0/13.3
R610 7030016380 S.RES RMC1/16S-183JTH (18 k) T 64.8/12.0
R611 7030016380 S.RES RMC1/16S-183JTH (18 k) T 64.1/14.2
R612 7030015970 S.RES RMC1/16S-103JTH (10 k) T 64.8/12.9
R613 7030015970 S.RES RMC1/16S-103JTH (10 k) T 63.8/15.4
R614 7410001220 S.ARR EXB28V103JX B 58.8/18.4
R615 7030015970 S.RES RMC1/16S-103JTH (10 k) B 65.9/5.2
R617 7030016050 S.RES RMC1/16S-102JTH (1 k) T 50.9/13.1
R618 7030016020 S.RES RMC1/16S-104JTH (100 k) T 50.9/14.1
R619 7030015930 S.RES RMC1/16S-471JTH (470) B 74.5/14.9
R620 7030015970 S.RES RMC1/16S-103JTH (10 k) B 67.4/5.2
R621 7030015970 S.RES RMC1/16S-103JTH (10 k) B 75.1/12.1

5-4
REF PART DESCRIPTION M. H/V
NO. NO. LOCATION
REF PART DESCRIPTION M. H/V
NO. NO. LOCATION
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.= Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION= See the BOARD LAYOUTS for details
[MAIN UNIT] [MAIN UNIT]
R622 7030015970 S.RES RMC1/16S-103JTH (10 k) B 76.0/10.8
R623 7030016020 S.RES RMC1/16S-104JTH (100 k) B 76.9/10.8
R624 7030016020 S.RES RMC1/16S-104JTH (100 k) B 77.8/10.8
R662 7540000460 S.ABS EZAEG1N50AC T 7.8/26.7
R663 7540000460 S.ABS EZAEG1N50AC T 7.8/23.3
R664 7540000460 S.ABS EZAEG1N50AC T 11.9/19.9
C2 4030023010 S.CER 0402B104K160CT T 16.3/16.1
C3 4030022660 S.CER 0402N120J500CT B 16.5/12.2
C4 4030023090 S.CER 0402B102K500CT T 12.5/11.5
C5 4030022630 S.CER 0402N100C500CT B 13.0/11.5
C6 4030022140 S.CER GRM033B31H102KA12D T 20.9/17.1
C7 4030022610 S.CER 0402N0R3B500CT B 17.7/11.7
C8 4030022860 S.CER 0402N470J500CT T 14.5/16.1
C9 4030022680 S.CER 0402N150J500CT B 11.8/11.8
C10 4030023090 S.CER 0402B102K500CT T 27.0/8.2
C11 4030022570 S.CER 0402N6R0C500CT B 11.8/15.3
C12 4030023090 S.CER 0402B102K500CT T 11.3/13.8
C13 4030023010 S.CER 0402B104K160CT T 17.2/16.1
C14 4030022680 S.CER 0402N150J500CT B 10.6/15.8
C15 4030022620 S.CER 0402N0R5B500CT B 13.1/15.5
C16 4030022680 S.CER 0402N150J500CT B 11.0/17.1
C17 4030024500 S.CER C1005 JB 1C 224K-T T 16.7/12.3
C19 4030022550 S.CER 0402N4R0B500CT B 9.7/19.5
C20 4030022810 S.CER 0402N330J500CT B 9.3/20.7
C21 4030023010 S.CER 0402B104K160CT T 19.0/14.4
C22 4030023090 S.CER 0402B102K500CT B 12.1/23.1
C23 4030022140 S.CER GRM033B31H102KA12D T 21.0/14.1
C24 4030022620 S.CER 0402N0R5B500CT B 11.2/23.1
C25 4030022750 S.CER 0402N221J500CT B 7.7/20.4
C26 4030023090 S.CER 0402B102K500CT B 9.3/24.6
C27 4030022770 S.CER 0402N270J500CT B 8.3/27.1
C28 4030022740 S.CER 0402N220J500CT B 11.7/28.0
C29 4030023090 S.CER 0402B102K500CT T 20.7/12.3
C30 4030022760 S.CER 0402N240J500CT B 11.7/28.9
C31 4030022840 S.CER 0402N390J500CT B 10.4/29.7
C33 4030022800 S.CER 0402N300J500CT B 12.8/32.9
C34 4030022810 S.CER 0402N330J500CT B 14.0/34.0
C35 4030022680 S.CER 0402N150J500CT T 14.7/20.2
C38 4030023090 S.CER 0402B102K500CT B 25.3/42.3
C39 4030023700 S.CER 0603N390J500CT B 15.0/37.5
C40 4030022860 S.CER 0402N470J500CT B 25.3/43.2
C41 4030023090 S.CER 0402B102K500CT B 22.5/12.9
C42 4030022570 S.CER 0402N6R0C500CT B 21.2/12.2
C43 4030023090 S.CER 0402B102K500CT T 12.8/19.0
C44 4030022750 S.CER 0402N221J500CT B 26.5/35.8
C45 4030022630 S.CER 0402N100C500CT B 22.5/11.8
C46 4030022640 S.CER 0402N101J500CT B 24.6/6.7
C48 4030023090 S.CER 0402B102K500CT B 26.5/34.9
C49 4030020000 S.CER C1005 JB 1A 105K-T T 24.9/31.6
C51 4030022560 S.CER 0402N5R0B500CT B 22.5/10.9
C54 4030023090 S.CER 0402B102K500CT B 33.4/35.7
C55 4030020000 S.CER C1005 JB 1A 105K-T B 25.8/14.3
C56 4030020000 S.CER C1005 JB 1A 105K-T B 26.5/34.0
C57 4030022640 S.CER 0402N101J500CT B 25.6/44.2
C58 4030023090 S.CER 0402B102K500CT B 22.4/5.8
C60 4030023030 S.CER 0402B103K250CT B 33.4/34.8
C61 4030022860 S.CER 0402N470J500CT T 24.9/32.5
C62 4030022530 S.CER 0402N2R0B500CT B 26.8/9.2
C63 4030023010 S.CER 0402B104K160CT B 27.7/4.0
C64 4030023090 S.CER 0402B102K500CT B 21.9/4.4
C65 4030023090 S.CER 0402B102K500CT B 27.0/42.3
C67 4030022590 S.CER 0402N8R0C500CT B 28.1/6.1
C68 4030021240 S.CER C1005 JB 1C 105K-T B 28.2/42.8
C71 4030023010 S.CER 0402B104K160CT B 29.4/11.3
C72 4030022640 S.CER 0402N101J500CT B 25.8/5.3
C74 4030023010 S.CER 0402B104K160CT B 29.1/10.1
C75 4030023090 S.CER 0402B102K500CT B 31.6/9.7
C76 4030022700 S.CER 0402N180J500CT B 32.0/35.2
C77 4030022560 S.CER 0402N5R0B500CT B 29.9/8.2
C78 4030023010 S.CER 0402B104K160CT B 31.6/10.6
C79 4030022620 S.CER 0402N0R5B500CT B 31.0/32.0
C82 4030022860 S.CER 0402N470J500CT B 31.0/4.2
C83 4030020000 S.CER C1005 JB 1A 105K-T B 33.4/5.9
C84 4030022860 S.CER 0402N470J500CT B 27.7/32.5
C85 4030023090 S.CER 0402B102K500CT B 34.6/4.2
C86 4030023090 S.CER 0402B102K500CT B 30.1/4.2
C87 4030022680 S.CER 0402N150J500CT B 30.2/30.8
C88 4030023090 S.CER 0402B102K500CT B 27.7/31.6
C89 4030022640 S.CER 0402N101J500CT B 36.1/4.2
C90 4030023090 S.CER 0402B102K500CT B 32.8/4.2
C91 4030023090 S.CER 0402B102K500CT B 28.0/25.5
C92 4030022550 S.CER 0402N4R0B500CT B 34.8/6.3
C93 4030023010 S.CER 0402B104K160CT B 38.0/4.2
C94 4030022750 S.CER 0402N221J500CT B 38.9/4.2
C95 4030022860 S.CER 0402N470J500CT B 31.9/4.2
C96 4030023030 S.CER 0402B103K250CT B 34.0/8.7
C97 4030022790 S.CER 0402N2R5B500CT B 36.1/8.4
C98 4030023090 S.CER 0402B102K500CT B 37.1/4.2
C99 4030023090 S.CER 0402B102K500CT B 27.7/21.0
C100 4030022570 S.CER 0402N6R0C500CT B 38.3/8.4
C101 4030022680 S.CER 0402N150J500CT B 29.0/18.9
C102 4030022680 S.CER 0402N150J500CT B 27.5/17.7
C103 4030022640 S.CER 0402N101J500CT B 38.6/7.1
C104 4030022560 S.CER 0402N5R0B500CT B 42.4/9.4
C105 4030022740 S.CER 0402N220J500CT B 27.5/16.8
C106 4030022580 S.CER 0402N7R0C500CT B 45.5/8.0
C107 4030022860 S.CER 0402N470J500CT B 48.9/6.5
C108 4030023090 S.CER 0402B102K500CT B 47.7/6.0
C109 4030023090 S.CER 0402B102K500CT B 46.4/5.6
C110 4030022860 S.CER 0402N470J500CT B 45.5/5.6
C111 4030023030 S.CER 0402B103K250CT B 44.6/10.6
C112 4030022680 S.CER 0402N150J500CT B 49.2/10.6
C114 4030023090 S.CER 0402B102K500CT B 46.5/10.6
C115 4030023090 S.CER 0402B102K500CT B 45.5/10.6
C116 4030022860 S.CER 0402N470J500CT B 47.4/10.6
C117 4030023030 S.CER 0402B103K250CT B 50.7/7.7
C119 4030023090 S.CER 0402B102K500CT B 29.5/23.4
C121 4030023090 S.CER 0402B102K500CT T 28.7/18.2
C122 4030023030 S.CER 0402B103K250CT T 27.2/21.8
C123 4030023030 S.CER 0402B103K250CT T 28.7/24.8
C124 4030023090 S.CER 0402B102K500CT T 24.7/13.9
C125 4030019560 S.CER GRM21BB31C106KE15L T 23.3/13.7
C126 4030023200 S.CER 0402B471K500CT T 25.9/12.7
C127 4030023030 S.CER 0402B103K250CT T 25.9/11.8
C128 4030020000 S.CER C1005 JB 1A 105K-T T 27.0/25.1
C129 4030021240 S.CER C1005 JB 1C 105K-T T 27.0/26.0
C130 4030019560 S.CER GRM21BB31C106KE15L T 22.3/21.5
C140 4030023010 S.CER 0402B104K160CT B 54.7/16.0
C141 4030023090 S.CER 0402B102K500CT B 54.7/16.9
C149 4030023090 S.CER 0402B102K500CT T 60.8/6.2
C150 4030023010 S.CER 0402B104K160CT B 52.3/15.5
C151 4030023010 S.CER 0402B104K160CT B 47.6/39.6
C152 4030022860 S.CER 0402N470J500CT B 49.4/27.3
C153 4030022860 S.CER 0402N470J500CT B 48.5/27.3
C154 4030023010 S.CER 0402B104K160CT B 48.8/29.4
C155 4030023090 S.CER 0402B102K500CT T 47.7/23.3
C156 4030023090 S.CER 0402B102K500CT B 52.0/27.7
C158 4030020000 S.CER C1005 JB 1A 105K-T B 54.7/27.7
C159 4030020000 S.CER C1005 JB 1A 105K-T B 54.7/19.3
C160 4030022520 S.CER 0402N1R0B500CT T 48.9/5.9
C161 4030022680 S.CER 0402N150J500CT T 55.4/9.8
C162 4030023090 S.CER 0402B102K500CT T 59.5/6.2
C163 4030023030 S.CER 0402B103K250CT T 59.2/9.0
C164 4030022640 S.CER 0402N101J500CT T 60.8/10.9
C165 4030023090 S.CER 0402B102K500CT T 58.0/9.5
C166 4030023010 S.CER 0402B104K160CT T 53.4/27.0
C167 4030023030 S.CER 0402B103K250CT T 54.2/26.1
C168 4030022630 S.CER 0402N100C500CT T 52.6/26.0
C169 4030022880 S.CER 0402N560J500CT T 55.1/24.3
C170 4030022570 S.CER 0402N6R0C500CT T 56.9/23.9
C171 4030022880 S.CER 0402N560J500CT T 54.8/22.2
C172 4030022640 S.CER 0402N101J500CT T 56.4/22.2
C173 4030022640 S.CER 0402N101J500CT T 56.0/11.0
C174 4030020000 S.CER C1005 JB 1A 105K-T T 55.1/11.0
C175 4030020000 S.CER C1005 JB 1A 105K-T T 54.2/11.0
C176 4030024500 S.CER C1005 JB 1C 224K-T T 53.3/11.0
C177 4030023090 S.CER 0402B102K500CT T 52.4/11.0
C178 4030019560 S.CER GRM21BB31C106KE15L T 50.1/11.0
C179 4030023010 S.CER 0402B104K160CT T 51.5/11.0
C180 4030024500 S.CER C1005 JB 1C 224K-T T 57.9/14.7
C181 4030019560 S.CER GRM21BB31C106KE15L T 57.8/17.3
C182 4030022860 S.CER 0402N470J500CT T 50.9/15.0
C183 4030022940 S.CER 0402B104K100CT T 59.5/17.6
C184 4030023180 S.CER 0402B391K500CT T 56.3/18.9
C185 4030023180 S.CER 0402B391K500CT T 55.4/18.9
C186 4030023090 S.CER 0402B102K500CT T 54.5/19.5
C187 4030023090 S.CER 0402B102K500CT T 53.3/18.5
C188 4030023090 S.CER 0402B102K500CT T 51.6/16.4
C189 4030023150 S.CER 0402B272K500CT T 55.4/20.5
C190 4030023030 S.CER 0402B103K250CT B 51.0/25.0
C191 4030023010 S.CER 0402B104K160CT B 52.9/12.3
C192 4030023030 S.CER 0402B103K250CT B 52.9/8.2
C196 4030023040 S.CER 0402B123K250CT T 51.2/39.4
C197 4030023040 S.CER 0402B123K250CT T 52.4/39.3
C198 4030020000 S.CER C1005 JB 1A 105K-T T 48.3/40.7
C199 4030022860 S.CER 0402N470J500CT T 57.5/28.8
C200 4030023010 S.CER 0402B104K160CT T 53.8/35.6
C201 4030020450 S.CER C1005 JB 0J 475M-T T 53.8/33.7
C202 4030020000 S.CER C1005 JB 1A 105K-T T 54.9/33.9
C204 4030022640 S.CER 0402N101J500CT B 54.5/20.5
C210 4030024500 S.CER C1005 JB 1C 224K-T B 54.5/22.1
C211 4030020000 S.CER C1005 JB 1A 105K-T T 37.7/37.6
C212 4030023230 S.CER 0402B562K500CT T 38.1/40.8
C213 4030022670 S.CER 0402N121J500CT T 39.8/33.5
C214 4030023010 S.CER 0402B104K160CT T 37.7/35.3
C215 4030023070 S.CER 0402B223K250CT T 37.7/34.4
C216 4030023210 S.CER 0402B472K500CT T 43.0/31.5
C217 4030020000 S.CER C1005 JB 1A 105K-T B 59.4/32.6
C218 4030023010 S.CER 0402B104K160CT T 45.5/42.8
C219 4030023170 S.CER 0402B332K500CT T 45.9/41.6
C221 4030022970 S.CER 0402B393K100CT B 53.4/43.4
C222 4030023030 S.CER 0402B103K250CT B 53.4/41.0
C223 4030023010 S.CER 0402B104K160CT B 52.1/42.2
C225 4030023090 S.CER 0402B102K500CT B 54.6/40.2
C226 4030023010 S.CER 0402B104K160CT B 62.3/40.8
C227 4030023010 S.CER 0402B104K160CT B 64.0/41.7
C228 4030023010 S.CER 0402B104K160CT B 67.6/44.2
C229 4030023090 S.CER 0402B102K500CT T 52.8/34.9
C230 4030023090 S.CER 0402B102K500CT B 28.1/30.7
C231 4030022140 S.CER GRM033B31H102KA12D B 4.6/20.5
C232 4030023090 S.CER 0402B102K500CT B 27.7/36.1
C233 4030022140 S.CER GRM033B31H102KA12D B 26.3/29.6
C234 4030022120 S.CER GRM0332C1H470JA01D B 25.7/29.6
C235 4030022120 S.CER GRM0332C1H470JA01D B 4.6/19.9
C238 4030022610 S.CER 0402N0R3B500CT B 16.8/9.7
C240 4030023030 S.CER 0402B103K250CT T 39.3/36.2
C244 4030024520 S.CER C1005 JB 1C 474K-T B 37.6/33.4
C245 4030024520 S.CER C1005 JB 1C 474K-T B 38.6/31.5
C246 4030023050 S.CER 0402B153K250CT B 41.3/39.0
C247 4030022960 S.CER 0402B333K100CT B 39.7/39.0
C248 4030022980 S.CER 0402B473K100CT B 38.5/39.3
C249 4030023030 S.CER 0402B103K250CT B 49.4/36.9
C250 4030023090 S.CER 0402B102K500CT B 50.9/30.6
C251 4030022780 S.CER 0402N271J500CT B 47.0/35.9
C252 4030023210 S.CER 0402B472K500CT B 42.9/39.0
C253 4030022950 S.CER 0402B273K100CT B 46.9/38.0
C254 4030023010 S.CER 0402B104K160CT B 47.8/38.2
C255 4030023210 S.CER 0402B472K500CT B 42.5/30.4
