Icom IC-V85 User manual

S-14315XZ-C1
Jan. 2007
FM TRANSCEVERS

This service manual describes the latest service information
for the IC-V85, IC-V85E and IC-V85-T FM TRANSCEIVERS
at the time of publication.
NEVER connect the transceiver to an AC outlet or to a DC
power supply that uses more than 8 V. This will ruin the
transceiver.
DO NOT expose the transceiver to rain, snow or any liquids.
DO NOT reverse the polarities of the power supply when
connecting the transceiver.
DO NOT apply an RF signal of more than 20 dBm (100 mW) to
the antenna connector. This could damage the transceiver’s
front end.
To upgrade quality, any electrical or mechanical parts and
internal circuits are subject to change without notice or
obligation.
MODEL VERSION SYMBOL
IC-V85
U.S.A. [USA]
[USA-2]
Export
[EXP]
[EXP-2]
[EXP-3]
Taiwan [TPE]
[TPE-2]
Korea [KOR]
IC-V85E Europe [EUR]
[EUR-1]
U.K. [UK]
IC-V85-T Thailand [THA]
Be sure to include the following four points when ordering
replacement parts:
1. 10-digit Icom parts numbers
2. Component part number and name
3. Equipment model name and unit name
4. Quantity required
<SAMPLE ORDER>
1110003491 S.IC TA31136FNG IC-V85 RF UNIT 5 pieces
8820001210 Screw 2438 screw IC-V85 Top cover 10 pieces
Addresses are provided on the inside back cover for your
convenience.
Icom, Icom Inc. and logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United
Kingdom, Germany, France, Spain, Russia and/or other countries.
ORDERING PARTS
1. Make sure a problem is internal before disassembling
the transceiver.
2. DO NOT open the transceiver until the transceiver is
disconnected from its power source.
3. DO NOT force any of the variable components. Turn
them slowly and smoothly.
4. DO NOT short any circuits or electronic parts. An
insulated tuning tool MUST be used for all adjustments.
5. DO NOT keep power ON for a long time when the
transceiver is defective.
6. DO NOT transmit power into a signal generator or a
sweep generator.
7. ALWAYS connect a 50 dB to 60 dB attenuator between
the transceiver and a deviation meter or spectrum
analyzer when using such test equipment.
8. READ the instructions of test equipment thoroughly
before connecting equipment to the transceiver.
REPAIR NOTES
INTRODUCTION
CAUTION

CONTENTS
SECTION 1 SPECIFICATIONS
SECTION 2 INSIDE VIEWS
SECTION 3 DISASSEMBLY INSTRUCTION
SECTION 4 CIRCUIT DESCRIPITON
4-1 RECEIVER CIRCUITS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
4-2 TRANSMITTER CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
4-3 FREQUENCY SYNTHESIZER CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
4-4 POWER SUPPLY CIRCUITS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
4-5 PORT ALLOCATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
SECTION 5 ADJUSTMENT PROCEDURES
SECTION 6 PARTS LIST
SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
SECTION 8 SEMICONDUCTOR INFORMATION
SECTION 9 BOARD LAYOUTS
SECTION 10 BLOCK DIAGRAM
SECTION 11 VOLTAGE DIAGRAM
11-1 LOGIC UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
11-2 RF UNIT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2
SECTION 12 UT-108 (Optional product)

1 - 1
SECTION 1 SPECIFICATIONS
MGENERAL
• Frequency coverage : TX: 144–148 MHz/RX: 136–174 MHz*1(USA)
TX: 144–146 MHz/RX: 136–174 MHz*2(Europe, UK)
TX/RX: 144–146 MHz (Taiwan, Thailand, Korea)
TX/RX: 136–174 MHz* (General; LM)
*1; Guaranteed: 144–148 MHz range only
*2; Guaranteed: 144–146 MHz range only
• Type of emission : FM
• Number of memory channels : 107 (incl. 6 scan edges and 1 call)
• Frequency resolution : 5, 10, 12.5, 15, 20, 25, 30, 50 kHz
• Antenna connector : BNC (50 Ω)
• Operating temperature range : –10˚C to +60˚C; +14˚F to +140˚F
• Frequency stability : ±2.5 ppm (–10˚C to +60˚C; +14˚F to +140˚F)
• Power supply requirement
(negative ground)
: Specified Icom’s battery pack or 11.0 V ±15% external DC power
• Current drain (at 7.2 V DC ; approx.) : Receiving 80 mA (standby)
30 mA (power save)
250 mA (max. audio)
Transmitting 2.6 A (at 7 W)
2.0 A (at 4 W)
1.0 A (at 0.5 W)
• Dimensions (Projections not included) : 56(W)×110(H)×34.4(D) mm; 2 7/32(W)×4 11⁄32(H)×1 11⁄32(D) in. (with BP-227)
• Weight (approx.) : 310 g; 12.5 oz. (with BP-227 and antenna)
165 g; 5.8 oz (without battery pack and antenna)
MTRANSMITTER
• Output power (at 7.2 V DC) : 5.5 W (High)/4 W (Middle)/0.5 W (Low) [Thailand]
7 W (High)/4 W (Middle)/0.5 W (Low) [Others]
• Modulation system : Variable reactance frequency modulation
• Maximum frequency deviation : ±5.0 kHz
• Spurious emissions : Less than –60 dBc
• Microphone connector : 3-conductor 2.5 (d) mm (1⁄10”)/2.2 kΩ
MRECEIVER
• Receive system : Double conversion superheterodyne
• Intermediate frequencies : 1st: 46.35 MHz, 2nd: 450 kHz
• Sensitivity : Less than 0.2 µV (at 12 dB SINAD)
• Squelch sensitivity : Less than 0.16 µV (at threshold)
• Selectivity : More than 55 dB
• Spurious and image rejection : More than 60 dB
• Intermodulation : More than 55 dB
• Audio output power (at 7.2 V DC) : More than 0.3 W at 10% distortion with an 8 Ω load
• External speaker connector : 3-conductor 3.5 (d) mm (1⁄8”)/8 Ω
All stated specifications are subject to change without notice or obligation.

2 - 1
SECTION 2 INSIDE VIEWS
• LOGIC UNIT
• RF UNIT (TOP VIEW) • RF UNIT (BOTTOM VIEW)
AF POWER AMPLIFIER
(IC23: TA7368F)
LCD DRIVER
(IC22: LC75834W)
CPU CLOCK
(X2: CR-836)
CPU
(IC8: M30620)
TX/RX AF SWITCH (IC4: CD4066BPWR)
TX/RX AF LPF (IC3: LMV324IPW)
EEPROM (IC7: S24CS64A)
REGULATOR
(IC12: S-812C50AMC)
D/A converter
(IC10: M62363FP)
VCO PLL IC
(IC19: MB15E03SL)
Descriminator
(X3: JTBM450CX24)
IF IC
(IC2: TA31136FNG)
DC switch
(Q4: HAT1026)
Power amp.
(Q1: RD12MVS1)
Drive amp.
(Q2: RD01MUS1)
2nd IF filter
(FI2: LTWC450E)

3 - 1
SECTION 3 DISASSEMBLY INSTRUCTION
1. Removing the front panel
qRemove the knob Aand jack cap B.
wUnscrew the Antenna nut and 4 screws Cand D.
eDisconnect the speaker connector.
rTake off the chassis in the direction of the arrow.
3. Removing shield plate
qUnscrew 2 screws A.
wUnsolder 2 points B, and remove the shield plate from
the RF UNT.
2. Removing the LOGIC UNIT
qRemove the rubber seal and dial nut.
wUnscrew 5 screws A.
eDisconnect the flat cable from J7.
rRemove the LOGIC UNIT from the chassis in the direction
of the arrow.
Ant. nut
Front panel
Speaker connector
Chassis
B
C
D
A
J7
Flat cable
Jack plate
Dial nut
sealRubber
LOGIC UNIT
AA
A
Chassis
Shield plate
RF UNIT
A
B
4. Removing the RF UNIT
qUnscrew 5 screws A.
wUnsolder 4 points B(contact spring).
eUnsolder 1 point C(antenna connector), and remove the
RF UNIT from the chassis.
RF UNIT
Chassis
B
A
A
C

4 - 1
SECTION 4 CIRCUIT DESCRIPTION
4-1 RECEIVER CIRCUITS
• ANTENNA SWITCHING
The antenna switching circuit toggles the receive (RX) line and
transmit (TX) line.
The received signals from the antenna are passed through
a two-staged Low-Lass Filter (LPF; L1, L2, C1−C5) and
then applied to the antenna switch (D1, D2, D8, L15, L58,
C52, C76, C516).
While transmitting, the voltage on the T5V line is applied
to D1, D2 and D8, and these are ON. Thus the TX line is
connected to the antenna. Simultaneously, the RX line is
connected to the GND to prevent transmit signal entering.
While receiving, no voltage is applied to the D1, D2 and
D8, and these are OFF. Thus the TX line and the antenna
is disconnected to prevent received signals entering.
Simultaneously, the RX line is disconnected from the GND
and the received signals are passed through the LPF (L15,
L58, C52, C76, C516).
The filtered signals are applied to the RF circuits.
• RF CIRCUITS (RF UNIT)
RF circuits filter and amplify the received signals within the
frequency coverage.
The received signals from the antenna switch are passed
through a tuned Bandpass filter (BPF; D9, L16, C81) and
applied to the RF amplifier (Q12) that received signals are
amplified in low NF rate.
The pass band frequency of the tuned BPF (D9, L16, C81)
is adjusted by the tuning voltage “T1” from the D/A converter
(IC10, pin 2), to suppress unwanted signals for high selectivity.
The amplified received signals are passed through the
tuned BPF (D11, D12, L18, C92, C94, C96, C502), limiter
(D72) and the tuned BPF (D65, L57, C505, C507), then
applied to the 1st mixer (Q13).
• 1ST IF CIRCUITS (RF UNIT)
The received signals are converted into the 1st IF signal,
filtered and amplified at the 1st IF circuits.
The signals from the RF circuits are applied to the 1st mixer
(Q13) and converted into the fixed frequency of 1st IF signal
by mixing with the 1st Local Oscillator (LO) signals from the
VCO (Q76, D59−D61). By changing the 1st LO frequency,
only the desired frequency will pass through a pair of
crystal filters at the next stage of the mixer. By changing LO
frequency, the frequency of the 1st IF signal is fixed one for
the receiving frequency.
The converted 1st IF signal is passed through the BPF (FI1)
and limiter (D63), then amplified by the 1st IF amplifier (Q14).
The amplified 1st IF signal is applied to the IF IC (IC2, pin 16).
• 2ND IF CIRCUITS (RF UNIT)
The 1st IF signal is converted into the 2nd IF signal and
demodulated.
The 1st IF signal from the 1st IF circuits are converted into
the 2nd IF signal at the 2nd mixer section of the IF IC (IC2),
by mixing with the 2nd LO signal which is generated at
the reference frequency oscillator (X4) after being passed
through the PLL IC (IC19, pins 1, 2) and the tripler (Q81).
The converted 2nd IF signal is output from pin 3 and passed
through the BPF (FI2) to remove the sideband noise, then
applied to the 2nd IF amplifier section in IC2 (pin 5). The
amplified 2nd IF signal is then applied to the FM-detector
section. The demodulated AF signals are output from pin 9
and applied to the AF circuits.
• AF CIRCUITS (LOGIC UNIT)
The demodulated AF signals from the IF IC are amplified
and filtered at the AF circuits.
AF signals from the 2nd IF circuits are passed through the
the HPF (IC3, pins 6, 7), and LPF (IC3, pins 13, 14) via the
TX/RX AF switches (IC4, pins 1, 2; 10, 11). The switched
AF signals are passed through the D/A converter (RF UNIT;
IC10, pins 11, 12) for audio level adjustment.
The D/A converter is a level controller IC which adjusts
AF signal level according to the control signals (“DATA,”
“STROBE,” “CLOCK”) from the CPU (IC8).
The level adjusted AF signals are then applied to the AF power
amplifier (IC23, pin 4) to be amplified to obtain rated audio
output power. The power-amplified AF signals are output from
pin 10, and then drive internal or external speaker.
D/A converter
(IC10)
Mixer
RSSI
Quadrature
detector
23
24
From the 1st IF amplifier (Q14)
16
Noise
detector
R5V
X3
1110
IF IC (IC2)
Filter
amp.
Noise
amp.
Limiter
amp.
Demodulated signals
to the LOGIC UNIT
• 2nd IF AND DEMODULATOR CIRCUITS
9
“NOIS” signal to the CPU (LOGIC UNIT: IC8, pin 17)
“SD” signal to the CPU (LOGIC UNIT: IC8, pin 90)
13
12
Q81
2nd IF filter
X4
15.3 MHz
45.9 MHz
2
3
8735
FI2 PLL IC
(IC19)
1
2

4 - 2
• SQUELCH CIRCUIT (RF AND LOGIC UNITS)
- NOISE SQUELCH -
The noise squelch mutes the AF output when no RF signals
are received. By detecting noise components (around 30 kHz
signals) in the demodulated AF signals, the squelch circuit
toggles the mute switch and AF power amplifier ON and OFF.
A portion of the AF signals from the IF IC (RF UNIT; IC2,
pin 9) are passed through the D/A converter (RF UNIT;
IC10, pins 23, 24) for level adjustment. The level adjusted
AF signals are applied to the noise filter section (RF UNIT;
IC2, pins 7, 8; R86−R88, C121, C122) which allows only
noise components to pass. The filtered noise components
are amplified at the noise amplifier section, and rectified
into the DC voltage which is proportional to the noise signal
level, at the noise detector section, then output from pin 13
as the “NOIS” signal.
The “NOIS” signal is applied to the CPU (LOGIC UNIT; IC8,
pin 17), and the CPU compares the “NOISE” signal and set
reference level (squelch threshold level). When the input
“NOIS” signal is higher than reference level, the CPU cuts
off “AFON” signal (from pin 4) to the AF power amplifier
control circuit (LOGIC UNIT; Q14−Q16) to deactivate the AF
power amplifier (LOGIC UNIT; IC23).
- TONE SQUELCH -
The tone squelch circuit detects tone signals and opens the
squelch only when receiving a signal containing a matched
sub audible tone. When the tone squelch is in use, and a
signal with a mismatched or no subaudible tone is received,
the tone squelch circuit mutes the AF signals even when the
noise squelch is open.
A portion of the demodulated AF signals is passed through
the LPF (LOGIC UNIT; Q53) to filters CTCSS/DTCS signal.
The filtered signal is applied to the CPU (LOGIC UNIT; IC8,
pin 93). The CPU compares the applied signal and the set
CTCSS/DTCS, then the CPU controls the status (“Low” or
“High”) of “AFON” signal as “• NOISE SQUELCH.”
HPF
LPF
Pre-
emph.
1
6
10 8
7
IC3
IC3
IC4
“MMUTE”
“RMUTE”
• AF and MIC amp. CIRCUITS
Demodulated AF signals
From IF IC (IC2, pin 9)
From the microphone
AF signals
“MICS”
RF UNITLOGIC UNIT
“AFON”
D/A
converter
IC4
IC10
IC3
AMP
4
11
22
10
IC23
SP
2
43
10
13 14
11
12
21
98 VCO
4-2 TRANSMITTER CIRCUITS
• MICROPHONE AMPLIFIER CIRCUITS (LOGIC UNIT)
The AF signals from the microphone (MIC signals) are
filtered and level-adjusted at microphone amplifier circuits.
Audio signals from the microphone (MC1) are applied to IC3
(pin 10) which combines a microphone amplifier and pre-
emphasis circuit. The MIC signals are amplified and filtered
to obtain +6 dB/oct of frequency characteristic by IC3.
The amplified and emphasized MIC signals are output
from the pin 8, and passed through the splatter filter (IC3,
pins 13, 14) which suppresses 3 kHz and higher audio
components, via the TX/RX switch (IC4, pins 3, 4; 8, 9).
The filtered MIC signals are then applied to the modulation
circuit.
• MODULATION CIRCUITS (RF UNIT)
- MIC SIGNALS -
The modulation circuits modulates the VCO oscillating signal
using the modulation signals.
The MIC signals from AF circuits are passed through
the D/A converter (IC10, pins 21, 22) for level (deviation)
adjustment. The level adjusted MIC signals are applied to
the variable capacitor (D61) in the VCO (Q76, D59−D61),
and modulate the VCO oscillating signal by changing the
reactance of D61. The modulated VCO output are buffer-
amplified by Q75 and Q74, then applied to the transmit
amplifier as a transmit signal.
- TONE SIGNALS -
CTCSS/DTCS signals are output from CPU (LOGIC UNIT;
IC8, pin 2) and passed through the LPF (R224, R227,
C219), then applied to the LPF (as the AF mixeRF UNIT;
IC3, pin 13) to be mixed with MIC signals. The mixed
CTCSS/DTCS signals are applied to modulation circuits as
“• MIC SIGNALS.”
• TRANSMIT AMPLIFIERS (RF UNIT)
The transmit signal from the buffer amplifier (Q74) is amplified
to the transmit output level by the transmit amplifiers.
The buffer-amplified VCO output signal is amplified by
transmit amplifiers; pre-drive (Q3), drive (Q2) and power
(Q1) amplifiers in sequence, after being passed through the
TX/RX switch (D3).
The power-amplified transmit signal is passed through the
power detector (D32, D33), antenna switch (D1) and LPF
(as a harmonic filter ; L1, L2, C1−C5), before being emitted
from the antenna.

4 - 3
4-3 FREQUENCY SYNTHESIZER CIRCUITS
• VCO (RF UNIT)
VCO (Voltage Controlled Oscillator) is a oscillator whose
oscillating frequency is controlled by adding voltage (lock
voltage).
VCO oscillates the both of transmit and 1st LO signals. The
VCO output signals are buffer-amplified by Q74 and Q75.
While receiving, the VCO output is passed through the TX/RX
switch (D4) and the LPF (L29, L38, L59, C102, C435, C437,
C539), then applied to the 1st mixer (Q13) to be mixed with
the received signals to produce the 46.35 MHz 1st IF signal.
While transmitting, the buffer-amplified VCO output is
passed through the TX/RX switch (D3) and applied to the
transmit amplifiers.
• PLL (Phase Locked Loop) CIRCUIT (RF UNIT)
The PLL circuit provides stable oscillation of the transmit
frequency and receive 1st LO frequency. The PLL output
frequency is controlled by the divided ratio (N-data) from the
CPU.
A portion of VCO output is applied to the PLL IC (IC19, pin 8)
via buffer amplifiers (Q5, Q75). The applied signal is divided
at the pre-scalar and programmable counter according to
the control signals “PLLSTB,” “PLLDATA” and “PLLCK” from
the CPU (L; IC8, pins 63, 65 and 66). The divided signal
is phase-compared with the reference frequency signal
from the reference frequency oscillator (X4), at the phase
detector.
The phase difference is output from pin 5 as a pulse type
signal after being passed through the internal charge pump.
The output signal is converted into the DC voltage (lock
voltage) by passing through the loop filter (R445−R448,
C472−C475, C519). The lock voltage is applied to the
variable capacitors (D59 and D60) of VCO (Q76, D59−D61)
and locked to keep the VCO oscillating frequency constant.
If the oscillated signal drifts, its phase changes from that of
the reference frequency, causing a lock voltage change to
compensate for the drift in the VCO oscillating frequency.
LPF LPF
IC26
T3
Power detector
OP
AMP
+
−
PWR
AMP
Drv.
AMP
Pre-drv.
AMP
2
1
3
Q3
• APC CIRCUITS
Q2 Q1
D1
ANT
SW
ANT
VCO output
from bufffer-amp (Q74) D3
TX/RX
SW
TXC
PS5V
Loop
filter
Buffer
Q75
• PLL CIRCUITS
Buffer
Q74
Buffer
Q5
to transmitter circuits
to 1st mixer (Q13)
D3
D4
58
Q76, D59−D61
VCO
PLL IC (IC19 )
×3
45.9 MHz 2nd LO
signal to the FM IF IC
(IC2, pin 2)
Q81
Shift register
Prescaler
Phase
detector
Charge
pump
Programmable
divider
PLLCK
PLLSTB
1
2
9
10
11 PLLDATA
LPF
PLL control signals
from CPU (LOGIC UNIT; IC8)
15.3 MHz reference signal
from reference frequency osciilator (X4)
• APC (Automatic Power Control) CIRCUIT (RF UNIT)
The APC (Automatic Power Control) circuit prevents the
transition of the transmit output power level which is caused
by load mismatching or heat effect, etc.
At the power detector (D32, D33), a portion of the transmit
signal is rectified into DC voltage which is proportional to
the transmit power level.
The rectified voltage is applied to the inverted input terminal
of the operational amplifier (IC26, pin 2). The voltage “T3”
from the D/A converter (IC10, pin 10) is applied to the non-
inverted input terminal as the reference.
The operational amplifier compares the rectified voltage
and reference voltage “T3,” and the difference of the voltage
is output from the operational amplifier pin 1. The output
voltage controls the bias of drive (Q2) and power (Q1)
amplifiers for stable transmit output power.
The change of transmit power is carried out by changing the
reference voltage “T3”, and transmit muting (deactivation of
drive and power amplifiers) is carried out by TX switch (Q37)
controlled by “TXC” signal from CPU (LOGIC UNIT; IC8, pin
59).

4 - 4
VCC SW5V
SW5V
74
45
“PS5C”
VCO5
T5V
R5V
LOGIC UNIT
RF UNIT
• POWER SUPPLY CIRCUITS
RF UNIT
PS5V
Logical circuits;
CPU (IC8),
Reset IC (IC21),
EEPROM (IC7), etc
VCO and BUFFER amp.;
VCO (Q76, D59−D61),
Buffers (Q5, Q74, Q75), etc.
COMMON;
PLL IC (IC19),
D/A converter, etc.
TRNSMITTER CIRCUITS;
Pre-driver (Q3), etc.
RECEIVER CIRCUITS;
IF IC (IC2), 1st mixer (Q13),
1st IF amp. (Q14), etc.
FOR POWER SAVE MODE;
APC amp. (IC26),
tone amp. (IC26), etc.
CPU
(IC8)
“R5C”
“T5C”
“PSVCO”
Q11Q4, D6, D7
Q9, Q10, Q18, Q19
IC12
Q22
Q21
Q54
73 58 69
VCO5
Regulator
SW5V
Regulator
CPU5
Regulator
Charger
circuit
T5V
Regulator
R5V
Regulator
PS5V
Regulator
“PWRON”
From the
battery
From the
ext. DC power
Voltage line
Control signal
4-4 POWER SUPPLY CIRCUITS
DC voltage from the battery or external DC power supply is routed to whole circuit of the transciever via regulators.
4-5 CPU PORT ALLOCATION
Pin
No.
Pin
Name Description I/O
1 TONE Tone signals (DTMF/BEEP/1750Hz). OUT
2 CTCSS Tone signals (CTCSS/DTCSS). OUT
4 AFON AF power amplifier control signal.
"High"=While the AF poer amp. is activated. OUT
5 RMUTE AF line mute signal to the AF switch.
"Low"=While muting. OUT
9 CSHIFT Clock frequency shift control signal to the
clock oscillator. OUT
10 RESET CPU reset signal.
"Low"=CPU reset. IN
16 PWRSW [PWR] Key.
"Low"=When the key is pushed. IN
17 NOIS "NOIS" signal. IN
18 DCC Eexternal power supply connection detect.
"Low"=Powered by external DC. IN
19 HOUT Power supply detect.
"Low"=Powered by battery. IN
20 PTT Input signal from [PTT] key.
"High"=While the key is pushed. IN
21−24 KR0−KR3 Input signal from Key pads.
"Low"=When the key is pushed. IN
25 LEDC Backlight control signal to the LED driver. OUT
33 DISDA Serial data to the LCD driver. IN
34 DISST Chip-enable signal to the LCD driver. IN
35 DISCK Serial clock signal to the LCD driver. IN
36 DISEN Disable signal to the LCD driver. IN
40 DICK Pulse signal from [CONTROL DIAL]. IN
41 DIUD IN
42 MONISW [MONI] key.
"Low"=When the key is pushed. IN
45 PWRON Control signal to the power regulator. OUT
48−52 KS0−KS4 Input signal from Key pads.
"Low"=When the key is pushed. OUT
53 MICS AF filter switching signal. OUT
54 MMUTE MIC line mute signal to the AF switch.
"low"=While muting. OUT
55 DADATA Data signal to the D/A converter. OUT
56 DACK Clock signal to the D/A converter. OUT
Pin
No.
Pin
Name Description I/O
57 DASTB Strobe signal to the D/A converter. OUT
58 T5C T5 line control signal to the T5 regulator.
"Low"=While transmitting. OUT
59 TXC Transmit mute signal to the TX switch.
"Low"=While TX muting. OUT
61 UNLK PLL unlock signal.
"Low"=PLL is unlocked. IN
63 PLLSTB Strobe signal to the PLL IC. OUT
64 PLPS PLL IC power save mode switching signal.
"Low"=While in power save mode. OUT
65 PLLDATA Data signal to the PLL IC. OUT
66 PLLCK Clock signal to the PLL IC. OUT
68 PLLSW PLL loop filter characteristic toggle signal.
"High"=While the PLL is kicked-up. OUT
69 PSVCO VCO regulator control signal.
"Low"=While Vco is activated." OUT
70 CHGIH Charger circuit (High) control signal.
"High"=While charging. OUT
71 CHGC Charger circuit control signal.
"High"=While charging. OUT
74 PS5C
Power save line control signal to the PS5V
regulator.
"Low"=While power save mode.
OUT
77 SI External MIC key (A/D) input.
"High"=While the key is pushed. IN
78 OPSD Data signal to the attached optional unit. OUT
79 ESCK Clock signal to the EEPROM. OUT
81 OPV1 Scramble unit detection signal.
"Low"=DTMF unit is attached. IN
82 OPV2 Optional unit attachement detection signal.
"Low"=DTMF unit is attached. IN
83 OPV3 DTMF unit detection signal.
"Low"=DTMF unit is attached. IN
87 DCIN External power supply's voltage detection. IN
88 LVIN Lock voltage. IN
90 SD "SD" signal (RSSI signal). IN
91 VIN Remining battery voltage detection. IN
93 CTCIN DTCS and CTCSS signals. IN

SECTION 5 ADJUSTMENT PROCEDURE
¤ REQUIRED TEST EQUIPMENTS
When adjusting IC-V85/V85E/V85-T, following test equipments and JIG cables (see the illust below) are required.
EQUIPMENT GRADE AND RANGE EQUIPMENT GRADE AND RANGE
RF power meter
(terminated type)
Measuring range
Frequency range
Impedance
SWR
: 0.1–10 W
: 100–300 MHz
: 50 Ω
: Less than 1.2 : 1
Standard signal
generator (SSG)
Frequency range
Output level
: 0.1–300 MHz
: –20 to 90 dBµ
(–127 to –17 dBm)
Frequency counter
Frequency range
Frequency accuracy
Sensitivity
: 0.1–300 MHz
: ±1 ppm or better
: 100 mV or better
AC millivoltmeter Measuring range : 10 mV to 10 V
Oscilloscope Frequency range
Measuring range
: DC–20 MHz
: 0.01–20 MHz
Modulation analyzer Frequency range
Measuring range
: 30–300 MHz
: 0 to ±10 kHz External speaker Input impedance Capacity
: 8 Ω
: More than 1 W
Audio generator Frequency range
Output level
: 300–3000 Hz
: 1–500 mV Attenuator Power attenuation Capacity
: 30 or 40 dB
: More than 10 W
¤ CONNECTION
CAUTION!: BACK UP originally programmed contents (Memory channels, Common settings, etc.) in the transceiver using optional
CS-V85 CLONING SOFTWARE before starting adjustment.
When all adjustments are completed, these contents in the transceiver may be cleared.
RF power meter
0.1–10 W/50 Ω
Attenuator
30 dB or 40 dB
Modulation
analyzer
Frequency
counter
IC-V85
IC-V85E
IC-V85-T
Oscilloscope
Standard Signal Generator
–20 to 90 dBµ
(–127 dBm to –17 dBm)
Speaker (8 Ω)
3-conductor 3.5 (d) mm plug
AFOUT
CLOUT
GND
• JIG cable
33 kΩ
68 kΩ
AC
millivoltmeter
PTT
MIC
GND
Audio generator
300 Hz to 3 kHz
• JIG cable
To [MIC] jack
To [SP] jack
3-conductor 2.5 (d) mm plug
5 - 1

MENTERING ADJUSTMENT MODE
qTurn the power OFF.
wConnect the JIG cable to the [SP] jack (see page 5-1).
eWhile pushing [Y], [Z]and [CLR] keys, turn the power ON.
During adjustment mode, the function display shows adjustment item and frequency as below.
(While rotating [CONTROL DIAL], adjustment value is displayed instead of adjustment item.)
Selects previous adjustment item
without storing the value.
Verifies the adjustment value.
• Stores the adjustment value and
move to next adjustment item.
• Adjusts the value for the item
automatically.
Selects next adjustment item
without storing the value.
[CONTROL DIAL]
Adjusts the value for the item
manually.
CLR
DUP SCAN
PRIO
SET
H/M/L
OPT
SKIP
BANK
TONE
T.SCAN
P.BEEP
ABD
C
CALL
ENT
MR CLR
FUNC
PWR
9
8
7
4
123
560
FUNC
5 - 2

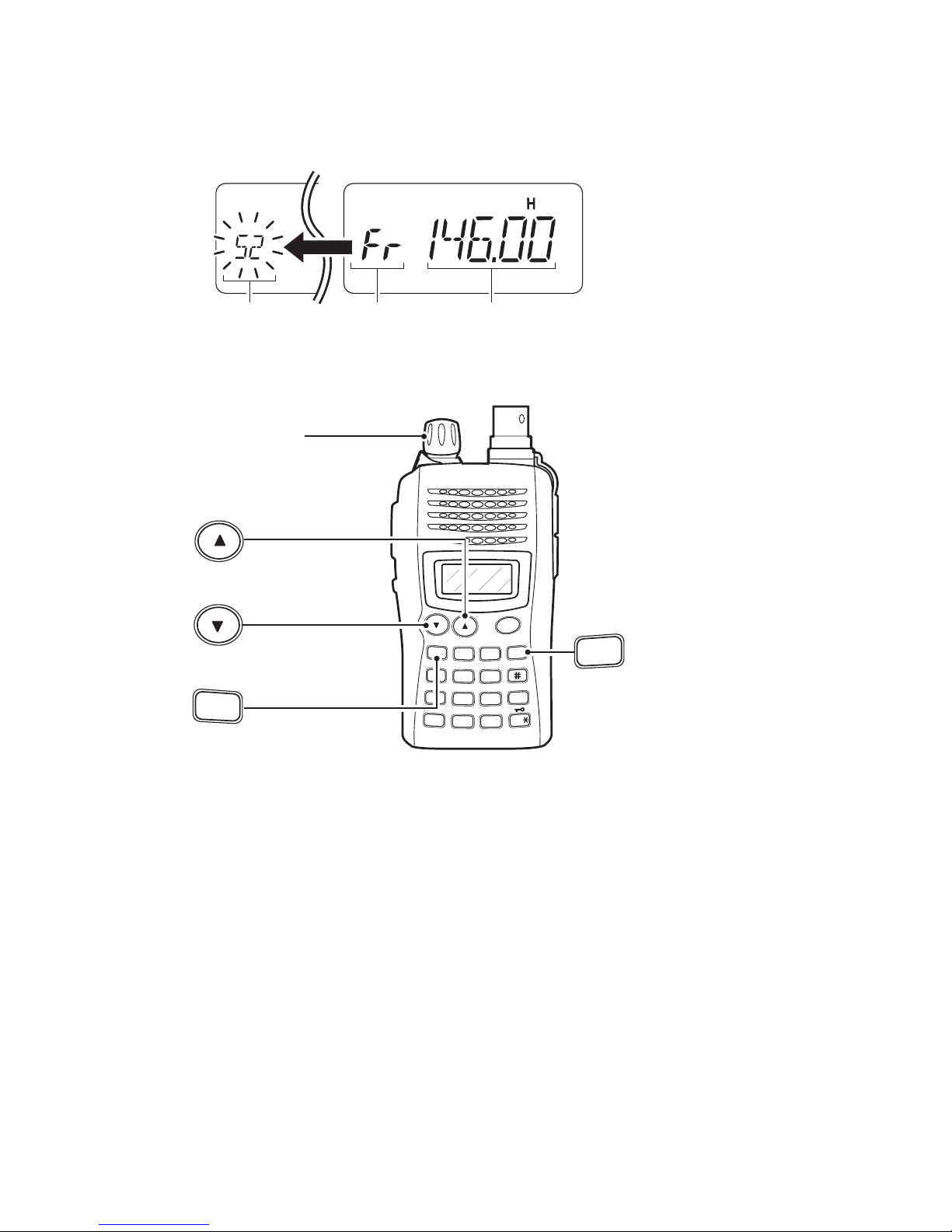

MKEY ASSIGNMENTS FOR THE ADJUSTMENT MODE
MQUITTING ADJUSTMENT MODE
• Turn the power OFF.
Adjustment item Frequency Adjustment value

¤ ADJUSTMENT
ADJUSTMENT ADJUSTMENT CONDITION OPERATION VALUE
REFERENCE
FREQUENCY
[Fr]
1•
•
•
Connect a RF Power Meter or a dummy
load to the antenna connector.
Loosely couple a Frequency Counter to
the antenna connector.
Transmitting
Rotate [CONTROL DIAL] during transmit to
adjust the frequency, then release the [PTT] and
push [CLR] key to store the adjustment value
and select the next adjustment item.
146.00000 MHz
LOCK
VOLTAGE
[LU]
1•
•
Connect an RF Power Meter to the
antenna connector.
Transmitting
Push [CLR] key during transmit, then push [Y]
to select the next adjustment item.
(automatic
adjustment)
TRANSMIT
OUTPUT
POWER
[Po]
(H; High)
1•
•
Connect an RF Power Meter to the
antenna connector.
Transmitting
Rotate [CONTROL DIAL] during transmit
to adjust the output power, then release the
[PTT] and push [CLR] key during transmit to
store the adjustment value and select the next
adjustment item.
7.0 W
except [THA]
5.5 W
[THA]
(M; Middle) 2 • Transmitting 4.0 W
(L; Low) 3 • Transmitting 0.5 W
DEVIATION
[dE]
NOTE: “REFERENCE FREQUENCY” should be adjusted before “DEVIATION.”
Otherwise, “DEVIATION” will not be adjusted properly.
1•
•
•
Connect an Audio Generator and AC
millivoltmeter to the MIC line (see page
5-1) and set as;
Frequency : 1 kHz
Level : 90 mVrms
Connect a Modulation Analyzer to
the antenna connector through an
attenuator, and set as;
HPF : OFF
LPF : 20 kHz
De-emphasis : OFF
Detector : (P–P)/2
Transmitting
Rotate [CONTROL DIAL] during transmit to
adjust the deviation, then release the [PTT] and
push [CLR] key to store the adjustment value
and select the next adjustment item.
±4.2 kHz
[dP]* Push [Y] to skip this item. –
DTCS
MODULATION
BALANCE
[dt]
NOTE: “"DEVIATION” should be adjusted before “DTCS MODULATION BALANCE.”
Otherwise, “DTCS MODULATION BALANCE” will not be adjusted properly.
1•
•
•
•
Set the Modulation Analyzer same as
“DEVIATION.”
Connect an Oscilloscope to the detector
output terminal of the Modulation
Analyzer.
No audio signal is applied to the MIC line.
Transmitting
Rotate [CONTROL DIAL] during transmit
to arrange the wave form, then release the
[PTT] and push [CLR] key during transmit to
store the adjustment value and select the next
adjustment item.
Set to square
wave form
[bP]* Push [Y] to skip this item. –
RECEIVE
SENSITIVITY
[tr]
(Band low)
NOTE: “REFERENCE FREQUENCY” should be adjusted before “RECEIVE SENSITIVITY.”
Otherwise, “RECEIVE SENSITIVITY” will not be adjusted properly.
1•
•
Connect an SSG to the antenna connector
and set as;
Frequency : Displayed frequency
Level : 0 dBµ (−107 dBm)
Modulation : 1 kHz
Deviation : ±3.5 kHz
Receiving
Push [CLR] key to store the adjustment value
and select the next adjustment item.
(automatic
adjustment)
(Band center) 2 •
•
Set the SSG as;
Frequency : Displayed frequency
Receiving
Push [CLR] key to store the adjustment value
and select the next adjustment item.
(Band high) 3 •
•
Set the SSG as;
Frequency : Displayed frequency
Receiving
Push [CLR] key to store the adjustment value
and select the next adjustment item.
SQUELCH
[Sq]
1•
•
•
Connect an 8 Ωspaeker to the AFOUT
line (see page 5-1).
Set the SSG as;
Level : −19 dBµ (−126 dBm)
Receiving
Rotate [CONTROL DIAL] to close the squelch
once, then rotate [CONTROL DIAL] to set
the squelch level at the point where the audio
signals just appear.
Push [CLR] key to store the adjustment value
and select the next adjustment item.
Squelch open
5 - 3
*; These items MUST NOT be modified. Otherwise, the transceiver will not perform properly.

5 - 4
ADJUSTMENT ADJUSTMENT CONDITION OPERATION VALUE
S-meter
[Sr]
NOTE: “RECEIVE SENSITIVITY” should be adjusted before “S-meter.”
Otherwise, “S-meter” will not be adjusted properly.
1•
•
Set the SSG as;
Frequency : Displayed frequency
Level : −6 dBu (−113 dBm)
Receiving
Push [CLR] key to store the adjustment value and
select the next adjustment item.
(automatic
adjustment)
[dF]* Push [Y] to skip this item.
[Et]* Push [Y] to skip this item.
CTCSS
AMPLITUDE
(f=5.00 kHz)
[C5]
NOTE: “DTCS MODULATION BALANCE” (page 5-3) should be adjusted before “CTCSS AMPLITUDE.”
Otherwise, “CTCSS AMPLITUDE” will not be adjusted properly.
1•
•
•
Set the Modulation Analyzer same as
“DEVIATION.”
No audio signal is applied to the MIC line.
Transmitting
Rotate [CONTROL DIAL] during transmit to
adjust the daviation, then release the [PTT] and
push [CLR] key to store the adjustment value.
±0.75 kHz
(f=6.25 kHz)
[C6]
2
[dt]* to [D6]* Skip these items. (The adjustment is completed. Turn the power OFF.)
¤ ADJUSTMENT (continued)
*; These items MUST NOT be modified. Otherwise, the transceiver will not perform properly.

6 - 1
SECTION 6 PARTS LIST
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
[LOGIC UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
IC3 1110006470 S.IC LMV324IPWR B 5.6/21.2
IC4 1130011770 S.IC CD4066BPWR B 14.1/18.2
IC7 1130012430 S.IC S-24CS64A0I-T8T1G B 5.5/36.7
IC8 1140011500 S.IC M30620FCPGP D5 B 23.8/34.4
IC12 1180002251 S.IC S-812C50AMC-C3E-G B 8.2/75
IC21 1110006260 S.IC BD5242G-TR B 43.9/25.1
IC22 1130009090 S.IC LC75834W-TLM-E B 22.4/55.9
IC23 1110001811 S.IC TA7368FG (5,ER) B 30.2/67.1
Q1 1520000460 S.TR 2SB1132 T100 R T 5/63
Q2 1530003281 S.TR 2SC4211-6-TL-E B 4.7/64.7
Q6 1530003630 S.TR 2SC4617 TLS B 35.8/39.1
Q14 1520000460 S.TR 2SB1132 T100 R B 38.7/84
Q15 1520000460 S.TR 2SB1132 T100 R T 40.8/72.1
Q16 1590001190 S.TR XP6501-(TX) .AB T 41.8/76.8
Q17 1590003420 S.TR UNR911FJ-(TX) B 8.1/70.2
Q21 1510000510 S.TR 2SA1576A T106R B 7.7/4.3
Q31 1590003270 S.TR UNR9210J-(TX) T 41.8/62.2
Q38 1590003290 S.TR UNR9213J-(TX) B 27.7/47.6
Q53 1590001650 S.TR XP4601 (TX) B 8/44.2
Q54 1510000510 S.TR 2SA1576A T106R B 5.2/10.4
Q55 1520000460 S.TR 2SB1132 T100 R T 5.4/84.7
Q56 1590003290 S.TR UNR9213J-(TX) T 10.5/77.6
Q57 1590001170 S.TR XP1501-(TX) .AB T 8.1/80.3
D8 1730002300 S.ZEN MA8082-M (TX) B 37.4/33.9
D10 1790001250 S.DIO MA2S111-(TX) B 37.3/31
D27 1790000980 S.DIO MA742 (TX) T 42.3/65.5
D34 1790000950 S.ZEN MA8056-M (TX) B 10.5/68.4
D39 1750000940 S.DIO ISS400 TE61 B 8.2/78.2
D40 1750000940 S.DIO ISS400 TE61 B 24.6/20.1
D41 1750000940 S.DIO ISS400 TE61 B 34.8/27
D42 1750000940 S.DIO ISS400 TE61 B 34.1/21.1
D43 1750000940 S.DIO ISS400 TE61 B 26.5/15.5
D44 1750000940 S.DIO ISS400 TE61 B 35.4/6.2
D46 1750000940 S.DIO ISS400 TE61
except [USA/-2], [KOR] only B 39.6/27.5
D47 1750000940 S.DIO ISS400 TE61
[THA], [EXP/-2/-3] only B 38.4/27.5
D48 1750000940 S.DIO ISS400 TE61
[EUR/-1], [EXP/-2/-3], [UK] only B 37.2/27.5
D49 1750000940 S.DIO ISS400 TE61
[EXP/-2/-3], [KOR] only B 36/27.5
D56 1750000771 S.VCP HVC376BTRF-E B 37.2/45
D66 1750000940 S.DIO ISS400 TE61
except [USA], [USA-2], [EXP/-2/-3] only B 36/24.5
D67 1750000940 S.DIO ISS400 TE61
[EUR/-1], [USA/-2], [UK], [KOR] only B 37.2/24.5
D68 1750000940 S.DIO ISS400 TE61
[TPE], [THA], [KOR], [TPE-2] only B 38.4/24.5
D69 1750000940 S.DIO ISS400 TE61
[THA], [EXP/-2/-3] only B 39.6/24.5
D70 1750000940 S.DIO ISS400 TE61
except [EXP/-2/-3], [THA] only B 40.8/24.5
X2 6050012470 S.XTL CR-836 (FTX9.8304M16SM) B 42.4/44.3
R1 7030007270 S.RES ERJ2GEJ 151 X (150) B 8/62.8
R2 7030009140 S.RES ERJ2GEJ 272 X (2.7 k) B 8/63.7
R3 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 33.4/39.9
R4 7030009140 S.RES ERJ2GEJ 272 X (2.7 k) B 8/64.6
R6 7030009140 S.RES ERJ2GEJ 272 X (2.7 k) B 8.1/65.5
R7 7030009140 S.RES ERJ2GEJ 272 X (2.7 k) B 5.3/62.5
R8 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 3.6/62.5
R9 7030004980 S.RES ERJ2GEJ 101 X (100) B 11/15.2
R10 7030000110 S.RES MCR10EZHJ 5.6 (5R6) T 34.2/74
R11 7030000110 S.RES MCR10EZHJ 5.6 (5R6) T 34.2/72.2
R17 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 34.9/41.8
R19 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 37.9/36.4
R22 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 37/36.4
R44 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 4.6/34.2
R93 7030005600 S.RES ERJ2GEJ 273 X (27 k) B 2.4/15
R94 7030005160 S.RES ERJ2GEJ 105 X (1 M) B 5.7/16.6
R95 7030007310 S.RES ERJ2GEJ 155 X (1.5 M) B 4.1/16.6
R97 7030005110 S.RES ERJ2GEJ 224 X (220 k) B 10/28
R98 7030005100 S.RES ERJ2GEJ 154 X (150 k) B 9.9/29.2
R99 7030008300 S.RES ERJ2GEJ 184 X (180 k) B 7.5/29.8
R100 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 4.8/29
R101 7030005160 S.RES ERJ2GEJ 105 X (1 M) B 39.3/42.1
R102 7030005530 S.RES ERJ2GEJ 100 X (10) B 37.3/40.1
R103 7030008010 S.RES ERJ2GEJ 123 X (12 k) B 38.4/43.7
R104 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 5.4/26
R107 7030005100 S.RES ERJ2GEJ 154 X (150 k) B 8.7/28.4
R108 7030005110 S.RES ERJ2GEJ 224 X (220 k) B 3.3/26.4
R109 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 10.1/24.4
R112 7030005160 S.RES ERJ2GEJ 105 X (1 M) B 7.1/15.4
R113 7030005070 S.RES ERJ2GEJ 683 X (68 k) B 10.8/29.2
R114 7030008290 S.RES ERJ2GEJ 183 X (18 k) B 7.5/26.4
R115 7030005310 S.RES ERJ2GEJ 124 X (120 k) B 8.7/26
R117 7030005030 S.RES ERJ2GEJ 152 X (1.5 k) B 10/27.1
R120 7030005240 S.RES ERJ2GEJ 473 X (47 k) T 43.5/75.2
R121 7030005030 S.RES ERJ2GEJ 152 X (1.5 k) T 44/77.3
R122 7030009140 S.RES ERJ2GEJ 272 X (2.7 k) T 40/76.7
R123 7030005210 S.RES ERJ2GEJ 822 X (8.2 k) T 40.4/78.7
S.=Surface mount
[LOGIC UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
R123 7030005290 S.RES ERJ2GEJ 682 X (6.8 k) T 40.4/78.7
R126 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 22.7/66.6
R126 7030005310 S.RES ERJ2GEJ 124 X (120 k) B 22.7/66.6
R127 7030005530 S.RES ERJ2GEJ 100 X (10) B 25.3/67.9
R127 7030007260 S.RES ERJ2GEJ 330 X (33) B 25.3/67.9
R128 7030005530 S.RES ERJ2GEJ 100 X (10) B 34.9/67.9
R130 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 10.7/70.7
R131 7030008400 S.RES ERJ2GEJ 182 X (1.8 k) B 7.4/71.9
R132 7030005000 S.RES ERJ2GEJ 471 X (470) T 44.4/78.7
R136 7030004980 S.RES ERJ2GEJ 101 X (100) B 42.5/14
R137 7030004980 S.RES ERJ2GEJ 101 X (100) B 7.5/27.3
R139 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 9.4/5
R144 7030005220 S.RES ERJ2GEJ 223 X (22 k) B 7.4/68.4
R145 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 28.2/44.5
R148 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 43.4/27.4
R159 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 6.3/26
R164 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 32.7/7.8
R168 7030005170 S.RES ERJ2GEJ 474 X (470 k) B 9.1/32.3
R169 7030007350 S.RES ERJ2GEJ 393 X (39 k) B 2.4/32.6
R170 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 10/32.3
R174 7030007340 S.RES ERJ2GEJ 153 X (15 k) T 41.8/63.6
R176 7030008410 S.RES ERJ2GEJ 392 X (3.9 k) B 2.4/14.1
R177 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 6.4/14.1
R178 7030005110 S.RES ERJ2GEJ 224 X (220 k) B 7.5/28.9
R181 7030010080 S.RES ERJ2RHD 104 X (100 k) B 12.5/44.3
R182 7510001661 S.TMR NTCG16 4LH 473JT B 11.5/44
R193 7030005720 S.RES ERJ2GEJ 563 X (56 k) B 30.2/61.5
R194 7030005720 S.RES ERJ2GEJ 563 X (56 k) B 28.4/61.5
R195 7030005720 S.RES ERJ2GEJ 563 X (56 k) B 27.5/61.5
R196 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 26.6/61.5
R224 7030007350 S.RES ERJ2GEJ 393 X (39 k) B 24.3/48
R225 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 9.7/36.5
R227 7030008410 S.RES ERJ2GEJ 392 X (3.9 k) B 26.1/47.3
R228 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 10.6/36.5
R240 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 32.3/40.5
R245 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 34.4/30
R246 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 29.2/44.8
R257 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 11/21.9
R261 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 7.8/2.4
R266 7030007340 S.RES ERJ2GEJ 153 X (15 k) B 4.5/27.8
R318 7030005070 S.RES ERJ2GEJ 683 X (68 k) B 7.9/41.6
R319 7030005070 S.RES ERJ2GEJ 683 X (68 k) B 6.1/43.8
R320 7030007340 S.RES ERJ2GEJ 153 X (15 k) B 6.1/45.4
R321 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 8/46.4
R323 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 7.1/46.4
R324 7030007570 S.RES ERJ2GEJ 122 X (1.2 k) B 8.9/46.4
R325 7030005070 S.RES ERJ2GEJ 683 X (68 k) B 9.8/43.8
R326 7030005070 S.RES ERJ2GEJ 683 X (68 k) B 11.1/41.6
R327 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 19/46.3
R328 7030005110 S.RES ERJ2GEJ 224 X (220 k) B 5.4/8.5
R329 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 6.9/10.6
R330 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 8.7/77.1
R331 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 8.1/82.1
R332 7030005290 S.RES ERJ2GEJ 682 X (6.8 k) T 8.1/78
R335 7030005160 S.RES ERJ2GEJ 105 X (1 M) T 9/78
R336 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 7.9/42.5
R346 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 33.1/41.8
R362 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 34.1/9.5
R382 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 34.8/7.3
R397 7030005000 S.RES ERJ2GEJ 471 X (470) B 3.6/27.8
R398 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 34.7/45
R413 7030004980 S.RES ERJ2GEJ 101 X (100) B 6.2/15.4
R474 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 32.2/42.1
R476 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 34.1/10.4
R477 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 34.1/11.3
R478 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 33.6/7.8
R479 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 32.2/12.6
R482 7030005160 S.RES ERJ2GEJ 105 X (1 M) B 33.4/14
R483 7030005160 S.RES ERJ2GEJ 105 X (1 M) B 33.4/13.1
R484 7030005160 S.RES ERJ2GEJ 105 X (1 M) B 33.4/12.2
R486 7030005160 S.RES ERJ2GEJ 105 X (1 M) B 10.2/26.2
R491 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 25.7/61.5
R492 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 16.5/43.8
R493 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 14.6/41.9
R494 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 20.3/47.6
R495 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 17.1/44.4
R513 7030005110 S.RES ERJ2GEJ 224 X (220 k) B 24.8/66.1
R521 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 29.9/25.5
R522 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 11.4/38.7
R523 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 12.7/40
R524 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 13.9/41.2
R525 7030005720 S.RES ERJ2GEJ 563 X (56 k) B 27.5/59.2
R527 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 33.8/29.4
R530 7410001130 S.ARY EXB28V102JX B 27.4/22.6
R532 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 23.8/21.2
R533 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 32.1/27.7
R534 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 30.9/26.5
R535 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 29.1/24.8
R536 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 33.1/28.7
R537 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 3.6/61.6
R538 7410001130 S.ARY EXB28V102JX B 16.4/28.1
R543 7030010040 S.RES ERJ2GEJ-JPW B 7.1/12.3
R545 7030010040 S.RES ERJ2GEJ-JPW B 37.9/42.5
R546 7030010040 S.RES ERJ2GEJ-JPW B 36.6/43.7
R547 7030010040 S.RES ERJ2GEJ-JPW B 38.4/41.3
C1 4030016930 S.CER ECJ0EB1A104K B 5.7/61.3

6 - 2
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
[LOGIC UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
C7 4030017460 S.CER ECJ0EB1E102K B 33.9/39
C12 4030017460 S.CER ECJ0EB1E102K B 34.4/37.8
C28 4030017460 S.CER ECJ0EB1E102K B 36.9/37.6
C124 4030016790 S.CER ECJ0EB1C103K B 3.6/14.5
C125 4030017760 S.CER ECJ0EB1H222K B 2.9/16.2
C126 4030018110 S.CER ECJ0EB1H272K B 4.1/15.7
C128 4030016930 S.CER ECJ0EB1A104K B 8.3/15
C129 4550002960 S.TAN TEESVA 1C 155M8R B 4.2/30.5
C131 4030016790 S.CER ECJ0EB1C103K B 10.9/17.8
C132 4030018240 S.CER ECJ0EB1E562K B 4.5/26
C134 4030017710 S.CER ECJ0EC1H181J B 3.3/25.5
C135 4030017450 S.CER ECJ0EB1E271K B 7.5/25.5
C137 4030017040 S.CER ECJ0EB1A333K B 10.1/25.3
C139 4030018860 S.CER ECJ0EB0J105K T 44/76.4
C144 4030017460 S.CER ECJ0EB1E102K B 43.4/28.3
C145 4510009000 S.ELE EEE1AA330WR B 35/73.1
C147 4030016950 S.CER ECJ0EB1A473K B 10.7/69.8
C148 4030017490 S.CER C1608 JB 1A 105K-T B 42/84.8
C150 4550006250 S.TAN TEESVA 1A 106M8R B 21.9/68.2
C152 4030016950 S.CER ECJ0EB1A473K B 34.9/68.8
C153 4510009530 S.ELE 10 CE 150 BSS B 37.9/58.8
C154 4550006220 S.TAN TEESVA 0J 156M8R B 10.4/72.3
C161 4030016790 S.CER ECJ0EB1C103K B 9.4/2.4
C163 4030017460 S.CER ECJ0EB1E102K B 8.3/68.4
C164 4030017460 S.CER ECJ0EB1E102K T 45/84.6
C165 4030017460 S.CER ECJ0EB1E102K T 44.6/70.1
C166 4030017460 S.CER ECJ0EB1E102K T 45.3/79.9
C167 4030017420 S.CER ECJ0EC1H470J T 45.1/67.7
C168 4030017460 S.CER ECJ0EB1E102K T 39/68.1
C169 4030017460 S.CER ECJ0EB1E102K T 34.7/65.2
C171 4030016930 S.CER ECJ0EB1A104K B 35.3/66.1
C173 4510008500 S.ELE EEE1CA101WP B 9.9/86.6
C174 4510008660 S.ELE EEE0JA220SR B 4/5.3
C179 4030016790 S.CER ECJ0EB1C103K B 5.3/15.4
C193 4030017530 S.CER ECJ0EC1H0R5B B 37.5/43.7
C194 4030017600 S.CER ECJ0EC1H080C B 37/41.4
C195 4030017500 S.CER ECJ0EC1H560J B 39.3/43.7
C197 4030016930 S.CER ECJ0EB1A104K B 45/27.4
C199 4030016930 S.CER ECJ0EB1A104K B 17.9/26.7
C209 4030016930 S.CER ECJ0EB1A104K T 45.7/71.1
C212 4030016790 S.CER ECJ0EB1C103K B 9/30.1
C213 4550002890 S.TAN TEESVA 1A 225M8R B 5.8/32.6
C214 4030017040 S.CER ECJ0EB1A333K B 10.4/30.4
C216 4030018920 S.CER ECJ0EB1H392K B 25.7/48.5
C217 4030016930 S.CER ECJ0EB1A104K B 4.8/14.1
C219 4030017040 S.CER ECJ0EB1A333K B 25.2/47.3
C230 4030017030 S.CER ECJ0EB1A273K B 43.4/23
C232 4030016930 S.CER ECJ0EB1A104K B 13.4/44.3
C245 4030016790 S.CER ECJ0EB1C103K B 8.4/34.4
C249 4030016790 S.CER ECJ0EB1C103K B 9.8/47
C282 4030017460 S.CER ECJ0EB1E102K B 7.1/77.1
C283 4030017760 S.CER ECJ0EB1H222K T 10.1/81.2
C296 4030017730 S.CER ECJ0EB1E471K B 33.6/43.7
C297 4030016790 S.CER ECJ0EB1C103K B 34.6/43.7
C299 4030017730 S.CER ECJ0EB1E471K T 41.1/60.4
C304 4030016950 S.CER ECJ0EB1A473K B 5.9/27.3
C305 4030017730 S.CER ECJ0EB1E471K T 9/86.2
C369 4030017040 S.CER ECJ0EB1A333K B 6.7/42
C370 4030018080 S.CER ECJ0EB1H182K B 4.9/44.2
C372 4030016970 S.CER ECJ0EB1C223K B 7.5/47.6
C373 4030017790 S.CER ECJ0EB1E682K B 9.9/42
C374 4030017760 S.CER ECJ0EB1H222K B 18.4/45.7
C375 4030017460 S.CER ECJ0EB1E102K B 6.9/9
C376 4030017460 S.CER ECJ0EB1E102K B 12.5/76.9
C377 4550006350 S.TAN TEESVB2 1A 226M8R T 4.8/77.4
C378 4030016930 S.CER ECJ0EB1A104K T 6.9/75.2
C379 4030017460 S.CER ECJ0EB1E102K T 10.1/80.2
C380 4510008660 S.ELE EEE0JA220SR B 11.1/80.6
C381 4550006250 S.TAN TEESVA 1A 106M8R B 10.9/75.8
C385 4030016930 S.CER ECJ0EB1A104K B 26.6/63.6
C399 4030017770 S.CER ECJ0EB1E332K B 21.5/66.1
C400 4030017760 S.CER ECJ0EB1H222K T 9/83
C401 4030016790 S.CER ECJ0EB1C103K B 42.1/20
C423 4030016930 S.CER ECJ0EB1A104K B 2.4/28.2
C424 4030016790 S.CER ECJ0EB1C103K B 35.7/43.7
C425 4030016790 S.CER ECJ0EB1C103K B 30.9/41.8
C426 4030017460 S.CER ECJ0EB1E102K B 30.3/41
C514 4030018520 S.CER C1608 JB 0J 225M-T B 9.8/34.4
C515 4030016930 S.CER ECJ0EB1A104K B 19.3/44.4
C524 4030017460 S.CER ECJ0EB1E102K B 15.8/43.1
C525 4030017460 S.CER ECJ0EB1E102K B 15.2/42.5
C526 4030017460 S.CER ECJ0EB1E102K B 19.7/47
C527 4030017460 S.CER ECJ0EB1E102K B 17.8/45.1
C540 4030017040 S.CER ECJ0EB1A333K B 25.7/66.1
C541 4030018100 S.CER ECJ0EB1H681K B 28.4/59.2
C542 4030017460 S.CER ECJ0EB1E102K B 10.8/38.1
C543 4030017460 S.CER ECJ0EB1E102K B 12/39.3
C544 4030017460 S.CER ECJ0EB1E102K B 13.3/40.6
C545 4030016950 S.CER ECJ0EB1A473K B 27.5/63.1
C546 4030016950 S.CER ECJ0EB1A473K B 28.4/63.1
C547 4030016950 S.CER ECJ0EB1A473K B 29.3/61.5
C548 4030017460 S.CER ECJ0EB1E102K B 28.3/3.2
C549 4030017460 S.CER ECJ0EB1E102K B 24.8/3.2
C550 4030017460 S.CER ECJ0EB1E102K B 21.8/3.2
C551 4030017460 S.CER ECJ0EB1E102K B 20.7/3.2
C552 4030017460 S.CER ECJ0EB1E102K B 19.8/3.2
C553 4550006250 S.TAN TEESVA 1A 106M8R B 9.4/20.3
C554 4030017420 S.CER ECJ0EC1H470J B 30.7/70.5
C555 4030018240 S.CER ECJ0EB1E562K B 11.2/27.4
J2 6450000131 CNR HSJ1102-018540
J3 6510025880 CNR TC38-108-01
J5 6510021970 S.CNR AXN330C130P B 38.3/14.8
S.=Surface mount
[LOGIC UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
J6 6510021901 S.CNR BM02B-ASRS-TF (LF) (SN) T 41.8/84.6
J7 6510023521 S.CNR 54104-3696 (3692) B 19.6/8.2
DS1 5010000160 S.LED LNJ310M6URA T 7/55.3
DS2 5010000160 S.LED LNJ310M6URA T 40.6/55.3
DS3 5040003280 S.LED RY-SP192UYG24-5M T 13.7/41.4
DS4 5030002970 LCD S10996
DS5 5040003280 S.LED RY-SP192UYG24-5M T 31.1/41.3
DS8 5040003280 S.LED RY-SP192UYG24-5M T 13.5/24.8
DS9 5040003280 S.LED RY-SP192UYG24-5M T 34.1/24.8
DS10 5040003280 S.LED RY-SP192UYG24-5M T 13.1/9.7
DS11 5040003280 S.LED RY-SP192UYG24-5M T 34.4/9.7
MC1 7700002710 MIC EM6027P-46C33-G
S3 2260002840 SW SKHLLFA010
S801 7600000210 ECR TP70N00E20-15F-1903
S802 2260002840 SW SKHLLFA010
SP1 2510000840 SP CS028014-12
W5 8900016000 CBL OPC-1129A
W6 8900010901 CBL OPC-1121A (P0.5,N36,L60)
EP1 8930071440 LCT SRCN-2964-SP-N-W
EP5 6910012350 S.BEA MMZ1608Y 102BT T 45.5/76.4
EP6 6910018460 S.BEA MMZ1005Y102C-T T 45.7/72
EP7 6910014680 S.BEA MMZ1608Y 121BT T 36.8/65.2
EP8 6910018460 S.BEA MMZ1005Y102C-T T 44.9/68.6
EP9 6910014680 S.BEA MMZ1608Y 121BT T 43.5/63.1
[RF UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
IC2 1110003491 S.IC TA31136FNG (D,EL) B 9.6/26.5
IC10 1190000350 S.IC M62363FP-650C B 37.8/13.1
IC19 1130011671 S.IC MB15E03SLPFV1-G-BND-E1 B 10.4/14.8
IC20 1130011801 S.IC SN74AHC1G66HDBV3 T 8.5/13.3
IC24 1180002690 S.REG S-812C36AMC-C2Q-T2G B 7.3/6.5
IC25 1190001860 S.IC EW-460-FT B 3.8/23
IC26 1110006740 S.IC LMV358IPWR T 30.4/30.3
Q1 1560001371 S.FET RD12MVS1-T112 T 21.8/39.7
Q2 1560001241 S.FET RD01MUS1-T113 T 21.6/33.4
Q3 1530003231 S.TR 2SC5085-Y (TE85R,F) T 25.5/24.5
Q4 1590003720 S.FET HAT1026R-EL-E T 14.5/46.4
Q5 1530003260 S.TR 2SC5006-T1 B 22.9/15.7
Q9 1590003290 S.TR UNR9213J-(TX) T 7.9/39.6
Q10 1530003630 S.TR 2SC4617 TLS T 6.6/42.9
Q11 1590001650 S.TR XP4601 (TX) B 6.2/15.5
Q12 1580000790 S.FET 3SK318YB-TL-E B 33.8/31.2
Q13 1580000790 S.FET 3SK318YB-TL-E B 29.2/24.2
Q14 1530003260 S.TR 2SC5006-T1 B 12.7/22.3
Q18 1510000671 S.TR 2SA1588-GR (TE85R, F) T 5.3/37.9
Q19 1520000651 S.TR 2SB1201S-TL-E B 7.3/43.7
Q22 1510000510 S.TR 2SA1576A T106R T 40.5/23.1
Q34 1560000811 S.FET 2SK1069-4-TL-E T 4.6/19.2
Q37 1590003230 S.TR UNR9113J-(TX) T 30.4/38
Q74 1530003581 S.TR 2SC5231C8-TL-E B 26.2/13.6
Q75 1530003581 S.TR 2SC5231C8-TL-E B 27.1/6.8
Q76 1530003581 S.TR 2SC5231C8-TL-E B 20.9/5.9
Q77 1590003300 S.TR UNR921NJ-(TX) B 19.1/9.2
Q81 1530002851 S.TR 2SC4116-BL (TE85R,F) T 10.4/18.6
Q82 1590000430 S.TR DTC144EUA T106 B 2.6/28.3
Q83 1530003630 S.TR 2SC4617 TLS T 21.4/20.7
D1 1710000871 S.DIO HVU131TRF-E B 34.6/43.4
D2 1790000620 S.DIO MA77 (TX) B 39.5/44
D3 1750000531 S.DIO 1SV271 (TPH3,F) T 25.9/15.8
D4 1790001260 S.DIO MA2S077-(TX) T 28.9/15.1
D5 1750000940 S.DIO ISS400 TE61 T 35.3/8.3
D6 1750000540 S.DIO RB060L-40 TE-25 T 11.4/36.6
D7 1790001240 S.DIO MA2S728-(TX) T 9.4/44.7
D8 1790000620 S.DIO MA77 (TX) B 39.7/40.1
D9 1750000721 S.VCP HVC375BTRF-E B 39.7/34.8
D11 1750000711 S.VCP HVC350BTRF-E B 37.1/29.1
D12 1750000711 S.VCP HVC350BTRF-E B 37.2/24.6
D13 1750000940 S.DIO ISS400 TE61 T 14.1/53.6
D14 1790000860 S.DIO MA133 (TX) T 2.6/37.9
D15 1790001250 S.DIO MA2S111-(TX) T 5.5/41.2
D16 1790000671 S.DIO SB07-03C-TB-E B 7.2/49.2
D32 1790000980 S.DIO MA742 (TX) T 29.5/40.6
D33 1790000980 S.DIO MA742 (TX) T 30.8/47.6
D58 1790001260 S.DIO MA2S077-(TX) B 21.9/9.6
D59 1720000730 S.VCP MA2S30400L B 18.1/13.7
D60 1720000730 S.VCP MA2S30400L B 20.6/13.7
D61 1720000651 S.VCP 1SV286 (TPH3,F) B 16.6/7
D63 1750000370 S.DIO DA221 TL B 15.3/20.4
D64 1750000940 S.DIO ISS400 TE61 T 14.3/18.2
D65 1750000711 S.VCP HVC350BTRF-E B 37.3/22.4
D71 1750000940 S.DIO ISS400 TE61 T 16/19.7

6 - 3
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
[RF UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
D72 1750000940 S.DIO ISS400 TE61 B 32.7/26
D73 1790001250 S.DIO MA2S111-(TX) B 3.8/19.6
FI1 2010002670 S.XTL FL-393 (46.350 MHz) B 20.6/22
FI2 2020002450 S.CER LTWC450E <JJE> B 9.2/35.3
X3 6070000300 S.DCR JTBM450CX24 <JJE> T 13.5/26.9
X4 6050011940 S.XTL CR-783 (15.3 MHz) B 11/5.1
L1 6200012910 S.COL 0.35-1.6-8TL 45.5N B 39.1/48
L2 6200012470 S.COL 0.30-1.7-7TL 45.3N B 35.7/48.6
L4 6200012470 S.COL 0.30-1.7-7TL 45.3N B 32.3/46.1
L5 6200012880 S.COL 0.30-1.3-6TL 24.5N T 16.1/41.1
L6 6200007710 S.COL LQW2BHN27NJ03L T 17.6/36
L7 6200005451 S.COL LL1608-FSL68NJ T 22.9/25.4
L15 6200012910 S.COL 0.35-1.6-8TL 45.5N B 35.7/41.1
L16 6200010000 S.COL C2012C-56NG-A B 38.2/32.4
L18 6200009930 S.COL C2012C-68NG-A B 30.4/30.3
L19 6200009890 S.COL C2012C-82NG-A B 35.9/26.4
L20 6200003271 S.COL NLV25T-R56J B 26.9/21
L24 6200004870 S.COL ELJFC 2R7K-F B 32.2/39.9
L26 6200003590 S.COL EXCCL3225U1 T 12.2/41.2
L29 6200009531 S.COL ELJRE R15GFA B 29.9/21.7
L32 6200012570 S.COL 0.26-1.0-3TL 6.8N T 25.6/43.7
L37 6200006991 S.COL ELJRE 56NGFA T 24.8/18.4
L38 6200007871 S.COL ELJRF 39NJFB B 31.8/18.1
L40 6200009351 S.COL ELJRE R22GFA B 27.8/13.5
L41 6200011031 S.COL ELJRF R10JFB B 27.1/5.3
L42 6200011001 S.COL ELJRF 56NJFB B 24.7/16.5
L43 6200007001 S.COL ELJRE 82NGFA T 19.6/15
L44 6200010100 S.COL C2012C-33NG-A B 17/11.9
L45 6200010210 S.COL C2012C-22NG-A B 21.6/11.9
L46 6200001981 S.COL NLV25T-1R0J B 18.6/15.6
L47 6200012880 S.COL 0.30-1.3-6TL 24.5N B 29.2/44.2
L48 6200005691 S.COL ELJRE 18NGFA T 26.7/37.5
L49 6200005691 S.COL ELJRE 18NGFA T 24.8/28.3
L50 6200003271 S.COL NLV25T-R56J B 10.1/22.2
L51 6200004480 S.COL MLF1608D R82K-T T 10.5/22.7
L55 6200003540 S.COL MLF1608D R22K-T T 10.6/20.5
L57 6200009930 S.COL C2012C-68NG-A B 34.9/20.3
L58 6200010540 S.COL C2012C-47NG-A B 35.4/37.8
L59 6200007871 S.COL ELJRF 39NJFB B 30.9/19.7
R1 7030003670 S.RES ERJ3GEYJ 823 V (82 k) T 30.9/51.7
R4 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 8.8/46.9
R5 7030003240 S.RES ERJ3GEYJ 220 V (22) T 26.6/39.7
R7 7030004990 S.RES ERJ2GEJ 221 X (220) T 25.4/31.6
R8 7030010020 S.RES ERJ2RKF 154 X (150 k) T 34.1/8.4
R9 7030010010 S.RES ERJ2RKF 334 X (330 k) T 34.9/6.5
R10 7030007260 S.RES ERJ2GEJ 330 X (33) T 26/21.7
R11 7030007300 S.RES ERJ2GEJ 332 X (3.3 k) T 23.8/22.2
R12 7030007300 S.RES ERJ2GEJ 332 X (3.3 k) T 22.4/23.4
R13 7030007260 S.RES ERJ2GEJ 330 X (33) T 22.4/24.3
R14 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) T 23.6/18.5
R16 7030005300 S.RES ERJ2GEJ 150 X (15) T 24.8/20.6
R20 7030005220 S.RES ERJ2GEJ 223 X (22 k) B 24.7/14.7
R21 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) B 24.6/13.5
R25 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 6.8/46.8
R27 7030005000 S.RES ERJ2GEJ 471 X (470) T 6.8/44.4
R28 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 7.4/37.9
R29 7030005580 S.RES ERJ2GEJ 560 X (56) T 6.8/45.6
R30 7030008400 S.RES ERJ2GEJ 182 X (1.8 k) B 4.1/13.4
R31 7030010010 S.RES ERJ2RKF 334 X (330 k) T 12.2/51
R32 7030010020 S.RES ERJ2RKF 154 X (150 k) T 11.2/53.2
R33 7030000170 S.RES MCR10EZHJ 18 (180) T 8.9/34.5
R34 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 8/36.7
R35 7030000160 S.RES MCR10EZHJ 15 (150) T 7/34.5
R36 7030003400 S.RES ERJ3GEYJ 471 V (470) T 2.7/40.5
R37 7030008280 S.RES ERJ2GEJ 271 X (270) T 5.6/39.8
R38 7030000190 S.RES MCR10EZHJ 27 (270) T 5.1/34.5
R39 7030000190 S.RES MCR10EZHJ 27 (270) T 3.3/34.5
R40 7030000010 S.RES MCR10EZHJ JPW (000) B 42.5/3.7
R48 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 31.6/10.4
R49 7030010040 S.RES ERJ2GEJ-JPW B 31.6/7.7
R50 7030005700 S.RES ERJ2GEJ 274 X (270 k) B 31.6/9.5
R52 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 31.6/34.6
R53 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 32.5/36.6
R54 7030008300 S.RES ERJ2GEJ 184 X (180 k) T 32.8/31.4
R57 7030005110 S.RES ERJ2GEJ 224 X (220 k) B 40.4/33.7
R59 7030004980 S.RES ERJ2GEJ 101 X (100) B 31.6/34.2
R61 7030005530 S.RES ERJ2GEJ 100 X (10) B 28.1/29.4
R64 7030005110 S.RES ERJ2GEJ 224 X (220 k) B 36.6/28
R66 7030005110 S.RES ERJ2GEJ 224 X (220 k) B 36.6/23.5
R68 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 32.6/16.8
R69 7030004980 S.RES ERJ2GEJ 101 X (100) B 33/19.1
R70 7030008300 S.RES ERJ2GEJ 184 X (180 k) B 31.9/22.1
R71 7030005000 S.RES ERJ2GEJ 471 X (470) B 28.8/22.1
R72 7030005310 S.RES ERJ2GEJ 124 X (120 k) B 31/26.2
R75 7030004990 S.RES ERJ2GEJ 221 X (220) B 27.8/27.7
R77 7030004980 S.RES ERJ2GEJ 101 X (100) B 28.8/20.5
R79 7030005000 S.RES ERJ2GEJ 471 X (470) B 16.1/22
R80 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 14.5/22
R81 7030005000 S.RES ERJ2GEJ 471 X (470) B 7.4/22.3
R82 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 12.5/31.7
R83 7030005000 S.RES ERJ2GEJ 471 X (470) B 13.5/30.1
R84 7030009280 S.RES ERJ2GEJ 391 X T 8.8/25.5
R85 7030005030 S.RES ERJ2GEJ 152 X (1.5 k) T 7.1/25.4
R86 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 7/30.1
R87 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) B 8.8/30.1
R88 7030005060 S.RES ERJ2GEJ 333 X (33 k) B 9.7/30.1
S.=Surface mount
[RF UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
R141 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) T 35.9/15.5
R150 7030005000 S.RES ERJ2GEJ 471 X (470) B 37.3/18.1
R160 7030000290 S.RES MCR10EZHJ 181 (180) B 30.1/36.5
R161 7030005220 S.RES ERJ2GEJ 223 X (22 k) T 30/42.6
R162 7030005220 S.RES ERJ2GEJ 223 X (22 k) T 30.6/44.7
R163 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) T 29/45.3
R184 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 6.4/18.9
R185 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 5.5/22.4
R186 7030005240 S.RES ERJ2GEJ 473 X (47 k) T 7.3/20.5
R187 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 32.9/28.2
R210 7030008410 S.RES ERJ2GEJ 392 X (3.9 k) T 30.9/36.4
R222 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 35.7/33.2
R244 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 14.9/24.8
R251 7030005230 S.RES ERJ2GEJ 334 X (330 k) T 30/34.6
R252 7030005310 S.RES ERJ2GEJ 124 X (120 k) B 36/32
R258 7030008300 S.RES ERJ2GEJ 184 X (180 k) B 33.2/33.2
R259 7030005110 S.RES ERJ2GEJ 224 X (220 k) B 36/30.2
R260 7030005220 S.RES ERJ2GEJ 223 X (22 k) T 40.5/21.1
R262 7030008370 S.RES ERJ2GEJ 561 X (560) B 26.3/23.5
R337 7030007310 S.RES ERJ2GEJ 155 X (1.5 M) B 6.7/13.2
R340 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) T 27.8/39
R341 7030005240 S.RES ERJ2GEJ 473 X (47 k) T 27.6/41.8
R357 7030007340 S.RES ERJ2GEJ 153 X (15 k) T 27.4/33.1
R358 7030005600 S.RES ERJ2GEJ 273 X (27 k) T 26/30.2
R377 7030008300 S.RES ERJ2GEJ 184 X (180 k) T 27.8/30.1
R378 7030005240 S.RES ERJ2GEJ 473 X (47 k) T 27.8/29.2
R379 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 28/26.4
R380 7030005170 S.RES ERJ2GEJ 474 X (470 k) T 28/28
R402 7030010040 S.RES ERJ2GEJ-JPW B 9.4/8.7
R417 7030010040 S.RES ERJ2GEJ-JPW B 31.2/15.3
R418 7030010040 S.RES ERJ2GEJ-JPW B 31.7/16.5
R419 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 31.7/14.1
R420 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) T 27.4/14
R421 7030010040 S.RES ERJ2GEJ-JPW B 26.7/16.1
R422 7030005000 S.RES ERJ2GEJ 471 X (470) B 27.8/11.4
R423 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 26.5/10.2
R424 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 26.3/12
R425 7030004980 S.RES ERJ2GEJ 101 X (100) B 25.6/8.3
R426 7030005000 S.RES ERJ2GEJ 471 X (470) B 25.5/4.8
R427 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 24.2/5.8
R428 7030008410 S.RES ERJ2GEJ 392 X (3.9 k) B 24.6/7
R429 7030005710 S.RES ERJ2GEJ 121 X (120) B 23.2/4.9
R430 7030007250 S.RES ERJ2GEJ 220 X (22) B 24.2/11.3
R431 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 22.9/14.1
R432 7030007310 S.RES ERJ2GEJ 155 X (1.5 M) T 17.7/17
R433 7030004970 S.RES ERJ2GEJ 470 X (47) B 21.8/4.6
R434 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 19.4/6.1
R435 7030009270 S.RES ERJ2GEJ 821 X (820) B 22.7/6.7
R436 7030007350 S.RES ERJ2GEJ 393 X (39 k) B 17.7/7.2
R437 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 23.3/9.8
R438 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 19.3/10.8
R439 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 20.7/9.7
R440 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 16.5/5.3
R441 7030007320 S.RES ERJ2GEJ 225 X (2.2 M) B 18.6/4.8
R442 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 17.7/4.8
R443 7030005220 S.RES ERJ2GEJ 223 X (22 k) T 35.7/10.6
R444 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 36.6/12.9
R445 7030009290 S.RES ERJ2GEJ 562 X (5.6 k) T 11.2/13.1
R446 7030005010 S.RES ERJ2GEJ 681 X (680) T 7.3/18.9
R447 7030005010 S.RES ERJ2GEJ 681 X (680) T 2.4/11.6
R448 7030007570 S.RES ERJ2GEJ 122 X (1.2 k) T 2.4/10.7
R449 7030004980 S.RES ERJ2GEJ 101 X (100) T 7.3/15.5
R455 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 13.8/20.3
R456 7030010040 S.RES ERJ2GEJ-JPW B 12.8/20.3
R457 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 15.7/13.9
R458 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 15.7/14.8
R459 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 15.7/16.6
R460 7030008290 S.RES ERJ2GEJ 183 X (18 k) T 16.4/18.6
R463 7030007060 S.RES ERJ2GEJ 684X (680 k) T 12.4/18.6
R465 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 12.7/21.5
R466 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 28.8/30.9
R467 7030005110 S.RES ERJ2GEJ 224 X (220 k) B 37.8/21.3
R469 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 12.8/10.1
R487 7030005220 S.RES ERJ2GEJ 223 X (22 k) T 14.1/16.6
R488 7030005220 S.RES ERJ2GEJ 223 X (22 k) T 14.1/14.8
R489 7030005220 S.RES ERJ2GEJ 223 X (22 k) T 14.1/13.9
R503 7030004980 S.RES ERJ2GEJ 101 X (100) T 32.8/33
R504 7030005220 S.RES ERJ2GEJ 223 X (22 k) T 14.1/15.7
R505 7030007270 S.RES ERJ2GEJ 151 X (150) B 7.9/4.3
R512 7030004970 S.RES ERJ2GEJ 470 X (47) T 24.8/30.4
R514 7030004980 S.RES ERJ2GEJ 101 X (100) B 8/3.4
R516 7030005310 S.RES ERJ2GEJ 124 X (120 k) B 31.9/24.6
R517 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 30/26.2
R518 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 15.7/15.7
R519 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 3.8/18.5
R520 7030005170 S.RES ERJ2GEJ 474 X (470 k) B 2/17.8
R523 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 19.9/21.3
R524 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 27.7/17.2
R526 7030003860 S.RES ERJ3GE JPW V B 35.5/35.2
R601 7030000290 S.RES MCR10EZHJ 181 (180) B 32.4/36.6
R602 7030000010 S.RES MCR10EZHJ JPW (000) T 18.8/50.2
C1 4030006980 S.CER C1608 CH 1H 070D-T B 39.3/51.2
C2 4030009530 S.CER C1608 CH 1H 030B-T B 41.4/47.5
C3 4030007060 S.CER C1608 CH 1H 270J-T B 35.7/51.4
C4 4030009920 S.CER C1608 CH 1H 050B-T B 36.4/46.5
C5 4030007050 S.CER C1608 CH 1H 220J-T B 34.5/51.4
C6 4030017460 S.CER ECJ0EB1E102K T 30.7/5.6
C8 4030006860 S.CER C1608 JB 1H 102K-T B 34.4/45.8
C9 4030016930 S.CER ECJ0EB1A104K T 33/8.4
C10 4030017460 S.CER ECJ0EB1E102K T 29.3/43.9
C11 4030017460 S.CER ECJ0EB1E102K T 10.5/44.2
C13 4030017460 S.CER ECJ0EB1E102K T 28.5/42.6

6 - 4
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
[RF UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
C14 4030016790 S.CER ECJ0EB1C103K T 17.1/37.9
C15 4030007090 S.CER C1608 CH 1H 470J-T T 25.7/36.2
C16 4030017460 S.CER ECJ0EB1E102K T 9.9/46.9
C17 4030017460 S.CER ECJ0EB1E102K T 25.4/32.5
C18 4030017460 S.CER ECJ0EB1E102K B 27.4/33.1
C19 4030016790 S.CER ECJ0EB1C103K T 16.9/33.3
C20 4030017460 S.CER ECJ0EB1E102K T 13.5/37
C21 4550006480 S.TAN TEESVA 1C 475M8R T 15.1/37.2
C22 4030017430 S.CER ECJ0EC1H101J T 26/26.8
C23 4030017460 S.CER ECJ0EB1E102K T 26/22.6
C24 4030017460 S.CER ECJ0EB1E102K T 21.1/23.9
C25 4030017460 S.CER ECJ0EB1E102K T 24.8/22.2
C26 4030017460 S.CER ECJ0EB1E102K T 23.9/20.6
C30 4030016970 S.CER ECJ0EB1C223K T 20.6/50.4
C31 4030017420 S.CER ECJ0EC1H470J B 33.3/7.8
C32 4030016970 S.CER ECJ0EB1C223K T 10.9/47.9
C33 4030017460 S.CER ECJ0EB1E102K B 33.2/5.5
C34 4030016930 S.CER ECJ0EB1A104K T 12.2/53.2
C35 4030006900 S.CER C1608 JB 1H 103K-T T 20.4/52.2
C36 4030017460 S.CER ECJ0EB1E102K T 20.6/49.5
C37 4030017460 S.CER ECJ0EB1E102K B 35.2/5.7
C38 4030017420 S.CER ECJ0EC1H470J B 41.1/7
C39 4030017460 S.CER ECJ0EB1E102K B 40.4/2.9
C41 4030017440 S.CER ECJ0EC1H221J B 40.4/4.5
C50 4550006250 S.TAN TEESVA 1A 106M8R B 3.5/9.8
C52 4030007080 S.CER C1608 CH 1H 390J-T B 39.2/42.4
C54 4030017460 S.CER ECJ0EB1E102K B 10/10.5
C70 4030017460 S.CER ECJ0EB1E102K B 31.6/8.6
C73 4030016930 S.CER ECJ0EB1A104K T 31.6/35.5
C75 4030016930 S.CER ECJ0EB1A104K T 30/35.5
C76 4030007040 S.CER C1608 CH 1H 180J-T B 36.4/45.1
C79 4030017590 S.CER ECJ0EC1H070C B 37.2/36.1
C81 4030017440 S.CER ECJ0EC1H221J B 37.6/34.8
C82 4030017460 S.CER ECJ0EB1E102K B 42/33.9
C87 4030016790 S.CER ECJ0EB1C103K B 31.6/32.4
C88 4030017460 S.CER ECJ0EB1E102K B 31.6/33.3
C89 4030017460 S.CER ECJ0EB1E102K B 33.4/29.4
C90 4030017460 S.CER ECJ0EB1E102K B 29.4/33.8
C92 4030017690 S.CER ECJ0EC1H121J B 35/28.9
C93 4030017460 S.CER ECJ0EB1E102K B 38.6/28
C94 4030017340 S.CER ECJ0EC1H010B B 33.8/26.6
C95 4030017460 S.CER ECJ0EB1E102K B 38.8/23.5
C96 4030017680 S.CER ECJ0EC1H820J B 35.1/24.8
C97 4030017340 S.CER ECJ0EC1H010B B 35/28
C99 4030017460 S.CER ECJ0EB1E102K B 33/18.2
C102 4030017600 S.CER ECJ0EC1H080C B 31/22.1
C104 4030017460 S.CER ECJ0EB1E102K B 28/25.9
C105 4030016790 S.CER ECJ0EB1C103K B 28/26.8
C106 4030017390 S.CER ECJ0EC1H180J B 25.1/22
C107 4030017460 S.CER ECJ0EB1E102K B 30.2/27.8
C108 4030016790 S.CER ECJ0EB1C103K B 31.1/27.8
C110 4030017380 S.CER ECJ0EC1H050B B 15.8/24.2
C111 4030016790 S.CER ECJ0EB1C103K B 7.7/20
C112 4030017460 S.CER ECJ0EB1E102K B 14.5/30.1
C113 4030017460 S.CER ECJ0EB1E102K B 12.5/30.1
C114 4030017040 S.CER ECJ0EB1A333K B 14.3/26.9
C115 4030017460 S.CER ECJ0EB1E102K B 13.9/23.7
C116 4030017680 S.CER ECJ0EC1H820J B 13.9/28.1
C117 4030017460 S.CER ECJ0EB1E102K B 4.6/27.1
C118 4030016790 S.CER ECJ0EB1C103K B 11.5/30.1
C119 4030018860 S.CER ECJ0EB0J105K B 4.6/26.2
C120 4030016930 S.CER ECJ0EB1A104K B 4.6/28
C121 4030017440 S.CER ECJ0EC1H221J B 6/30.1
C122 4030017440 S.CER ECJ0EC1H221J B 7.9/30.1
C123 4030017460 S.CER ECJ0EB1E102K B 42/18.5
C138 4030017460 S.CER ECJ0EB1E102K B 36/31.1
C162 4030016790 S.CER ECJ0EB1C103K T 41.4/20
C173 4510008500 S.ELE EEE1CA101WP T 30.3/22
C204 4030017460 S.CER ECJ0EB1E102K B 30.1/39.4
C205 4030006860 S.CER C1608 JB 1H 102K-T B 32.2/42.9
C233 4030017460 S.CER ECJ0EB1E102K T 6.4/20.5
C234 4030017460 S.CER ECJ0EB1E102K T 6.4/22.4
C236 4030016790 S.CER ECJ0EB1C103K B 38/19.5
C243 4030017460 S.CER ECJ0EB1E102K T 32.5/38.4
C244 4030016790 S.CER ECJ0EB1C103K B 39.3/18.7
C251 4030017460 S.CER ECJ0EB1E102K T 30.6/45.7
C252 4030017460 S.CER ECJ0EB1E102K T 31.4/40.5
C277 4030017510 S.CER ECJ0EC1H680J B 34.2/33.2
C278 4030007040 S.CER C1608 CH 1H 180J-T B 29.7/42.3
C281 4030010760 S.CER C1608 CH 1H 331J-T B 30.2/46.7
C285 4030009650 S.CER C1608 CH 1H 240J-T B 28.9/46.7
C287 4030007050 S.CER C1608 CH 1H 220J-T B 33/50.5
C288 4030017460 S.CER ECJ0EB1E102K B 30.1/38.5
C289 4030017460 S.CER ECJ0EB1E102K T 13.5/38.6
C293 4030016930 S.CER ECJ0EB1A104K T 16.4/17.7
C298 4550005980 S.TAN TEESVA 1A 475M8R B 27.8/37.6
C300 4030017460 S.CER ECJ0EB1E102K B 25.1/11.3
C301 4030017460 S.CER ECJ0EB1E102K B 3.1/13.4
C303 4030017460 S.CER ECJ0EB1E102K B 13.9/25.3
C351 4030017570 S.CER ECJ0EC1H040B B 25.4/23.9
C386 4030017590 S.CER ECJ0EC1H070C T 6.6/23.7
C387 4030017360 S.CER ECJ0EC1H030B T 7.9/22.2
C398 4550005980 S.TAN TEESVA 1A 475M8R T 36.4/21.7
C412 4030016790 S.CER ECJ0EB1C103K T 32.5/27.1
C413 4030017460 S.CER ECJ0EB1E102K B 4.9/5.7
C421 4030016930 S.CER ECJ0EB1A104K B 4.8/30.1
C422 4030016930 S.CER ECJ0EB1A104K B 10.6/30.1
C429 4030018860 S.CER ECJ0EB0J105K B 7/11.9
C430 4030016790 S.CER ECJ0EB1C103K B 7/10.1
C433 4030017390 S.CER ECJ0EC1H180J T 23.7/16.7
C434 4030017390 S.CER ECJ0EC1H180J T 26/20.8
C435 4030017640 S.CER ECJ0EC1H150J B 31.5/20.9
C437 4030017640 S.CER ECJ0EC1H150J B 30.8/16.5
C438 4030017460 S.CER ECJ0EB1E102K B 30.8/13.4
S.=Surface mount
[RF UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
C439 4030017340 S.CER ECJ0EC1H010B T 24.4/14.1
C440 4030017600 S.CER ECJ0EC1H080C B 27.8/16.1
C441 4030017460 S.CER ECJ0EB1E102K T 23.1/12.3
C442 4030017460 S.CER ECJ0EB1E102K B 26.4/11.1
C443 4030017420 S.CER ECJ0EC1H470J B 27.3/9.2
C444 4030017570 S.CER ECJ0EC1H040B B 24.9/10.1
C445 4030017530 S.CER ECJ0EC1H0R5B B 24.9/9.2
C446 4030017400 S.CER ECJ0EC1H220J B 27.3/8.3
C447 4030017340 S.CER ECJ0EC1H010B B 27.1/4.4
C448 4030017340 S.CER ECJ0EC1H010B B 22.6/5.8
C449 4030017460 S.CER ECJ0EB1E102K B 24.6/4.6
C450 4030017460 S.CER ECJ0EB1E102K B 25.5/6.4
C451 4030017360 S.CER ECJ0EC1H030B B 23.7/12.9
C452 4030017570 S.CER ECJ0EC1H040B B 21.4/15.3
C453 4030017420 S.CER ECJ0EC1H470J B 21.1/16.5
C454 4030017360 S.CER ECJ0EC1H030B T 19.8/16.5
C455 4030017360 S.CER ECJ0EC1H030B T 18.6/17
C456 4030007040 S.CER C1608 CH 1H 180J-T B 22.9/7.8
C457 4030007050 S.CER C1608 CH 1H 220J-T B 20.3/7.6
C458 4030017460 S.CER ECJ0EB1E102K B 20/4.6
C459 4030017460 S.CER ECJ0EB1E102K T 30.6/8.7
C460 4030007020 S.CER C1608 CH 1H 120J-T B 17.2/9.6
C461 4030017460 S.CER ECJ0EB1E102K B 19.2/12
C462 4030017460 S.CER ECJ0EB1E102K B 23.3/8.9
C463 4030017460 S.CER ECJ0EB1E102K B 18.6/7.4
C464 4030006910 S.CER C1608 CH 1H 0R5C-T B 15.9/9.6
C465 4030017460 S.CER ECJ0EB1E102K B 16.5/4.4
C466 4030007110 S.CER C1608 CH 1H 680J-T B 27.8/41.7
C467 4030007010 S.CER C1608 CH 1H 100D-T T 26.3/46.5
C471 4030011600 S.CER C1608 JB 1E 104K-T T 35.6/11.8
C472 4550004040 S.TAN TEESVA 0J 685M8R T 1.3/14.6
C473 4550000550 S.TAN TEESVA 1V 224M8R T 1.3/7.7
C474 4550000530 S.TAN TEESVA 1V 104M8R T 3.4/14.6
C475 4030017460 S.CER ECJ0EB1E102K T 2.8/18.1
C476 4030017460 S.CER ECJ0EB1E102K T 11.2/12.2
C478 4030017460 S.CER ECJ0EB1E102K B 27.2/23.5
C479 4030016790 S.CER ECJ0EB1C103K B 15.1/22.9
C482 4030017460 S.CER ECJ0EB1E102K B 10.4/19.9
C486 4030016930 S.CER ECJ0EB1A104K B 9.4/9.6
C487 4030017420 S.CER ECJ0EC1H470J T 13.9/19.3
C488 4030017730 S.CER ECJ0EB1E471K T 14.3/20.5
C489 4030017460 S.CER ECJ0EB1E102K B 7/11
C491 4030017500 S.CER ECJ0EC1H560J T 10.3/21.6
C492 4030017570 S.CER ECJ0EC1H040B T 8.8/22.2
C493 4030017460 S.CER ECJ0EB1E102K T 15/22
C496 4030016790 S.CER ECJ0EB1C103K T 12.7/20.5
C497 4030017380 S.CER ECJ0EC1H050B T 10.4/16.3
C499 4030017360 S.CER ECJ0EC1H030B B 32/30.4
C500 4030018860 S.CER ECJ0EB0J105K B 27.9/31
C502 4030017350 S.CER ECJ0EC1H020B B 33.8/28.2
C503 4030017340 S.CER ECJ0EC1H010B B 33.8/25
C504 4030017340 S.CER ECJ0EC1H010B B 33.8/23.4
C505 4030017430 S.CER ECJ0EC1H101J B 35/22.4
C506 4030017460 S.CER ECJ0EB1E102K B 40/21.3
C507 4030017350 S.CER ECJ0EC1H020B B 36.6/21
C509 4030017460 S.CER ECJ0EB1E102K B 12.4/8.7
C510 4030007120 S.CER C1608 CH 1H 820J-T T 27.5/46.5
C511 4030017460 S.CER ECJ0EB1E102K T 29.3/17.2
C512 4030017460 S.CER ECJ0EB1E102K T 29/38.2
C516 4030007030 S.CER C1608 CH 1H 150J-T B 39.2/36
C518 4030017460 S.CER ECJ0EB1E102K T 19.7/12.8
C519 4340000260 S.MLR ECPU1C104MA5 B 16.1/15.2
C521 4030017460 S.CER ECJ0EB1E102K B 8.2/10
C522 4030018860 S.CER ECJ0EB0J105K B 31.6/12.2
C523 4030018860 S.CER ECJ0EB0J105K B 31.6/11.3
C534 4030017650 S.CER ECJ0EC1H270J B 30.9/18.1
C536 4030009510 S.CER C1608 CH 1H 010B-T B 32.3/48.6
C537 4030009510 S.CER C1608 CH 1H 010B-T B 29.7/40.5
C538 4030017460 S.CER ECJ0EB1E102K B 32.4/23.4
C539 4030017460 S.CER ECJ0EB1E102K B 31/23.7
C541 4030017420 S.CER ECJ0EC1H470J B 3.1/30.2
C542 4030017460 S.CER ECJ0EB1E102K B 24.8/15.6
C543 4030017420 S.CER ECJ0EC1H470J T 36.4/9.4
C544 4030017420 S.CER ECJ0EC1H470J T 37.4/9.4
C545 4030017420 S.CER ECJ0EC1H470J T 39.6/8.6
C546 4030017420 S.CER ECJ0EC1H470J T 23.2/1.6
C548 4030017420 S.CER ECJ0EC1H470J T 22.3/2
C549 4030017420 S.CER ECJ0EC1H470J T 21.4/2
C550 4030017420 S.CER ECJ0EC1H470J T 20.5/2
C552 4030017420 S.CER ECJ0EC1H470J T 19.6/2
C553 4030017420 S.CER ECJ0EC1H470J T 18.7/2
C556 4030017420 S.CER ECJ0EC1H470J T 17.8/2
C565 4030017420 S.CER ECJ0EC1H470J T 13.8/2
C566 4030017420 S.CER ECJ0EC1H470J T 12.9/2
C567 4030017420 S.CER ECJ0EC1H470J T 12/2
C601 4030017460 S.CER ECJ0EB1E102K B 32/28.1
C602 4030017460 S.CER ECJ0EB1E102K B 29.3/27.8
C603 4030017460 S.CER ECJ0EB1E102K B 27/25.2
C604 4030017460 S.CER ECJ0EB1E102K B 33.8/35.2
J1 6450000870 CNR HEC2711-01-020
J2 6510023521 S.CNR 54104-3696 (3692) T 17.6/6.3
J3 6510025910 CNR BNC-R169
EP1 6910014690 S.BEA MPZ1608S221A-T B 34.9/6.8
EP3 6910014640 S.BEA MPZ2012S221A-T B 37/5.8

Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
7 - 1
SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
[CHASSIS PARTS]
REF ORDER DESCRIPTION QTY.
NO. NO.
MP1 8010020620 2964 CHASSIS 1
MP2 8210023390 2964 T-FRONT PANEL (incl. MP4, 5, 6, 7, 12, 14, 24)
Except [THA] 1
8210023470 2964 T-FRONT PANEL (A) (incl. MP4, 5, 6, 7, 12, 14, 24)
[THA] 1
MP3 8210023400 2964 REAR PANEL 1
MP4 8310068430 2964 WINDOW PLATE 1
MP5 8930071230 2964 WINDOW SHEET 1
MP6 8210023410 2964 PTT PANEL 1
MP7 8930071120 2964 PTT BUTTON 1
MP8 8930071130 2964 JACK CAP 1
MP9 8930071110 2964 DC CAP 1
MP10 8930071150 2964 T-KEY 1
MP11 8930071180 2964 MAIN SEAL 1
MP12 8930071190 2964 PTT RUBBER 1
MP13 8930071200 2964 JACK PLATE 1
MP14 8930050220 1903 SP NET 1
MP15 8830001340 1903 HEX NUT 1
MP16 8830001250 ANT CONNECTOR-101 nut 1
MP17 8610012170 KNOB N-326 1
MP18 8930051290 2251 OPT SHEET 1
MP19 8930059360 2600 RELEASE BUTTON 1
MP20 8930063030 2721 RELEASE PLATE 1
MP21 8930048840 2135 MIC SPONGE 1
MP22 8930056540 Push spring (AH) 2
MP23 8930055870 O-ring (AO) 1
MP24 8930046020 1123 SHEET (A)-1 1
MP25 8610009240 knob spring NO.7800P 1
MP26 8810008641 0 tap 1 flat washer B0 2X4 NI-ZC3 (BT) 5
MP27 8810010191 Screw BiH M2X4 SUS SSBC 2
MP28 8810009511 Screw BT B0 2X4 NI-ZC3 (BT) 7
MP29 8810009221 Screw BT B0 2X8 NI-ZK3 (BT) 2
MP30 8810009561 Screw BT B0 2X6 NI-ZK3 (BT) 3
[LOGIC UNIT]
[ACCESSORIES]
[RF UNIT]
REF ORDER DESCRIPTION QTY.
NO. NO.
DS4 5030002970 S10996 1
MC1 7700002710 EM6027P-46C33-G 1
S3 2260002840 SKHLLFA010 1
S801 7600000210 TP70N00E2015F-1903 1
S802 2260002840 SKHLLFA010 1
SP1 2510000840 CS028014-12 1
W5 8900016360 OPC-1190A 1
W6 8900016400 OPC-1715 1
EP1 8930071440 SRCN-2964-SP-N-W 1
MP1 8210023420 2964 REFLECTOR 1
MP2 8930071210 2964 LCD HOLDER 1
MP3 8510018220 2964 LOGIC SHIELD 1
REF ORDER DESCRIPTION QTY.
NO. NO.
J1 6450000870 HEC2711-01-020 1
J2 6510023521 54104-3696 1
J3 6510025910 BNC-R169 1
MP1* 8510018120 2964 VCO CASE 1
MP2 8950005512 2403 CONTACT SPRING -2 1
MP5* 8410002650 2964 PA HEATSINK 1
MP6 8510016120 2721 VCO COVER 1
MP7 8930072060 Shield sponge (BU) 1
MP8 8510017480 2964 RF SHIELD 1
MP9 8930072250 2964 ANT SPRING 1
REF ORDER DESCRIPTION QTY.
NO. NO.
EP1
OptionalProduct
BP-226 EXP [USA], [EUR], [TPE], [THA], [EXP] 1
OptionalProduct
BP-227 [USA-2], [EUR-1], [UK], [KOR], [TPE-2], [EXP-2] 1
EP2
OptionalProduct
BC-167D [UK],[EXP-2] 1
OptionalProduct
BC-167A [USA-2], [TPE-2] 1
EP3
OptionalProduct
FA-B2E 1
EP5 6910018620 BLACK HANDY STRAP 1
MP1
OptionalProduct
MB-98 1
MP2 8930051290 2251 OPTION SHEET 1
EP3
EP5
EP1
MP1
EP2
MP2
*: Refer to SECTION 9 BOARD LAYOUTS.

7 - 2
MP17(C)
MP2(C)
MP5(C)
MP10(C)
MP8(C)
SP1(L)
MP1(C)
MP9(R)
MP28(C)
MP28(C)
MP28(C)
MP28(C)
MP28(C)
MP28(C)
MP28(C)
MP8(R)
MP13(C)
MP26(C)
MP26(C)
MP26(C)
MP26(C)
W6(L)
MP9(C)
MP19(C)
MP20(C)
MP22(C)
MP2(L)
MP3(L)
DS4(L) EP2(L)
MP1(C)
LOGIC UNIT
RF UNIT
MC1(L)
W5(L)
A
MP18(C)
MP3(C)
J3(R)
MP15(C)
MP2(R)
MP23(C)
MP4(C)
MP16(C) A
MP29(C)
MP29(C)
MP11(C)
V85A3.indd2-3 1/19/200710:44:07AM
