USER’S MANUAL
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
Model No. NTSY24918.0
Serial No.
Write the serial number in the space
above for reference.
nordictrack.com
Serial
Number
Decal
To register your product and
activate your warranty today,
go to my.nordictrack.com.
For service at any time, go to
support.nordictrack.com.
Or call 1-800-TO-BE-FIT
(1-800-862-3348)
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
ACTIVATE YOUR
WARRANTY
CUSTOMER CARE

2
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
IMPORTANT PRECAUTIONS..................................................................4
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
THE CHEST HEART RATE MONITOR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
HOW TO USE THE STRENGTH SYSTEM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
MAINTENANCE AND TROUBLESHOOTING.....................................................33
CARDIO EXERCISE GUIDELINES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
STRENGTH EXERCISE GUIDELINES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
TABLE OF CONTENTS
NORDICTRACK and IFIT are registered trademarks of ICON Health & Fitness, Inc. Android is a trademark of
Google LLC. The Bluetooth®word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used
under license.

3
This drawing shows the location(s)
of the warning decal(s). If a decal is
missing or illegible, see the front
cover of this manual and request
a free replacement decal. Apply
the decal in the location shown.
Note: The decal(s) may not be
shown at actual size.
WARNING DECAL PLACEMENT
415225
415226
75%
415227
2
2
2
2
34
4
1
3
3
4
4
4
6
6
1
5
5
5

4
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your strength system before using your strength
system. ICON assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
1. It is the responsibility of the owner to ensure
that all users of the strength system are
adequately informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
3. The strength system is not intended for use
by persons with reduced physical, sensory,
or mental capabilities or lack of experi-
ence and knowledge, unless they are given
supervision or instruction about use of the
strength system by someone responsible for
their safety.
4. Use the strength system only as described in
this manual.
5. The strength system is intended for home
use only. Do not use the strength system in a
commercial, rental, or institutional setting.
6. Keep the strength system indoors, away
from moisture and dust. Do not put the
strength system in a garage or covered
patio, or near water.
7. Place the strength system on a level surface
with at least 6 ft. (1.8 m) of clearance around
the strength system. To protect the floor or
carpet from damage, place a mat under the
strength system.
8. Obtain professional advice and have a
qualified person install the brackets to
ensure adequate support. Serious injury
could result if the brackets are improperly
installed.
9. The location on the wall to which the
brackets are fastened must be capable
of supporting a working load of 600 lbs.
(272 kg). Do not fasten the brackets to a
drywall surface or to a cinder block surface.
10. Inspect and properly tighten all parts each
time the strength system is used. Replace
any worn parts immediately.
11. Keep children under age 16 and pets away
from the strength system at all times.
12. Users weighing more than 350 lbs. (159 kg)
should not use the strength system.
13. The weight rests and weight spotters are
designed to support a maximum weight
of 310 lbs. (141 kg), including weights and
a barbell. The pull-up bar is designed to
support a maximum user weight of 350 lbs.
(159 kg). The weight storage tubes are
designed to support a maximum weight of
300 lbs. (136 kg) Note: The strength system
does not include weights or a barbell.
14. Always place both weight rests at the same
height and both weight spotters at the same
height. Make sure that there are at least three
adjustment holes between the weight rests
and the weight spotters.
15. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the strength system. Always wear
athletic shoes for foot protection.
16. Keep hands and feet away from moving
parts.
17. Pull and release the handles and ankle straps
in a controlled manner.
18. Make sure that the ropes remain on the pul-
leys at all times. If the ropes bind while you
are exercising, stop immediately and make
sure that the ropes are on the pulleys.
19. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.

5
all
STANDARD SERVICE PLANS

6
Congratulations for selecting the revolutionary
NORDICTRACK®FUSION CST PRO strength system.
The FUSION CST PRO strength system is unlike any
ordinary strength system. Whether your goal is to tone
your body, build dramatic muscle size and strength,
or improve your cardiovascular system, the strength
system has an array of innovative features that will
help you to achieve the specic results you want.
For your benefit, read this manual carefully before
you use the strength system. If you have questions
after reading this manual, please see the front cover
of this manual. To help us assist you, note the product
model number and serial number before contacting us.
The model number and the location of the serial num-
ber decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
BEFORE YOU BEGIN
Handle
Weight Rest
Pull-up Bar
Upper Pulley
Resistance Disc
Tablet Stand
Ankle Strap
Lower Pulley
Storage Tube
Weight Spotter
Console
Tablet Holder
Tablet Holder
Power Receptacle
Power Receptacle
Length: 4 ft. 2 in. (127 cm)
Width: 5 ft. 4 in. (163 cm)
Height: 7 ft. (213 cm)
Clip
USB Port
USB Port
USB Port

7
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M10 x 93mm Screw (102)–4
M10 x 90mm Screw (140)–8
3/8" x 3" Screw (158)–8
3/8" x 1 1/4"
Washer (159)–8
M10 Star
Washer (161)–4
M10 x 20mm
Patch Screw
(156)–4
M10 x 30mm
Screw (100)–2
M10 x 25mm Hex
Screw (101)–8
M10 x 35mm
Screw (95)–4
M10 x 100mm
Toggle Bolt (160)–8

8
ASSEMBLY
• Due to the size and weight of the strength system,
assembly requires two or three persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• Assembly may be easier if you have your own
set of wrenches and a step stool or a ladder. To
avoid damaging parts, do not use power tools for
assembly steps 5 to 22.
• In addition to the included tool(s), assembly
requires the following tools:
Drill with a 1/4" bit or a 7/8" bit
Pencil
Ratchet
Stud nder
Adjustable wrench
Rubber mallet
The Two Stages of the Assembly Process
Wall Bracket Assembly—You will first fasten the brackets to wood or metal studs in your wall.
Strength System Assembly—You will then attach the strength system to your wall and assemble the
strength system covers, weight rack, tower arms, and accessories.
1
1. Go to my.nordictrack.com on your computer
and register your product.
• documents your ownership
• activates your warranty
• ensures priority customer support if assistance
is ever needed
Note: If you do not have internet access, call
Customer Care (see the front cover of this
manual) and register your product.

9
Wall Bracket Assembly
• IMPORTANT: Obtain professional advice
and have a qualied person install the
brackets to ensure adequate support.
• IMPORTANT: Do not fasten the brackets
to a drywall surface or to a cinder block
surface.
• The location on the wall to which the
brackets are fastened must be capable
of supporting a working load of 600 lbs.
(272 kg). IMPORTANT: The brackets and
the strength system should not be used
by persons weighing more than 350 lbs.
(159 kg).
• The brackets must be securely fastened to
the centers of wood or metal wall studs in
a wall that is at least 7 ft. 10 in. (239 cm)
high, above a at surface that is at least 6 ft.
(183 cm) long and 6 ft. (183 cm) wide. This
placement provides sufcient space to use
the strength system effectively.
• Taking your height into consideration, make
sure that there will be adequate clearance
between the strength system and the ceiling
to perform the exercises that you wish to
perform with the strength system.

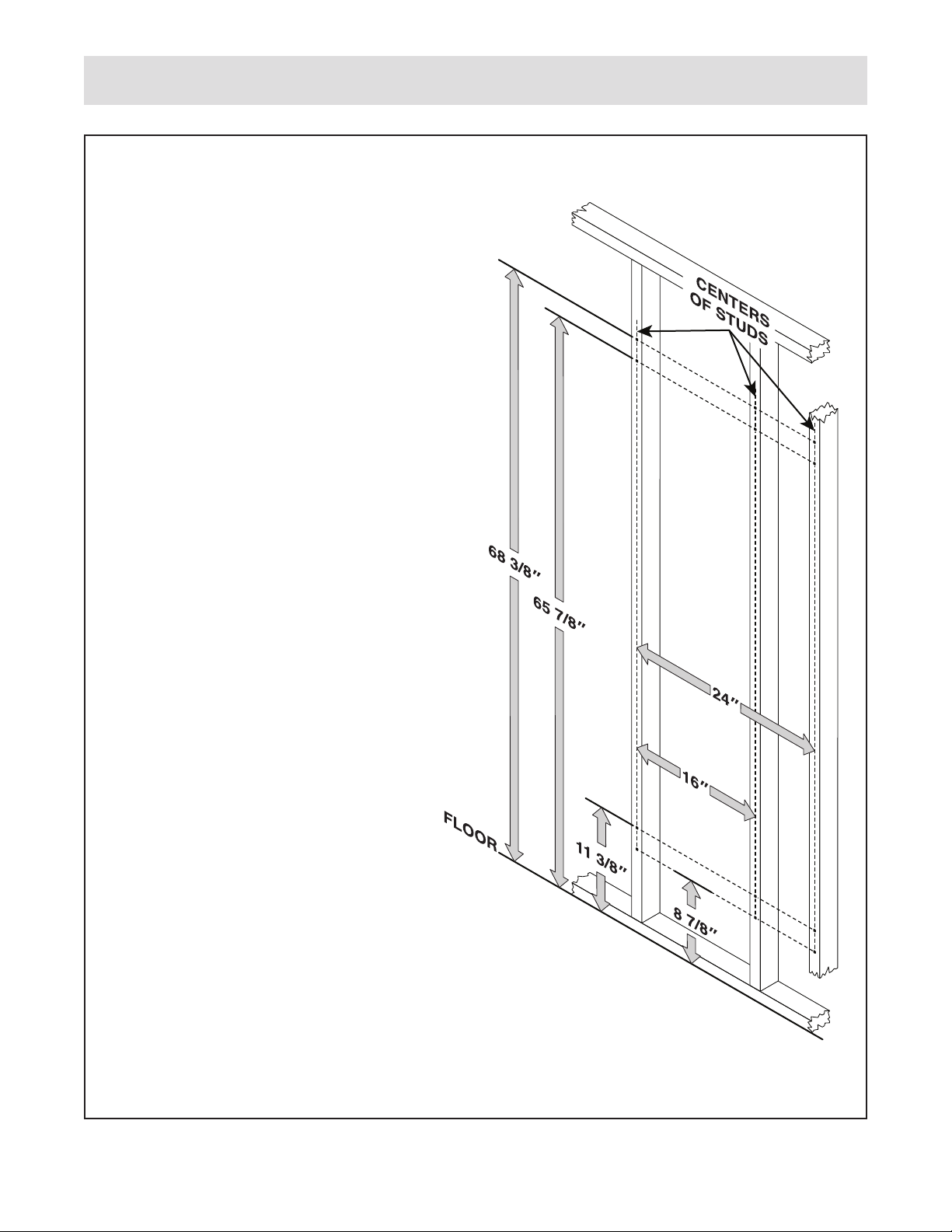

• The upper brackets. The upper hole in
each bracket must be positioned 68 3/8 in.
(174 cm) above the oor. Measuring from
upper hole to upper hole, the brackets must
be positioned 16–24 in. (41–61 cm) apart.
• The lower brackets. The lower hole in
each bracket must be positioned 8 7/8 in.
(22.5 cm) above the oor. Measuring from
lower hole to lower hole, the brackets must
be positioned 16–24 in. (41–61 cm) apart.
• If you are fastening the brackets to a
concrete surface, you will also need eight
3/8" lag screws (not included) designed
for use with eight concrete lag anchors
(not included). Follow the manufacturer’s
instructions to install the 3/8" lag screws and
the concrete lag anchors.

10
2.
Identify the two Slide Brackets (162) and the four
Wall Brackets (143).
Using your stud finder, locate the centers of two
wood or metal wall studs. IMPORTANT: Each
Bracket (143, 162) must be fastened to the
center of a wood or metal wall stud. The wall
studs can be no more than 24 in. (61 cm) and
no less than 16 in. (41 cm) apart.
If your wall studs are 16 in. (41 cm) apart,
go to step 3. You will use only the Slide
Brackets (162) to assemble the strength system.
Note: Save the unused Wall Brackets (143) in
case you need to mount the strength system
differently in the future.
If your wall studs are 24 in. (61 cm) apart, go
to step 4. You will use the Slide Brackets (162)
and the Wall Brackets (143).
WARNING: Serious injury
could result if the Slide Brackets (162)
or Wall Brackets (143) are improperly
installed. Obtain professional advice
and have a qualied person install the
Slide Brackets or Wall Brackets. Do
not fasten the Slide Brackets or Wall
Brackets to a drywall surface or to a
cinder block surface.
2
162 143

11
3
A
A
162
162
158
158
159
159
Wood Studs
Metal Studs
160
160
3. Align a Slide Bracket (162) along the centers
of the wall studs. Using your pencil, mark the
locations of the slots on the wall studs. Then,
remove the Slide Bracket.
Repeat these actions for the other Slide
Bracket (162).
Using your drill, drill pilot holes in the marked
locations on the wall. Drill 1/4" pilot holes in
wood wall studs. Drill 7/8" pilot holes in metal
wall studs. IMPORTANT: The pilot holes must
be drilled straight and perpendicular to the
center of the wall stud.
Wood Studs. If you are installing the Slide
Bracket (162) in wood wall studs, see the
upper drawing. Locate the 3/8" x 3" Screws
(158) and the 3/8" x 1 1/4" Washers (159). Align
a Slide Bracket with two sets of pilot holes.
Using your ratchet or drill, tighten four Screws
with four Washers into the Slide Bracket and the
pilot holes. Start all the Screws, and then fully
tighten them.
Metal Studs. If you are installing the Slide
Bracket (162) in metal wall studs, see the
center drawing. Locate the M10 x 100mm
Toggle Bolts (160). Align a Slide Bracket with
two sets of pilot holes. Using your ratchet or drill,
tighten four Toggle Bolts into the Slide Bracket
and the pilot holes; make sure to orient the
Toggle Bolts so that the wings (A) will open
vertically. Start all the Toggle Bolts, and then
fully tighten them.
Repeat these actions for the other Slide
Bracket (162).
Make sure that each Slide Bracket (162) is
flush with the wall and that the 3/8" x 3"
Screws (158) or the M10 x 100mm Toggle
Bolts (160) are firmly tightened. Pull firmly on
each Slide Bracket. There must not be any
movement or play in the Slide Brackets.
Then, go to step 5.

12
4. See the upper drawing. Slide a Wall Bracket
(143) onto each side of a Slide Bracket (162).
Align the Slide Bracket (162) assembly along
the centers of the wall studs. Adjust the Wall
Brackets (143) as needed. Using your pencil,
mark the locations of the slots on the wall studs.
Then, remove the Slide Bracket assembly.
Repeat these actions for the other Slide
Bracket (162) assembly.
Using your drill, drill pilot holes in the marked
locations on the wall. Drill 1/4" pilot holes in
wood wall studs. Drill 7/8" pilot holes in metal
wall studs. IMPORTANT: The pilot holes must
be drilled straight and perpendicular to the
center of the wall stud.
Wood Studs. If you are installing the Slide
Bracket (162) assembly in wood wall studs,
see the second drawing. Locate the 3/8" x 3"
Screws (158) and the 3/8" x 1 1/4" Washers
(159). Align a Slide Bracket assembly with two
sets of pilot holes. Using your ratchet or drill,
tighten four Screws with four Washers into the
Slide Bracket assembly and the pilot holes. Start
all the Screws, and then fully tighten them.
Metal Studs. If you are installing the Slide
Bracket (162) assembly in metal wall
studs, see the third drawing. Locate the
M10 x 100mm Toggle Bolts (160). Align a Slide
Bracket assembly with two sets of pilot holes.
Using your ratchet or drill, tighten four Toggle
Bolts into the Slide Bracket assembly and the
pilot holes; make sure to orient the Toggle
Bolts so that the wings (A) will open verti-
cally. Start all the Toggle Bolts, and then fully
tighten them.
Repeat these actions for the other Slide
Bracket (162) assembly.
Make sure that each Slide Bracket (162) is
flush with the wall and that the 3/8" x 3"
Screws (158) or the M10 x 100mm Toggle
Bolts (160) are firmly tightened. Pull firmly on
each Slide Bracket. There must not be any
movement or play in the Slide Brackets.
Then, go to step 5.
4
A
A
158
158
159
159
Wood
Studs
Metal
Studs
143
162
162
162
143
160
160

13
Strength System Assembly
5
5. With the help of one or two other persons, move
the strength system near the wall and align
the four Tower Brackets (163) (only one side
is shown) on the strength system with the two
Slide Brackets (162) on the wall. Tip: To protect
the floor or carpet from damage, place a mat
under the strength system.
Attach each Tower Bracket (163) to a Slide
Bracket (162) with an M10 x 20mm Patch Screw
(156) and an M10 Star Washer (161); start all
the Patch Screws, and then tighten them.
162
162
163
156
156
161
161
163
156
161
156
161

14
6
6. Firmly tighten the four indicated M10 x 20mm
Bolts (157) (only one side is shown).
157
157

15
7
7. Identify the four Slide Covers (164) and the four
Wall Covers (165). Slide the Slide Cover or
the Wall Cover that best fits onto each Wall
Bracket (162).
Note: Save the unused Slide Covers (164) or
Wall Covers (165) in case you need to mount the
strength system differently in the future.
162
164
165
164 or 165
164 or 165
164 or 165

16
8
8. Attach the Right Lower Stabilizer (130) to the
right side of the Frame (1) with four M10 x 25mm
Hex Screws (101); start all the Hex Screws,
but do not fully tighten them yet.
Attach the Left Lower Stabilizer (145) in the
same way.
130
1
145
101

17
9
9. Attach the Right Upper Stabilizer (146) to the
right side of the Frame (1) with two M10 x 35mm
Screws (95); start both Screws, but do not
fully tighten them yet.
Attach the Left Upper Stabilizer (151) in the
same way.
95
151
146
1

18
10
10. Orient the Right Upright (150) as shown.
Attach the Right Upright (150) to the Right Upper
Stabilizer (146) with an M10 x 93mm Screw
(102). Make sure to insert the Screw into the
lower hole (A); do not fully tighten the Screw
yet. This Screw will be used again in step 12.
Attach the Left Upright (149) in the same way.
102
150
A
149
146

19
11

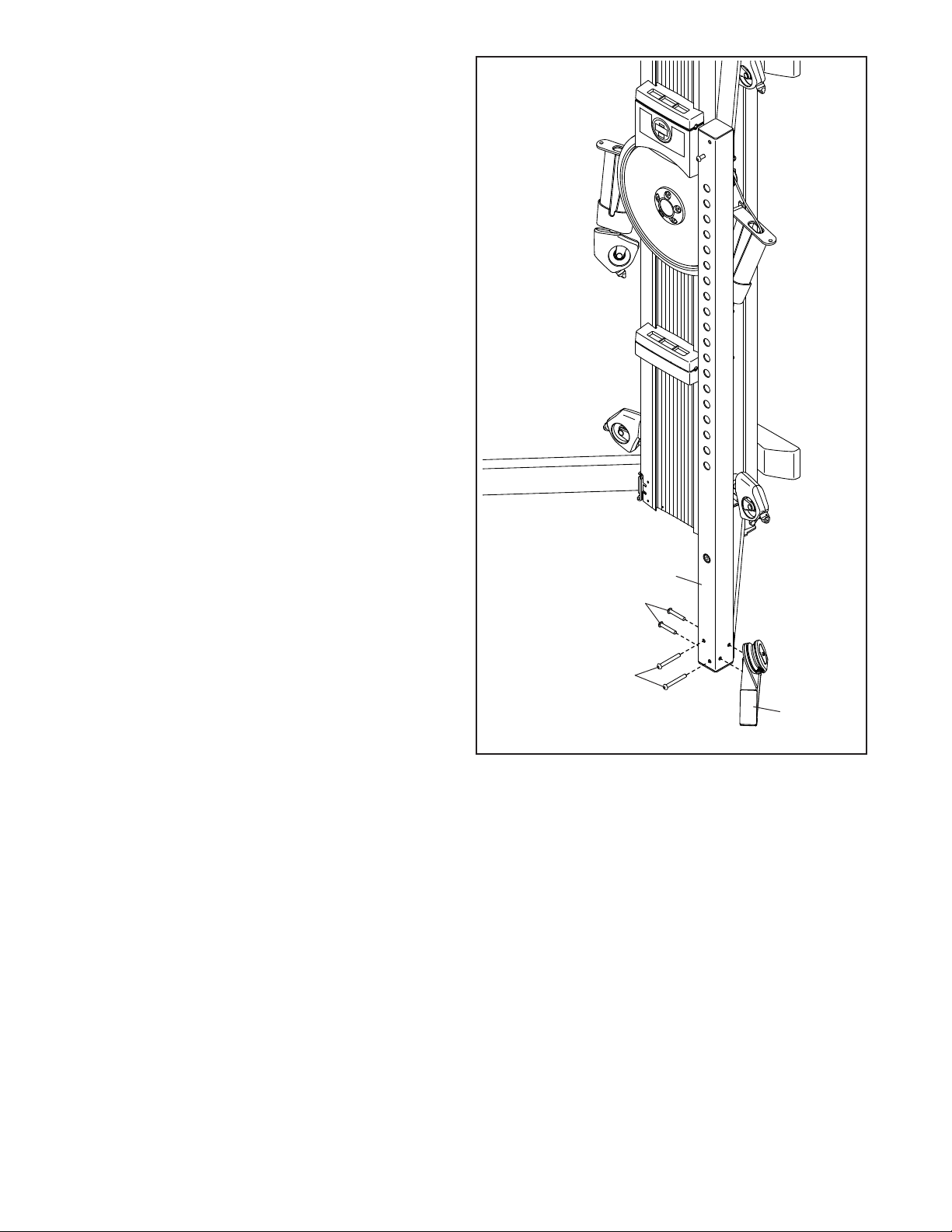

11. Attach the Right Leg (44) to the Right Upright
(150) with four M10 x 90mm Screws (140);
start all the Screws, but do not fully tighten
them yet.
Attach the Left Leg (not shown) in the
same way.
140
140
150
44

20
12
12. Slide the Pull-up Bar (147) onto the M10 x 93mm
Screws (102) in the Left and Right Uprights
(149, 150) that you attached in step 10.
Attach the Pull-up Bar (147) with two additional
M10 x 93mm Screws (102), start both Screws,
but do not fully tighten them yet.
See steps 8–12. Fully tighten all the Screws
(95, 101, 102, 140).
13
102
102
149
102
102
150
147
13. Orient the Tower Top Cover (2) as shown, and
press it onto the top of the Frame (1).
2
1
