ICON Health & Fitness PETL15717.0 User manual

Serial Number
Decal
Model No. PETL15717.0
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER’S MANUAL
www.iconeurope.com
CUSTOMER SERVICE
UNITED KINGDOM
Call: 0330 123 1045
From Ireland: 053 92 36102
Website: www.iconsupport.eu
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: [email protected]
Write:
ICON Health & Fitness
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA

2

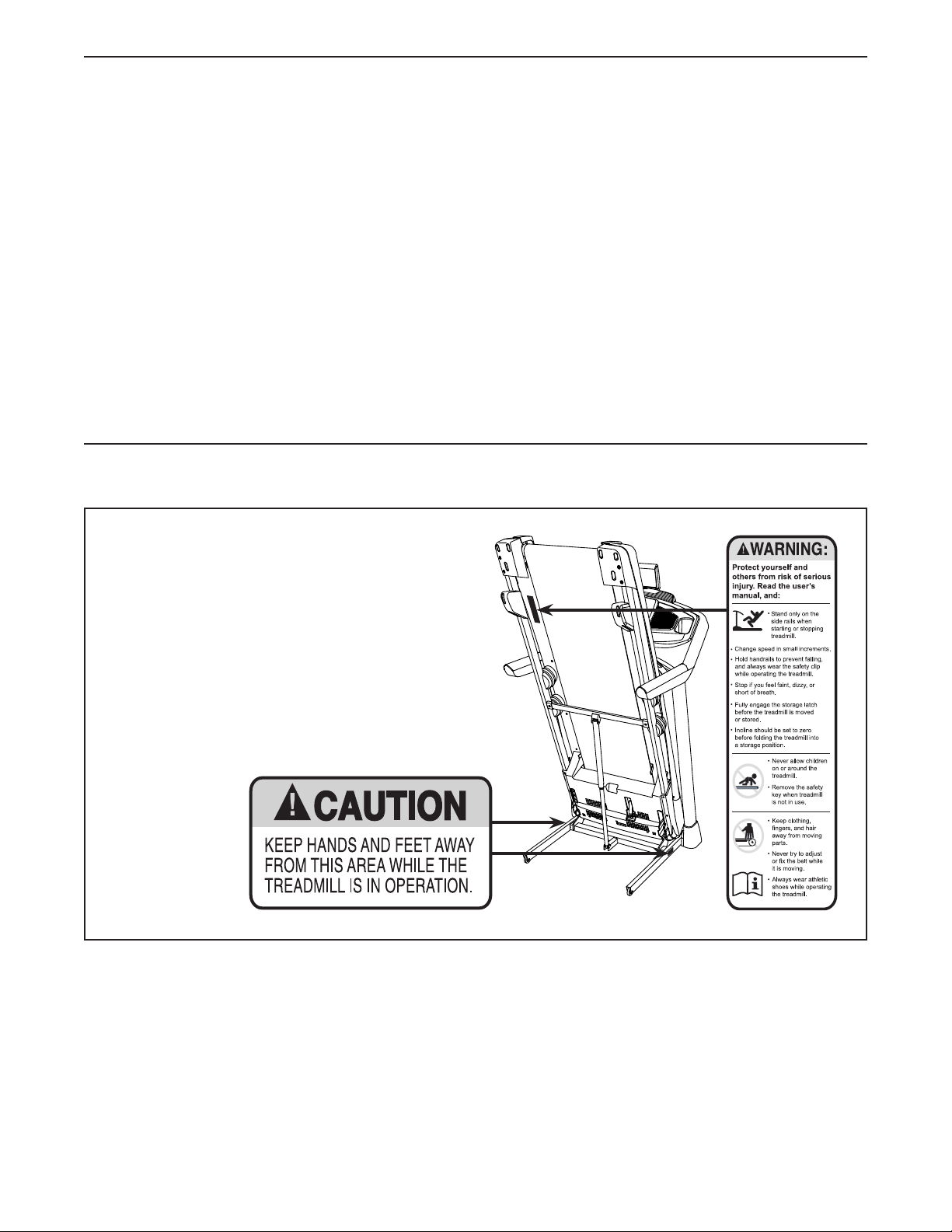

This drawing shows the locations of the warning
decals. If a decal is missing or illegible, call
the telephone number on the front cover of
this manual and request a free replacement
decal. Apply the decal in the location shown.
Note: The decals may not be shown at actual size.
WARNING DECAL PLACEMENT
305284
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE TREADMILL ..............................................................17
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
MAINTENANCE AND TROUBLESHOOTING.....................................................32
EXERCISE GUIDELINES ....................................................................35
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
RECYCLING INFORMATION ......................................................... Back Cover
TABLE OF CONTENTS
PROFORM and IFIT are registered trademarks of ICON Health & Fitness, Inc. App store is a trademark of Apple
Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google Inc. The
BLUETOOTH®word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license.
IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

3
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. The treadmill is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use
of the treadmill by someone responsible for
their safety.
4. Use the treadmill only as described in this
manual.
5. The treadmill is intended for home use only.
Do not use the treadmill in any commercial,
rental, or institutional setting.
6. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
7. Place the treadmill on a level surface, with
at least 8 ft. (2.4 m) of clearance behind it
and 2 ft. (0.6 m) on each side. Do not place
the treadmill on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
8. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
9. Keep children under age 13 and pets away
from the treadmill at all times.
10. The treadmill should be used only by per-
sons weighing 330 lbs. (150 kg) or less.
11. Never allow more than one person on the
treadmill at a time.
12. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
13. When connecting the power cord (see page
17), plug the power cord into an earthed
circuit. No other appliance should be on the
same circuit. When replacing the fuse in the
power cord adapter, insert an ASTA-approved
BS1362, 13-amp fuse into the fuse carrier.
14. If an extension cord is needed, use only a
3-conductor, 14-gauge (1 mm2) cord that is
no longer than 5 ft. (1.5 m).
15. Keep the power cord away from heated
surfaces.
16. Never move the walking belt while the power
is turned off. Do not operate the treadmill
if the power cord or plug is damaged, or if
the treadmill is not working properly. (See
MAINTENANCE AND TROUBLESHOOTING
on page 32 if the treadmill is not working
properly.)
17. Read, understand, and test the emergency
stop procedure before using the treadmill
(see HOW TO TURN ON THE POWER on
page 19). Always wear the clip while using the
treadmill.
18. Always stand on the foot rails when starting
or stopping the walking belt. Always hold the
handrails while using the treadmill.
19. When a person is walking on the treadmill,
the noise level of the treadmill will increase.
20. Keep fingers, hair, and clothing away from
the moving walking belt.
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your treadmill before
using your treadmill. ICON assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
IMPORTANT PRECAUTIONS

4
21. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
22. The heart rate monitor is not a medical
device. Various factors, including the user’s
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
23. Never leave the treadmill unattended while
it is running. Always remove the key, press
the power switch into the off position (see
the drawing on page 5 for the location of the
power switch), and unplug the power cord
when the treadmill is not in use.
24. Do not attempt to move the treadmill until it
is properly assembled. (See ASSEMBLY on
page 7, and HOW TO FOLD AND MOVE THE
TREADMILL on page 31.) You must be able
to safely lift 45 lbs. (20 kg) to raise, lower, or
move the treadmill.
25. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position. Do
not operate the treadmill while it is folded.
26. Never insert any object into any opening on
the treadmill.
27. Inspect and properly tighten all parts each
time the treadmill is used.
28. DANGER: Always unplug the power
cord immediately after use, before clean-
ing the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized ser-
vice representative only.
29. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
SAVE THESE INSTRUCTIONS

5
Thank you for selecting the revolutionary
PROFORM®POWER 1295 I treadmill. The POWER
1295 I treadmill offers an impressive selection of fea-
tures designed to make your workouts at home more
effective and enjoyable. And when you’re not exercis-
ing, the unique treadmill can be folded up, requiring
less than half the oor space of other treadmills.
For your benet, read this manual carefully before
using the treadmill. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, please note the product
model number and serial number before contacting us.
The model number and the location of the serial num-
ber decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
BEFORE YOU BEGIN
Handrail
Upright
Tray
Key/Clip
Power Switch
Walking Belt
Platform Cushion
Foot Rail
Idler Roller
Adjustment Screws
Heart Rate Monitor
Length: 5 ft. 5 in. (165 cm)
Width: 2 ft. 11 in. (84 cm)
Weight: 126 lbs. (57 kg)
Tablet Holder
Console

6
3/8" Star
Washer (13)–8
5/16" Star
Washer (11)–14
#10 x 3/4"
Screw (9)–4
#8 x 1/2" Ground
Screw (10)–1
#8 x 1/2"
Screw (1)–10
#8 x 5/8" Machine
Screw (115)–4
#10 Star
Washer (5)–4
5/16" x 2 1/2"
Screw (28)–4
3/8" x 2 1/4" Screw (7)–4
3/8" x 1 3/4" Screw (62)–2
3/8" x 1 1/4"
Screw (63)–2
PART IDENTIFICATION CHART
Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is
preattached. Extra parts may be included.

7
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• After shipping, there may be an oily substance
on the exterior of the treadmill. This is normal. If
there is an oily substance on the treadmill, wipe
it off with a soft cloth and a mild, non-abrasive
cleaner.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.

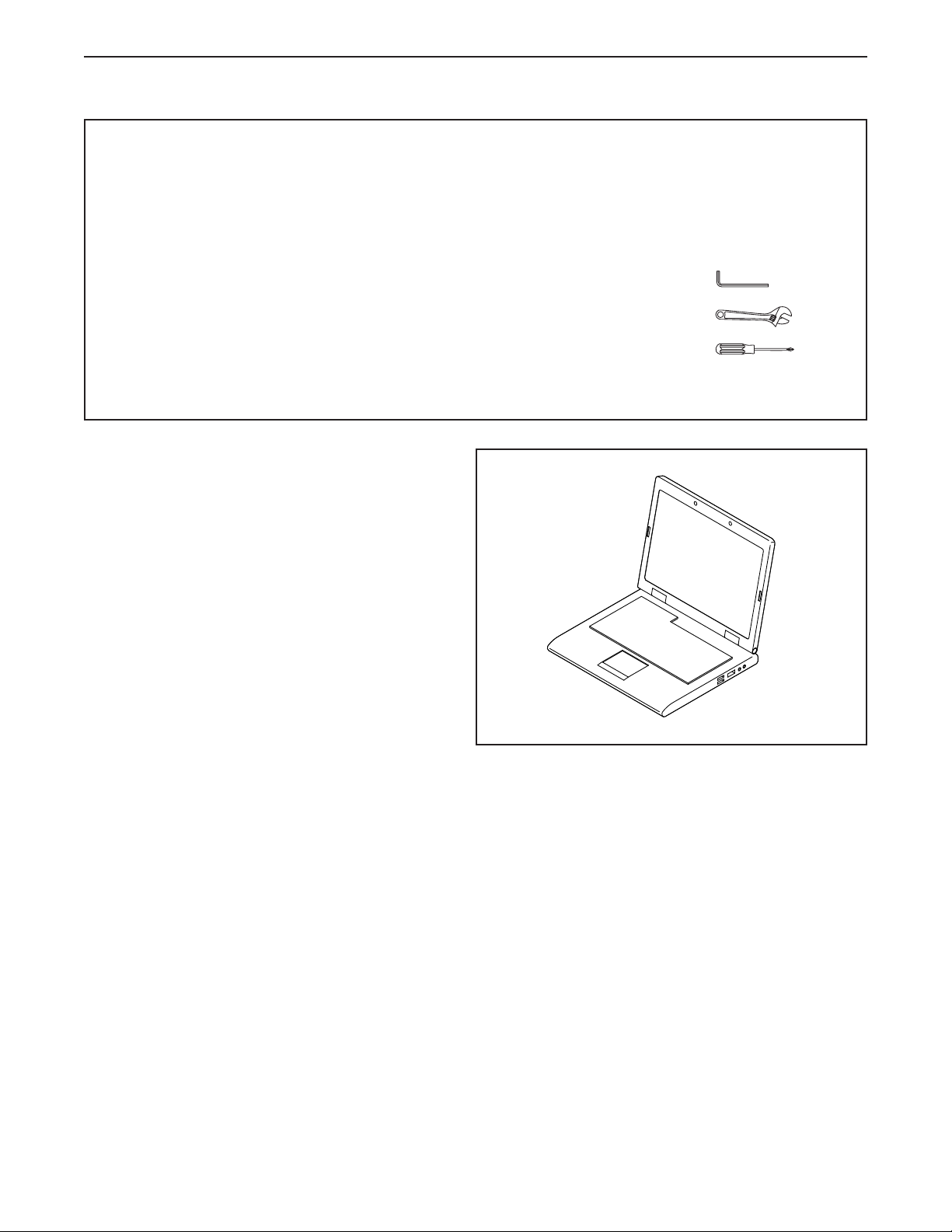

• Assembly requires the following tools:
the included hex key
one adjustable wrench
one Phillips screwdriver
To avoid damaging parts, do not use power tools.
ASSEMBLY
1
1. Go to www.iconsupport.eu on your computer
and register your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Service
• allows us to notify you of upgrades and offers
Note: If you do not have internet access, call
Customer Service (see the front cover of this
manual) and register your product.

8
94
90
81
90
A
A
281
3
2. Make sure that the power cord is unplugged.
Remove the tie securing the Upright Wire (81) to
the front of the Base (94).
Next, identify the Right Upright (90). Have a sec-
ond person hold the Right Upright near the Base
(94).
See the inset drawing. Tie the wire tie (A) in
the Right Upright (90) securely around the end
of the Upright Wire (81). Then, insert the Upright
Wire into the lower end of the Right Upright as
you pull the other end of the wire tie through the
Right Upright.
3. Lay the Right Upright (90) near the Base (94).
Press the Upright Grommet (77) into the square
hole (B) in the Right Upright. Make sure not to
pinch the ground wire (C).
Next, remove and discard the indicated screw (D).
Then, attach the ground wire to the Right Upright
(90) with a #8 x 1/2" Ground Screw (10).
94
90
10
77
D
B
C

9
4
63
62
13
94
13
90
7
13
81
5. Remove and save the four indicated 5/16" x
3/4" Screws (25).
Identify the Left and Right Base Covers (82, 83).
Slide the Left Base Cover onto the Left Upright
(89), and slide the Right Base Cover onto the
Right Upright (90). Do not press the Base
Covers into place yet.
Next, identify the Right and Left Bottom Handrail
Covers (84, 85). Slide the Left Bottom Handrail
Cover onto the Left Upright (89), and slide the
Right Bottom Handrail Cover onto the Right
Upright (90).
82
85
90
83
84
89
5
4. Hold the Right Upright (90) against the Base
(94). Make sure not to pinch the Upright Wire
(81).
Attach the Right Upright (90) and a Wheel (97)
with two 3/8" x 2 1/4" Screws (7), a 3/8" x 1 1/4"
Screw (63), a 3/8" x 1 3/4" Screw (62), and four
3/8" Star Washers (13) as shown; do not fully
tighten the Screws yet.
Attach the Left Upright (not shown) in the
same way. Note: There are no wires on the left
side.
97
25
25

10
90
6
87
86
89
81
11
28
11
28
A

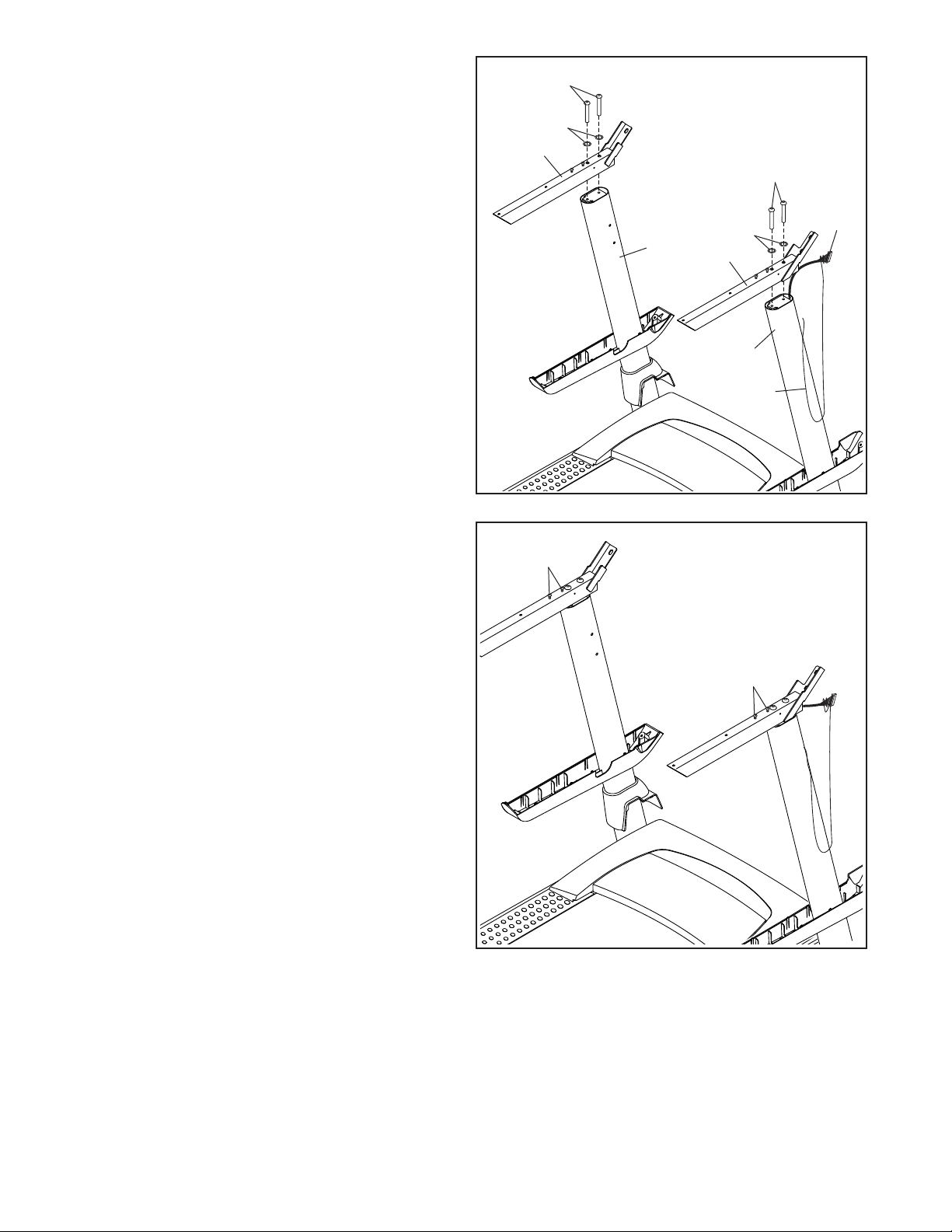

6. Hold the Right Handrail (87) near the Right
Upright (90). Insert the Upright Wire (81) through
the hole in the bottom of the Right Handrail as
shown, and then remove the wire tie (A) from the
Upright Wire.
Next, attach the Right Handrail (87) to the Right
Upright (90) with two 5/16" x 2 1/2" Screws (28)
and two 5/16" Star Washers (11). Make sure not
to pinch the Upright Wire (81). Firmly tighten
the Screws.
Then, attach the Left Handrail (86) to the Left
Upright (89) in the same way. Note: There are
no wires on the left side.
7. If there are four screws (E) in the locations
shown, remove and discard them. 7
E
E

11
84
4
9
87
86
4
11
4
11 81
F
F
G
8. Set the console assembly (F) face down on a
soft surface to avoid scratching the console
assembly. Remove and save the four 5/16" x
1/2" Screws (4).
9. Set the console assembly (F) on the Left and
Right Handrails (86, 87). Make sure not to
pinch any wires (G, 81).
Attach the console assembly (F) with the four
5/16" x 1/2" Screws (4) that you removed in step
8 and four 5/16" Star Washers (11); do not fully
tighten the Screws yet.

12

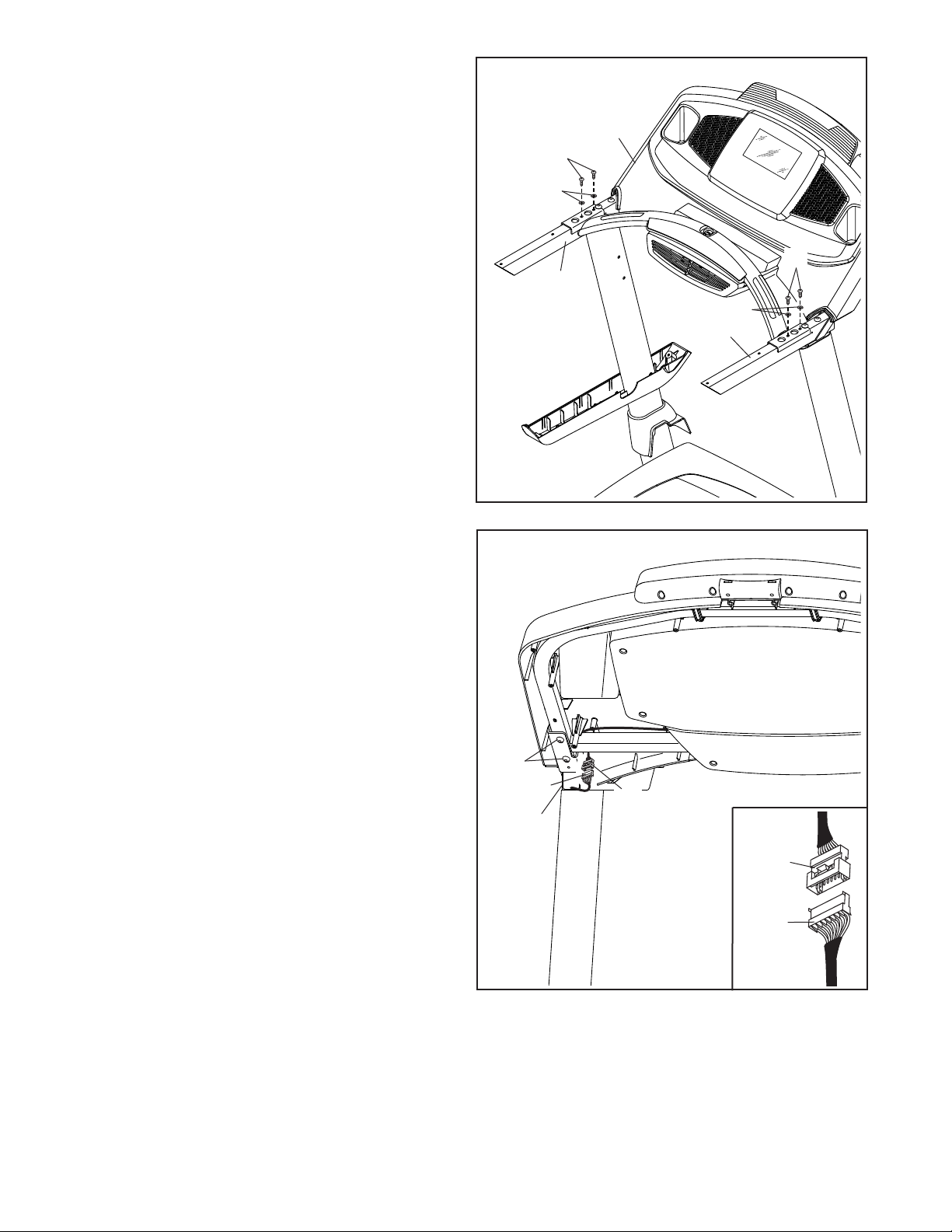

10. Attach the console assembly (F) to the Left and
Right Handrails (86, 87) with four #10 x 3/4"
Screws (9) and four #10 Star Washers (5) as
shown; start all four Screws, and then tighten
them.
5
10
5
9
86
87
9
F
11. See the inset drawing. Connect the Upright
Wire (81) to the console wire (G). The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again. IF YOU DO NOT CONNECT THE
CONNECTORS PROPERLY, THE CONSOLE
MAY BECOME DAMAGED WHEN YOU TURN
ON THE POWER.
Insert the excess wires (G, 81) into the Handrail
(87).
Then, firmly tighten the four 5/16" x 1/2"
Screws (4) (only two are shown). 81
81
G
11
4
87
G

13
12. Attach the Right Handrail Cover (92) to the Right
Handrail (87) with three #8 x 1/2" Screws (1); do
not overtighten the Screws.
Attach the Left Handrail Cover (79) to the Left
Handrail (86) in the same way.
92
79
86
1
87
1
12
13. Slide the Left Bottom Handrail Cover (85)
up against the Left Handrail Cover (79), and
attach the Left Bottom Handrail Cover with two
#8 x 1/2" Screws (1); do not overtighten the
Screws.
Attach the Right Bottom Handrail Cover (84)
in the same way. Make sure the Upright
Wire (81) is inserted into the Right Bottom
Handrail Cover.
13
79
1
84
85 1
81

14

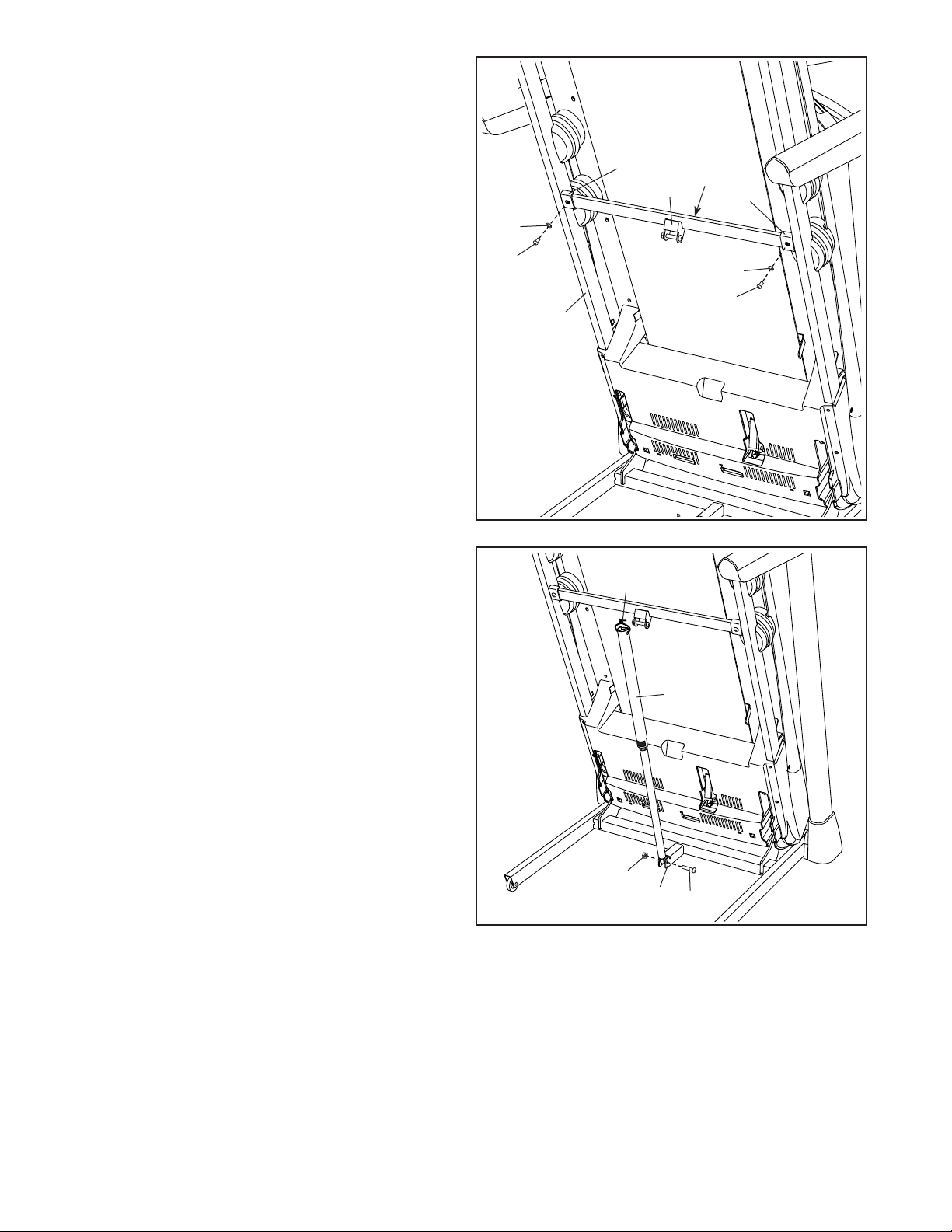

14. Note: If the treadmill is assembled on a
smooth surface, it may roll forward during
this step.
Raise the Frame (56) to the upright position.
IMPORTANT: Do not raise the Frame past the
vertical position. Have a second person hold
the Frame until step 16 is completed.
Remove the two 5/16" x 3/4" Screws (25) from
the Latch Crossbar (38).
Orient the Latch Crossbar (38) as shown. Make
sure that the “This side toward belt” sticker
(H) is facing the treadmill. Attach the Latch
Crossbar to the brackets (I) on the Frame (56)
with the two 5/16" x 3/4" Screws (25) and two
5/16" Star Washers (11).
56
38 H
11
11
25
25
14
15. Remove the 5/16" Nut (12) and the 5/16" x 1 3/4"
Bolt (6) from the bracket on the Base (94).
Next, orient the Storage Latch (53) as shown.
Attach the lower end of the Storage Latch (53)
to the bracket on the Base (94) with the 5/16" x
1 3/4" Bolt (6) and the 5/16" Nut (12).
Then, raise the Storage Latch (53) to a vertical
position, and remove the tie (J).
94
53
6
12
J
15
I
I

15
16. Remove the 5/16" Nut (12) and the 5/16" x 2 1/4"
Bolt (3) from the bracket on the Latch Crossbar
(38).
Align the upper end of the Storage Latch (53)
with the bracket on the Latch Crossbar (38),
and insert the 5/16" x 2 1/4" Bolt (3) through the
bracket and the Storage Latch. This will push a
spacer (K) out of the Storage Latch; discard
the spacer.
Next, tighten the 5/16" Nut (12) onto the 5/16" x
2 1/4" Bolt (3). Do not overtighten the Nut; the
Storage Latch (53) must be able to pivot.
Then, lower the Frame (56) (see HOW TO
LOWER THE TREADMILL FOR USE on page
31).
38
K
3
56
12
53
16
17. Firmly tighten the four 3/8" x 2 1/4" Screws (7)
and the two 3/8" x 1 1/4" Screws (63).
Next, tighten the two 3/8" x 1 3/4" Screws
(62); the Wheels (97) must turn freely.
Next, set the Left Inner Base Cover (74) onto the
lower end of the Left Upright (89). Then, slide
the Left Base Cover (82) downward and press it
onto the Left Inner Base Cover.
Next, set the Right Inner Base Cover (111) onto
the lower end of the Right Upright (90). Then,
slide the Right Base Cover (83) downward and
press it onto the Right Inner Base Cover.
17
74
83
82
62
89
7
7
63
62
111
63
90 97
97

16
20. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the oor or carpet, place a mat under the treadmill. To
avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included hex keys in a secure
place; one of the hex keys is used to adjust the walking belt (see pages 33 and 34). Note: Extra parts may be
included.
19. Carefully slide the Upright Crossbar (88)
between the Left and Right Uprights (89, 90).
Attach the Upright Crossbar with the four 5/16" x
3/4" Screws (25) that you removed in step 5
and four 5/16" Star Washers (11); start all four
Screws, and then tighten them.
19
11 25 25 11
90 89
88
18
110
Start First
18. Press the two tabs on the Tablet Holder (110)
into the slots (L) in the console assembly (F).
Attach the Tablet Holder (110) with four #8 x 5/8"
Machine Screws (115). Note: Start the two top
Machine Screws rst, and then start the two
bottom Machine Screws. Be careful not to
overtighten the Machine Screws.
IMPORTANT: The Tablet Holder (110) is
designed for use with most full-size tablets.
Do not place any other electronic device or
object in the Tablet Holder.
F
L
115

17

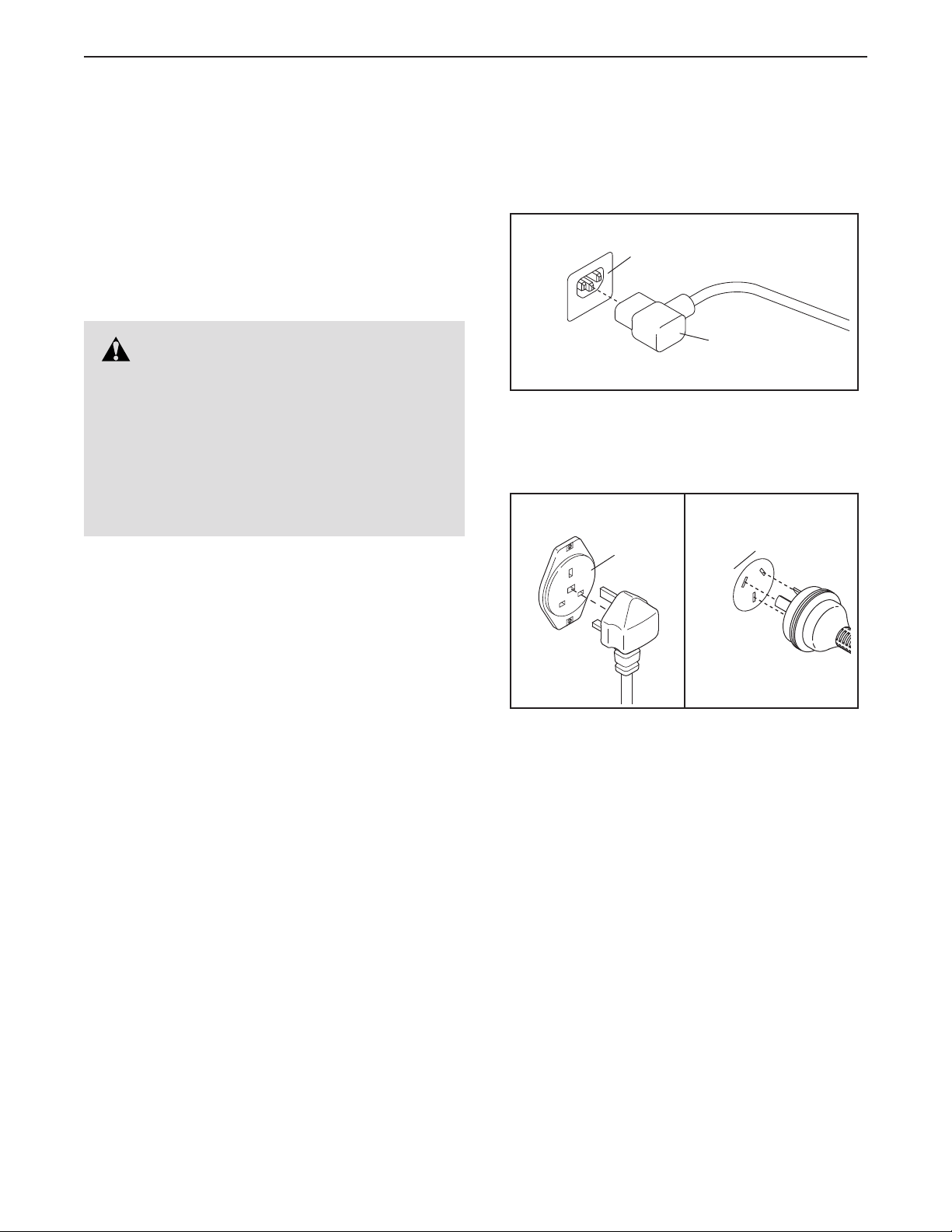

HOW TO PLUG IN THE POWER CORD
This product must be earthed. If it should malfunc-
tion or break down, earthing provides a path of least
resistance for electric current to reduce the risk of
electric shock. This product’s power cord has an
equipment-earthing conductor and an earthing plug.
IMPORTANT: If the power cord is damaged, it must
be replaced with a manufacturer-recommended
power cord.
Follow the steps below to plug in the power cord.
1. Plug the indicated end of the power cord into the
socket on the treadmill.
2. Plug the power cord into an appropriate outlet that
is properly installed and earthed in accordance with
all local codes and ordinances.
IT
FR/SP
UK
GR
RU
HU
Socket on Treadmill
Power Cord
IT
FR/SP
UK
GR
RU
HU
UK
Dubai
DU
GR
RU
HU
CZ
TR
RO
BU
UKR
SW
FR/
SP/
PL/
SK
IT
AUS
AUS
TYPE E
TYPE F
Outlet
UK Australia
Outlet
DANGER: Improper connection of
the equipment-earthing conductor can result
in an increased risk of electric shock. Check
with a qualified electrician or serviceman if
you are in doubt as to whether the product
is properly earthed. Do not modify the plug
provided with the product—if it will not fit
the outlet, have a proper outlet installed by a
qualified electrician.
HOW TO USE THE TREADMILL

18
CONSOLE DIAGRAM
MAKE YOUR FITNESS GOALS A REALITY WITH
IFIT.COM
With your new iFit-enabled fitness equipment, you can
use an array of features on iFit.com to make your fit-
ness goals a reality:
Run anywhere in the world with customiz-
able Google Maps.
Download training workouts designed to
help you reach your personal goals.
Measure your progress by competing
against other users in the iFit community.
Upload your workout results to the iFit cloud
and track your accomplishments.
Set calorie, time, or distance goals for your
workouts.
Watch high-definition videos with simulated
workouts.
Choose and download sets of weight-loss
workouts.
Go to iFit.com to learn more.
FEATURES OF THE CONSOLE
The advanced treadmill console offers a selection of
features designed to make your workouts more effec-
tive and enjoyable.
When you use the manual mode, you can change
the speed and incline of the treadmill with the touch
of a button. As you exercise, the console will display
instant exercise feedback. You can also measure your
heart rate using the handgrip heart rate monitor or a
compatible chest heart rate monitor. See page 26 for
information about the optional chest heart rate
monitor.
In addition, the console features a selection of onboard
workouts. Each workout automatically controls the
speed and incline of the treadmill as it guides you
through an effective exercise session. In addition, you
can set a calorie, time, distance, or pace goal.
You can even browse the internet or listen to your
favorite workout music or audio books with the con-
sole’s sound system while you exercise.
To turn on the power, see page 19. To learn how to
use the touch screen, see page 19. To set up the
console, see page 20.
ETPE15717
PETL15717

19

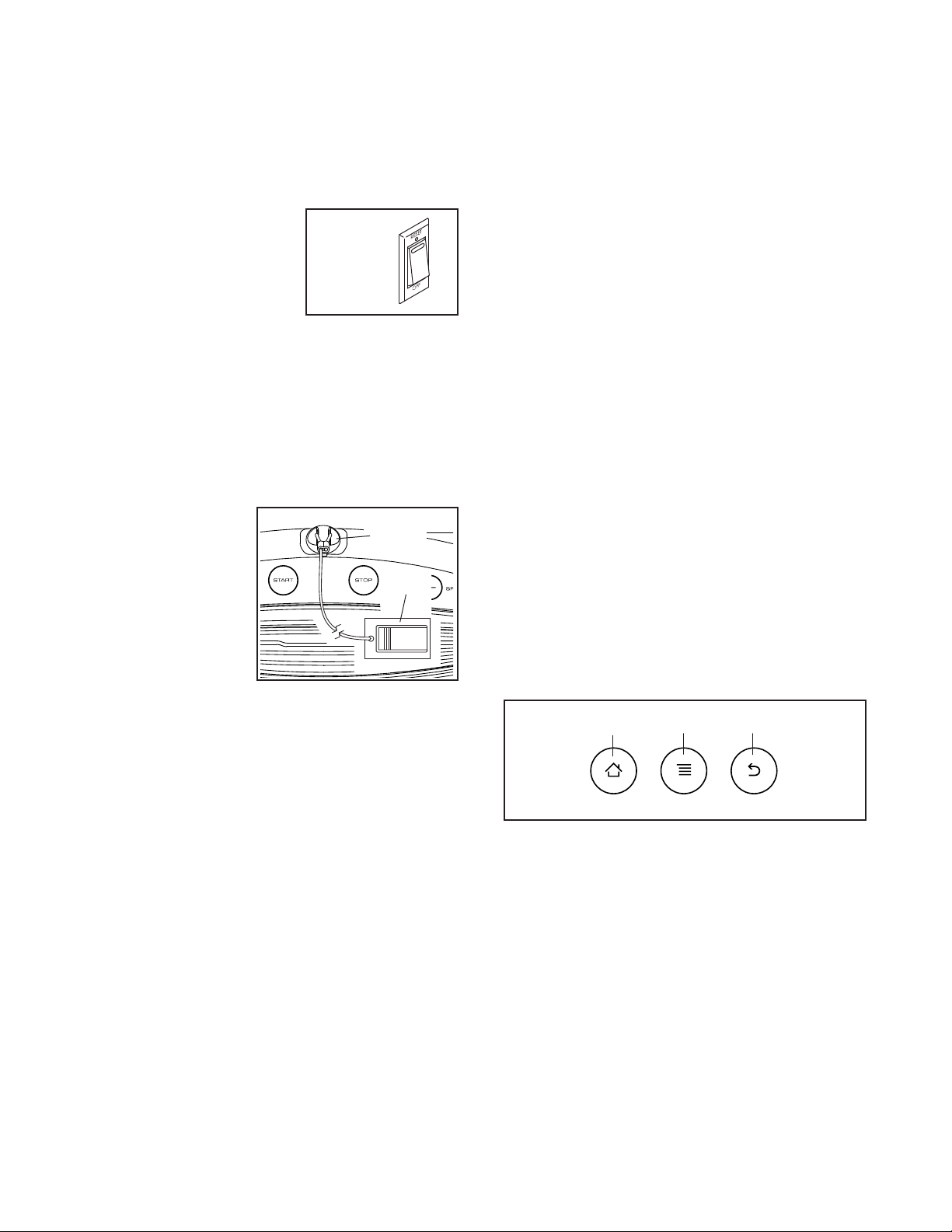

HOW TO TURN ON THE POWER
IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you turn on the power. If you do
not do this, you may damage the console displays
or other electrical components.
Plug in the power cord (see
page 17). Next, locate the
power switch on the tread-
mill frame near the power
cord. Press the power
switch into the reset
position.
IMPORTANT: The console features a display demo
mode, designed to be used if the treadmill is dis-
played in a store. If the demo mode is turned on,
the screen will show a demo presentation after you
plug in the power cord and press the power switch
into the reset position, before you insert the key. To
turn off the demo mode, see step 7 on page 27.
Next, stand on the
foot rails of the
treadmill. Find the
clip attached to the
key and slide the
clip onto the waist-
band of your clothes.
Then, insert the key
into the console.
After a moment, the
displays will light.
Note: It may take a minute for the console to be
ready for use. IMPORTANT: In an emergency, the
key can be pulled from the console, causing the
walking belt to slow to a stop. Test the clip by care-
fully taking a few steps backward; if the key is not
pulled from the console, adjust the position of the
clip.
Note: The console can display speed and distance
in either miles or kilometers. To find which unit of
measurement is selected, see step 4 on page 27.
For simplicity, all instructions in this section refer to
kilometers.
HOW TO USE THE TOUCH SCREEN
The console features a tablet with a full-color touch
screen. The following information will help you become
familiar with the tablet’s advanced technology:
• The console functions similarly to other tablets.
You can slide or flick your finger against the screen
to move certain images on the screen, such as
the displays in a workout (see step 5 on page 21).
However, you cannot zoom in and out by sliding your
fingers on the screen.
• The screen is not pressure sensitive. You do not
need to press hard on the screen.
• To type information into a text box, touch the text box
to view the keyboard. To use numbers or other char-
acters on the keyboard, touch the ?123 button. To
view more characters, touch the Alt button. Touch the
Alt button again to return to the number keyboard. To
return to the letter keyboard, touch the ABC button.
To use a capital character, touch the button with an
upward-facing arrow. To use multiple capital charac-
ters, touch the arrow button again. To return to the
lowercase keyboard, touch the arrow button a third
time. To clear the last character, touch the button
with a backward-facing arrow and an X.
Use the buttons on the console to navigate the
tablet. Press the home button to return to the main
menu. Press the settings button to access the
settings main menu (see page 27). Press the back
button to return to the previous screen.
Reset
ETPE15717
PETL15717
Clip
Key
ETPE15717
PETL15717
Back
Home Settings

20
HOW TO SET UP THE CONSOLE
Before using the treadmill for the first time, set up the
console.
1. Connect to your wireless network.
Note: In order to access the internet, download
iFit workouts, and use several other features of
the console, you must be connected to a wireless
network. See HOW TO USE THE WIRELESS
NETWORK MODE on page 29 to connect the con-
sole to your wireless network.
2. Check for firmware updates.
First, see step 1 on page 27 and step 2 on page 28
and select the maintenance mode. Then, see step
3 on page 28 and check for firmware updates.
3. Calibrate the incline system.
See step 4 on page 29 and calibrate the incline
system of the treadmill.
4. Create an iFit account.
Touch the globe button near the lower-left corner of
the screen and touch the iFit button.
The browser will open to the iFit.com home page.
Follow the prompts on the website to sign up for
your iFit membership. Note: For information about
navigating in the browser, see page 26.
The console is now ready for you to begin working out.
The following pages explain the various workouts and
other features that the console offers.
To use the manual mode, see page 20. To use an
onboard workout, see page 22. To use a set-a-goal
workout, see page 23. To use a pulse workout, see
page 24. To use an iFit workout, see page 25.
To use the sound system, see page 26. To use the
internet browser, see page 26. To use the equip-
ment settings mode, see page 27. To use the
maintenance mode, see page 28. To use the wire-
less network mode, see page 29. To use the tablet
holder, see page 30.
IMPORTANT: If there are sheets of plastic on the
console, remove the plastic. To prevent damage
to the walking platform, wear clean athletic shoes
while using the treadmill. The first time you use
the treadmill, observe the alignment of the walking
belt, and center the walking belt if necessary (see
page 34).
HOW TO USE THE MANUAL MODE
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page
19. Note: It may take a minute for the console to
be ready for use.
2. Select the main menu.
When you turn on the power, the main menu will
appear after the console boots up. Touch the home
button in the lower-left corner of the screen (not
shown here) to return to the main menu at any
time.
3. Start the walking belt and adjust the speed.

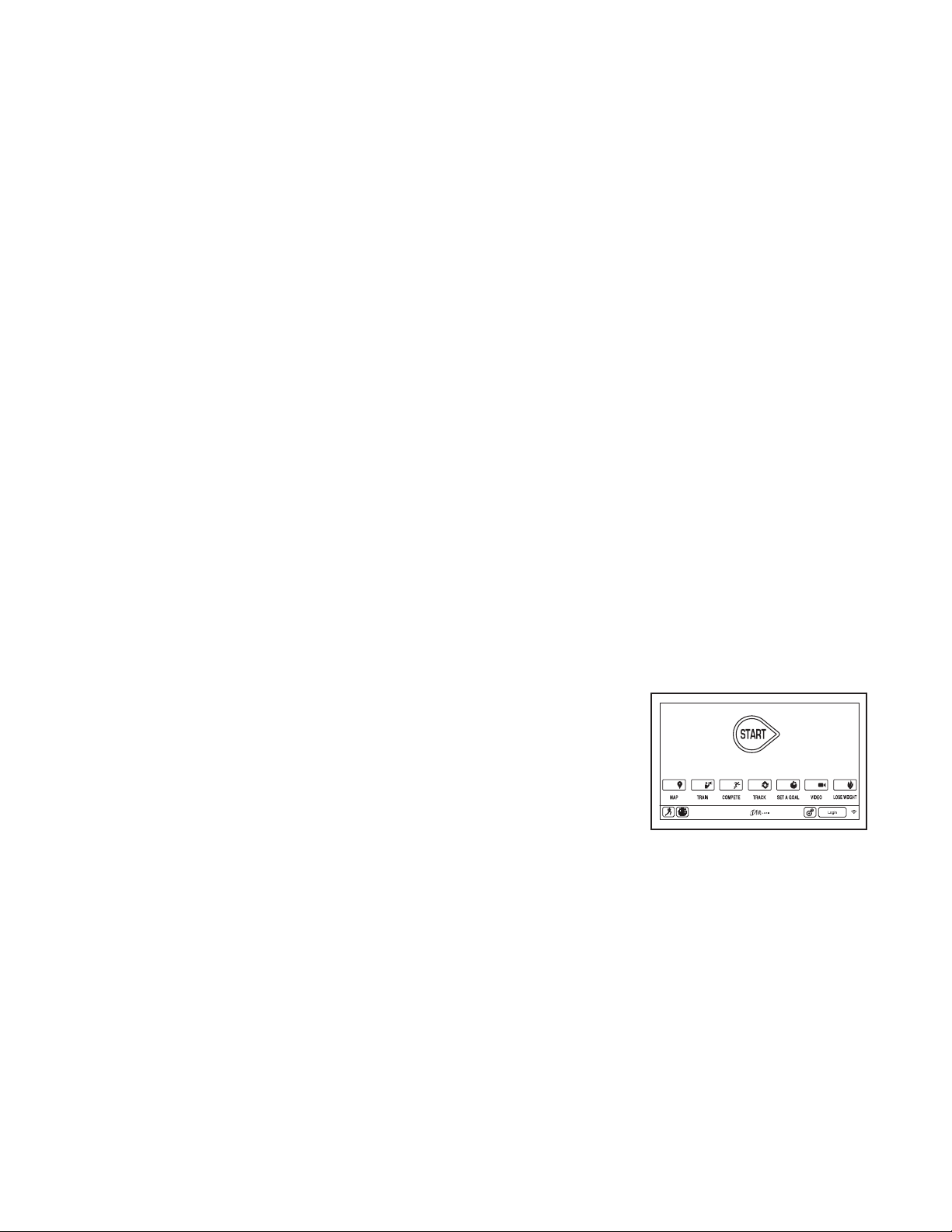

Touch the
Start button on
the screen or
press the Start
button on the
console to start
the walking
belt. You can
also press the
Manual button on the console, and then touch the
Resume button on the screen. The walking belt will
begin to move at 2 Km/H. As you exercise, change
the speed of the walking belt as desired by press-
ing the Speed increase and decrease buttons.
Each time you press one of the buttons, the speed
setting will change by 0.1 Km/H; if you hold down
the button, the speed setting will change more
quickly.
