USER’S MANUAL
Model No. PETL79717.0
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
Serial
Number
Decal
CUSTOMER SERVICE
UNITED KINGDOM
Call: 0330 123 1045
From Ireland: 053 92 36102
Website: www.iconsupport.eu
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: [email protected]
Write:
ICON Health & Fitness
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
www.iconeurope.com

2
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE TREADMILL ..............................................................16
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
MAINTENANCE AND TROUBLESHOOTING.....................................................25
EXERCISE GUIDELINES ....................................................................28
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
RECYCLING INFORMATION ......................................................... Back Cover
This drawing shows the locations of the warning
decals. If a decal is missing or illegible, call
the telephone number on the front cover of
this manual and request a free replacement
decal. Apply the decal in the location shown.
Note: The decals may not be shown at
actual size.
WARNING DECAL PLACEMENT
305284
TABLE OF CONTENTS
PROFORM and IFIT are registered trademarks of ICON Health & Fitness, Inc. App store is a trademark of Apple
Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google Inc. The
BLUETOOTH®word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license.
IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

3
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. The treadmill is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use
of the treadmill by someone responsible for
their safety.
4. Use the treadmill only as described in this
manual.
5. The treadmill is intended for home use only.
Do not use the treadmill in any commercial,
rental, or institutional setting.
6. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
7. Place the treadmill on a level surface, with
at least 8 ft. (2.4 m) of clearance behind it
and 2 ft. (0.6 m) on each side. Do not place
the treadmill on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
8. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
9. Keep children under age 13 and pets away
from the treadmill at all times.
10. The treadmill should be used only by per-
sons weighing 297 lbs. (135 kg) or less.
11. Never allow more than one person on the
treadmill at a time.
12. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.

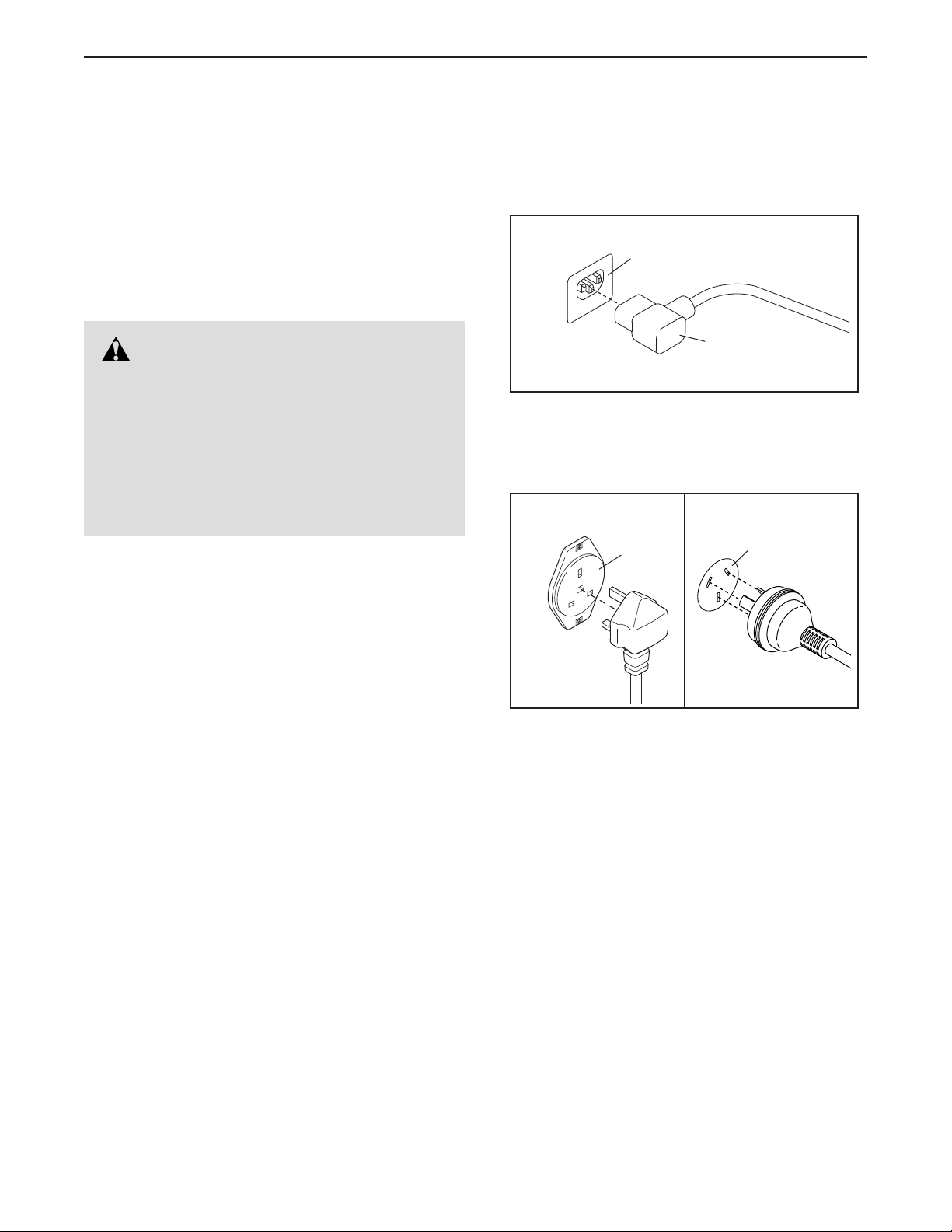

13. When connecting the power cord (see page
16), plug the power cord into an earthed
circuit. No other appliance should be on the
same circuit. When replacing the fuse in the
power cord adapter, insert an ASTA-approved
BS1362, 13-amp fuse into the fuse carrier.
14. If an extension cord is needed, use only a
3-conductor, 14-gauge (1 mm2) cord that is
no longer than 5 ft. (1.5 m).
15. Keep the power cord away from heated
surfaces.
16. Never move the walking belt while the power
is turned off. Do not operate the treadmill
if the power cord or plug is damaged, or if
the treadmill is not working properly. (See
MAINTENANCE AND TROUBLESHOOTING
on page 25 if the treadmill is not working
properly.)
17. Read, understand, and test the emergency
stop procedure before using the treadmill
(see HOW TO TURN ON THE POWER on
page 18). Always wear the clip while using the
treadmill.
18. Always stand on the foot rails when starting
or stopping the walking belt. Always hold the
handrails while using the treadmill.
19. When a person is walking on the treadmill,
the noise level of the treadmill will increase.
20. Keep fingers, hair, and clothing away from
the moving walking belt.
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your treadmill before
using your treadmill. ICON assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
IMPORTANT PRECAUTIONS

4
21. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
22. The heart rate monitor is not a medical
device. Various factors, including the user’s
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
23. Never leave the treadmill unattended while it
is running. Always remove the key, press the
power switch into the off position (see the
drawing on page 5 for the location of the
power switch), and unplug the power cord
when the treadmill is not in use.
24. Do not attempt to move the treadmill until it
is properly assembled. (See ASSEMBLY on
page 7 and HOW TO FOLD AND MOVE
THE TREADMILL on page 24.) You must be
able to safely lift 45 lbs. (20 kg) to move the
treadmill.
25. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position. Do
not operate the treadmill while it is folded.
26. Do not change the incline of the treadmill by
placing objects under the treadmill.
27. Never insert any object into any opening on
the treadmill.
28. Inspect and properly tighten all parts each
time the treadmill is used.
29. DANGER: Always unplug the power
cord immediately after use, before clean-
ing the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized ser-
vice representative only.
30. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
SAVE THESE INSTRUCTIONS

5
Thank you for selecting the new PROFORM®505 CST
treadmill. The 505 CST treadmill provides an impres-
sive selection of features designed to make your
workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the treadmill. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.

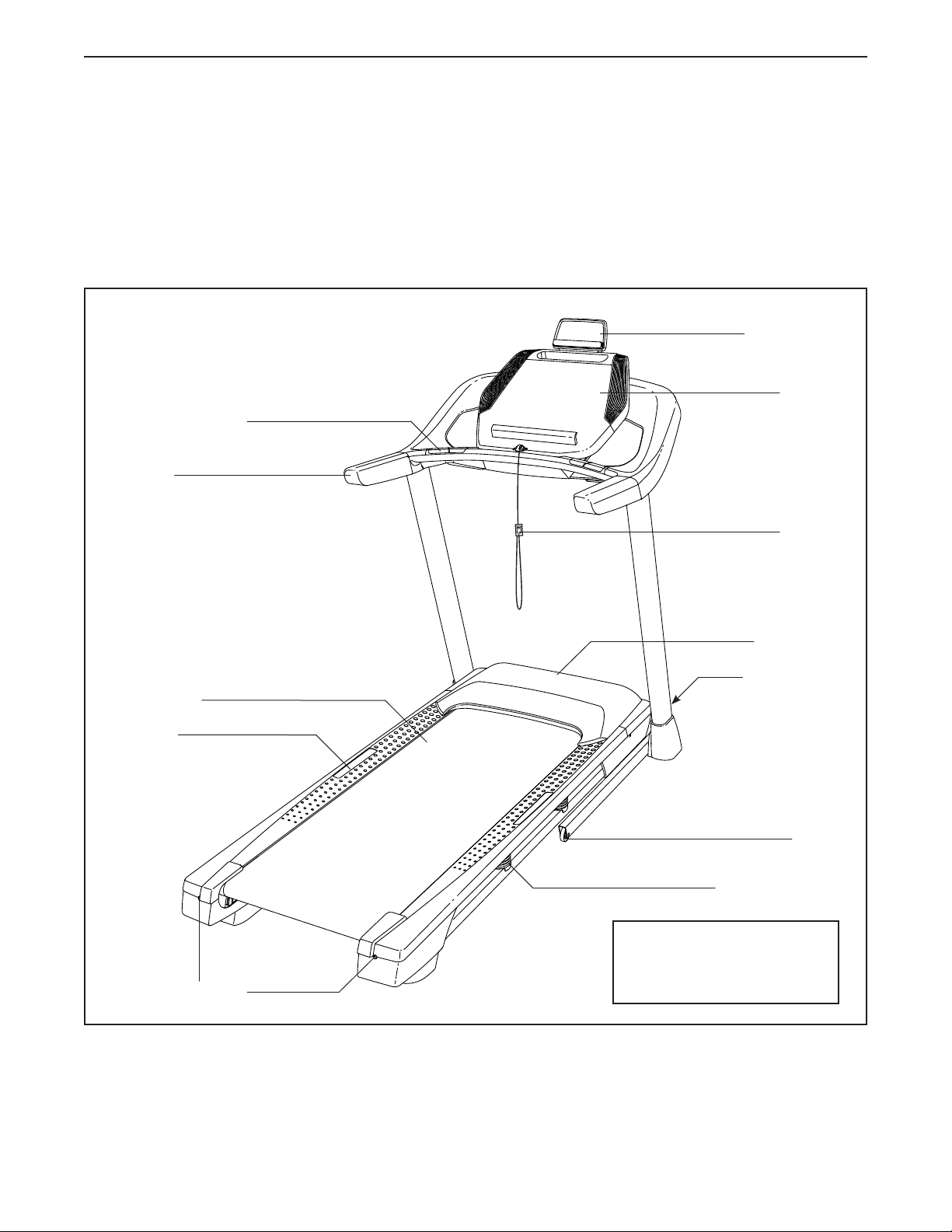

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
BEFORE YOU BEGIN
Handrail
Tablet Holder
Key/Clip
Power Switch
Walking Belt
Motor Hood
Wheel
Foot Rail
Idler Roller
Adjustment Screws
Platform Cushion
Heart Rate Monitor
Length: 6 ft. 2 in. (188 cm)
Width: 3 ft. 1 in. (94 cm)
Weight: 192 lbs. (87 kg)
Console

6
PART IDENTIFICATION CHART
Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is
preattached. Extra parts may be included.
#10 x 3/4" Screw
(9)–4
5/16" x 2 1/4" Screw (28)–4
1/4" Star
Washer (26)–8
#8 x 3/4"
Screw (4)–8
3/8" Star
Washer (13)–8
5/16" Star
Washer (11)–6
#8 x 1/2" Ground
Screw (18)–1
#8 x 1/2"
Screw (1)–8
#8 x 1/2" Machine
Screw (99)–4
3/8" x 2 3/8" Screw (7)–4
3/8" x 1 3/4" Screw (62)–2
3/8" x 1 1/4"
Screw (51)–2

7
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• After shipping, there may be an oily substance
on the exterior of the treadmill. This is normal. If
there is an oily substance on the treadmill, wipe
it off with a soft cloth and a mild, non-abrasive
cleaner.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.
• Assembly requires the following tools:
the included hex keys
one adjustable wrench
one Phillips screwdriver
To avoid damaging parts, do not use power tools.
ASSEMBLY
1
1. Go to www.iconsupport.eu on your computer
and register your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Service
• allows us to notify you of upgrades and offers
Note: If you do not have internet access, call
Customer Service (see the front cover of this
manual) and register your product.

8
85
90
81
90
A
281
2. Make sure that the power cord is unplugged.
Remove the tie securing the Upright Wire (81) to
the front of the Base (85).
Next, identify the Right Upright (90). Have a
second person hold the Right Upright near the
Base (85).
See the inset drawing. Tie the wire tie (A) in
the Right Upright (90) securely around the end
of the Upright Wire (81). Then, insert the Upright
Wire into the lower end of the Right Upright as
you pull the other end of the wire tie through the
Right Upright.
A
3
3. Lay the Right Upright (90) near the Base (85).
Press the Grommet (77) into the square hole (B)
in the Right Upright. Make sure not to pinch
the ground wire (C).
Next, remove and discard the indicated
screw (D).
Then, attach the ground wire (C) to the Right
Upright (90) with a #8 x 1/2" Ground Screw (18). 85
90
D
C
B
18
77

9
5. Identify the Left and Right Base Covers (82, 83).
Slide the Left and Right Base Covers onto the
Left and Right Uprights (89, 90) as shown.
83
90
82
89
5
4
51
62
13
85
13 90
7
13
81
4. Hold the Right Upright (90) against the Base
(85). Make sure not to pinch the Upright
Wire (81).
Attach the Right Upright (90) with two 3/8" x
2 3/8" Screws (7), a 3/8" x 1 1/4" Screw (51),
a 3/8" x 1 3/4" Screw (62), and four 3/8" Star
Washers (13) as shown; do not fully tighten
the Screws yet.
Attach the Left Upright (not shown) in the
same way. Note: There are no wires on the left
side.

10
6. Set a Handrail (84) on the Right Upright (90).
Make sure that the Upright Wire (81) is not
pinched.
Attach the Handrail (84) with two 5/16" x 2 1/4"
Screws (28) and two 5/16" Star Washers (11);
start both Screws, and then tighten them.
Attach the other Handrail (not shown) in the
same way. Note: There is no wire on the left
side.
Remove and discard the two indicated screws
(E) from both Handrails (84) (only one side is
shown).
11
81
84
28
6
90
7. Set the console assembly (F) face down on a
soft surface to avoid scratching the console
assembly. Remove and save the four 1/4" x
1/2" Screws (2).
Identify the Left Tray (36). Attach the Left Tray
with four #8 x 1/2" Screws (1); start all four
Screws, and then tighten them. Be careful not
to overtighten the Screws.
Attach the Right Tray (27) in the same way.
7
1
F
1
2
36
27
1
2
1
E

11
8
F
81
A
G
81
84
9. Set the console assembly (F) on the Handrails
(84). Be careful not to pinch any wires. Insert
the excess Upright Wire (81) into the Right
Upright (90).
Attach the console assembly (F) with the four
1/4" x 1/2" Screws (2) that you removed in step 7
and four 1/4" Star Washers (26); do not tighten
the Screws yet.
9
90
F
2
2
81
84
84
26
26
G
8. With the help of a second person, hold the con-
sole assembly (F) near the right Handrail (84)
and the Left Handrail (not shown).
See the inset drawing. Connect the Upright
Wire (81) to the console wire (G). The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again. IF YOU DO NOT CONNECT THE
CONNECTORS PROPERLY, THE CONSOLE
MAY BECOME DAMAGED WHEN YOU TURN
ON THE POWER. Then, remove the wire tie (A)
from the Upright Wire.

12
10. IMPORTANT: To avoid damaging the Pulse
Crossbar (5), do not use power tools and do
not overtighten the #10 x 3/4" Screws (9).
Tighten four #10 x 3/4" Screws (9) with four 1/4"
Star Washers (26) into the Pulse Crossbar (5)
and the left and right Handrails (84); start all
four Screws, and then tighten them.
See step 9. Tighten the four 1/4" x 1/2"
Screws (2).
10
9
9
84
5
84
26
26
11. Identify the Left and Right Handrail Inserts (79, 31).
Attach the Left Handrail Insert (79) to the left
Handrail (84) with three #8 x 3/4" Screws (4).
Note: Slide the Left Handrail Insert up against
the console assembly (F) before you tighten
the Screws.
Attach the Right Handrail Insert (31) in the
same way.
11
84
31
79
84
4
4
F

13
12. Identify the Left and Right Handrail Covers
(87, 98).
Slide the Left Handrail Cover (87) up against the
console assembly (F) and tighten a #8 x 3/4"
Screw (4) into the bottom of the Left Handrail
Cover. Be careful not to overtighten the
Screw.
Attach the Right Handrail Cover (98) in the
same way.
12
4
4
98
87
F
13
13. Raise the Frame (56) to the upright position.
Have a second person hold the Frame until
step 15 is completed.
Remove the two 5/16" x 3/4" Screws (8) from the
Latch Crossbar (23).
Orient the Latch Crossbar (23) as shown. Make
sure that the “This side toward belt” sticker
(H) is facing the treadmill. Attach the Latch
Crossbar to the brackets (I) on the Frame (56)
with the two 5/16" x 3/4" Screws (8) that you just
removed and two 5/16" Star Washers (11).
56
23 H
8
8
I
I
11
11

14
23
3
56
34
41
15

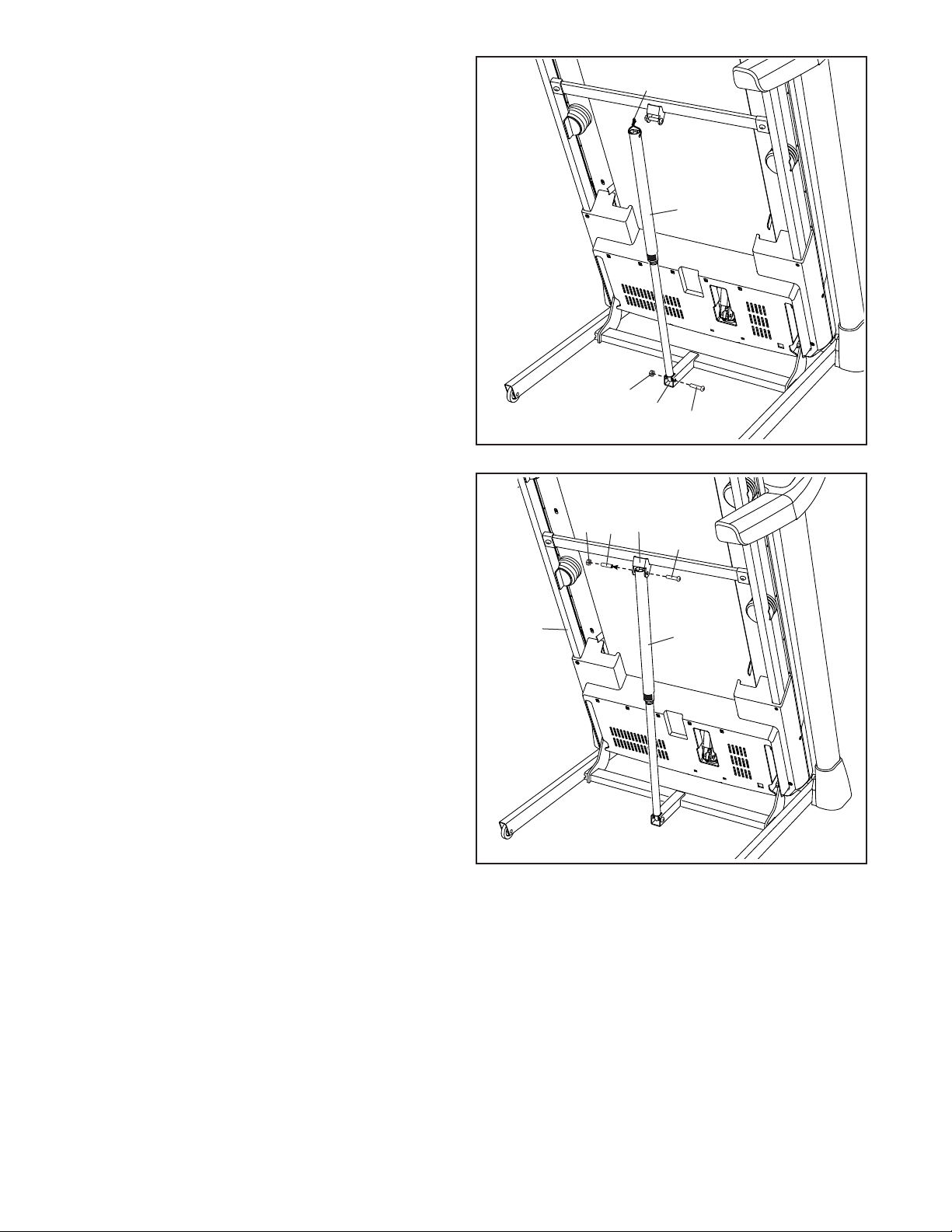

15. Remove the 5/16" Nut (34) and the 5/16" x
2 1/4" Bolt (3) from the bracket on the Latch
Crossbar (23).
Align the upper end of the Storage Latch (41)
with the bracket on the Latch Crossbar (23),
and insert the 5/16" x 2 1/4" Bolt (3) through the
bracket and the Storage Latch. This will push a
spacer (K) out of the Storage Latch; discard
the spacer.
Next, tighten the 5/16" Nut (34) onto the 5/16" x
2 1/4" Bolt (3). Do not overtighten the Nut; the
Storage Latch (41) must be able to pivot.
Lower the Frame (56) (see HOW TO LOWER
THE TREADMILL FOR USE on page 24).
K
85
41
6
34
J
14
14. Remove the 5/16" Nut (34) and the 5/16" x 1 3/4"
Bolt (6) from the bracket on the Base (85).
Next, orient the Storage Latch (41) as shown.
Attach the lower end of the Storage Latch (41)
to the bracket on the Base (85) with the 5/16" x
1 3/4" Bolt (6) and the 5/16" Nut (34) as shown.
Then, raise the Storage Latch (41) to a vertical
position, and remove the tie (J).

15
18. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill. To
avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included hex key in a secure
place; the hex key is used to adjust the walking belt (see pages 26 and 27). Note: Extra hardware may be
included.
16. Firmly tighten the four 3/8" x 2 3/8" Screws
(7), the two 3/8" x 1 3/4" Screws (62), and the
two 3/8" x 1 1/4" Screws (51).
Next, set the Left Inner Base Cover (97) onto the
lower end of the Left Upright (89). Then, slide
the Left Base Cover (82) downward and press it
onto the Left Inner Base Cover.
Next, set the Right Inner Base Cover (96) onto
the lower end of the Right Upright (90). Then,
slide the Right Base Cover (83) downward and
press it onto the Right Inner Base Cover.
97
83
82
62
89
7
7
51 62
96
51
16
90
17
100
F
99 99
17. Attach the Tablet Holder (100) to the console
assembly (F) with four #8 x 1/2" Machine Screws
(99); start all four Machine Screws, and then
tighten them. Do not overtighten the Machine
Screws.

16
HOW TO PLUG IN THE POWER CORD
This product must be earthed. If it should malfunc-
tion or break down, earthing provides a path of least
resistance for electric current to reduce the risk of
electric shock. This product’s power cord has an
equipment-earthing conductor and an earthing plug.
IMPORTANT: If the power cord is damaged, it must
be replaced with a manufacturer-recommended
power cord.
Follow the steps below to plug in the power cord.
1. Plug the indicated end of the power cord into the
socket on the treadmill.
2. Plug the power cord into an appropriate outlet that
is properly installed and earthed in accordance with
all local codes and ordinances.
DANGER: Improper connection of
the equipment-earthing conductor can result
in an increased risk of electric shock. Check
with a qualified electrician or serviceman if
you are in doubt as to whether the product
is properly earthed. Do not modify the plug
provided with the product—if it will not fit
the outlet, have a proper outlet installed by a
qualified electrician.
HOW TO USE THE TREADMILL
IT
FR/SP
UK
GR
RU
HU
Socket on Treadmill
IT
FR/SP
UK
GR
RU
HU
UK
GR
FR/SP
IT
AUS
AUS
Outlet
UK Australia
Outlet
Power Cord

17
FEATURES OF THE CONSOLE
The treadmill console offers a selection of features
designed to make your workouts more effective and
enjoyable. When you use the manual mode, you can
change the speed and incline of the treadmill with the
touch of a button. As you exercise, the console will dis-
play instant exercise feedback. You can even measure
your heart rate using the handgrip heart rate monitor
or a compatible heart rate monitor. (See page 23 for
information about purchasing an optional chest
heart rate monitor.)
In addition, the console features a selection of onboard
workouts. Each workout automatically controls the
speed and incline of the treadmill as it guides you
through an effective exercise session.
You can also connect your tablet to the console and
use an iFit® app to record and track your workout
information.
You can even listen to your favorite workout music or
audio books with the console’s sound system while you
exercise.
To turn on the power, see page 18. To use the man-
ual mode, see page 18. To use an onboard workout,
see page 20. To connect your tablet to the console,
see page 22. To connect your heart rate monitor to
the console, see page 22. To use the sound system,
see page 23. To use the settings mode, see page 23.
Note: The console can display speed and distance
in either miles or kilometers. To change which unit of
measurement is selected, press the Standard/Metric
button. For simplicity, all instructions in this section
refer to kilometers.
IMPORTANT: If there are sheets of plastic on the
console, remove the plastic. To prevent damage
to the walking platform, wear clean athletic shoes
while using the treadmill. The first time you use
the treadmill, observe the alignment of the walking
belt, and center the walking belt if necessary (see
page 27).

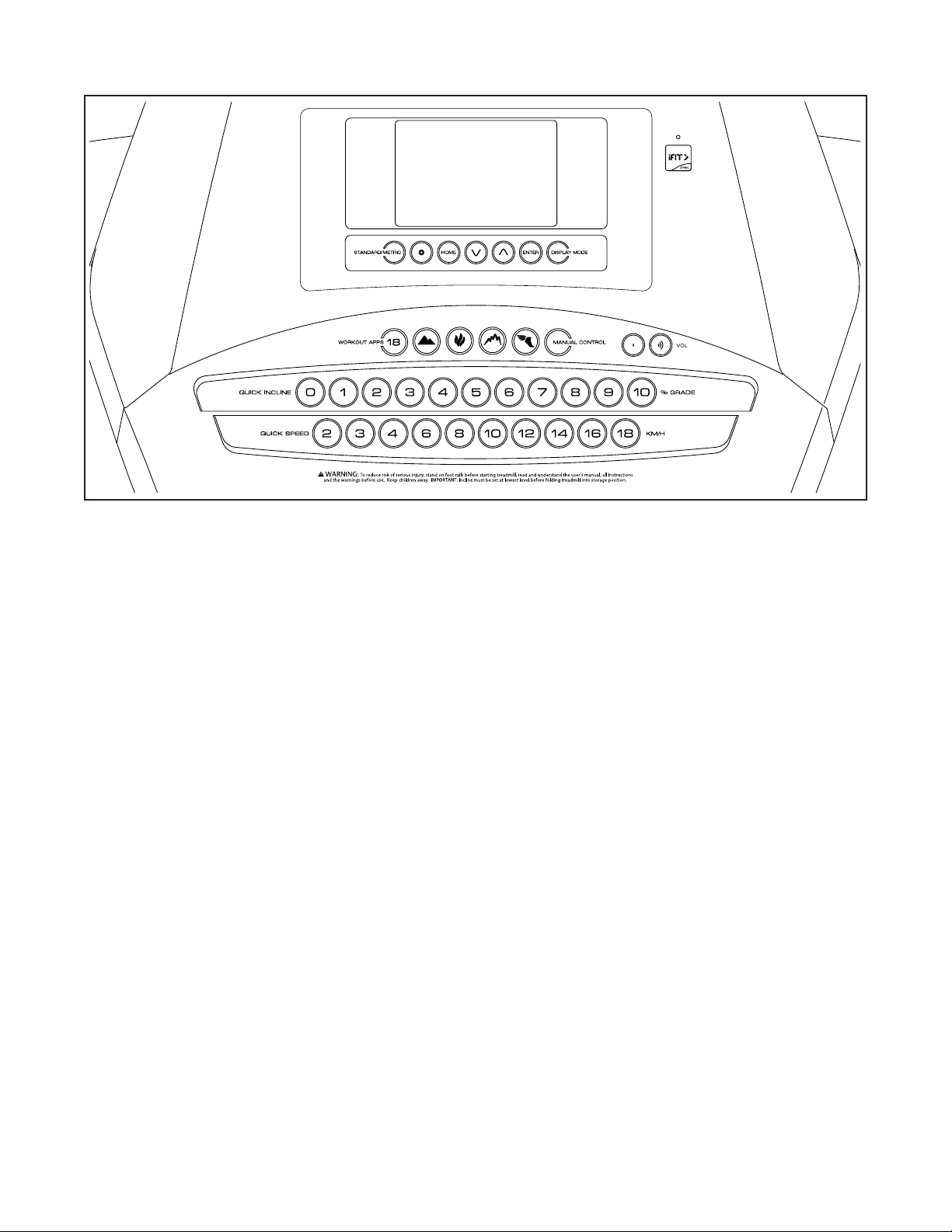

CONSOLE DIAGRAM
ETPE79717
(PETL79717

18
HOW TO TURN ON THE POWER
IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you turn on the power. If you do
not do this, you may damage the console displays
or other electrical components.
Plug in the power cord (see
page 16). Next, locate the
power switch on the tread-
mill frame near the power
cord. Press the power
switch into the reset
position.

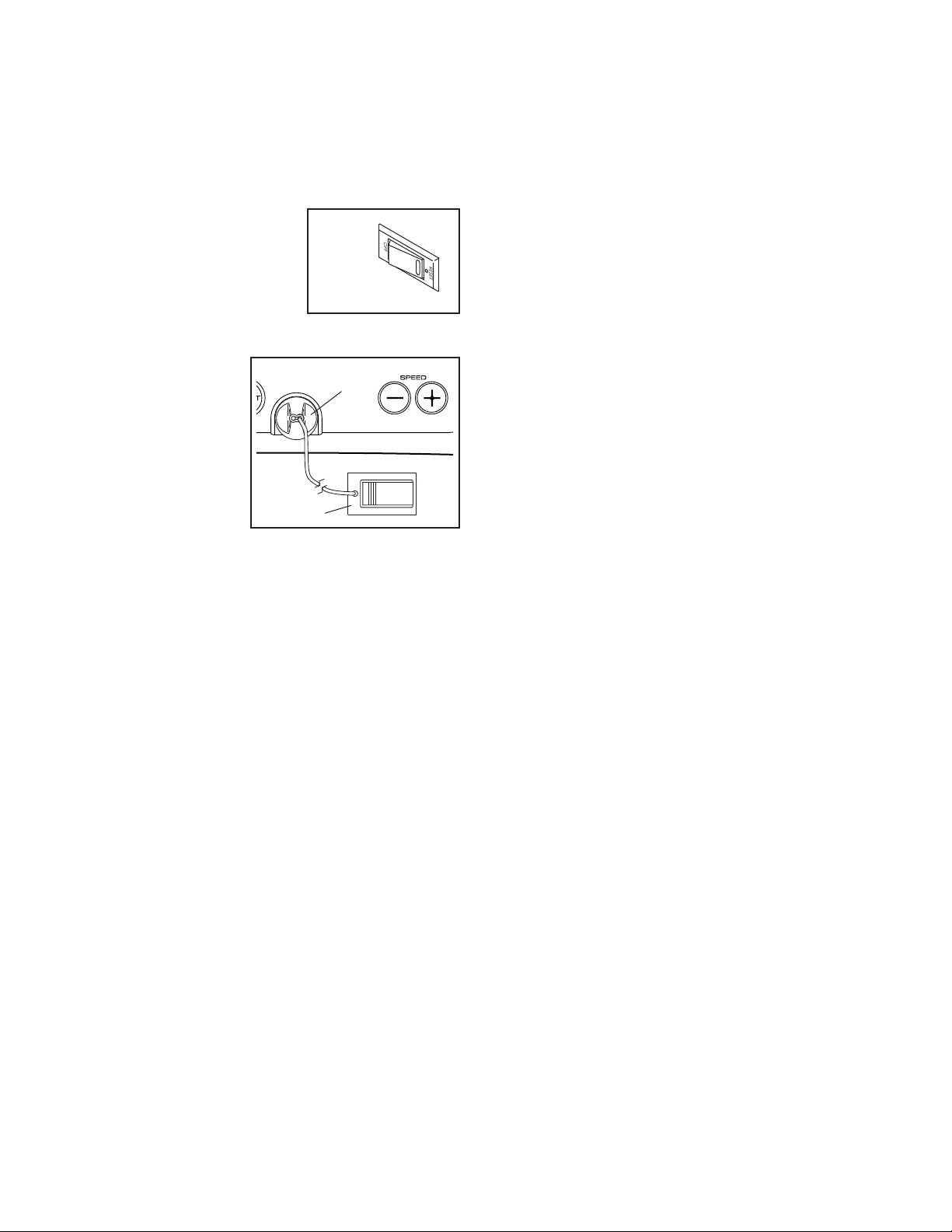

Next, stand on the
foot rails of the
treadmill. Find the
clip attached to
the key and slide
the clip onto the
waistband of your
clothes. Then,
insert the key into
the console. After
a moment, the
displays will light. IMPORTANT: In an emergency,
the key can be pulled from the console, causing
the walking belt to slow to a stop. Test the clip by
carefully taking a few steps backward; if the key is
not pulled from the console, adjust the position of
the clip.
IMPORTANT: Before you use the treadmill, take the
following steps to ensure that the console shows
the correct incline level of the treadmill: First,
press the Incline increase button once. Next, press
either the Incline decrease button or the lowest
Quick Incline button to set the treadmill to its
lowest setting. When the frame stops moving, the
treadmill is ready for use.
HOW TO USE THE MANUAL MODE
1. Insert the key into the console.
See HOW TO TURN ON THE POWER at the left.
2. Select the manual mode.
If the manual mode is not selected, press the
Manual Control button on the console.
3. Start the walking belt.
To start the walking belt, press the Start button or
one of the Quick Speed buttons.
If you press the Start button the walking belt will
begin to move at 2 Km/H. As you exercise, change
the speed of the walking belt as desired by press-
ing the Speed increase and decrease buttons.
Each time you press one of the buttons, the speed
setting will change by 0.1 Km/H; if you hold down
the button, the speed setting will change more
quickly. Note: After you press the button, it may
take a moment for the walking belt to reach the
selected speed setting.
If you press one of the Quick Speed buttons, the
walking belt will gradually change speed until it
reaches the selected speed setting.
To stop the walking belt, press the Stop button. The
time will begin to flash in the display. To restart the
walking belt, press the Start button.
Reset
ETPE79717
(PETL79717
Key
Clip

19
4. Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the
Incline increase or decrease button or one of the
Quick Incline buttons. Each time you press one of
the buttons, the treadmill will gradually adjust to the
selected incline setting.
5. Follow your progress with the displays.
As you walk or run on the treadmill, the display can
show the following workout information:
• The elapsed time
• The distance that you have walked or run
• The workout intensity bar
• The approximate number of calories you have
burned
• The incline level of the treadmill
• The number of vertical meters (VM) you have
climbed
• The speed of the walking belt
• Your heart rate (see step 6 on page 20)
• The matrix
The matrix offers several display tabs. Press the
Display Mode button until the desired tab is shown.
The Incline tab will show a profile of the incline set-
tings of the workout. A new segment will appear at
the end of each minute. The Speed tab will show a
profile of the speed settings of the workout.
The My Trail tab will show a track that represents
400 m (1/4 mile). As you exercise, the flashing
rectangle will show your progress. The My Trail tab
will also show the number of laps you complete.
The Calorie tab will show the approximate amount
of calories you have burned. The height of each
segment represents the amount of calories burned
during that segment. When the Calorie tab is
selected, the calorie display will show the approxi-
mate number of calories burned per hour.
As you exercise, the workout intensity level bar
will indicate the approximate intensity level of your
exercise.
Press the Home button to return to the main menu.
If necessary, press the Home button again.
To reset the displays, press the Stop button
repeatedly.
ETPE79717
(PETL79717

20
6. Measure your heart rate if desired.
You can measure your heart rate using either the
handgrip heart rate monitor or a compatible heart
rate monitor. For information about purchasing
an optional chest heart rate monitor, see
page 23.
The console is compatible with all BLUETOOTH®
Smart heart rate monitors. To connect your heart
rate monitor to the console, see page 22.
Note: If you use both heart rate monitors at the
same time, the BLUETOOTH Smart heart rate
monitor will have priority.
Before using
the handgrip
heart rate mon-
itor, remove
the sheets of
plastic from the
metal contacts
on the pulse
bar. In addi-
tion, make
sure that your
hands are
clean.
To measure your heart rate, stand on the foot
rails and hold the pulse bar with your palms on
the metal contacts; avoid moving your hands.
When your pulse is detected, your heart rate will be
shown. For the most accurate heart rate read-
ing, continue to hold the metal contacts for
about 15 seconds.
7. When you are finished exercising, remove the
key from the console.
When you are finished using the treadmill, step
onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to zero. The
incline must be at zero or you may damage the
treadmill when you fold it to the storage posi-
tion. Next, remove the key from the console and
put it in a secure place.
Then, press the power switch into the off position
and unplug the power cord. IMPORTANT: If you
do not do this, the treadmill’s electrical compo-
nents may wear prematurely.
HOW TO USE AN ONBOARD WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 18.
2. Select an onboard workout.
To select an onboard workout, press the Incline
button, the Calorie button, the Intensity button, or
the Speed button repeatedly until the desired work-
out appears in the display.
When you select an onboard workout, the display
will show the duration of the workout and the name
of the workout. In addition, a profile of the speed
settings of the workout will appear in the matrix.
If you select a calorie workout, the approximate
number of calories you will burn will appear in the
calorie window.
3. Start the workout.
Press the Start button to start the workout. A
moment after you press the button, the treadmill
will automatically adjust to the first speed and
incline settings of the workout. Hold the handrails
and begin walking.
Contacts
