ICON UMIX1010 RACK User manual

User manual
10-In / 10-Out with +48V Phantom Power
Recording USB Interface.

Important Safety Instructions
1. Read this manual thoroughly before using this unit.
2. Keep this manual for future reference.
3. Take notice of and comply with all warnings included in the user's manual or indicated on the
appliance.
4. Follow all instructions included in this manual.
5. Do not expose this unit to rain or moisture. Avoid having water or other liquids spilled on this
unit.
6. When cleaning the cabinet or other parts of this appliance, use only a dry or slightly damp soft
cloth.
7. Do not block any ventilation openings or interfere with the proper ventilation of this unit. Install
in accordance with the manufacturer's instructions.
8. Do not use or store near any heat sources such as radiators, heat registers, stoves, or other heat-
producing appliances.
9. Do not interfere with the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding-type plug has two blades and a third
grounding prong. These are designated for your safety. If the provided plug does not fit into your
outlet, consult an electrician.
10. Protect the power cord from being walked on or otherwise damaged by items placed on or
against them. Particular attention should be given to the plugs, receptacles, and the point where
the cord exits the appliance.
11. To avoid the risk of electrical shock, do not touch any exposed wiring while the unit is in
operation.
12. Only use attachments/accessories specified by the manufacturer.
13. Unplug this unit and all connected electrical equipment during lightning storms or when left
unused a long period of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the appliance has
been damaged in any way or fails to operate normally.
WARNING: To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture

Introduction...............................................................................................4
What's in the package? ............................................................................4
Features ...................................................................................................5
Front Panel...............................................................................................6
Rear Panel................................................................................................8
Mac driver installation.............................................................................10
Software control panel............................................................................12
Windows driver installation.....................................................................13
Software control panel............................................................................16

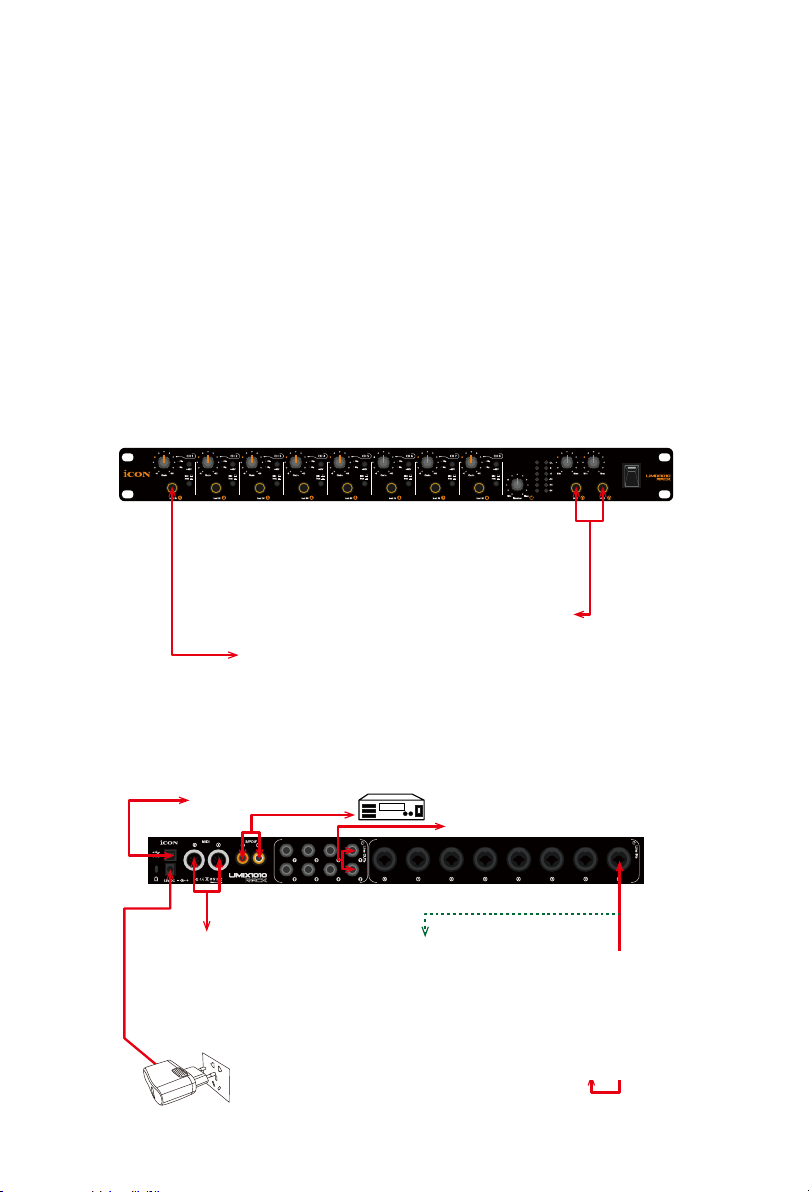

Hardware Connections...........................................................................20
Minimum System Requirements.............................................................21
Specications .........................................................................................22
Services..................................................................................................23
Contents

4
Introduction
What's in the package?
Thank you for purchasing the ICON Umix 1010 Rack digital audio Interface. We
sincerely trust this product will provide years of satisfactory service, but if anything is
not to your complete satisfaction, we will endeavor to make things right.
In these pages, you'll nd a detailed description of the features of the Umix 1010
Rack digital audio interfaces, as well as a guided tour through their front and rear
panels, step-by-step instructions for their setup and use, and full specications.
You'll also nd a warranty card enclosed---please don't forget to ll it out and mail
it so that you can receive online technical support at: www.icon-global.com. And
so we can send you updated information about these and other ICON products in
the future. As with most electronic devices, we strongly recommend you retain the
original packaging. In the unlikely event the product must be returned for servicing,
the original packaging (or reasonable equivalent) is required.
With proper care and adequate air circulation, your Umix 1010 Rack digital audio
interface will operate without any trouble for many years. We recommend that you
record your serial number in the space provided below for future reference.
Please write your serial number here for future reference:
Purchased at:
Date of purchase:
●Umix 1010 Rack USB Recording Interface x 1
●Quick Start Guide x 1
●Software CD (Driver/User Manuals/QSG/DAW software) x 1
●USB cable x 1
●12V/3A Power adapter x 1

5
Features
The ICON Umix 1010 Rack USB recording interface provides an audio input and
output module with USB connectivity. Main features include:

●24-Bit 96/192KHz 10-In/10-Out USB Recording Interface
●8x8 analog I/O full duplex recording and playback
●8 x MIC/Instrument preamps with individual gain control and phantom power
switch
●8 analog balanced inputs on 1/4” TRS jacks
●8 analog balanced outputs on 1/4” TRS jacks
●S/PDIF I/O on RCA coaxial connectors
●1 x 1 – 16 channel MIDI I/O
●2 headphone output with assignable source and individual volume control
●Flexible channel routing via the software control panel
●USB2.0 High Speed equipped
●Supports DirectSound, WDM and ASIO2.0
●Compatible with Mac OS (Intel-Mac) and Windows XP, Vista (32-bit/64-bit),
Windows 7 (32-bit/64-bit) & Windows 8 (32-bit/64-bit)
●Full duplex, simultaneous record/playback
●Rugged aluminum construction

6

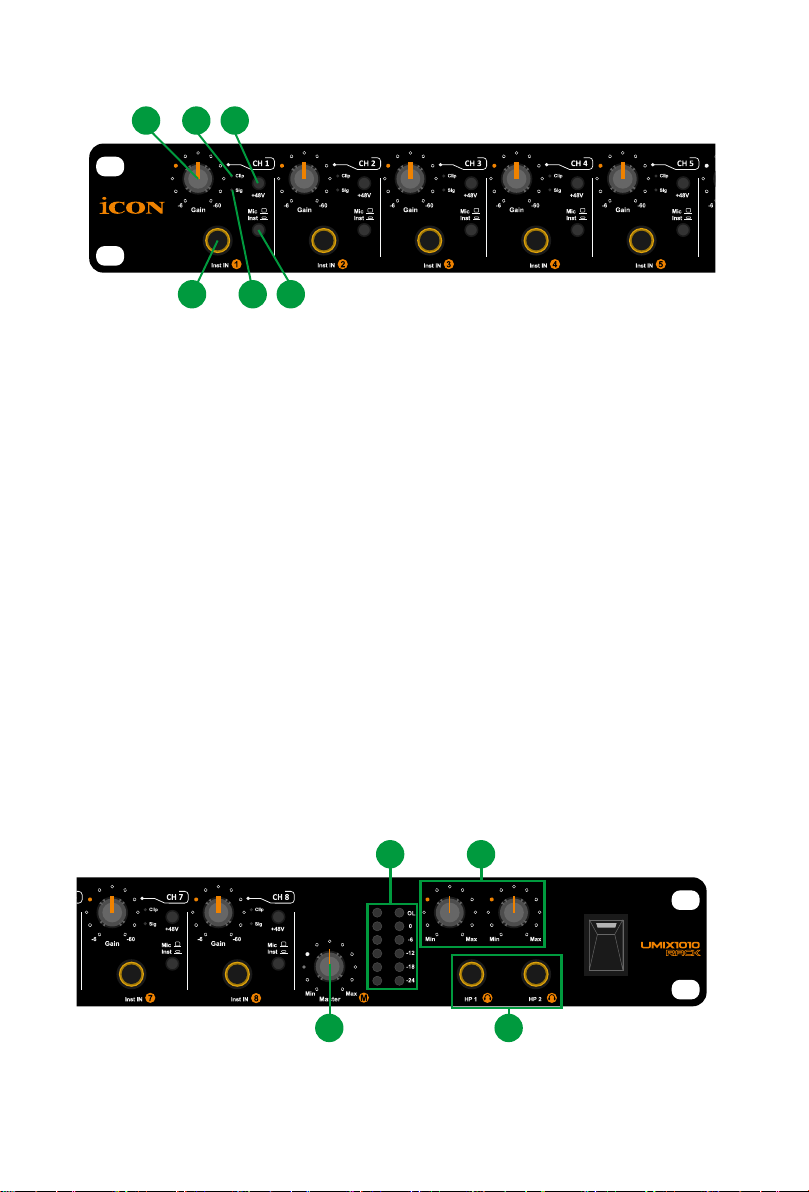

Front Panel
1. HI-Z input
This is a high impedance input for guitar/bass.
2. “HI-Z/MIC” input switch
Mic or HI-Z input switch for input 1-8.
3. Input gain level controls 1-8
These potentiometers control the input level of their associated analog Mic/Inst/
Line input.
4. 48V phantom power switch
Press to supply +48V phantom power to the associated XLR (Rear panel) input.
This phantom power circuit is suitable for most condenser microphones.
5. Sig (Signal LED indicator)
When lit, this LED indicates the presence of an audio signal at the associated
MIC/INST input.
6. Clip (Clip LED indicator)
When lit, this LED indicates clipping input level at the associated MIC/INST
input. The LED will illuminate when the signal is 3dB below the clipping point.
1
3 6 4
8 9
25
710
1
3 6 4
8 9
25
710
7. Master level control
This potentiometer controls the master output level (output Ch.1-2) of the analog
outputs.

7
8. Output level metering
Showing the output level for the master channel.
9. Headphone level control 1-2
These potentiometers control the output level of the associated headphone
output.
10. Headphone output 1-2
These output jacks accept a standard 1/4″ stereo TRS headphone connector.

8
Rear Panel
1. Mic/Inst” inputs 1-8
Balanced mic/Line level inputs. These hybrid connectors will accept a
standard 3-pin XLR plug or a 1/4” TS connector.
2
3
1
45
6
2
3
1
45
6
2. Line outputs 1-8
These are balanced analog outputs on standard 1/4″ TS connectors at +6dBU
line level.
3. S/PDIF coaxial I/O connectors
S/PDIF digital input and output on coaxial RCA connectors. The digital input is
selected via the Umix 1010 Rack software control panel, while the digital output
will be sent to the coaxial.
4. MIDI I/O connectors
MIDI input and output on standard 5-pin DIN connectors
5. USB 2.0 Connector
Connect it with the provided USB cable to your Mac/PC’s USB connector. Your
Mac/PC must have a USB2.0 connector in order to run the full speed of Umix
1010 Rack

9
6. 12V/3A power adaptor
Connect the provided power adaptor here.

Note: Umix 1010 Rack is not able to work without the provided power adaptor
connected. The USB bus power is not able to provide sufcient power supply for
Umix 1010 Rack.

10
Mac driver installation
Please follow the step-by-step procedures below to install your Umix1010 Rack USB
recording interface and its driver.
2. Insert the Driver CD into your CD-
Rom.
After you have inserted the provided Driver CD
into your CD-Rom, a pop-up window should
appear as shown in Diagram 2, then click on
the "Mac” folder to open the installation les
list. Click “ICON_ Umix1010 Rack.mpkg”
Diagram 1
Diagram 5
Diagram 2
Diagram 3
Diagram 4
3. Welcome Screen appears
Choose "Continue" when you see the Welcome
Screen shown in Diagram 3
4. Set install location
Click the "Change install location” button if you
would like to set your preferred install location;
otherwise click the “Install” button.
5. Installation start
The driver installation has started; please wait
until the process has completed.
1. Turn on your Mac
Note: Do not connect the Umix1010 Rack
digital audio interface to your Mac yet

11
Diagram 6
Icon Control Panel
Diagram 7
Diagram 8
Diagram 9
6. Installation completed
The driver installation has completed
successfully. Click the “Close” button.

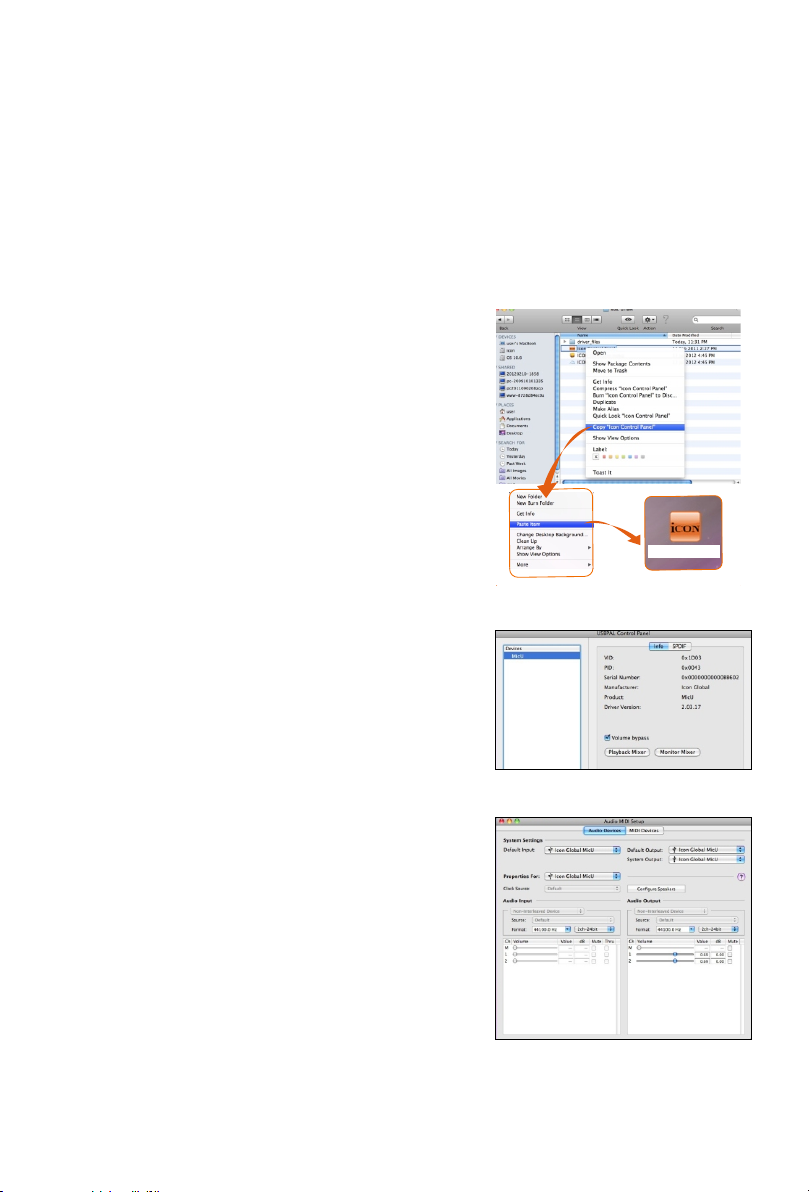

7. Copy the software control panel
shortcut logo to your desktop
Open the previous “Mac” folder. Copy the
“Umix1010 Rack” software panel shortcut logo
and paste it to your desktop.
8. Launch the software control panel
Click the Umix1010 Rack’s software control
panel shortcut logo you have just copied to
your desktop to launch the software control
panel.
9. Audio MIDI setup
Open the “Audio MIDI setup” window and
check if the Umix1010 Rack device has
setup properly as shown below in diagram
9. If your Umix1010 Rack device does not
appear on the system settings. It means the
driver did not install properly, go through the
“Driver Installation” procedure again.

12
Software control panel

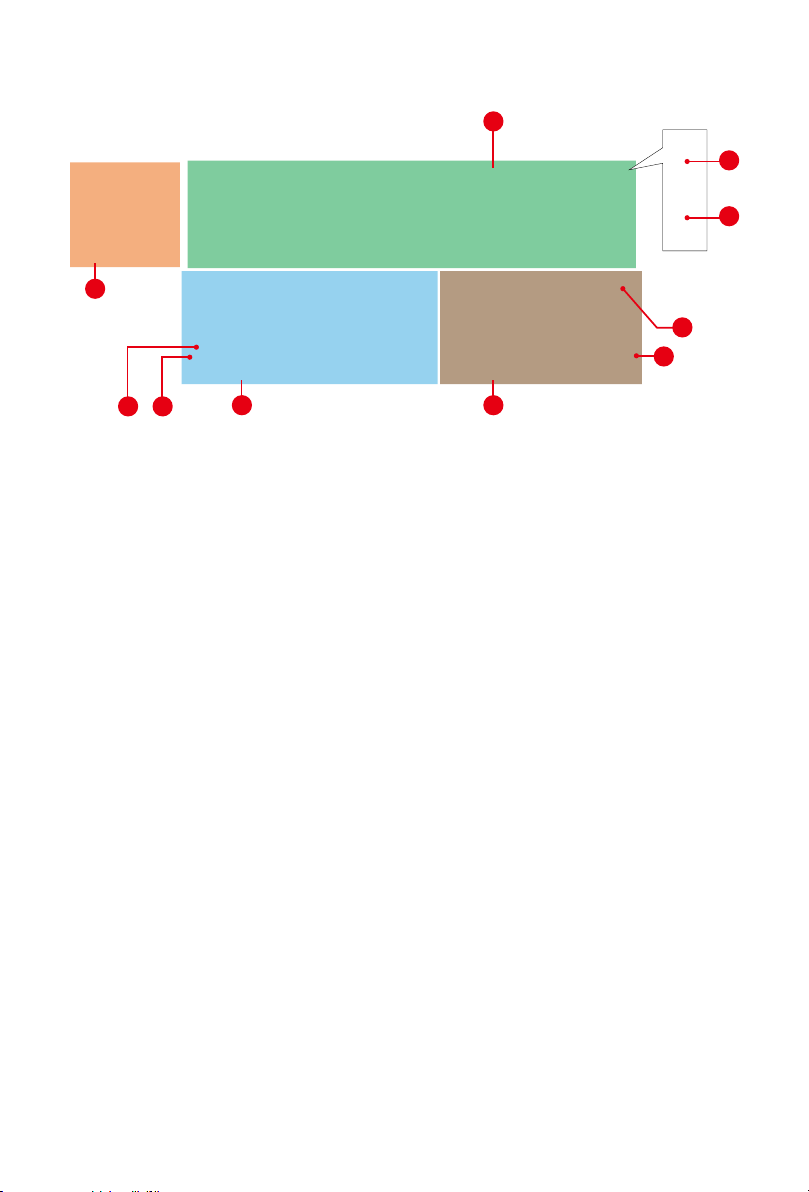

The “Playback” and “Monitor” mixers work like a matrix mixer. Activate and adjust the
correspondence input or output channel level. They are very useful and make your
inputs and outputs very exible. You may route any of your input(s) to any output(s).
1. Software outputs level
metering
Ch 1-8 & S/PDIF output level
metering
Showing the input level for the
software input channel.
2. Hardware outputs level
metering
Ch 1-8 & S/PDIF output level
metering
Showing the output level for
the hardware output channel.
1. Hardware inputs level
metering
Ch 1-8 & S/PDIF input level
metering
Showing the input level for
the hardware input channel.
2. Hardware outputs
level metering
Ch 1-8 & S/PDIF output level
metering
Showing the output level for
the hardware output channel.
1
2
1
2
Playback Mixer
Monitor Mixer
Diagram 10
Diagram 11

13
Windows driver installation
Please follow the step-by-step procedures below to install your Umix 1010 Rack
USB recording interface and its driver.
1. Turn on your computer
Note: Do not connect the Umix 1010 Rack digital audio interface to your
computer yet
2. Insert the Driver CD into your CD-
Rom.
After you have inserted the provided Driver
CD into your CD-Rom, an Installation screen
should appear as shown in Diagram 12, then
click "Windows Driver” for the driver installation"

Note: If the Installation screen do not appaer
automatically. Go to the CD folder and double
click "Setup"
3. Installation Wizard appear
Choose "Next" when you see the Welcome
Screen as Diagram 13 shown
4. License Agreement
Check mark the “I accept the terms in the
License Agreement” and click “Next”.
Diagram 13
Diagram 14
Diagram 12

14
5. Conrm driver installation
A conrmation on the driver installation screen
will appear, click “Next”.
Diagram 15
Diagram 16
Diagram 17
Diagram 18
6. Driver setup
Driver setup Choose the location of the driver
and click "Next" as shown in Diagram 16
7. Installation start
The installation process has started. The
process may take some time depending on
your computer performance; please be patient
and wait for the process to nish.

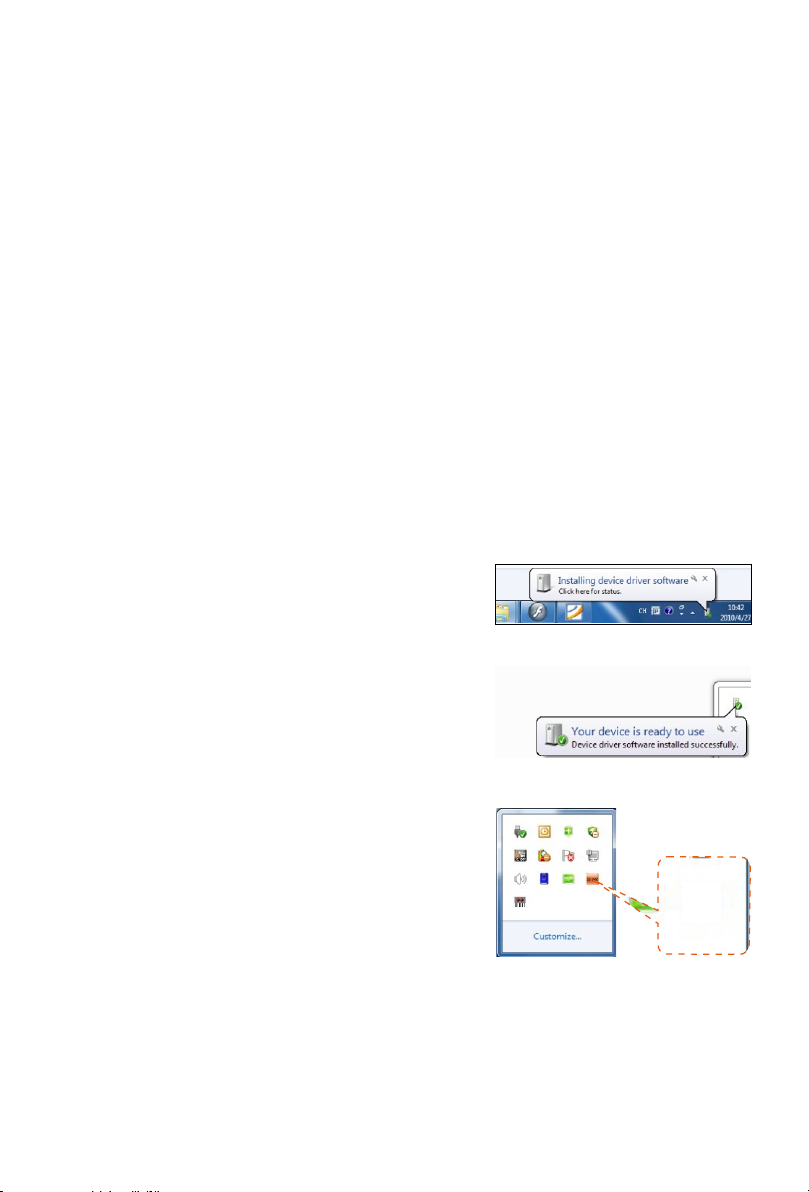

8. Software installation window
A window as shown in Diagram 18 should
appear. Choose "Install this driver software
anyway"
Note: Although this message appears, the Umix
1010 Rack driver is fully tested and supports
Windows XP, Vista, Windows 7 & Windows 8.

15
Diagram 19
Diagram 20
Diagram 21
Diagram 22
Diagram 23
9. Setup completed
A window as shown in Diagram 19 should
appear. Choose "Next”.
10. Connect your Umix 1010 Rack
digital audio interface
Now connect the Umix 1010 Rack digital audio
interface to your computer's USB port and click
"Finish".
Note: Umix 1010 Rack audio interfaces only
support USB 2.0. Your computer must have an
USB2.0 port.
11. Installing device driver software
The Umix 1010 Rack driver is installing
12. Driver installation completed
Umix 1010 Rack driver installation has
completed and is ready to use.
13. Launch the software control panel
You may click the Umix 1010 Rack logo on the
system tray to launch the software control panel
(Page 16).

16
Software control panel
1. Sample rate settings
Select your desired sampling rate from 44.1kHz
to 192kHz on the pull down window shown in
Diagram 24. Click "Apply" after the selection
has been made to set the value.
2. Buffer Size settings
You may select the buffer size for "Streaming"
and "ASIO". Click "Apply" after you have made
the selections.
Note: If a clicking sound occurs, you should
change to a larger buffer size for the settings.
If the largest buffer size has been selected and
there is still a clicking sound, it means your
computer performance is not able to handle the
task. (It is not caused by the Umix 1010 Rack
digital audio interface)
3. Device settings
Shows the serial number & product ID of your Umix 1010 Rack device. If it
doesn't show, it means your device is not properly installed. Please go through
the “Driver Installation” process again (Page 13).
4. Monitor Mixer
Click this button to launch the "Monitor Mixer"
(Page 17)
5. Playback Mixer
Click this button to launch the "Playback Mixer"
(Page 18)
6. S/PDIF Status and Pass Through
Showing the S/PDIF device signal status.
7. S/PDIF Pass Through
"Tick" the box if you want S/PDIF signal pass
through
Diagram 24
Diagram 25
Diagram 26

17
1. Hardware input level metering
Ch 1-8 & S/PDIF input level metering
Showing the input level for the hardware input channel.
2. Hardware output level metering
Ch 1-8 & S/PDIF output level metering
Showing the output level for the hardware output channel.
3. Virtual inputs level metering
Virtual 1-8 input level metering
Showing the input level for the virtual input channel.
4. Link switch
Switch to adjust both channels level simultaneously.
5. Mute switch
Switch to mute the corresponding channel.
6. “0dB” switch
Switch to instantly adjust the corresponding channel to “0dB” level.
7. Gain control fader
Slide to adjust the gain level for the corresponding channel.
8. Inputs & Outputs Matrix switches
Switch to turn On/Off the corresponding hardware input channel route to the
corresponding hardware output channel. The matrix is very useful and makes
your inputs and outputs very exible. You may route any of your input(s) to any
output(s).
Monitor Mixer
1
7
5
64
9
10
2 3
8

18
9. Inputs & Outputs Matrix Mixer
"Check" the box to activate the mixer.
10. Inputs & Outputs Matrix Mixer Gain Control
Adjust the gain for the corresponding hardware channel.
After nishing the adjustment, click "Close" to close the window.
Playback Mixer
1. Software outputs level metering
Ch 1-8 & S/PDIF output level metering
Showing the input level for the software input channel.
2. Hardware outputs level metering
Ch 1-8 & S/PDIF output level metering
Showing the output level for the hardware output channel.
3. Virtual inputs level metering
Virtual 1-8 input level metering
Showing the input level for the virtual input channel.
4. Link switch
Switch to adjust both channels level simultaneously.
5. Mute switch
Switch to mute the corresponding channel.
1
7
5
64
9
10
2 3
8

19
6. “0dB” switch
Switch to instantly adjust the corresponding channel to “0dB” level.
7. Gain control fader
Slide to adjust the gain level for the corresponding channel.
8. Inputs & Outputs Matrix switches
Switch to turn On/Off the corresponding hardware input channel route to the
corresponding hardware output channel. The matrix is very useful and makes
your inputs and outputs very exible. You may route any of your input(s) to any
output(s).
9. Inputs & Outputs Matrix Mixer
"Tick" the box to activate the mixer.
10. Inputs & Outputs Matrix Mixer Gain Control
Adjust the gain for the corresponding hardware channel.
After nishing the adjustment, click "Close" to close the window.

20
Hardware Connections
Connect the Umix 1010 Rack digital audio interface outputs to your amplier,
powered monitors or surround system. Two-channel stereo operation, the default
outputs are channels 1 and 2.
If you are monitoring through headphones, connect your headphones to the device’s
headphone output.
Connect your microphones, instruments or other line level analog sources to the
device's analog inputs.
Connect your S/PDIF digital devices to the coaxial digital I/O and MIDI device to the
MIDI I/O.
