ICON ProAudio PlatformNano Air User manual

User manual
Wireless MIDI/Audio control surface with motorized
fader for production

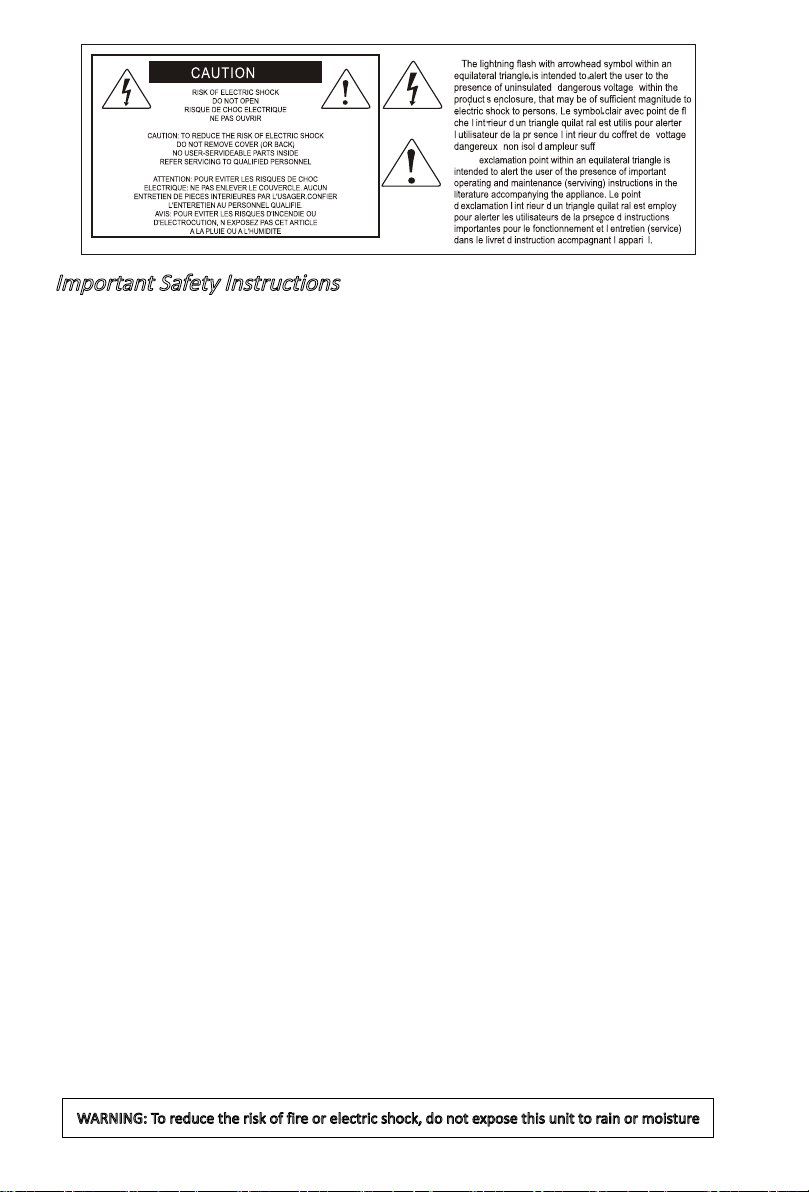

Important Safety Instructions
1. Read this manual thoroughly before using this unit.
2. Keep this manual for future reference.
3. Take notice of and comply with all warnings included in the user's manual or indicated on the
appliance.
4. Follow all instructions included in this manual.
5. Do not expose this unit to rain or moisture. Avoid having water or other liquids spilled on this
unit.
6. When cleaning the cabinet or other parts of this appliance, use only a dry or slightly damp soft
cloth.
7. Do not block any ventilation openings or interfere with the proper ventilation of this unit. Install
in accordance with the manufacturer's instructions.
8. Do not use or store near any heat sources such as radiators, heat registers, stoves, or other heat-
producing appliances.
9. Do not interfere with the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding-type plug has two blades and a third
grounding prong. These are designated for your safety. If the provided plug does not fit into your
outlet, consult an electrician.
10. Protect the power cord from being walked on or otherwise damaged by items placed on or
against them. Particular attention should be given to the plugs, receptacles, and the point where
the cord exits the appliance.
11. To avoid the risk of electrical shock, do not touch any exposed wiring while the unit is in
operation.
12. Only use attachments/accessories specified by the manufacturer.
13. Unplug this unit and all connected electrical equipment during lightning storms or when left
unused a long period of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the appliance has
been damaged in any way or fails to operate normally.
WARNING: To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture

Introduction...............................................................................................4
What's in the package? ............................................................................4
Register your ICON ProAudio product to your personal account ...........5
Features ...................................................................................................6
Top Panel Layout......................................................................................8
Rear Panel Layout.................................................................................. 11
Wireless dongle......................................................................................12
Getting Started(with USB 3.0 cable connection) ....................................13
Getting Started(Wireless connection).....................................................15
Download the Mac iMap from your Personal User Page at
www.iconproaudio.com...........................................................................17
Installing iMapTM Software for Windows .................................................18
Assigning DAW mode (Mackie Control/HUI) ..........................................20
or self dene MIDI functions with iMapTM................................................20
Assigning DAW mode (Mackie control/HUI)...........................................21
with iMapTM .............................................................................................21
Assigning MIDI message with User Dened mode at iMapTM ................23
Control element setup at User dened mode.........................................25
Other Functions in iMap™......................................................................27
Firmware upgrade ..................................................................................28
Charging the battery...............................................................................32
Cubase ...................................................................................................33
Nuendo...................................................................................................34
Logic Pro ................................................................................................35
Samplitude..............................................................................................37
Bitwig......................................................................................................38
Reason ...................................................................................................39
Reaper....................................................................................................40
Studio One..............................................................................................41
Ableton Live............................................................................................42
Pro Tools.................................................................................................43
Restore the factory default settings........................................................45
Hardware Connections...........................................................................46
Specications .........................................................................................47
Services..................................................................................................48
Contents

4
Introduction
What's in the package?
●PlatformNano Air USB-MIDI Controller x 1pc
●Quick Start Guide x 1
●USB3. 0 Cable x 1
●PVC overlays for different DAWs
Thank you for purchasing the ICON ProAudio PlatformNano Air digital control
surface. We sincerely trust this product will provide years of satisfactory service, but
if anything is not to your complete satisfaction, we will endeavor to make things right.
In these pages, you'll nd a detailed description of the features of the PlatformNano
Air, as well as a guided tour through its front and rear panels, step-by-step
instructions for their setup and use, and full specications.
Please register the product on our website at the below link
www. iconproaudio.com/registration:
Please follow the step by step procedures. Start by inputing the device’s serial
number as well as your personal information, etc. By registering your product online,
you will be entitled to service and after-sales support at our Help Center by visiting
our website at www.iconproaudio.com. Also, all the registered products under your
account will be listed on your personal product page where you will nd updated
information such as rmware/driver upgrades, software bundles, user manual
downloads, etc. for your device.
As with most electronic devices, we strongly recommend you retain the original
packaging. In the unlikely event the product must be returned for servicing, the
original packaging (or reasonable equivalent) is required.
With proper care and adequate air circulation, your PlatformNano Air will operate
without any trouble for many years.

5
Register your ICON ProAudio product to your
personal account
1. Check serial number of your device
Please go to http:// iconproaudio.com/registration or scan the QR code
below.

Input your device’s serial number and the other information on the screen. Click
“Submit”.

A message will pop up showing your device information such as model name
and its serial number - Click “Register this device to my account” or if you see
any other message, please contact our after-sales service team

2. Log in to your personal account page for existing user or
sign up for new user
Existing user: Please log into your personal user page by inputing your
user name and password.

New user: Please click “Sign Up” and ll in all the information.

3. Download all useful materials
All your registered devices under your account will show on the page. Each
product will be listed along with all its available les such as drivers, rmware,
user manual in different languages and bundled software etc. for download.
Please make sure you have download the necessary les such as driver before
you begin device installation.

6
Features
●2.4GHz Gen4.0 BLE wireless module built-in for very stable wireless connection
●Super compact USB Bluetooth wireless pairing dongle is included
●Automatic wireless pairing between the Bluetooth dongle and the device's wireless
module, no extra operation is required
●1 touch-sensitive motorized fader with 10-bit resolution
●Extremely compact, durable and versatile
●Backlit OLED to display channel name, control values, etc.
●1 + 4 dual-function encoder knobs (Rotate and E nter)
●11-segment LED surrounding the encoders to indicate the rotating position for the
main knob control
●12-segment LED display shows time code or location of your project in either
SMPTE or Midi beat clock (bars:beats:ticks) formats
●Jog wheel shuttle for fast search, scrub and control
●8 LED color-coded function buttons coordinate with 5 different color layers for
switching a variety of function controls
●Illuminated buttons for channel control including Mute, Solo and Record
●6 illuminated transport buttons including Play, Stop, Rec, Rewind, Fast Forward
and Loop
●Illuminated “Zoom” buttons with 2 directional keys (Left/Right & Up/Down) used in
combination with the jog wheel
●2 illuminated “Track” buttons for selection of individual channels
●2 illuminated “Bank” buttons for shifting 8-channels at a time
●Supports Universal Mackie Control and HUI protocols for seamless integration with
compatible music production software

7
●The most popular DAW overlays are included-Cubase/Nuendo, Logic Pro X,
Digital Performer, FL Studio, Samplitude, Reaper, Studio One, Bitwig, Reason,
ProTools, Sonar, Audition, Ableton Live and User Dene Mode
●iMapTM software included for mapping of MIDI functions
●USB 3. 0 high-speed connectivity
●Firmware upgrade available via USB connection and iMapTM software
●User A & User B 1/4 inch inputs for connecting with footswitch pedals
●Platform D3 LCD display connector available (Optional)
●Class-compliant with Mac OS X, Windows 10, Windows 8 (32-bit & 64-bit),
Windows 7 (32-bit & 64-bit)
●3000mAh Li-ion polymer rechargeable battery is included.
●5-6 hours continuous battery powered operation when using automation with
PlatformD3 connected (battery fully charged)
●4 color LED for battery level indicator
●Mini-USB port equipped for charging the battery with mobile phone adapter or
power pack
●Superior build quality and robust metal casing with Kensington lock port

8

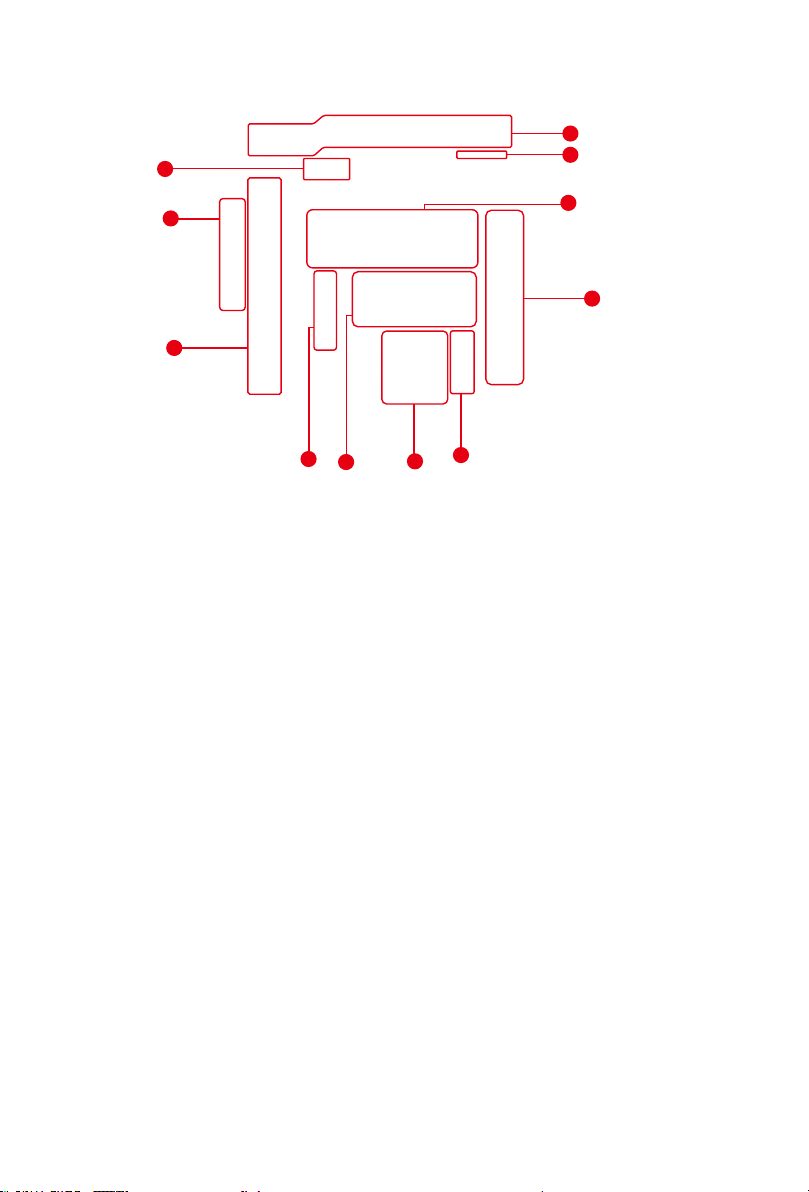

Top Panel Layout
2
3
4a 6
7
8
5a 5b
1
4b
9
1. LCD backlit display
The backlit LCD display shows the parameter values as you adjust them and
also provides feedback about channel selections, operating modes, and more.
2. Channel/Master fader
The touch sensitive motorized fader is used to adjust the parameters of different
channels. Press the two “Fader” buttons to shift between channels, and press
the two “Bank” buttons to shift eight channels at a time. By pressing the “Master”
button, the fader will control the parameter of the master channel.

The 100mm motorized fader is generally used for controlling the track volume
of your DAW. De-pending on your DAW, you may use the “Flip” button to switch
the function of this fader to change it to another setting.The fader is touch-
sensitive which allows you to override automation the moment you touch a fader.
Also, because it is motorized, the fader will automatically move to reect the
current level of the selected channels in your DAW application. Any parameter
adjustments made with the fader will be displayed directly above on the LCD
display.
3. Dual function encoders
The dual functioned encoder acts as a push-button and a rotary control.
When an encoder is pressed, it may be used to change modes of operation.
When an encoder is rotated, depending on its assigned function, it can be used
to adjust a channel’s pan, send level, or plug-in parameters.
NOTE: Because of the differences between Digital Audio Workstations (DAWs)
individual functions may operate a little differently in each DAW. Please overlay the
correct provided labeling template according to your current DAW. The following
description is based on the functions that operate in Apple Logic. Your functionality
may be slightly different.

9

4. Control buttons
4a) Recording channel control buttons section
REC button-—Activate and deactivate the recording state of the associated
channel. The switch will light red when the channel is armed.
SOLO button-—Turn On and Off the solo state of the associated channel.
The switch will light green when the channel solo state is on
and other channels will be muted.
MUTE button-—Activate and deactivate the mute state of the associated
channel. The switch will light blue when the channel is muted.

4b) Motorized fader control buttons section
Fader < button-—Shift “one” channel up for all faders (except the master
channel).
Fader > button-—Shift “one” channel down for all faders (except the master
channel).
BANK UP button-—Shift “eight” channels up for all faders (except the master
channel).
BANK DOWN button-—Shift “eight” channels down for all faders (except the
master channel).
5. Jog wheel section
5a) Jog wheel-—The jog wheel is used for various purposes specic to the
DAW application, including shuttle and scrubbing functions.

5b) Zoom control buttons section
Zoom UP/DOWN button-—The Zoom UP/Down button is used to navigate
up or down through the Graphical User Interface
(GUI) of the DAW application, and is used in
conjunction with the jog wheel to increase and decrease
track size.

Zoom LEFT/RIGHT button-—The LEFT/RIGHT button is used to navigate
left or right through the Graphical User Interface
(GUI) of the DAW application, and is used in
conjunction with the jog wheel to increase clip size
in the project window and channel size in the mixer
window.
6. Transport control buttons section
PLAY button -— Activate the play function of the DAW.
STOP button -— Activate the stop function of the DAW.
REC button -— Activate the record function of the DAW.
REWIND button -— Activate the rewind function of the DAW.
FAST FORWARD button -— Activate the fast forward function of the DAW.
LOOP button -— Activate the loop function of the DAW.

10
7. Assignment section
(Note: Functionality of these buttons varies from DAW to DAW. Please apply the
correct overlay for your current Digital Audio Workstation for proper function. The
functionality below applies to Apple Logic Pro.)
TRACK button -— Activate the track parameters of the software
PAN/SURROUND/EQ/Send/Plug-in/Instrument buttons -— These buttons are
used to activate the corresponding effect function of the DAW. They are typically
used in conjunction with the rotary encoder knobs. Press the button, its light will
turn on, and then rotate the rotary encoder knob to adjust the value.
8. LED color-coded function buttons
This section of 8-control buttons are LED color-coded for different functions
on each layer. Switch between the layers using the 5-round buttons located
above. They include red, green, blue, purple and yellow. Press any one of the
round buttons to switch between the function layers. Please place the correct
PVC overlay which corresponds to your current DAW to show the function for
each button on each color layer. Please refer to your DAW manual for more
information about the terms and functions listed.
9. Battery level indicator
1st Green -— Battery level between 76%-100%
2nd Green -— Battery level between 51-75%
Orange -— Battery level between 26-50%
Red -— Battery level less than 25%

Tip: While using the device, the red LED will start to ash if the battery level falls
below 5%. Please recharge it immediately.

11
Rear Panel Layout

1. USB 3. 0 port
Functions as a MIDI port to your computer and compatible software. This port
also provides power to your PlatformNano Air.

2. User A / User B ¼ inch inputs
These¼ inch inputs are able to connect to foot pedals to activate selected
functions in your DAW. To set their parameters, select USER A and USER B
parameters in Mackie control mode.
3. USB port (mini)
If your computer’s USB port is not able to provide sufcient power to drive
PlatformNano Air, you may connect an external power adapter (5V DC) such as
your mobile phone charger to provide extra power for the device.

This port is also used for charging the built-in rechargeable battery with external
power pack when you are using the device while you are travelling
4. PlatformD3 LCD module connector
Connect your optional PlatformD3 LCD display module to this connector with the
provided cable.
1
1243

12
Wireless dongle

1. Paired indication LED
When your PlatformNano Air device's wireless
module is paired with the wireless dongle, this
LED will be lit, otherwise it will keep blinking.
2. MIDI In LED
When there is a mid in signal present, this
LED will blink.
3. MIDI Out LED
Where there is midi out signal present, this
LED will blink.
1
2
3

13
PAIRED
MCP
Esc F1 F2 F3 F4
F5
F6
F7 F8 F9 F10 F11 F12
Prtsc
sysrq
pause
Break
Lns
Del
Home
Pgup
PgDN
End
$
~
`
！
1
··
23456778 90
）
）
*—
-
+
=
#￥%
*
##
QWERTYUIOP{}|
ASDFGHJKL:
;
ZXCVBNM<>?
Tab
CapsLook
Shift
Ctrl Alt AltGr Ctrl
Backspace
[
]
|
Enter
Shift
intel
1
2
(1)
MCP
Nuendo/Cubase; Digital Performer; FL Studio; SamplitudePro;
Reaper; Studio One; Bitwig; Reasons; Sonar; Audition; Ableton Live
Logic Pro
(1)
MCP
(2)
LogicPro
ProTools
(3)
HUI
User self mapping with iMap
(4)
User-Def
2
(1)
MCP
Nuendo/Cubase; Digital Performer; FL Studio; SamplitudePro;
Reaper; Studio One; Bitwig; Reasons; Sonar; Audition; Ableton Live
Logic Pro
(1)
MCP
(2)
LogicPro
ProTools
(3)
HUI
User self mapping with iMap
(4)
User-Def
Esc
F1 F2 F3 F4
F5
F6
F7 F8 F9 F10 F11 F12
Prtsc
sysrq
pause
Break
Lns
Del
Home
Pgup
PgDN
End
$
~
`
！
1
··
23456778 90
）
）
*—
-
+
=
#￥%
*
##
QWERTYUIOP{}|
ASDFGHJKL:
;
ZXCVBNM<>?
Tab
CapsLook
Shift
Ctrl Alt AltGr Ctrl
Backspace
[
]
|
Enter
Shift
intel
3
3
1

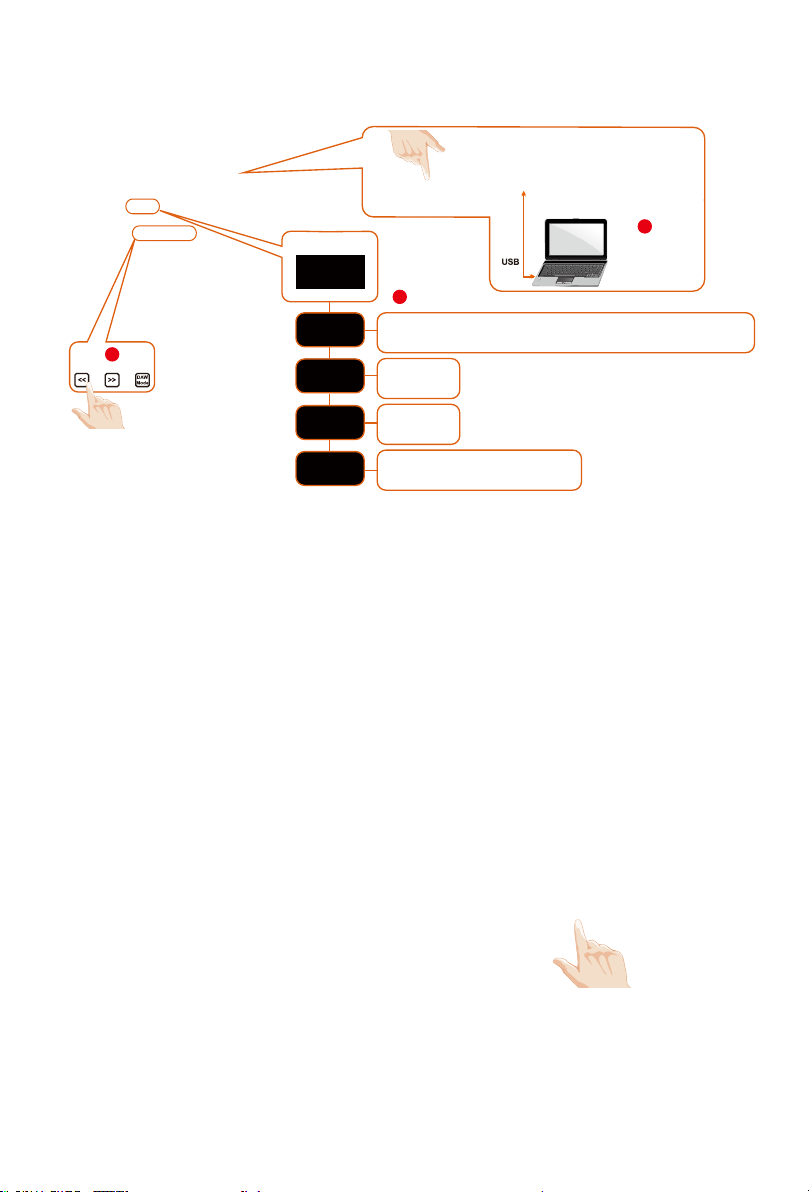

Getting Started(with USB 3.0 cable connection)
Connecting Your PlatformNano Air Controller
Note：Adjusting the fader sensitivity for using PlatformNano Air wirelessly or
USB connection

Due to the grounding issue when using PlatformNano Air wirelessly, the fader
sensitivity has to be adjusted to a different value for a stable operation.

Recommended sensitivity values: USB connection - Around 15
Wireless - Around 7

Procedures for adjusting the fader sensitivity
a) Press and hold the second encoder knob while switch on the power of the
device to enter to the "Sensitivity adjust" mode

b) While touching the fader cap with your nger,
rotate the fth encoder knob to adjust the sensitivity
value until you see the red LED (as shown) lit and
make sure it is not blinking.

c) Remove your nger from the fader cap and check
if the red LED will go off, otherwise adjust the value
again as step two above

d) Press the fth encoder to conrm the adjustment
1. Connect the PlatformNano Air to your Mac/PC via the USB
port.
Choose a USB port on your Mac/PC and insert the wide (at) end of the USB
cable. Connect the cable’s other end to the PlatformNano Air. Your Mac/PC
should automatically detect the new hardware and notify you that it is ready to
use.

14
2. Select the DAW at PlatformNano Air
Press <</>> to scroll through the DAW mode list and then press the “DAW mode”
button to make the selection.

Tips: PlatformNano Air will memorize your last selected DAW mode and enter
the same mode a few seconds after the unit has been powered on. (i.e. DAW
mode selection is not necessary if the last DAW mode is being used.)
3. Setup your DAW
Activate the ICON PlatformNano Air controller in your DAW or MIDI software
using “MIDI Setup” or “MIDI Devices”.

For example: For LogicTM, CubaseTM and NuendoTM, choose Mackie Control in the
“Device List”.

(Note: Every application does this a little differently, so refer to your software user
manual for the settings. )
otherwise adjust the value again as step two above


15
Getting Started(Wireless connection)
Connecting Your PlatformNano Air Controller
PAIRED
MCP
Esc
F1 F2 F3 F4
F5
F6
F7 F8 F9 F10 F11 F12
Prtsc
sysrq
pause
Break
Lns
Del
Home
Pgup
PgDN
End
$
~
`
！
1
··
23456778 90
）
）
*—
-
+
=
#￥%
*
##
QWERTYUIOP{}|
ASDFGHJKL:
;
ZXCVBNM<>?
Tab
CapsLook
Shift
Ctrl Alt AltGr Ctrl
Backspace
[
]
|
Enter
Shift
intel
1
2
(1)
MCP
Nuendo/Cubase; Digital Performer; FL Studio; SamplitudePro;
Reaper; Studio One; Bitwig; Reasons; Sonar; Audition; Ableton Live
Logic Pro
(1)
MCP
(2)
LogicPro
ProTools
(3)
HUI
User self mapping with iMap
(4)
User-Def
2
(1)
MCP
Nuendo/Cubase; Digital Performer; FL Studio; SamplitudePro;
Reaper; Studio One; Bitwig; Reasons; Sonar; Audition; Ableton Live
Logic Pro
(1)
MCP
(2)
LogicPro
ProTools
(3)
HUI
User self mapping with iMap
(4)
User-Def
Esc
F1 F2 F3 F4
F5
F6
F7 F8 F9 F10 F11 F12
Prtsc
sysrq
pause
Break
Lns
Del
Home
Pgup
PgDN
End
$
~
`
！
1
··
23456778 90
）
）
*—
-
+
=
#￥%
*
##
QWERTYUIOP{}|
ASDFGHJKL:
;
ZXCVBNM<>?
Tab
CapsLook
Shift
Ctrl Alt AltGr Ctrl
Backspace
[
]
|
Enter
Shift
intel
3
3
1
Note：Adjusting the fader sensitivity for using PlatformNano Air wirelessly or
USB connection

Due to the grounding issue when using PlatformNano Air wirelessly, the fader
sensitivity has to be adjusted to a different value for a stable operation.

Recommended sensitivity values: USB connection - Around 15
Wireless - Around 7

Procedures for adjusting the fader sensitivity
a) Press and hold the second encoder knob while switch on the power of the
device to enter to the "Sensitivity adjust" mode

b) While touching the fader cap with your
nger, rotate the fth encoder knob to adjust
the sensitivity value until you see the red LED
(as shown) lit and make sure it is not blinking.

c) Remove your nger from the fader cap and
check if the red LED will go off, otherwise
adjust the value again as step two above

d) Press the fth encoder to conrm the adjustment
1. Plug in the wireless USB dongle into your PC/Mac USB
port and then switch on the power of your PlatformNanoAir
device.

16
Its wireless module will pair with your dongle automatically. As soon as you see
the text "Paired" on the PlatformNano Air's LCD, they have paired successfully.
Then your Mac/PC should automatically “detect” the new hardware and notify
you that it is ready to use.
2. Select the DAW at PlatformNano Air
Press <</>> to scroll through the DAW mode list and then press the “DAW
mode” button to make the selection.

Tips: PlatformNano Air will memorize your last selected DAW mode and enter
the same mode a few seconds after the unit has been powered on. (i.e. DAW
mode selection is not necessary if the last DAW mode is being used.)
3. Setup your DAW
Activate the ICON PlatformNano Air controller in your DAW or MIDI software
using “MIDI Setup” or “MIDI Devices”.

For example: For LogicTM, CubaseTM and NuendoTM, choose Mackie Control at
the “Device List”.

(Note: Every application does this a little differently, so refer to your software user
manual for the settings.)

17

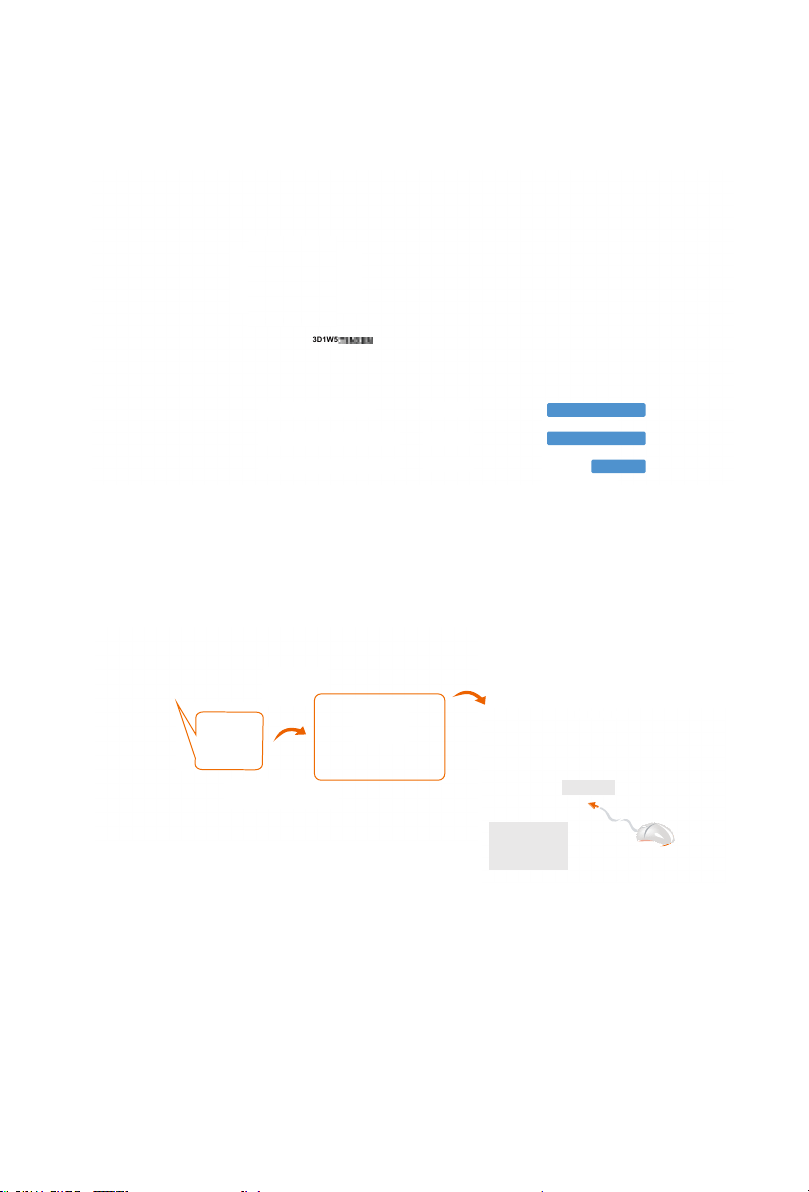

Download the Mac iMap from your Personal
User Page at www.iconproaudio.com
After you downloaded the le, please click it to start the installation process.

1. iMapTM Software for Mac OS X
Please follow the procedures below step-by-step to launch your iMapTM
software to Mac OS X.

iMap PlatformNano
Firmware iMap.dmg
PlatformNano
Firmware iMap.dmg
QconProG2/QconExG2
Tip: By “dragging and dropping” the “PlatformNano Air iMap” icon into the
“Applications” folder, you can create an “iMap” shortcut on your Mac’s desktop.
PlatformNano Air
3D1W51
Platform Nano iMap Mac Setup V1.0.8
V1.0.8
Platform Nano iMap Windows Setup
PlatformNano Manual - Caech
PlatformNano Manual - English
Download The Latest
Download The Latest
Download
Download
Diagram 1
Diagram 2

18
Installing iMapTM Software for Windows
Please follow the procedures below step-by-step to install your iMapTM software.
1. Turn on your PC.
2. Download the Windows iMap from your Personal User Page
at www.iconproaudio.com
After you downloaded the le, please click it to start the installation

3. The Setup Wizard will appear
Setup wizard appears, please click “Next”
4. Choose Install Location
Choose your preferred install location for
iMapTM or use the default location and click
“Next”
5. Select shortcut
Select the start menu folder in which you
would like to create the iMapTM shortcut.
Then click “Next”
6. Create a shortcut on your desktop
Please uncheck the box if you do not want
to place a shortcut icon on your desktop for
iMapTM; otherwise click “Next”.
Diagram 3
Diagram 4
Diagram 5

19
7. iMapTM begins installation
The iMapTM installation has now started,
wait for it to nish. Then click “Finish”.
8. Installation nished
Click “Finish” to complete the iMapTM
software installation.
Diagram 6
Diagram 7

20
Assigning DAW mode (Mackie Control/HUI)
or self dene MIDI functions with iMapTM
There are two different methods for setting your PlatformNano Air depending
on your needs. In general, it would be much simpler and faster to set the device
with Mackie Control, Logic or HUI protocol depended on your DAW.

Or you could dene each control element on your PlatformNano Air with your own
MIDI messages as provided on the iMap’s function pull-down menu. However,
unless you are fully understand the MIDI structure of your DAW, this could be a
real hassle to set up. Actually we STRONGLY recommend you use the Mackie
Control, Logic or HUI control mode as they are programmed according to the most
common user preferences and it will most likely suit your needs.

Esc
F1 F2 F3 F4
F5
F6
F7 F8 F9 F10 F11 F12
Prtsc
sysrq
pause
Break
Lns
Del
Home
Pgup
PgDN
End
$
~
`
！
1
··
23456778 90
）
）
*—
-
+
=
#￥%
*
##
QWERTYUIOP{}|
ASDFGHJKL:
;
ZXCVBNM<>?
Tab
CapsLook
Shift
Ctrl Alt AltGr Ctrl
Backspace
[
]
|
Enter
Shift
intel
2
1
3
(1)
MCP
Nuendo/Cubase; Digital Performer; FL Studio; SamplitudePro;
Reaper; Studio One; Bitwig; Reasons; Sonar; Audition; Ableton Live
Logic Pro
(1)
MCP
(2)
LogicPro
ProTools
(3)
HUI
User self mapping with iMap
(4)
User-Def
Diagram 8
