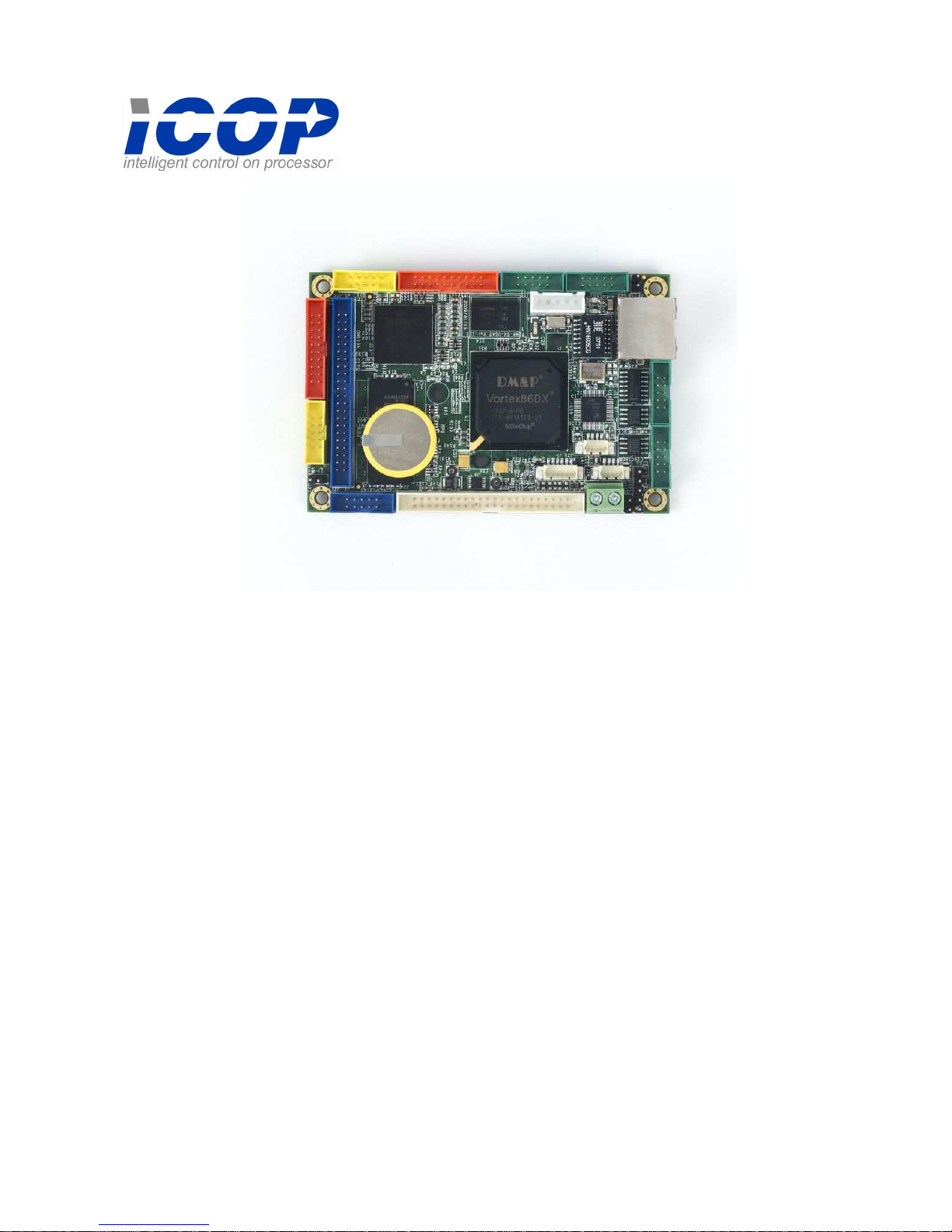

Icop VDX-6318RD User manual

VDX-6318RD / VDX-6318RD-512
DM&P Vortex86DX 800MHz
Tiny CPU Module
with 4S/3USB/VGA/LCD/AUDIO/LAN/2GPIO/PWMx24
256MB DDR2 Onboard
User’s Manual
(Revision 1.1A)

Copyright
The information in this manual is subject to change without notice for continuous improvement in
the product. All rights are reserved. The manufacturer assumes no responsibility for any
inaccuracies that may be contained in this document and makes no commitment to update or to
keep current the information contained in this manual.
No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part,
in any form or by any means without the prior written permission of the IC P Technology Inc..
Copyright 2009 IC P Technology Inc.
Manual No. IUM6318D000-01 Ver.1.0A March, 2011
Manual No. IUM6318D000-01 Ver.1.1A October, 2014
Trademarks Acknowledgment
Vortex86DX is the registered trademark of IC P Technology Inc.
ther brand names or product names appearing in this document are the properties
and registered trademarks of their respective owners. All names mentioned herewith
are served for identification purpose only.

T a b l e o f C o n t e n t s
T a b l e o f C o n t e n t s ............................................................. iii
C h a p t e r 1 Introduction……………………………………………1
1.1 Packing List ............................................................ 1
1.2 Product Description ................................................ 2
1.3 Specifications ......................................................... 3
1.4 Board Dimension .................................................... 4
C h a p t e r 2 Installation……………………………………………..5
2.1 Board utline ......................................................... 5
2.2 Connectors & Jumpers Location .................... ........6
2.3 Connectors & Jumpers Summary ........................... 8
2.4 Pin Assignments & Jumper Settings ....................... 9

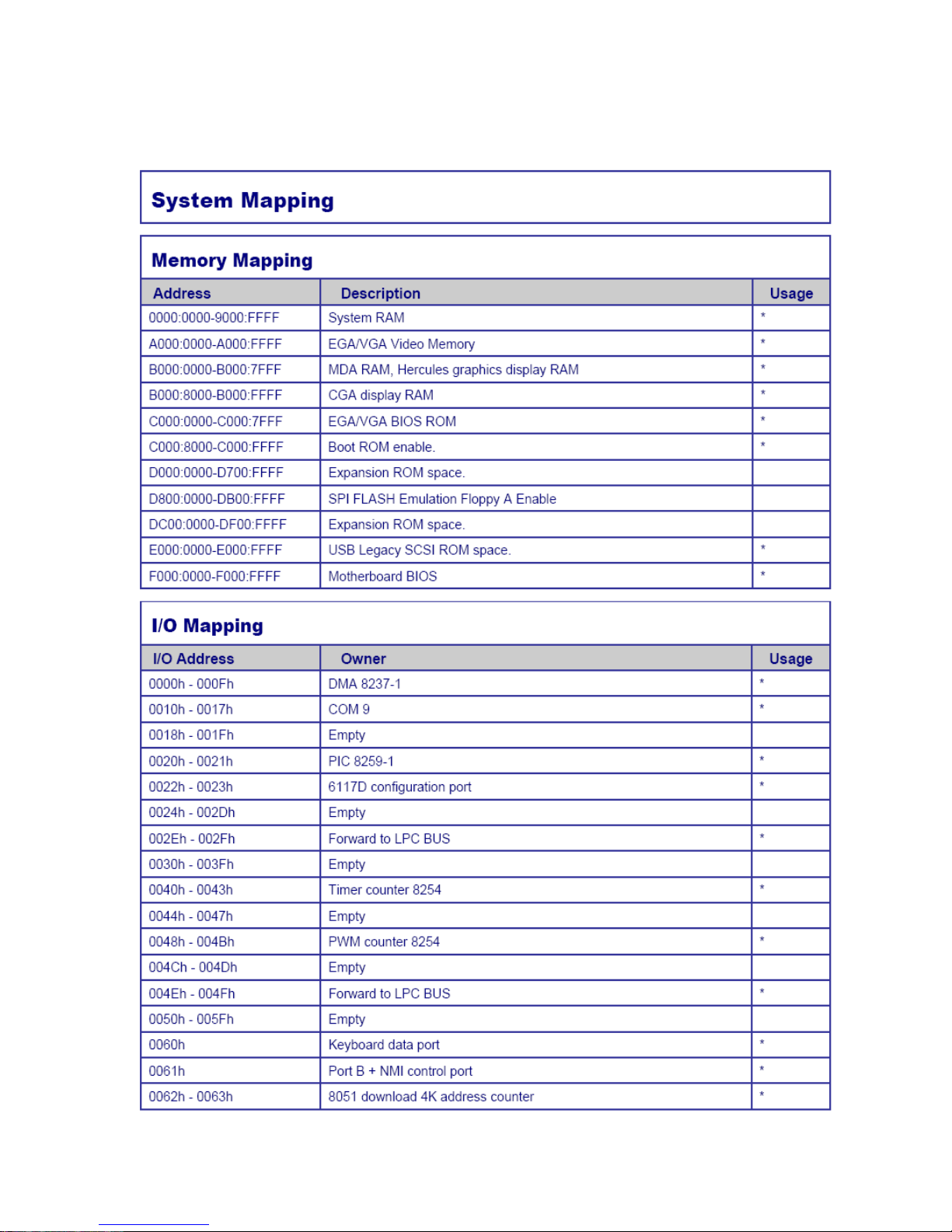

2.5 System Mapping ................................................... 16
2.6 Watchdog Timer ................................................... 19
2.7 GPI .................................................................... 20
2.8 SPI flash ............................................................... 21
2.9 PWM .................................................................... 22
3.0 IDE to SD ............................................................. 23
C h a p t e r 3 Driver Installation……………………………………24
Appendix ………………………………………………………………..25
A. TFT Flat Panel Data utput ...................................... 25
B. TFT Flat Panel Support List ....................................... 26
C. LVDS Flat Panel Support List .................................... 28
D. Flat Panel Wiring and Lighting .................................. 29
E. TCP/IP library for D S real mode ............................. 30
F. BI S Default Setting .................................................. 31
Warranty ............................................................................................ 32

This page is blank

VDX-6318RD Vortex86DX Tiny CPU Module
1
C h a p t e r 1
Introduction
1.1 Packing List
Product Name Package
VDX-6318RD
&
VDX-6318RD-512
mbedded Vortex86DX CPU All-in-One Board
Manual & Drivers CD x 1
RS232 cable x 4
ID cable x 1
USB cable x 2 (USB port x 2 )
VGA cable x 1
GPIO cable x2
AUDIO Line x2
PS/2 Mouse cable x 1
PS/2 Keyboard cable x 1

VDX-6318RD Vortex86DX Tiny CPU Module
2
1.2 Product Description
The VDX-6318RD family of low-power x86 embedded controller is designed to meet Tiny
specification, and integrated with the following features.
800MHz Vortex86DX System- n-Chip
256/ 512MB DDR2 system memory
VGA, TFT LCD support up to
1280x1024 resolution
Enhanced IDE (UltraDMA-100/66/33)
10/100Mbps Ethernet
3 USB 2.0 (host)
Up to 4 serial ports
16-bit GPI x 2
Audio
2 watchdog timer
PWM 24~32 channels
JTAG interface
AMI BI S
4MB SPI flash
Single voltage +5V DC
Support extended operating
temperature range of -20°C to +70°C
The VDX-6318RD Tiny family of embedded controller is designed with backward compatibility in
mind to provide migration path for projects facing end-of-life challenges with their existing x86
based Tiny controller. The VDX-6318RD family of controller is designed as a plug in replacement
with backward compatibility to support legacy software to help extend existing product life cycle
without heavy re-engineering.
VDX-6318RD is suitable for broad range of data-acquisition, Industrial automation, Process
control, Automotive controller, AVL, Intelligent Vehicle management devic,Medical device,
Human machine interface, Robotics, machinery control And more…application that required
small footprint, low-power and low-cost hardware with open industry standard such as Tiny.

VDX-6318RD Vortex86DX Tiny CPU Module
3
1.3 Specifications
Features VDX-6318RD
CPU
DM&P SoC CPU Vortex86
D
X
-
8
00MHz
Real Time Clock with Lithium Battery Backup
Cache
L1:16K I
-
Cache, 16K D
-
Cache
L2:128KB
Cache
BI S
AMI BI S
System Memory
256/ 512
MB DDR2
nboard
Watchdog Timer
Software programmable from 30.5
us
to 512 seconds x2
sets(Watchdog 1 fully compatible with M6117D)
VGA
XGI Volari Z9s Chipset
VGA and TFT Flat Panel Interface Support
LVDS Flat Panel Interface Support ( ptional)
nboard 32MB VGA Memory
Support resolution up to 1280 x 1024,16MB colors
LAN
Integrated 10/100M Ethernet
Audio
CM119 USB Audio controller
I / Interface
Enhanced IDE port (UltraDMA-100/66/33) x1
RS-232 port x3
RS-232/422/485 port x1 (RS485 with Auto Direction)
USB port x3 (USB 2.0 version)
16-bit GPI port x2
10/100Mbps Ethernet port x1
Connectors
2.00 mm ∅ 44-pin box header for IDE x1
2.00 mm ∅ 44-pin box header for LCD x 1
2.00 mm ∅ 10-pin box header for VGA x1
2.00 mm ∅ 20-pin box header for 16-bit GPI x2
2.00 mm ∅ 10-pin box header for RS-232 x4
2.00 mm ∅ 10-pin box header for USB x2
2.00 mm ∅ 2-pin header for Console Redirection x1
2.54 mm ∅ 5-pin box header for keyboard x1
2.54 mm ∅ 5-pin header for Mouse x1
2.54 mm ∅ 2-pin header for Reset x1
1.25 mm ∅ 6-pin Wafer for JTAG x1
1.25 mm ∅ 4-pin Wafer for Line-out/MIC-in x2
External RJ-45 connector for Ethernet x1
Flash Disk Support
nboard 4MB SPI Flash Disk (Driver: A)
44-pin IDE Flash Disk( EmbedDisk 16MB or above)
44-pin IDE to Micro SD ( ptional)
PWM
24~32 Channels
Power Requirement
Single Voltage +5V
@
74
0
mA
Dimension
100mm X 66mm (3.94 x2.6 inches)
Weight
6
3
g
perating
Temperature
-
20
o
C ~ +70
o
C
-40°C ~ +85°C ( ptional)

VDX-6318RD Vortex86DX Tiny CPU Module
4

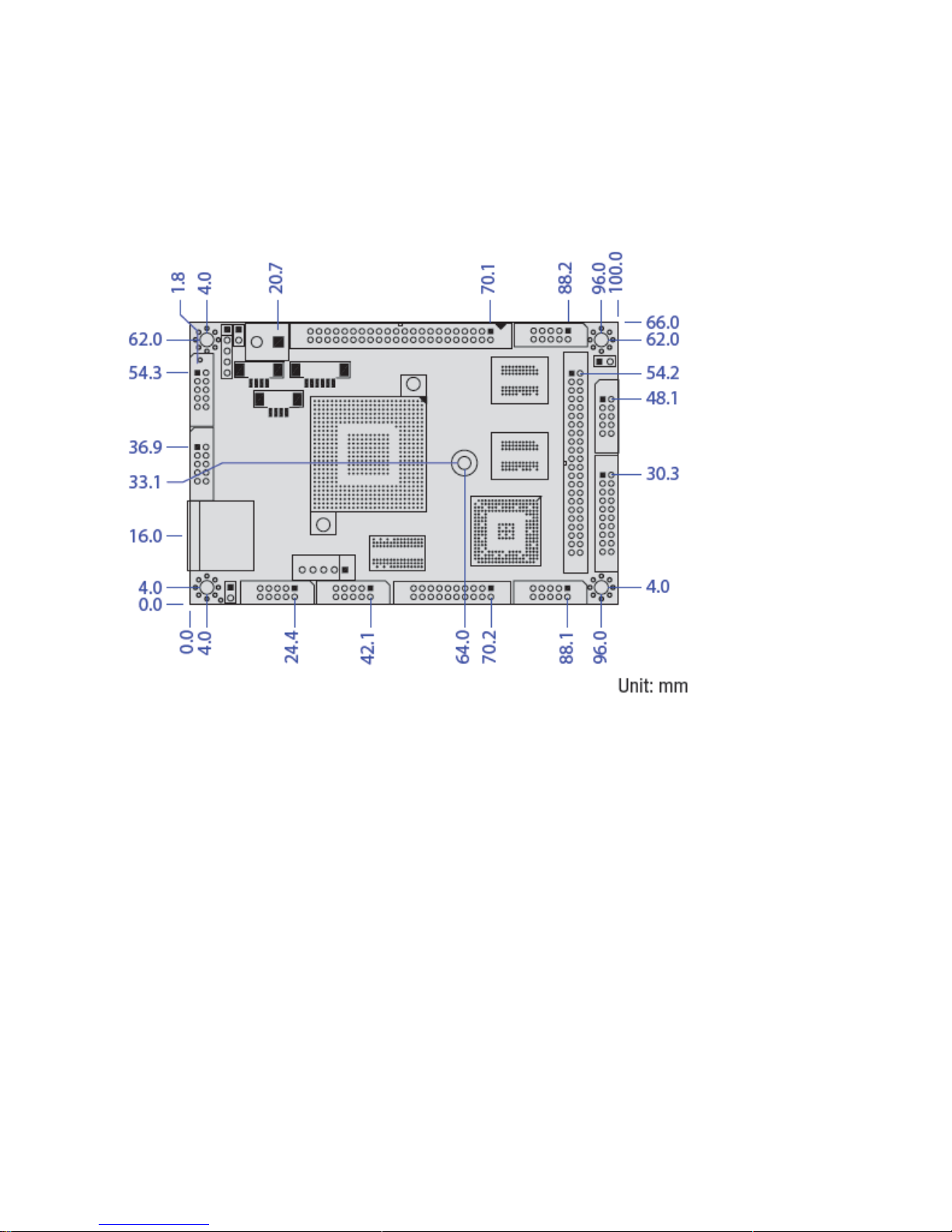

1.4 Board Dimension

VDX-6318RD Vortex86DX Tiny CPU Module
5
C h a p t e r 2
Installation
2.1 Board Outline
(Note1: USB 3 is occupied by Audio)
(Note2: If you nable 4M SPI flash Disk on the BIOS setting, you
cannot use GP30~GP37 Pins)
(Note3: GP25~GP27 will be occupied by RS-232/422/485 setting)
(Note4: COM2 RS232/422/485 is selected by BIOS setting)
(Note5: VDX-6318RD-512 is optional)

VDX-6318RD Vortex86DX Tiny CPU Module
6

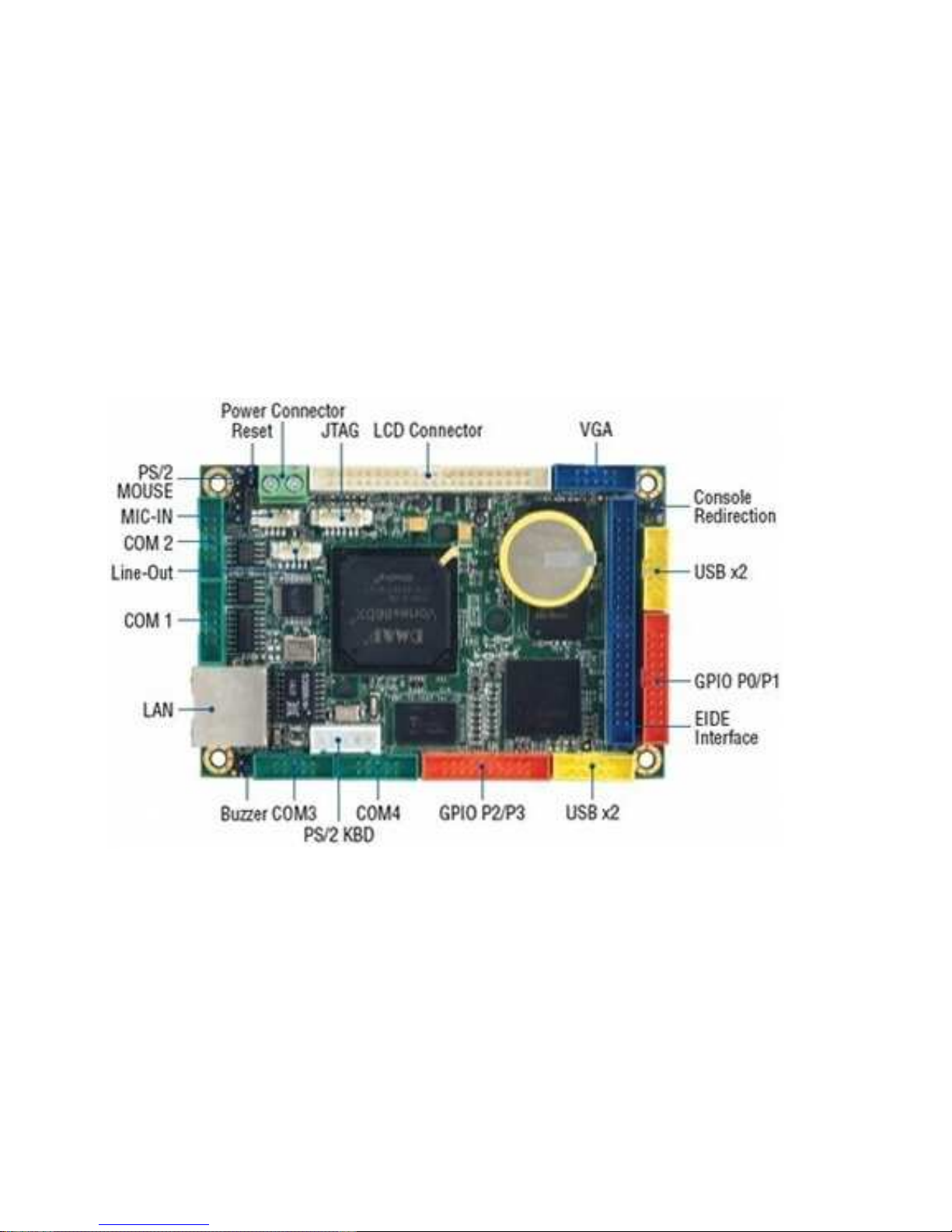

2.2 Connectors & Jumpers Location
Connectors

VDX-6318RD Vortex86DX Tiny CPU Module
7
Jumpers & LEDs

VDX-6318RD Vortex86DX Tiny CPU Module
8
2.3 Connectors & Jumpers Summary
Summary Table
Nbr Description Type of Connections
Pin
nbrs.
J1 IDE Box Header, 2.0∅ ,22x2 44-pin
J2 USB 2/ 3 Box Header,2.0∅ , 5x2 10-pin
J4 LAN RJ45 Connector 8-pin
J5 JTAG Wafer, 1.25∅ , 6x1 6-pin
J8 PS/2 Keyboard Box Header, 2,54∅,1x5 5-pin
J9 Buzzer Pin Header, 2,54∅,1x2 2-pin
J10 PS/2 Mouse Pin Header, 2,54∅,1x5 5-pin
J11 C M1(TTL/GPI -P4/ PWMx8)
Box Header, 2.0∅ 5x2 10-pin
J12 COM2(RS232/RS485/RS422) Box Header, 2.0∅ 5x2 10-pin
J13 GPI ( Port 0 / 1 /PWMx16) Box Header, 2.0∅ ,10x2 20-pin
J16 Reset Pin Header, 2,54∅,1x2 2-pin
J17 Power Connector Terminal Block 5.0∅,2x1 2-pin
J18 C M3 Box Header, 2.0∅ 5x2 10-pin
J19 C M4 Box Header, 2.0∅ 5x2 10-pin
J21 VGA Pin Header, 2.0∅ ,5x2 10-pin
J22 USB 0 / 1 Box Header,2.0∅ , 5x2 10-pin
J23 GPI (Port 2 / 3 ) Box Header, 2.0∅ ,10x2 20-pin
J24 LCD Box Header, 2.0∅ ,22x2 44-pin
J25 LINE- UT Wafer, 1.25∅ , 4x1 4-pin
J26 MIC-IN Wafer, 1.25∅ , 4x1 4-pin
J27 Console Redirection Pin Header, 2,54∅,1x2 2-pin
PWR-
L D
Power Active LED (Red) LED-SMD
ID -
L D
IDE Active LED (Green ) LED-SMD

VDX-6318RD Vortex86DX Tiny CPU Module
9
2.4 Pin Assignments & Jumper Settings
J1: ID (44 Pins)
J2: USB 2 / 3
Pin # Signal Name
Pin #
Signal Name
1
VCC
2
VCC
3
LUSBD
2
-
4
LUSBD
3
-
5
LUSBD
2+
6
LUSBD
3+
7
GND
8
GND
9
G
GND
10
G
GND
Note
USB 3 is occupied by Audio.
Pin # Signal Name
Pin #
Signal Name
1
IDERST
2
GND
3
IDED7
4
IDED8
5
IDED6
6
IDED9
7
IDED5
8
IDED10
9
IDED4
10
IDED11
11
IDED3
12
IDED12
13
IDED2
14
IDED13
15
IDED1
16
IDED14
17
IDED0
18
IDED15
19
GND
20
NC
21
IDEREQ
22
GND
23
IDEI W
24
GND
25
IDEI R
26
GND
27
ICHRDY
28
GND
29
ID
E
ACK
30
GND
31
IDEINT
32
NC
33
IDESA1
34
IDECBLID
35
IDESA0
36
IDESA2
37
IDECS
-
0
38
IDECS1
39
IDELED
40
GND
41
VCC
42
VCC
43
GND
44
NC

VDX-6318RD Vortex86DX Tiny CPU Module
10
J5: JTAG
Pin # Signal Name
Pin #
Signal Name
1 VCC 2 GND
3 TCK 4 TD
5 TDI 6 TMS
J8: PS/2 Keyboard
Pin # Signal Name
Pin #
Signal Name
1
KBCLK
2
KBDAT
3
NC
4
G
ND
5
VCC
J9: Buzzer
Pin # Signal Name
Pin #
Signal Name
1 Buzzer 2 VCC
J10: PS/2 Mouse
Pin # Signal Name
Pin #
Signal Name
1
MS
CLK
2
MSDATA
3
NC
4
G
ND
5
VCC
J11: COM 1 (Optional: TTL/ GPIO-P4 / PWMx8)
Pin # Signal
Name
Pin # Signal
Name
1 DCD1
2 RXD1
3 TXD1
4 DTR1
5 GND 6 DSR1
7 RTS1
8 CTS1
9 RI1 10 NC

VDX-6318RD Vortex86DX Tiny CPU Module
11
J12: COM2 RS232 / RS422 / RS485 (Optional: TTL)
Pin #
Signal Name Pin #
Signal Name
1 DCD2/ 422TX- / RS485-
2 RXD2 / 422TX+ / RS485+
3 TXD2 / 422RX+ 4 DTR2 / 422RX-
5 GND 6 DSR2
7 RTS2 8 CTS2
9 RI2 10 NC
J13: GPIO (Port 0 / 1 / PWMx16 )
J16: R S T
Pin # Signal Name
Pin #
Signal Name
1 Reset 2 GND
J17: Power Connector (Terminal Block 5.0mm)
Pin # Signal Name
1
+5V
2
GND
Pin # Signal Name
Pin #
Signal Name
1 GND 2 VCC
3 GP00 4 GP10
5 GP01 6 GP11
7 GP02 8 GP12
9 GP03 10
GP13
11 GP04 12
GP14
13 GP05 14
GP15
15 GP06 16
GP16
17 GP07 18
GP17
19 VCC 20
GND

VDX-6318RD Vortex86DX Tiny CPU Module
12
J18: COM3 (Optional: TTL)
Pin # Signal Name
Pin #
Signal Name
1 DCD3 2 RXD3
3 TXD3 4 DTR3
5 GND 6 DSR3
7 RTS3 8 CTS3
9 RI3 10
NC
J19: COM4 (Optional: TTL)
Pin # Signal Name
Pin #
Signal Name
1 DCD4 2 RXD4
3 TXD4 4 DTR4
5 GND 6 DSR4
7 RTS4 8 CTS4
9 RI4 10
NC
J21: VGA
Pin # Signal
Name
Pin # Signal
Name
1 R UT
2 GND
3 G UT
4 GND
5 B UT
6 GND
7 HSYNC
8 GND
9 VSYNCD
10 GND
J22: USB 0 / 1
Pin # Signal Name
Pin #
Signal Name
1
VCC
2
VCC
3
LUSBD
0
-
4
LUSBD
1
-
5
LUSBD
0+
6
LUSBD
1+
7
GND
8
GND
9
G
GND
10
G
GND

VDX-6318RD Vortex86DX Tiny CPU Module
13
23: GPIO (Port 2 / Port 3)
Note:
-If you nable 4M SPI flash Disk on the BIOS setting, you cannot use GP30~GP37 Pins.
-GP25~GP27 will be occupied by RS-232/422/485 setting.
Pin # Signal Name
Pin #
Signal Name
1 GND 2 VCC
3 GP20 4 SPICS / GP30
5 GP21 6 SPICLK / GP31
7 GP22 8 SPID0 / GP32
9 GP23 10
SPIDI / GP33
11 GP24 12
GP34
13 232 / GP25
14
GP35
15 422 / GP26
16
GP36
17 485 / GP27
18
GP37
19 VCC 20
GND

VDX-6318RD Vortex86DX Tiny CPU Module
14
J24: LCD (DVO) Connector
Pin # Signal Name
Pin #
Signal Name
1 +3.3V 2 +3.3V
3 LG2 4 LG3
5 LG4 6 LG5
7 NC 8 NC
9 LR0 10
LR1
11 LR2 12
LR3
13 LR4 14
LR5
15 GND 16
NC
17 NC 18
NC
19 NC 20
GND
21 NC 22
NC
23 LB0 24
LB1
25 LB2 26
LB3
27 LB4 28
LB5
29 NC 30
NC
31 LG0 32
LG1
33 GND 34
GND
35 NC 36
LCLK
37 NC 38
LDE
39 NC 40
LHSYNC
41 NC 42
LVSYNC
43 LBACKL 44
LVDDEN
(Please refer to Appendix A, for TFT Flat Panel Data Output)
J25: LIN OUT
Pin # Signal Name
1 L UTR
2 GND
3 GND
4 L UTL

VDX-6318RD Vortex86DX Tiny CPU Module
15
J26: MIC-IN
Pin # Signal Name
1 MICVREF
2 GND
3 GND
4 MIC-IN
J27: Console Redirection (Pin 1 & Pin 2 short)
Pin # Signal Name
Pin #
Signal Name
1 Console_Red
2 GND

VDX-6318RD Vortex86DX Tiny CPU Module
16
2.5 System Mapping
