Icop VSX-6116-V2 User manual

VSX-6116-V2
DM&P Vortex86SX 300MHz
Tiny CPU Module
with 2S/2USB/2GPIO
128MB DDR2 Onboard
User’s Manual
(Revision 1.0 A)

Copyright
The information in this manual is subject to change without notice for continuous improvement in
the product. All rights are reserved. The manufacturer assumes no responsibility for any
inaccuracies that may be contained in this document. And makes no commitment to update or to
keep current the information contained in this manual.
No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part,
in any form or by any means without the prior written permission of the ICOP Technology Inc..
Copyright 2007 ICOPTechnology Inc.
Manual No. IUM6116-V2000-01 Ver.1.0A July, 2010
Trademarks Acknowledgment
Vortex86SXis the registered trademark of ICOP Technology Inc.
Other brand names or product names appearing in this document are the properties
and registered trademarks of their respective owners. All names mentioned herewith
are served for identification purpose only.

T a b l e o f C o n t e n t s
T ab l e o f C o n t e nt s.............................................................iii
C h a p t e r 1 Introduction……………………………………………1
1.1 Packing List............................................................1
1.2 Product Description................................................1
1.3 Specifications.........................................................3
1.4 Board Dimension....................................................4
C h a p t e r 2 Installation……………………………………………..5
2.1 Board Outline.........................................................5
2.2 Connectors & Jumpers Location............................6
2.3 Connectors & Jumpers Summary...........................8
2.4 PinAssignments & Jumper Settings.......................9
2.5 System Mapping...................................................15
2.6 Watchdog Timer...................................................18
2.7 GPIO....................................................................19
2.8 SPI flash...............................................................20
C h a p t e r 3 Driver Installation……………………………………21
Appendix ………………………………………………………………..22
A. BIOS Default Setting.................................................22
Warranty............................................................................................23

Vortex86SX-6116-V2 Vortex86SXTiny CPU Module
1
C h a p t e r 1
Introduction
1.1 Packing List
Product Name Package
VSX-6116-V2
Embedded Vortex86SX CPU All-in-One Board
Manual & Drivers CD x 1
RS232 cable x 2
PRINT cable x1
IDE cable x 1
USB cable x 1 (USB port x 2)
GPIO cable x 2
PS/2 Keyboard cable x 1

Vortex86SX-6116-V2 Vortex86SXTinyCPUModule 2
1.2 Product Description
The VSX-6116-V2 family of low-powerx86 embedded controller is designed to meet Tiny
specification, and integrated with the following features.
300MHz Vortex86SX System-On-Chip
128/ 256MB DDR2 system memory
Enhanced IDE
2 USB 2.0 (host)
Up to 2 serial ports
Parallel port
16-bit GPIO x2
x-ISAbus
RS-485 withAuto Direction
2 watchdog timer
JTAG interface
AMI BIOS
2MB SPI flash
Single voltage +5V DC
Support extended operating
temperature range of -20°C to +70°C
The VSX-6116-V2 Tiny family of embedded controller is designed with backward compatibility in
mind, to provide migration path for projects facing end-of-life challenges with their existing x86
based Tiny controller. The VSX-6116-V2 family of controller is designed as a plug in
replacement, with backward compatibility to support legacy software to help extend existing
product life cycle without heavy re-engineering.
VSX-6116-V2 is suitable for broad range of data-acquisition, Industrial automation, Process
control,Automotive controller,AVL, Intelligent Vehicle management devic,Medical device,
Human machine interface, Robotics, machinery controlAnd more…application that required
small footprint, low-power and low-cost hardware with open industry standard such as Tiny.

Vortex86SX-6116-V2 Vortex86SXTinyCPUModule 3
1.3 Specifications
Features VSX-6116-V2
CPU DM&P SoC CPU Vortex86SX- 300MHz
Real Time Clock with Lithium Battery Backup
Cache L1:16K I-Cache, 16K D-Cache
BIOS AMI BIOS
Bus Interface 16-bit x-ISA interface
System Memory 128/ 256MB DDR2 Onboard
Watchdog Timer Software programmable from 30.5 us to 512 seconds x2
sets(Watchdog 1 fully compatible with M6117D)
I /O Interface Enhanced IDE port x1
RS-232 port x1
RS-232/422/485 port x1 (RS485 with Auto Direction)
Parallel port x1
USB port x2 (USB 2.0 version)
16-bit GPIO port x2
Connectors 2.00 mm 44-pin box header for IDE x1
2.00 mm 26-pin box header for Print x1
2.00 mm 20-pin box header for 16-bit GPIO x2
2.00 mm 10-pin box header for RS-232 x2
2.00 mm 10-pin box header for USB x1
2.00 mm 2-pin header for Reset x1
2.00 mm 2-pin header for Console Redirection x1
2.54 mm 3-pin header for RS-485 x1
2.54 mm 5-pin box header for keyboard x1
1.25mm 6-pin Wafer for JTAG x1
Flash Disk Support
Onboard 2MB SPI Flash Disk (Driver: A)
44-pin IDE Flash Disk( EmbedDisk 16MB or above)
SRAM support 512KB (Optional)
Power Requirement Single Voltage +5V @ 300mA
Dimension 100mm X 66mm (3.94 x2.6 inches)
Weight 63g
Operating
Temperature -20oC ~ +70oC
-40°C ~ +85°C (Optional)

Vortex86SX-6116-V2 Vortex86SXTinyCPUModule 4
1.4 Board Dimension

Vortex86SX-6116-V2 Vortex86SXTinyCPUModule 5
C h a p t e r 2
Installation

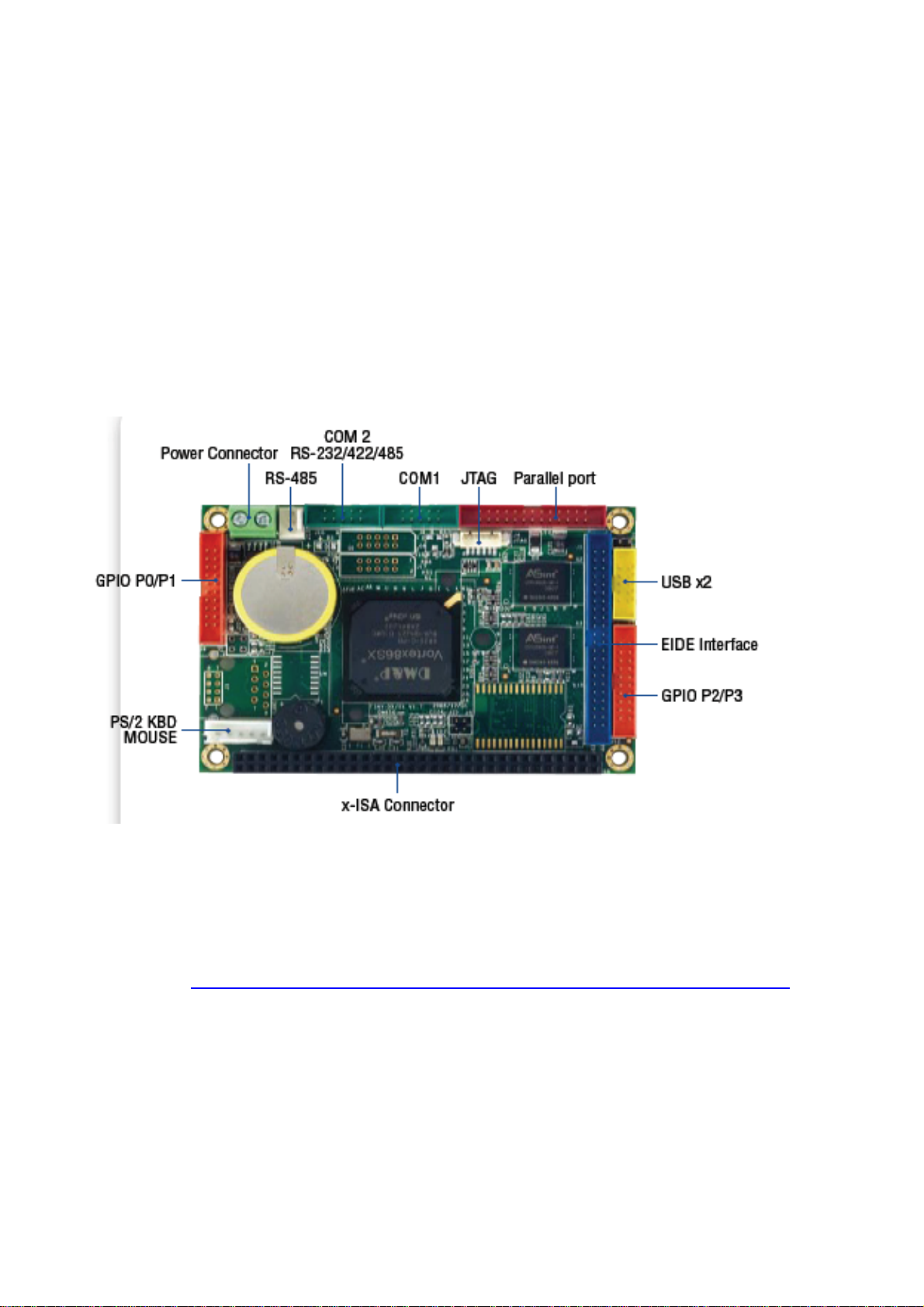

2.1 Board Outline
(Note1: VGAfunction support (ICOP-2720) via x-ISA Interface)
ICOP-2720:http://www.icop.com.tw/DB/upload/manual/ICOP-2720_Manual%20.pdf
(Note2: COM2 RS232/422/485 is selected by BIOS setting)
(Note3: J21 Default setting of JTAG Has to be Disable: Pin 1 & Pin 2 short)

Vortex86SX-6116-V2 Vortex86SXTinyCPUModule 6
2.2 Connectors & Jumpers Location
Connectors

Vortex86SX-6116-V2 Vortex86SXTinyCPUModule 7
Jumpers & LEDs
