ICT Bill Validator A6 Series User manual

4 - Way Acceptance
Low Maintenance
Easy Installation
Re - Programmable
Flash ROM
Auto Self -Adjusting
Sensor System
ill
ill
B
B V
V
alidator
alidator
A6&V6 Series
Installation Guide
International Currency Technologies
43010 Osgood Rd. Fremont, CA 94539
Tel [phone]
Fax [phone]
E-mail [email protected]
Website www.ict-america.com
2003 International Currency Technologies Corporation
Vol. 7.0 Part Number H4458F

ContentsContents
(1) A6 / V6 Bill Validator Specifications .......................... 2
(2) Bill Validator Dimensions ........................................... 2
(3) LED Display ..................... .......................................... 4
(4) LED Status ................................................................. 4
(5) Download and upgrade .............................................. 4
(6) A6 Pin-out Assignments :
6-1 S.T.D Pulse for 12 V DC ...................................... 5
6-2 S.T.D Pulse for 117 V AC .................................... 6
(7) V6 Pin-out Assignments :
7-1 (M.D.B. System for 34V DC) ............................... 7
(8) A6 Pin-out Assignments (I.C.T. Protocol) ................. 8
(9) Cable ......................................................................... 9
Switch Settings ..................................................(Appendix)

Horizontal
(1) A6/V6 Bill Validator Specifications
Acceptance Rate
Bill insertion
Acceptance Speed
Interfaces
Bill box Capacity
Power Sources
Weight
Environment Range
96% or greater
4-way Acceptance
Approx. 3 seconds, Pulse Interface
(including bill stacking)
S.T. D. Pulse
M.D.B. (Multi-Drop Bus)
ICT Protocol
Approx. 300 bills (200~300) 3M-SBX03005
500 bills (300~500) 3M-SBX04005
800 bills (750~850) 3M-SBX08005
34V DC 1.5Amp ( M.D.B)
12V DC 3 Amp
117V AC 0.2Amp (60HZ)
24V AC 1.5Amp (60HZ)
Power Consumption
Max 50 watts
Approx. 2kg (sh ipping)
Operating Temperature 0 C~55 C
Storage Temperature -30 C~70 C
- 2 -
Humidity 30%~85% RH (no condensation)
This guide contains all A6/V6 specs, but the actual machine matches only one of the
specs.
Unit : :mm
( ) : in
4.0 (0.157")
134.0(5.276")
7.5 (0.295")
126.5 (4.980")
78.5 (3.091")
9.0 (0.354") 26.0 (1.024")
59.0 (2.323") 52.0 (2.047")
179.5 (7.067")300bill
194.5 (7.657")500bill
254.5 (10.020")800bill
500P
300P
800P
51.0 (2.008")
73.0 (2.874")
95.0 (3.740")
6-R2.65
(R0.104")
19.6 (0.772")
232.0 (9.134")
10.0 (0.394")
Horizontal
(2) Bill Validator Dimensions
Vertical
- 3 -
94.0(3.70")
235.9(9.29")
130.0(5.12") 500bills
107.0(4.21")
48.1(1.90")
13.0(0.51")
129.0(5.08")
50.8(2.00")
115.0(4.53")
115.0(4.53") 300bills
500 pcs.
300 pcs.
800 pcs.
190.0(7.48") 800bills
94.0(3.70")
245.4(9.66")
130.0(5.12') 500bills
115.0(4.53") 300bills
500 pcs.
300 pcs.
107.0(4.21")
48.1(1.90)
13.0(0.51")
132.0(5.20")
116.0(4.57")
50.8(2.00")
84.0(3.31")
800 pcs.
190.0(7.48") 800bills
Unit : :mm
( ) : in
Unit : :mm
( ) : in
Vertical
(Sliding Block)
(Push Button)

- 4 -
FLASHES STATUS
1 bill jammed
2 disabled from system
3 sensor problem
4 reserved
5 bill box is removed
6
LED ON POWER ON
LED OFF POWER OFF
bill box is full of money
The two LED lights located at the front of the unit will show the operational
status of the bill validator. The LED lights will flash ON and OFF (in 500ms
intervals) when the unit is ready to accept bills. The LED lights will be OFF
if the unit is disabled or out of service, in which case the unit will not accept
any bills.
The bill validator can only accept one bill at a time. The LED lights will be
OFF and will not accept another bill while a bill is being validated in the unit.
The LED lights will start to flash normally when the bill validator is ready to
accept the next bill.
(3) LED Display
(4) LED Status
(5) Download and Upgrade

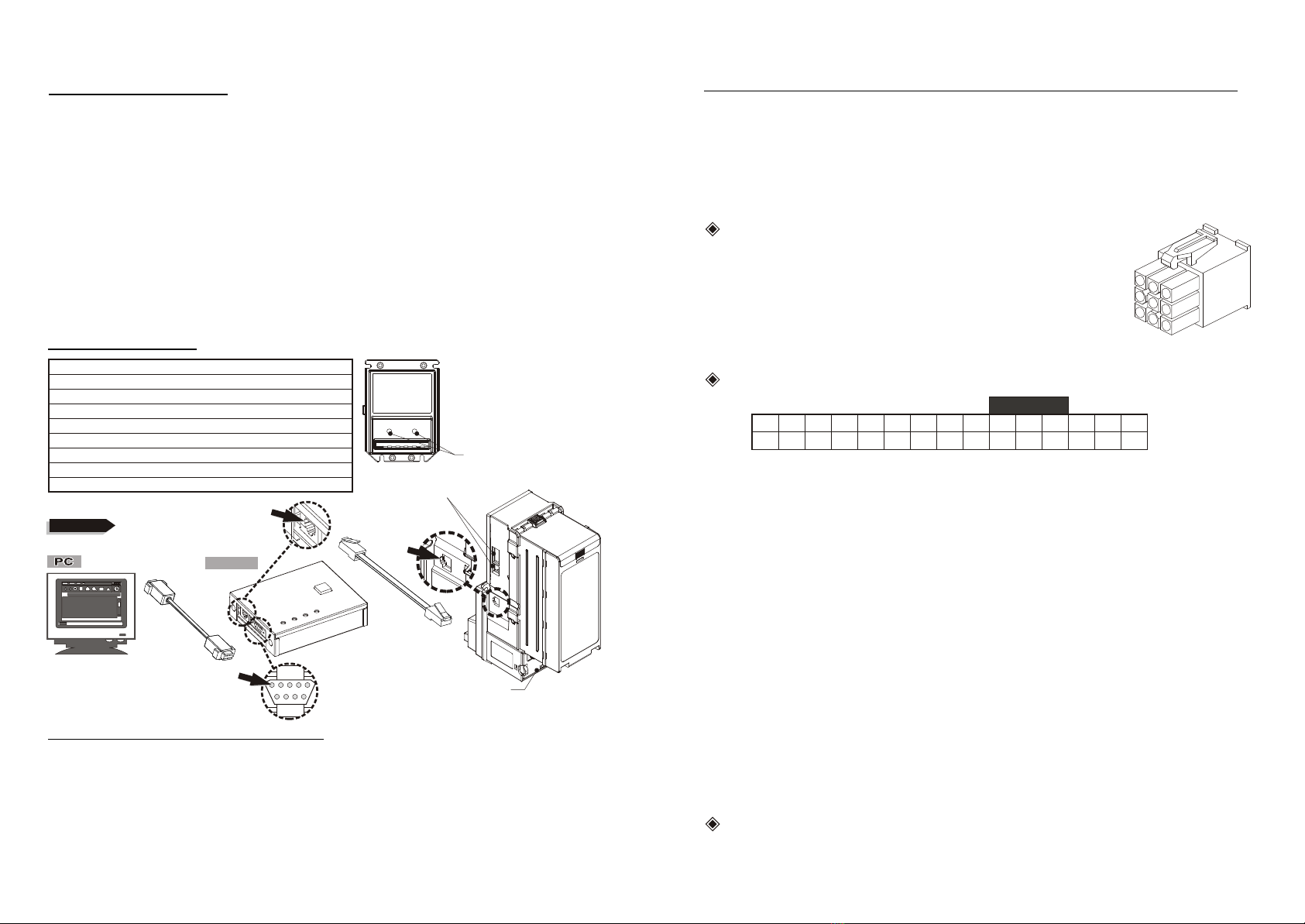

In addition to the 30-pin connector, there is also an 8-pin RJ-45 connector
on the side of the bill validator designed for the purpose of downloading
programs and updating validation software. The connector will be kept open
under normal operation of the bill validator. It will only be used when a new
software or program need to be downloaded into the flash ROM. (Figure 1)
LED
Option Switches
COM2
COM2
PH
PH
BACK LED
Figure 1
FP-001FP-001
5
4 3 2 1
5
4 3 2 1
9 8 7 69 8 7 6
5 4 3 2 1
9 8 7 6
- 5 -
A6 Pin-out Assignments (S.T.D. Pulse for 12V DC)
(6) 6-1
1 2 3 4 5 6 7 8 9 10
2519
11
2620
12
2721
13
282216
14
292317
15
302418

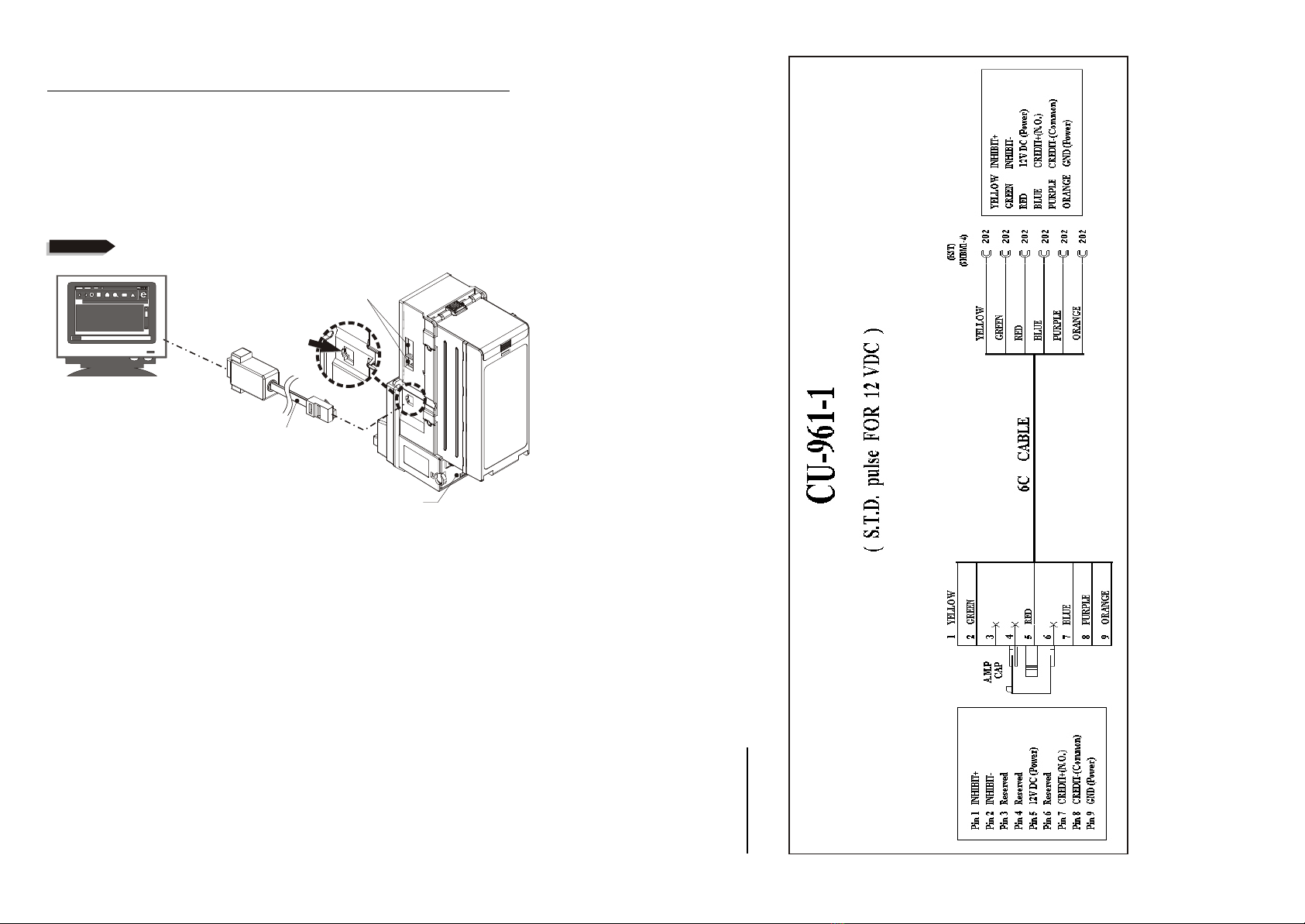

For the 12V DC version of the A6 bill validator, the harness(part no. WEL-M007,
see page.11 for pin-out information) has a dual-in-line 30-pin peripheral connector
at one end and a 9-pin mating connector at the other end. Connect the 30-pin
connector to the side of the bill validator and the 9-pin mating connector to the
12V DC power harness ( part no.CU-961-1, see page. 9 for pin-out information ).
9-pin mating connector pin-out assignments:
Pin 1 INHIBIT + Pin 6 Reserved
Pin 2 INHIBIT - Pin 7 CREDIT_RELAY(N.O.)
Pin 3 Reserved Pin 8 CREDIT_RELAY(Common)
Pin 4 Reserved Pin 9 GND (Power)
Pin 5 12V DC (Power)
Dual-in-line 30-pin peripheral connector (A6, 12V DC) pin-out assignments:
123
6
5
4
789
CAUTION: Turn off the power before connecting or disconnecting the
bill validator.
Pin 16 - CREDIT_RELAY(N.O.)
Pin 17 - Reserved
Pin 18 - ENABLE +
Pin 19 - KEY
Pin 20 - INHIBIT -
Pin 21 - Reserved
Pin 22 - Reserved
Pin 23 - Reserved
Pin 24 - Reserved
Pin 25 - Reserved
Pin 26 - Reserved
Pin 27 - Reserved
Pin 28 - Reserved
Pin 29 - Reserved
Pin 30 - Reserved
Pin 1 - CREDIT_RELAY(Common)
Pin 2 - 12VDC (Power)
Pin 3 - ENABLE -
Pin 4 - Reserved
Pin 5 - INHIBIT +
Pin 6 - KEY
Pin 7 - Reserved
Pin 8 - Reserved
Pin 9 - Reserved
Pin 10 - GND (Power)
Pin 11 - Reserved
Pin 12 - Reserved
Pin 13 - Reserved
Pin 14 - Reserved
Pin 15 - Reserved

- 6 -
A6 Pin-out Assignments (S.T.D. Pulse for 117V AC)
(6) 6-2
For the 117V AC version of the A6 bill validator, connect the 30-pin peripheral
connector on one end of the harness (part no. WEL-M008, see page.12 for
pin-out information) to the side of the unit and the 9-pin mating connector to the
117V AC power harness ( part no. WEL-M010 and WEL-M012, see page.13,14
for pin-out information).
9-pin mating connector pin-out assignments:
Pin 1 NEUTRAL INHIBIT
Pin 2 NEUTRAL ENABLE
Pin 3 HOT ENABLE
Pin 4 117VAC HOT (Power)
Pin 5 Earth - Ground
Pin 6 117VAC NEUTRAL(Power)
Pin 7 CREDIT_RELAY(N.O.)
Pin 8 CREDIT_RELAY
(Common)
Pin 9 Reserved
IMPORTANT: On 117V AC units, the Earth Ground must be located inside the machine.
Dual-in-line 30-pin peripheral connector (A6, 117V AC) pin-out assignments:
12345678910
2519
11
2620
12
2721
13
282216
14
292317
15
302418
CAUTION: Turn off the power before connecting or disconnecting the
bill validator.
Pin 16 - CREDIT_RELAY(N.O.)
Pin 17 - Reserved
Pin 18 - HOT ENABLE
Pin 19 - KEY
Pin 20 - 117VAC HOT(Power)
Pin 21 - EARTH GROUND
Pin 22 - Reserved
Pin 23 - Reserved
Pin 24 - Reserved
Pin 25 - Reserved
Pin 26 - Reserved
Pin 27 - Reserved
Pin 28 - Reserved
Pin 29 - Reserved
Pin 30 - Reserved
Pin 1 - CREDIT_ RELAY(Common)
Pin 2 - Reserved
Pin 3 - NEUTRAL ENABLE
Pin 4 - 117VAC NEUTRAL(Power)
Pin 5 - NEUTRAL INHIBIT
Pin 6 - KEY
Pin 7 - Reserved
Pin 8 - Reserved
Pin 9 - Reserved
Pin 10 - Reserved
Pin 11 - Reserved
Pin 12 - Reserved
Pin 13 - Reserved
Pin 14 - Reserved
Pin 15 - Reserved
123
6
54
789
- 7 -
V6 Pin-out Assignments (M.D.B. System for 34V DC)
(7) 7-1

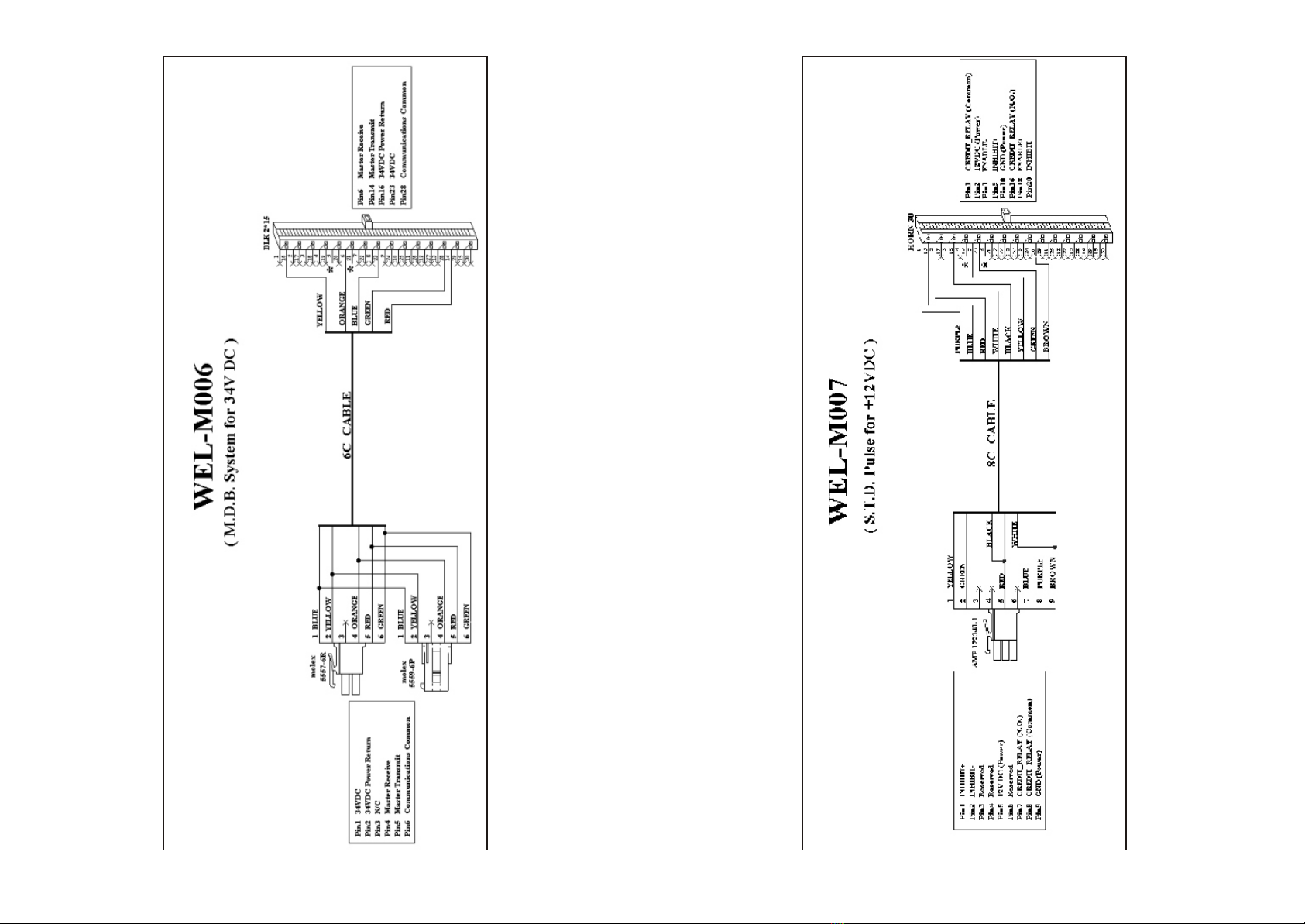

For the MDB interface V6 bill validator, connect the 30-pin peripheral connector
on one end of the harness (part no. WEL-M006, see page.10 for pin-out
information) to the side of the unit and the standard 6-pin MDB connector to the
power/interface connector.
The standard 6-pin MDB connector pin-out assignments:
Pin 1 - 34 VDC
Pin 2 - 34 VDC Power Return
Pin 3 - N/C
Pin 4 - Master Receive
Pin 5 - Master Transmit
Pin 6 - Communications Common
Dual-in-line 30-pin peripheral connector (V6, MDB) pin-out assignments:
12345678910
2519
11
2620
12
2721
13
282216
14
292317
15
302418
456
3
2
1
CAUTION: Turn off the power before connecting or disconnecting the
bill validator.
Pin 16 - 34VDC_RETURN
Pin 17 - Reserved
Pin 18 - Reserved
Pin 19 - Reserved
Pin 20 - Reserved
Pin 21 - KEY
Pin 22 - Reserved
Pin 23 - +34VDC
Pin 24 - Reserved
Pin 25 - Reserved
Pin 26 - Reserved
Pin 27 - Reserved
Pin 28 - MDB_GND
Pin 29 - Reserved
Pin 30 - Reserved
Pin 1 - Reserved
Pin 2 - Reserved.
Pin 3 - Reserved
Pin 4 - Reserved
Pin 5 - KEY
Pin 6 - MDB_MASTER_RXD
Pin 7 - Reserved
Pin 8 - Reserved
Pin 9 - Reserved
Pin 10 - Reserved
Pin 11 - Reserved
Pin 12 - Reserved
Pin 13 - Reserved
Pin 14 - MDB_MASTER_TXD
Pin 15 - Reserved

- 8 -
(8) A6 Pin-out Assignments (I.C.T. Protocol)
Option Switches
RS-232
interface
ICT PROTOCOL
No.WEL-V706
BACK LED
PC
Figure 2
The cable for ICT Protocol see page. 17 for pin-out
information connector on one end and a 9-pin PC connector on the other end.
To connect, plug the RJ-45 connector into the RJ-45 socket on the side of the
BA and connect the 9-pin PC connector to the COM port of a PC (Figure 2).
(part no. WEL-V706,
)
- 9 -
(9) Cable

- 10 - - 11 -

- 13 -- 12 -

- 15 -- 14 -
117 VAC

- 16 -
(Must use WEL-MO17)
117 VAC
- 17 -
