Innovative Nv200 User manual

INTELLIGENCE IN VALIDA

NV200

CONCISE

MANUAL

NV200 Concise Manual 2

CONTENTS

1 Introduction 3

2 Environment and power requirements 5

3 General description 6

4 Machine interfaces 9

4.1 Bezel LED’s 9

4.1.1 Operational colour 9

4.1.2 Diagnostic codes 9

4.2 Hardware 10

4.2.1 Ports and buttons 10

4.2.2 Interface connector pin details 10

4.2.3 USB connection 11

4.2.4 Dip switches 11

5 Using barcodes 12

8 Appendix 13

8.1 Appendix A – How to order a NV200 validator 13

8.2 Appendix B – NV200 mechanical installation 16

9 Index 21

The chapter numbers in this document are synchronized with the operations manual in order

to help when searching for information. Therefore those chapter numbers that are not

included in this manual will be skipped.

1 INTRODUCTION

This manual describes the operation of the NV200 Bank Note Validator, programmed with

Firmware Version 4.04 or greater.

This document is intended for those who will maintain the NV200 equipment.

To have full information about the configuration of this equipment please refer, via our

website, to the NV200 Operations Manual GA620.

Although information is included which will allow a degree of fault diagnosis and repair, it

is recommended that for all but simple mechanical repairs, the unit must be returned to

an approved service centre for repair.

CAUTIONS

• Never exceed the recommended environmental and electrical limits.

• Do not attempt to lubricate the mechanisms as this may affect the note transport.

• Do not polish the lens as this may alter the optical characteristics.

• If the NV200 validator is disassembled the unit must be re-initialised, following

assembly using LB149 initialisation paper from ITL.

WARNING

• Only suitably trained personnel should carry out any work on this equipment in

accordance with all current local, national and international health and safety

regulations.

We recommend that you study this manual as there are many new features permitting new

uses and more secure applications. If you do not understand any part of this manual please

contact your local office for assistance, contact details are available from www.innovative-

technology.co.uk. In this way we may continue to improve our product.

The NV200 Validator has been designed to minimise any performance variation over time.

Much of this is achieved by careful Hardware and Software design. Innovative Technology Ltd

has a policy of continual product improvement. As a result the products supplied may vary

from the specification described here. This manual can be printed in A4 or letter sizes.

MAIN HEADQUARTERS

Innovative Technology Ltd

Derker Street – Oldham – England - OL1 4EQ

Tel: +44 161 626 9999 Fax: +44 161 620 2090

E-mail: [email protected]

Web site: www.innovative-technology.co.uk

NV200 Concise Manual

GROUP

EMAIL CONTACT

BRAZIL

CHINA

COLUMBIA

GERMANY

ENGLAND

SPAIN

UNITED STATES OF AMERICA

[email protected]

REST OF THE WORLD

[email protected]

NV200 Concise Manual 4

2 ENVIRONMENT AND POWER REQUIREMENTS

ENVIRONMENT

Environment Minimum

Maximum

Temperature +3ºC +50ºC

Humidity 5% 95% Non condensing

Table 1 – Environmental Requirements

CAUTION

Depending upon the environment in which the NV200 is used, it may at some time require

re-calibration.

For such purpose, it has an in-built self-calibration system that maintains the optical

sensors at their best operating point. However if the NV200 is disassembled for any

reason it will need to be re-calibrated. Re-calibration may only be performed under license

from ITL, contact [email protected] for further details.

Re-calibration can only be performed in conjunction with the diagnostics software option in

the ITL BNV Currency Manager Program.

POWER REQUIREMENTS

Table 2 – Power Requirements

Electrical Supply Minimum

Maximum

Supply Voltage (V DC)

Absolute Limits +11 V +13.5 V

Supply Ripple Voltage 0 V 0.25 V @ 100 Hz

Supply Currents:

Standby 0.4 A

Validating 1.5 A

Peak (Motor Stall) 3.0 A

Table 3 – Interface Logic Levels

Interface Logic Levels Logic Low

Logic High

Inputs 0 V to + 0.5 V +3.7 V + 12 V

Outputs with 2K2Ωpull up 0.6 V Pull up voltage of host interface

Maximum Current Sink 50mA per output

It is recommended that a ferrite cable clamp be used on the cable to the NV200, with the cable

having a single turn around the ferrite.

The suggested ferrite is as follows

Manufacturer: Fair-Rite

Manufacturer P/N: 0443166651

Impedance at 100MHz @ 1 turn: 225 Ohms

NV200 Concise Manual 5

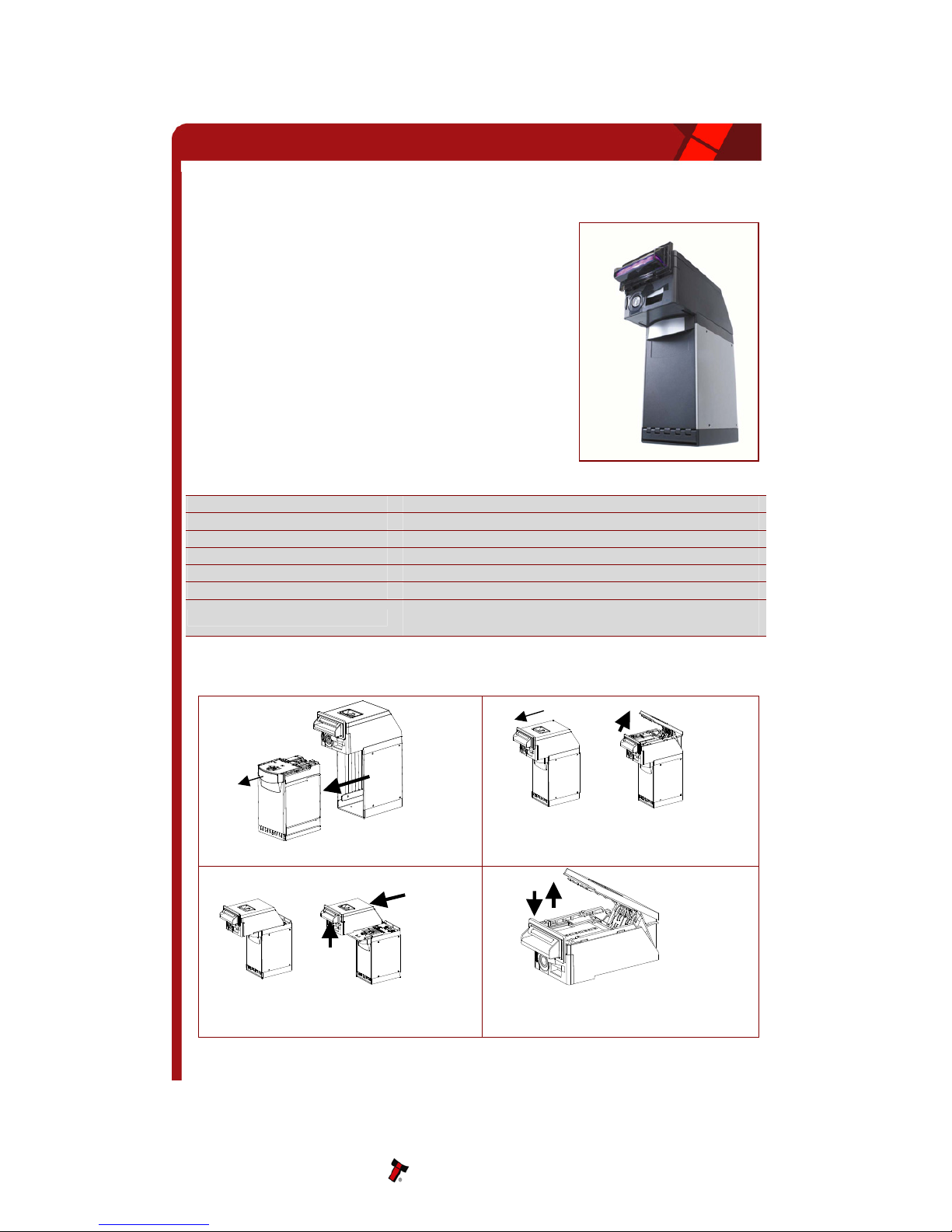

GENERAL DESCRIPTION

he NV200 is the next generation of note reader from

ing (approximately 30

(Depending on mode of operation)

o 85mm wide and 170mm long

rd barcodes in any direction

el illumination

CCESSING

the Appendix B – NV200 Mechanical Installation you can find a detailed explanation for

Innovative Technology Ltd.

· Simple, quick re-programm

seconds) with 128 bit encrypted memory card, PIN

number protected

· Up to 16 channels

· Secure dual lock cash box with 500 used note capacity

· Seamless note path

· Can accept notes up t

· Seconds note to note

· Reads industry standa

· Note centring and straightening mechanism

· Single note escrow function

· User definable colour for bez

Figure 1 - The NV200 validator

able 4 – General Specification

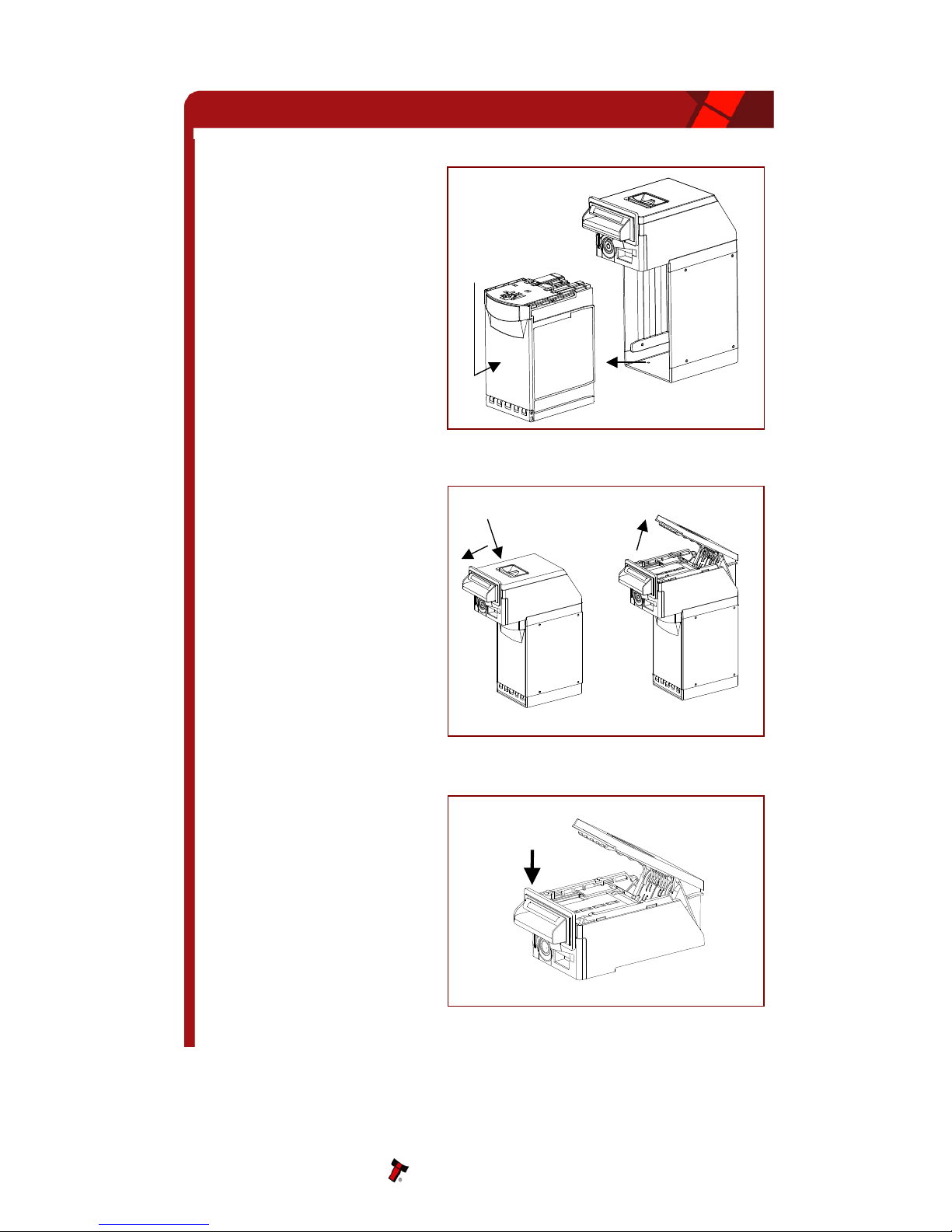

cash box removal, note path access, bezel installation and validator head unit removal.

Note sizes accepted Width: 60 – 85mm, Length: 115 – 170mm

Weight 2.8kg

Note to note time 3 seconds

Escrow Single note

Cash box capacity 500 street grade notes

Interface SSP, Parallel, Pulse, Binary, ccTalk, MDB.

(Contact ITL for other interface availability)

Cash

box

Note path access

Head unit removal

Bezel installation

NV200 Concise Manual

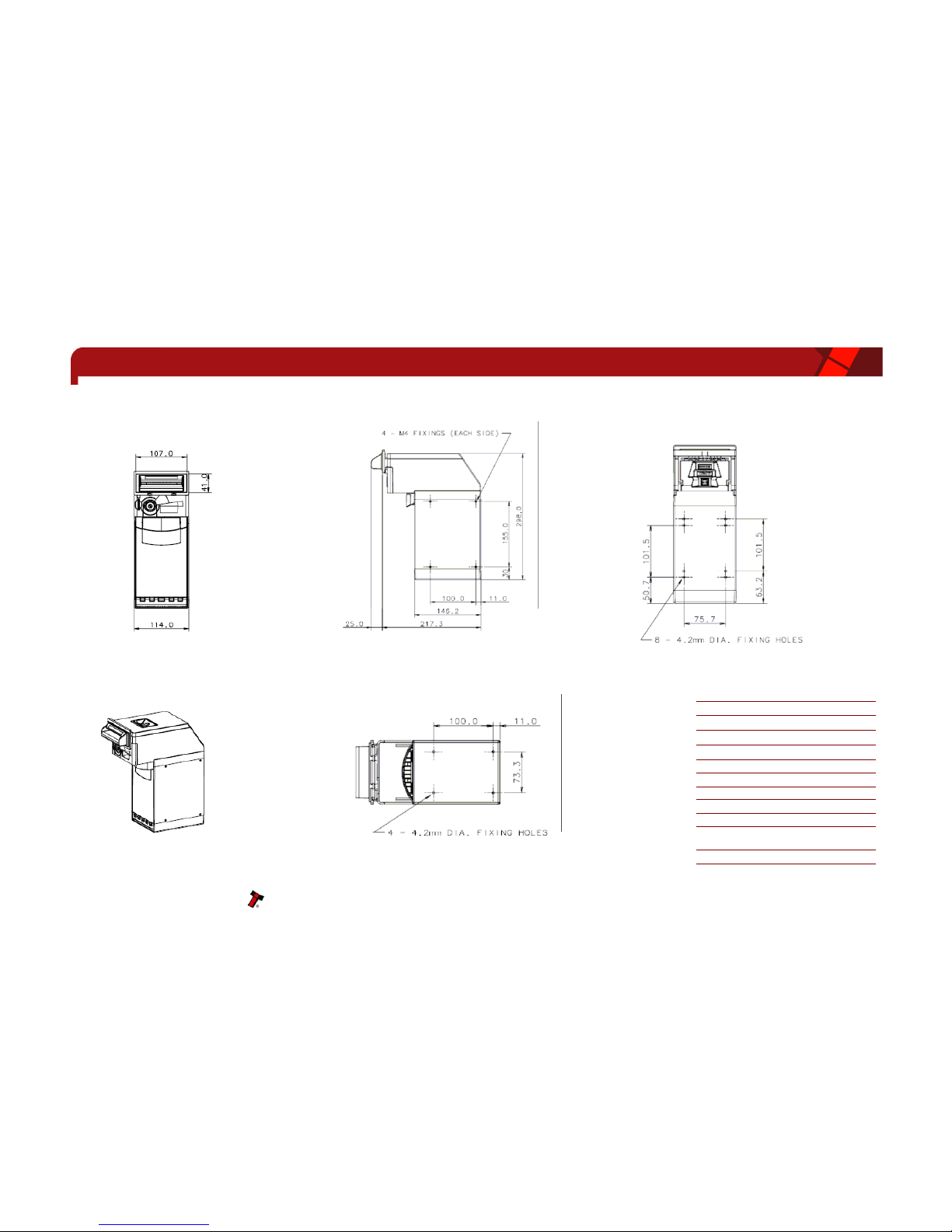

MOUNTING

The NV200 can be mounted via the mounting holes on either side of the chassis using 4 x M4

fixing screws and a suitable mounting bracket. See drawing number GA604 in Appendix B –

NV200 Mechanical Installation for the location of the mounting holes.

NOTE:

• The length of the screw must be no more than 6mm plus the thickness of the

mounting bracket.

It is also possible to mount the NV200 via fixing holes in the rear of the chassis. Care must be

taken not to obstruct the cash box when using the rear fixing holes.

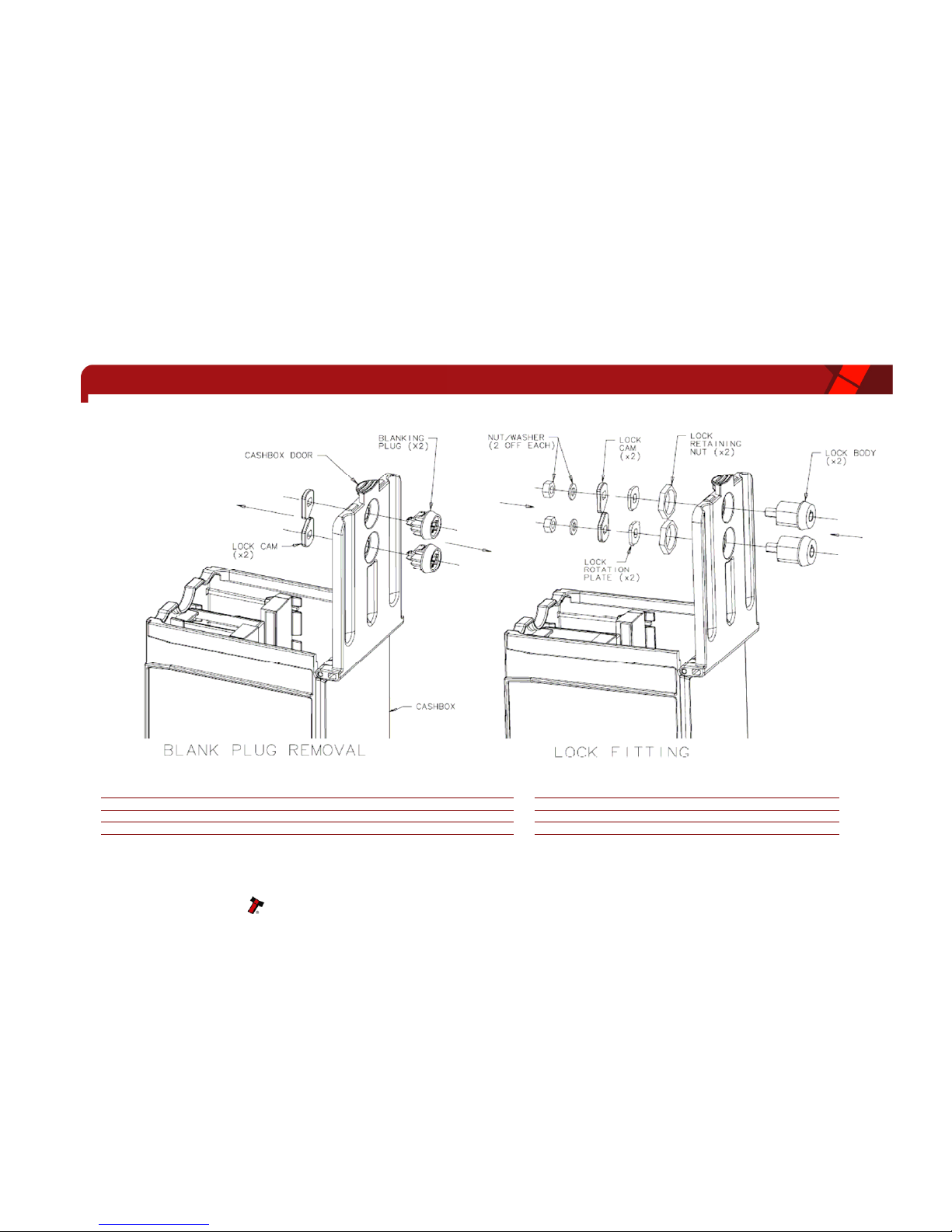

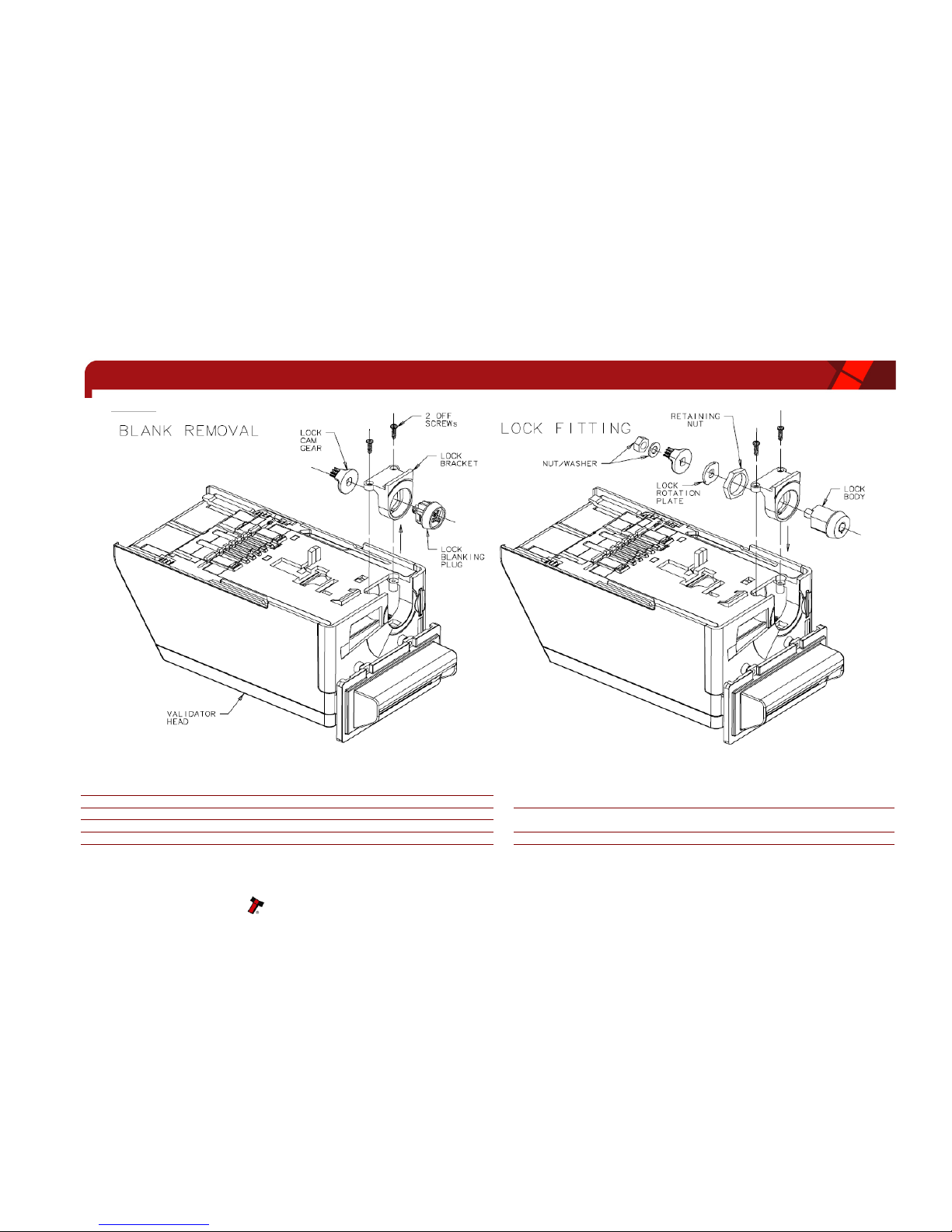

LOCK INSTALLATION

The NV200 has the provision of fitting three locks for extra security. One lock can be added to

the front of the NV200 that locks the validator head and cash box into position without the

need of external brackets. Another two locks can be added to the cash box itself.

The cams required for the lock are supplied with the NV200 attached to the back of the lock

blanking plugs. For lock fitting instructions, see drawings numbers GA605 and GA606 in

Appendix B – NV200 Mechanical Installation for the location of the mounting holes.

Suggested lock: - ITL part number PA650; Camlock part number 28D181CPA

ORDERING INFORMATION

When ordering NV200 the following information must be specified:

NV200 EUR01 404 CCT 255 255 255 N 12345 0 123456

Product

Dataset

Firmware

Version

Firmware

Interface

Red LED

brightness

Green LED

brightness

Blue LED

brightness

Bezelflash

Memory

Card PIN

Number of

re-tries

CcTalkkey

Figure2 - Order Code Example

For detailed information on how to order a NV200 validator and use of the ordering template,

refer to Appendix A - How to order an NV200 validator.

NV200 Concise Manual 7

NV200 Concise Manual 8

REPROGRAMMING THE NV200

The NV200 can be updated in a number of ways as follows:

· Atmel Dataflash Memory Cards

· ITL Bank Note Validator Currency Manager Software

Please refer to the Operations Manual for detail information about reprogramming.

INTERFACE

Interfacing the validator is very simple, with the choice of the following protocols:

· Smiley® Secure Protocol – SSP

· ccTalk® Protocol – CCT

· Multi-Drop Bus/Internal Communications Protocol (MDB/ICP)

· Parallel Input and Output

· Pulse Stream Output

· Binary Output – BIN

Any queries regarding interfaces not mentioned in this manual should be made to

[email protected]

4 MACHINE INTERFACES

Machine Interfaces

4.1 BEZEL LED’S

4.1.1 OPERATIONAL COLOUR

ezel illumination can be set to a user definable colour by using

xamples:

ed – 200, Green – 125, Blue – 255

ed – 255, Green – 255, Blue – 0

e Bezel LED’s can also be set to either permanently on or flashing at a rate of once per

e-programming the NV200 with a memory card that has been programmed using the NV

.1.2 DIAGNOSTIC CODES

r that is preventing normal operation, the Bezel LED’s will indicate

Table 5 - Bezel LED Diagnostic C

The operational colour of the b

the BNV Currency Manager Software. Each of the three colours of LED in the bezel can be set

to a different brightness level (0-255) to achieve the desired colour. The colour is selected

using the sliders in the Tools menu of the Bank Note Validator Currency Manager Software.

The default colour for the bezel is Magenta

second when the note validator is enabled.

Card Utilities software will also set the colour and operation of the LED’s.

If the NV200 detects an erro

the cause of the problem by flashing in a certain sequence as shown in Table 5 - Bezel LED

Diagnostic Codes. The LED’s will first flash red a number of times (at 300ms intervals) to

indicate the general area of the problem, then flash blue a number of times (at 120ms

intervals) to give a more exact cause. The full sequence repeats after a pause of 700ms

odes

Number of RED

flashes

Number of BLUE flashes

1 2 3 4

1 Note Path Open Note Path Jam Unit Not

Initialised

2 Cash Box Cash Box Jam

removed

3 Firmware

Checksum

Interface EEPROM

Checksum

Dataset

Cchecksum hecksum

4 PSU too Low PSU too High

Formatted

Card Not

NV200 Concise Manual

4.2 HARDWARE

4.2.1 PORTS AND BUTTONS

Figure 3 - Connector And Switch Location

4.2.2 INTERFACE CONNECTOR PIN DETAILS

The function of pins 1-8 changes according to which

machine interface is being used. See the individual

interface descriptions for details. Figure 4

– Pin detail

Pin Name Type Description

1 Vend 1 Output

2 Vend 2 Output

3 Vend 3 Output

4 Vend 4 Output

Open collector outputs. Function changes

depending on machine interface protocol (see

individual interface descriptions for details)

5 Inhibit 1 Input

6 Inhibit 2 Input

7 Inhibit 3 Input

8 Inhibit 4 Input

Inputs ar al +5V via 10KΩ.e held high to intern

Fu enction changes depending on machine interfac

protocol (see individual interface descriptions for

details)

9 Busy Output Active LOW when the NV200 is transporting,

reading or stacking a note

10 Escrow Input Enable th W ine escrow function by holding LO

Parallel, Pulse or Binary modes

11 - - Not connected

12 - - Not connected

13 Factory Use Only Do not connect

14 Factory Use Only Do not connect

15 +Vin Power Nominal 12V DC supply

16 0V Ground 0V supply

Table 6 – 16 way External Connector Pin Out

NV200 Concise Manual 10

.2.3 USB CONNECTION

urrently under development. Details will be added here when

.2.4 DIP SWITCHES

ches have the following function:

The USB port function is c

available

The bank of 8 dip swit

Switch

Function Switch OFF (Ø) Switch ON (×)

1 Disable Barcode Barcode read

enabled Barcode read disabled

2 Channel 1 Inhibit Channel 1 enabled Channel 1 disabled

3 Channel 2 Inhibit Channel 2 enabled Channel 2 disabled

4 Channel 3 Inhibit Channel 3 enabled Channel 3 disabled

5 Channel 4 Inhibit Channel 4 enabled Channel 4 disabled

6 Channel 5 Inhibit Channel 5 enabled Channel 5 disabled

7 Channel 6 Inhibit Channel 6 enabled Channel 6 disabled

8 Programming Mode Switch from OFF to ON and back to OFF to

activate

Table 7 - Dip Switch Functio

NV200 Concise Manual 11

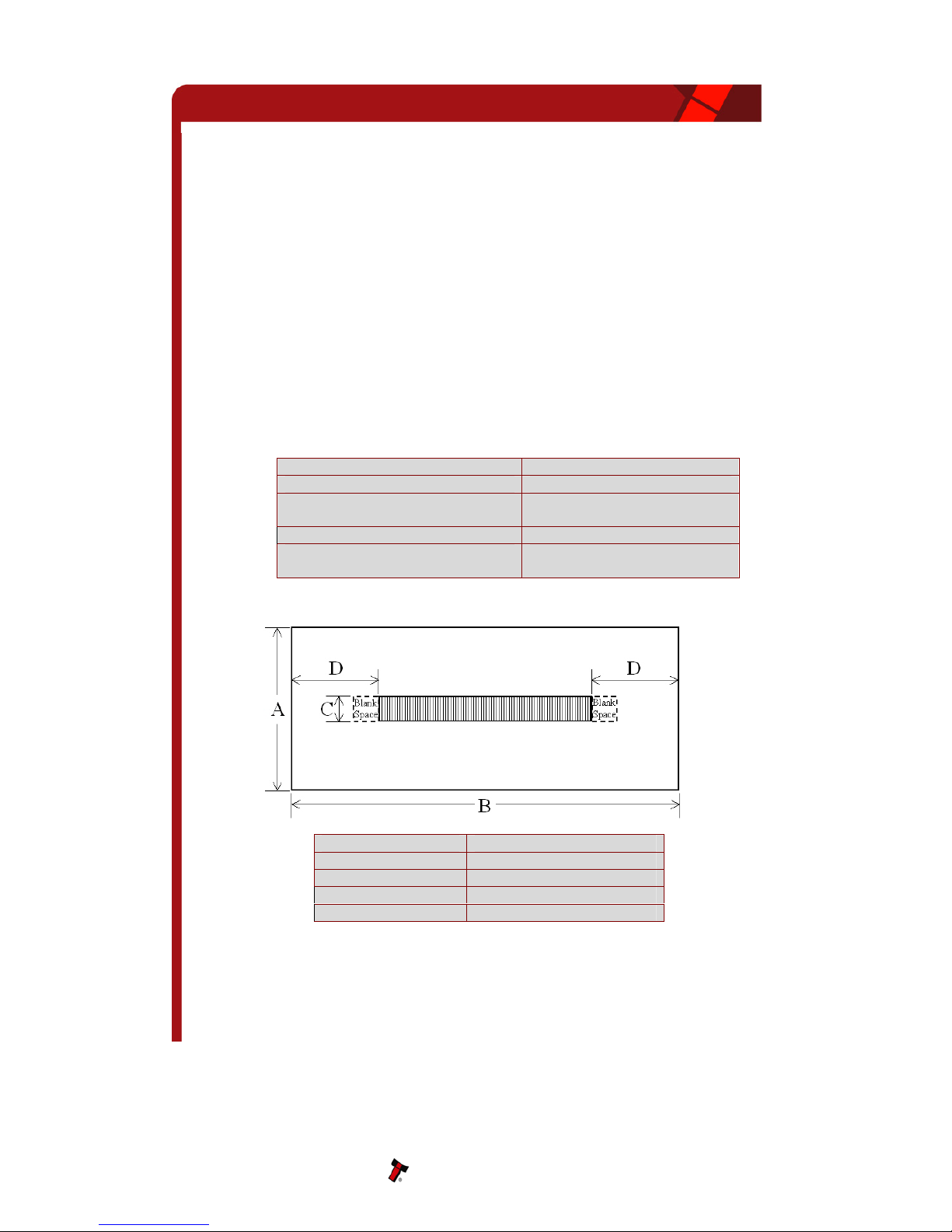

5 USING BARCODES

he NV200 has the abilityT

to read barcode tickets in all four directions in SSP and ccTalk

ee chapter 4.2.4 for

etails.

• In SSP mode there is a set of commands to set the required barcode configuration.

imensions

ote: A blank space of at least 10mm must be left on either side of the barcode

odes. Barcode tickets must be compatible with Gaming Device Standards (GDS), document

number GSA-P0038.001.01 (available from www.gamingstandards.com).

Switching Dip Switch 1 to the ON position disables the Barcode Function. S

Notes:

• In ccTalk mode, the default number of characters expected by the NV200 is 18. To

change this value, the Bank Note Validator Currency Manager software must be used

For more details on implementing barcodes into SSP or ccTalk applications, please see the

relevant specification documentation.

Barcode Characteristics

Details

Encoding Interleaved 2 of 5

Narrow bar width Minimum: 0.5mm

Maximum: 0.6mm

W:N Ratio 2:1

Number of characters Minimum: 6

Maximum: 24

Dimension

Details

A 65mm

B 120mm to 156mm

C Minimum 10mm

D Minimum 35mm

NV200 Concise Manual 12

8 APPENDIX

8.1 APPENDIX A – HOW TO ORDER A NV200 VALIDATOR

hen ordering NV200 the following information must be specified:

Figure 6 Orde Code xamp

Dataset code signi ies th r e am le. For availa le

atasets and dataset codes, ple ad section of our website

- r E le

– This f e currency and notes included, fo

ase refer to the currency downlo

x p b

www.innovative-technology.co.uk.

Firmware – This code is the version of firmware required. If left blank, the latest current

ersion will be programmedv

Interface – This is the 3 letter code of the required communications interface. For more d

of available interfaces, see chapter 4.3 Protocols.

etails

LED Brig or each colour of the bezel LED’s in the order Red,

reen, B

lluminated constantly when the validator is enabled.

SSP – Smiley Secure Protocol

MDB – Multi-Drop-Bus

PL1 – Pulse Mode

CCT – ccTalk

PAR – Parallel

BIN – Binary

htness – The values of brightness

lue between 0 and 255. If no colour is specified, the NV200 will be shipped with the

bezel colour set to magenta by default.

Bezel Flash – Y/N. If the bezel flash is set to Y, when enabled, the validator bezel will flash at a

ate of 1Hz. If set to N, the bezel will be ir

NV200 EUR01 404

255

12345 0 123456

Product

Dataset

Firmware

Version

Firmware

Interface

Red LED

brightness

Green LED

brightness

Blue LED

brightness

Bezelflash

Memory

Card PIN

Number of

re-tries

CcTalkkey

NV200 Concise Manual

Memory Card PIN – The required PIN number for the memory card. Programming with a

emory card has the added security of setting a PIN number. The PIN programmed into the

emory card must match the PIN programmed into the NV200 for re-programming to take

lace.

cTalk Encryption Key – The required ccTalk encryption key if the selected interface is CCT. If

Number of Re-tries – The number of times the NV200 will read the note should it not be

recognised on the first attempt. This value must be between 0 and 2

left blank, a key of 123456 will be used.

NV200 Concise Manual 14

ORDER FORM

To order a validator, please print and fill the order form and send it to our nearest office. You

may send it by fax or email. To find our contact information, please go to our website or refer

to the introduction

form, send it to ou

chapter in this document. If you do not know which office to send the order

you have any questions about the inf nt to

now more about other products and p earest

ealer. We offer a wide range of products and accessories such as alternative validators,

ustomer Details

r main head quarters:

If ormation required for the order form, or you wa

k ossibilities, do not hesitate to contact your n

programming kits, interfaces, connecting cables, bezels and other elements. Please contact

your nearest office for more information.

MAIN HEADQUARTERS

Innovative Technology Ltd

Derker Street – Oldham – England - OL1 4EQ

Tel: +44 161 626 9999 Fax: +44 161 620 2090

E-mail: [email protected]

Web site: www.innovative-technology.co.uk

NV200 Date:

Phompany one

Number:

Contact

Person

Country:

Issue No.

Customer

Part No:

NV200

Product

Dataset

Firmware

ersion

Firmware

Interface

Red LED

brightness

Green LED

brightness

Blue LED

brightness

Bezelflash

Memory

Card PIN

Number of

re-tries

CcTalkkey

APPROVED

Customer: Innovative Technology:

NV200 Concise Manual 15

In line with continued product development Innovative Technology Ltd reserves the right to change specifications without prior notice.

ACCEPTS NOTES:

1. 60 mm x 85 mm WIDE

2. 115 mm x 170 mm LONG

SUPPLY AND POWER CONSU ION:MPT

VOLTAGE: 11.00 - 13.5 V

RIPPLE: 0.25 V at 100 Hz

IDLE: 0.4 A

VALIDATING: 1.5

PEAK: 3.0 A

ENVIRONMENTAL OPERATING RANGE:

+3 OC to +50 OC at 5% to 95% RH

(NON – CONDENSING)

UNLADEN WEIGHT: 2.8 KG

7.2 APPENDIX B – NV200 MECHANICAL INSTALLATION

Drawing Number GA604

1. UNS D) WITH A T

2. W VALIDATOR

EAR CAM ONTO STUB O IENTATION SHOWN.

WITH WASHER AND NUT

CREW 2 OFF SCREWS (INDICAT

ITHDRAW LOCK BRACKET FROM THE

E 8 TORX SCREWDRIVER

HEAD

6. PLACE LOCK G

RETAIN

F LOCK IN THE OR

3. UNCLIP LOCK BLANKING PLUG CK CAM GEAR (RETAIN)AND LO

5. PLA STUB OF LOCK, IN ORIENTATION SHOWN 8. WHEN VALIDATOR FITTED TO CHASSIS EMOVE

4. IN N), AND FIX IN PLACE WITH LOCK RETAINING NUTSERT LOCK INTO BRACKET (AS SHOW

7. INSERT KEY AND ROTATE CLOCKWISE, MBLY BACK INTO VALIDATOR

HEAD AND FIX SCREWS. (FINGERTIP T

PLACE ASSE

IGHT)

CE LOCK ROTATION PLATE OVER :- TURN KEY ANTICLOCKWISE AND R

NV200 VALIDATOR LOCK FITTING Drawing Number GA605

1. OPEN CASHBOX DOOR 5. RETAIN LOCKS WITH RETAINING NUTS (2 OFF)

2. UNCLIP LOCK CAMS FROM BLANKING PLUGS. (RETAIN) N ORIENTATION SHOWN6. FIT LOCK ROTATION PLATES I

3. UNCLIP THE TWO BLANKING PLUGS FROM CASHBOX DOOR. 7. FIT LOCK CAMS TO STUBS OF LOCKS IN ORIENTATIONS SHOWN

4. FIT THE TWO LOCK BODEIS INTO RECESSES IN THE DOOR IN THE ALIGNMENT SHOWN 8. SECURE CAMS WITH RETAINING WASHERS AND NUTS

NV200 CASHBOX LOCK FITTINGS Drawing Number GA606

CASH BOX REMOVAL

To remove the cash box from the

NV200, first unlock the ‘Cashbox &

Head Release Lock’ (if fitted). Pull

the silver ‘Cashbox Release

Handle’. The cashbox will slide

forward for removal.

To replace the cashbox, simply

slide it into the chassis and push

until it clips into place.

Figure 7 – Cashbox removal

NOTE PATH ACCESS

To access the note path of the

NV200, pull the top cover release

latch forward and lift the upper

cover.

To close the note path, simply push

the cover down until it clicks into

place.

Figure 8 – Note path access

BEZEL INSTALLATION

To fit the bezel to the NV200

access to the note path is required.

Lift the upper cover by pulling the

latch forward. Connect the cable

from the bezel assembly to the

socket located on the front of the

validator head unit and click the

assembly down into place. Close

the note path upper cover. M3

screws can be fitted to hold the

bezel assembly securely in place if

required.

NV200 Concise Manual 19

Cash box release handle

op cover release handle

VALIDATOR HEAD UNIT REMOVAL

it from the

head

– Validator head r oval

o remove the head un

alidator, first unlock the ‘Cashbo

& Head Release Lock’ (if fitted). Lift

the silver ‘Head Release Latch’

located on the front of the

validator, slide the head unit

forward and lift up away from the

chassis.

To replace the head unit, align th

lugs on the chassis with the groove

on the underside of the

assembly and slide the head

assembly backwards until it clicks

securely into place

Figure 9 em

NV200 Concise Manual 20

Head release latch

Other manuals for NV200

Table of contents

Other Innovative Bank Note Validator manuals

Innovative

Innovative BV50 User manual

Innovative

Innovative BV20 Quick guide

Innovative

Innovative BV20 User manual

Innovative

Innovative NV200 User manual

Innovative

Innovative BV100 User manual

Innovative

Innovative NV9 User manual

Innovative

Innovative BV100 User guide

Innovative

Innovative BV50 User guide

Innovative

Innovative BV20 User guide

Innovative

Innovative NV10 User manual

Innovative

Innovative NV10 User manual

Innovative

Innovative NV200 User guide

Innovative

Innovative NV9 User manual

Popular Bank Note Validator manuals by other brands

MEI

MEI CASHFLOW 2612 Engineers Handbook

Innovative Technology

Innovative Technology NV11 user manual

ratiotec

ratiotec Smart Protect user manual

Kolibri

Kolibri Signature user manual

Amrotec

Amrotec MiB-9 Operator's manual

Rowe

Rowe BC12 Update instructions
