NV4(/5) Bank Note Validator
The Next Generation Smiley®Bank Note Validator
Operations Manual
© Copyright Innovative Technology Limited 1999

Introduction
GA125 Issue 11
2
Introduction
IMPORTANT This Product must be fused with a 2 Amp fuse before use.
This manual describes the operation of the NV4 Bank note Validator as fitted with Firmware Version 2.62.
It also describes the functionality of the new NV5 validator fitted with Firmware Version 3.02.
Please note that the NV4 Validator is pin for pin compatible with the NV2/3 Smiley® Validator at first glance.
However it requires a higher peak operating current than the NV2/3.
We recommend that you study this manual as there are many new features permitting new uses and more secure
applications.
If you do not understand any part of this manual please contact the factory for assistance. In this way we may
continue to improve our product.
Smiley® and the ITL Logo are international registered trademarks and they are the property of Innovative
Technology Limited.
Innovative Technology has a number of European and International Patents protecting this product. If you
require further details please contact the factory.
Innovative Technology Ltd.
Derker Street
Oldham
England
OL1 4EQ
Tel: [phone]
[phone]
Fax: [phone]
email [e-mail]
or visit our web site on www.innovative-technology.co.uk

Contents
GA125 Issue 11
3
Contents
Page
INTRODUCTION ..................................................................................................................2
CONTENTS.......................................................................................................................... 3
SCOPE OF DOCUMENT...................................................................................................... 4
NV4 COMPARED WITH THE NV2/3 (SMILEY ®)................................................................ 5
GENERAL DESCRIPTION................................................................................................... 6
ENVIRONMENT AND POWER REQUIREMENTS............................................................. 11
INTERFACES: HARDWARE DESCRIPTION..................................................................... 12
INTERFACES: PROTOCOLS ............................................................................................ 14
TEACHING AND SECURITY ............................................................................................. 20
SPECIAL MENU FEATURES............................................................................................. 28
MECHANICAL INSTALLATION......................................................................................... 32
CALIBRATION AND ROUTINE MAINTENANCE .............................................................. 34
FAULT FINDING ................................................................................................................ 35
SUPPORT TOOLS............................................................................................................. 36
PARTS LIST AND DRAWINGS.......................................................................................... 37
REVISION HISTORY.......................................................................................................... 48

Scope of Document
GA125 Issue 11
4
Scope of Document
This document is intended for those whose will:
a) Design the Validator into items of equipment.
b) Build equipment using the Validator.
c) Install equipment containing the Validator.
d) Maintain equipment containing the Validator.
Although information is included which will allow a degree of fault diagnosis and repair, it is recommended that
for all but simple mechanical repairs the unit is returned to an approved service centre for repair.
CAUTION:
Never exceed the recommended environmental and electrical limits.
Do not attempt to lubricate the mechanisms as this may affect the note transport.
Do not polish the lens as this may alter the optical characteristics.
If the unit is re-taught pay particular attention to the instructions. Good teaching is essential to ensure
satisfactory operation.
If the tops and bottoms of NV4 Validators are swapped the unit must be re-calibrated. In the unlikely event of a
problem it is better to have the complete unit checked.
Innovative Technology Ltd has a policy of continual product improvement. As a result the products supplied
may vary from the specification described here. If in doubt please contact Innovative Technology for details of
any changes. Alternatively visit our web site at
www.innovative-technology.co.uk

NV4 Compared with the NV2/3 (Smiley ®)
GA125 Issue 11
5
NV4 Compared with the NV2/3 (Smiley ®)
NV4 (= new feature)
NV2 (Smiley ®)
Normally five channels, expandable to 15
channels using binary outputs and up to sixteen
channels using serial I/O
five channels, four to accept, one to reject
Total 63 faces, unrestricted use per channel
Total 44 faces, split 10 faces per channel
Three user configurable security levels - each
channel can have a separate level
Three user configurable security levels- each
channel can have a separate level
Manual Inhibit to disable notes
Manual Inhibit to disable notes
Broad Band Optical Note reading - greater
fraud discrimination + higher acceptance
Narrow Band LED Note Reading
Total width note scanning - both sides
Total width note scanning - top side, track
reading bottom side
Channel 5 reserved for teaching known frauds
to be rejected.
Channel 5 reserved for teaching known
frauds to be rejected.
Note can be inserted using one hand only with
patented “Smiley®” mouth
Note can be inserted using one hand only with
patented “Smiley®” mouth
Bezel is held securely to fascia by 4 screws
and steel retaining plates. NV4 body is easily
clipped and unclipped to bezel.
NV2 is clipped into fascia
Alternative Universal bezel allows NV4 to
be fitted in a variety of different ways.
Note Exit flat for more stacking / note
handling options.
Note Exit curved
Both horizontal and vertical stacker options
are available from Innovative Technology Ltd.
Only horizontal stacker available
Optical Anti Strimming - detailed view -
available as an integral option on NV4
Optical Anti Strimming - broad view
Patented Mechanical Anti Strimmer Included
Separate Anti Strimmer
Four Parallel Outputs
Four Parallel Outputs
Pulse Stream Output (max. 250 pulses) - pulses
and pulse period user programmable,
Binary Pattern Output
Pulse Stream Output (max. 250 pulses) -
pulses user programmable. NOTE must be
factory enabled
RS232 TTL 300 Baud Input & Output, full
control and status
RS232 TTL 300 Baud Output Only
RS232 300 Baud Input & Output, full control
and status
New Smiley® Secure Protocol option for
RS232 communications
Four Parallel Inhibits
Four Parallel Inhibits
Single note escrow
Single note escrow
Teach and Run (Lockable)
Teach and Run (Lockable)

General Description
GA125 Issue 11
6
General Description
NV4 Validator - the next generation of Smiley® Bank Note validators
Figure 1 - Top View of NV4 Validator
The NV4 Bank Note Validator is a compact currency tester, suitable for most money machines. It will accept
up to four different denominations of notes in the basic output mode, inserted in any orientation with most
currencies, and will cope with different designs of banknote having the same value such as are found in the
United Kingdom or Spain. It may also be re-configured to offer up to 15 different denominations so that multi
currency validation may be done. Please note that this feature is only available using the pulse stream output, the
RS232 serial interface or the binary output feature.
The NV4 Validator leaves the factory containing at least one currency data set so that it is ready for immediate
installation. If it is desired to change the currency data set this may be done using either the NV4 to NV4
currency copy system or the PC based Currency Management software. The unit may also be programmed using
the built in teach facility, without requiring any additional equipment, to cope with new issues of notes or
different currencies. New currencies and applications are being tested all the time, so please refer to our web
site or contact the factory for information concerning specific currencies if they are not already included on our
approved list.
The Validator is of small size and has been designed for easy installation in most machines. The unique “smiling
mouth” allows insertion of notes with one hand and simplifies the note handling mechanism. The NV4 however
has a flat note exit permitting more note handling options
Interfacing the Validator is very simple, with the choice of parallel open collector outputs, pulse stream output,
binary output or a 300bps serial input and output.
The principle of operation is that when a note is presented to the Validator the front optical sensors activates the
motor and electronics. As the note is drawn through the Validator it is measured and examined with a broad
range of wavelengths of light along its length. The lens assembly enables the Validator to examine the whole of
the width of the note on both top and bottom faces , while at the same time making the validation process
insensitive to marks commonly found on many banknotes in circulation.

General Description
GA125 Issue 11
7
The characteristics of the note are then analysed to see if they fall within the characteristics of any of the notes
that the Validator has been taught to recognise, and if so, the note is accepted and the vend signal sent on the
appropriate channel. Several techniques are implemented to detect forged notes and prevent the retrieval of
notes already accepted. If any irregularities are encountered during the validation process, the note is
immediately returned. In the unlikely event that a counterfeit note is found that the Validator will accept, then it
may be taught to recognise that note and reject it in future using the channel 5 feature.
If the validation process matches the note to the data stored in its memory it will be passed through the Validator
and into the host machine. The anti-strimming device consists of a mechanical roller that creates the “one way
door” mechanical security. The note is reversed back over the top of the roller and out of the validator, following
a path along which it is impossible to pull the note back using tape or wire.
Microprocessor technology is used to ensure high acceptance rates for genuine notes, and high sensitivity to
forgeries. The unit is also designed so that there are no analogue controls, ensuring a long and stable operating
life with no routine maintenance required.
NV5
This product has a simplified interface to the validator where no manual teaching of notes is possible and the
rear anti strim roller operation is switchable. The units are supplied as standard with a short anti return-guard.
On receipt from the factory the anti return roller will be switched off.
Caution: The rear roller is integral in the security of the validator against "fishing" type frauds and therefore
this NV5 option should only be used in benign environments.
The NV5 Firmware uses the prefix 3 to signify NV5 operation.
NV5 Functionality.
Anti return roller operation select & initialisation:
At power up if the select button is held down and the slide switch is in teach, the NV5 will enter Anti-strim roller
function. The state of the roller may be toggled by clicking the select switch. To leave this mode slide teach
switch to run. If the select switch is pushed during the time-out period, the NV5 calibrate flag is reset and when
the NV5 starts up the panel bulb will flash indicating that the unit is ready to initialise.
Erasing of Faces:
In this version of NV5, the teaching and erasing of note faces within the validator are disabled.
Cloning:
It is possible to clone Issue 1 and 2 NV4's to become NV5's but it is not possible to reverse the operation.
Apart from the differences mentioned above the NV4 and NV5 functionality is the same. Therefore the rest of
this manual applies to both products except where stated.

General Description
GA125 Issue 11
8
Display Information
The four red LED’s on the top of the unit are used to provide a variety of status signals:
Firmware revision code
From software revision 2.50 onwards, when the validator is first switched on, the LED’s are used to signal the 3
digit firmware revision number in sequence using a binary coding. A zero is shown by all 4 LED’s lighting up.
Each digit is shown in turn for about 0.5 sec. E.g. for version 2.51 the sequence is:
LED 1 2 3 4
‘2’
‘5’
‘1’
Figure 2 - LED’s indicate firmware revision
a full list of number codes is shown in figure 4b
Heartbeat
In normal RUN operation, when the validator is ready to read a note, LED’s 2 and 3 flash alternately
("Heartbeat") to signal a “healthy” status. see fig 3a. If the option to permanently add a stacker is set then if the
stacker is removed, the LED's 1 & 4 flash alternatively. see fig 3b.
LED1 2 3 4
Figure 3a - LED’s indicate healthy status
LED1 2 3 4
Figure 4b - LED’s indicate stacker removed
Other combinations relate to specific functions and are described in later sections. If the validator is started with
the Teach/Run switch set to TEACH, then after the revision number display it will go directly into teach mode -
see later section.

General Description
GA125 Issue 11
9
Validation / reject codes (as from firmware version 2.6.2)
When a note is accepted, while the unit is in parallel or pulse mode, a code is presented on the LED's
representing the channel in which it was accepted. If the "enable reject code" option is set then, during note
validation the heartbeat will be suspended and should the note be rejected then a code is flashed twice
representing the reason for rejection, prior to the heartbeat returning.
The codes flashed are as follows in fig 4a

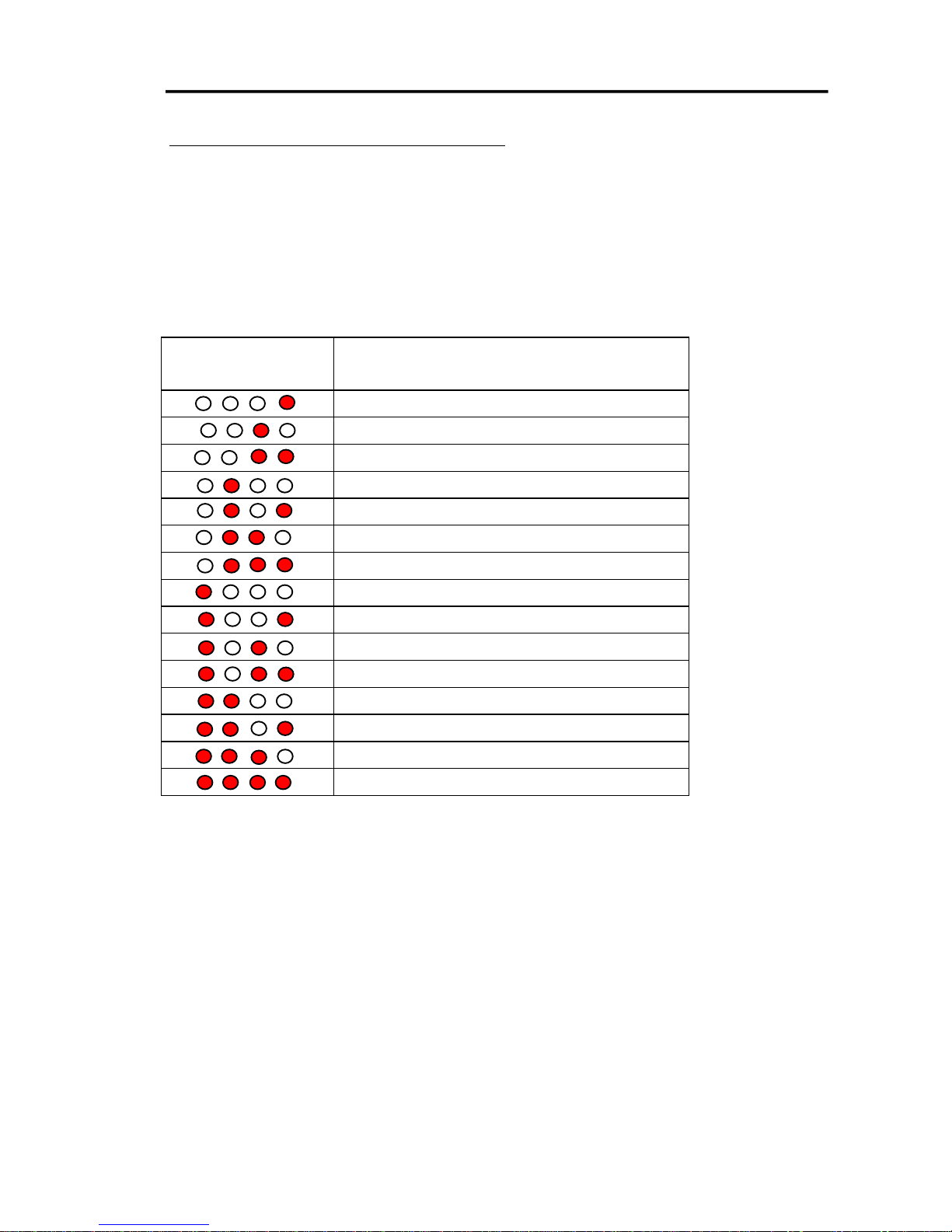

Fig 4a –Reject codes
LED DISPLAY
4 3 2 1
Reject Cause
Note rejected due to validation check 1
Note rejected due to validation check 2
Note rejected due to validation check 3
Note rejected due to validation check 4
Note rejected due to validation check 5
Note inhibited by host machine
Reserved 1
Rear Roller / Rear Flag Error
Note validated on more than 1 Channel
Front Sensor detect
Reserved 2
Reserved 3
Slow / Stalled Running
Reserved 4
Note validated as known fraud

General Description
GA125 Issue 11
10
Figure 5b –LED display indication for firmware version numbers
Number
LED DISPLAY
1 2 3 4
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14

Environment and Power Requirements
Environment and Power Requirements
Environment
Minimum
Maximum
Temperature
+3oC
+50oC
Humidity
5%
95% Non condensing
Electrical Supply
Minimum
Maximum
Supply Voltage (V dc) Absolute Limits
11V
15V
MDB Supply Voltage
18V
42V
NOTE: If input voltage falls below 10.5v
the NV4 will shut down automatically
Supply Ripple Voltage
0
0.25V
@100Hz
VCOM (Host logic high)
5V
30V
Supply Currents
With Stacker HS1 or
VS1
Standby
350mA
450mA
Validating
450mA
900mA
Peak (Motor start or stall)
1000mA
1800mA

Interfaces: Hardware
GA125 Issue 11
12
Interfaces: Hardware Description
Interface Logic levels
Logic Low
Logic High
Inputs
0V < Low < 0.9V
+3.7V < High <(+VCOM+0.5V)
Outputs with 10Kpull up
0.4V
pull up voltage of host interface
Maximum Current Sink
50mA per output
Note that the output low signal depends on the impedance of the pull up resistor on the host interface.
All outputs are open collector transistors.
All Inputs are held high to +VCOM via 10K. The input structure is a CMOS gate with anti static protection
fitted. Please ensure your signal LOW levels comply with the 74HC CMOS series specification for reliable
operation.
15 Pin Connector
Pin
Name:
Description:
1
Vend 1 (binary bit 1)
Note accepted on Channel 1,
Also the Pulse Stream output
Also the serial output pin in Serial Mode
Also the pulse stream output in Pulse Stream Mode
2
Vend 2 (binary bit 2)
Note accepted on Channel 2 pulse output
3
Vend 3 (binary bit 4)
Note accepted on Channel 3 pulse output
4
Vend 4 (binary bit 8)
Note accepted on Channel 4 pulse output
5
Inhibit 1
Inhibit channel 1 by holding this pin HIGH. To Enable a channel the
inhibit must be held LOW.
Also the Serial Input pin in RS232 serial mode
6
Inhibit 2
Inhibit channel 2 by holding this pin HIGH
7
Inhibit 3
Inhibit channel 3 by holding this pin HIGH
8
Inhibit 4
Inhibit channel 4 by holding this pin HIGH
9
Escrow
Operate Escrow function by holding LOW, refer to Escrow section for
full details
10
Alarm
Problem indication Output
11
Supply Voltage
+11v to +15v DC
12
0V Supply
13
+VCOM
Must be connected to the host machine interface supply voltage. See
Circuit Outlines
14
Parallel /Serial Select
Hold this pin HIGH for Parallel Pulse output. Connect this pin LOW
for Serial Outputs.
15
Factory Test Pin
FACTORY USE ONLY - DO NOT CONNECT
5 Pin Connector. For stacker use only. DO NOT power the NV4 validator through the 5 way connector
Pin
Name:
Description:
1
Supply Voltage
+11v to +15v DC
2
0V Supply
3
Stacker Control
Used to control the stacker
4
Stacker Status
RS232 Rx
When stacker is connected, monitors the stacker status. If no stacker is
fitted, acts as the serial Input pin in RS232 serial mode
5
RS232 Tx
If no stacker is fitted, acts as the serial Output pin in RS232 serial
mode

Interfaces: Hardware
GA125 Issue 11
13
Connector Details:
15 Pin 0.1" pitch header, Molex 22-01-2155 (RS Components equivalent 479 - 175)
5 Pin 0.1" pitch header, Molex 22-01-2055 (RS Components equivalent 467 - 627)
Figure 6 - Input / Output circuits

Interfaces: Protocols
GA125 Issue 11
14
Interfaces: Protocols
1: parallel input and output:
To use parallel outputs pin 14 must be held high or left unconnected.
Vend Signals (Pins 1 to 4). The four channels have their own individual outputs. If a note is recognised then the
relevant channel line is pulled low for 100 + 3 milliseconds. It is recommended that pulses outside these limits
are rejected as a precaution against false triggering due to noise.
Alarm Output: (Pin 10). This is a general purpose, problem indication line. If a problem occurs then this signal
will go low for 100 milliseconds. The alarm signal will operate whenever one of the following conditions
occurs:-
1) If the rear flag is raised when a note is not present.
2) If a note is being returned to the customer and some how the note has become longer -
i.e. strimming is being attempted.
3) If the Stacker is full or a note is jammed in the Validator.
Escrow Control:
The NV4 has a single note escrow facility. This allows the Validator to hold onto the note once accepted, and
then only pass the note out of the back of the Validator when the host machine confirms that the Vend operation
has been completed. If no confirmation of the Vend is received then the note will be returned to the customer
after 30 seconds. If the host machine itself aborts the transaction by raising the corresponding inhibit input high,
the note is returned immediately. The sequence of operations is as follows:
1. Pin 9 held low awaiting note insertion.
2. Note inserted. Validator issues a 100ms pulse on the appropriate channel.
3. The host machine initiates vend process.
4. The host machine raises pin 9 high to indicate that it wants the note. If this is not done within 30
seconds the Validator will return the note.
5. The Validator issues a 100ms pulse on the appropriate channel after pin 9 going high to indicate
final acceptance of the note. (If the signal has not been received within 30 seconds it indicates the
customer has forcibly retrieved the note and the vend should be aborted.)
6. The vend process is completed.
7. The host machine makes pin 9 low in expectation of the next vend.
The host can force the return of the note to the customer by raising the inhibit line high, at any time before the
end of the 30 second time-out.
Please note that the inhibits will not work correctly unless +VCOM is connected to the host machine interface
logic high supply voltage.
The validator will go out of service for 45 seconds if a note is removed after the first 100mS pulse, but before
the second 100mS pulse is given.

Interfaces: Protocols
GA125 Issue 11
15
Escrow Timing Diagram for Parallel Vends:-
Escrow
Accepting
Vend
Signal*
Escrow
Rejection
Vend
Signal*
Inhibit
*
100mse
c
Inhibit rejection can be
used
at any time during the 30
second
decision period after the
completion
of the vend
(Escrow held
low)
100mse
c
Inhibit Operation
Each channel (1 to 4) has its own inhibit input to allow the host machine to refuse specified values of notes. To
inhibit a channel, the relevant inhibit input must be held high. To enable a channel the corresponding inhibit
must be latched low so that notes may be accepted.
If all four inhibits are high simultaneously then the NV4 will not read in any notes. In this mode, if a note is
inserted the motor will run in reverse preventing the insertion of a note. All four inhibits may be connected
together to create a 'global' inhibit. In this way the NV4 may be brought in and out of operation by the host
machine.
It is also possible to inhibit channels directly on the Validator by selecting security level 4. This inhibit cannot
be overridden by the host. See the section on Teaching / Security for an explanation of this inhibit facility.
2: RS232TTL Input and Output
Existing Smiley® NV2 users may already be using the serial output facility in conjunction with the parallel
inputs. This system is supported by the NV4 Validator and now has some further characters. However the NV4
now also supports serial input control as well. The NV4 also offers true RS232 input and output via the five pin
Stacker connector.
Please contact the factory for details of firmware and currency programming protocols.
Typical Serial Output: Transmission of the value 20 (decimal), Note not recognised
Vend 1(Pin 1)
idle start bit 0 bit 1 bit 2 bit 3 bit 4 bit 5 bit 6 bit 7 stop 1 stop 2 idle
3.3ms

Interfaces: Protocols
GA125 Issue 11
16
300 baud Serial Output Only Mode. Pin 14 connected to 0V only
Data format: 1 start bit
8 data bits
2 stop bits.
300 baud.
Transmitted codes:
MESSAGE DECIMAL VALUE
Accept on C1 1
Accept on C2 2
Accept on C3 3
Accept on C4 4
Accept on C5 5
Accept on C6 6
Accept on C7 7
Accept on C8 8
Accept on C9 9
Accept on C10 10
Accept on C11 11
Accept on C12 12
Accept on C13 13
Accept on C14 14
Accept on C15 15
Accept on C16 16
Note Not Recognised 20
Mechanism running slow 30
Strimming attempted 40
Channel 5 Note Rejected (fraud channel) 50
STACKER Full or Jammed 60
Abort During Escrow 70
Note may have been taken to clear jam 80
300 baud Serial input/output Mode.
This mode can be entered by selecting serial mode (pin 14 connected to 0V) and connecting the vend 4 output to
the inhibit 4 input before the power is turned on.
The Validator echoes each valid command it receives. Note that the host does not have to echo messages back to
the validator. The output codes indicated in ‘300 baud serial output mode’ are supported with the following
extensions.
Transmitted codes:
MESSAGE DECIMAL VALUE
Validator Busy 120
Validator Not Busy 121
Command Error 255
Recognised Receive Codes:
MESSAGE DECIMAL VALUE
Inhibit C1 131
Inhibit C2 132
Inhibit C3 133
Inhibit C4 134
Inhibit C5 135
Inhibit C6 136
Inhibit C7 137
Inhibit C8 138
MESSAGE DECIMAL VALUE
Inhibit C9 139

Interfaces: Protocols
GA125 Issue 11
17
Inhibit C10 140
Inhibit C11 141
Inhibit C12 142
Inhibit C13 143
Inhibit C14 144
Inhibit C15 145
Inhibit C16 146
Uninhibit C1 151
Uninhibit C2 152
Uninhibit C3 153
Uninhibit C4 154
Uninhibit C5 155
Uninhibit C6 156
Uninhibit C7 157
Uninhibit C8 158
Uninhibit C9 159
Uninhibit C10 160
Uninhibit C11 161
Uninhibit C12 162
Uninhibit C13 163
Uninhibit C14 164
Uninhibit C15 165
Uninhibit C16 166
Enable serial escrow mode 170
Disable serial escrow mode 171
Accept Escrow 172
Reject Escrow 173
Status 182
Enable all 184
Disable all 185

Interfaces: Protocols
GA125 Issue 11
18
Example protocols are shown in the tables below:
Event
Validator
Host
Note entered into validator
Validator Busy
120 
Note Accepted Channel 
Validator Ready
121 
Accept on Channel 2
2 
Note entered into validator
Validator Busy
120 
Note not recognised
Validator Ready
121 
Note not recognised
20 
Validator has returned note
Validator Ready
121 
Software Inhibit Channel 
Inhibit C4
134
Inhibit C4
Channel 4 Inhibited
134 
Software Enable Channel 
Uninhibit C4
154
Uninhibit C4
Channel 4 Inhibited
154 
Status Report
182
Status Request
3 byte status message
Inhibit status Channels 1-8
byte 1
Inhibit status Channels 9-16
byte 2
Escrow On (=1) / Off (=0)
byte 3
Turn on Escrow Mode
170
Enable Escrow Mode
Escrow Mode Enabled
170 
Note accept in Escrow Mode
Note entered into validator
Validator Busy
120 
Note Accepted Channel 
Validator Ready
121 
Accept on Channel 2
2 
172
Accept Note in Escrow
Accept Escrow
172 
Accept on Channel 2
2 

Interfaces: Protocols
GA125 Issue 11
19
3: Pulse Stream Output
For retrofitting to older coin based machines, the NV4 can be set to give a stream of pulses via the vend 1
output. Firstly the pulse stream system must be toggled on using the special menu functions (see later section on
Special Menu). Then the number of pulses per channel may be programmed in using the teach process. This is
done as follows:
1. Slide the teach run switch up to Teach, and select the desired channel by repeatedly pressing the select
button. The LED’s will indicate which channel is selected. Note that if a code lock is set, then the code must
be entered first before the channel can be selected. (refer to page. 29) If a code lock is set, when the NV4 is
switched to Teach, LED 1 will be lit. Otherwise none of the LED’s will be lit.
2. Now slide the teach/run switch down to run. As soon as the light starts flashing push the slide switch back up
to teach. If the pulse stream option has been toggled ON you may now enter the desired number of pulses for
this channel. The channel number will be shown in reverse i.e. all LED’s lit except for the chosen channel. If
the Validator is not in Pulse Mode, it will return to the normal channel select stage of step 1.
3. Press the select button for the number of pulses required on that channel. Each time it is pressed the channel
light will flash indicating recognition. You may enter a maximum of 250 pulses per channel.
4. When you have pressed the number of pulses required, slide the teach/run switch back to run. The channel
light will now flash on and off, to play back your pulses so that you may determine if it is as desired.
5. If a note is now inserted and accepted, the vend 1 pin will output this number of pulses. The standard pulse
timing is 100 milliseconds low, 200 milliseconds high. If you wish to change this, please follow the
instruction given in the special functions menu instructions.
4: Binary Output
In the event that the machine needs more than 4 notes to be recognised, but the host machine cannot take
advantage of the serial communication methods then the NV4 can be set to give a binary pattern output on the
four parallel output pins. Refer to the special menu option setting to use this feature.
If the NV4 is set to 15 channel mode it will issue the vend signals as a binary pattern on the parallel outputs for
100 milliseconds. In this way a maximum of 15 different notes can be accepted and controlled.
5: SSP - Smiley® Serial Protocol.
SSP is a secure serial interface and the preferred method of connecting the NV4 to a host machine. SSP is
supported from firmware version 2.50 (older validators can be upgraded to support SSP). SSP is an expandable
open protocol that can be configured in a multi drop mode to allow many devices to be connected to the same
serial interface on the host. Many of the frauds and communication problems associated with conventional
parallel and serial interfaces are over come in SSP.
For a specification of the SSP Protocol please contact Innovative Technology Ltd directly.

Teaching and Security
GA125 Issue 11
20
Teaching And Security
Validators are normally supplied ready taught from the factory. This section may be skipped unless the
validators need to be re-taught with a new note or currency.
The NV4 Validator may be taught new currency or notes in three ways:
1. Use the NV4 /5 Currency Manager Software, which is supplied with a range of currencies. To use this
system you will require a PC running Windows 95/98™, Pentium™ 75MHz or faster with a serial port, and a
12volt dc power supply to power the validator. (© Microsoft and Intel). A list of currently supported
currencies is maintained on our web site, and new releases can be downloaded from there. Further details are
available from Innovative Technology Ltd.
2. NV4 / 5 Master/Slave copying - a currency set can be transmitted from one NV4 onto another or an NV5.
Note it is not possible to clone an NV4 from an NV5.
3. Manual teaching using a selection of real bank notes (NV4 Only). The manual teaching option has been
removed from firmware version 2.70 or higher. This method is not preferred and should only be used if the
other alternatives are not available to you. Please be aware that some currencies have currency specific
parameters associated with them. These may not be appropriate if the NV4 is re-taught manually. If an
electronic method is used any special parameters will automatically be updated to suit the currency.
NV4 - NV4 Copy:
Overview
The facility exists for using an NV4 Bank Note Validator to copy its contents to another NV4 connected to it.
The ‘Master’ validator will upgrade the slave’s firmware if necessary and copy the currency data completely.
Requirements
NV4 whose board issue number (x.00) must be the same as the slave you wish to copy to. Typically issue 1 units
can only be re-programmed by another issue 1 unit. The same applies for issue 2 units. The slave firmware issue
can be the same or a lower level of firmware than the Master, but if it is a higher version of firmware in the
Slave, it will not accept the data from the lower level Master unit.
Master to have firmware 2.20 or greater for series 2 NV4s or 1.52 or greater for series 1 NV4s.
NV4 copy cable assembly.
12V supply.
NV4 copy connector ( optional )
NV4 Copy Cable
