ICT P70 User manual

International Currency Technologies
43010 Osgood Rd. Fremont, CA 94539
Tel : [phone]
Fax : [phone]
E-mail : [e-mail]
Website : www.ict-america.com
Ultimate acceptance rates .
Superior security.
Fast , efficient bill handling .
Combines the bill handling
and the advanced bill
recognition system to
increase acceptance rates
and reduce jams .
Easy to remove/open
/clean acceptor .
Auto self - adjusting
sensor system
Quick to update software
(flash ROM).
99.99% efficiency on Anti-String
(fishing) feature.
2005 International Currency Technologies Corporation
Vol. 2.0 Part Number : H4814A
Installation Guide

Use of Materials Limitations
International Currency Technologies Corporation (ICT) all rights reserved.
All materials contained are the copyrighted property of ICT.
All trademarks, service marks, and trade names are proprietary to ICT.
ICT reserves the right at all times to disclose or to modify any information as
ICT deems necessary to satisfy any applicable law, regulation, legal process
or governmental request, or to edit, refuse to post or to remove any information
or materials, in whole or in part, in ICT's sole discretion.

Acceptance Rate
Bill Insertion
Acceptance Speed
Interfaces
Power
Power Consumption
Weight
Environment Range
96% or greater
4 - way Acceptance
Approx. 2 seconds
Pulse . RS232
DC 12V ± 5%
Standby Mode : 210mA
Operating Mode : 2 A
Motor Lock : 2.15 A
Approx. 1kg
Operating temperature : 0 C~55 C
Storage temperature : -20 C~60 C
Humidity : 30%~85% RH
(no condensation)
P70/P77/P85 Bill Validator Specifications
- 1 - - 2 -
Unit : :mm [ inch ]
Unit : :mm [ inch ]
Bill width available 60mm~70mm.
PLASTIC STACKER (Approx.500 Pieces)

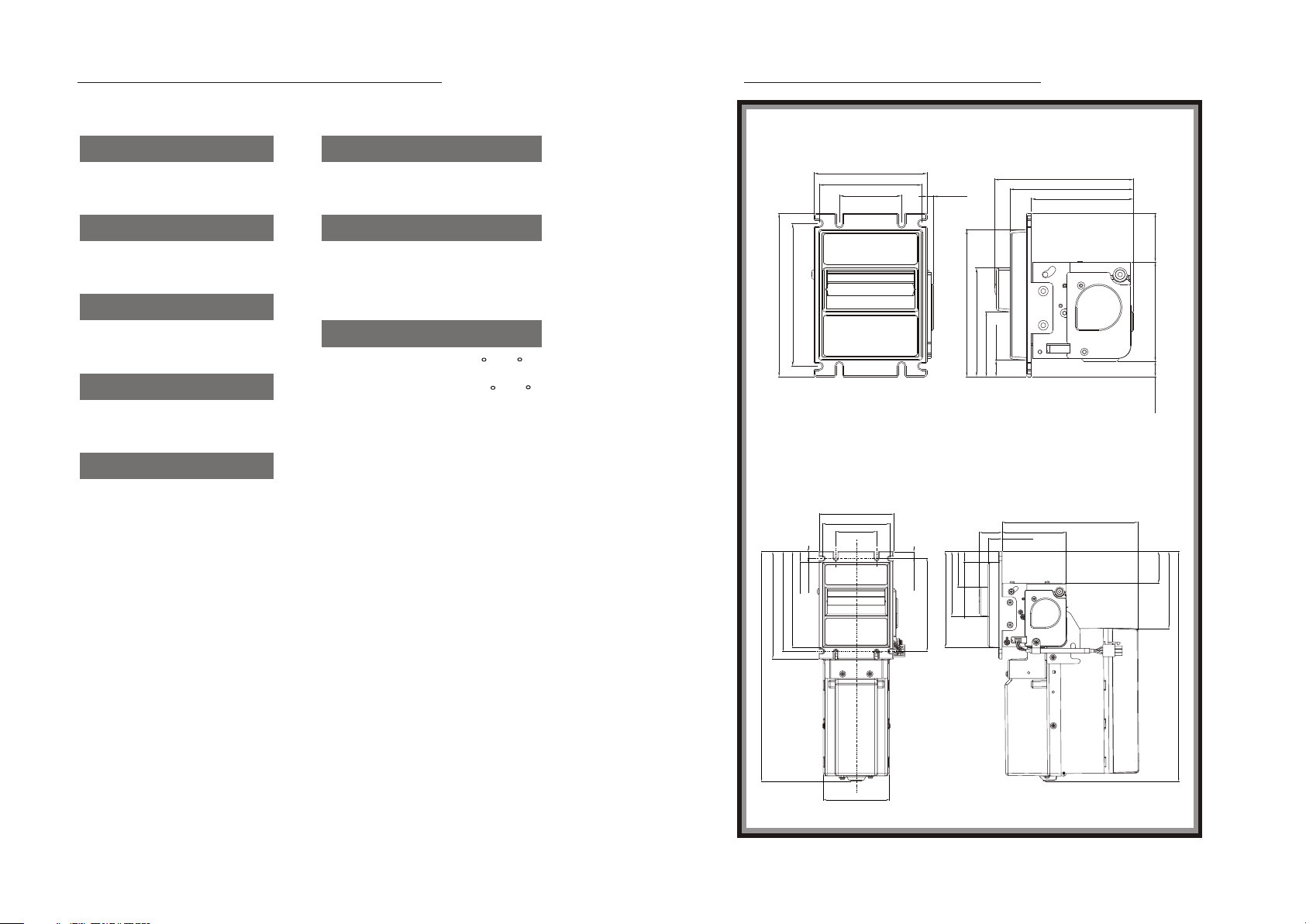

P70 Bill Validator Dimensions
P70
P70P5
8.50 [0.33]
13.23 [0.52]
119.77 [4.72]
124.50 [4.91]
134.00 [5.28]
286.83 [11.30]
7.95 [0.31]
116.50 [4.59]
51.00 [2.01]
83.00 [3.27]
84.00 [3.31]
93.00 [3.66]
13.23 [0.52]
44.40 [1.75]
80.60 [3.18]
119.77 [4.72]
17.50 [0.69]
80.07 [3.15]
169.74 [6.69]
28.50 [1.12]
39.31 [1.55]
96.19 [3.79]
286.82 [11.30]
83.9 [33.0"]
101.4 [39.9"]
113.9 [44.8"]
51.0 [20.1"]
84.0 [33.1"]
93.0 [36.6"]
117.0 [46.1"]
134.0 [52.8"]
5.0 [2.0"]
40.0 [15.7"]
81.5 [32.1"]
12.5 [4.9"]
13.5 [5.3"]
53.1 [20.9"]
89.1 [35.1"]
120.5 [47.4"]

- 3 -
Unit : :mm [ inch ]
Unit : :mm [ inch ]
Bill width available 60mm~77mm.
PLASTIC STACKER (Approx.500 Pieces)
P77 Bill Validator Dimensions
P77
P77P5
100.00 3.9 37
84.00 3.30 7
50.80 2.00 0
134.00 5.2 76
117.0 0 4.606
5.30 .209
120.50 4.7 44
104.83 4.1 27
67.47 2.65 6
13.50 .531
128.40 5.0 55
108.40 4.2 68
90.90 3.57 9
28.80 1.13 4
81.50 3.20 9
23.70 .933
277.4 0 10.921
92.00 3 .622
124.5 0 4.902
66.53 2 .619
29.17 1 .148
9.50 .3 74
100.0 0 3.937
85.00 3 .346
84.00 3 .307
50.80 2 .000
8.50 .3 35
125.5 0 4.941
134.0 0 5.276
29.17 1 .149
13.50 . 531
120.5 0 4.744
134.0 0 5.276
66.53 2 .619
4.00 .1 57
17.50 . 689
37.50 1 .476
80.10 3 .154
28.30 1 .114
175.0 0 6.890
- 4 -
Unit : :mm [ inch ]
Unit : :mm [ inch ]
Bill width available 60mm~77mm.
PLASTIC STACKER (Approx.500 Pieces)
P77 Bill Validator Dimensions
P77
P77P5
117.0 4 .606
134.0 5.276
81.5 3.209
29.5 1.161 23.0 .906
128.4 5.055
108.4 4.268
90.9 3.579
13.5 .531
36.2 1.424
73.5 2.895
120.5 4.744
5.3 .209 100.0 3.937
84.0 3.307
50.8 2.000
278. 10 10.9 49
9.50 . 374
36.1 7 1.424
73.5 3 2.895
124. 50 4.90 2
50.8 0 2.000
84.0 0 3.307
85.0 0 3.346
100. 00 3.93 7
8.50 . 335
125. 50 4.94 1
134. 00 5.27 6
92.0 0 3.622
28.3 0 1.114
80.1 0 3.154
175. 00 6.89 0 37.5 0 1.476
17.5 0 .689
4.00 . 157
13.5 0 .531
36.1 7 1.424
73.5 3 2.895
120. 50 4.74 4
134. 00 5.27 6

- 6 - - 5 -
Unit : :mm [ inch ]
Bill width available 60mm~85mm.
P85 Bill Validator Dimensions
P85
84.0 [3.31"]
50.8 [2.00"]
106.0 [4.18"]
14.0 [0.55"]
50.8 [2.00"]
100.0 [3.94"]
107.8 [4.25"] 5.3 [0.21"]
92.0 [3.62"]
8.5 [0.33"] 117.0 [4.61"]
134.0 [5.28"]
134.0 [5.28"]
106.0 [4.18"]
54.9 [2.16"] 34.1 [1.34"]
14.0 [0.55"]
87.2 [3.44"]
27.2 [1.07"]
13.5 [0.53"]

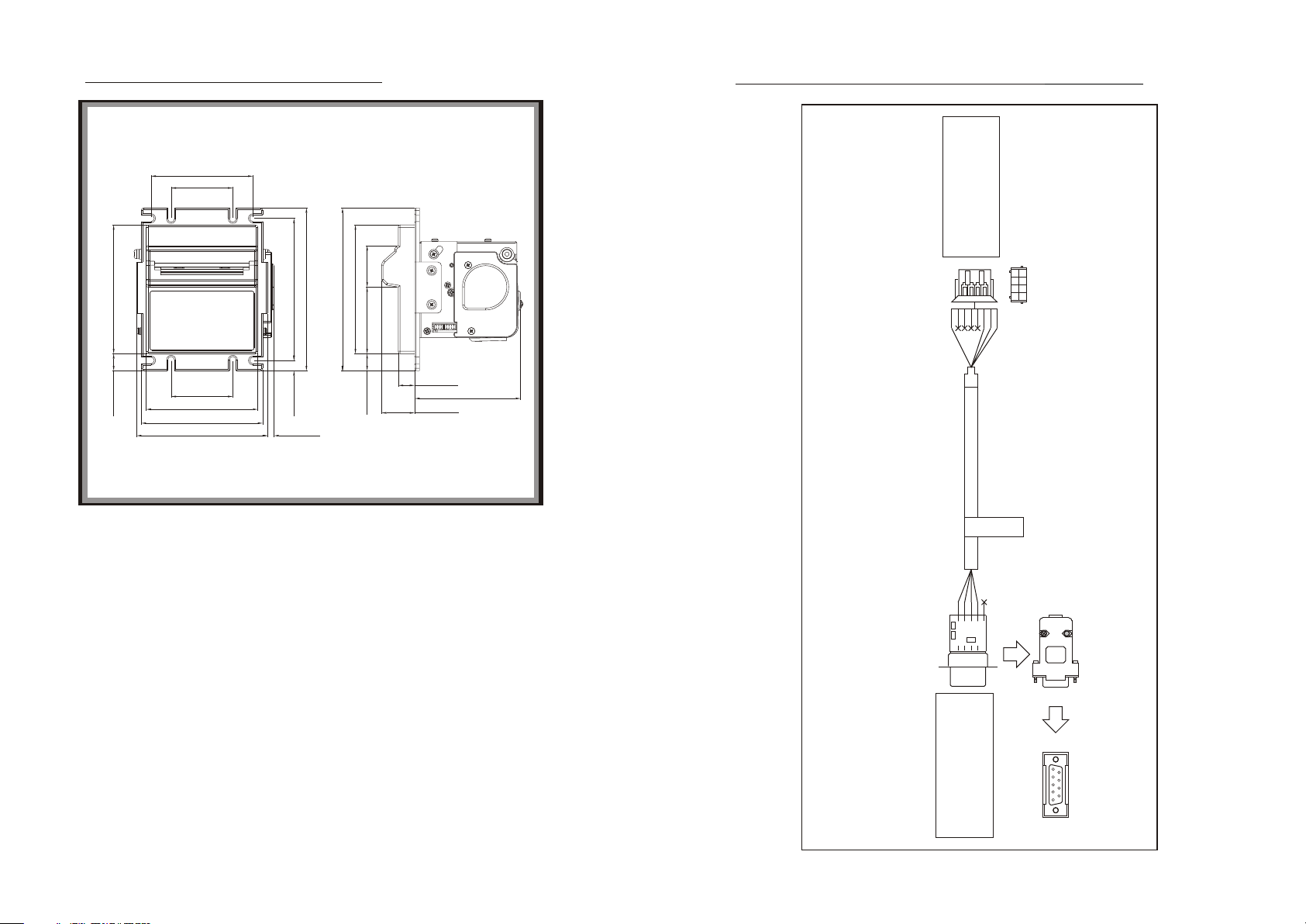

P70/P77/P85 ICT Protocol Harness
WEL-7U06
ICT PROTOCOL
#WEL-7U06
C1
C2
C3
J2
J3
1 2 3 4 5
1 2 3 4 5 6 7 8
TMT 2*4
7 86
5
4 3
2 1
TMT 2*4 BACK VIEW
2464 22AWG 4C CABLE
D-SUB(F)
12345
6789
D-SUB 9F TOP VIEW
Pin 1 BLUE--------Ground
Pin 6 WHITE------Download VCC Pin 7 BLACK------RX1 Pin 8 PURPLE----TX1
Pin 1 BLUE--------Ground
Pin 2 WHITE------Download VCC Pin 3 BLACK------RX1
Pin 4 PURPLE-----TX1

- 7 -
P70/P77/P85 Interface Harness
WEL-7U02
- 8 -
P70/P77/P85 Download Harness
WEL-7U03

Step 1 : Get software from "ICT" .
Step 2 : Download the software into "FP-001" by "PC" .
Step 3 : Download the software into "BA" by "FP-001" .
PC
FP-001
FP-001
BA
Software
Software
Software
1. Please follow the downloading procedures described in FP-001's manual.
1. Please follow the downloading procedures described in FP-001's manual.
2. B.A. must be powered on when it is connected to FP-001.
WEL-7U03
5 4 3 2 1
9 8 7 6
5
1
4
3 2
5
1
4
3 2
8
9
6
7
8
9
6
7

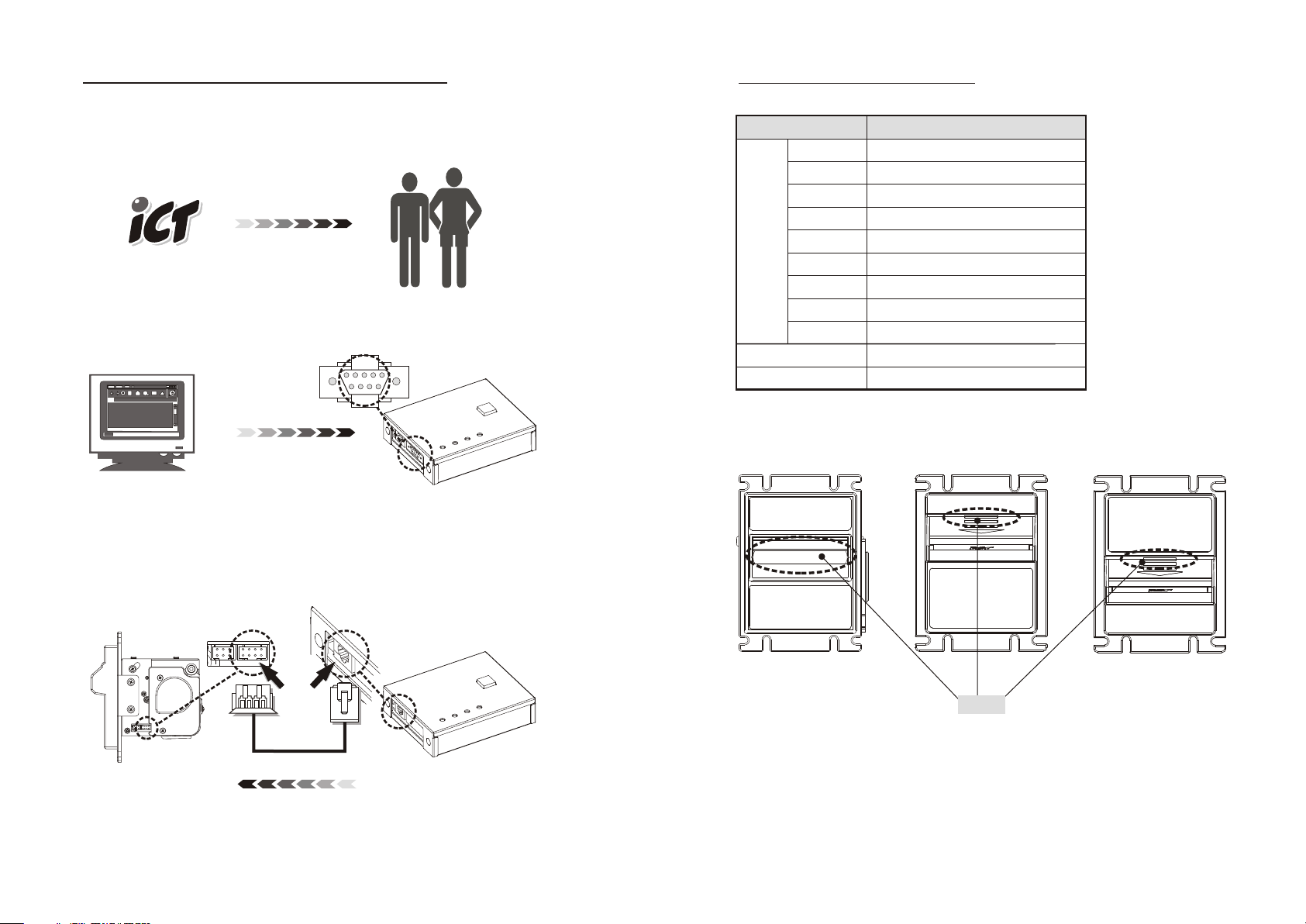

P70/P77/P85 Software update :
through " FP-001" download box
-9 -
P70/P77/P85 LED Status
FLASHES STATUS
1
RED
2
3
3+1
3+2
3+4
4
6
7
LED ON
LED OFF
POWER OFF
Inhibit
POWER ON
Special sensor problem
General sensor problem
Hook sensor problem
Fish sensor problem
Bill fish
Stacker problem
Motor problem
Bill jammed
LED
- 10 -

Caution
Never use an organic solvent such as gasoline or paint thinner
to clean the unit.

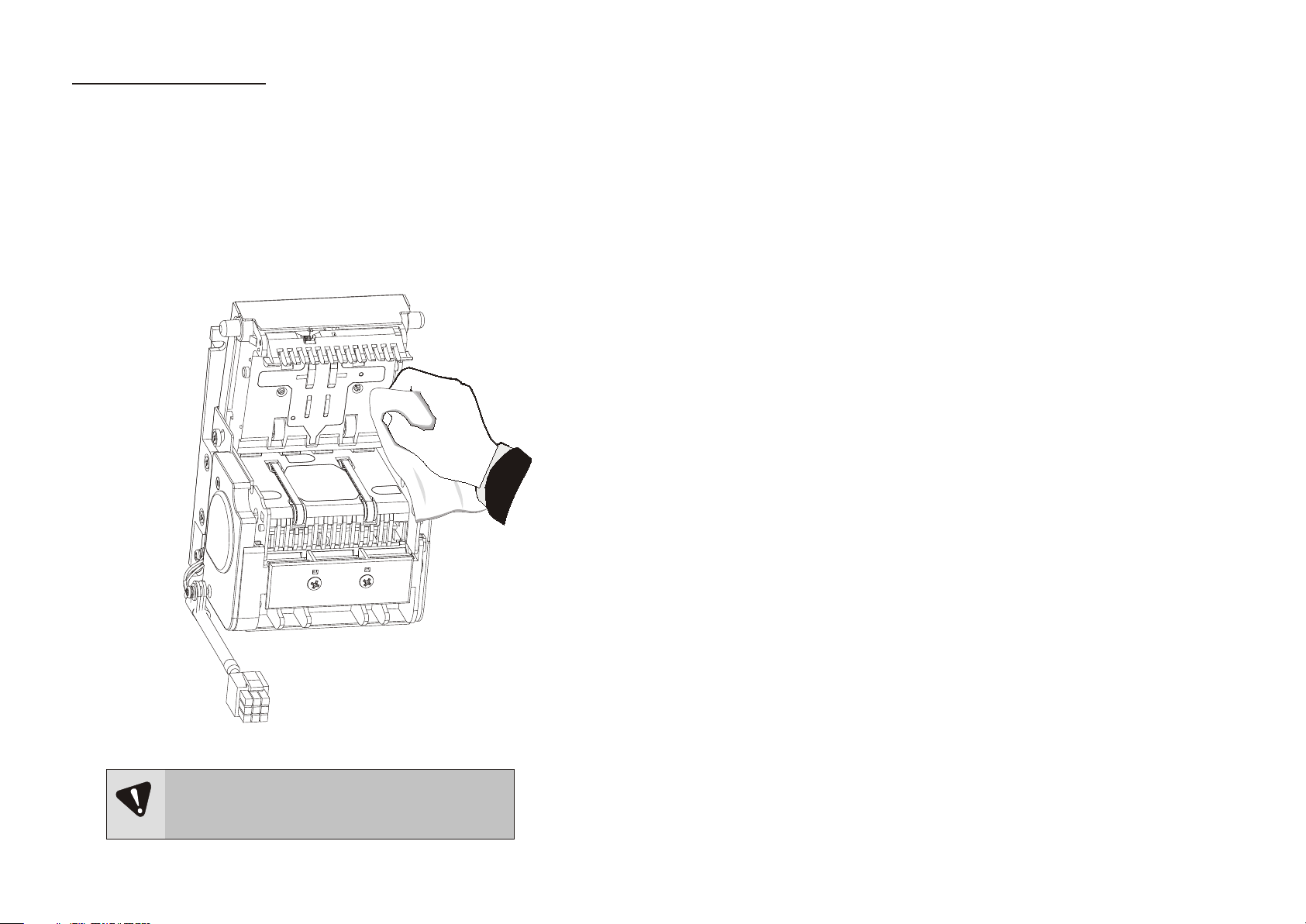

P70/P77/P85 Cleaning
Obstructer on LEDs and sensors may cause bill jam and decrease
acceptance rate.
According to the environment around the bill acceptor, users should clean internal
parts from every two weeks to every two months.
1. Turn off the power
2. Open LED Assembly.
3. Use a soft cloth or cotton swab to clean internal parts and bill path.
- 11 -
