Idis DR-8364D User manual

Powered by
Network
Video
Recorder
Installation Manual
DR-8364
DR-8364D
DR-8364F
DR-8364FD

2
Before reading this manual
This manual contains basic instructions on installing and using DirectIP™ Network Video Recorder, an IDIS product.
Users who are using this product for the rst time, as well as users with experience using comparable products,
must read this manual carefully before use and heed to the warnings and precautions contained herein while using
the product. Safety warnings and precautions contained in this manual are intended to promote proper use of the
product and thereby prevent accidents and property damage and must be followed at all times.
Once you have read this manual, keep it at an easily accessible location for future reference.
•The manufacturer will not be held responsible for any product damage resulting from the use of unauthorized parts and
accessories or from the user's failure to comply with the instructions contained in this manual.
•It is recommended that rst-time users of DirectIP™ Network Video Recorder and individuals who are not familiar with its
use seek technical assistance from their retailer regarding product installation and use.
•If you need to disassemble the product for functionality expansion or repair purposes, you must contact your retailer and
seek professional assistance.
•Both retailers and users should be aware that this product has been certied as being electromagnetically compatible for
commercial use. If you have sold or purchased this product unintentionally, please replace with a consumer version.
Safety Precautions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the product’s enclosure that may be of sucient magnitude to
constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Symbol Publication Description
IEC60417-5032 Alternating current
IEC60417-6042 Caution – Shock hazard
IEC60417-6172 Disconnect all power sources
WARNING
Hazardous moving parts
Keep away from moving fan blades
AVERTISSEMENT
Pièces mobiles dangereuses
Se tenir éloigné des pales de ventilateurs mobiles

Before reading this manual
3
Important Safeguards
1. Read Instructions All the safety and operating instructions should be
read before the appliance is operated.
2. Retain Instructions The safety and operating instructions should be
retained for future reference.
3. Cleaning Unplug this equipment from the wall outlet before cleaning it.
Do not use liquid aerosol cleaners. Use a damp soft cloth for cleaning.
4. Attachments
Never add any attachments and/or equipment without the approval of the
manufacturer as such additions may result in the risk of re, electric shock or
other personal injury.
5. Water and/or Moisture Do not use this equipment near water or in
contact with water.
6. Ventilation
Place this equipment only in an upright position. This equipment has an
open-frame Switching Mode Power Supply (SMPS), which can cause a re or
electric shock if anything is inserted through the ventilation holes on the side
of the equipment.
7. Accessories
Do not place this equipment on an unstable cart, stand or table. The
equipment may fall, causing serious injury to a child or adult, and serious
damage to the equipment. Wall or shelf mounting should follow the
manufacturer's instructions, and should use a mounting kit approved by the
manufacturer.
This equipment and cart combination should be moved with care. Quick
stops, excessive force, and uneven surfaces may cause the equipment and cart
combination to overturn.
8. Power Sources
This equipment should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power, please
consult your equipment dealer or local power company. You may want to
install a UPS (Uninterruptible Power Supply) system for safe operation in order
to prevent damage caused by an unexpected power stoppage. Any questions
concerning UPS, consult your UPS retailer.
This equipment should be remain readily operable.
-This equipment has the PFC (Power Factor Correction) circuit. For stable
operation, use a sign-wave output UPS with an AVR(Automatic Voltage
Regulator).
9. Power Cords
Operator or installer must remove power and TNT connections before
handling the equipment.
10. Lightning
For added protection for this equipment during a lightning storm, or when it
is left unattended and unused for long periods of time, unplug it from the wall
outlet and disconnect the antenna or cable system. This will prevent damage
to the equipment due to lightning and power-line surges.
11. Overloading
Do not overload wall outlets and extension cords as this can result in the risk
of re or electric shock.
12. Objects and Liquids
Never push objects of any kind through openings of this equipment as they
may touch dangerous voltage points or short out parts that could result in a
re or electric shock. Never spill liquid of any kind on the equipment.
13. Servicing
Do not attempt to service this equipment yourself. Refer all servicing to
qualied service personnel.
14. Damage requiring Service
Unplug this equipment from the wall outlet and refer servicing to qualied
service personnel under the following conditions:
A. When the power-supply cord or the plug has been damaged.
B. If liquid is spilled, or objects have fallen into the equipment.
C. If the equipment has been exposed to rain or water.
D. If the equipment does not operate normally by following the operating
instructions, adjust only those controls that are covered by the operating
instructions as an improper adjustment of other controls may result in
damage and will often require extensive work by a qualied technician to
restore the equipment to its normal operation.
E. If the equipment has been dropped, or the cabinet damaged.
F. When the equipment exhibits a distinct change in performance ─this
indicates a need for service.
15. Replacement Parts
When replacement parts are required, be sure the service technician has
used replacement parts specied by the manufacturer or that have the same
characteristics as the original part. Unauthorized substitutions may result in
re, electric shock or other hazards.
16. Safety Check
Upon completion of any service or repairs to this equipment, ask the service
technician to perform safety checks to determine that the equipment is in
proper operating condition.
17. Field Installation
This installation should be made by a qualied service person and should
conform to all local codes.
18. Correct Batteries
Warning: Risk of explosion if battery is replaced by an incorrect type. Replace
only with the same or equivalent type. Dispose of used batteries according to
the instructions. The battery shall not be exposed to excessive heat such as
sunshine, re or the like.
Avertissement: risque d'explosion en cas d'utilisation d'une batterie de type
incorrect. Le remplacer uniquement par un type identique ou équivalent.
Mettre les batteries usées au rebut conformément aux instructions. La batterie
ne doit pas être exposée à une source de chaleur excessive, telle que le soleil,
le feu, ou analogue.
19. Tmra
A manufacturer’s maximum recommended ambient temperature (Tmra)
for the equipment must be specied so that the customer and installer may
determine a suitable maximum operating environment for the equipment.
20. Elevated Operating Ambient Temperature
If installed in a closed or multi-unit rack assembly, the operating ambient
temperature of the rack environment may be greater than room ambient.
Therefore, consideration should be given to installing the equipment in an
environment compatible with the manufacturer’s maximum rated ambient
temperature (Tmra).
21. Reduced Air Flow
Installation of the equipment in the rack should be such that the amount of
airow required for safe operation of the equipment is not compromised.
22. Mechanical Loading
Mounting of the equipment in the rack should be such that a hazardous
condition is not caused by uneven mechanical loading.
23. Circuit Overloading
Consideration should be given to connection of the equipment to supply
circuit and the eect that overloading of circuits might have on over current
protection and supply wiring. Appropriate consideration of equipment
nameplate ratings should be used when addressing this concern.
24. Reliable Earthing (Grounding)
Reliable grounding of rack mounted equipment should be maintained.
Particular attention should be given to supply connections other than direct
connections to the branch circuit (e.g., use of power strips).
HDMI Port Precautions
•Use a certied cable marked with an HDMI logo when using HDMI.
The screen may not display or a connection error may occur if you do
not use a certied HDMI cable.
•It is recommended that you use the following HDMI cable type.
–High-speed HDMI Cable
–High-speed HDMI Cable with Ethernet

Before reading this manual
4
In-Text
Symbol Type Description
Caution Important information concerning a specic function.
Note Useful information concerning a specic function.
User’s Caution Statement
Caution: Any changes or modications to the equipment not expressly approved by the party responsible for
compliance could void your authority to operate the equipment.
FCC Compliance Statement
THIS EQUIPMENT HAS BEEN TESTED AND FOUND T
O COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED
TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL
ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGY AND IF NOT INSTALLED AND
USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE, IN WHICH CASE USERS WILL
BE REQUIRED TO CORRECT THE INTERFERENCE AT THEIR OWN EXPENSE.
WARNING: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID
THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
THIS CLASS OF DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE CAUSING EQUIPMENT
REGULATIONS.
WEEE (Waste Electrical & Electronic Equipment)
Correct Disposal of This Product
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household
wastes at the end of its working life. To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote
the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
oce, for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product should not be mixed with other commercial wastes for disposal.

Before reading this manual
5
Copyright
© 2020 IDIS Co., Ltd.
IDIS Co., Ltd. reserves all rights concerning this manual.
Use or duplication of this manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited.
Contents of this manual are subject to change without prior notice.
Registered Trademarks
IDIS is a registered trademark of IDIS Co., Ltd.
Other company and product names are registered trademarks of their respective owners.
The information in this manual is believed to be accurate as of the date of publication even though explanations of some
functions may not be included. We are not responsible for any problems resulting from the use thereof. The information
contained herein is subject to change without notice. Revisions or new editions to this publication may be issued to incorporate
such changes.
The software included in this product contains some Open Sources. You may obtain the complete corresponding source code
depending on whether or not the source is publicly available under a license policy. Go to System Setup - About page for
more information. This product includes software developed by the University of California, Berkeley and its contributors, and
software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.oepnssl.org/). Also, this product includes
cryptographic software written by Eric Young ([e-mail]), and software written by Tim Hudson ([email protected]).

6
Table of Contents
1
2
Part 1 – Introduction.........................................7
Product Features ................................................................7
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Overview ......................................................................10
Front Panel...............................................................................10
Dimensions ..............................................................................13
Rear Panel ...............................................................................14
Rear Panel Connections ..................................................................16
Remote Control ..........................................................................20
Part 2 - Appendix ...........................................23
Supported SFP Transceiver Module List .........................................23
System Log Types ..............................................................24
Error Code Types ...............................................................25
Troubleshooting ...............................................................28
Specications ..................................................................29

7
Product Features
This is a DirectIP™-enabled video recorder that supports surveillance, recording, and playback of video from network
cameras (or video encoders).
This NVR (Network Video Recorder) unit oers the following features:
●Real-time 64 channel DirectIP™ network surveillance
●Network camera zero conguration
●Conguration-free network camera access
●UHD resolution support
●H.265 support codec
●Supports up to Full HD 1920ips video recording
●HDMI out (1) and VGA out (1) ports
●Fast and easy search feature (Time-Lapse, Event log, Motion, Text-In)
●Simultaneously survey, record, play back, and transmit data in real-time
●Graphic User Interface(GUI) and multilingual
●Multiple recording modes (Schedule, Event, Pre-Event, and Panic)
●2 USB 2.0 port, 1 USB 3.0 port (for connecting peripherals, upgrading software, and saving recording data)
●8 internal SATA2 HDD bays and 4 eSATA ports
●Records the data eciently (RAID 1,5,10)
●Two-way audio communication
●Network camera audio recording and 1-channel audio playback
●4 alarm ins, 1 alarm out, and 1 alarm reset
●IR remote control-enabled
●Self-diagnosis and automated system event alerts (industry standard S.M.A.R.T. protocol for HDD status alerts)
●Exports setup, system log and clip-copy les on network
Part 1 – Introduction

Part 1 – Introduction
8
HDMI Monitor VGA Monitor
Flash Memory USB HDD
Alarm Out
Alarm
Network Connection
Network Video Recorder
Mouse
IR Remote
Control
Sensor (1-4)
Video Encoder
Analog
Camera
Network
Camera
DirectIP™ Gigabit
PoE Switch
Network
Camera
Audio Out

Part 1 – Introduction
9
Accessories
Upon unpackaging the product, check the contents inside to ensure that all the following accessories are included.
Network Video Recorder Power Cable Quick Guide
Optical USB Mouse IR Remote Control (Optional)

Part 1 – Introduction
10

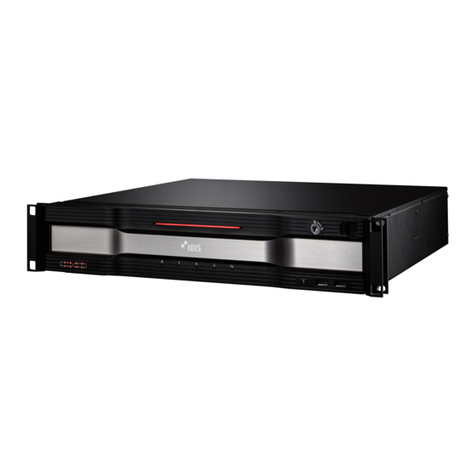

Overview
Front Panel
1
SATA LED
2
Status LEDs
3
Panic Recording
Button
4
USB Ports
5
Power LED
6
Front Door Lock
7
Rack Mount Ears
•Some buttons have more than one function.
•Remote control sensor is located on the left side of the front panel. Ensure that the sensor remains unobstructed at all
times. If obstructed, the sensor might not be able to receive remote control signals.
•Placing a Wi-Fi, Bluetooth, or any other wireless communication device near the NVR may interfere with remote control
signal transmission.
•Access various windows and menus using a USB mouse as you would on a personal computer.
•For easier system conguration, a USB mouse is recommended.
1SATA LED
These LEDs indicate the status of HDD and RAID
mode.
LED Color HDD Status
On Green SATA HDD Connection
Blinking Green Data Transmission
Blinking Red Rebuilding RAID
SYSTEM
On Green/Red HDD / RAID Error
O -No SATA HDD
2Status LEDs
●Network LED: Flashes when the main unit is
linked to an ethernet.
●Panic LED: Flashes in red when Panic Recording
is in progress.
●R LED: Lights up in red when RAID mode is
operating nomally. When RAID mode fails, the red
LED ashes.
●Alarm LED: Lights up in red when an alarm
event occurs.
●eSATA LED: Lights up when the main unit is
connected to an eSATA device.
3Panic Recording Button
Pressing Panic Recording
123 4 5 6 7 8 9 0
button displays the
icon and commences recording irrespective of the
current schedule.
Press the button again to deactivate Panic Recording
mode.
123 4
6
5
77

Part 1 – Introduction
11
4USB Ports
●Storage Device Connection
Connect an external USB hard drive or a USB ash
memory device to one of the USB ports for use with
the Clip Copy feature. The external storage device
should be placed as close to the NVR as possible.
It is recommended that you use a connection
cable that is no longer than 180cm in length. Use
the connection cable included with your external
storage device to connect the device to one of NVR's
USB ports. For more information on Clip Copy, refer
to the Clip Copy in the operation manual.
●Peripheral Device Connection
Use the USB ports to connect peripherals such as a
USB mouse to the NVR. You can also use a USB-to-
serial converter and connect multiple text-in devices
to the NVR at the same time.
For USB ash memory devices, the NVR supports
the FAT32 le format only.
5Power LED
Lights up while the main unit is in operation.
6Front Door Lock
By using enclosed door-lock key, front panel
can be detachable to replace the HDD. For more
information on how to replace the HDD, refer to the
Specications on page 30.
7Rack Mount Ears
The ears can be used for rack mount.
Port Number of HDD Drive
Refer to the following port number of HDD drive.
Group 1Group 2
HDD Installation Precautions
Depending on the connection port, the HDDs are divided
into two groups and they record video input individually
as follows.
Group 1 (1~ 4)
HDD Port
Internal SATA Port 1, 2, 3, 4
eSATA Port 1, 3
Recording Video In
Channel Odd Number
Group 2 (5~ 8)
HDD Port
Internal SATA Port 5, 6, 7, 8
eSATA Port 2, 4
Recording Video In
Channel Even Number
•To reuse the HDD which was used as a RAID, low-level
format the drive. Otherwise, it is recognized as a RAID
error and the data of all the connected HDDs may be
deleted.
•Make sure to turn o the power before you add,
remove or replace the HDD.
15 7
2 4 6 8
3
Group1 Group2

Part 1 – Introduction
12
RAID Conguration Precautions
The four types of RAID conguration supported are as follows.
Conguration 1 *R1(1,2), R1(5,6)
HDD connection to Internal SATA Port 1,2,5,6
Conguration 2
R1(1,2), R1(3,4), R1(5,6), R1(7,8)
After setting Conguration 1, add HDD to Internal
SATA Port 3,4,7,8
Conguration 3 R5(1,2,3,4), R5(5,6,7,8)
Conguration 4 R10(1,2,3,4), R10(5,6,7,8)
* R1(1,2) means RAID 1, which is congured as the HDD
connected to the Internal SATA port 1 and 2.
•When conguring RAID, you must use HDDs
with the same capacity and of the same model.
•While RAID is rebuilding due to degradation,
do not remove a HDD to congure the RAID.
If you remove it, the data of all the connected
HDDs may be deleted.
•It is recommended that you utilize
Conguration 4, which is the most superior in
seek speed and stability.
Connections on the Front Panel
IR Remote Control
Flash Memory
Mouse
USB HDD

Part 1 – Introduction
13
Dimensions
Unit : mm
88
90
482.6
523.3 529.5
440

Part 1 – Introduction
14
Rear Panel
DR-8364/DR-8364F
2345 6 8
9
0
!
1
7
DR-8364D/DR-8364FD
8
9
0
!
7
2345 6
1
1Power In Port 2Video In Ports
- SFP (1~2) / RJ45 (3~5) 3Network Port
4eSATA Ports 5USB 3.0 Ports 6Audio Connection Ports
7VGA Out Port 8HDMI Out Port 9Alarm Connection Ports
0RS-485 Port !RS-232 Port

Part 1 – Introduction
15
The LED and Buzzer Control Rules of Redundant Power * (This table is only for the DR-8364D/DR-8364FD model)
Condition
Power Module #1 Power Module #2 Buzzer
AC Cord Included /
Not Included
Power Module #1 Power Module #2 Green LED Red LED Green LED Red LED
Mounted Non-mounted On O O Blinking
On
Non-mounted Mounted O Blinking On O
Mounted
On O On O O
O
Blink when an
warning event
occurs
O
Blink when an
warning event
occurs
O
O On during a
module failure O On during a module failure On

Part 1 – Introduction
16
Rear Panel Connections
Power Cable Connection
Connect the power cable to this port. This NVR does not
feature a separate power on/o button and will turn on
the moment power is supplied.
•Organize the power cable so that it will not cause
people to trip over or become damaged from chairs,
cabinets, desks, and other objects in the vicinity. Do
not run the power cable underneath a rug or carpet.
•The power cable is grounded. Do not modify the
power plug even if your power outlet does not have
a ground contact.
•Do not connect multiple devices to a single power
outlet.
Caution – Shock hazard
Disconnect all power sources
Video Connection
●SFP Video In Port
These ports are used to connect to higher devices that
are some distances away via optical cables. You can
connect Gigabit Fiber Media Converters (Optional:
DA-MC1101) or external hubs (Optional: DH-2112PF,
DH-2128PF, DH-2212PF) to form a network. The NVR
recognizes DirectIP™ network cameras automatically.
•These ports operate in Full Duplex mode only.
•When the network is connected normally, the LED
lights up. Also when data transmission over the
network is in progress, the LED ashes.
•For more information on SFP modules supported
by the SFP Video In Port, refer to Supported SFP
Transceiver Module List on page xx.

Part 1 – Introduction
17
●RJ45 Video In Port
Connect network cameras or video encoders to the NVR
using RJ-45 cable (Cat5, Cat5e, or Cat6). In addition to
cameras or video encoders, you can connect external
hubs (Optional: DH-2112PF, DH-2128PF, DH-2212PF) to
form a network. The NVR recognizes DirectIP™ network
cameras automatically.
Green LED on the right will turn on if connected to a
1000 BASE-T network. Orange LED on the left will then
ash once a link has been established.
For stable video transmission, it is recommended
to connect less than 32 network cameras or video
encoders to a single Video In port.
Network Connection
This NVR is capable of connecting to networks via an
ethernet connector. Connect an RJ-45 cable (Cat5,
Cat5e, or Cat6) to the NVR's network port. It's possible to
operate and upgrade the NVR remotely over a network.
Fore more information on ethernet connection setup,
refer to Network Setup in the operation manual.
•Connector directions may vary depending on the
NVR model.
•Green LED on the right will begin to ash if
connected a 1000 BASE-T network. Orange LED
on the left will then ash once a link has been
established.
eSATA Connection
Connect external hard drives to these ports.
eSATA Compatibility List
Some eSATA storage device and conguration do not
function properly except the following list.
Model Company Note
IDS1004 IDIS support only RAID 10, RAID 5 and
port multiplier is not supported.
Do not connect or disconnect an eSATA device while
the NVR is powered on. To connect an eSATA device,
rst turn o the NVR and unplug the power cable.
Connect the eSATA device and then power the eSATA
device rst and then NVR back on. To disconnect an
eSATA device, rst turn o the NVR and unplug the
power cable. Turn o the eSATA device and then
disconnect the eSATA connection cable.
USB Port
Support Super-speed USB 3.0 (5Gbps), High-Speed
USB 3.0 (480Mbos) and Full Speed USB 2.0 (12Mbps) for
transfer.
Audio Connection
Connect the audio device to the AUDIO IN port and
speakers with a built-in amplier to the AUDIO OUT
port. Use the AUDIO OUT port to listen to audio from
network cameras.

Part 1 – Introduction
18
Use the AUDIO IN port to establish two-way
communication with cameras.
•This NVR does not feature a built-in audio amplier
unit and therefore requires the user to purchase a
speaker system with a built-in amplier separately.
It's possible to connect an amplied audio source to
the NVR, but microphones that do not have a built-
in amplier will not function properly if connected
to the NVR directly. If this is the case, connect the
microphone to the NVR via a pre-amp.
•Check your local laws and regulations on making
audio recordings.
Monitor Connection
Connect to the VGA OUT or HDMI port.
•Use a certied cable marked with an HDMI logo
when using HDMI. The screen may not display or
a connection error may occur if you do not use a
certied HDMI cable.
•It is recommended that you use the following HDMI
cable type.
–High-speed HDMI Cable
–High-speed HDMI Cable with Ethernet
Alarm Connection
Connect alarm connectors to these ports.
Press down on the button and insert the cable into
the opening. Release the button and then pull on the
cable slightly to ensure it is held securely in place. To
disconnect the cable, press down on the button again
and pull the cable out.
●Alarm In 1 through 4
This NVR is capable of responding to event signals from
exterxnal alarm in devices. Connect mechanical or
electrical switches to AI 1 through 4 and the G (ground)
connector. In order to be recognized by the NVR,
the signal from an alarm in device must be less than
0.3V (Normally Open) and maintained for at least 0.5
seconds. The alarm in voltage range is 0V to 5V. For more
information on alarm in setup, refer to the Alarm-In in
the operation manual.
●G (Ground)
Connect alarm in or out's ground cable to the G
connector.
All connectors marked "G" are common connectors.

Part 1 – Introduction
19
●NC/NO (Relay Alarm Outputs)
This NVR is capable of activating/deactivating buzzers,
lights, and other external devices. Connect the device to
the C (Common) and NC (Normally Closed) or C and NO
(Normally Open) connectors. NC/NO is a relay output
which sinks 2A@125VAC and 1A@30VDC. For more
information on alarm out setup, refer to the Alarm-Out
in the operation manual.
●ARI (Alarm Reset In)
An external signal to the Alarm Reset In can be used to
reset both the Alarm Out signal and the NVR’s internal
buzzer. Mechanical or electrical switches can be wired to
the ARI (Alarm Reset In) and GND (Ground) connectors.
The threshold voltage is below 0.3V and should be
stable at least 0.5 seconds to be detected. Connect the
wires to the ARI and GND connectors.
●Connector Arrangement
AI1 through AI4 Alarm In 1 through 4
GGround
CRelay Common
NO/NC
Normally Open and Normally
Close Relay Alarm Out
(connected to C port)
RS-485 Connection
This NVR supports the RS-485 half-duplex serial
communication protocol for connecting to external
devices such as POS units.
RS-232 Connection
Connect an external device such as a POS unit to this
port.

Part 1 – Introduction
20
Connections on the Rear Panel
DirectIP™ Switch
Network
Camera
Network
Network
Camera
Keyboard
POS
Sensor
VGA Monitor
HDMI Monitor
Speaker
Microphone
Alarm
Power
DirectIP™ Gigabit
PoE Switch
eSATA Storage
Device
IDIS Center
Remote Monitoring
