IDW GS-2 User manual

G-Series Cooler
Instruction Manual
Manual is for the
following models:
GS-2
GS-2-N14NF
GS-2-N14NG
GS-2-N14NI
GS-2
COUNTERTOP COOLER

Manual is for the following models:
GS-2
GS-2-N14NF
GS-2-N14NG
GS-2-N14NI
GS-2
Instruction Manual

Innovative DisplayWorks
GS-2
TABLE OF CONTENTS
Parts and Identication....................2
Safety Instructions...........................3
Installation .......................................3
Electric Connection..........................3
Start.................................................3
Light Control ....................................3
Maintenance....................................4
Cleaning ..........................................4
Condenser Maintenance .................4
Light Replacement...........................4
Power Failure ..................................4
Moving the cooler ............................4
Drip Pan...........................................4
Troubleshooting...............................5
Refrigerant.......................................5
Switch Function ...............................5
Circuit Diagram................................6
FOR YOUR FUTURE REFERENCE
■This easy-to-use manual will guide you in getting the best use of your cooler.
■Remember to record the model number and the serial number. This information can
be found on the inside of your cooler.
■Keep your receipt with this manual for future warranty service.
1
Model #:
Serial #:
Date of Purchase:

Instruction Manual
2
Innovative DisplayWorks
of ce 909.447.8254 • fax [phone] • toll free 877.307.2665 • www.idw.global
PARTS & IDENTIFICATION
Last Revised: April 11, 2017 2:30 PM
GS-2
1234 5
67 8 9
10
11
12
13 14
15
16
17
18
19
20
21
22
23
24
2526
27 28 29 30 31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
10
11
12
13 14
15
32
33
1. Cooler Cabinet
2. Interior Light Trough
3. Interior LED Lamp
4. Interior Lampshade
5. Interior Lampshade Board (2)
6. Evaporator
7. Circle Pipe
8. Evaporator Fan
9. Evaporator Safeguard
10. Evaporator Fan Cover
11. Rear Grill
12. Door Gasket
13. Glass Door
14. Top Hinge
15. Hinge Cover
16. Bottom Hinge
17. Bottom Hinge Washer
18. Door Lock
19. Key (2)
20. Shelf Strip (4)
21. Shelf Clip (8)
22. Big Shelf (2)
23. Small Shelf
24. Lockpin
25. Magnetic Switch
26. Magnet
27. Condenser Support (4)
28. Thermostat
29. Transformer
30. Transformer
31. Cord Box
32. Transformer for Interior Light
33. Transformer for Outer Fan
34. Leveling Leg (4)
35. Compressor Panel
36. Compressor
37. Drip Pan
38. Thermostat Box
39. Thermostat Box Cover
40. Thermostat Mark
41. Light Switch
42. Filter Dryer
43. Condenser Fan
44. Fan Cover
45. Fan Grill
46. Power Cord
47. Condenser

Innovative DisplayWorks
GS-2
SAFETY INSTRUCTIONS
To reduce the risk of re, electric shocks, or injury when using your cooler, please note the following
basic precautions:
■ Never clean appliance parts with ammable uids.
■ Do not store or use gasoline or any other ammable vapors and liquids in the vicinity of this or any
other appliance. The fumes can cause a re or explosion.
■ As with all electrical appliances, please consult a licensed repair technician for any repairs.
INSTALLATION
■ Keep cooler in an upright position for 1-hour prior to use. This is essential for proper operation.
If the cooler is transported in the horizontal position, the cooler must be returned to the upright
position and not plugged in for 1 hour.
■ Remove all the packing material before using your cooler.
■ Clean the interior surface with a soft cloth and lukewarm water.
■ If the cooler is transported in the horizontal position, check the drain pan and ensure that it is properly
positioned above the compressor.
■ For proper operation, place the cooler on a dry, level surface.
■ Place the cooler at least 4” away from any walls. Otherwise, this could cause damage to the electrical
cord and block the air circulation to the appliance.
Do not block the air intake that ventilates the condenser unit.
ELECTRIC CONNECTION
■ This model operates with an 220V/50Hz power supply. Check the electrical outlet for proper voltage.
■ Warning: Plug unit directly into wall outlet. Do not use an extension cord or any other multiple
connectors, this could cause compressor failure.
■ For your safety, plug the unit into a grounded wall outlet.
START
■ Plug the cooler into the electrical outlet. For optimum performance, run cooler for 3 hours prior to use.
■ Temperature Control: Do not adjust the temperature control. The temperature control is factory set
to provide maximum performance. If really necessary, you can turn the thermostat by screw driver
clockwise to have lower temperature inside the cooler
LIGHT CONTROL
■ The inside light is controlled by the magnetic switch.
Before Using, Please read all instrUctions
3

Instruction Manual
MAINTENANCE
CLEANING
■ Before cleaning the appliance, always remember to unplug it.
■ Unplug the cooler at the electrical outlet; never pull the service cord.
■ Do not use sharp or pointed objects for cleaning.
■ Clean the inside cabinet of the cooler with a clean damp cloth or with neutral soap.
Avoid damage by using non-abrasive or ammable cleaning products.
■ Clean the condenser at least once a month with a vacuum cleaner or a brush to
eliminate the dust accumulation.
LIGHT REPLACEMENT
■ Unplug the cooler before removing the LED lights.
■ Remove the screws.
■ Remove the light cover gently.
■ Take out the old LED lights.
■ Replace with new equivalent LED lights.
■ Install the light cover and tighten the screws.
■ Plug in the cooler.
POWER FAILURE
■ Please minimize the frequency of opening the door during a power failure.
■ If your cooler is unused for an extended period of time, unplug, empty, and clean
your cooler and keep the door open to avoid condensation, formation of molds, or
odors.
MOVING THE COOLER
■ Empty the unit.
■ Secure all loose parts inside the cooler.
■ Tape the door shut.
■ During transportation, make sure that the cooler is in an upright position.
DRIP PAN
■ During normal compressor cycle, water will drain into the drip pan and evaporate.
■ To clean, gently pull the drain pan towards you and remove. Slowly reinstall it after
cleaning.
4

Innovative DisplayWorks
GS-2
TROUBLESHOOTING
If your cooler is not working properly:
■ Check the electrical outlet for power, and that the plug is properly inserted.
■ Check to see if the circuit breaker is tripped or the fuse is blown.
■ Check the condenser for proper cleaning.
If your cooler is making noise:
■ Check that the cooler is level and on a at surface.
If the compressor turns on and off frequently:
■ The room temperature is higher than normal.
■ The door is not closed completely.
■ The door gasket is not sealed well.
■ There is insufcient clearance around the cooler.
■ The temperature is not set properly.
■ The cycling frequency will reduce when all of the cans reach the set temperature.
The following is not a malfunction:
■ It is normal to hear gurgling sounds caused by the ow of refrigerant when each
cooling cycle ends.
REFRIGERANT
■ The GS-2 cooler utilizes R134a refrigerant.
SWITCH FUNCTION
5
Inner LED
switch status
Door LED
switch status
Inner LED condi-
tion
Door Green LED
condition remark
I I Always ON Always ON Both inner and green LED
always on
IO Always ON Always OFF Inner LED always on and Green
LED always off
OIOff when door closes;
ON when door opens Always ON Green LED always on, inner LED turns on as door opens
O O Off when door closes;
ON when door opens Always ON Green LED always on, inner LED turns on as door opens

Instruction Manual

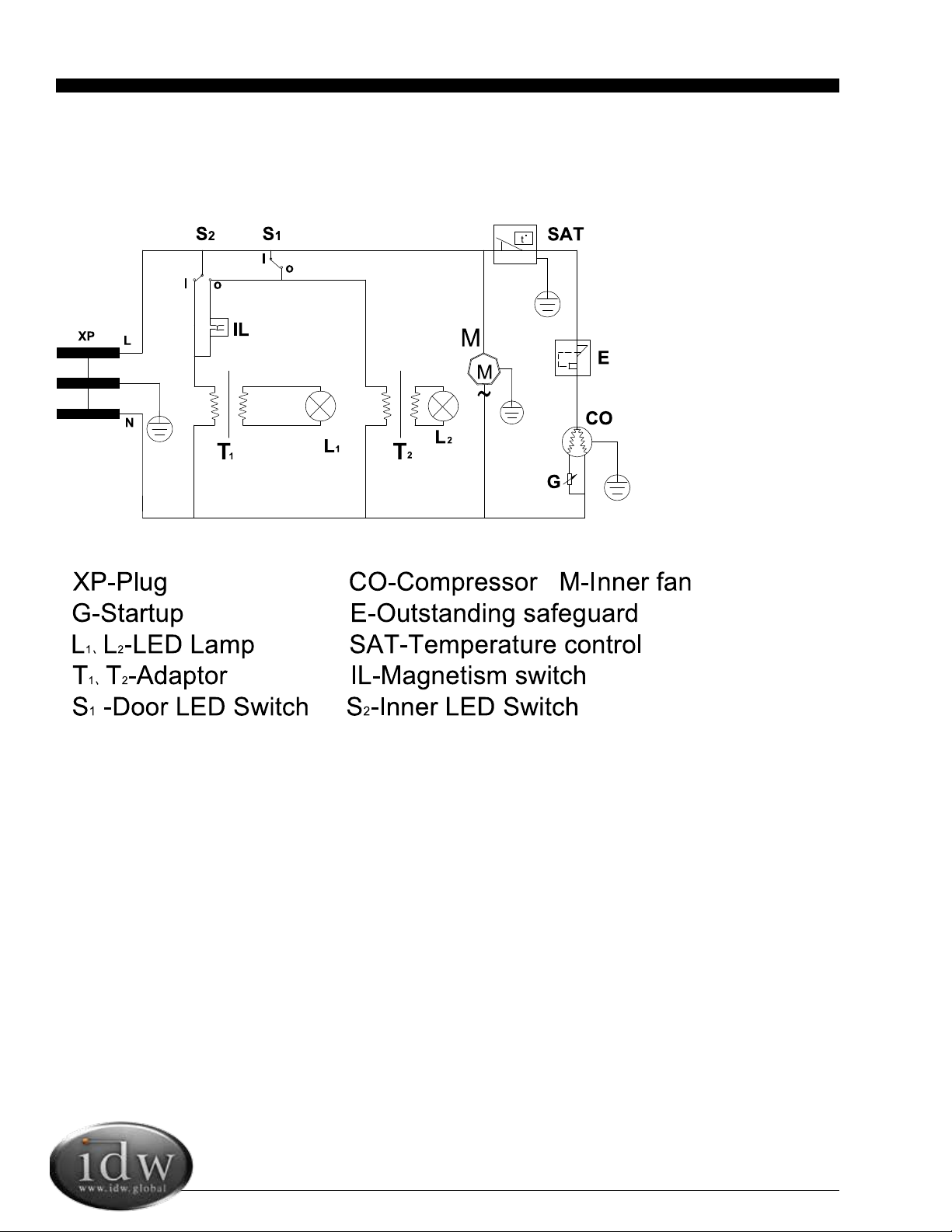

CIRCUIT DIAGRAM
6

Innovative DisplayWorks
GS-2

Innovative DisplayWorks, Inc.
To locate the distributor in your area go to: http://www.idw.global/contact/#distributors
