IDW G-Series User manual

Models: Listed on Inside Cover
G-Series Cooler
Instruction Manual
NSF/ANSI7
SA44689
**Patent Pending**
TEQ²

Innovative DisplayWorks, Inc.
TEQ²
3
G-Series Cooler
Instruction Manual
For Future Reference
• This easy-to-use manual will guide you in getting the best use of your cooler.
• Remember to record the model number and the serial number. This information can be
found on the inside of your cooler.
• Keep your receipt with this manual for future warranty service.
Model #:
Serial #:
Date of Purchase:
TEQ² Models:
TEQ2-HC
TEQ2-N23EB-HC
Table of Contents
Parts & Identication List............................ 4
Safety Instructions.................................... 5
Installation............................................. 6
Ambient Environment............................. 6
Preparation Prior to Operation .................. 6
Electrical Requirements .......................... 6
Installation & Operation ............................ 7
Beverage Storage.................................... 7
Maintenance .......................................... 7
Graphic Replacement ............................... 8
Specications ......................................... 8
Flammable Refrigerant Warnings ................. 8
Troubleshooting...................................... 9

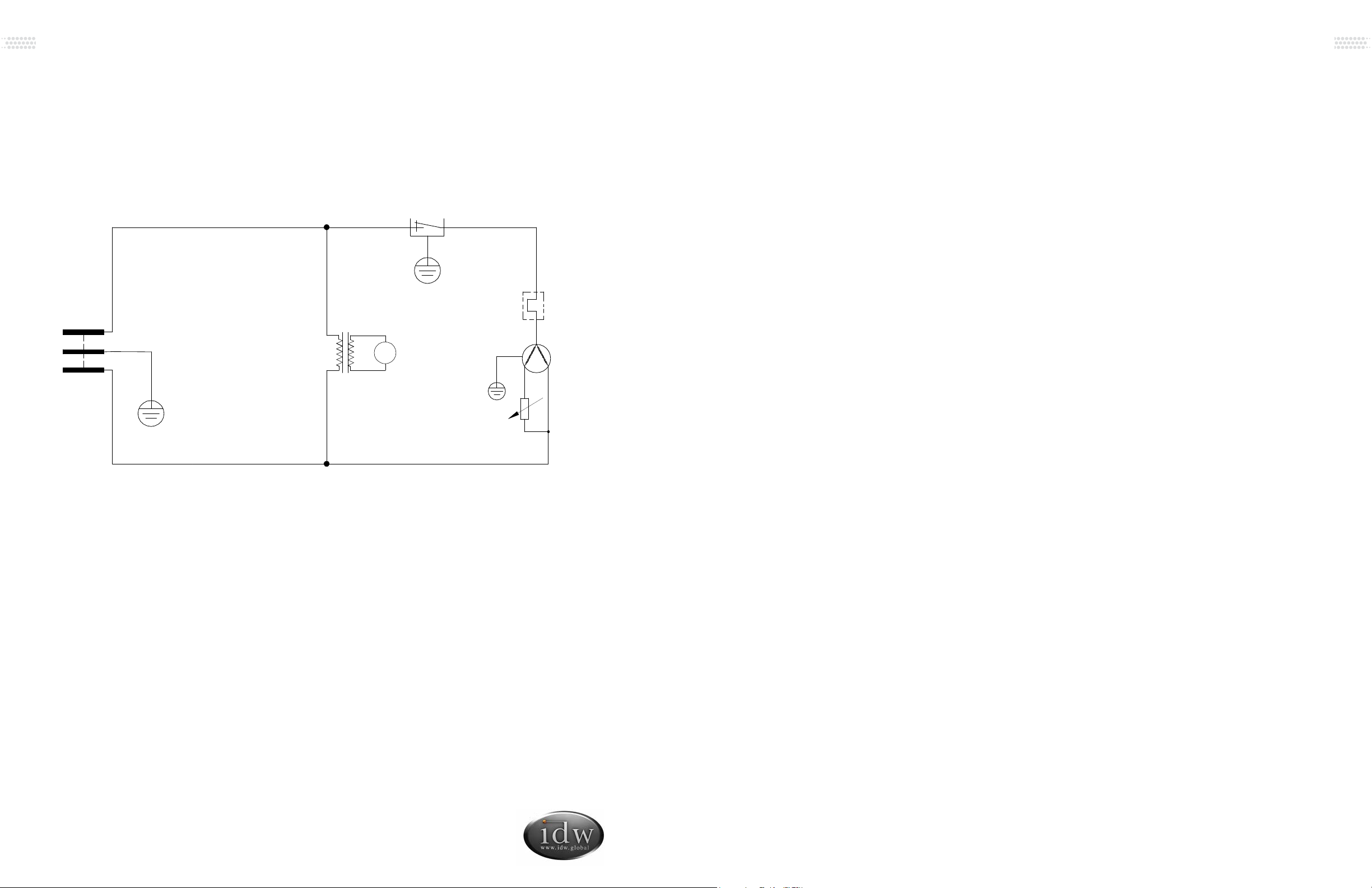

Circuit Diagrams ....................................10
TEQ²

Instruction Manual
Innovative DisplayWorks, Inc.
TEQ²
4 5
1. When using this appliance, always follow the
basic safety precautions:
2. Read the entire User’s Manual before
operating this appliance.
3. Use this appliance only for its intended
purpose as described in this User’s Manual.
4. This cooler must be properly installed in
accordance with the installation instructions
before being used. See grounding
instructions.
5. IDW requires that a dedicated circuit be used
for the unit. Failure to do so voids warranty.
6. Never unplug your cooler by pulling on the
power cord. Always grasp the plug  rmly and
pull it straight out from the outlet.
7. Unplug your cooler before cleaning or
making any repairs.
Note: If for any reason this product requires
service, we strongly recommend that a
certi ed technician perform the service.
8. When disconnecting the power source, wait
at least 5 minutes to reconnect the power to
avoid damage to the compressor and the
cooling system.
9. Immediately repair or replace all electrical
cords that have become frayed or otherwise
damaged. Do not use a cord that shows
cracks or abrasion damage along its length,
the plug or the connector end.
10. Do not operate or store your cooler near or
around explosive fumes, gasoline or other
fl ammable vapors and liquids.
11. Do not use fl ammable liquids to clean unit.
12. Setting the temperature control to the 0
position does not remove power to the light
circuit, perimeter heaters, or evaporator fans.
13. The temperature control is factory set for
maximum performance.
14. To avoid damage to the casters, do not
transport the cooler on rough surfaces.
15. The battery may release poisonous gas or
explode if it is burned, broken or if air fl ow is
restricted.
16. Do not remove the battery cover.
SAFETY INSTRUCTIONS
PLEASE SAVE THESE
INSTRUCTIONS!
DANGER!
PROPER DISPOSAL OF THE
REFRIGERATOR
Pre-Caution, Non-Operating Coolers
Should Have:
1. Lid removed.
2. Baskets kept in place in order
to prevent any small child from
climbing inside cooler.
For Proper Disposal of Cooler:
Distributors/retailers need to contact
a quali ed service technician:
1. To recover all refrigerant from
the cooler
2. To remove the compressor
or remove the oil from the
compressor
Then the distributor/retailer can
contact their local metal recycling
center to pick up the remaining
cabinet, shelves, etc. By law, disposal
of hazardous wastes may be subject
to  nes and imprisonment under
the provisions of the environmental
regulations. For more information
please visit: http://www.epa.gov/
osw/hazard/index.htm
17. Do not touch the battery after the cooler has
been plugged in to avoid electric shock.
Innovative DisplayWorks
offi ce 909.447.8254 • fax [phone] • toll free 877.307.2665 • www.idw.global
TEQ2
PARTS & IDENTIFICATION
Last Revised: October 2, 2019 3:37 PM
1. Foam Cabinet
2. Hinge Cover Cap (6)
3. Top Left Dampener Box
4. Bottom Left Dampener Box
5. Left Dampener
6. Top Right Dampener Box
7. Right Dampener
8. Bottom Right Dampener Box
9. Door Gasket
10. Door Upper Pane/Door Bottom Pane
11. Handle
12. Basket
13. Baffle Evaporator Fan
14. Evaporator Fan Support
15. Evaporator Fan
16. Line Retaining Clip
17. Caster (2)
18. Caster With Block (2)
19. Capacitor
20. Overload Protector/ Starter Relay
21. Compressor
22. Front Bottom Baffle
23. Compressor Base
24. Holder Assembly For Filter Dryer
25. Filter Dryer
26. Drip Pan
27. Ground Wire 1
28. Ground Wire 2
29. Compressor Connecting Wire
30. Thermostat Connecting Wire
31. Power Cord
32. Bottom Front Graphic Strip
33. Corner Graphic Strip (4)
34. Top Magnet Strips Front/Back (2)
35. Top Magnet Strip Sides (2)
36. Bottom Side Graphic Strip (2)
37. Bottom Back Graphic Strip
38. Compartment Cover
39. Cover Supporter (2)
40. Power Cord Holder (2)
41. Transformer Box
42. Rail Support (2)
43. Wire Retaining Clip (4)
44. Rail Support Plate
45. Thermostat
46. Thermostat Bracket
47. Transformer
1. Foam Cabinet
2. Hinge Cover Cap (6)
3. Top Left Dampener Box
4. Bottom Left Dampener Box
5. Left Dampener
6. Top Right Dampener Box
7. Right Dampener
8. Bottom Right Dampener Box
9. Door Gasket
10. Door Upper Pane/ Door Bottom Pane
11. Handle
12. Basket
13. Baffl e Evaporator Fan
14. Evaporator Fan Support
15. Evaporator Fan
16. Line Retaining Clip
17. Caster (2)
18. Caster with Block (2)
19. Capacitor
20. Overload Protector/ Starter Relay
21. Compressor
22. Front Bottom Baffl e
23. Compressor Base
24. Holder Assembly for Filter Dryer
25. Filter Dryer
26. Drip Pan
27. Ground Wire 1
28. Ground Wire 2
29. Compressor Connecting Wire
30. Thermostat Connecting Wire
31. Power Cord
32. Bottom Front Graphic Strip
33. Corner Graphic Strip (4)
34. Top Magnet Strips Front/Back (2)
35. Top Magnet Strip Sides (2)
36. Bottom Side Graphic Strip (2)
37. Bottom Back Graphic Strip
38. Compartment Cover
39. Cover Supporter (2)
40. Power Cord Holder (2)
41. Transformer Box
42. Rail Support (2)
43. Wire Reatinging Clip (4)
44. Rail Support Plate
45. Thermostat
46. Thermostat Bracket
47. Transformer

Instruction Manual
Innovative DisplayWorks, Inc.
TEQ²
6 7
INSTALLATION
Installation of the cooler must be done according to applicable local codes or equivalent.
Ambient Environment
• Place cooler on an even surface to reduce
vibration and noise.
• To transport, do not tilt the cooler beyond
a 45 degree angle.
• Do not place cooler in direct sunlight or
near any heat sources.
• Do not place cooler in environment
temperatures that exceed 80°F.
• Do not place cooler in below normal
temperatures.
• Do not place cooler in extreme humid
environments, this may cause components
to rust.
• Do not place cooler near constant running
or splattering water, this may cause
immediate damage to refrigeration system.
• Must allow at least 4” between rear of
cooler and wall for proper ventilation and
heat dissipation of cooler.
• Do not place furniture or other articles with
sharp edges near the cooler in order to
prevent damage to the glass door.
• This cooler is for indoor use.
• Place unit in it’s  nal location, making certain
there is adequate ventilation in the room.
WARNING: Warranty is void if ventilation
is insuf cient.
Preparation Prior to Operation
Electrical Requirements
• Remove all packaging materials before
using cooler. This includes: foam pedestal,
adhesive tape (used to  x accessories) and
protective gaskets.
• Inspect cooler for concealed damage.
Immediately  le a claim with the freight
carrier if there is damage. IDW is not
responsible for damage incurred during
shipping.
• Cooler must remain unplugged in an
upright position for 1 hour prior to use.
• Clean the interior surface with a soft cloth
and lukewarm water before operation.
• Ensure that drain hose or hoses are
positioned in the pan.
• Remove plug and cord from inside the
lower rear of the cooler.
• The unit should be placed close enough
to the electrical supply so that extension
cords are not used.
• This model operates with a 110-120V/60Hz
power supply. Check the electrical outlet
for proper voltage.
• Dedicate one outlet for the use of the
cooler.
• Do not use an extension cord or any other
multiple connectors as this can lead to
compressor failure.
• If the cord is damaged, it must be replaced.
• For your safety, plug the unit into a
grounded wall outlet. Please check with a
certi ed electrician for details.
WARNING: Do not use extension cords.
WARNING: Compressor warranties are
void if compressor burns out due to low
voltage.
WARNING: Power cord ground pin must
NOT be removed!
MAINTENANCE
Accessing Cooler Compartment:
1. Remove the basket from
the inside of the cooler.
2. Using a Phillips
screwdriver, unscrew the
(4) screws at the base of
the cooler.to remove the
baffl er.
3. Replace or service the
parts in the compressor
compartment.
4. Reverse steps 1-4 after
maintenance.
2. Remove the grill.1. Using a Phillips
screwdriver, unscrew the
(2) screws at the base of
grill.
3. Remove the inner fan cover.
4. Service or change inner fan.
5. Reverse steps 1-4 after
maintenance.
LEVELING
• Place unit in a well ventilated area.
• WARNING: Warranty is void if ventilation is insuf cient.
• Unit must be leveled for proper operation, this will help prevent condensation.
• The cooler should be leveled front to back and side to side with a level.
INSTALLATION AND OPERATION
• Connect the power source. After 30 minutes of operation, the unit should show signs of
cooling.
• After the empty cooler has been operating for a period of 5 hours, the unit can be loaded
with product.
BEVERAGE STORAGE
• Leave adequate space between beverage cans to allow air
circulation
• This cooler is primarily for storing beverage cans and plastic
bottles. Avoid putting glass containers in this cooler.
• All beverage products should be properly sealed to avoid
leaking into the cooler.
CLAMP INSTALLATION
1. The clamp secures the
lid assembly to the main
body of the cabinet.
Locate the (2) notches on
the interior of the lid.
2. Snap the (2) bolts into the
notches of the lid.
4. Hook the (2) clamps onto the
center bar of the basket.
3. Snap the (2) bolts into the
notches of the lid.

Instruction Manual
Innovative DisplayWorks, Inc.
TEQ²
8 9
GRAPHIC REPLACEMENT
1. Place graphic against the
face of the cooler and
open the top magnetic
strip.
2. Wedge the graphic under
the plastic frame of the
cooler (sides and bottom)
and release the magnetic
strip over the top of the
graphic.
3. Adjust the graphic to the
correct position.
CAUTION FLAMMABLE REFRIGERANT
• DANGER – Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be Repaired
Only By Trained Service Personnel. Do Not Puncture Refrigerant Tubing.
• CAUTION – Risk Of Fire Or Explosion. Flammable Refrigerant Used. Consult Repair
Manual/Owner’s Guide Before Attempting To Install or Service This Product. All Safety
Precautions Must be Followed.
• CAUTION – Risk Of Fire Or Explosion. Dispose Of Properly In Accordance With
Federal Or Local Regulations. Flammable Refrigerant Used.
• CAUTION – Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing; Follow
Handling Instructions Carefully. Flammable Refrigerant Used.
• CAREFUL - Handling, moving and operating of the refrigerator or freezer to avoid
either damaging the refrigerant tubing, or increasing the risk of a leak.
• CAUTION - Component parts shall be replaced with like components and that
servicing shall be done by factory authorized service personnel, so as to minimize the
risk of possible ignition due to incorrect parts or improper service.
DANGER – Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be
Repaired By Trained Service Personnel Only. Do Not Puncture Refrigerant Tubing.
CAUTION – Risk Of Fire Or Explosion. Flammable Refrigerant Used. Consult
Repair Manual/Owner’s Guide Before Attempting To Service This Product. All
Safety Precautions Must be Followed.
CAUTION – Risk Of Fire Or Explosion. Dispose Of Property In Accordance With
Federal Or Local Regulations. Flammable Refrigerant Used.
CAUTION – Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing;
Follow Handling Instructions Carefully. Flammable Refrigerant Used.
CAUTION FLAMMABLE - R600a Refrigerant
DANGER - Risque d'incendie ou d'explosion. Réfrigérant inflammable utilisé.
Pour être réparé que par un personnel de maintenance qualifié. Ne pas percer
réfrigérant Tubing.
ATTENTION - Risque d'incendie ou d'explosion. Réfrigérant inflammable utilisé.
Consultez manuel / guide de l 'utilisateur de réparation avant de tenter de
réparer ce produit. Toutes les précautions de sécurité doivent être respectées.
ATTENTION - Risque d'incendie ou d'explosion. Aliéner des biens conformé-
ment à la réglementation fédérales ou locales. Réfrigérant inflammable utilisé.
ATTENTION - Risque d'incendie ou une explosion due à la perforation de
tuyaux de réfrigérant; suivre les instructions de manipulation avec précaution.
Réfrigérant inflammable utilisé.
PRUDENCE INFLAMMABLE - R600a Réfrigérant
MODEL VOLUME(L)
RATED
VOLTAGE
RATED
CURRENT REFRIGERANT
TEQ2-HC
TEQ2-N23EB-HC 2.3ft3110-120V/60Hz 1.3A R600/30g
SPECIFICATIONS
NSF/ASNI-7: Type II Display Refrigerator A display refrigerator intended for use in an area where the
environmental conditions are controlled and maintained so that the
ambient temperature does not exceed 80°F (27°C).
• Serial number from the interior wall of the
cooler
• Coolers’ installation address and contact
information
• Installation location hours and operation
• Nature of problem
• Any reports of power interruptions
• Recent service or maintenance completed
on the cooler
• Has the cooler been relocated from original
installation location
• Clear access to the cooler
• Coolers’ instruction manual
Information to provide to your qualifi ed service professional:
Situation Causes
Liquid fl owing noise within cooler • This is the sound of the cooling agent fl owing through the pipes.
Refrigeration system is shutdown for longer periods
of time while temperature inside is still very low
• This refrigerator is well insulated and can maintain a relatively
ambient temperature.
Condensation on door/lid • This may be due to a high indoor humidity or the cooler’s
temperature is set too low. Wipe the door dry with a towel.
Issues Solutions
Cooler is not working properly Please check power supply:
• Check the electrical outlet for power, and that the plug is properly inserted.
• Check to see if the circuit breaker is tripped or the fuse is blown.
• Check if the condenser is free of dirt and debris.
• Check for low voltage
Cooler is not keeping product cool • Provide ample space between all products to ensure proper circulation of air.
• Keep unit away from direct sunlight or other heating source.
• Keep the door closed as often as possible.
• Be certain the cooler is not touching external objects or walls.
Excessive noise • Be certain the cooler is placed on a level surface.
• Be certain the cooler is not touching external objects or walls.
Compressor turns on and off frequently • The room temperature is higher than normal.
• The door is not closed completely.
• The door gasket is not sealed properly.
• There is insuf cient clearance around the cooler.
• The thermostat is not set properly.
• The frequency of cycling will be reduced when all of the product reaches the
set temperature.
TROUBLESHOOTING
The following are NOT malfunctions:
1This refrigerator has been designed and manufactured according to National standards. If there
are any questions during use, refer to this operation manual to help troubleshoot problems.
2When disposing of the cooler, please remove the door/lid and lock assembly to avoid children
accidentally becoming trapped inside the cooler.
Prior to calling service, check the following:
AFTER SALES SERVICE
Any product has the possibility of malfunction. Please observe the cooler’s operation and any
changes to product being stored. If there are any abnormal cases, refer to the table below. If there
is still no change after following the below instructions, please inform our service center in a timely
manner to avoid a further loss of the unit.

Instruction Manual
Innovative DisplayWorks, Inc.
TEQ²
10 11
N
L
B
A
M
A.
B.
D.
C.
E.
Thermostat
Evaporator fan
F
D
E
Compressor
F.
Start relay
Overload protector
C
Transformer
CIRCUIT DIAGRAM

Innovative DisplayWorks, Inc.
To locate the distributor in your area go to: http://www.idw.global/contact/#distributors
