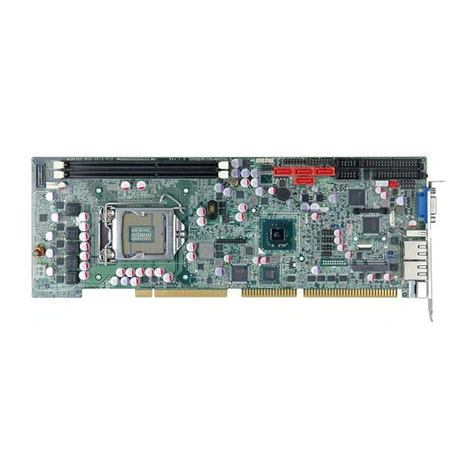

IEI Technology WSB-H610 User manual

1
Full-size PICMG 1.0 CPU card supports 32nm LGA1155
Intel® Core™ i7/i5/i3 CPU per Intel® H61, DDR3,
VGA/DVI-D, Dual Realtek PCIe GbE, USB 2.0, SATA 3Gb/s,
COM, HD Audio and RoHS
WSB-H610
Quick Installation Guide
Version 1.10
May 22, 2015.
Package Contents
WSB-H610 package includes the following items:
1 x WSB-H610 Single Board Computer
1 x Dual RS-232 Cable (P/N:19800-000051-RS)
1 x KB/MS Y cable( P/N: 32000-133200-RS)
2 x SATA Cable (P/N:32000-0628000-RS)
1 x USB Cable (P/N: CB-USB02-RS)
1 x DVI and USB Kit (P/N:IO-KIT-001-R20)( DVI SKU only)
1 x Mini Jumper Pack
1 x Utility CD
1 x QIG (Quick Installation Guide)
©2006 Copyright by IEI Integration corp.
All rights reserved.
All manuals and user guides at all-guides.com
all-guides.com

2
Specifications
CPU
LGA1155 socket supports Intel® Core™ i7/i5/i3/Pentium®
/Celeron® processor
System Chipset: Intel® H61
BIOS: UEFI BIOS
System Memory:
Two 240-pin 1333/1066MHz dual-channel DDR3 &
DDR3L(1.35V) DIMMs supported.(system max. 16GB)
Graphic: VGA Integrated in Intel® H61
Display Output:
1 x VGA
1 x DVI-D (DVI SKU only)
(2 x 13-pin pin header via IO-KIT-001-R20 DVI-D/USB Module)
Ethernet:
Dual Realtek RTL8111E PCIe GbE controllers, LAN1 with
ASF2.0 supportedSuper I/O: Fintek F81866
I/O Interface:
2 x RS-232
1 x RS-422/485
1 x LPT
1 x FDD
1 x PS/2 KB/MS 1 x 6-pin wafer for KB & MS
7 x USB 2.0 (1 on rear, 6 by pin header)
4 x SATA 3Gb/s
Digital I/O: 8-bit Digital I/O (4-bit input, 4-bit output)
Infrared Interface: 1 x 5-pin infrared connector
Audio: Supports by IEI AC-KIT-888HD Audio Kit
Front Audio:2 x 5-pin pin header
TPM: 2 x 10-pin pin header
SMBus: 1 x 4-pin wafer
I2C: 1 x 4-pin wafer
Infrared Interface: 1 x 5-pin pin header
All manuals and user guides at all-guides.com

3
Expansion:
PCI signal and ISA signal via goldenfi nger
1 x Mini PCIe
Watchdog Timer: software Programmable support 1~255 sec.
System reset
FAN connector: 1 x 4-pin Smart FAN Connector
Power Supply: 5V/12V, AT/ATX support
Power Consumption: 5V@4.53A, 12V@0.19A,
Vcore_12V@7.81A, 5VSB@0.18A (3.4GHz Intel® Core™
i7-2600K with two 2GB 1333MHz DDR3 memory)
Operation Temperature: -10 ~ 60°C( 14°F ~ 140°F)
Operation Humidity: 5% ~ 95%, non-condensing
Dimensions: 338mm X 126mm
Weight: 1.2Kg
Ordering Information
WSB-H610-R11:
Full-size PICMG 1.0 CPU card supports 32nm LGA1155
Intel® Core™ i7/i5/i3 CPU per Intel® H61, DDR3, VGA, Dual Realtek
PCIe GbE, USB 2.0, SATA 3Gb/s, COM, HD Audio and RoHS
WSB-H610-DVI-R10 :
Full-size PICMG 1.0 CPU card supports 32nm
LGA1155 Intel® Core™ i7/i5/i3 CPU per Intel® H61, DDR3, VGA/DVI-D,
Dual Realtek PCIe GbE, USB 2.0, SATA 3Gb/s, COM, HD Audio and
RoHS
32200-074800-RS:
RS-422/485 cable, 200mm
19800-000075-RS:
KB/MS cable with Bracket
SAIDE-KIT01-R10:
SATA to IDE/CF Converter board
IO-KIT-001-R20:
DVI and four USB 1.1/2.0 translation daughter board
32102-000100-200-RS:
SATA Power Cable
32200-000017-RS:
FDD flat cable
32200-015100-RS: LPT Cable
All manuals and user guides at all-guides.com

4
AC-KIT-888HD-R10:
7.1 channel HD Audio kit with Realtek ALC888
support dual audio streams
AC-KIT08R-R10:
5.1 channel AC’97 audio kit with Realtek ALC655
CPU-DT-i5-2500T:
Intel® Core™ i5-2500T processor, LGA1155, Quad
core 2.3GHz, 6M Cache, 45W, compatible with CF-1156C-RS CPU cooler
CPU-DT-i5-2390T:
Intel® Core™ i5-2390T processor, LGA1155, Dual
core 2.7GHz, 3M Cache, 35W,AMT, compatible with CF-1156C-RS CPU
cooler
CPU-DT-i3-2100T:
Intel® Core™ i3-2100T processor, LGA1155, Dual
core 2.5GHz, 3M Cache, 35W, compatible with CF-1156C-RS CPU cooler
CPU-DT-P-G620T:
Intel® Pentium G620T processor, LGA1155, Dual core
2.2GHz, 3M Cache, 35W, compatible with CF-1156C-RS CPU cooler
CPU-DT-C-G440:
Intel® Celeron G440 processor, LGA1155, Single core
1.6GHz, 1M Cache, 35W, compatible with CF-1156C-RS CPU cooler
CF-1156A-RS-R10:
High-performance LGA1155/LGA1156 cooler kit,1U
chassis compatible, 73W
CF-1156B-RS-R10:
High-performance LGA1155/LGA1156 cooler kit, 95W
CF-1156C-RS:
LGA1155/LGA1156 cooler kit, 1U chassis compatible,
45W
CF-1156D-RS:
LGA1155/LGA1156 cooler kit, 1U chassis compatible,
65W
TPM-IN01-R11:
20-Pin Infineon TPM module, software management tool,
firmware V3.17
All manuals and user guides at all-guides.com

5
Jumpers setting and Connectors
Table of Jumpers
LABEL
FUNCTION
J_CMOS1
CMOS state setting
JAUTO1
Power Mode Setting
JLAN_PWR1
WOL Setting
J_FLASH
Flash Descriptor Security Override/ME Debug Mode
Table of Connectors
LABEL
FUNCTION
VGA1
VGA 15-pin Female Connector
USB_C1
USB_C2
USB Port Connector
LAN1、LAN2
RJ45 LAN Connector
KB_MS1
Internal PS/2 KEYBOARD/MOUSE Connector
COM1
COM2 Internal Serial Port DB-9 Connectors
COM3
RS422/485 Serial Port
USB1
USB2
USB3 Internal USB Connectors
J_AUDIO1
Extend Audio Module Connector
SATA1
SATA2
SATA3
SATA4
Serial ATA Connectors
IR1
IrDA Infrared Interface Connector
FDD1
Internal FDD Connector
LPT1
Internal LPT Connector
DVI1
DVI-D connector
CPU_FAN1
Fan Connector
DIO1
Digital I/O Connector
F_PANEL1
PWR & RST Buttons
and Indicators
CPU12V1
ATX-12V CPU Power Source
MINI-PCIE1
PCI-E Mini Card
TPM1
TPM Connector(80 port CONN)
All manuals and user guides at all-guides.com

1
Jumper setting
J_CMOS1 : Clear CMOS setting Jumper
J_CMOS1
DESCRIPTION
1-2
(Default) Normal
2-3
Clear CMOS Data
J_ATXCTL1 : Set The Power mode
JATX_AT1
DESCRIPTION
1-2
(ON) ATX Power Mode (Default)
1-2
(OFF) AT Power Mode
JLAN_PWR1 : WOL enable jumper
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
+3.3V_DUAL
2
+3.3V_DUAL
3
+V3.3LAN2
4
+V3.3LAN1
5
+3.3V
6
+3.3V
JLAN_PWR1
DESCRIPTION
1-3
LAN 2 WOL Enable(Default)
2-4
LAN 1 WOL Enable(Default)
3-5
LAN 2 WOL Disable
4-6
LAN 1 WOL Disable
J_FLASH : Flash Descriptor Security Override/ ME Debug Mode
J_FLASH
DESCRIPTION
1-2
Disabled (Default)
2-3
Enable
Connector
VGA1 : 15-pin Female Connector
PIN
DESCRIPTION
PIN
DESCRIPTION
1
RED
2
GREEN
3
BLUE
4
NC
5
GND
6
GND
7
GND
8
GND
All manuals and user guides at all-guides.com
all-guides.com

2
9
VCC
10
GND
11 NC 12 DDCDAT
13
HSYNC
14
VSYNC
15
DDCCLK
USB_C1,USB_C2
PIN NO.
DESCRIPTION
1
VCC
2
DATA-
3
DATA+
4
GROUND
LAN1、LAN2: RJ45 LAN Connector
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
MDIA3-
5
MDIA1+
2
MDIA3+
6
MDIA2+-
3.
MDIA2-
7
MDIA0-
4.
MDIA1-
8
MDIA0+
MS/KB1: Internal 6-pin Keyboard Connector
PIN
DESCRIPTION
1
VCC
2
Mouse Data
3
Mouse Clock
4
Keyboard Data
5
Keyboard Clock
6
Ground
COM3: External Serial Port Connector (RS422/485)
PIN NO.
DESCRIPTION
1
TXD485#
2
TXD485+
COM1,COM2: Internal Serial Port Connector
PIN
DESCRIPTION
PIN
DESCRIPTION
1
DCD#
6
DSR#
2
RXD
7
RTS#
3
TXD
8
CTS#
4
DTR#
9
RI#
5
GND
10
NC
All manuals and user guides at all-guides.com

3
3
RXD485+
4
RXD485#
4
3
2
1
●
●
●
■
3
2
1
8
7
6
5
4
RS485 Pin define
95
4
3
2
1
9
8
7
6
RS422 Pin define
D-SUB 9PIN MALED-SUB 9PIN MALE
TX+(TXD485+)
RS422/485
TX-(TXD485#)
RX-(RXD485#)
RX+(RXD485+)
TX+(TXD485+)
TX-(TXD485#)
USB1-USB3: Internal USB Connector
PIN
DESCRIPTION
PIN
DESCRIPTION
1
VCC
2
GND
3
DATA-
4
DATA+
5
DATA+
6
DATA-
7
GND
8
VCC
J_AUDIO1 : External Audio Module Connector
PIN
DESCRIPTION
PIN
DESCRIPTION
1
ACZ_SYNC
2
ACZ_BITCLK
3
ACZ_SDOUT
4
ACZ_PCBEEP
5
ACZ_SDIN
6
ACZ_RST#
7
ACZ_VCC
8
ACZ_GND
9
ACZ_12V
10
ACZ_GND
SATA1-SATA4 : Serial ATA Connector
PIN
DESCRIPTION
PIN
DESCRIPTION
1
GND
5
RX-
2
TX+
6
RX+
3
TX-
7
GND
4
GND
8
N/C
All manuals and user guides at all-guides.com

4
IR1: IrDA connector
PIN NO.
DESCRIPTION
1
VCC
2
NC
3
IR-RX
4
GND
5
IR-TX
FDD1: Floppy Disk Drive Connector
PIN
DESCRIPTION
PIN
DESCRIPTION
1
GND
2
REDUCE WRITE
3
GND
4
N/C
5
N/C
6
N/C
7
GND
8
INDEX#
9
GND
10
MOTOR ENABLE A#
11
GND
12
DRIVE SELECT B#
13
GND
14
DRIVE SELECT A#
15
GND
16
MOTOR ENABLE B#
17
GND
18
DIRECTION#
19
GND
20
STEP#
21
GND
22
WRITE DATA#
23
GND
24
WRITE GATE#
25
GND
26
TRACK 0#
27
GND
28
WRITE PROTECT#
29
GND
30
READ DATA#
31
GND
32
SIDE 1 SELECT#
33
GND
34
DISK CHANGE#
All manuals and user guides at all-guides.com

5
DVI1 : DVI Connector
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
Data 2-
14
VCC
2
Data 2+
15
GND
3
GND
16
Hot Plug Detect.
4
N/C
17
Data 0-
5
N/C
18
Data 0+
6
DDC Clock
19
GND
7
DDC Data
20
N/C
8
N/C
21
N/C
9
Data 1-
22
GND
10
Data 1+
23
Clock +
11
GND
24
Clock -
12
N/C
25
GND
13
N/C
CPU_FAN1 : CPU Fan Connector
PIN NO.
DESCRIPTION
1
Ground
2
+12V
3
Rotation Signal
4
Control
LPT1 : Parallel Port Connector
PIN
DESCRIPTION
PIN
DESCRIPTION
1
STROBE#
14
AUTO FORM FEED #
2
DATA0
15
ERROR#
3
DATA1
16
INITIALIZE#
4
DATA2
17
PRINTER SELECT LN#
5
DATA3
18
GND
6
DATA4
19
GND
7
DATA5
20
GND
8
DATA6
21
GND
9
DATA7
22
GND
10
ACKNOWLEDGE#
23
GND
11
BUSY
24
GND
12
PAPER EMPTY
25
GND
13
PRINTER SELECT
All manuals and user guides at all-guides.com

6
DIO1 : Digital Input / Output Connector
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1 Ground 2 VCC
3
Output 3
4
Output 2
5
Output 1
6
Output 0
7
Input 3
8
Input 2
9
Input 1
10
Input 0
F_PANEL1 : External Switches and Indicators panel
PIN
DESCRIPTION
PIN
DESCRIPTION
Power LED
1
+5V
2
+5V
Speaker
3
N/C
4
N/C
5
GROUND
6
N/C
PWRBTN
7
PWRBTN+
8
Speaker
9
PWRBTN-
10
N/C
RESET
HDDLED
11
+5V
12
Reset-
13
HDLED-
14
GND
MINI-PCIE1 : PCI-E Mini Card Connector
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
PCIE_WAKE#
2
VCC3
3
N/C
4
GND
5
N/C
6
1.5V
7
CLKREQ#
8
LFRAME#
9
GND
10
LAD3
11
CLK-
12
LAD2
13
CLK+
14
LAD1
15
GND
16
LAD0
17
PCIRST#
18
GND
19
LPC
20
VCC3
21
GND
22
PCIRST#
23
PERN2
24
3VDual
25
PERP2
26
GND
27
GND
28
1.5V
29
GND
30
SMBCLK
CPU12V1: CPU Power Connector
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
GND
2
GND
3
+12V
4
+12V
All manuals and user guides at all-guides.com
all-guides.com

7
31
PETN2
32
SMBDATA
33
PETP2
34
GND
35
GND
36
USBD-
37
N/C
38
USBD+
39
N/C
40
GND
41
N/C
42
N/C
43
N/C
44
RF_LINK#
45
N/C
46
BLUELED#
47
N/C
48
1.5V
49
N/C
50
GND
51
N/C
52
VCC3
TPM1: TPM Connector
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
CLK
2
GND
3
FRAME#
4
NC
5
RERST#
6
+5V
7
AD3
8
AD2
9
+3V
10
AD1
11
AD0
12
GND
13
SMB_CLK
14
SMB_DATA
15
SB3V
16
SERIRQ
17
GND
18
CLKRUN#
19
PM_SUS_STAT#
20
DRQ#
All manuals and user guides at all-guides.com

8
Board Layout: Jumper and Connector Locations
(Unit: mm)
All manuals and user guides at all-guides.com
