IFM Efector 100 GG712S User manual

Original operating instructions
Fail-safe inductive sensor
GG712S
704229 / 01 06 / 2010
UK

2
Contents
1 Preliminary note ���������������������������������������������������������������������������������������������������3
1�1 Explanation of symbols ����������������������������������������������������������������������������������3
2 Safety instructions �����������������������������������������������������������������������������������������������4
2�1 Safety-related requirements regarding the application ����������������������������������4
3 Items supplied������������������������������������������������������������������������������������������������������5
4 Functions and features ����������������������������������������������������������������������������������������5
5 Functions �������������������������������������������������������������������������������������������������������������6
5�1 Enable zone ���������������������������������������������������������������������������������������������������6
6 Installation������������������������������������������������������������������������������������������������������������7
7 Electrical connection ��������������������������������������������������������������������������������������������8
7�1 Operation as 4-wire unit ��������������������������������������������������������������������������������8
7�2 Operation as 3-wire unit ��������������������������������������������������������������������������������8
8 Operation �������������������������������������������������������������������������������������������������������������9
8�1 Switching status of the outputs ����������������������������������������������������������������������9
8�1�1 The safe state ���������������������������������������������������������������������������������������9
8�1�2 The switched state ��������������������������������������������������������������������������������9
8�1�3 Output data �������������������������������������������������������������������������������������������9
8�1�4 Cross faults �������������������������������������������������������������������������������������������9
8�2 Response times �������������������������������������������������������������������������������������������10
8�3 LED display �������������������������������������������������������������������������������������������������10
9 Scale drawing ���������������������������������������������������������������������������������������������������� 11
10 Technical data �������������������������������������������������������������������������������������������������� 11
11 Troubleshooting �����������������������������������������������������������������������������������������������14
12 Maintenance, repair, disposal ��������������������������������������������������������������������������14
13 Approvals/standards ����������������������������������������������������������������������������������������15
14 Terms and abbreviations ����������������������������������������������������������������������������������15

3
UK
1 Preliminary note
The instructions are part of the unit� They are intended for authorised persons
according to the EMC and Low Voltage Directive and safety regulations�
The instructions contain information about the correct handling of the product�
Read the instructions before use to familiarise yourself with operating conditions,
installation and operation�
Adhere to the safety instructions�
1.1 Explanation of symbols
►
Request for action
LED on
LED off
LED flashes
LED flashes quickly
Important note

4
2 Safety instructions
• Follow the operating instructions�
• Improper use may result in malfunctions of the unit� This can lead to personal
injury and/or damage to property during operation of the machine� For this
reason note all remarks on installation and handling given in these instructions�
Also adhere to the safety instructions for the operation of the whole installation�
• In case of non-observance of notes or standards, specially when tampering
with and/or modifying the unit, any liability and warranty is excluded�
• The unit must be installed, connected and put into operation by a qualified
electrician trained in safety technology�
• The applicable technical standards for the corresponding application must be
complied with�
• For installation the requirements according to EN 60204 must be observed�
• In case of malfunction of the unit please contact the manufacturer� Tampering
with the unit is not allowed�
• Disconnect the unit externally before handling it� Also disconnect any
independently supplied relay load circuits�
• After setup the system has to be subjected to a complete function check�
• Use the unit only in specified environmental conditions (→ 10 Technical data)�
In case of special operating conditions please contact the manufacturer�
• Use only as described below (→ 4)�
2.1 Safety-related requirements regarding the application
It must be ensured that the safety requirements of the respective application
correspond to the requirements stated in these instructions�
Observe the following requirements:
► Take measures to avoid metallic objects being placed on the sensing face
intentionally or unintentionally�
► Adhere to EN 1088 for interlocking devices associated with guards�
► Adhere to the specified operating conditions (→ 10 Technical data)� Use of
the sensor in the vicinity of chemical and biological media as well as ionising
radiation is not permitted�

5
UK
► Adhere to the principle of normally closed operation for all external safety
circuits connected to the system�
► In case of faults within the fail-safe sensor which result in the defined safe
state: take measures to maintain the safe state when the complete control
system continues to be operated�
► Replace damaged units�
3 Items supplied
1 fail-safe sensor GG712S with 2 mounting nuts M18,
1 operating instructions GG712S, ident no� 704229�
If one of the above-mentioned components is missing or damaged, please contact
one of the ifm branch offices�
4 Functions and features
The fail-safe inductive sensor GG712S detects metal without contact�
Safety function SF: The safe state (output stage switched off; logic "0") is achieved
when undamping greater than or equal to the safe switch-off distance sar (→ 10
Technical data)�
Also observe the notes on installation of the sensor (→ 6 Installation)�
The fail-safe sensor conforms to Performance Level d to EN ISO 13849-1 as well
as the requirements SIL 2 to IEC 61508 and fulfils SILcl 2 to IEC 62061�
The unit corresponds to the classification I1A18SP2 to IEC 60947-5-2 for flush
installation (→ 6 Installation)�
The fail-safe inductive sensor has been certified by TÜVNord�

6
5 Functions
fail-safe sensor
close zone
enable zone
safe switch-off distance sar
damping element
Yellow signal LED: switching status
Green power LED: operating voltage
5.1 Enable zone
The outputs (OSSD) are only enabled when a damping target is present in the
enable zone� Outside this enable zone the outputs remain switched off�
If damped with a standard target plate of 18 x 18 x 1 mm made of FE360 (= mild
steel) and flush installation to IEC 60947-5-2 the enable zone is in the range of
≤ 1 ��� ≥ 5 mm�
The safe switch-off distance sar is > 7 mm�
The enable zone is different if damping elements which deviate from the standard
target plate in terms of material, form and size are used�
Enable zone for other materials*:
Material Enable zone
stainless steel 0�5���3�5 mm
AIMg3G22 0���2�0 mm
CuZn37 0���2�0 mm
Cu 0���1�5 mm
* Typical values for damping with a reference target plate of 18 x 18 x 1 mm and flush
installation to IEC 60947-5-2 at an ambient temperature of 20°C�

7
UK
Depending on the characteristics of the damping element there may be no
close zone�

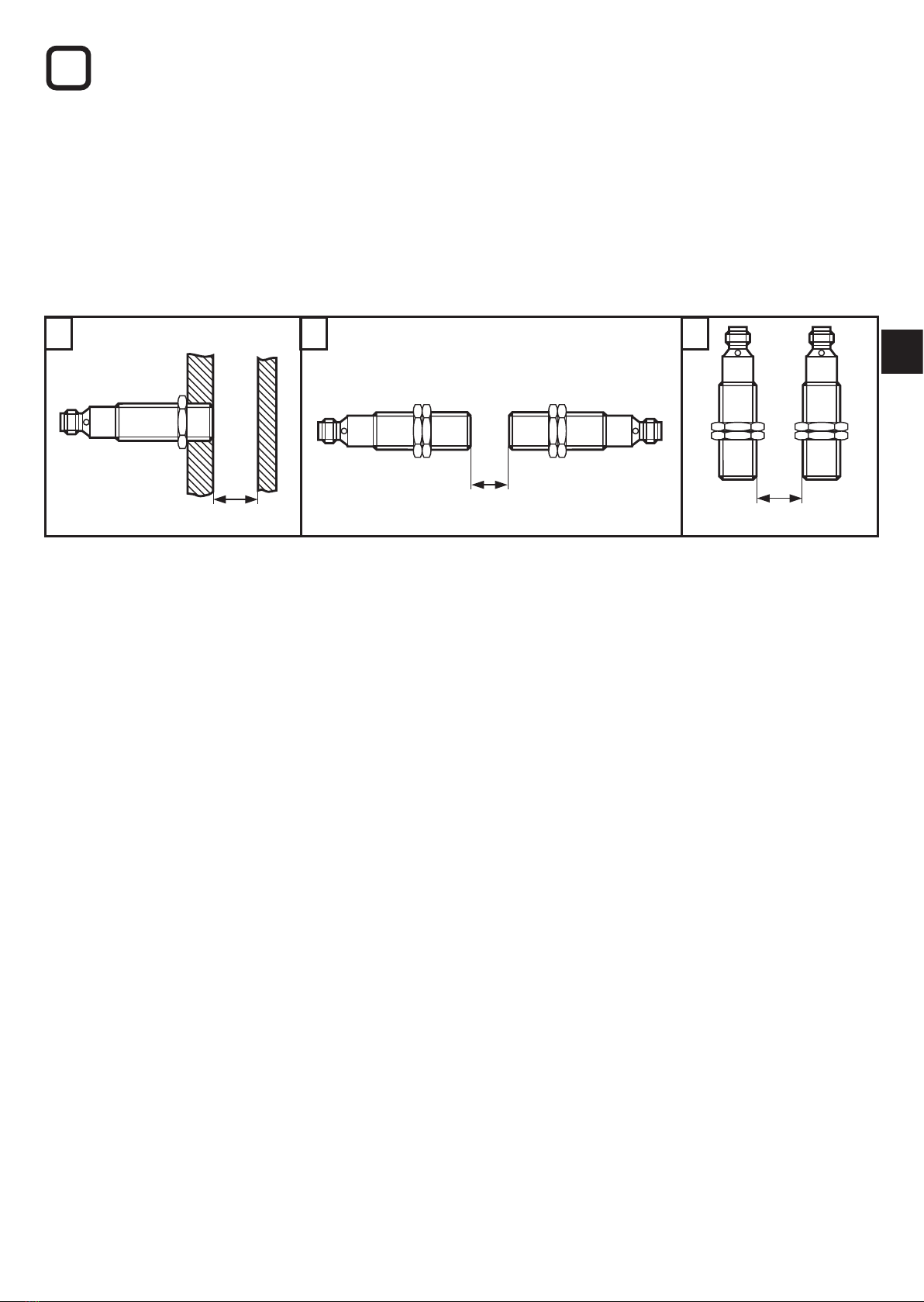

6 Installation
The unit can be flush mounted according to IEC 60947-5-2, type I1A18SP2�
► Ensure the unit cannot work loose� Maximum tightening torque: 30 Nm
► Adhere to the installation conditions in accordance with the figures 1 to 3:

8
7 Electrical connection
► Disconnect power� Also disconnect any independently supplied relay load
circuits�
► Supply voltage: connect L+ to pin 1 and L– to pin 3 of the connector�
The nominal voltage is 24 V DC� This voltage may vary between 19�2 V and
30 V incl� 5% residual ripple to EN 61131-2�
In case of a single fault the supply voltage must not exceed a maximum
of 40 V DC� (This requires the safe separation between power supply and
transformer)�
For unit with cULus approval and the scope of validity cULus:
The device shall be supplied from an isolating transformer having a
secondary listed fuse rated either
a) max� 5 amps for voltages 0~20 Vrms (0~28�3 Vp) or
b) 100/Vp for voltages of 20~30 Vrms (28�3~42�4 Vp)�

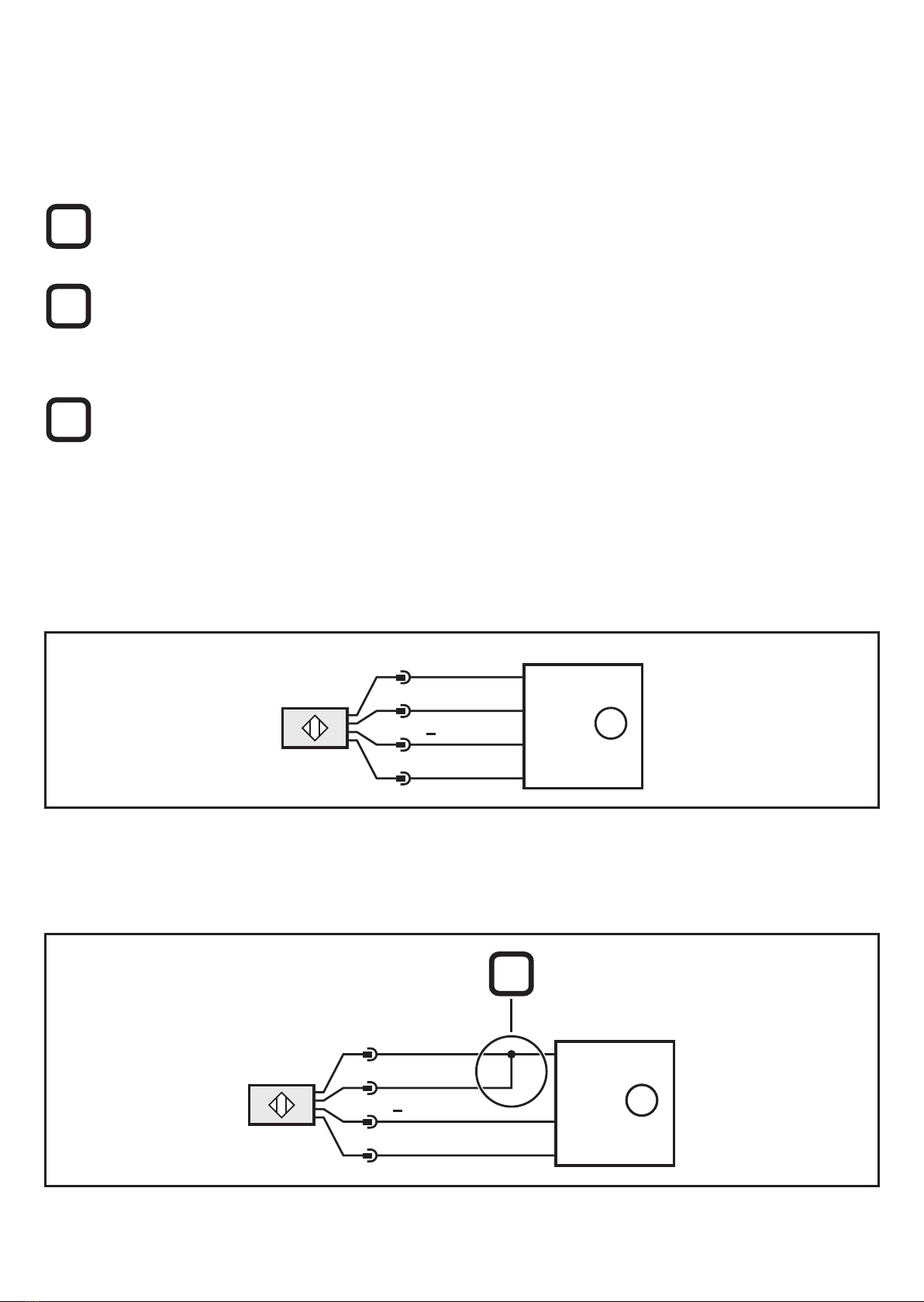

7.1 Operation as 4-wire unit
Safety-related logic unit
7.2 Operation as 3-wire unit
Safety-related logic unit

9
UK
In case of operation as 3-wire unit only A2 must be used as output
(OSSD). Otherwise the safety function of the sensor will be impaired or
prevented.
► Connect output A1 to supply voltage�
► Make absolutely sure to exclude cross faults and short circuits between the
supply voltage and output A2 by means of appropriate installation!
The indicated values regarding the safety function (→ 10 Technical data) remain
unchanged�
8 Operation
8.1 Switching status of the outputs
8.1.1 The safe state
The safe state is when at least one of the outputs A1 and A2 (OSSD) is switched
off (zero-current state: logic "0")�
If one of the outputs A1 and A2 is switched off, the subsequent safety-related logic
unit must bring the complete system into the state defined as safe�
8.1.2 The switched state
If the damping element is in the enable zone and if there is no sensor error, both
outputs A1 and A2 (OSSD) are enabled (logic "1")�
8.1.3 Output data
The output data are based on the input data to EN 61131-2 type 1 or 2:
logic "1" ≥ 15 V 2���15 mA
≥ 11 V 15���30 mA
logic "0" ≤ 5 V leakage current 0�2 mA
8.1.4 Cross faults
• A cross fault between both outputs (A1 and A2) is detected by the fail-safe
sensor and leads to switching off the outputs (OSSD) at the next safety
request� The outputs A1 and A2 remain switched off until the error has been
removed�
• A cross fault between one of the two outputs (A1 or A2) and the supply voltage
leads to switching off the other output (A2 or A1) in case of a safety request�

10
8.2 Response times
Response time on safety request
(removal from the enable zone)
≤ 1 ms
Response time when approaching the enable zone
(enable time)
≤ 1 ms
Risk time / response time for safety-related faults ≤ 20 ms
Simultaneity of switching on and off of the outputs in case of a safety
request
≤ 1 ms
Duration of switch-off test pulses ≤ 1 ms
8.3 LED display
LED
status
Operating status Outputs A1
(OSSD)
A2
(OSSD)
Signal
Power
no voltage supply both outputs switched off 0 0
Signal
Power
undervoltage 1
0
0
0
Signal
Power
overvoltage both outputs switched off 0 0
Signal
Power
damping element at safe
switch-off distance from the
sensor (≥ 7 mm)
both outputs switched off 0 0
Signal
Power
sensor error
(→ 11 Troubleshooting)
one output or both
outputs switched off
0
1
0
1
0
0
Signal
Power
damping element in the
enable zone
both outputs enabled 1 1
damping element in the
close zone
output A2 is switched off 1 0

11
UK
9 Scale drawing
10 Technical data
GG712S
GIGA4005-2PS/SIL2/US
Fail-safe inductive sensor
Metal thread M18 x 1
M12 connector
Enable zone: ≤ 1 ��� ≥ 5 mm
Conforms to the requirements of:
SIL 2 to IEC 61508, SILcl 2 to IEC 62061, PL d to EN ISO 13849-1
flush mountable
Operating voltage 24 V DC (19�2���30 V)
Short-circuit protection yes
Reverse polarity protection yes
Current rating 100 mA
Voltage drop < 2�5 V @ 30 mA
Current consumption < 30 mA
Outputs A1, A2 (OSSD) PNP
Rated insulation voltage 30 V
Output voltage at 24V compatible with EN 61131-2 inputs type 1, 2

12
Response time response time on safety request (removal
from the enable zone) ≤ 1 ms
response time when approaching the enable
zone (enable time): ≤ 1 ms
Risk time (response time for safety-related
faults)
≤ 20 ms
Power-on delay time 1 s
Safe switch-off distance sar > 7 mm
Operating mode continuous operation (maintenance-free)
EMC / vibration, shock according to IEC 60947-5-2
Application class C to EN 60654-1
(weatherproof application)
Climate
Air pressure 80���106 kPa
Salt spray no
Height above sea level max� 2000 m
Ionising radiation not permissible
Rate of temperature change 0,5 K/min
Ambient temperature -25��70 °C for service life ≤ 87 600 h
10���40 °C for service life ≤ 175 200 h
Relative air humidity 5���95 % for service life ≤ 87 600 h
5���70 % for service life ≤ 175 200 h
Mission time TM (mission time) ≤ 87 600 h (10 years) at -25���70 °C and
5���95 % relative humidity
≤ 175 200 h (20 years) at 10���40 °C and
5���70 % relative humidity
Safety-related reliability
(to IEC 61508)
PFH < 1 x 10-7/ h
MTTFD2011 years
DC / CCF / Cat� 87 % / 70 % / 2
Protection IP 65 / IP 67 (to EN 60529), III
Housing materials brass plated with white bronze;
housing cover PBT
Display LED yellow (signal); LED green (power)
Connection M12 connector, gold-plated contacts

13
UK
Wiring
Evaluation unit or PLC
Core colours:
BK: black
BN: brown
BU: blue
WH: white
Remarks:
Unless stated otherwise, all data refer to the 18 x 18 x 1 mm reference target plate to
IEC 60947-5-2 (FE360 = mild steel) over the whole temperature range�

14
11 Troubleshooting
→ 8�3 LED display
Problem Possible cause Troubleshooting
No LED display No voltage supply Apply voltage
Power LED flashes and
sensor does not switch
• Undervoltage
• Overvoltage
Correct the voltage
(→ 10 Technical data)
Sensor does not switch,
even not after undamping
and redamping
Sensor was brought into the
safe state (logic "0")� Cause:
• Cross fault between both
outputs A1 and A2
• Cross fault between one
output (A1 or A2) and the
supply voltage
• Error in the sensor detected
• Remove the cross fault
• Replace the unit
No close zone Due to its characteristics
(material, form, size), the
damping element displaces
the enable zone until directly
in front of the sensing face
If possible, change the
material, form or size of the
damping element (→ 5�1
Enable zone)
12 Maintenance, repair, disposal
In case of correct use no maintenance and repair measures are necessary�
Only the manufacturer is allowed to repair the unit�
After use dispose of the unit in an environmentally friendly way in accordance with
the applicable national regulations�

15
UK
13 Approvals/standards
The following standards and directives have been applied:
• 2006/42/EC European machinery directive
• 2004/108/EC EMC directive
• EN ISO 13849-1 PL d (2006) Safety of machinery - Safety-related parts of
control systems
• IEC 60947-5-2 (2008) low voltage switchgear and controlgear: control circuit
devices and switching elements - proximity switches
• IEC 61508 (2000)
• IEC 62061 (2005)
• UL 508
14 Terms and abbreviations
CCF Common Cause Failure
DC Diagnostic Coverage
MTTFDMean Time To Dangerous
Failure
OSSD Output Signal Switching Device
PFH Probability of failure per Hour
PL Performance Level PL to EN ISO 13849-1
SIL Safety Integrity Level SIL 1-4 to IEC 61508� The higher the
SIL, the lower the probability that a safety
function will fail�
SILcl Safety Integrity LevelClaim Limit to IEC 62061
TMMission Time Lifetime
(= max� service life)
Table of contents
Other IFM Accessories manuals

IFM
IFM OGE User manual

IFM
IFM IFS Series User manual

IFM
IFM O2D50 Series User manual

IFM
IFM UIT509 User manual

IFM
IFM Efector 500 PM2655 User manual

IFM
IFM PN78 Series User manual

IFM
IFM OF Series User manual

IFM
IFM Efector 300 SM8100 User manual

IFM
IFM Efector 500 PF2652 User manual

IFM
IFM O3M150 Mounting instructions
Popular Accessories manuals by other brands

Fiamma
Fiamma CARAVANSTORE Series Installation and use instructions and warnings

IntelliSense
IntelliSense STEALTH XJ-2035 installation instructions

AIA
AIA XPS user guide

Autonics
Autonics BPS Series product manual

BBC Bircher
BBC Bircher LBGate R25.D operation instruction

Crestron
Crestron 1700C-BEZEL Operations & installation guide
