IFM OF Series User manual

701026 / 00 03 / 2011
Installation instructions
Retro-reflective sensor
OF
UK

2
1 Functions and features
In conjunction with a prismatic reflector or reflective tape the retro-reflective sen-
sor detects objects and materials without contact and indicates their presence by
a switched signal.
Range: OFR...: 2 m; OFP... (retro-reflective sensor with polarisation filter):
800 mm; (values referred to prismatic reflector with Ø 80 mm).
2 Installation
Place prismatic reflector / reflective tape in desired position. Align the photocell
and fasten to a mounting bracket with the lock nuts provided.
Maximum range is only achieved with precise alignment.
3 Electrical connection
Disconnect power before connecting the sensor.
Connection strictly to the indications on the type label.
Core colours: BN = brown, BU = blue, BK = black
Programming of the output function by wiring according to type label.
Load of the function check output (fc output): max. 10 mA

3
UK
4 Operation
Check the safe functioning of the retro-reflective sensor. Display by LEDs and (for
sensors with plug and socket connection) by the function-check output.

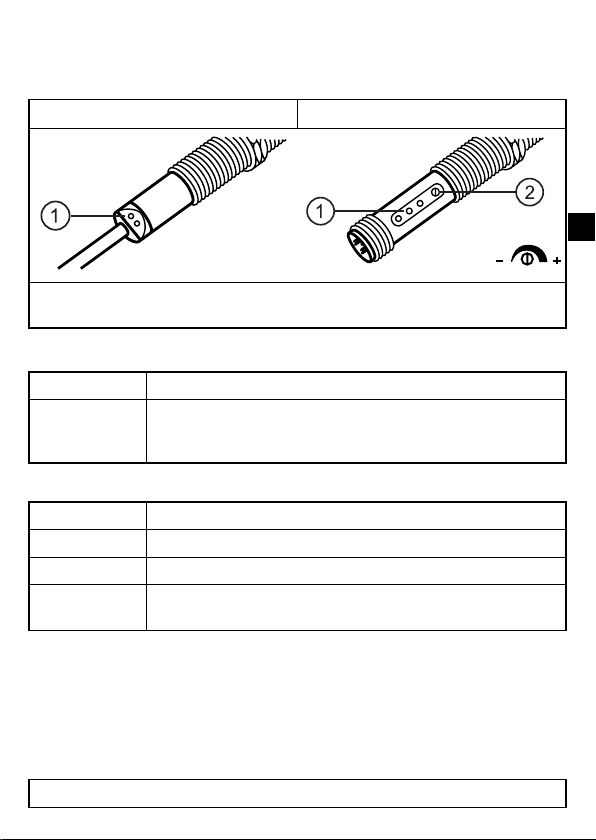

sensor with cable sensor with plug
1: LEDs
2: setting potentiometer sensitivity
Sensor with cable
LED green supply voltage O.K.
LED yellow output switched
flashing, 3 Hz: output short-circuited
flashing, 1 Hz: internal malfunction (output is not switched)
Sensor with plug
LED green supply voltage O.K.
LED yellow output switched
LED red error in object detection, e.g. maladjustment, soiling of the lenses
LED yellow + red flashing alternately, 3 Hz: output short-circuited
flashing alternately, 1 Hz: internal malfunction (output is not switched)
5 Maintenance
Keep the lens of the sensor free from soiling.
Technical data and further information at www.ifm.com
