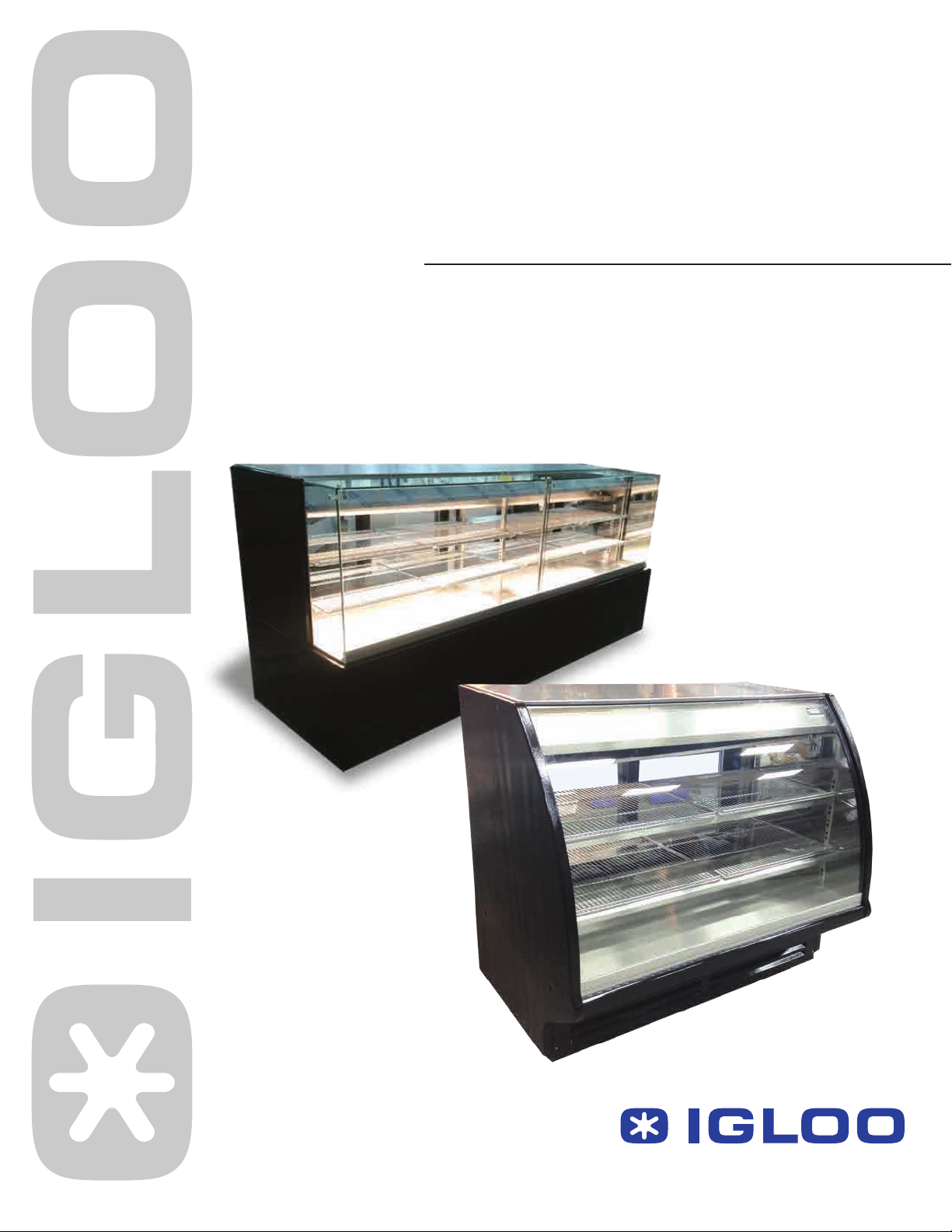

Igloo JSCRP User manual

Pastry Display Cases
Models: JSCRP and J2SCRP
JSCRP
J2SCRP
Instruction Manual
Tel : [phone] Fax : [phone]
Toll Free : 1-888-408-8819
124 Norfinch Dr. Toronto, ON. M3N 1X1
REFRIGERATION LTD.

REFRIGERATION LTD
2
www.igloorefrigeration.com | Pastry Cases
Contents
1 UNLOADING ..................................................................................................................................................... 3
2 PROPERTIES OF THE UNIT.................................................................................................................................. 3
2.1. Purpose .................................................................................................................................................... 3
2.2. Description of the unit............................................................................................................................... 3
2.3. Technical data........................................................................................................................................... 4
3. PREPARING THE DEVICE FOR START UP ............................................................................................................ 5
3.1. Installation requirements .......................................................................................................................... 5
3.2. Unit Location ............................................................................................................................................ 5
3.3. Connection and start-up............................................................................................................................ 6
4. UNIT START UP ............................................................................................................................................... 7
4.1. Temperature regulation ............................................................................................................................ 8
5. MAINTENANCE ................................................................................................................................................ 9
5.1 Cleaning and maintenance ....................................................................................................................... 12
6. SERVICE......................................................................................................................................................... 13
6.1. Faults identification and repair................................................................................................................ 13
6.2 Service..................................................................................................................................................... 14
List of Figures
Figure 1 JSCRP and J2SCRP ..................................................................................................................................4
Figure 2 Leveling legs.......................................................................................................................................... 6

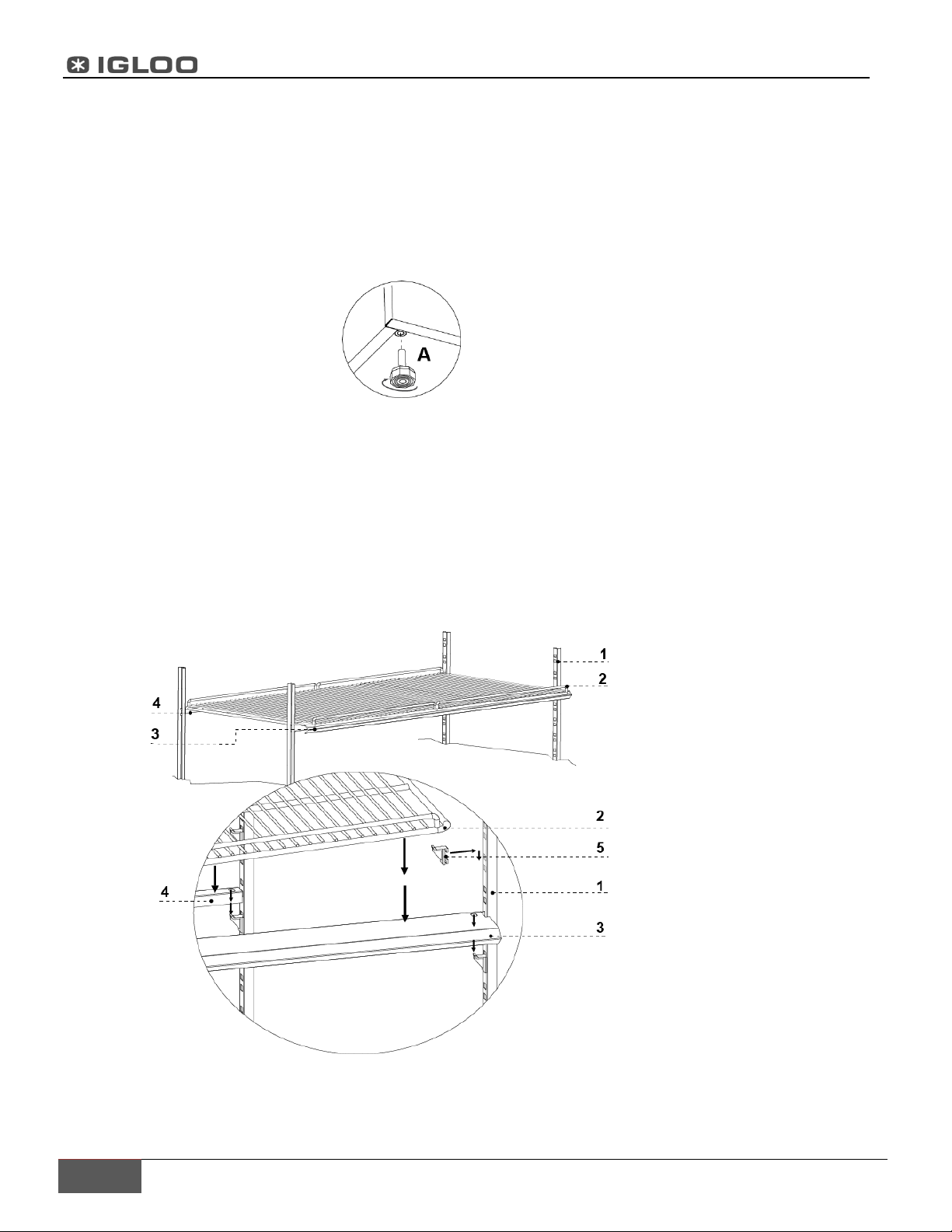

Figure 3 Mounting wire shelves........................................................................................................................... 6

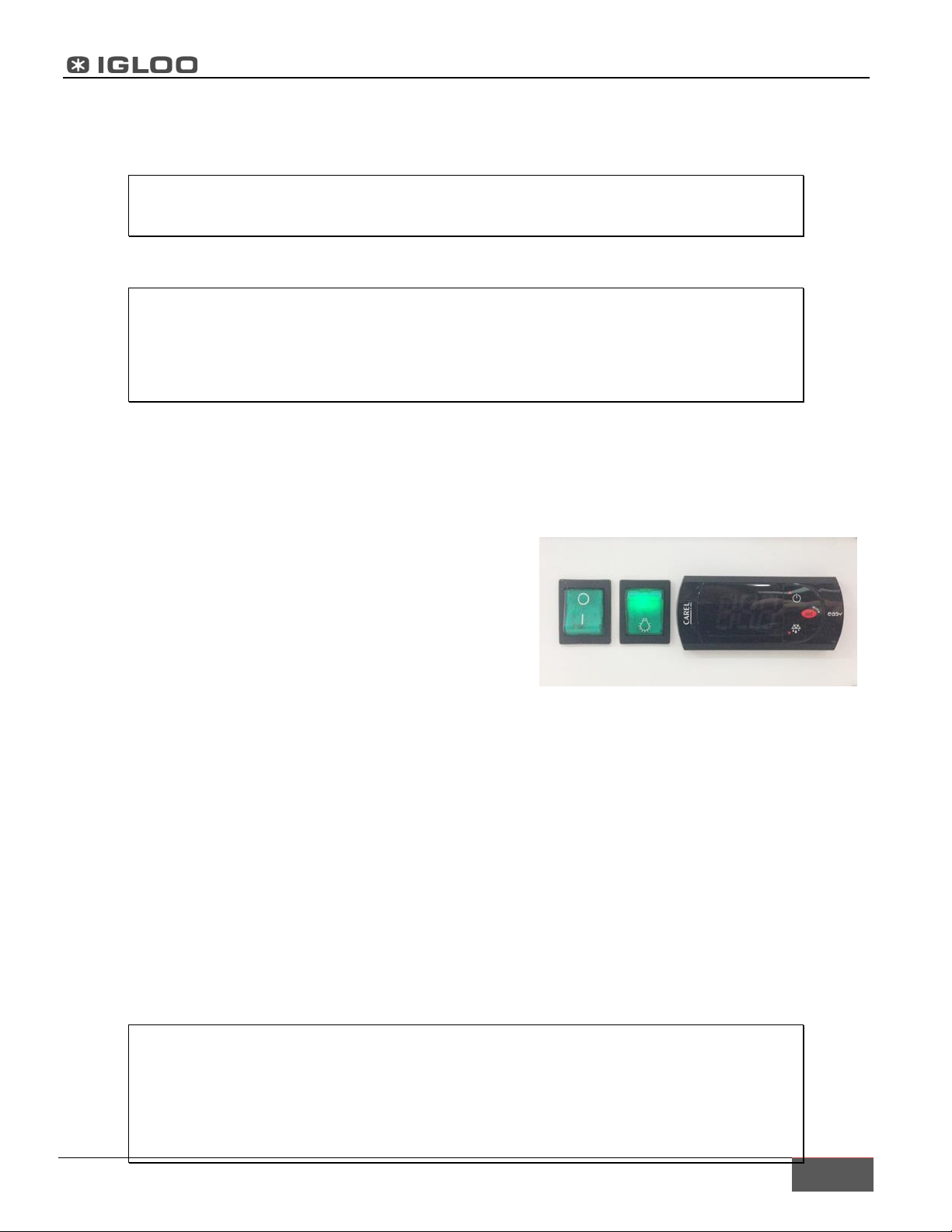

Figure 4 Control panel......................................................................................................................................... 7
Figure 5 “Carel” thermostat control panel ...........................................................................................................8

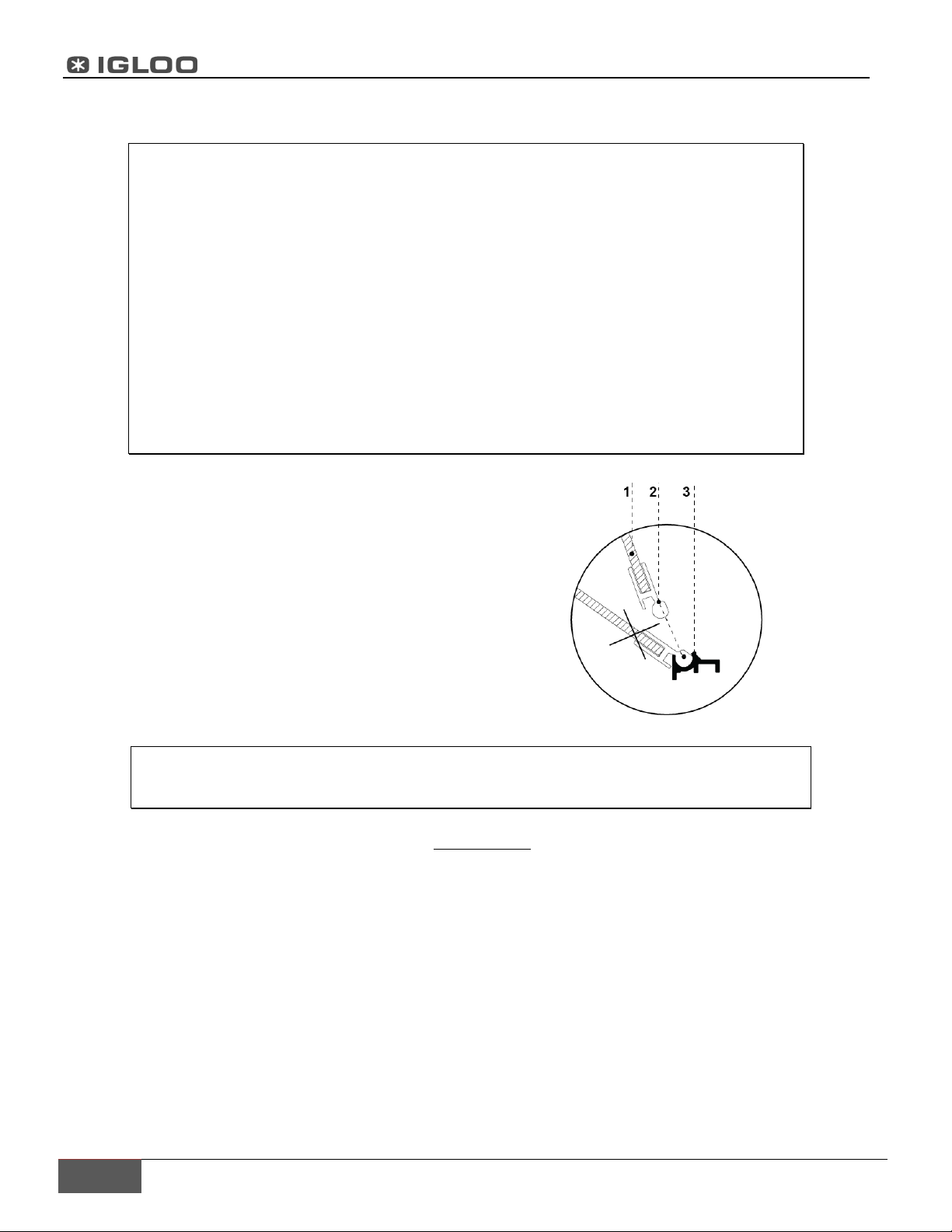

Figure 6 Disassembly of the front glass (JSCRP).................................................................................................. 12

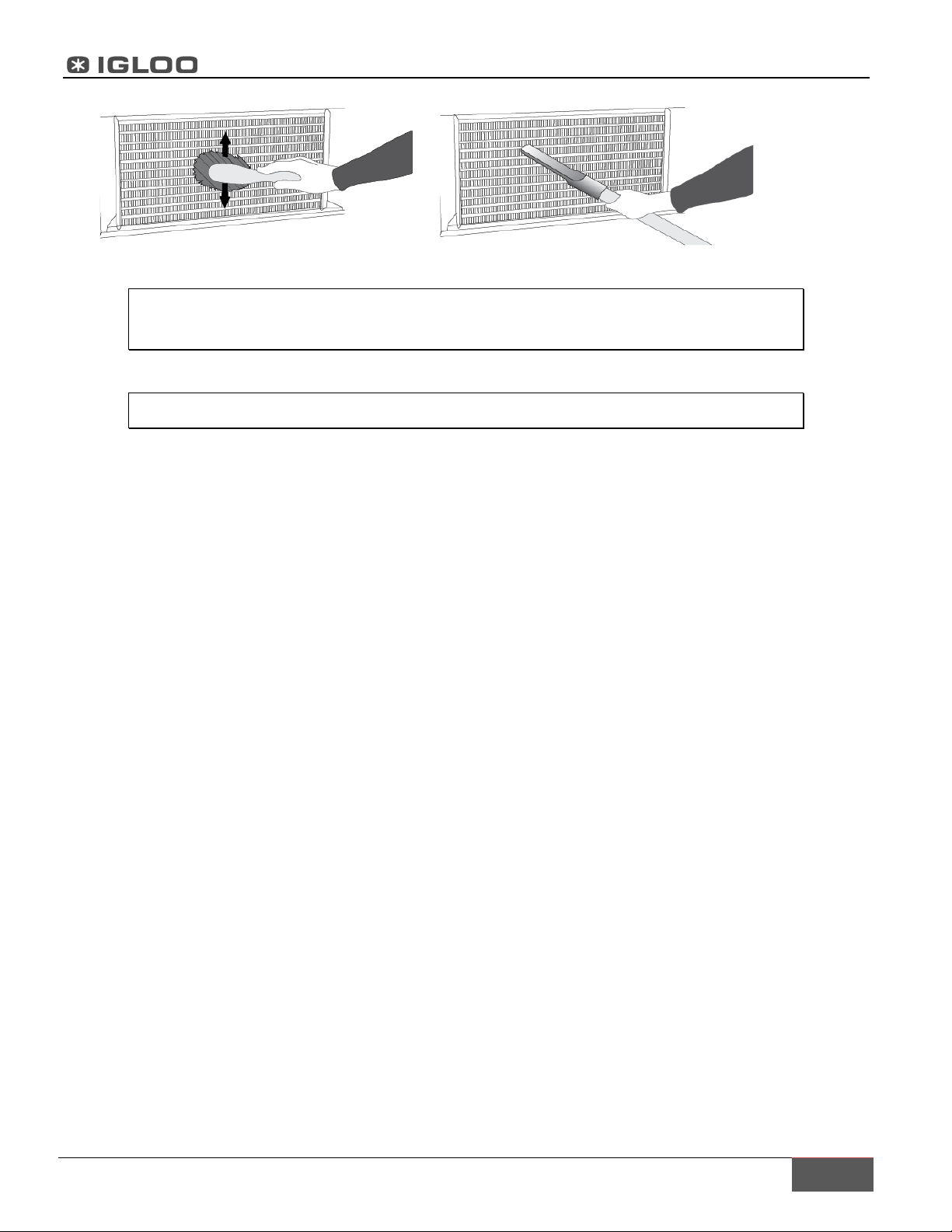

Figure 7 Cleaning the condenser ....................................................................................................................... 13
List of Tables
Table 1 Technical data ......................................................................................................................................... 4
Table 2 Table of alarms and signals ...................................................................................................................... 9
Table 3 Table of easy compact parameters......................................................................................................... 10

REFRIGERATION LTD
Pastry Cases | www.igloorefrigeration.com
3
1 UNLOADING
The unit should be transported in vertical position and properly secured and packed.
2 PROPERTIES OF THE UNIT
2.1. Purpose
“JSCRP” and “J2SCRP” display cases are universal cooling devices, aimed to display and for short-term storage of
confectionery goods (such as cakes, cookies, desserts…etc.) in temperatures between +1ºC and +4ºC with
ambient temperature between +15ºC and +25ºC and relative air humidity not exceeding 55%, depending on the
environment and the location of the unit.
2.2. Description of the unit
“JSCRP” and “J2SCRP” display cases have static cooling. The display case is equipped with automatic condensate
evaporation and automatic defrosting. The electronic thermostat cooperate module to monitor and send signals
when the temperature inside the equipment gets too low or too high. Two levels of white plastic wire shelves are
mounted on the inner frame. The height of the shelves is adjustable. Our equipment is manufactured in
accordance to modern technologies and has all certificates required by law.
The description in this box signifies important information for user security and for
proper operation of the device.

REFRIGERATION LTD
4
www.igloorefrigeration.com | Pastry Cases

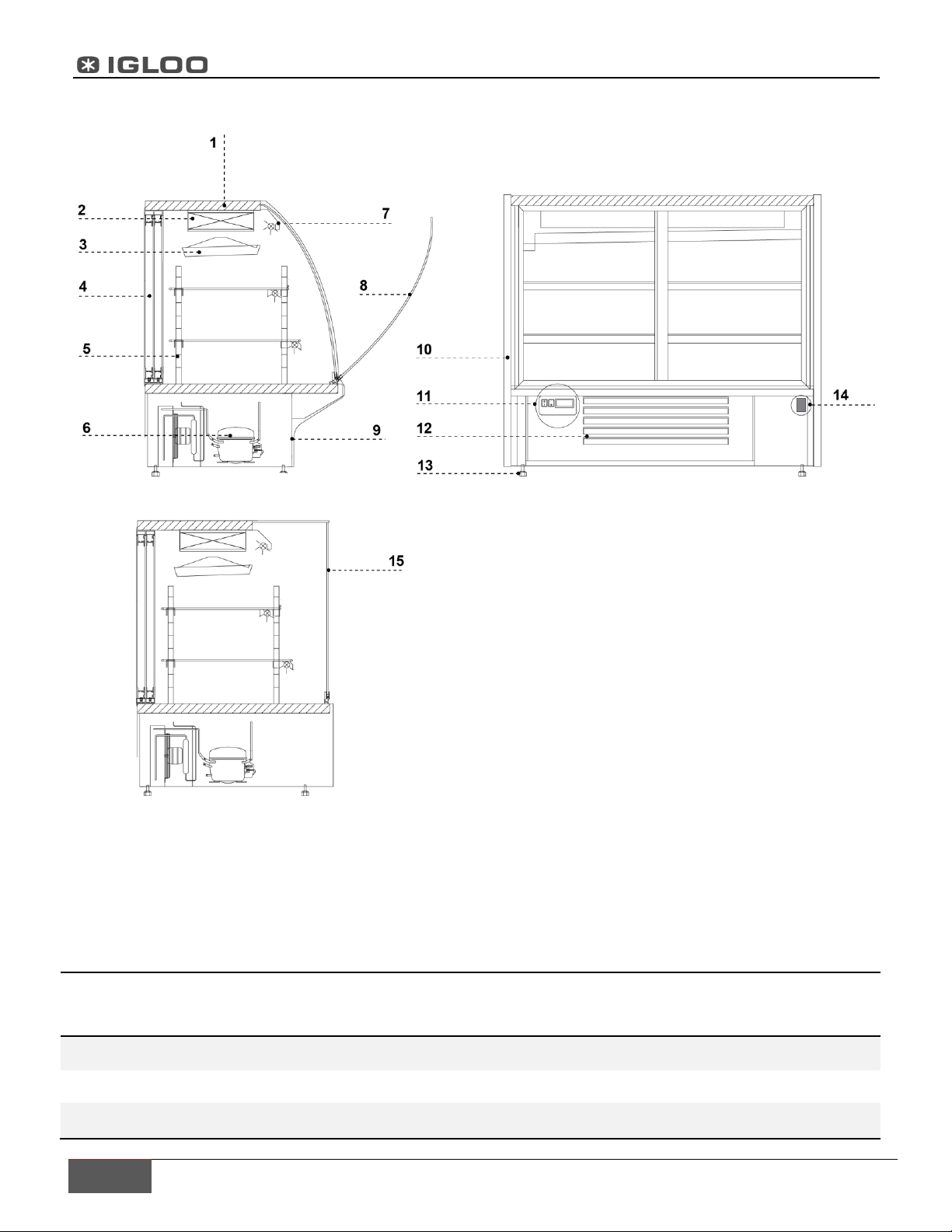

1 –Stainless steel upper shelf
2 –Evaporator coil
3 –Rail (condensate outflow after defrosting the
evaporator)
4 –Sliding door
5 –Inner frame
6 –Compressor
7 –LED lamp
8 –Cured front glass
9 –Base of the unit (DO NOT BLOCK air louver!!!)
10 –ABS sides
11 –Control panel
12 –Condenser cover (DO NOT BLOCK air louver!!!)
13 –Leveling legs
14 –Serial plate
15 –Straight front glass
2.3. Technical data
Table 1 Technical data
Model
Voltage
[V/Hz/Ph]
Rated Current
[A]
Max shelf load
[lbs/kg]
Weight
[lbs/kg]
JSCRP4/J2SCRP4
115/60/1
8 (max.fuse:15)
66/30
337/153
JSCRP6/J2SCRP6
115/60/1
8 (max.fuse:15)
66/30
529/240
JSCRP8//J2SCRP8
115/60/1
15 (max.fuse:20)
66/30
661/300
Figure 1 JSCRP and J2SCRP
J2SCRP (Straight glass)
JSCRP (Cured glass)

REFRIGERATION LTD
Pastry Cases | www.igloorefrigeration.com
5
3. PREPARING THE DEVICE FOR START UP
The unit must be properly installed and located in accordance with the installation
instructions before it is used.
3.1. Installation requirements
Always use a dedicated circuit with the amperage stated on the unit.
Plug into an outlet designed for the plug.
Do not overload the circuit.
Do not use extension cords.
Never use adapters.
Never plug in more than one unit per electric circuit.
If in doubt, call an electrician.
IGLOO will not warranty any equipment that is connected to an extension cord or
adapter plug.
The equipment may be turned on after confirmation of the fire protection efficiency
with results of measures performed according to binding regulations!
3.2. Unit Location
Remove cardboard angles and protective foil.
Install the unit on a strong and level surface.
To ensure proper operation the unit must be leveled from front to back and left to right.
Unit may malfunction if improperly leveled.
Be sure there is sufficient ventilation around the entire unit.
Select a location a way from heat and moisture generating equipment.
Avoid installation in a high ambient or humid location.

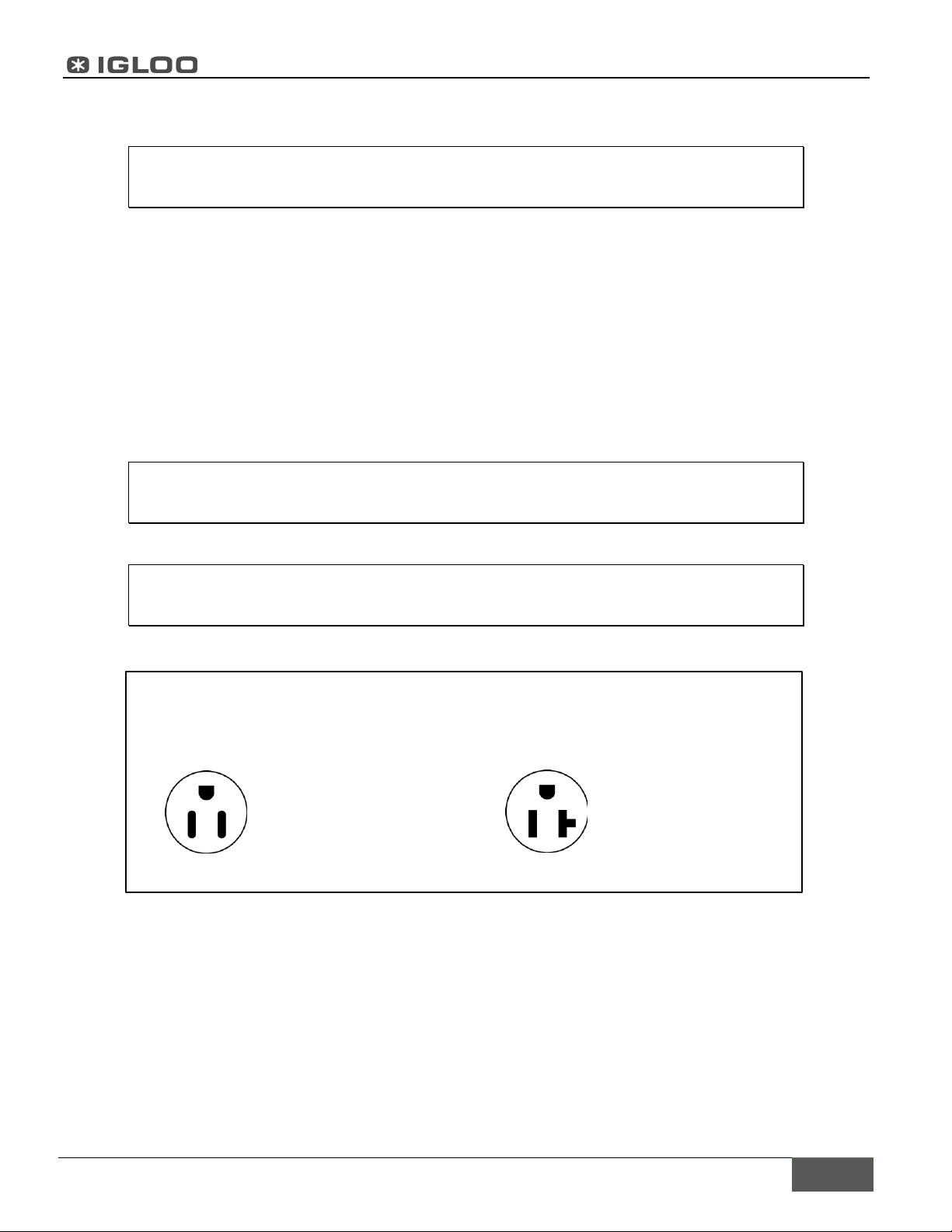

■NEMA Plugs
IGLOO refrigeration uses this type of plug. If you do not have the right outlet, have a
certified electrician install the correct power source.
115/60/1
NEMA-5-15R
For models: JSCRP4/J2SCR4 &
JSCRP6/J2SCRP6
115/60/1
NEMA-5-20R
For models:
JSCRP8/J2SCR8
