Ihse SDMX/S2 User manual

User Guide
28-Nov-05
SDMX PS/2 Mini Extender Range
Dual Video Channel Kits
Model SDMX/S2
Model SDMX/SA2
Dual Video/Local Access Channel Kits
Model SDMX/D2
Model SDMX/DA2
Dual Video Remote Units
Model SDMX/R2
Model SDMX/RA2

Notices 1
Cautions and Notes
The following symbols are used in this guide:
CAUTION. This indicates an important operating instruction that
should be followed to avoid any potential damage to hardware
or property, loss of data, or personal injury.
NOTE. This indicates important information to help you make the best use of
this product.
Copyrights and Trademarks
©2005. All rights reserved. This information may not be reproduced in any manner
without the prior written consent of the manufacturer.
Information in this document is subject to change without notice and the
manufacturer shall not be liable for any direct, indirect, special, incidental or
consequential damages in connection with the use of this material.
All trademark and trade names mentioned in this document are acknowledged to be the
property of their respective owners.

2SDMX PS/2 Mini Extender Range
Safety Precautions and Installation Guidelines
To ensure reliable and safe long-term operation please note the following
installation guidelines:
•Do not use to link between buildings.
•Only use in dry, indoor environments.
•If the building has 3-phase AC power, try to ensure that equipment
connected to the Local and Remote units is on the same phase.
•Try not to route the CATx link cable alongside power cables.
•Ensure that the system connected to the Local unit is connected to power
ground.
•Ensure that the monitor connected to the Remote unit is connected to power
ground and does not use an isolated power supply.
•The Remote unit and any power supplies can get warm. Do not situate them
in an enclosed space without any airflow.
•Do not place the power supply directly on top of the Remote unit.
•This product is not suitable for use in isolated medical environments.
To safeguard against personal injury and avoid possible
damage to equipment or property, please observe the
following:
•Only use power supplies originally supplied with the product
or manufacturer-approved replacements. Do not attempt to
dismantle or repair any power supply. Do not use a power
supply if it appears to be defective or has a damaged case.
•Connect all power supplies to grounded outlets. In each
case, ensure that the ground connection is maintained from
the outlet socket through to the power supply’s AC power
input.
•Do not attempt to modify or repair this product, or make a
connection from the CATx link interface (RJ45) to any other
products, especially telecommunications or network
equipment.

Contents 3
Contents
1. Quick Setup 5
Command Summary 6
2. Overview 7
Introduction 7
Glossary 7
Features 9
Product Range 10
Compatibility 10
How to Use This Guide 12
3. Installation 13
Package Contents 13
Interconnection Cable Requirements 14
Remote Unit Installation 15
Local Unit Installation 17
Connection to Rackmount Hub Local Units 19
4. Remote Unit Configuration & Operation 21
Command Mode 21
Adjusting Video 23
Other Remote Configuration & Operation Options 24
5. Local Unit Operation 27
Overview 27
Dual Access Systems 27
6. Troubleshooting 29
Video 29
Keyboard & Mouse 30
Audio 31
Serial 31
General Questions 32

4SDMX PS/2 Mini Extender Range
Appendix A: Example Applications 33
Appendix B: SDBR3 Mounting Kit 37
Appendix C: Remote Unit:
Flash Upgrading & External Configuration 38
Appendix D: Cable Pinning 39
Appendix E: Audio/Serial Ports:
Operation & Multi-Port Configuration 40
Appendix F: Obtaining Technical Support 42
Appendix G: Specifications 43
Appendix H: EU Regulatory Compliance 46
Appendix I: North American Regulatory Compliance 47
Appendix J: Disclaimer 47

Quick Setup 5
1. Quick Setup
This section briefly describes how to install your KVM extender system and
optimize the video signals. Unless you are an experienced user, we recommend
that you follow the full procedures described in the rest of this manual. Refer to
the command summary on the next page when following this procedure.
More channels?
Yes
No
Install system:
1. Connect Remote unit to KVM and audio/serial devices
(if present).
2. Connect Local unit or Extender hub to CPU.
3. Connect Remote and Local units with compatible
CATx Interconnect cable.
4. Power up system.
Any Problems? See
Installation and
Troubleshooting
sections.
Enter Command Mode on Remote unit
<Left Control> + <Left Shift> + <F10>
Choose video channel: <1> or <2>
Adjustments apply to selected channel.
Video equalization
applies to both
channels.
See page 23
Interconnect
cable >25m?
Yes
No
Set Video Equalization
<Left Control> + <E>
Configure
single channel or
both?
Single
Both
Setup Complete
TFT Users: Set monitor to auto-adjust, or if you are an
advanced user, manually adjust the monitor’s clock and
phase for optimum video quality.

6SDMX PS/2 Mini Extender Range
Command Summary
By using a specific ‘hot’ key sequence, you can put the Remote console
keyboard into a Command Mode. From this, you can use various keys and key
combinations to equalize the video signal and generally configure the extender
system.
The following table summarizes the ‘hot’ key command sequences.
Command Mode
Enter Command Mode*
Exit Command Mode & Save*
Exit Command Mode Without Save*
<Left Control> + <Left Shift> + <F10>
<ESC>
<Left Control> + <ESC>
Video - Channel Selection, Equalization and DDC
Select Channel For Adjustment
Select BOTH Video Channels
Toggle Video Equalization
Disable DDC Emulation
Enable DDC Emulation
Transfer DDC from monitor to Local Unit
<1>, <2>
<0>
<Left Control> + <E>
<Left Control> + <F2>
<F2>
<Left Control> + <D>
Reset Commands
Reset Mouse and Keyboard*
Mouse Recovery*
Set Extender To Default State*
<F1>
<F3>
<Left Control> + <F9>
Private Mode
Toggle Private Mode*
Toggle Video Blanking State at other console*
<Scroll Lock>
<Left Control> + <Scroll Lock>
* Commands also available at Local console in Dual Access Kits: SDMX/D2
and SDMX/DA2 (see page 27).

Overview 7
2. Overview
Introduction
The SDMX PS/2 Mini Extender Series enables two channels of high-resolution
video, PS/2 keyboard and mouse, and, optionally, stereo audio and serial port
signals to be communicated up to 50m over CATx (Category 5, 5e, 6 or higher)
UTP/STP 4-pair cable.
A basic KVM extension system comprises a Local unit (transmitter) and a
Remote unit (receiver). The Local unit connects directly to the computer (or a
KVM switch system) using the supplied cable(s). The user console (keyboard,
mouse and monitors) attaches to the Remote unit. The Remote and Local units
communicate video and data information along the connecting CATx cables
(Figure 1).
Within the product range, models are available with combinations of the
following:
•Audio transmission: bi-directional stereo audio (16-bit digitized).
•Serial transmission: transparent serial COM port (to 19.2Kbps).
•Dual access: allowing a second user console at the Local unit.
Glossary
The following terms are used in this guide:
CATx Any Category 5, 5e, 6 or Level 7 cable.
PSU The desktop power supply connected to the Remote unit.
KVM Keyboard, Video and Mouse.
Console A keyboard, monitor, and mouse, plus optional serial/audio
devices.
Dual Access A system allowing connection of Local and Remote user
consoles.
Single Head An extender system that supports one monitor.
Dual Head An extender system that supports two monitors.

8SDMX PS/2 Mini Extender Range

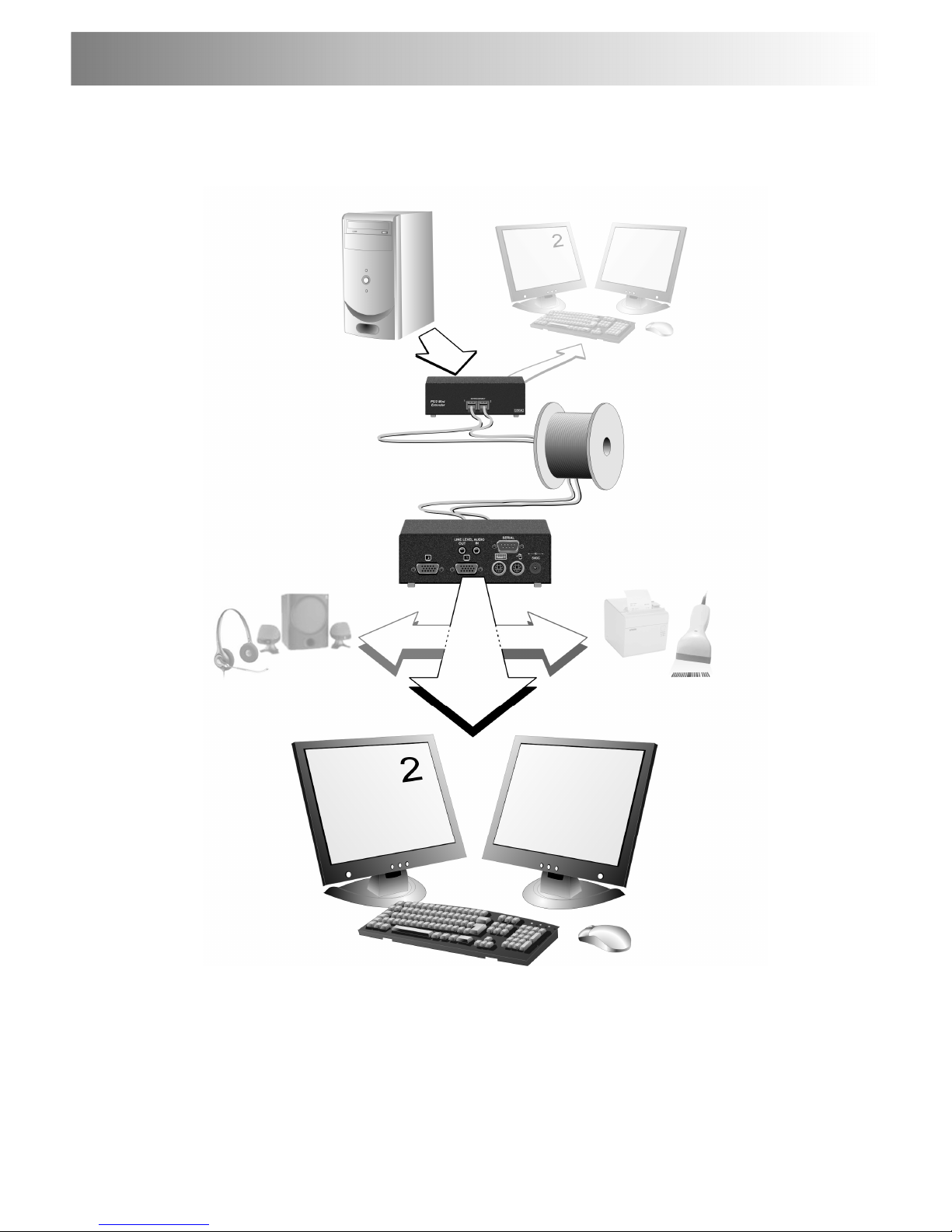

Figure 1 SDMX PS/2 Mini KVM extender system
Local Access
SDMX/D2, SDMX/DA2 only.
Audio Transmission
SDMX/SA2, SDMX/DA2
KVM extension over CATx
cables u
p
to 50m.
LOCAL unit
REMOTE unit
Serial Transmission
SDMX/SA2, SDMX/DA2

Overview 9
Features
Members of the SDMX PS/2 Mini Extender Series offer the following features:
•Supports high video resolution for use with TFT displays:
1600x1200@75Hz up to 50m
•All control and video tuning made through attached keyboard.
•Settings stored in EEPROM memory.
•Local and Remote units are flash-upgradeable.
•Emulated DDC (Display Data Channel) on both video channels
Extender Local unit emulates a universal monitor; ensures compatibility
with multi-head graphics cards
•Transparent DDC
Remote unit reads DDC table from attached monitor, transfers and stores
data in Local unit to support non-standard displays.
•Dual-Head local access
(SDMX/D2 and SDMX/DA2 only)
•Private Mode on dual-access models allows users to lock out other console.
Monitor on locked console can be enabled or blanked.
(SDMX/D2 and SDMX/DA2 only)
•Status indicator LEDs on each RJ45 port.
•Small footprint chassis.
•Rack mount option: plate available to mount three units across 1U.
•External PSU Overvoltage protection
Extender unit will not operate if an incorrect PSU is connected.
•Surge-protected CATx interfaces
•5V universal PSU (supplied for Remote unit)
•Optional 5V PSU connector on Local unit. Local units are normally
powered directly by the connected PC (or switch)
•Transparent serial port enables any serial device to be extended (up to
19.2K Baud). The serial port may be used to extend one device (requiring
handshaking lines), or up to three simple serial devices (no handshaking).
SDMX/SA2, SDMX/DA2 and SDMX/RA2 only
•Bi-directional stereo audio (16-bit digitized) support on certain models
enables high-quality, low-noise audio extension.
SDMX/SA2, SDMX/DA2 and SDMX/RA2 only

10 SDMX PS/2 Mini Extender Range
Product Range
There are six products in the range:
Dual Video Channel Kit (Standard)
SDMX/S2 Dual Video Channels, PS/2 KB & Mouse
Local Unit (Single Access) + Remote Unit
SDMX/D2 Dual Video Channels, PS/2 KB & Mouse
Local Unit (Dual Access) + Remote Unit
Dual Video Channel Kit (Audio)
SDMX/SA2 Dual Video Channels, PS/2 KB & Mouse,
Serial, Stereo Audio
Local Unit (Single Access) + Remote Unit
SDMX/DA2 Dual Video Channels, PS/2 KB & Mouse,
Serial, Stereo Audio
Local Unit (Dual Access)+ Remote Unit
Dual Video Remote Units
SDMX/R2 Dual Video Channels, PS/2 KB & Mouse
SDMX/RA2 Dual Video Channels, PS/2 KB & Mouse,
Serial, Stereo Audio
Compatibility
Interface Compatibility
•PS/2 Keyboard: Compatible with all standard keyboards. Certain
keyboards with enhanced features may also be supported with custom
firmware.
•PS/2 Mouse: Compatible with all standard 2-button, 3-button and wheel
mice. To connect to a PC that does not have a PS/2 mouse port, an active
serial converter is required - Model: Mdapt (PS/2).
•Audio: Input and output are line-level. Amplified speakers are required. A
microphone may be directly connected to the Remote unit (optional pre-
amplification).
•Serial: Transparent up to 19.2K Baud (38.4K operation may be possible
with some devices). The following serial signals are extended: TX, RX,
RTS, CTS, DTR, DSR. In rare cases, a wiring adaptor may be required to
transfer RI and DCD.
•Video: VGA to UXGA. Separate sync, composite sync, or sync-on-green.
Maximum resolution and refresh rates depend on cable length and cable
type (see Appendix G: Specifications, page 43).

Overview 11
Extender Compatibility
The SDMX range of PS/2 Mini extender products offer enhanced performance
while maintaining complete compatibility with existing SDLink standalone and
rack mount CAT5 extenders.
You can use SDLink and SDMX products belonging the same family in any
combination. However, it is not possible to mix Standard and Audio products
within a system except for video only applications. SDMX units are not
currently compatible with SDLink SUN or SDLink Serial (no audio) products.
Standard Family Audio Family
SDMX/S2, SDMX/D2, SDMX/R2 SDMX/SA2, SDMX/DA2, SDMX/RA2
SDLink1 SDLink2 SDLink1/AU SDLink2/AU
SDLink/LC SDLink/DM SDLink/AM SDLink/RA
SDLink2/SW SDLink/RLC SDLink/MAR SDRK/6A
SDLink/R SDLink/RSW SDRK/6AD SDRK/6RA
SDRK/6 SDRK/6D SDBX/SA1 SDBX/SA2
SDRK/12 SDRK/6R SDBX/RA1 SDBX/RA2
SDBX/S1 SDBX/S2 SDBX/RA4 SDBX/DA1
SDBX/R1 SDBX/R2 SDBX/SA2-1 SDMX/DA2
SDBX/R4 SDBX/D1
SDBX/S2-1 SDBX/D2

12 SDMX PS/2 Mini Extender Range
How to Use This Guide
This guide describes the installation and configuration of the SDMX PS/2 Mini
range of KVM extenders. Although the connection and operation of the system
is relatively straightforward, you should consider the following before getting
started:
Connection & Compatibility
If you have purchased an SDMX Extender kit, this will contain all the cables
required to connect the Local unit to your PC or KVM switch. The Remote
console (keyboard, monitor and mouse) and any audio and serial equipment
connect directly to the Remote unit.
If you have purchased an SDMX Remote unit, ensure that it is compatible with
your Local unit (see Compatibility, page 10).
For information about connection and installation, see Installation, page 13.
Interconnection Cable
You will need CATx (any category 5, 5e, 6 or Level 7) cable, terminated with
RJ45 plugs, to connect the Local and Remote units (see Interconnection Cable
Requirements, page 14.
Adjusting Video
Video signals become distorted when transmitted over CATx cables. To get the
best from your extender system, it is essential that you adjust the SDMX PS/2
Mini Remote unit to optimize the video image quality.
•For experienced users, there is a Quick Setup section at the start of this
guide (see page 5).
•For the full procedure, see Adjusting Video, page 23.

Installation 13
3. Installation
For first-time users we recommend that you carry out a test placement, confined
to a single room, before commencing full installation. This will allow you to
identify and solve any cabling problems, and experiment with the KVM
extender system more conveniently.
Package Contents
You should receive the following items in your extender package. If anything is
missing, please refer to Appendix F: Obtaining Technical Support, page 42.
•Extender Remote unit.
•5V DC universal power supply for Remote unit.
•Extender Local unit.
•KVM CPU combination cable (1.0m) with PS/2 (6-pin MiniDIN male)
keyboard and mouse connectors, VGA video (HD15 male) connector, and
25-way (DB25 male) extender connector.
•CPU video cable (1.0m) with VGA video (HD15 male/female) connectors.
•Serial cable (1.0m, DB9 male/female connectors, straight-through
connections).
Models: SDMX/SA2 and SDMX/DA2 only.
•Dual audio cable (1.0m, 3.5mm stereo plugs).
Models: SDMX/SA2 and SDMX/DA2 only.
•IEC AC Power Cord.
•Quick Start Guide.

14 SDMX PS/2 Mini Extender Range
Interconnection Cable Requirements
To connect the Local and Remote units you will need CATx (any category 5,
5e, 6 or Level 7) cable terminated with RJ45 plugs.
Interconnect cables must be solid-core type. Stranded patch cable will give poor
results over longer distances. The pairing of the cable and pinning of its
connectors should normally be in accordance with EIA-568B (see page 39).
One CATx cable is required for each video channel.
•The Primary interconnect cable connects INTERCONNECT Port 1 on the
Local and Remote units. This carries the main video channel and all data
(plus audio/serial).
•The Secondary CATx cable (connected to INTERCONNECT Port 2)
carries the second video channel.
In order to send Keyboard, Mouse, Audio and Serial signals to the PC, the
Primary interconnect must be connected.
The Primary interconnect does not have to be connected in order to use the keyboard
attached to the Remote unit for set-up. However, if the Primary interconnect is
disconnected, the keyboard cannot be used for configuration for 15 seconds after
disconnection (to maintain data integrity).
With some cables, video performance may be improved by using a cross-over patch
cable at each end or an alternative RJ45 pin-out (see Appendix D: Cable Pinning,
page 39).

Installation 15
Remote Unit Installation
To install a Remote unit:
1. Switch off all devices.
2. Connect your keyboard, monitor(s) and mouse to the Remote unit as shown
in Figure 2.
These ports may also be attached to the CPU side of a KVM switch in order
to have a Remote CPU. However, if you are attempting to use the extender
between cascaded KVM switches this may not work. Please contact Technical
Support to discuss your application.
3. If appropriate, connect audio equipment and serial devices. Connect the
audio cables as follows:
Remote Unit Audio Device
Audio Out Speakers
Audio In (MIC) Microphone
See page 41 for further information.
4. Connect the Primary CATx cable to the INTERCONNECT (1) socket on
the front of the Remote unit. If required, connect the Secondary CATx cable
to the INTERCONNECT (2) socket on the front of the Remote unit (see
Figure 3).
5. Connect the 5V power supply to power the unit.
Only use the power supply originally supplied with this
equipment or a manufacturer approved replacement.

16 SDMX PS/2 Mini Extender Range

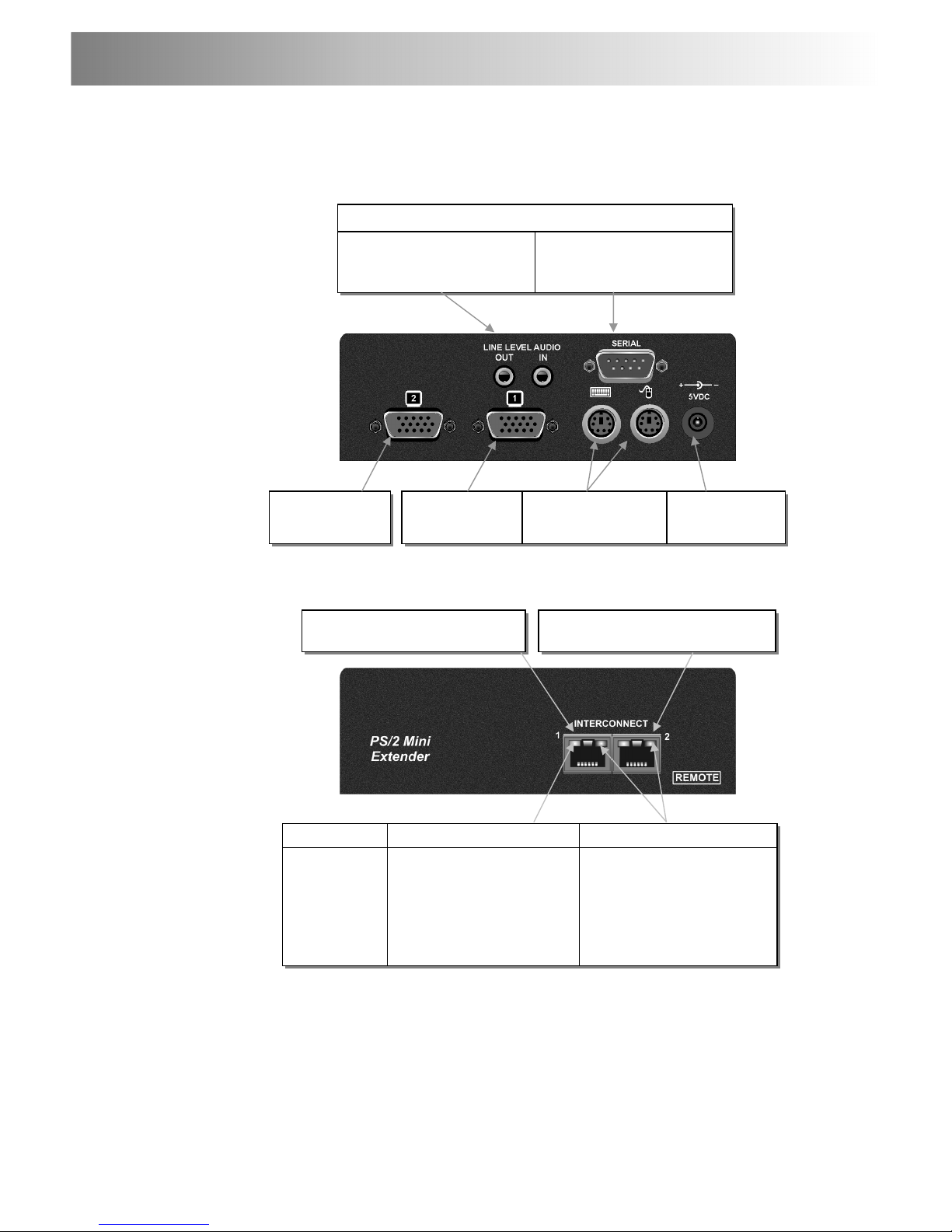

Figure 2 Remote Unit – rear view
Status Yellow LED* Green LED
OFF
ON
FLASHING
No data transfer with Local
unit
Remote Unit in Command
Mode
Data transfer with Local unit
Remote Unit not powered.
Remote Unit powered
* Yellow LED active on primary INTERCONNECT socket (Channel 1) only
Figure 3 Remote Unit - front view
Connect to speakers and
microphone.
Connect to serial device,
such as a touch screen.
SDMX/SA2, SDMX/DA2 and SDMX/RA2 only
INTERCONNECT 1 – carries
p
rimar
y
video and data si
g
nals.
INTERCONNECT 2 – carries
secondar
y
video si
g
nals.
Connect to
Primary monitor.
Connect PS/2
keyboard and mouse.
Connect to
second monitor.
Connect supplied
5V PSU.

Installation 17
Local Unit Installation
To install a Local unit:
1. It is recommended that the PC and other devices are switched off before
connection.
2. Using the supplied CPU KVM cable(s), connect the keyboard, monitor(s)
and mouse connectors on the computer (or KVM switch) to the
corresponding connectors on the Local unit as shown in Figure 4.
Ensure that you attach the keyboard and mouse connectors to the correct
ports. The keyboard connector is purple; the mouse connector is green.
If your PC does not have a PS/2 mouse port, an active serial converter will
be required - Model No: Mdapt (PS/2).
3. If you have a dual access system, connect the keyboard, mouse and monitor
for the Local console to the appropriate ports on the Local unit. The ports
may also be used to feed into a KVM switch.
4. If you have an audio and serial enabled system, connect the audio cables
between the computer and Local unit as follows:
Computer Local Unit
Audio Out (green) Audio In
Audio In/Microphone (pink/blue) Audio Out
5. If appropriate, connect the supplied serial cable between the serial port on
the computer and the Local unit.
6. Connect the CATx cables from the Remote unit to the corresponding
INTERCONNECT ports (1&2) on the Local unit.
7. Power up the PC.
The Local unit normally takes power through the PCs keyboard port. In video
only applications, this connection is not used and so an external PSU is
required. Please contact Technical Support to obtain a suitable power supply.

18 SDMX PS/2 Mini Extender Range
Figure 4 Local Unit - rear view
Status Yellow LED Green LED*
OFF
ON
FLASHING
No data transfer with Remote
unit
Local Unit in Command Mode
Data transfer with Remote unit
Local Unit not powered.
Local Unit powered
Figure 5 Local Unit – front view
INTERCONNECT 1 – carries primary
video and data signals. Connect to
CATx cable from INTERCONNECT 1
port on Remote unit.
INTERCONNECT 2 – carries
secondary video signals. Connect to
CATx cable from INTERCONNECT 2
port on Remote unit.
Connect to
Local
monitors.
Connect to audio
ports on computer.
Connect to
serial port on
computer.
Audio/Serial Connections
(SDMX/SA2 and SDMX/DA2 only)
Input Connections - All models
Connect to computer’s
secondary video
output.
Connect to computer’s PS/2
keyboard and mouse ports
and primary video output.
Connect to Local
PS/2 keyboard and
mouse.
Optional connection
for 5V PSU (not
supplied)
Local Console Connections
(SDMX/D2 and SDMX/DA2 only)
