Malmbergs EVC04-AC22 Series User manual

ELECTRIC VEHICLE CHARGER
EVC04 Series
Installation Guideline

English - PB English - 1© 2021 Malmbergs - All rights reservedIG v16.3.0 2021
Contents
SAFETY INFORMATION .............................................................................................................................................3
SAFETY WARNINGS...................................................................................................................................................3
GROUND CONNECTION WARNINGS..........................................................................................................................4
POWER CABLES, PLUGS and CHARGING CABLE WARNINGS.................................................................................4
WALL MOUNTING WARNINGS...................................................................................................................................4
DESCRIPTION..............................................................................................................................................................5
1 - MODEL DESCRIPTION.........................................................................................................................................5
GENERAL INFORMATION............................................................................................................................................7

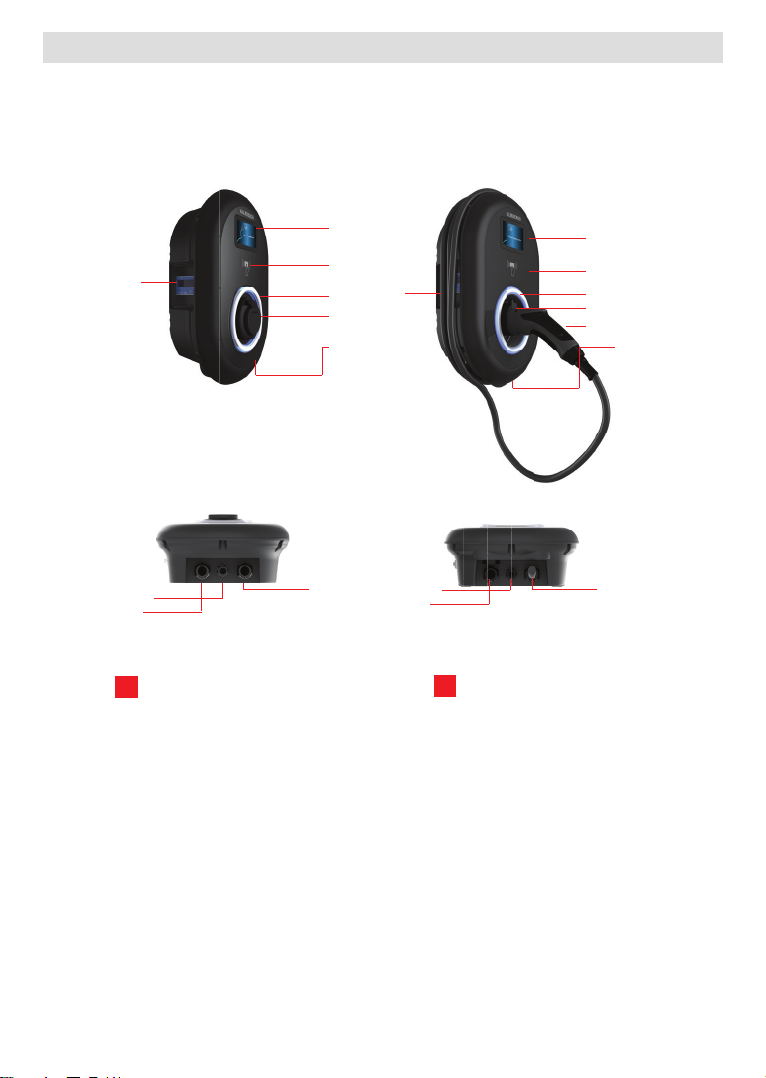

1 - INTRODUCTION OF THE PRODUCT COMPONENTS............................................................................................7
2 - DIMENSIONAL DRAWINGS...................................................................................................................................8

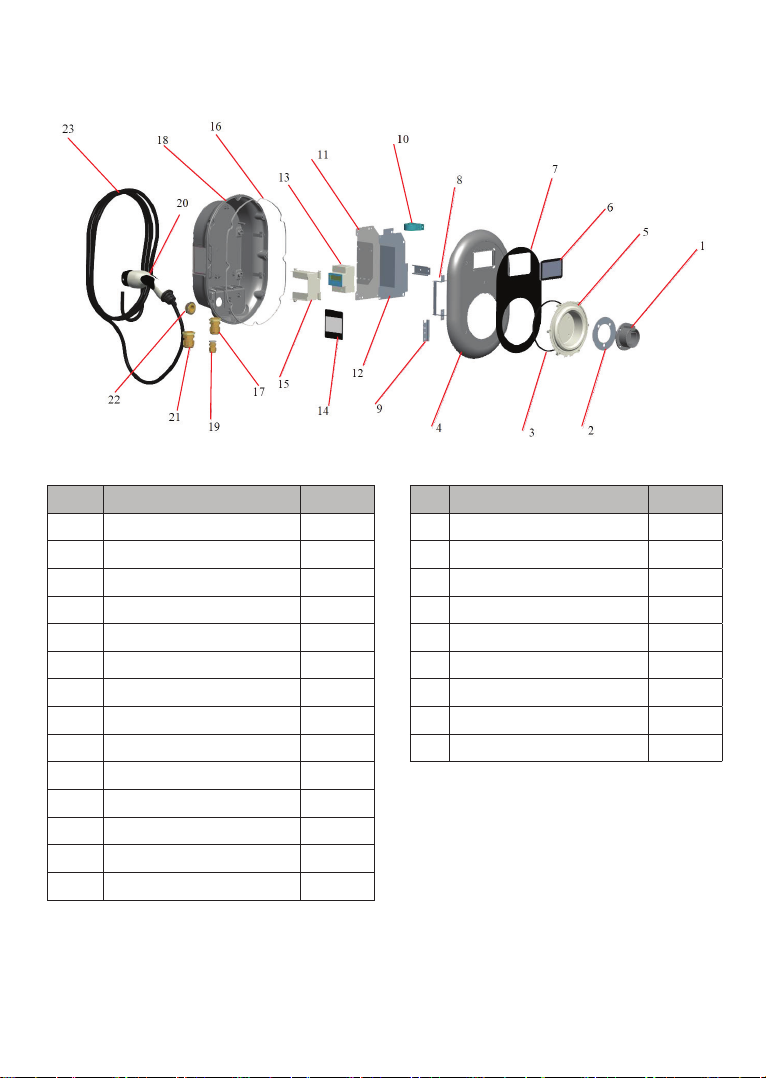

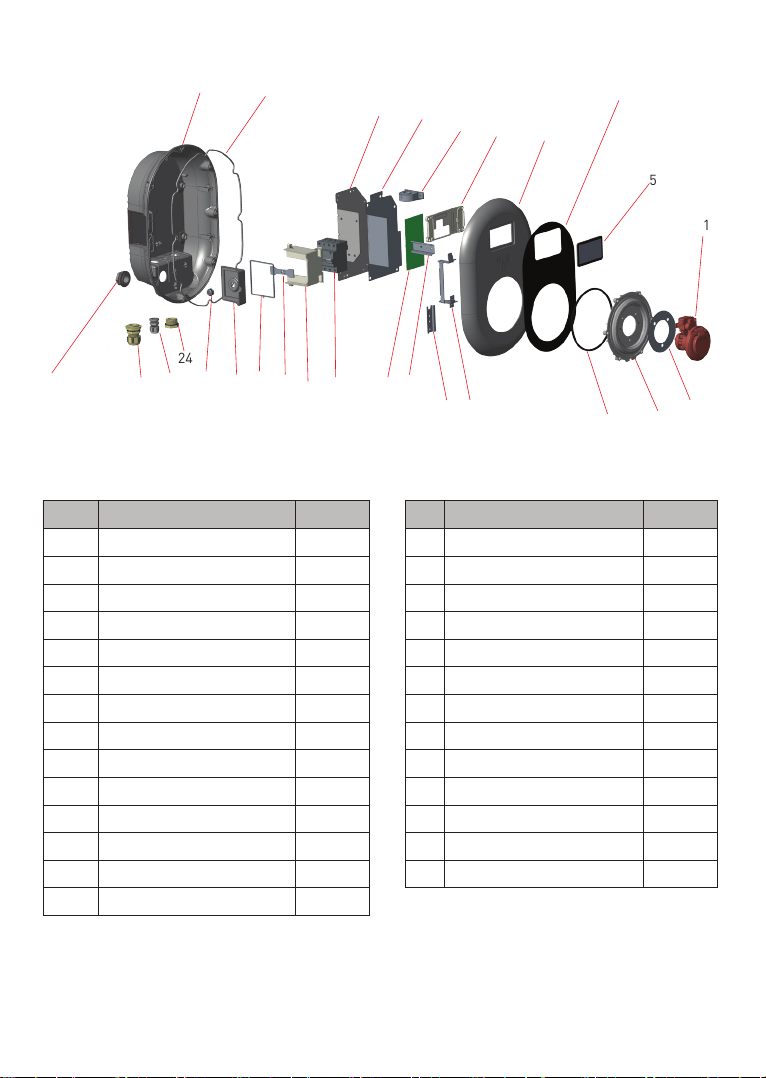

3 - ELECTRIC VEHICLE CHARGING STATION EXPLODED PICTURE.........................................................................9
3.1 - RCD MODELS.....................................................................................................................................................9
3.1.1 - TETHERED CABLE MODELS...........................................................................................................................9
3.1.2 - SOCKET EQUIPPED MODELS......................................................................................................................10
3.2 - MID MODELS...................................................................................................................................................11
3.2.1 - TETHERED CABLE MODELS........................................................................................................................11
3.2.2 - SOCKET EQUIPPED MODELS........................................................................................................................12

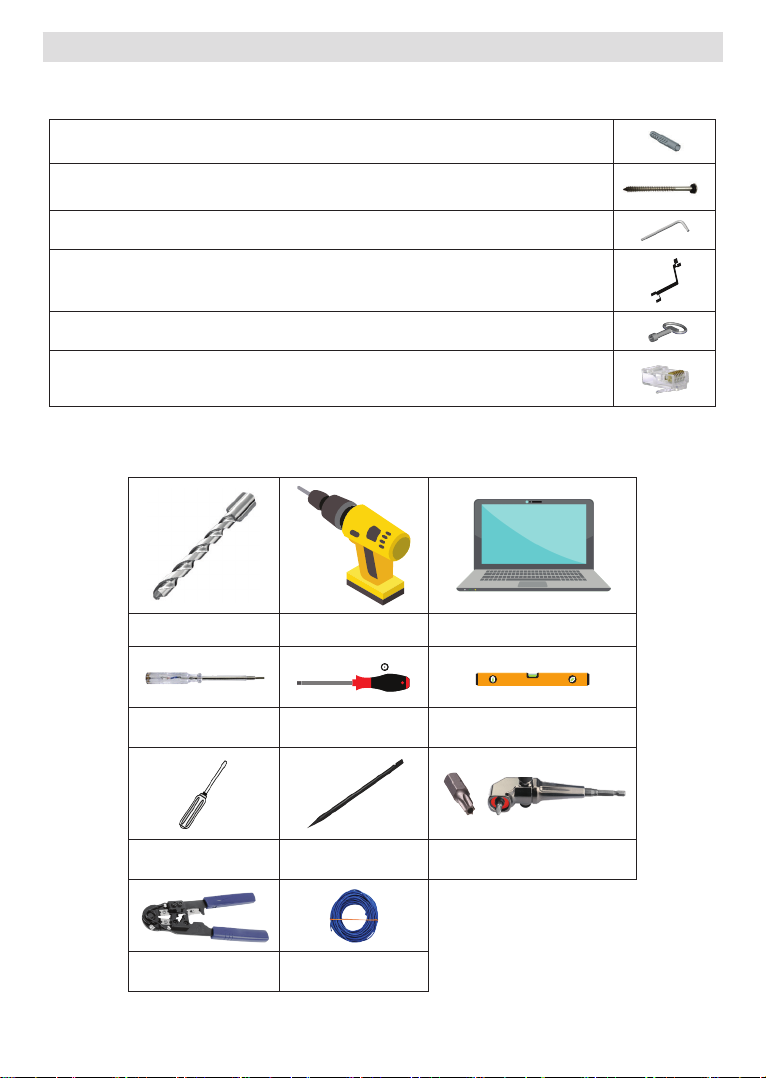

REQUIRED EQUIPMENT, TOOLS and ACCESSORIES................................................................................................13
1 - SUPPLIED INSTALLATION EQUIPMENT and ACCESSORIES.............................................................................13
2 - RECOMMENDED EQUIPMENTS AND TOOLS....................................................................................................13
TECHNICAL SPECIFICATIONS..................................................................................................................................14
CONNECTIVITY...........................................................................................................................................................15
OTHER FEATURES (Connected Models)..................................................................................................................15
AUTHORIZATION......................................................................................................................................................15
MECHANIC SPECIFICATIONS....................................................................................................................................15
ENVIRONMENTAL TECHNICAL SPECIFICATIONS....................................................................................................15
INSTALLING CHARGE STATION...............................................................................................................................16

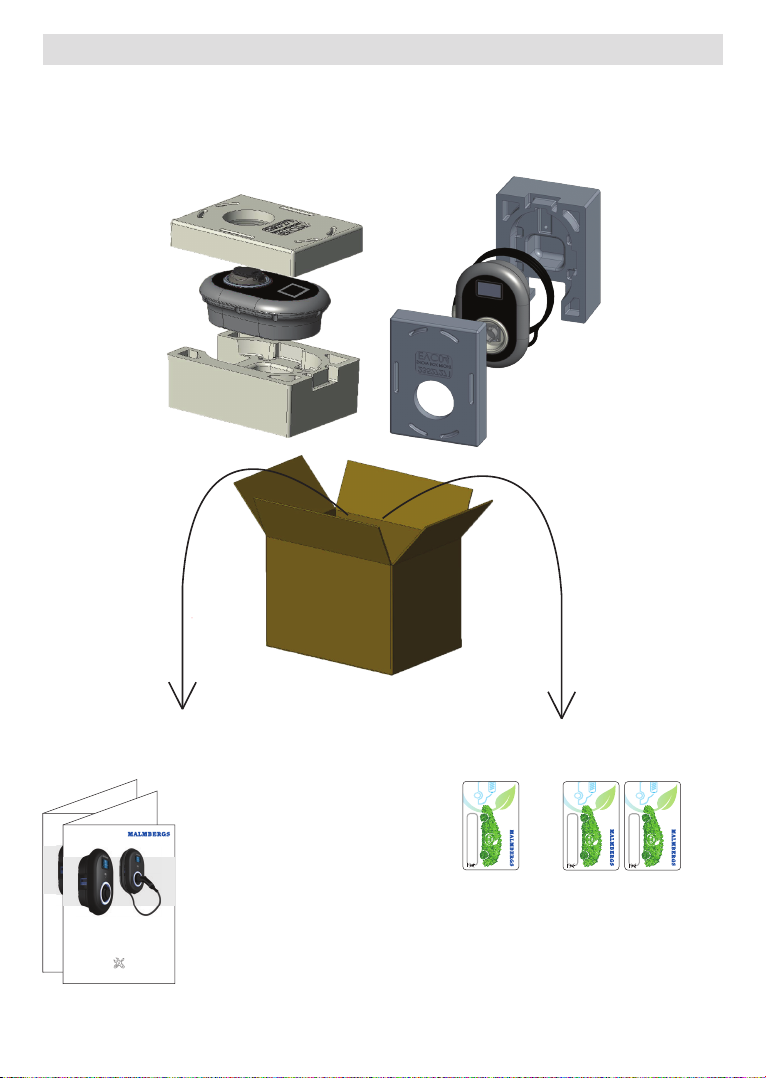

1 - BOX CONTENTS FOR CHARGING STATION WITH SOCKET AND CABLE............................................................16
2 - PRODUCT INSTALLATION STEPS.........................................................................................................................17
2.1 - OPENING THE COVER OF THE CHARGING STATION.....................................................................................17
2.2 - WALL MOUNT INSTALLATION........................................................................................................................18
2.3 - SINGLE PHASE CHARGING STATION AC MAINS CONNECTION.....................................................................21
2.4 - THREE PHASE CHARGING STATION AC MAINS CONNECTION......................................................................22
2.5 - ADJUSTING CURRENT LIMITER.....................................................................................................................23
2.6 - DIP SWITCH SETTINGS.....................................................................................................................................24
2.6.1 - DATA CABLE CONNECTION..........................................................................................................................25
2.6.2 - EXTERNAL ENABLE INPUT FUNCTIONALITY..............................................................................................26
2.6.3 - LOCKED CABLE FUNCTION (Model with Socket).........................................................................................28
2.6.4 - POWER OPTIMIZER (REQUIRES OPTIONAL ACCESSORIES)........................................................................29
2.7 - LOAD SHEDDING.............................................................................................................................................32
2.8 - MONITORING OF WELDED RELAY CONTACTS FAILURE.................................................................................33

English - 2© 2021 Malmbergs - All rights reservedIG v16.3.0 2021
2.9 - FACTORY RESET...............................................................................................................................................34
2.10 - OPEN RCD COVER...........................................................................................................................................34
2.11 - RESETTING LOCAL RFID CARD LIST AND REGISTERING NEW MASTER RFID CARD IN STANDALONE USAGE
MODE..........................................................................................................................................................................34
2.12 - SETTING ETHERNET PORT OF CHARGER TO STATIC IP IN STANDALONE USAGE MODE...........................35
2.13 - WEBCONFIG UI ENABLE / DISABLE............................................................................................................36
2.14 - ETHERNET DAISY-CHAIN CONNECTION (Optional) .....................................................................................36
3 - OCPP CONNECTION...........................................................................................................................................37
3.1 - CONNECT OCPP OVER CELLULAR NETWORK...............................................................................................37
3.2 - CONNECT OCPP OVER ETHERNET................................................................................................................38
4 - COMMISSIONING..................................................................................................................................................40
4.1 - CONNECT PC TO THE SAME NETWORK WITH HMI BOARD...........................................................................40
4.2 - OPEN WEB CONFIG UI WITH BROWSER.........................................................................................................41
4.3 - CHANGE PASSWORD FOR LOGIN...................................................................................................................41
4.4 - MAIN PAGE.........................................................................................................................................................42
4.5 -CHANGE GENERAL SETTINGS OF THE DEVICE .............................................................................................43
4.5.1 - Display Language..........................................................................................................................................43
4.5.4 - Display Service Contact Info........................................................................................................................43
4.5.5 - Logo Settings..................................................................................................................................................43
4.6 - INSTALLATION SETTINGS................................................................................................................................45
4.6.1 - Earting system.............................................................................................................................................45
4.6.2 - Current Limiter Settings..............................................................................................................................45
4.6.3 - Unbalanced Load Detection: .......................................................................................................................46
4.6.4 - External Enabled Input: ...............................................................................................................................47
4.6.5 - Lockable Cable.............................................................................................................................................48
4.6.6 - Power Optimizer Total Current Limit:in figure below.................................................................................48
4.7 - CHANGE OCPP SETTINGS OF THE DEVICE....................................................................................................48
4.8 - CHANGE NETWORK INTERFACES SETTINGS OF THE DEVICE.......................................................................49
4.9 - CHANGE STANDALONE MODE SETTINGS OF THE DEVICE............................................................................52
4.10 - CHANGE STANDALONE MODE SETTINGS OF THE DEVICE..........................................................................53
4.11 - MAKING SYSTEM MAINTANENCE OF THE DEVICE......................................................................................55
FIRMWARE UPDATE SCREEN FLOW (With Display Models).................................................................................56

English - 2 English - 3© 2021 Malmbergs - All rights reservedIG v16.3.0 2021
SAFETY INFORMATION
CAUTION
RISK OF ELECTRIC SHOCK:
CAUTION: ELECTRIC VEHICLE CHARGER DEVICE SHALL BE MOUNTED BY A LICENSED OR AN EXPERI-
ENCED ELECTRICIAN AS PER ANY REGIONAL OR NATIONAL ELECTRIC REGULATIONS AND STANDARDS
IN EFFECT.
CAUTION
AC grid connection and load planning of the electric vehicle charging device
shall be reviewed and approved by authorities as specified by the regional
or national electric regulations and standards in effect. For multiple electric
vehicle charger installations the load plan shall be established accordingly. The manufacturer shall
not be held liable directly or indirectly for any reason whatsoever in the event of damages and risks
that are borne of errors due to AC grid supply connection or load planning.
IMPORTANT - Please read these instructions fully before installing or operating
SAFETY WARNINGS
• Keep this manual in a safe place. These safety and operating instructions must be kept in a
safe place for future reference.
• Check that the voltage marked on the rating label and do not use charging station without
appropriate mains voltage.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is
damaged in any way - switch off the mains supply circuit breakers (MCB and RCCB). Consult
your local dealer.
• The ambient temperature range should be between –35 °C and +55 °C (–25°C and +50 °C for
RCCB equipped models: EVC04-AC***A-*) without direct sunlight and at a relative humidity
of between 5 % and 95 %. Use the charging station only within these specified operating
conditions.
• The device location should be selected to avoid excessive heating of the charging station. High
operating temperature caused by direct sunlight or heating sources, may cause reduction of
charging current or temporary interruption of charging process.
• The charging station is intended for outdoor and indoor use. It can also be used in public places.
• To reduce the risk of fire, electric shock or product damage, do not expose this unit to severe
rain, snow, electrical storm or other severe weathers. Moreover, the charging station shall
not be exposed to spilled or splashed liquids.
• Do not touch end terminals, electric vehicle connector and other hazardous live parts of the
charging station with sharp metallic objects.
• Avoid exposure to heat sources and place the unit away from flammable, explosive, harsh, or
combustible materials, chemicals, or vapors.
• Risk of Explosion. This equipment has internal arcing or sparking parts which should not be
exposed to flammable vapors. It should not be located in a recessed area or below floor level.
• This device is intended only for charging vehicles not requiring ventilation during charging.

English - 4© 2021 Malmbergs - All rights reservedIG v16.3.0 2021
• To prevent risk of explosion and electric shock, ensure that the specified Circuit Breaker and
RCD are connected to building grid.
• The lowest part of the socket-outlet shall be located at a height between 0,5 m and 1,5 m
above ground level.
• Adaptors or conversion adapters are not allowed to be used. Cable extension sets are not
allowed to be used.
WARNING: Never let people (including children) with reduced physical, sensory or men-
tal capabilities or lack of experience and or knowledge use electrical devices unsupervised.
CAUTION: This vehicle charger unit is intended only for charging electric vehicles not
requiring ventilation during charging.
GROUND CONNECTION WARNINGS
• Charging station must be connected to a centrally grounded system. The ground conductor
entering the charging station must be connected to the equipment grounding lug inside the
charger. This should be run with circuit conductors and connected to the equipment grounding
bar or lead on the charging station. Connections to the charging station are the responsibility
of the installer and purchaser.
• To reduce the risk of electrical shock, connect only to properly grounded outlets.
• WARNING : Make sure that during installing and using, the charging station is constantly
and properly grounded.
POWER CABLES, PLUGS and CHARGING CABLE WARNINGS
• Be sure that charging cable is Type 2 socket compatible on charging station side.
• A damaged charging cable can cause fire or give you an electric shock. Do not use this product
if the flexible Charging cable or vehicle cable is frayed, has broken insulation, or shows any
other signs of damage.
• Ensure that the charge cable is well positioned thus; it will not be stepped on, tripped over,
or subjected to damage or stress.
• Do not forcefully pull the charge cable or damage it with sharp objects.
• Never touch the power cable/plug or vehicle cable with wet hands as this could cause a short
circuit or electric shock.
• To avoid a risk of fire or electric shock, do not use this device with an extension cable. If the
mains cable or vehicle cable is damaged it must be replaced by the manufacturer, its service
agent, or similarly qualified persons in order to avoid a hazard.
WALL MOUNTING WARNINGS
• Read the instructions before mounting your charging station on the wall.
• Do not install the charging station on a ceiling or inclined wall.
• Use the specified wall mounting screws and other accessories.
• This unit is rated for indoor or outdoor installation. If this unit is mounted outdoors, the
hardware for connecting the conduits to the unit must be rated for outdoor installation and
be installed properly to maintain the proper IP rating on the unit.

English - 4 English - 5© 2021 Malmbergs - All rights reservedIG v16.3.0 2021
DESCRIPTION
1 - MODEL DESCRIPTION
Model Name
MODEL DESCRIPTION: EVC04-AC**-*
EVC04 : Electric Vehicle AC Charger (Mechanical Cabinet 04)
1st Asterisk (*) : Rated Power
7 : 7.4 kW (1Phase Supply Equipment)
11 : 11 kW (3Phase Supply Equipment)
22 : 22 kW (3Phase Supply Equipment)
2nd Asterisk (*) can include combinations of the following communication
module options. RFID reader is standard equipment for all of the model
variants. “S” option must be included for selecting combinations of W and L:
Blank : No connectivity module except RFID reader
S : Smart Board with Ethernet Port
W : Wi-Fi module or WiFi & Bluetooth module
L : LTE / 3G / 2G module
P : ISO 15118 PLC module
3rd Asterisk (*) : Can be one of the following:
Blank : No Display
D : 4.3” TFT color display
4th Asterisk (*) can include combinations of the following:
Blank : No RCCB
A : Charging unit with Type-A RCCB
MID: Charging unit with MID Meter
5th Asterisk (*) can be one of the following:
Blank : Case-B Connection with normal socket
T2S : Case-B Connection with shuttered socket
T2P : Case-C Connection with Type-2 plug
T1P : Case-C Connection with Type-1 plug
Cabinet EVC04
Table-1

English - 6© 2021 Malmbergs - All rights reservedIG v16.3.0 2021
2 - MODEL REFERENCES
Model reference table does not include all model variants of EVC04.
Single
phase
Three
phase
Smart
LTE
WiFi
Display
MID Meter
Type 2
socket
Shuttered
type 2
socket
output
RCCB
Type-A
DC 6mA
RCD
Type-2
Attached
Cable
Type-1
Attached
Cable
EVC04-AC7SW x x x x x
EVC04-AC7SWA x x x x x x
EVC04-AC7SLA-T2P x x x x x x
EVC04-AC7SWDA-T2S x x x x x x x
EVC04-AC7SLWDA-T1P x x x x x x x x
EVC04-AC11SLD x x x x x x
EVC04-AC11SWDA x x x x x x x
EVC04-AC11SLWDA-T2P x x x x x x x x
EVC04-AC11SLWDA-T2S x x x x x x x x
EVC04-AC22SLDMID x x x x x x x
EVC04-AC22SWDA x x x x x x x
EVC04-AC7SWD-T2P (2E) x x x x x x x
EVC04-AC22SLWDA-T2P x x x x x x x x
EVC04-AC22SLWDA-T2S x x x x x x x x
EVC04-AC22SWDMID(CT)-
T2P x x x x x x
Table-2

English - 6 English - 7© 2021 Malmbergs - All rights reservedIG v16.3.0 2021
GENERAL INFORMATION
1 - INTRODUCTION OF THE PRODUCT COMPONENTS
Socket Equipped Models Tethered Cable Models
3
2
1
5
6
9
44
8
5
3
2
1
6
7
10
9 8
7
Figure-1 Figure-2
en Socket Models
1- Information Display
2- RFID Card Reader
3- Status indicator LED
4- MID Meter Display
5- Socket Outlet
6- Product Label
7- Charging station
communication cable gland nut
8- Charging station
communication cable gland nut
9- Charging station supply inlet
gland nut
en Tethered Cable Models
1- Information Display
2- RFID Card Reader
3- Status indicator LED
4- MID Meter Display
5- Dummy Socket
6- Charging Plug
7- Product Label
8- Charging cable
9- Charging station
communication cable gland nut
10- Charging station supply inlet
gland nut

English - 8© 2021 Malmbergs - All rights reservedIG v16.3.0 2021
2 - DIMENSIONAL DRAWINGS
315.0 135.0
460.0

English - 8 English - 9© 2021 Malmbergs - All rights reservedIG v16.3.0 2021
3 - ELECTRIC VEHICLE CHARGING STATION EXPLODED PICTURE
3.1 RCD MODELS
3.1.1 - TETHERED CABLE MODELS
27
1
5
6
7
9
11
13
15
21
23
28
26 24
24
25 22 20 19 18 17 16 14 12
10 8
43
2
Figure-3
NO PART DESCRIPTION NUMBER NO PART DESCRIPTION NUMBER
1 Socket 1 15 Board Mount Metal Plate 1
2 Cosmetic Frame Label 1 16 RCCB Component 1
3 Status Information LED 1 17 RCCB Housing 1
4 Sealing Ring 1 18 RCCB Lock Bolt 1
5 Display 1 19 Sealing Ring 1
6 Cosmetic Label 1 20 RCCB Side Cover 1
7 Front Cover 1 21 Sealing Ring 1
8 Hinge 1 22 RCCB Lock Cylinder 1
9 Display Housing 1 23 Rear Cover 2
10 Real Terminal Connection 1 24 Cable Bush M32x1.5 1
11 DC Sensor 1 25 Cable Bush M20x1.5 1
12 Rail Connection 1 26 Plastic Blind Flange 1
13 Card Isolation Plate 1 27 Charging Plug 1
14 Card Isolation Plate 2 28 Charging Cable 1

English - 10© 2021 Malmbergs - All rights reservedIG v16.3.0 2021
3.1.2 - SOCKET EQUIPPED MODELS
1
5
6
7
9
11
13
15
21
23
27 26
24
25 22 20 19 18 17 16 14 12
10 8
43
2
Figure-4
NO PART DESCRIPTION NUMBER NO PART DESCRIPTION NUMBER
1 Socket 1 15 Board Mount Metal Plate 1
2 Cosmetic Frame Label 1 16 RCCB Component 1
3 Status Information LED 1 17 RCCB Housing 1
4 Sealing Ring 1 18 RCCB Lock Bolt 1
5 Display 1 19 Sealing Ring 1
6 Cosmetic Label 1 20 RCCB Side Cover 1
7 Front Cover 1 21 Sealing Ring 1
8 Hinge 1 22 RCCB Lock Cylinder 1
9 Display Housing 1 23 Rear Cover 2
10 Real Terminal Connection 1 24 Cable Bush M20x1.5 1
11 DC Sensor 1 25 Plastic Blind Flange 1
12 Rail Connection 1 26 Cable Bush M32x1.5 1
13 Card Isolation Plate 1 27 Plastic Blind Flange 1
14 Card Isolation Plate 2

English - 10 English - 11© 2021 Malmbergs - All rights reservedIG v16.3.0 2021
3.2 MID MODELS
3.2.1 - TETHERED CABLE MODELS
Figure-5
NO PART DESCRIPTION NUMBER NO PART DESCRIPTION NUMBER
1 Socket 1 15 RCCB Housing 1
2 Cosmetic Frame Label 1 16 Sealing Ring 1
3 Sealing Ring 1 17 Cable Bush M32x1.5 1
4 Front Cover 1 18 Rear Cover 1
5 Status Informatıon LED 1 19 Cable Bush M20x1.5 1
6 Display 1 20 Charging Plug 1
7 Cosmetic Label 1 21 Cable Bush M32x1.5 1
8 Hinge 1 22 Plastic Blind Flange 1
9 Real Terminal Connection 1 23 Charging Cable 1
10 DC Sensor 1
11 Card Isolation Plate 1
12 Card Isolation Plate 1
13 MD Component 1
14 MID Glass 1

English - 12© 2021 Malmbergs - All rights reservedIG v16.3.0 2021
3.2.2 - SOCKET EQUIPPED MODELS
Figure-6
NO PART DESCRIPTION NUMBER NO PART DESCRIPTION NUMBER
1 Socket 1 15 Rccb Housing 1
2 Cosmetic Informatıon LED 1 16 Cable Bush M32X1.5 1
3 Display 1 17 Sealing Ring 1
4 Csmetic Label 1 18 Cable Bush M20X1.5 1
5 Cosmetic Frame Label 1 19 Cable Bush M32X1.5 1
6 Sealing Ring 1 20 Rear Cover 1
7 Front Cover 1 21 Plastic Blind Flange 1
8 Real Terminal Connection 1
9 Hinge 1
10 DC Sensor 1
11 Card İsolatıon Plate 1
12 Card İsolatıon Plate 1
13 MID Glass 1
14 MID Component 1

English - 12 English - 13© 2021 Malmbergs - All rights reservedIG v16.3.0 2021
REQUIRED EQUIPMENT, TOOLS and ACCESSORIES
1 - SUPPLIED INSTALLATION EQUIPMENT and ACCESSORIES
Dowels (M8x50 Plastic Dowels)
Torx T25 Security Screw (M6x75)
Torx T20 Security L-Wrench
Wrench
Triangle Key
RJ45 Male Connector
Table-3
2 - RECOMMENDED EQUIPMENTS AND TOOLS
Drill Bit 8mm Impact Drill PC
T25
Volt Indicator Torx T25 Security
Screwdriver Water Level
Flathead Screwdriver (Tip
width 2.00-2.5 mm) Pointed Spudger Right Angle Screwdriver Adapter / Torx T20 Security Bit
RJ45 Crimping Tool Cat5e or cat6 ethernet
cable
Table-4

English - 14© 2021 Malmbergs - All rights reservedIG v16.3.0 2021
TECHNICAL SPECIFICATIONS
This product is compliant to IEC61851-1 (Ed3.0) standard for Mode 3 use.
Model EVC04-AC22 Series EVC04-AC11 Series
IEC Protection class Class - I Class - I
Vehicle
Interface
Socket Model Socket TYPE 2 (IEC 62196) Socket TYPE 2 (IEC 62196)
Cable Model Cable with TYPE 2 ( IEC 62196)
Female Plug
Cable with TYPE 2 ( IEC 62196)
Female Plug
Voltage and Current Rates 400VAC 50/60 Hz - 3-phase 32A 400VAC 50/60 Hz- 3-phase 16A
AC Maximum Charge Output 22kW 11kW
Idle Power
Consumption 3.5W 3.5W
Required Circuit Breaker on
AC Mains 4P-40A MCB Type-C 4P-20A MCB Type-C
Required Leakage Current Re-
lay on AC Mains (for products
which are not equipped with
RCCB Type A)
4P -40A - 30mA RCCB Type-A 4P -20A - 30mA RCCB Type-A
Required AC Mains Cable 5x 6 mm² (< 50 m)
External Dimensions: Ø 18-25 mm
5x4 mm² (< 50 m)
External Dimensions: Ø 18-25 mm
Model EVC04-AC7 Series
IEC Protection class Class - I
Vehicle
Interface
Socket Model Socket TYPE 2 (IEC 62196)
Cable Model Cable with TYPE 2 ( IEC 62196) Female Plug
Voltage and Current Rates 230VAC 50/60 Hz - 1-phase 32A
AC Maximum Charge Output 7.4kW
Idle Power
Consumption 3.5W
Required Circuit Breaker on
AC Mains 2P-40A MCB Type-C
Required Leakage Current Re-
lay on AC Mains (for products
which are not equipped with
RCCB Type A)
2P -40A - 30mA RCCB Type-A
Required AC Mains Cable 3x 6 mm² (< 50 m)
External Dimensions: Ø 13-18 mm

English - 14 English - 15© 2021 Malmbergs - All rights reservedIG v16.3.0 2021
CONNECTIVITY
Ethernet 10/100 Mbps Ethernet (Standard with Smart Options)
Wi-Fi (Optional) Wi-Fi 802.11 a/b/g/n/ac
Bluetooth (Optional) BT 4.2 / BT5.0
Celullar (Optional) LTE: B1 (2100 MHz), B3 (1800 MHz), B7 (2600 MHz), B8 (900 MHz), B20
(800 MHz), B28A (700 MHz)
WCDMA: B1 (2100 MHz), B8 (900 MHz)
GSM: B3 (1800 MHz), B8 (900 MHz)
OTHER FEATURES (Connected Models)
Diagnostics Diagnostics over OCPP
WebconfigUI
Software Update Remote software update over OCPP
WebconfigUI update
Remote software update with server
AUTHORIZATION
RFID ISO-14443A/B and ISO-15693
MECHANIC SPECIFICATIONS
Material Plastic
Size
Dimensions (Package)
Weight (Product)
Weight with package
AC Mains Cable Dimensions
Cable Inlets
315 mm (Width) x 460 mm (Height) x 135 mm (Depth)
405 mm (Width) x 530 mm (Height) x 325 mm (Depth)
5 kg for socket equipped model, 6,8kg TETHERED CABLE model
7,1 kg for socket equipped model, 8,9kg TETHERED CABLE model
For 22 kW version Ø 18-25 mm
For 11 kW version Ø 18-25 mm
For 7.4 kW version Ø 13-18 mm
AC Mains / Ethernet / Modbus
ENVIRONMENTAL TECHNICAL SPECIFICATIONS
Protection Class Ingress Protection
Impact Protection
IP54
IK10 (Optional display have IK08 protection)
Usage Conditions Temperature
Humidity
Altitude
-35 °C to 55 °C (without direct sunlight)
(–25°C to +50 °C for RCCB equipped models)
5% - 95% (relative humidity, no deviation)
0 - 4,000m

English - 16© 2021 Malmbergs - All rights reservedIG v16.3.0 2021
INSTALLING CHARGE STATION
1 - BOX CONTENTS FOR CHARGING STATION WITH SOCKET AND CABLE
Installation and User Guide
ELECTRIC VEHICLE CHARGER
EVC04 Series
Installation Guideline
Riktlinjer för installation
ELECTRIC VEHICLE CHARGER
EVC04 Series
Installation Guideline
Riktlinjer för installation
1 Master + 2 User RFID Card
MASTER

English - 16 English - 17© 2021 Malmbergs - All rights reservedIG v16.3.0 2021
2 - PRODUCT INSTALLATION STEPS
CAUTION!
• Ensure that ground resistance of the installation less than 100ohms
• Prior to mounting your charging station on the wall, read these instructions.
• Do not mount your charging station to the ceiling or an inclined wall.
• Use the wall mounting screws and other accessories specified.
• This charging station is classified as indoor and outdoor installation compatible. If the device
is installed outside the building, the hardware that will be used to connect the cables to the
charger shall be compatible with outdoor use and the charging station shall be mounted
preserving the IP rate of the charger.
2.1 OPENING THE COVER OF THE CHARGING STATION
CAUTION
RISK OF ELECTRIC SHOCK
Please power off the charging station mains supply
1 2
1- Remove the cover screws with Torx T20 security L-Wrench or
Right Angle Screwdriver Adapter using Torx T20 Security Bit.
2- Open the cover.

English - 18© 2021 Malmbergs - All rights reservedIG v16.3.0 2021
2.2 - WALL MOUNT INSTALLATION
Wall mount installation is common for all charging station models.
1- Open the product front cover following the instructions for cover opening under section 2.1.
2- Center the charging station using the alignment template, and mark the drill bit holes with a
pencil.
3- Drill the wall on the marked points using the impact drill (8mm drill bit).
4- Place the dowels into the holes.
5- Tighten the security scews (M6x75) of the product using Torx T25 Security Screwdriver.
6- Insert the open lead wires into the charging station through the hole on the lower left. Follow
the AC Mains Connection instructions on the next pages, see section 2.3 or 2.4 depending on the
model of the charger. (Single/Three Phase)
7- In case you mount the charging station to conductive metal surface, you can make ground
connection via “right-bottom” screw using Earth extension cable as shown in figure-8.
To make the grounding to the metal surface, you need to disassemble the grounding cable and move
it from position “a” to position “b” as shown in figure-8. To assemble the grounding cable to position
“b”, the plastic rubber and M6x30 screw which are inside the artwork package should be used
and the right-down screw to install the charger to the metal surface should be this M6x30 screw.
8- Tighten the cable glands as shown in the figure. Before close the cover of the charging station,
follow instructions in sections 2.6 and 2.7 if any function related to these sections are used.
NOTE : Also check section 3 commissioning.
9- To close the cover of the charging station, tighten the cover screws that you removed before
with Torx T20 Security L-Wrench or Right Angle Screwdriver Adapter using Torx T20 Security Bit.
10- Mounting the charging station on wall is now finished.
2
1
5
3
4
6
Figure-7
Before next step (7), Please check the instructions for Single Phase or Three
Phase cable connections in sections 2.3 or 2.4.

English - 18 English - 19© 2021 Malmbergs - All rights reservedIG v16.3.0 2021
7
b
a
Figure-8
8
Figure-9
AC Mains
Cable
Data cable
Wrench
Wrench
