FE599 Lever Lock
Installation Instructions
1
Alternate
Faceplate
Important Information
Lock Programming Code
six (6) digits
User Code A
four (4) digits
User Code B
four (4) digits
Web Support: www.part2.schlage.com
Customer Service: [phone]

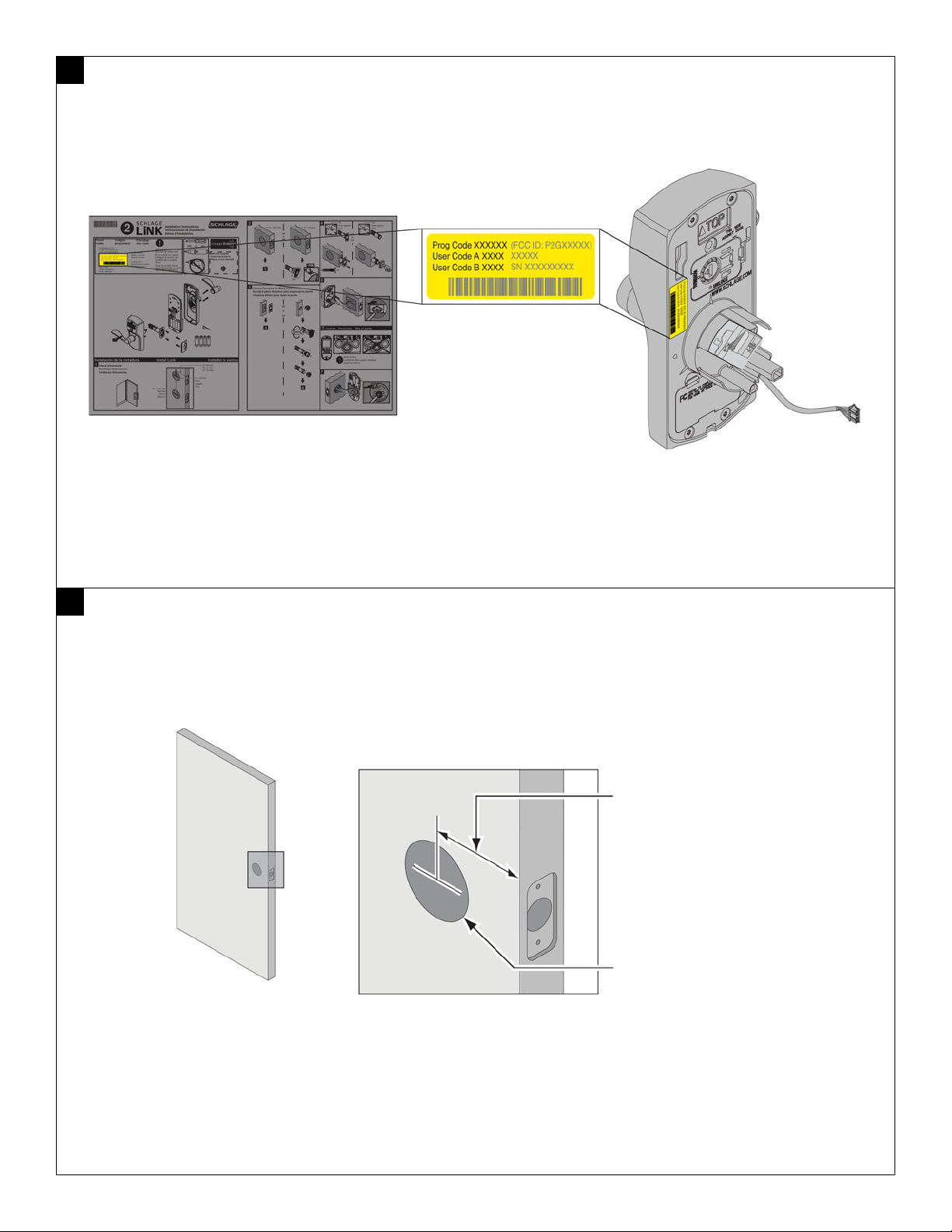

1Locate Programming Code and Preset User Codes
The programming code and the preset user codes are printed on the yellow stickers located on the back of the
keypad and on the installation sheet that came in the box. Write these codes in the space provided on the first page.
2³⁄₈” (60 mm)
OR
2³⁄₄” (60 mm)
2¹⁄₈” (53 mm)
Hole
2Check Door Dimensions
If your door does not match the dimensions shown, go to www.part2.schlage.com for instructions on how to prepare
your door.

3Install Strike Into Frame
4If Necessary, Change Latch Faceplate
Check edge of door to determine the type of faceplate required.

5
Door Jamb Door Jamb
6

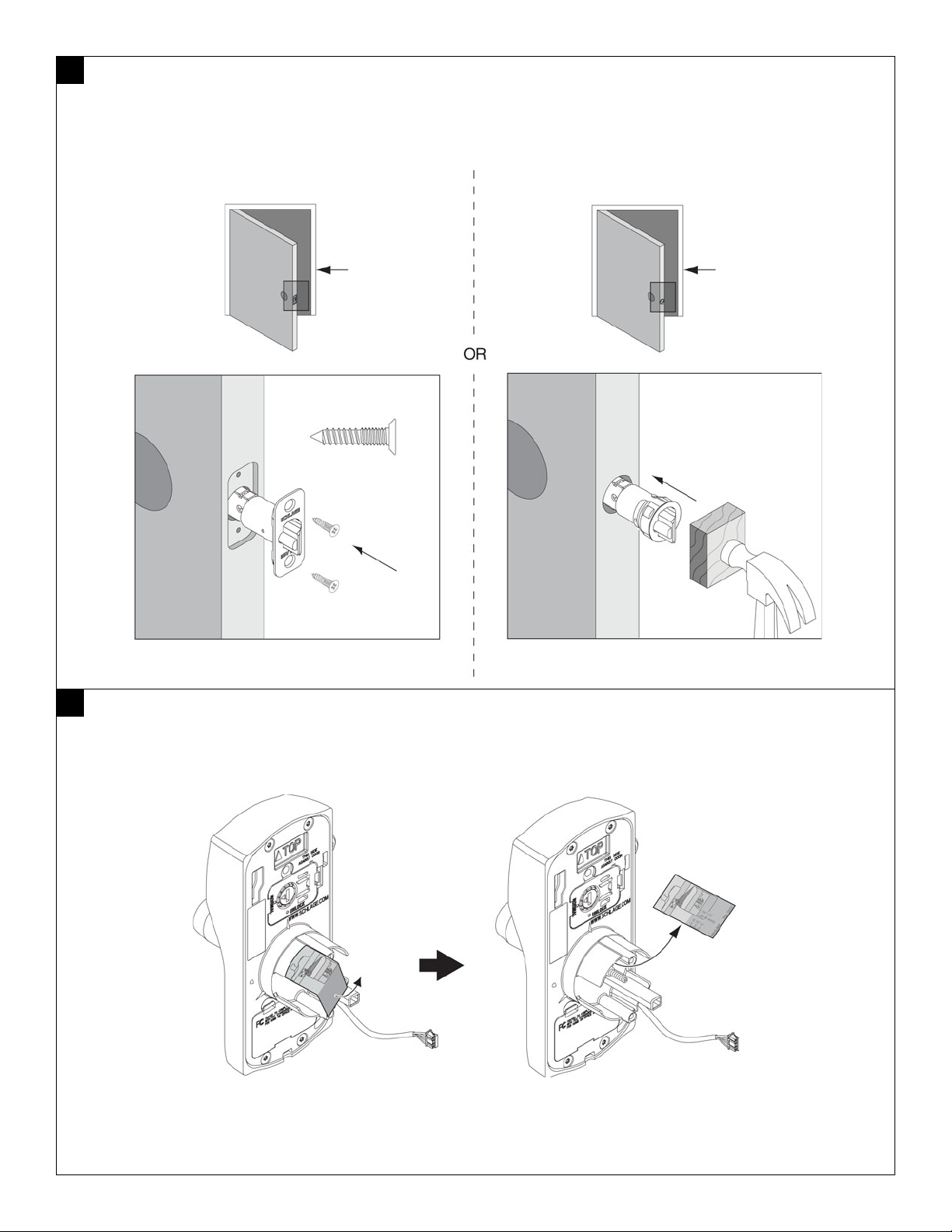

5Install Latch
Latch must be flipped so that bevel faces toward door jamb.
6Remove Sticker from back of Lock

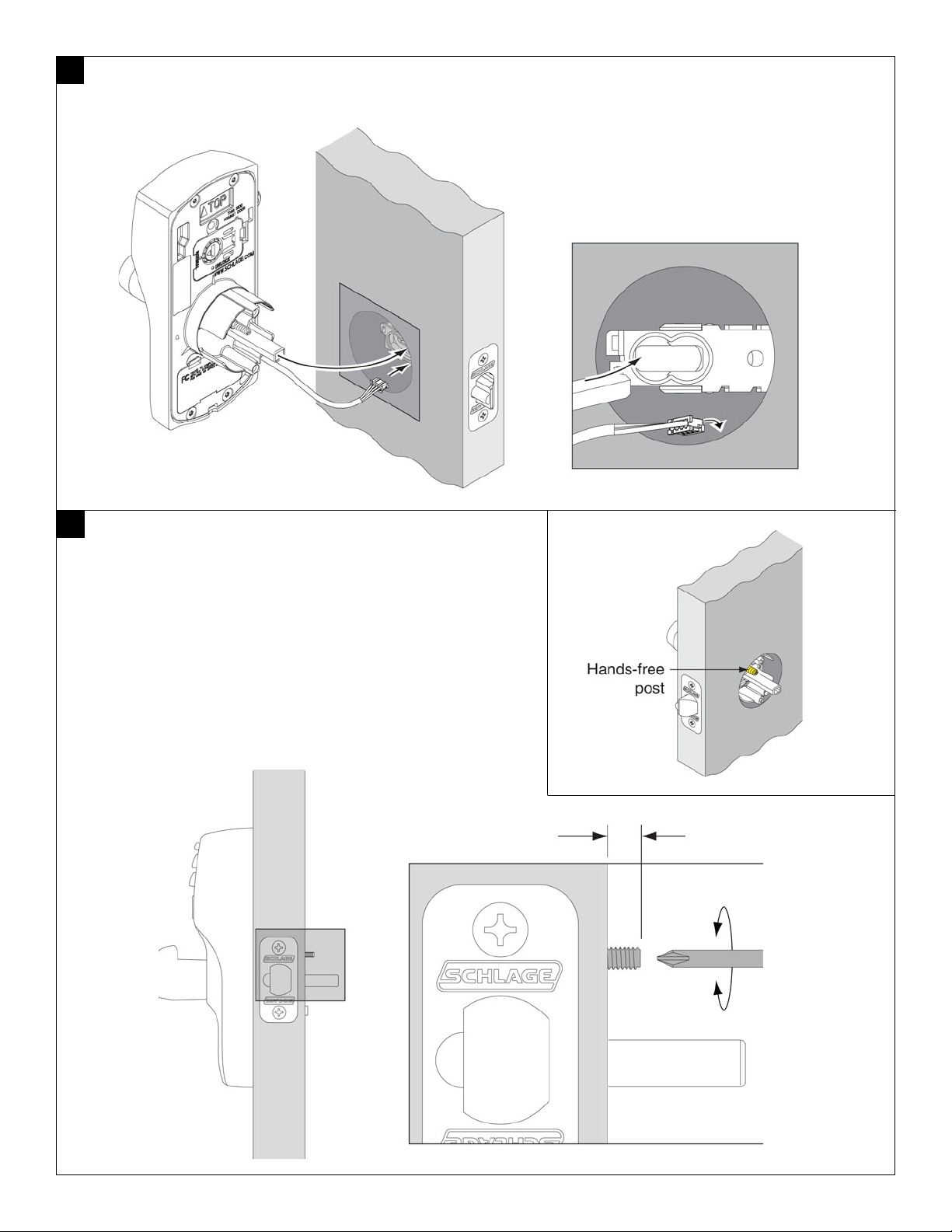

8Adjust Hands-free Post
The hands-free post is the threaded stud on back of lock.
It’s purpose (in step 10) is to attach the lock and baseplate
together so that the lock will hold itself on the door.
Hands free post may need to be adjusted with a screwdriver to
the dimensions shown below.
¹⁄₈”- ¹⁄₄”
(3 mm - 6 mm)
Hold keypad
against door
Adjust with
screwdriver so
screw extends
beyond door
edge.

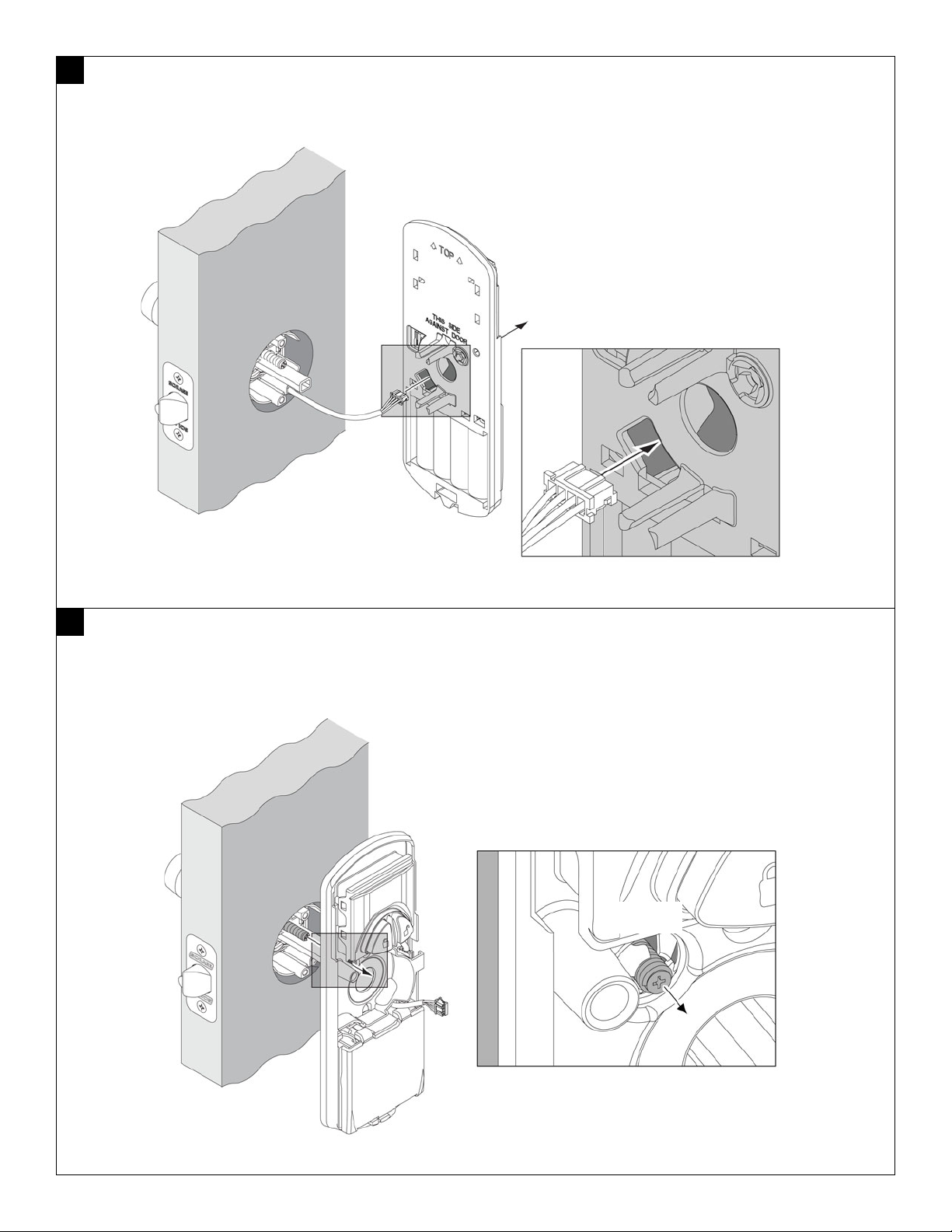

7Install the Keypad
Feed the cable under latch assembly as shown below. Then slide the tailpiece through the hole as shown below.

9
10 Slide Baseplate onto Door over Hands-free post
Hands-free post should lock plate against door surface. If hands-free post does not lock plate onto door, see
step 8 for adjustment.
Hands-free
post
Feed Cable through Baseplate
Feed the cable through the hole as shown below. DO NOT connect the cable at this point.

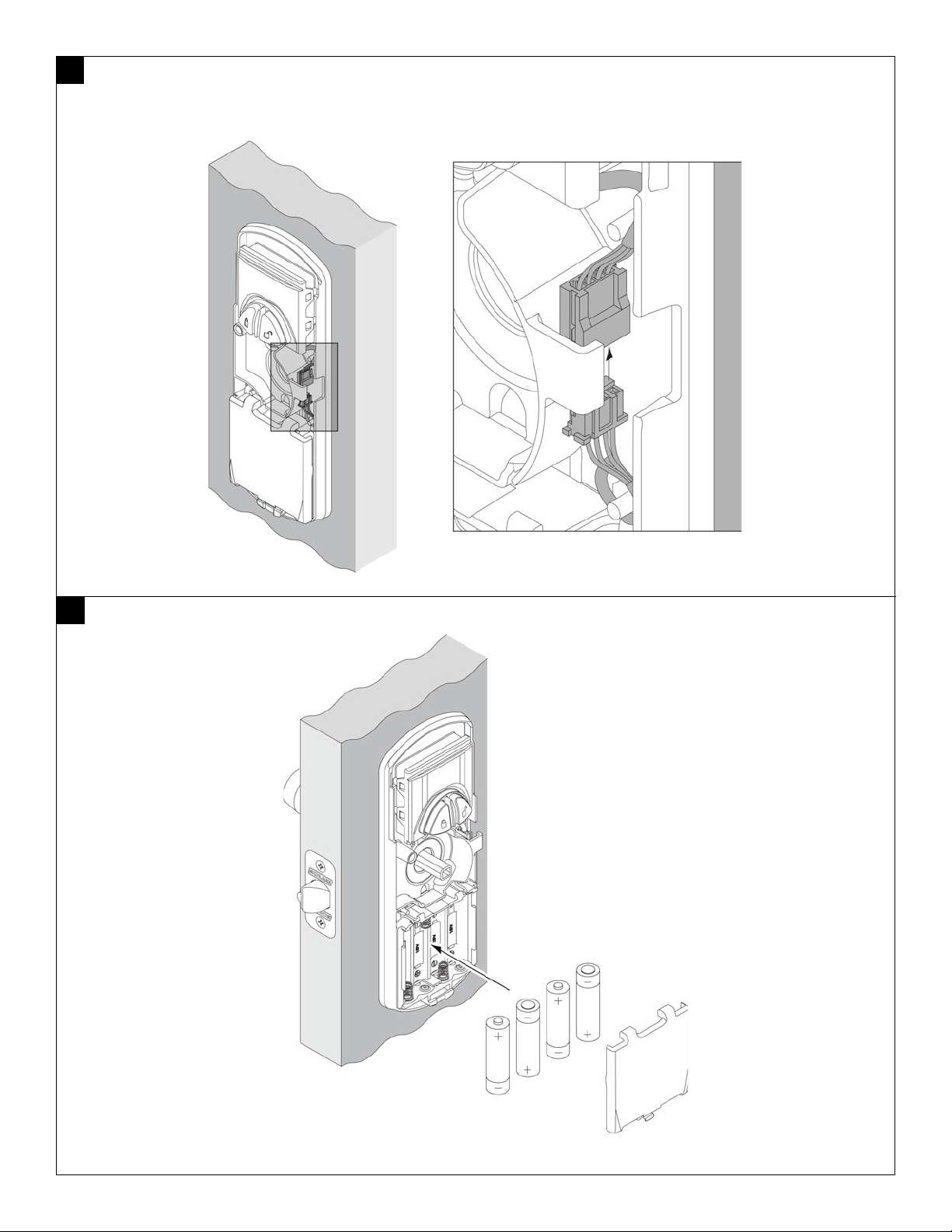

12 Install Batteries and Battery Cover
11 Connect the Cable
Snap the connectors together.

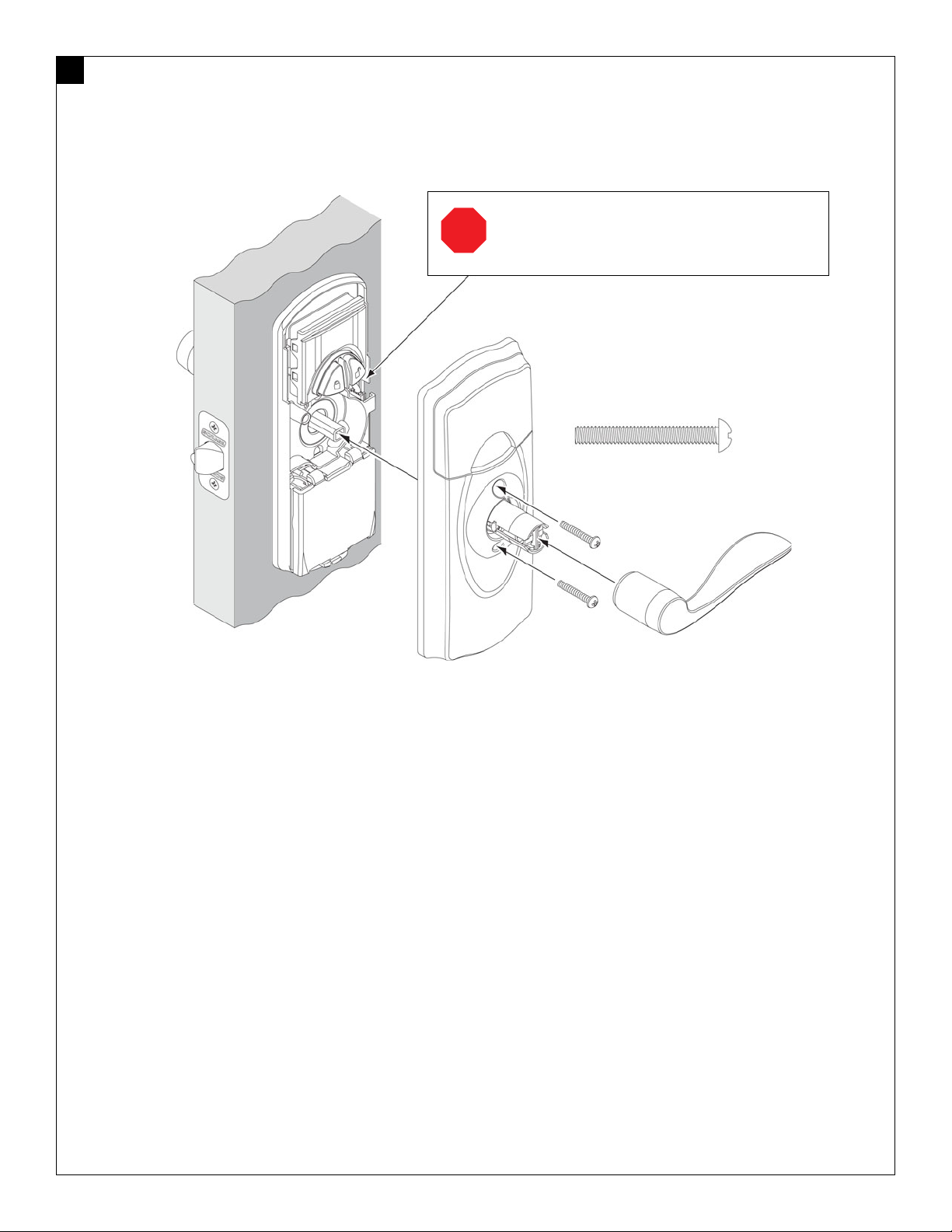

13 Install Cover and Lever
See step 14 on the next page to verify that the lever is handed correctly to match your door. If the lever does not
snap into place easily, you may have to tap the lever with a hammer using a piece of wood to cushion it. Be careful
not to damage the finish of the lever.
!Tuck wires into open space on baseplate.
Be careful not to pinch any wires between
cover and baseplate.

Check Handing of Lever
14
Incorrect
See steps below to
change lever handing
Correct
Go to step 15
To Change Lever Handing
ab
c
d

16
15

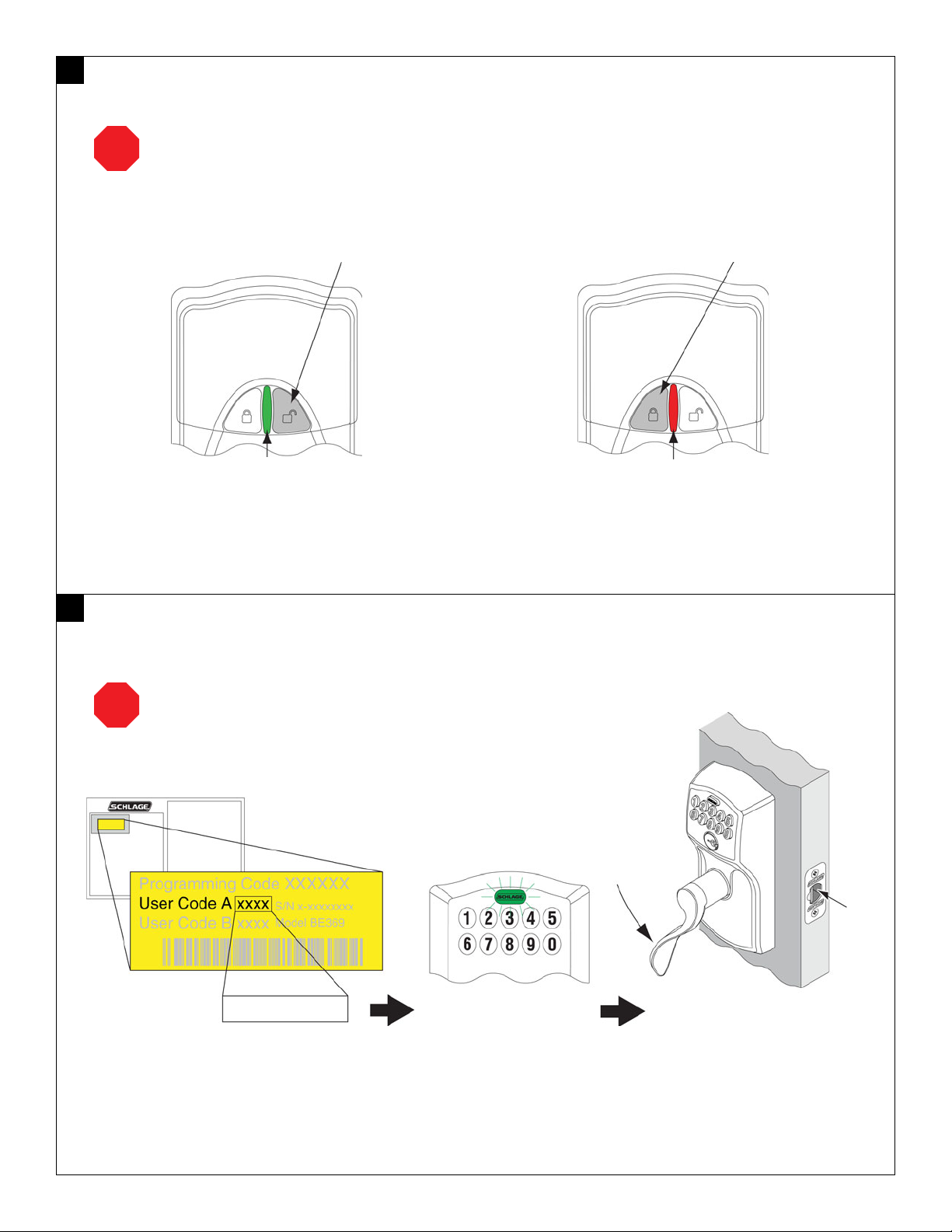

Test Outside Entry (When Door is Locked)
When you press your User Code (four numbers) on the keypad, the door will unlock for 5 seconds, allowing entry.
Test Locking and Unlocking from the Interior
Green light
(indicates unlocked)
Red light
(indicates locked)
To Unlock, Press Button To Lock, Press Button
Press (four numbers) Green flash = unlock
!Test with door open to avoid
possibly being locked out!
Verify that latch retracts
when lever is turned
on keypad
!Test with door open to avoid
possibly being locked out!
