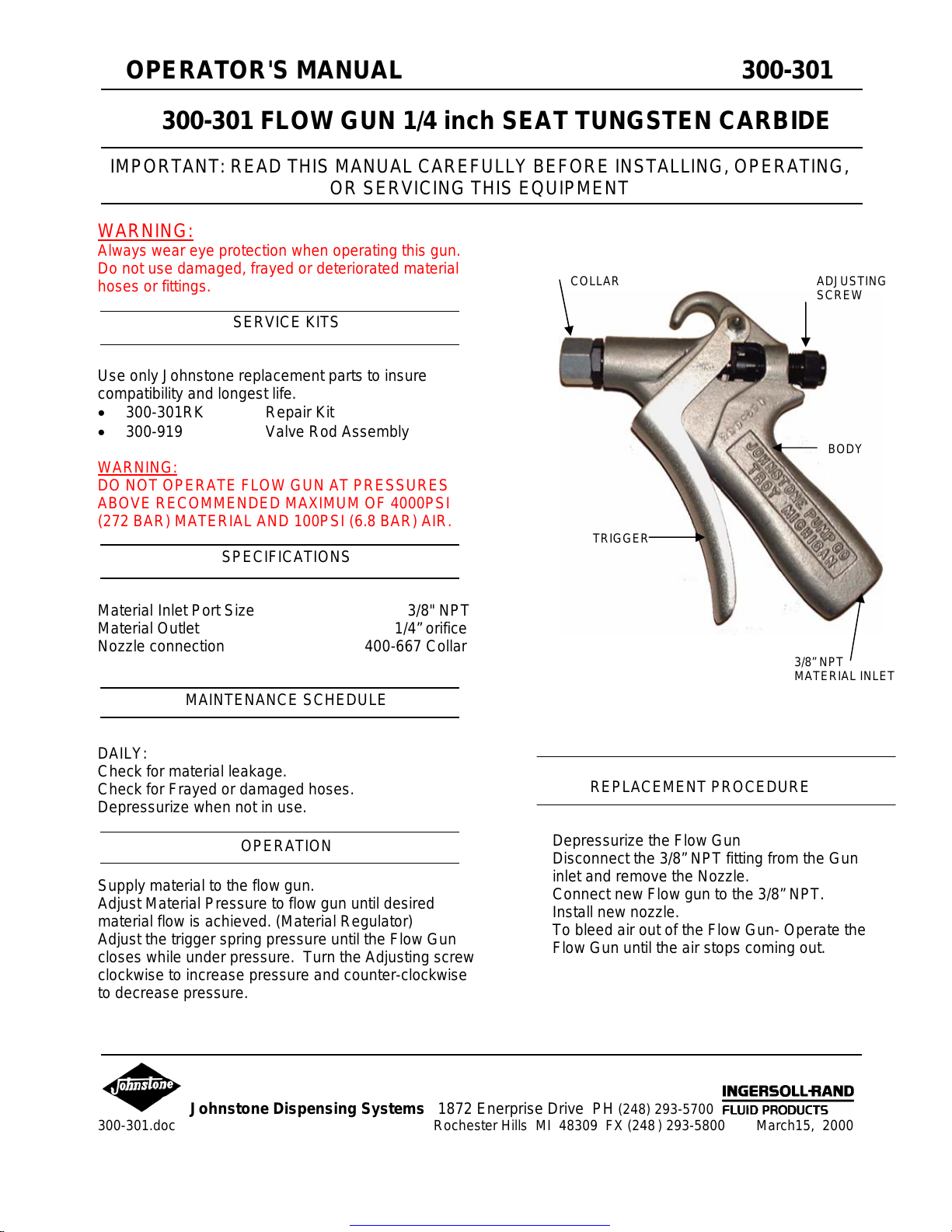

OPERATOR'S MANUAL 300-301
300-301 FLOW GUN 1/4 inch SEAT TUNGSTEN CARBIDE
IMPORTANT: READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING,
OR SERVICING THIS EQUIPMENT
WARNING:
Always wear eye protection when operating this gun.
Do not use damaged, frayed or deteriorated material
hoses or fittings.
SERVICE KITS
Use only Johnstone replacement parts to insure
compatibility and longest life.
•300-301RK Repair Kit
•300-919 Valve Rod Assembly
WARNING:
DO NOT OPERATE FLOW GUN AT PRESSURES
ABOVE RECOMMENDED MAXIMUM OF 4000PSI
(272 BAR) MATERIAL AND 100PSI (6.8 BAR) AIR.
SPECIFICATIONS
Material Inlet Port Size 3/8" NPT
Material Outlet 1/4” orifice
Nozzle connection 400-667 Collar
MAINTENANCE SCHEDULE
DAILY:
Check for material leakage.
Check for Frayed or damaged hoses.
Depressurize when not in use.
OPERATION
Supply material to the flow gun.
Adjust Material Pressure to flow gun until desired
material flow is achieved. (Material Regulator)
Adjust the trigger spring pressure until the Flow Gun
closes while under pressure. Turn the Adjusting screw
clockwise to increase pressure and counter-clockwise
to decrease pressure.
REPLACEMENT PROCEDURE
Depressurize the Flow Gun
Disconnect the 3/8” NPT fitting from the Gun
inlet and remove the Nozzle.
Connect new Flow gun to the 3/8” NPT.
Install new nozzle.
To bleed air out of the Flow Gun- Operate the
Flow Gun until the air stops coming out.
Johnstone Dispensing Systems 1872 Enerprise Drive PH [phone]
300-301.doc Rochester Hills MI 48309 FX [phone] March15, 2000
3/8” NPT
MATERIAL INLET
BODY
TRIGGER
COLLAR ADJUSTING
SCREW
Get other manuals https://www.bkmanuals.com

2
300-301 FLOW GUN 1/4 inch SEAT TUNGSTEN CARBIDE
DISASSEMBLY INSTRUCTIONS
1) Unbolt the Acorn nut and Shoulder screw and
remove the Trigger
2) Unscrew the adjustment screw and remove the
Spring.
3) Remove the Collar and Nozzle.
4) Remove the Valve Seat.
5) The U-ring can be pushed out from the side of
the body.
6) Push the Valve rod assembly out of the body.
7) Using a large flat screwdriver remove the
Packing nut and O’ring.
8) Clean and inspect all parts.
ASSEMBLY INSTRCTIONS
1) Align the holes between the Valve and Stem
and press the roll pin flush with the Valve.
2) Install a lubricated 350-420 O’ring into the
Packing Nut bore.
3) Install the back-up-rings and O’ring into the
Packing Nut and Lubricate.
4) Tighten the Packing Nut into the Body with a
large flat screwdriver.
5) Push the Valve Rod assembly though the
body. (see diagram above)
6) Slide the Trigger Plate and Spacer Sleeve over
the Stem.
7) Install the U-bolt on the Stem.
8) Place the Spring in the Adjusting Screw and
thread it into the Body.
9) Install the 350-167 O’ring on the Seat and
lubricate.
10) Thread the Valve Seat into the body and
tighten.
11) Install the Trigger and tighten the Acorn nut
and Shouder Screw.
12) Install Nozzle and Collar.
400-667
COLLAR 400-690 VALVE SEAT
350-167
O’RING
400-691
VALVE-TC
350-306
ROLL PIN
400-279
STEM
350-166 (2)
BACK UP
350-165 (2)
O’RING
350-420
O’RING 400-160 PACKING
NUT
400-158
TRIGGER
PLATE
400-154
SPACER
SLEEVE
400-872
U-RING 400-164 SPRING 400-155 ADJUSTING
SCREW
400-153
BODY
400-161
TRIGGER 400-873
SHOULDER
SCREW
350-335
ACORN NUT
300-919
VALVE ROD ASSEMBLY
