INNOVAPLAS Lumi-O ROYAL ENTRANCE II User manual

ROYAL ENTRANCE II WITH DECK
Step Shell
Sand
15 lbs
Sand
(not included)
A
Contents of the Accessories box #2020-HRK
x2
x2
x4
x2 x8 x8
(2 ½ IN.)
x12x2
x2
x2
x16
x2
x2
(2 ¾ IN.)
(3 ¼ IN.)
(1 ½ IN.) (¾ IN.)
x2
x2
(3 IN.)
x2
2) Align the light cover's two alignment rods into the small holes at the top of
the larger hole. Insert the light cover by pressing firmly.
Light cover
Required tools (not included)
Phillips #2
Phillips #3
SCREW KIT 140-0070
A B C D E F G H I J
REV. 03/09/2020 PN: PG:1
2257 route 139
Drummondville, Québec
J2A 2G2
1 year on pool step.
1 year on hardware.
MANUFACTURER WARRANTY
WWW.INNOVAPLAS.COM
* View step cups installation tips on YouTube:
https://www.youtube.com/watch?v=W5RH1VNxpu0
1) Insert the two Step CupsTM in the holes under the step.*
A2) With a flat screwdriver, compress
the Step Cup mushroom ring while
pushing it into the hole.
A1) Insert half of the Step Cup mushroom
ring in the hole, at a 45 degree angle.
A3) Twist the Step Cup to ensure that
the mushroom ring has entirely cleared
the wall thickness. If it has, the suction
cup should rotate freely.
Phillips bit
7/16 wrench
WARNING
Install the step on a flat surface.
Do not jump or dive from the step.
Remove the step from water when temperatures drop below freezing.
In winter, the step should be stored in an area protected from snow.
Never lift the step by its handrails.
Use BATTERY operated tools to avoid electric shock near water.
Ensure no corrosive materials are added to the step or harware kit.
The step must be installed per manufacturer’s instructions.
File off all stripped or sharp edges before assembly to avoid injuries
and liner damage.
The manufacturer is not responsible for damages or injuries caused
by improper installation or use of product.
To ease the installation of handrails and bolts, use a screwdriver to
line up the holes.
CAUTION
Failing to install the Step CupTM system will greatly
reduce the steadiness of the step and will void the
manufacturer warranty.

B
C
D

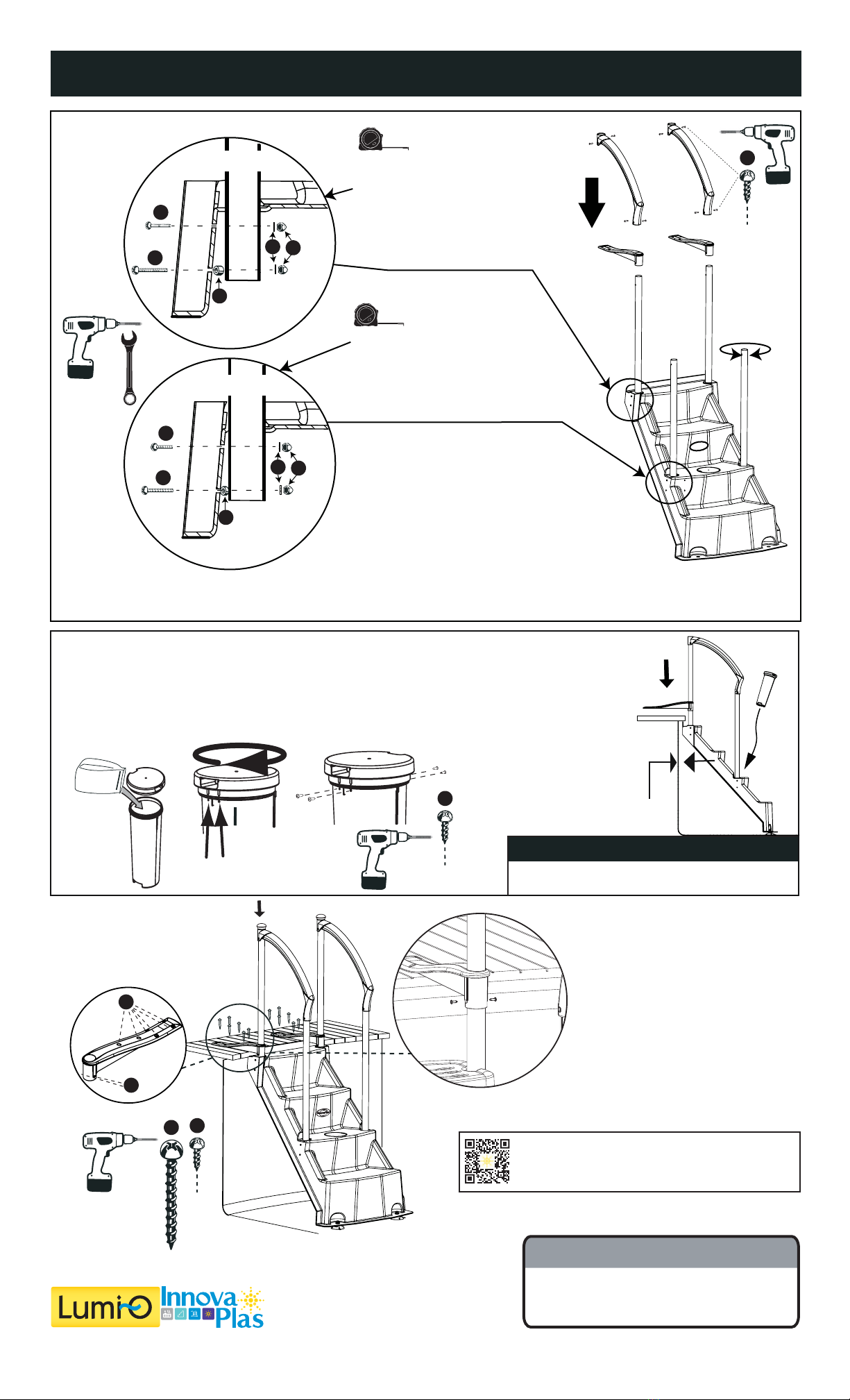

1) Start the assembly with the two top
posts. Using a tape measure, identify the
correct bolts: two 2 ¾" bolts and two 3 ¼"
bolts. Use the thickest spacers, nuts, and
washers. Assemble following the directions
in the left medallion. Do not tighten yet.
2) Assemble the two bottom posts. Using a
tape measure, identify the correct bolts:
two 2 ½" and two 3" bolts. Use the thinnest
spacers, nuts, and washers. Complete the
assembly by following the instructions in
the left medallion. Do not tighten yet.
3) Adjust the vertical alignment of the posts by
applying a slight rotation.
4) Slide the deck supports over the top post. Do not
secure yet.
5) Insert the handrails over the posts. Secure it using
the screws provided.
6) Before tightening the posts to the step as described
in steps 1 & 2, make sure that the posts are vertical
and perpendicular to the step.
I
J
ROYAL ENTRANCE II WITH DECK
MINIMUM 1"
CAUTION
To prevent pool liner puncture, keep a minimum 1" gap
between the pool liner and the rear underside of the step.
Sable
15 LBS
1) Fill the ballast
with sand. The
approximate weight
should be 15 lbs.
Align holes.
2) Screw the lid in place
and align the cover ribs
with the holes in the
ballast base.
3) Fasten the cover to the
ballast base with the four
screws provided.
x4
I
4) Slowly submerge the
step into the pool. Make
sure you do not damage
the pool liner in the
process.
5) Slide the deck supports
to the height of the deck.
6) Drop the ballast in the
step hole.
x8
I
B
H
EF
D
x2
x2
x2
x2
x2
x2
x4
TOP POSTS
BOTTOM POSTS
EFx4
A
C
G
REV. 03/09/2020 PN: PG:2
2257 route 139
Drummondville, Québec
J2A 2G2
1 year on pool step.
1 year on hardware.
MANUFACTURER WARRANTY
WWW.INNOVAPLAS.COM
1) Affix the deck supports to the
deck with the screws supplied.
2) Install the post covers on the
handrails.
3) Pull the deck supports (already
fixed to the deck) upwards to create
a spring effect on the step.
4) Fasten the supports to the rear
posts while pushing the entire step
downwards.
For the installation of the optional safety fence to
prevent swimming behind the step, visit our website:
http://innovaplas.com/instructions
J
x12
x4
I
