Insignia NS-HFTVS3N175 User manual

Before using your new product, please read these instructions to prevent any damage.
ASSEMBLY GUIDE
3-in-1 TV Stand
NS-HFTVS3N175

www.insigniaproducts.com
2
Contents
IMPORTANT SAFEGUARDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Tools needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Assembling your stand. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Mounting the TV using the swivel configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Mounting the TV using the wall-mount configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Mounting the TV using the tabletop configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Maintaining your TV stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
ONE-YEAR LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

www.insigniaproducts.com 3
3-in-1 TV Stand
IMPORTANT SAFEGUARDS
WARNING
CAUTION
The top surface of this stand is designed for use with a product weighing no more than 100 lbs. (45.4 kg) and having a
width that permits it to sit evenly on the stand with no more than a one-inch overhang on each side of the shelf. Use
with products that weigh more than the maximum weight allowed, or with dimensions that extend beyond the
maximum width may result in instability, which may result in injury.
CAUTION
This product contains small items that could be a choking hazard if swallowed. Keep these items away from young
children!
WARNING
Please use your stand correctly and safely. Improper use can cause safety hazards or damage to your furniture or
household items. Carefully read the following chart.
SAVE THESE INSTRUCTIONS
LOOK OUT FOR: WHAT CAN HAPPEN: HOW TO AVOID THE PROBLEM:
• Children climbing on the
stand.
• A child may try to reach a
toy or other object by
climbing on the stand.
• Children will play and be
active near the TV.
• Risk of injury or death.
• A child climbing on the
stand can make it
top-heavy and cause it to
tip over.
• A child playing with a TV
can cause it to tip over.
• Never allow children to climb on or play with
the stand.
• Do not place toys or food on the top shelves.
Children may try to climb to reach them out of
curiosity.
• Improper use of the stand
to support TVs.
• The stand is designed for
use with TVs will specify
the maximum weight
rating and recommended
size of the TVs it will safely
support.
• Risk of injury or death.
• TVs can be very heavy.
Note, older CRT TVs tend
to be unbalanced and
prone to tipping forward.
• A TV must only be set on furniture specifically
designed to support a television.
• Never use a TV that exceeds the weight ratings
or size guidelines specified for the stand.
• Improperly moving the
stand.
• The stand can tip over or
break if improperly
moved.
• Risk of injury.
• Unload shelves from the top to the bottom
before moving the stand.
• Do not push the stand, especially on a carpeted
floor. Have a friend help you lift the item and set
it in place.
• Do not lift the stand using the top shelf. Lift
from the frame or leg assembly.
• Remove the TV before moving the TV stand.
• The TV/stand assembly
tipping forward.
• Risk of injury.
• Top-heavy furniture can
tip over.
• The TV and stand could
be damaged.
• Use the tipping restraint hardware provided
and install it properly.
Some steps are more easily
handled with two adults.

www.insigniaproducts.com
4
Features
• 3-in-1 display system lets you tilt (5° up/11° down) or swivel (45° left/right) your TV to find the best view
• Sturdy mount supports most flat screen TVs up to 75 in. (190.5 cm) and 100 lbs. (45.4 kg)
• Three open shelves provide space for cable boxes, Blu-ray players, game consoles and more
• Textured wood grain laminate in a neutral gray looks great in any living room
• Anti-tip hardware protects children and pets from accidental tip-overs
• Compatible VESA configurations:
• 200 × 200
• 200 × 300
• 300 × 300
• 400 × 200
• 400 × 300
• 400 × 400
• 600 × 400

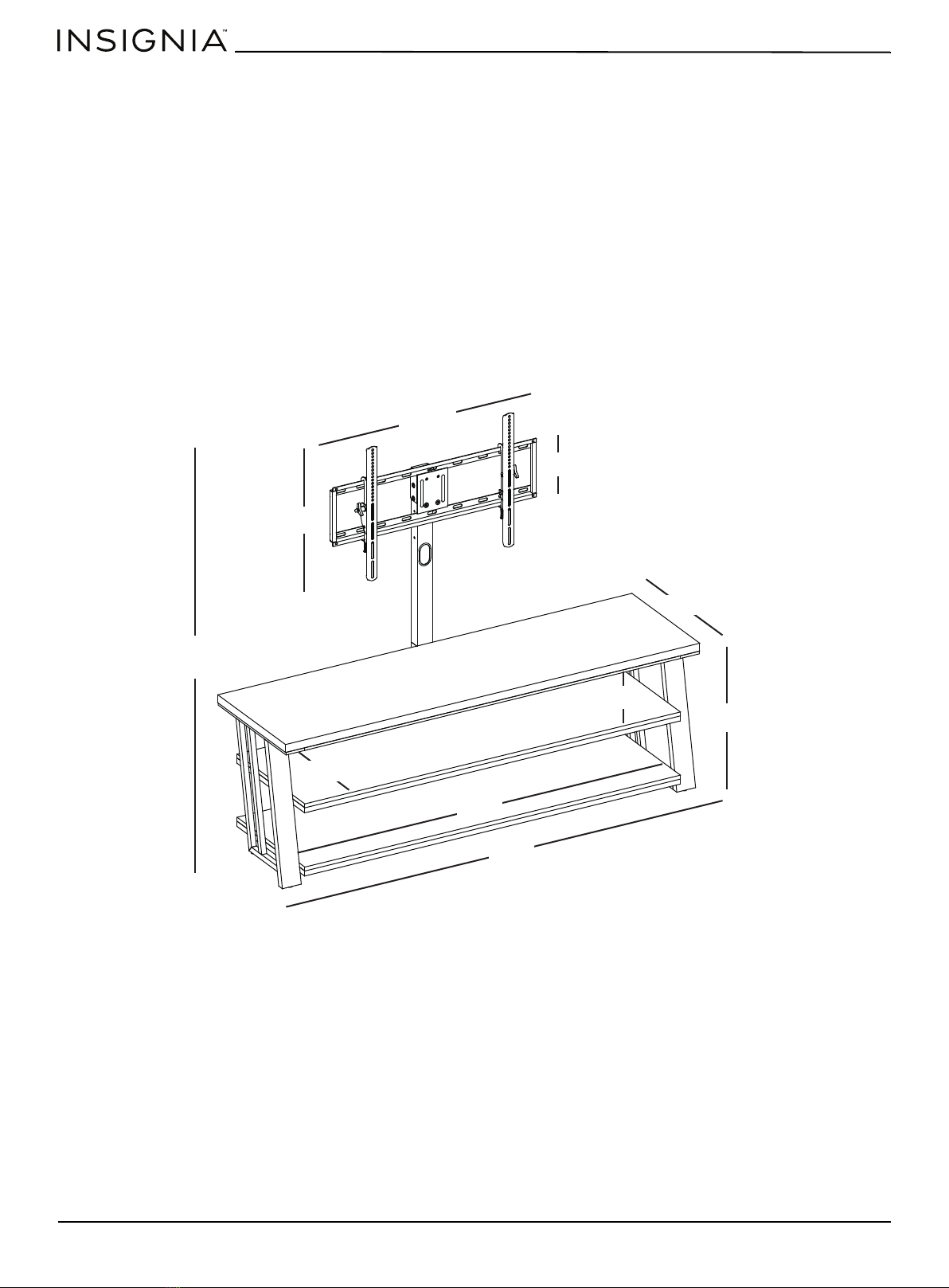

Dimensions
57.7 in.
(146.7 cm)
32 in.
(81.3 cm)
22.3 in. (56.5 cm)
20 in. (50.8 cm)
8.8 in. (22.2 cm)
8 in. (20.5 cm)
58.9 in.
(149.7 cm)
18.4 in. (46.8 cm)
65 in.
(165.1 cm)
21 in. (53.3 cm)

www.insigniaproducts.com 5
3-in-1 TV Stand
Package contents

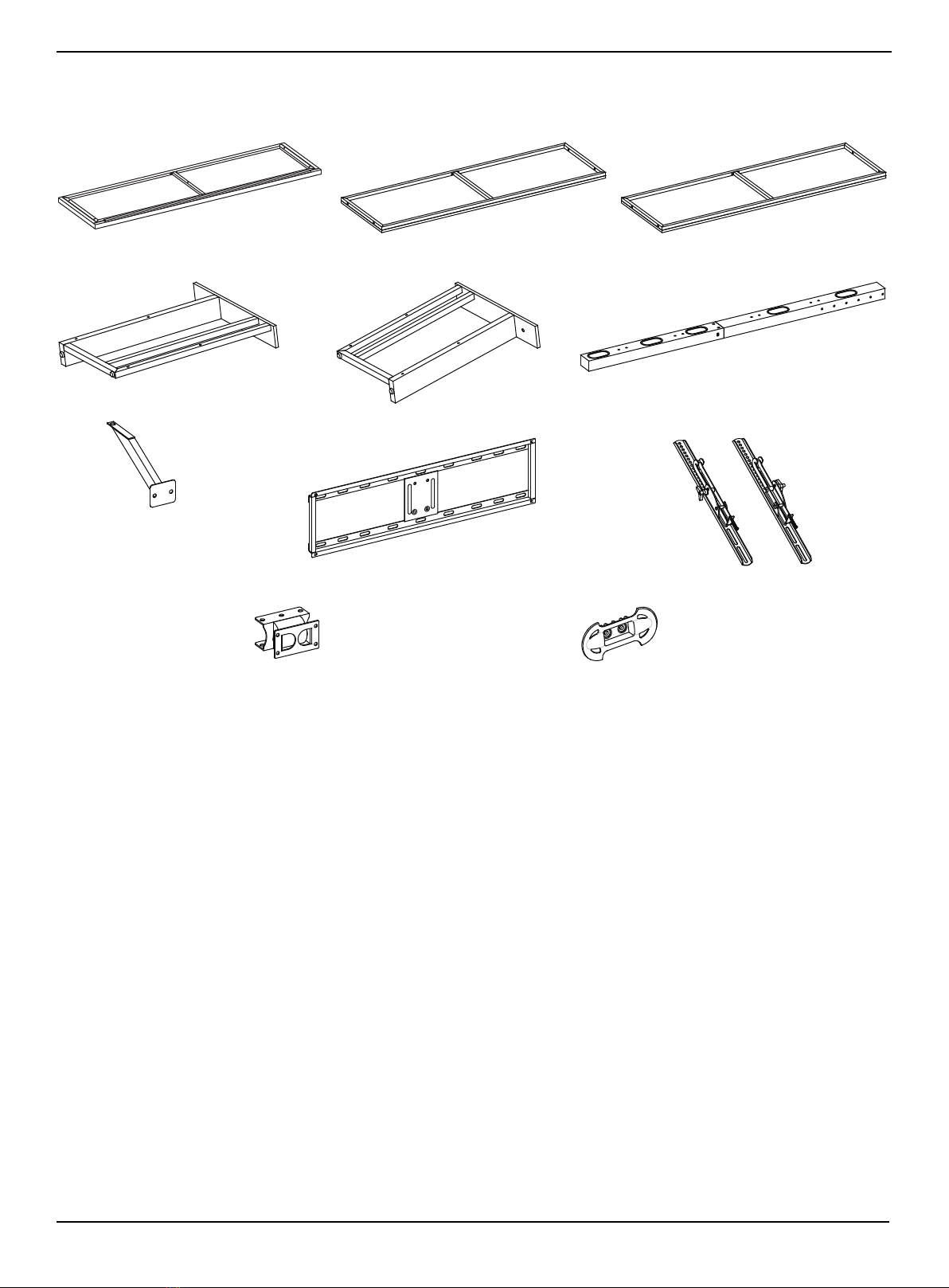

Parts
ATop shelf frame (1) BMiddle shelf (1) CBottom shelf (1)
DLeft side frame (1)
ERight side frame (1)
FSpine assembly (1)
G Top shelf support (1)
HSwivel bracket (1)
IMounting frame (1) JTV bracket (2)
KCable clip (2)

www.insigniaproducts.com
6
Hardware
LABEL STAND PART QTY. LABEL STAND PART QTY.
L4V1
M13 W2
N4X1
O12 Y1
P2Z1
Q29 AA 4
R29 BB 4
S4CC 4
T4DD 4
U4EE 4
Bolt 1/2" (12.7 mm)
Plastic end cap
Bolt 5/8" (15.9 mm)
Hex key 4 mm
Bolt 1"’(25.4 mm)
Hex key 4.8 mm
Bolt 1 1/4" (31.6 mm)
Touch-up pen
Bolt 1 3/4" (44.5 mm)
Tipping restraint hardware kit
Lock washer
Bolt M4 × 12 mm
Flat washer
Bolt M4 × 30 mm
Lag bolt
Bolt M5 × 12 mm
Concrete anchor
Bolt M5 × 30 mm
Large flat washer
Bolt M6 × 12 mm

www.insigniaproducts.com 7
3-in-1 TV Stand
Hardware (continued)
Tools needed
LABEL STAND PART QTY. LABEL STAND PART QTY.
FF 4MM 4
GG 4NN 4
HH 4OO 4
II 4PP 4
JJ 4QQ 4
KK 4RR 4
LL 4
Bolt M6 × 35 mm
Lock washer M6
Bolt M8 × 16 mm
Lock washer M8
Bolt M8 × 20 mm
Large spacer
Bolt M8 × 40 mm
Small spacer
Bolt M8 × 50 mm
Flat washer M4/M5
Lock washer M4
Flat washer M6/M8
Lock washer M5
Phillips screwdriver
Edge-to-edge stud finder
Level Socket wrench
Hammer
Pencil
1/8”drill bit (for tipping
restraint)
3/16”wood drill bit
or
7/16”masonry drill bit
Power drill

www.insigniaproducts.com
8
Assembling your stand

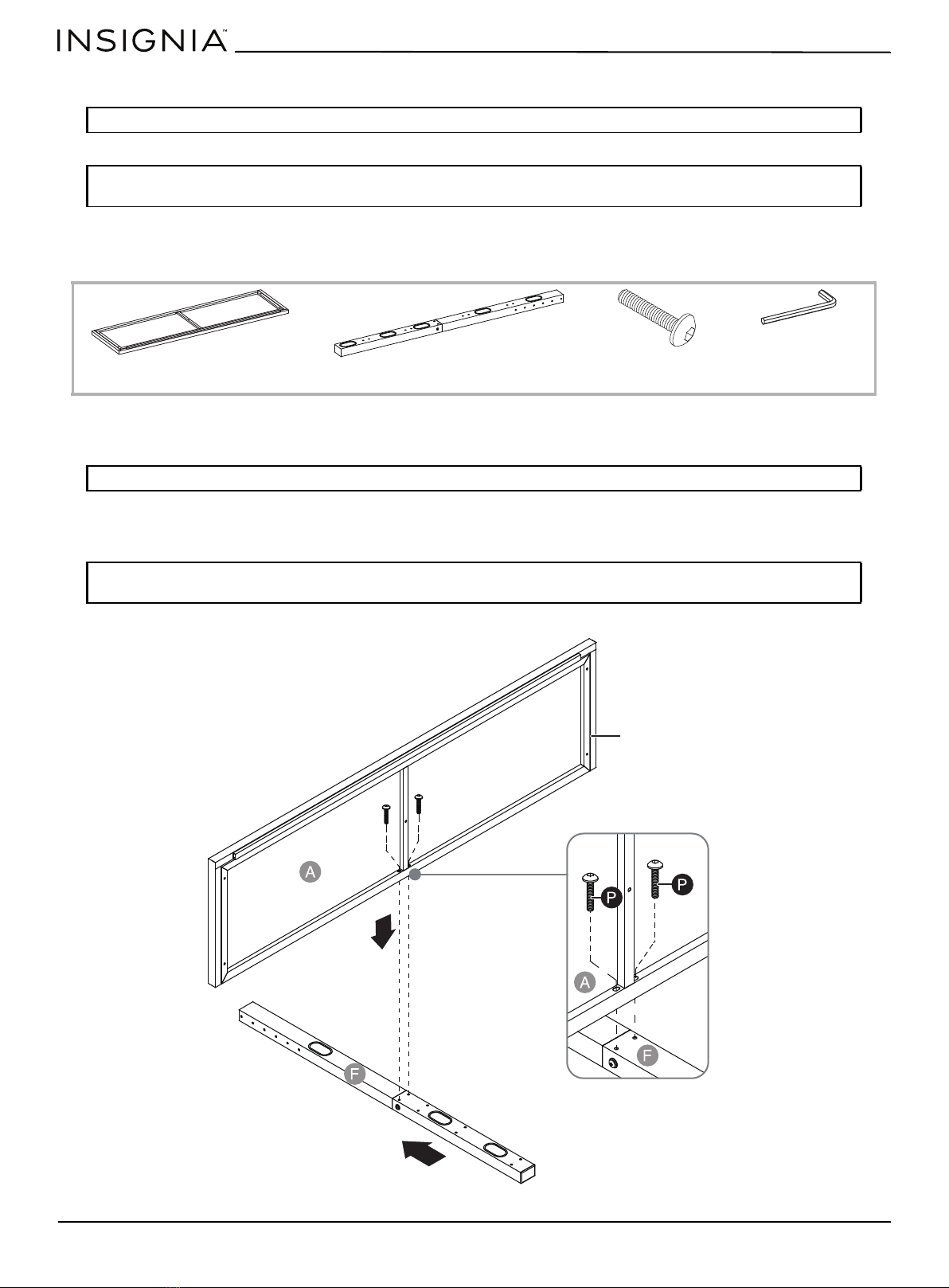

STEP 1: Attach the top panel to the spine
You need:
1Align the top shelf frame (A) at a 90° angle to the spine assembly (F). Make sure that the drilled holes on the frame align
with the threaded holes on the spine.
2Insert two 1 3/4" bolts (P) through the drilled holes on the frame (A), then screw them into the holes on the spine
assembly with the 4 mm hex key (W).
Tip: Assemble your stand on a carpeted floor or the empty TV stand carton to avoid scratching it.
Note: Do not fully tighten all bolts until you finish assembling all of the parts. After assembly, go back and fully
tighten all bolts. This will make the assembly easier.
Note: The metal frame faces the floor when you turn your stand upright.
Note: Do not fully tighten all bolts until you finish assembling all of the parts. After assembly, go back and fully
tighten all bolts. This will make the assembly easier.
ATop shelf frame (1) FSpine assembly (1) PBolt 1 3/4" (2)
W4 mm hex key (1)
Metal frame

www.insigniaproducts.com 9
3-in-1 TV Stand
STEP 2: Attach the top shelf support to the top panel and spine
You need:
1Align the top shelf support (G) with the center of the top shelf frame (A).
2Place a flat washer (R), then a lock washer (Q) over the hole in the top of the shelf support and in the two holes on the
bottom of the shelf support.
3Insert a 5/8" bolt (M) through each sets of washers, then tighten the bolts with the 4 mm hex key (W).
GTop shelf support (1)
M5/8" bolt (3) W4 mm hex key (1)
QLock washer (3) RFlat washer (3)

www.insigniaproducts.com
10
STEP 3: Attach the middle shelf to the spine
You need:
1Place flat washers (R), then lock washers (Q) over the two drilled holes on the middle shelf (B).
2Insert 1 1/4" bolts (O) through the washers and into the two threaded holes in the middle of the spine (F). Tighten the
bolts with the 4 mm hex key (W).
Note: The metal frame faces the floor when you turn your stand upright.
W4 mm hex key (1)
QLock washer (2) RFlat washer (2)
O1 1/4" bolt (2)
BMiddle shelf (1)
Metal frame

www.insigniaproducts.com 11
3-in-1 TV Stand
STEP 4: Attach the bottom shelf to the spine
You need:
1Place flat washers (R), then lock washers (Q) over the two drilled holes on the bottom shelf (C).
2Insert 1 1/4" bolts (O) through the washers and into the two threaded holes on the outer edge of the spine (F). Tighten
the bolts with the 4 mm hex key (W).
Note: The metal frame faces the floor when you turn your stand upright.
CBottom shelf (1)
WHex key 4 mm (1)
QLock washer (2) RFlat washer (2)
O1 1/4" bolt (2)
Metal frame

www.insigniaproducts.com
12
STEP 5: Align and attach the right side frame to the shelves
You need:
1Place flat washers (R), then lock washers (Q) over the four drilled holes on the inside of the lower shelves (Band C).
2Insert 1 1/4" bolts (O) through the washers and into the four threaded holes on the right side frame (E). Tighten the
bolts with the 4 mm hex key (W).
Note: Make sure that the mounting holes on the top rail of the right side frame (E) overlap the threaded holes
underneath the top shelf frame (A) correctly.
WHex key 4 mm (1)
QLock washer (4) RFlat washer (4)
O1 1/4" bolt (4)
ERight side frame (1)

www.insigniaproducts.com 13
3-in-1 TV Stand
STEP 6: Attach the right side frame to the top panel
You need:
1Place flat washers (R), then lock washers (Q) over the two drilled holes on the inside of the top rail of right side
frame (E).
2Insert 1" bolts (N) through the washers and into the two threaded holes on the top panel (A). Tighten the bolts with the
4 mm hex key (W).
WHex key 4 mm (1)
QLock washer (2) RFlat washer (2)
N1" bolt (2)

www.insigniaproducts.com
14

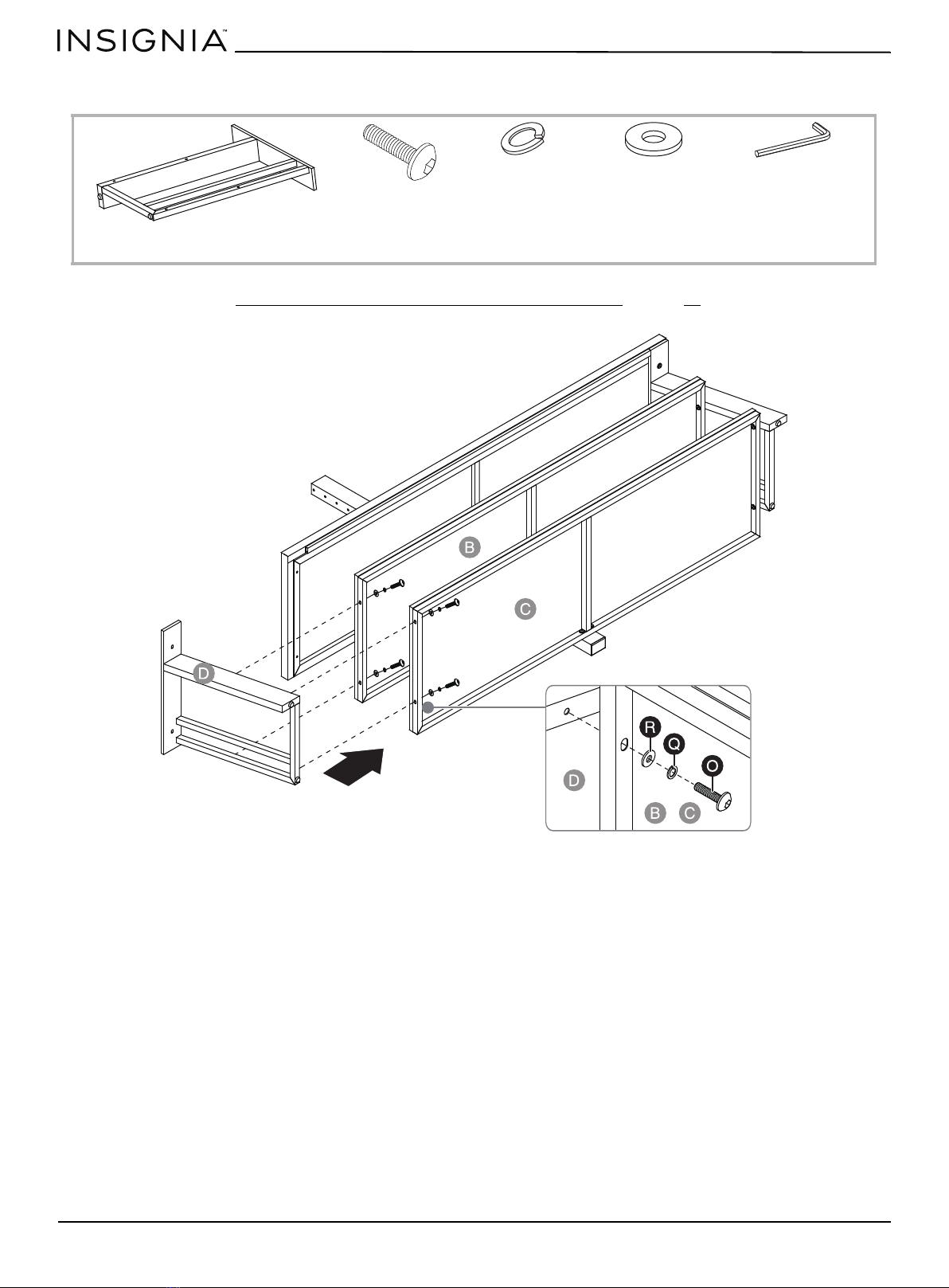

STEP 7: Attach the left side frame to the shelves
You need:
• Follow the steps in STEP 5: Align and attach the right side frame to the shelves on page 12 to attach the left side
frame (D) to the lower shelves (Band C).
WHex key 4 mm (1)
QLock washer (4) RFlat washer (4)
DLeft side frame (1)
O1 1/4" bolt (4)

www.insigniaproducts.com 15
3-in-1 TV Stand

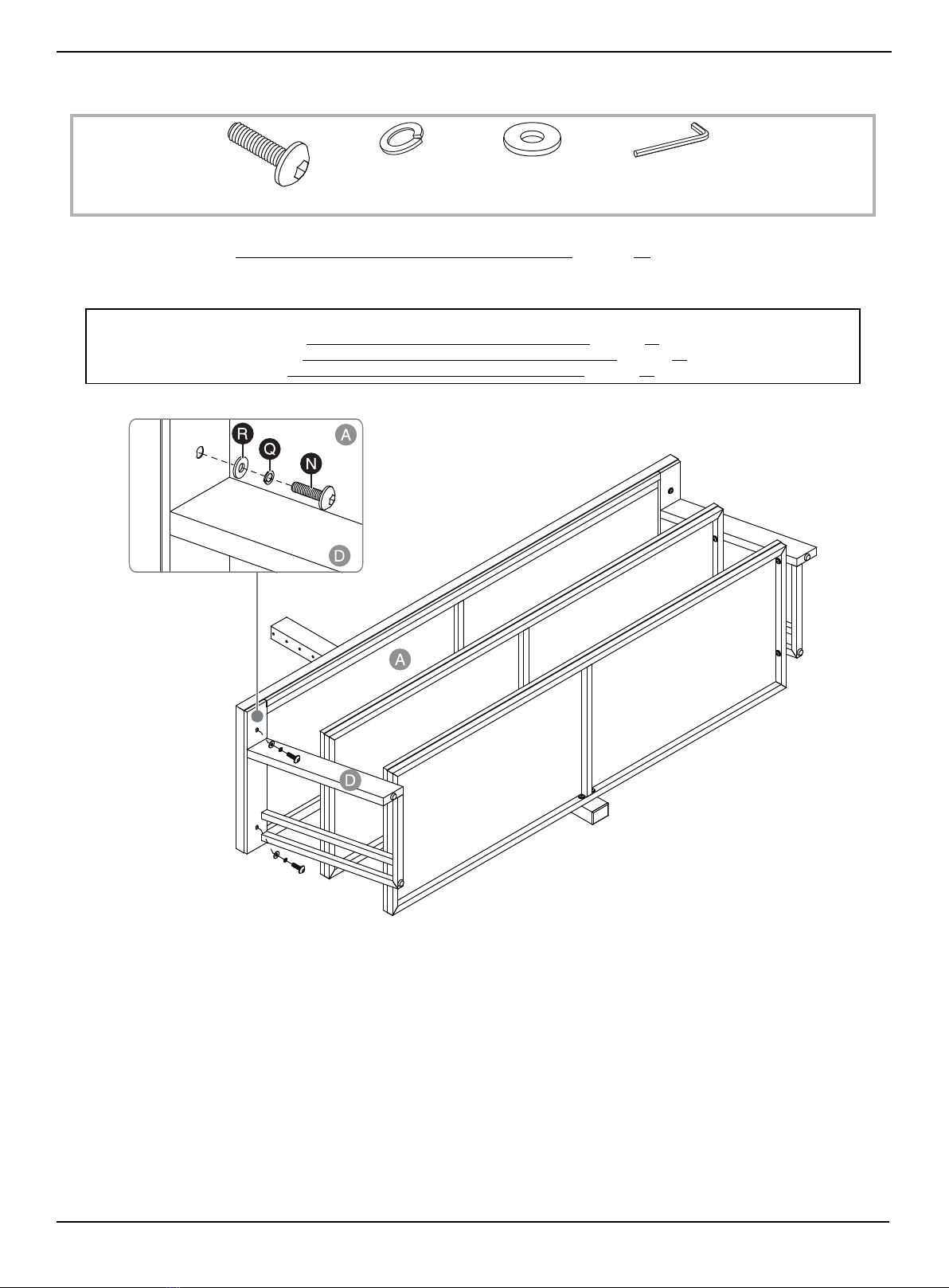

STEP 8: Fasten the left side frame to the top panel
You need:
1Follow the steps in STEP 6: Attach the right side frame to the top panel on page 13 to attach the left side frame (D) to
the top shelf frame (A).
2Stand the assembled frame upright.
Note:
• For swivel stand assembly, go to Mounting the TV using the swivel configuration on page 16.
• For wall-mount assembly, go to Mounting the TV using the wall-mount configuration on page 26.
• For table top assembly, go to Mounting the TV using the tabletop configuration on page 33.
WHex key 4 mm (1)
QLock washer (2) RFlat washer (2)
N1" bolt (2)

www.insigniaproducts.com
16
Mounting the TV using the swivel configuration
STEP 1: Attach the swivel bracket to the mounting frame
You need:
1Align the four mounting holes on the swivel bracket (H) with the holes on the back side of the mounting frame (I). Make
sure that the hex nut on the swivel bracket and the two recessed holes on the mounting frame point in the same
direction.
2Place a flat washer (R), then a lock washer (Q) over each of the mounting holes on the back of the swivel bracket (H).
3Insert a 1/2" bolt (L) through the washers and into each of the threaded holes on the mounting frame (I).
4Tighten the bolts with the 4 mm hex key (W).
Note: If you are wall-mounting the TV, go to STEP 4: Select the correct bolts, washers, and spacers for your TV on page 19.
Note: The hex nut and recessed holes point in the same direction.
HSwivel bracket (1)
IMounting frame (1)
WHex key 4 mm (1)
QLock washer (4)RFlat washer (4)
L 1/2" bolt (4)
Hex nut
Recessed holes

www.insigniaproducts.com 17
3-in-1 TV Stand
STEP 2: Attach the swivel bracket assembly to the spine
You need:
1Place a flat washer (R), then lock washer (Q) over one of the holes on the side of the swivel bracket.
2Insert a 5/8" bolt (M) through the washers and into the threaded hole on the spine assembly (F).
3Repeat steps 1 through 2 for the five remaining holes.
4Tighten the bolts with the 4 mm hex key (W).
Note: The upper spine provides four height options for your TV. Based on your TV size, adjust the swivel bracket (H)
to the best height to offer optimum viewing.
WHex key 4 mm (1)
QLock washer (6) RFlat washer (6)
M5/8" bolt (6)
The pivot bolt head
is located at the top

www.insigniaproducts.com
18
STEP 3: Attach the cable clips
You need:
1Align a cable clip with two of four possible locations on the spine assembly (F), then insert two 5/8" bolts (M) through
the cable clip and into the spine assembly.
2Repeat for the other cable clip.
3Tighten the bolts with the 4 mm hex key (W).
KCable clip (2) M5/8" bolt (4)
WHex key 4 mm (1)
Cables wrapped on cable clips

www.insigniaproducts.com 19
3-in-1 TV Stand
STEP 4: Select the correct bolts, washers, and spacers for your TV
If you are in doubt about which size bolt to use, try one of the bolts in one of the four Vesa mounting holes on the back of
your TV. A bolt that is too large will not fit in the hole at all, but make sure that the bolt size you choose is not too loose. It
should grip the hole threads evenly and not wobble. After you determine which size bolts to use, go to the next step.
M4 hardware assembly:
•M4×12mmbolts(AA) top screw holes
•M4×30mmbolts(BB) bottom screw holes
• M4 lock washers (KK)
• M4/M5 flat washers (QQ)
• Small spacers (PP)
M5 hardware assembly:
•M5×12mmbolts(CC) top screw holes
•M5×30mmbolts(DD) bottom screw holes
• M5 lock washers (LL)
• M4/M5 flat washers (QQ)
• Small spacers (PP)
M6 hardware assembly:
•M6×12mmbolts(EE) top screw holes
•M6×35mmbolts(FF) bottom screw holes
• M6 lock washers (MM)
• M6/M8 flat washers (RR)
• Large spacers (OO)
M8 hardware assembly:
•M8×16mmbolts(GG) or M8 × 20 mm bolts (HH) top screw holes
• M8 x 40 mm bolts (II) or M8 × 50 mm bolts (JJ) bottom screw holes
• M8 lock washers (NN)
• M6/M8 flat washers (RR)
• Large spacers (OO)

www.insigniaproducts.com
20
STEP 5: Determine whether your TV has a flat back or an irregular or obstructed back or a curved
screen
1Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from damages and
scratches.
2If your TV has a table-top stand attached, remove the stand. See the documentation that came with your TV for
instructions.
3Lay the TV brackets, oriented vertically, on the back of your TV.
4Align the screw holes in the TV brackets with the mounting screw holes on your TV.
5Identify which type of back your TV has:
•Flat back: The brackets lay flush against the back of your TV and do not block any jacks. You do not need spacers when
assembling the wall mount.
•Obstructed back: The brackets block one or more of the jacks on the back of your TV. You need spacers when
assembling the wall mount.
•Irregularly-shaped back: There is a gap between a bracket and some part of the back of your TV. You need spacers
when assembling the wall mount.
6Remove the TV brackets.
